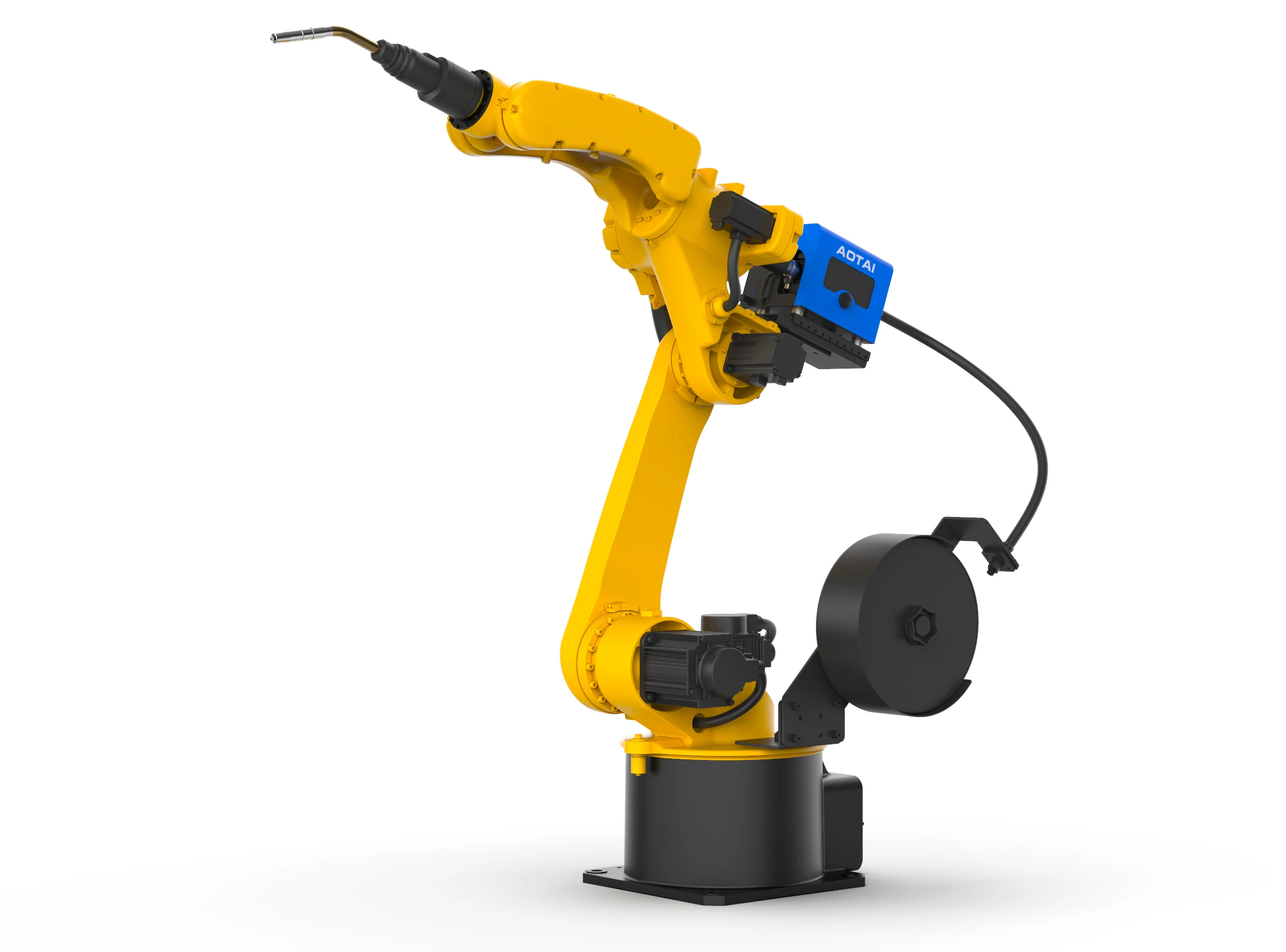

Манипулятор 6-осевой небольшой автоматический режущий/сварочный/ручной робот для промышленности
4 800,00-6 500,00 $
Промышленный робот цена лазерный сварочный аппарат 350 для промышленных работ
- Категория: >>>
- Поставщик: Beijing Peitian Technology Co. Ltd.Beijing Ltd.
Сохранить в закладки 1601342463929:
Описание и отзывы
Характеристики

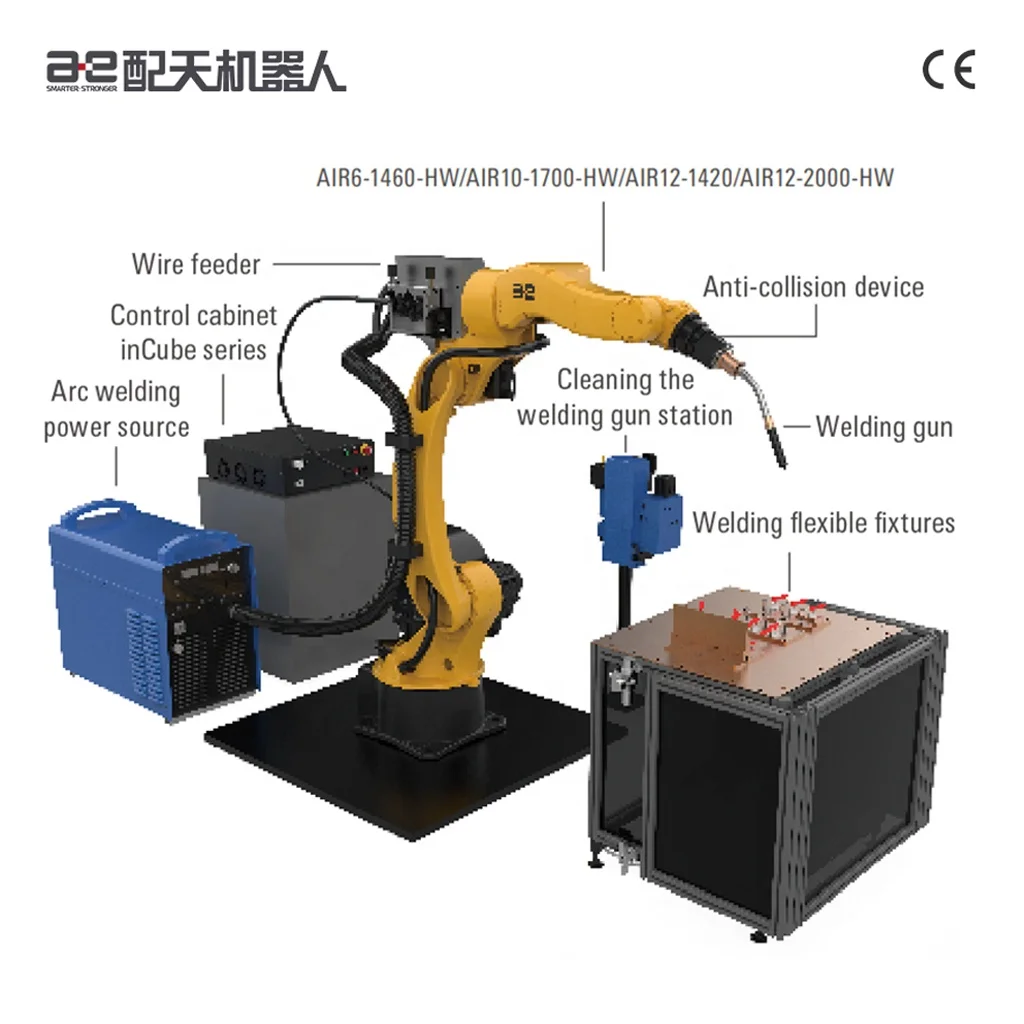

WELDING WORKSTATION
1.Equipment
* Support mainstream laser tracking sensors.
* Comprehensive communication functions.
Support digital communication (DeviceNET, CANopen, EtherCAT) and analog communication.
* Support mainstream welding machines.
Support mainstream welder brands, and can easily and quickly adapt to various brands of analog welding machine.
2.Welding Plate
Support welding of thin and medium thick plates.
3.Welding Technology
Support TIG, MIG, MAG, plasma cutting, and laser welding.
4.Welded Joint
Support multiple types of joints and grooves: butt joints, corner joints, T-joints, and various groove methods.
5.All Position Welding
Determine the optimal position for welding based on the position and angle of the weld seam: vertical welding, overhead welding, flat welding, horizontal welding, etc.
6.Reuse of Welding Process Data
Support welding process database. Relevant parameter can be classified, stored and flexibly reused by users.
Laser tracking/ grand trucking/ 3D camera/positioner/ could be supplied.
PRODUCT SPECIFICATIONS
Type | AIR10-1700-HW | ||
Axes | 6 | ||
Payload | 10KG | ||
Manipulator | Weight | 150KG | |

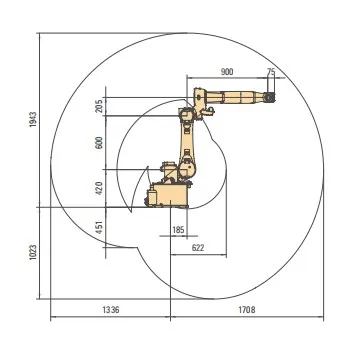

Reach | 1708mm | ||
Positioning Accuracy | Position Repeatability | ±0.06mm | |
Ingress Protection | IP54 (Wrist:IP7) | ||
Mounting | Floor | ||

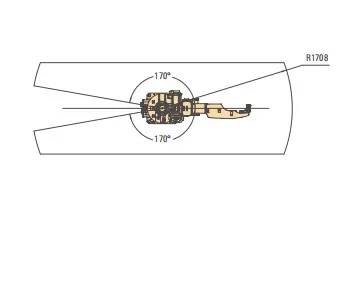

Working Range | Axis 1 Rotation | -170°/+170° | |
Axis 2 Arm | -85°/+150° | ||
Axis 3 Arm | -110°/+170° | ||
Axis 4 Wrist | -155°/+155° | ||
Axis 5 Bend | -120°/+120° | ||
Axis 6 Turn | -360°/+360° | ||
Rotation Rate | Axis 1 Rotation | 210°/s | |
Axis 2 Arm | 210°/s | ||
Axis 3 Arm | 220°/s | ||
Axis 4 Wrist | 430°/s | ||
Axis 5 Bend | 450°/s | ||
Axis 6 Turn | 720°/s | ||
Controller | ARC5-12 | ||
WELDING APPLICATION
Refrigeration Equipment Flange Welding
Thick Plate Welding
Geological Exploration Plum Blossom Pipe MAG Welding
Industrial Pallet Welding
Intelligent Unmanned Chemical Factories

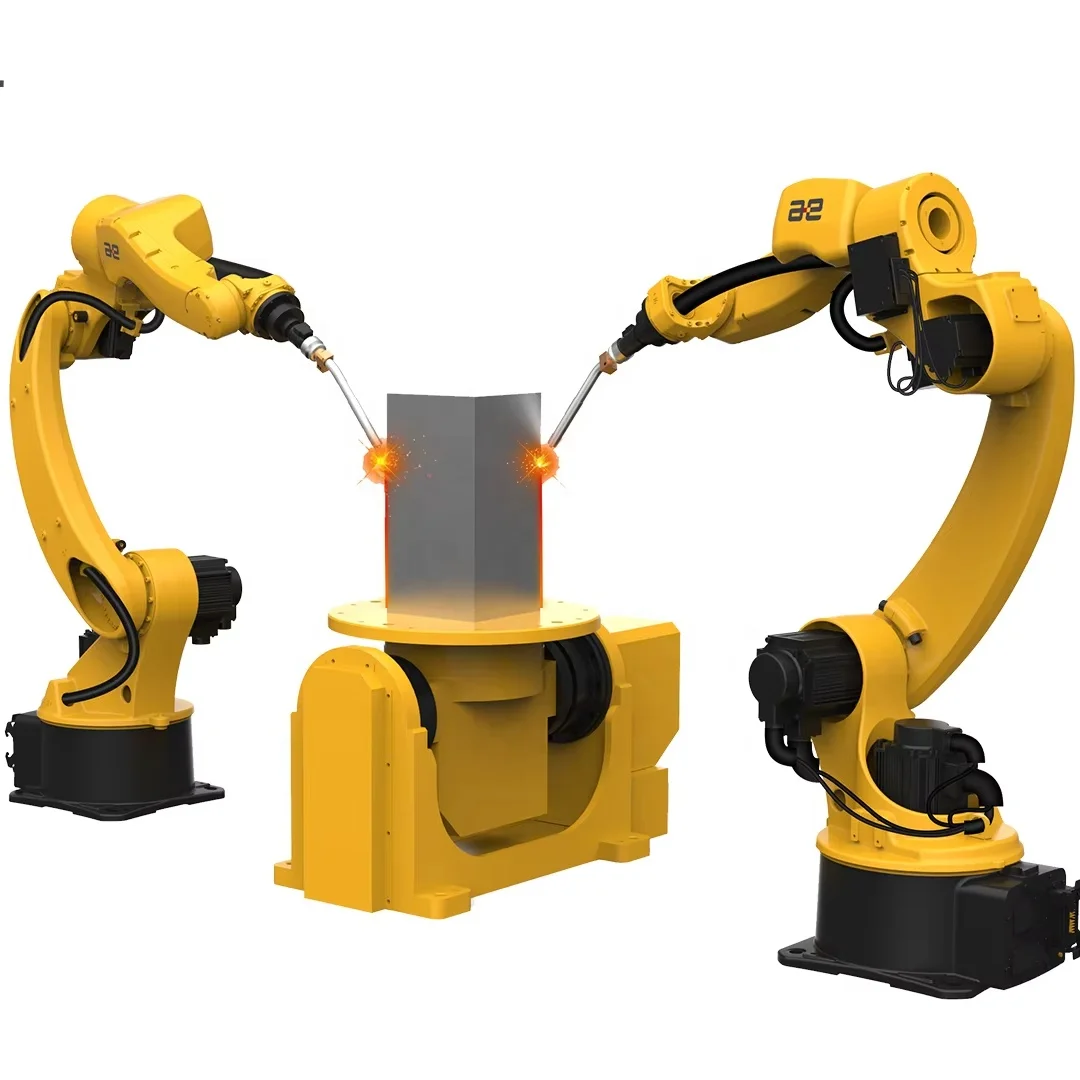

Three-machine Collaborative Welding
WELDING MODEL
Peitian Welding Model | NBC350RL | NBC500RP | |
Rated Voltage/Hz | 3Phase3980±10%/50 | ||
Rated Capacity KVA | 14 | 24 | |
Rated Current | 21 | 38 | |
Rated Outputvolatge | 31.5 | 39 | |
Rated Load Keep Ratio | 660 | 100 | |
Output Unload Valtage | 96 | 106 | |
OutputCurrent/Voltage Range | 60/17--350/31.5 | 60/17-500/39 | |
Carbon Steel/Stainless Steel Wire Diameter MM | 0.8 1.0 1.2 | 0.8 1.0 1.2 1.6 | |
Wire Feeding Type | Feed Type | ||
Air (L/min) | 15-20 | ||
Cooling Function | Air Cooling | Water Cooling | |
Protection | IP23 | ||
Insulation Level | H | ||
Size CM | 63.5X32X56 | 63.5X32X60 | |
Weight KG | 55 | 55 | |
SIMILAR PRODUCTS
Washing Machine Sheet Metal Stamping Loading and Unloading
Pad Shell Stamping and Assembly Line
Hardware Industry Handling
Chassis Handling
Ceramic High-precision Positioning and Handling
Laptop A-side Grinding and Polishing
Motor Cover Water-based
Paint Spraying
Paint Spraying
TV Backboard Adhesive Coating
Multi-robot Coordination
SCARA Industrial Robot Six-axis Industrial Robot
Higher Precision —— Repeat positioning accuracy up to ±0.01mm
Lightweight —— Compact body design with a streamlined structure
Greater Flexibility —— Flexible movement with conveyor belt online tracking software package, enabling fast sorting
More Intuitive —— Unique three-color LED strip design for clear indication of the robot’s operational status
Lightweight —— Compact body design with a streamlined structure
Greater Flexibility —— Flexible movement with conveyor belt online tracking software package, enabling fast sorting
More Intuitive —— Unique three-color LED strip design for clear indication of the robot’s operational status
Maximum Productivity —— Standard cycle time under 0.33s, meeting the highest production demands
High-speed, High-energy Density Servo System —— Equipped with a 1-to-6 drive control integrated control cabinet, featuring high speed, high precision, and excellent heat dissipation, ideal for high-frequency repetitive motion and precise component insertion in the 3C industry
Average Failure-free Time of 90,000 Hours —— Specialized motor cooling design for handling high-intensity, high-frequency repetitive movements and heat generation
High Reliability —— Achieve IP67 protection rating, capable of operating in harsh conditions like dust, oil mist, and humidity
High-speed, High-energy Density Servo System —— Equipped with a 1-to-6 drive control integrated control cabinet, featuring high speed, high precision, and excellent heat dissipation, ideal for high-frequency repetitive motion and precise component insertion in the 3C industry
Average Failure-free Time of 90,000 Hours —— Specialized motor cooling design for handling high-intensity, high-frequency repetitive movements and heat generation
High Reliability —— Achieve IP67 protection rating, capable of operating in harsh conditions like dust, oil mist, and humidity
PRODUCT PACKAGING
ADVANTAGES
Founded in 2010, Peitian Robot is a global provider of industrial robots, core components (servo, control system, machine vision, etc.) and industrial automation solutions. Peitian Robot is recognized as a national high-tech enterprise, and Jingcheng Machinery Electric is its controlling shareholder.
Since its inception, Peitian Robot has always been committed to independent research & development in robotics technology and breaking through bottlenecks in high-end equipment technology. It is also developing a forward-looking industrial layout centered around Embodied Intelligence and Large Models of Robot Behavior, known as "AI + Robotics." Peitian's industrial robots have a payload range from 3 kg to 280 kg and have been successfully applied across multiple industries and fields. The company is actively expanding its overseas market, with its products being exported to regions including Europe, Southeast Asia, and South Korea. The quality of its products is highly regarded both domestically and internationally.
FAQ
1.Are you the manufacotry or the trading company?
Peitian robot is the manfacotry.we have the head office and R&D center in Beijing, manufactory in Anhui, and the branches in
Shenzhen, kunshan, Chongqing. We have about 400 staffers. Beijing office and Anhui manufactory take about 200,00㎡.
2.How many years do you doing overseas business?
Peitian robot started for overseas business in 2020. our robot is already worked in many countries such as: USA, South Korea,
Germany, Swiss, Russia, France, South Africa, Thailand, Turkey, etc.
3.What is your produce capacity a year?
We delivery over 10,000 robots to the market. And we move to the new factory, with the new facility we increase the capacity about
10 times.
4. What certification do you have?
So far we have CE for all robot and control cabin. And we also have ISO9001,14001,18001. for the domestic certification we have a
lot more than 100 certification.
5. What is your leading time?
Normally leading time about 40-50 days. We make the robot order base on production. But some time we have the stock.
6. What kind of robot peitian will be offer?
Peitian offer scara, desktop, small-middle, and heavy robot. The payload is from 3KG to 280KG. The applications include welding
robot, palletizing, loading & unloading, 3C, grinding polishing, packing, dispensing, injection molding, etc.
Peitian robot is the manfacotry.we have the head office and R&D center in Beijing, manufactory in Anhui, and the branches in
Shenzhen, kunshan, Chongqing. We have about 400 staffers. Beijing office and Anhui manufactory take about 200,00㎡.
2.How many years do you doing overseas business?
Peitian robot started for overseas business in 2020. our robot is already worked in many countries such as: USA, South Korea,
Germany, Swiss, Russia, France, South Africa, Thailand, Turkey, etc.
3.What is your produce capacity a year?
We delivery over 10,000 robots to the market. And we move to the new factory, with the new facility we increase the capacity about
10 times.
4. What certification do you have?
So far we have CE for all robot and control cabin. And we also have ISO9001,14001,18001. for the domestic certification we have a
lot more than 100 certification.
5. What is your leading time?
Normally leading time about 40-50 days. We make the robot order base on production. But some time we have the stock.
6. What kind of robot peitian will be offer?
Peitian offer scara, desktop, small-middle, and heavy robot. The payload is from 3KG to 280KG. The applications include welding
robot, palletizing, loading & unloading, 3C, grinding polishing, packing, dispensing, injection molding, etc.
Похожие товары
Автоматический сварочный робот машина 6 оси рука промышленный Сделано в Китае
12 990,00 $
Робот для автоматизации сварки с позиционером индивидуальный дизайн обработки алюминиевых лестниц автоматический робот-сварочный аппарат
18 000,00-21 000,00 $
Сварочный аппарат с зеркальным зеркалом
582,00-688,00 $
Инфракрасная станция для депайки
1 199,00-1 499,00 $
Сварочное оборудование для ремонта мобильных телефонов ноутбуков инструменты
3 800,00-5 400,00 $
Выравнивания собственной личности сварочный токарный ролик трубы ротатор Ролик кровать машина
2 000,00 $

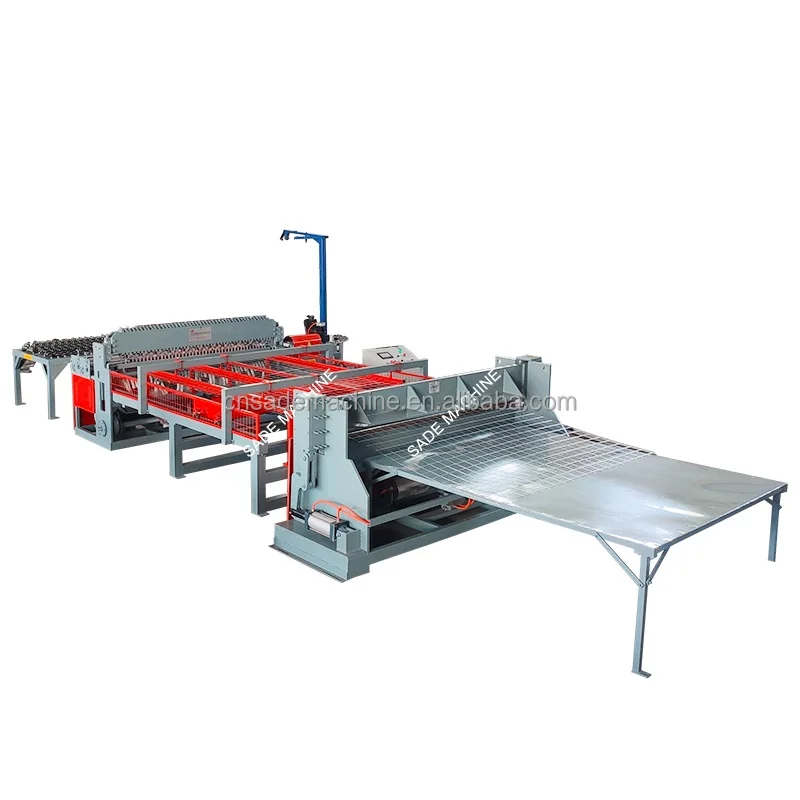

5-12 мм автоматическая линия предварительной резки проволоки подачи проволочной сетки сварочный аппарат производственная
