Хорошая цена шаровая мельница болт вибратор фидер щековая дробилка Вибрационный Фидер для продаж
120 495,20-361 485,60 ₽
Никелевый технологический завод Вибрационный бункер питатель угольной руды каменный подающий аппарат гризли цена
- Категория: >>>
- Поставщик: Jiangxi Changyi Mining Machinery Co. Ltd.Jiangxi Ltd.
Сохранить в закладки 1601342519552:
Описание и отзывы
Характеристики
Product Description

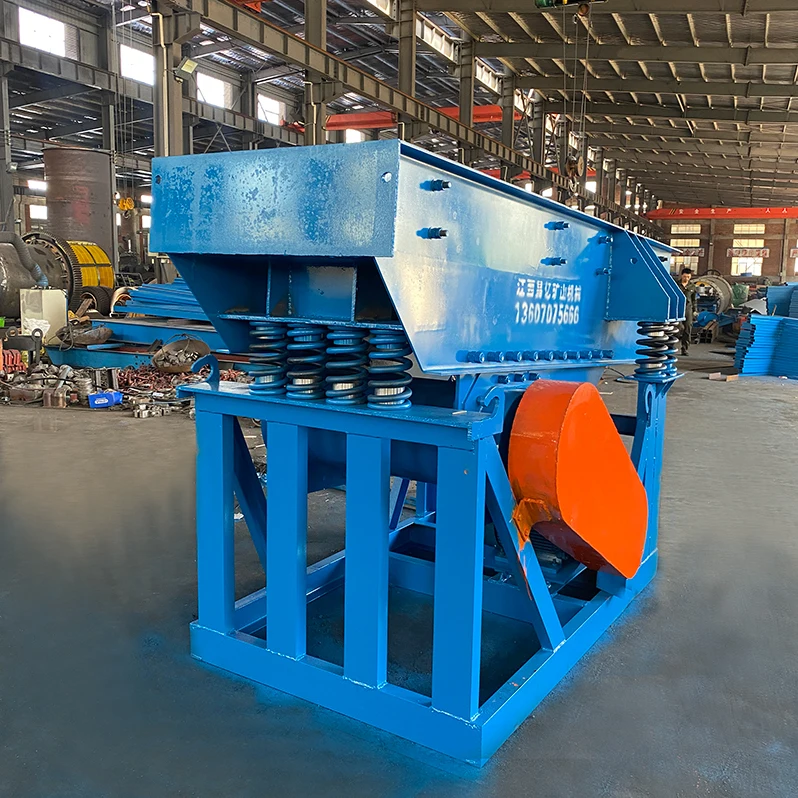

Vibrating feeder is a kind of equipment that can uniformly, regularly and continuously feed bulk and granular materials from the storage bin to the receiving device. It used both vibration and gravity to move material. Gravity is used to determine the direction and the vibration is used to move the material. The feeder is mainly used to transport a large number of smaller objects.In the sand and gravel production line, it can continuously and evenly feed the crushing machinery and coarsely screen the materials. It is widely used in the crushing and screening combined equipment of metallurgy, coal mine, mineral processing,building materials, chemical industry, abrasives and other industries.
The vibrating feeder uses the eccentric block rotation in the vibrator to produce centrifugal force. The movable parts such as the screen box and vibrator can make forced continuous circular or approximate circular motion. Vibrating feeder is composed of feeding tank, vibration exciter, spring support, transmission device, etc. The vibration source of tank vibration feeding is the vibration exciter. The vibration exciter is composed of two eccentric shafts (active and passive) and gear. The motor drives the driving shaft through the triangle belt, and then the gears on the driving shaft mesh with the passive shaft to rotate. The active and passive shafts rotate reversely at the same time to make the tank vibrate and make the material flow continuously, so as to achieve the purpose of conveying materials.
Product Paramenters
According the installation of vibration feeder, it can be divided into down vibration type and side vibration type. The hanging type is the most common one, and it also has the requirement of seat type design. According to the layout requirements of feeder users, it can be designed into sealed type and open type. The import and export styles can be customized according to the requirements. Accord the structure and application, vibrating feeder also can be divided into GZD, ZSW and GZZ serial.
Product Structure
Structure

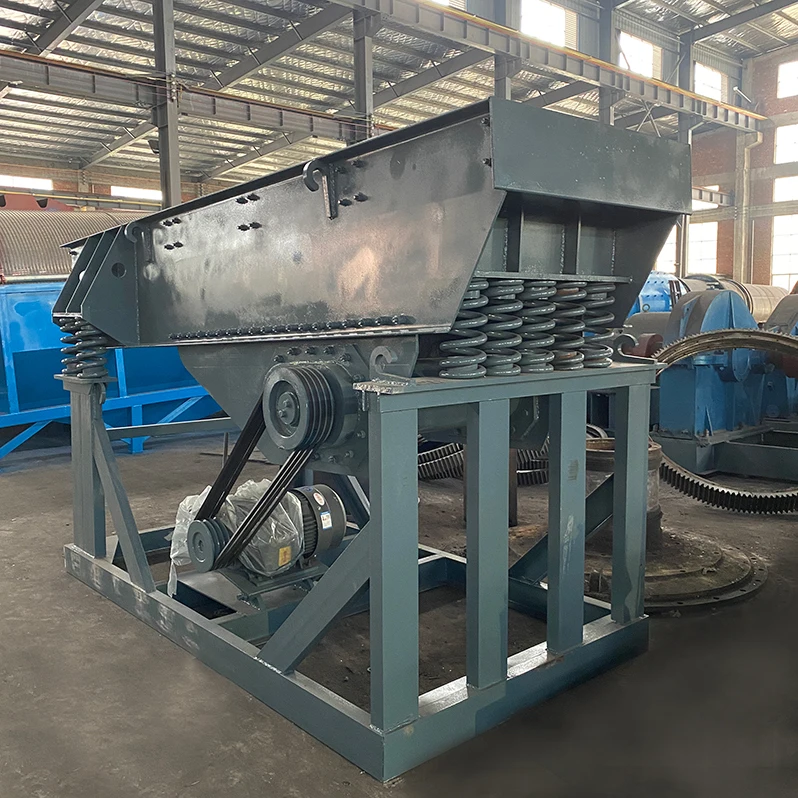

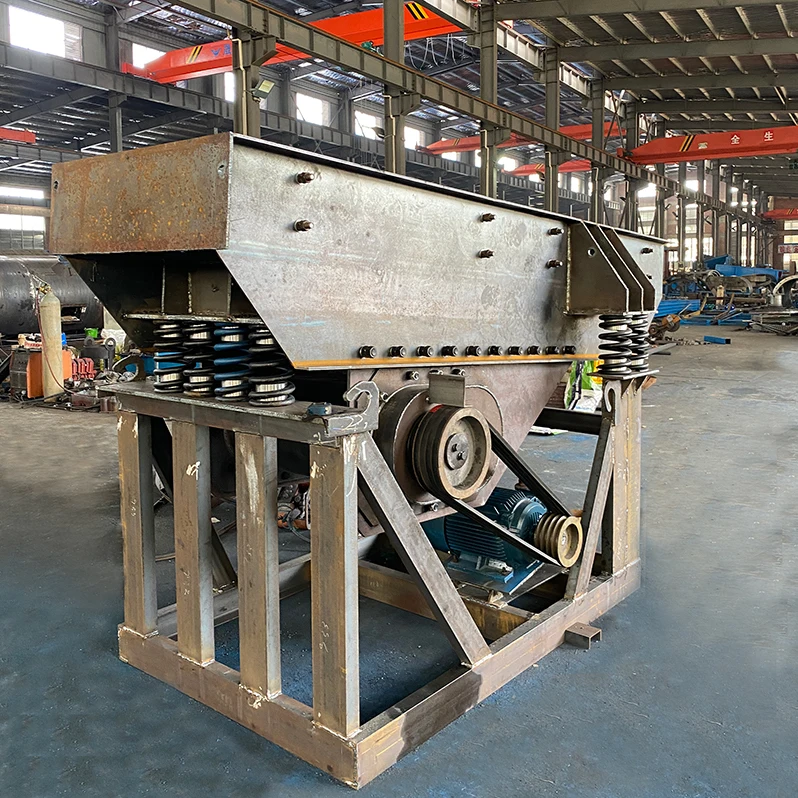

Vibrating feeder is composed of feeding tank, vibration exciter, spring support, transmission device, etc.
1. Feed Tank
The feed tank(material trough) is a load-bearing component, which is used to bear the stored materials and deliver them to the next receiving equipment by vibration. According to the actual needs, the material trough is made of carbon steel plate, low alloy structural steel plate, heat-resistant steel plate or aluminum alloy plate.
2. Vibration Exciter
vibration exciter is composed of two eccentric shafts (active and passive) and gear.Commonly used exciters are inertial exciters, elastic link exciters, electromagnetic exciters, hydraulic or pneumatic exciters, and cam exciters.
3. Spring Support
The support spring mainly supports the vibrating machine body, so that the machine body realizes the required vibration and reduces the dynamic load
transmitted to the foundation or frame.
4. Transmission Device
Vibration motor drives the exciter to generate exciting force for work.
Vibrating feeder is composed of feeding tank, vibration exciter, spring support, transmission device, etc.
1. Feed Tank
The feed tank(material trough) is a load-bearing component, which is used to bear the stored materials and deliver them to the next receiving equipment by vibration. According to the actual needs, the material trough is made of carbon steel plate, low alloy structural steel plate, heat-resistant steel plate or aluminum alloy plate.
2. Vibration Exciter
vibration exciter is composed of two eccentric shafts (active and passive) and gear.Commonly used exciters are inertial exciters, elastic link exciters, electromagnetic exciters, hydraulic or pneumatic exciters, and cam exciters.
3. Spring Support
The support spring mainly supports the vibrating machine body, so that the machine body realizes the required vibration and reduces the dynamic load
transmitted to the foundation or frame.
4. Transmission Device
Vibration motor drives the exciter to generate exciting force for work.
Features and Application
Main Features
1. Small volume, light weight and simple structure.
2. Easy installation and maintenance, low operating cost.
3. High efficiency and high feeding capacity.
4. Low noise is conducive to improving the working environment.
5. The feeding material is uniform, the continuous performance is good, and the excitation force is adjustable.
6. Change and control flow at any time, easy to operate. Adjusting eccentric block can adjust the feed quantity conveniently.
7. Eccentric block is excitation source, low noise, less power consumption, good regulation performance, no blanking phenomenon.
8. If the enclosed fuselage is used, dust pollution can be prevented.
9. It has stable vibration, reliable operation and long life, and has strong adaptability to various materials.Flexibility in design options ensures a seamless fit into your existing production processes for your specific
application.
10. The grid gap is adjustable.
11. There are more wear parts.
12. Special grille design can prevent material from clogging.
2. Easy installation and maintenance, low operating cost.
3. High efficiency and high feeding capacity.
4. Low noise is conducive to improving the working environment.
5. The feeding material is uniform, the continuous performance is good, and the excitation force is adjustable.
6. Change and control flow at any time, easy to operate. Adjusting eccentric block can adjust the feed quantity conveniently.
7. Eccentric block is excitation source, low noise, less power consumption, good regulation performance, no blanking phenomenon.
8. If the enclosed fuselage is used, dust pollution can be prevented.
9. It has stable vibration, reliable operation and long life, and has strong adaptability to various materials.Flexibility in design options ensures a seamless fit into your existing production processes for your specific
application.
10. The grid gap is adjustable.
11. There are more wear parts.
12. Special grille design can prevent material from clogging.
Product packaging
Packaging | Wooden Boxes, Cartons, Iron Frames | ||||||
Port | XIAMEN、SHENZHEN、NINGBO、QINGDAO、ETC. | ||||||
Vibrating Feeder Packing/Loading
1. Vibrating Feeder spare parts would be packed in wooden boxes to avoid broken.
2. Vibrating Feeder are fixed and loaded in container directly.

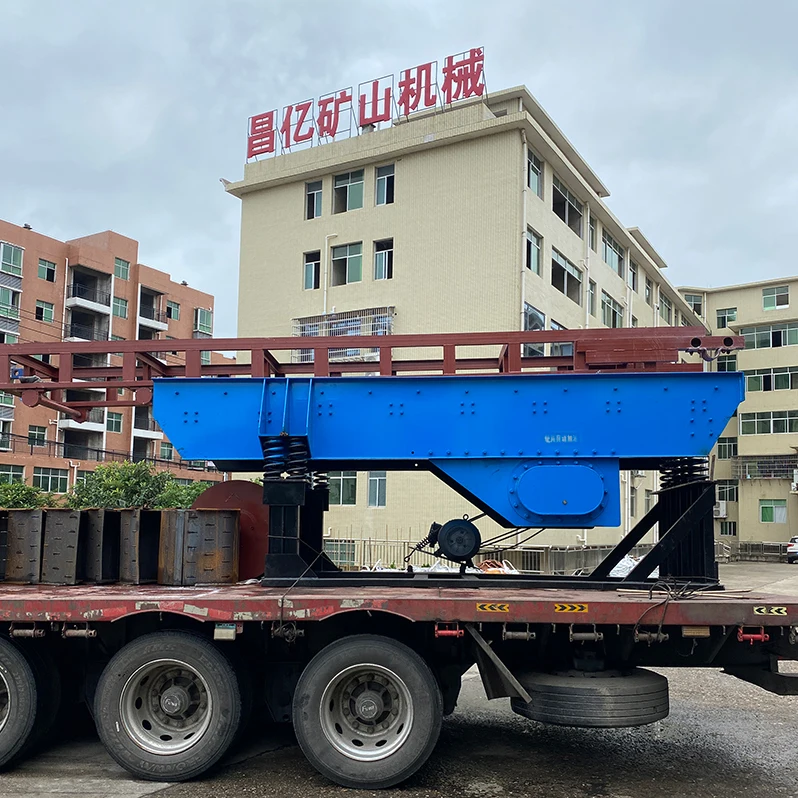

Vibrating Feeder Shipping
2. Vibrating Feeder are fixed and loaded in container directly.
Vibrating Feeder Shipping
1. Vibrating Feeder are shipped in bulk cargo by sea.
2. Vibrating Feeder can be also shipped by air if customers request.
2. Vibrating Feeder can be also shipped by air if customers request.
Company Strength
Jiangxi Changyi Mining Machinery Co., Ltd.
It is a professional mining machinery manufacturer with more than 10 years of experience led by a young team, providing a full range of processing equipment for gold, tin, tungsten, iron, diamond, coltan, silica sand, zircon sand, black sand, chromium, etc.
Main products: shaker, ball mill, drum sand washer, spiral sand washer, spiral chute, jig, centrifugal concentrator, vibrating screen, drum screen, jaw crusher, hammer crusher, flotation machine, spiral classifier, magnetic separator, etc. and a full range of small laboratory mining equipment and alloy bearings.
It is a professional mining machinery manufacturer with more than 10 years of experience led by a young team, providing a full range of processing equipment for gold, tin, tungsten, iron, diamond, coltan, silica sand, zircon sand, black sand, chromium, etc.
Main products: shaker, ball mill, drum sand washer, spiral sand washer, spiral chute, jig, centrifugal concentrator, vibrating screen, drum screen, jaw crusher, hammer crusher, flotation machine, spiral classifier, magnetic separator, etc. and a full range of small laboratory mining equipment and alloy bearings.
Main markets: Africa, South America, Europe, Southeast Asia, Asia, etc. Our cooperative customers cover Congo, Ghana, Uganda,South Sudan, Israel, Pakistan, Mozambique, Suriname, Zambia, Nigeria, Cameroon, Malaysia, Indonesia, South Korea, Philippines,Mongolia, Singapore, India, Iran, Mexico, Brazil, Chile, Peru, Spain, Canada, Australia, the United States, the United Arab Emirates, etc.
Tanzania Exhibition
FAQ
1.How Can We Guarantee Quality?
Always A Pre-Production Sample Before Mass Production,Always Final Inspection Before Shipment.
2.What Can You Buy From Us?
Ball Mill,Crusher,Shaking Table,Spiral Chute,Flotation Machine And Other Equipment.
3. Why Should You Buy From Us Not From Other Suppliers?
10 Years Experience In Manufacturing Mine Equipment,Has A Young Design Team And Own Workshop, Engineer For Service After Sold ,The Products Sold Over The World And High Quality.
4. What Services Can We Provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:Usd,Eur,Cad,Aud,Hkd,Cny;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
Always A Pre-Production Sample Before Mass Production,Always Final Inspection Before Shipment.
2.What Can You Buy From Us?
Ball Mill,Crusher,Shaking Table,Spiral Chute,Flotation Machine And Other Equipment.
3. Why Should You Buy From Us Not From Other Suppliers?
10 Years Experience In Manufacturing Mine Equipment,Has A Young Design Team And Own Workshop, Engineer For Service After Sold ,The Products Sold Over The World And High Quality.
4. What Services Can We Provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:Usd,Eur,Cad,Aud,Hkd,Cny;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
