Products Description

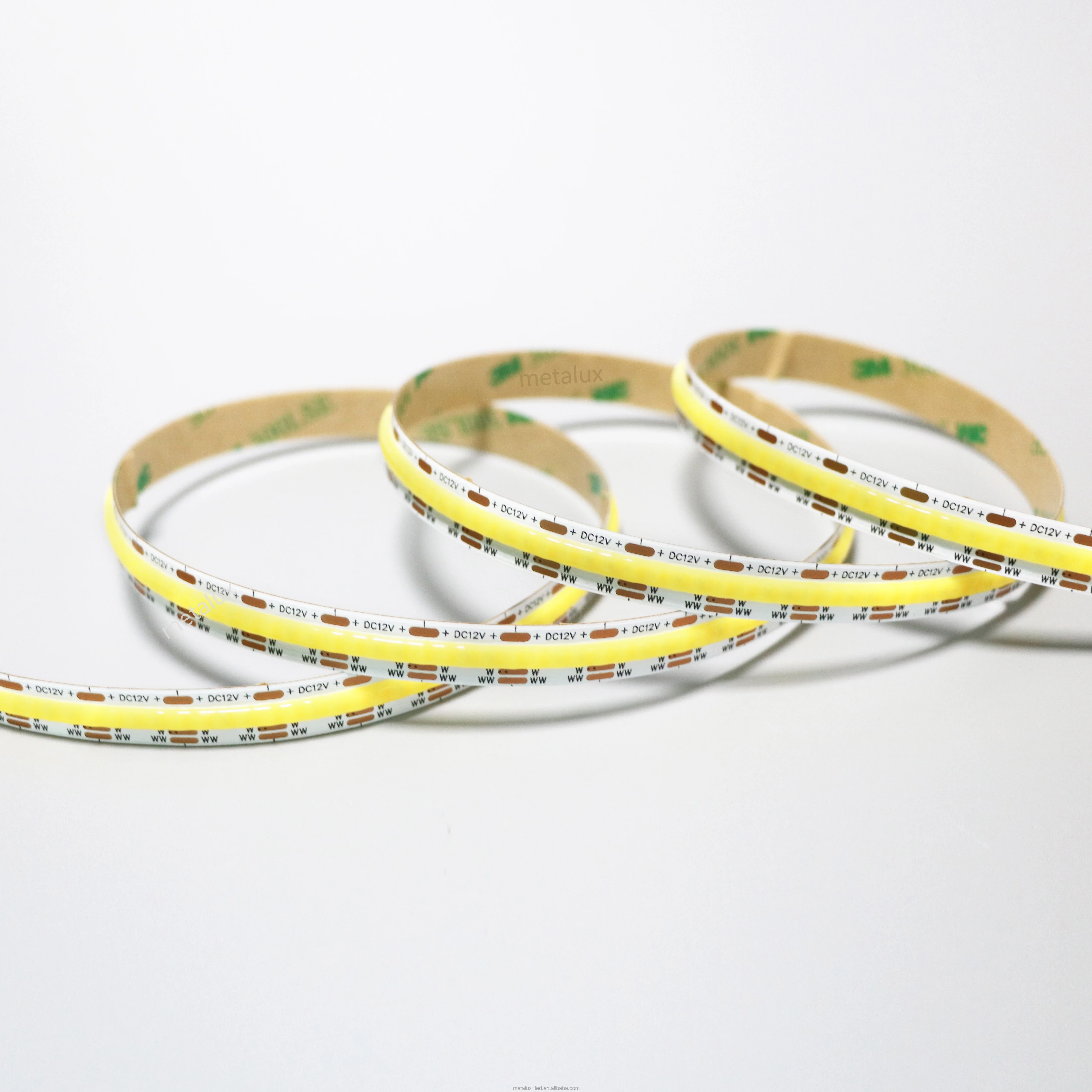

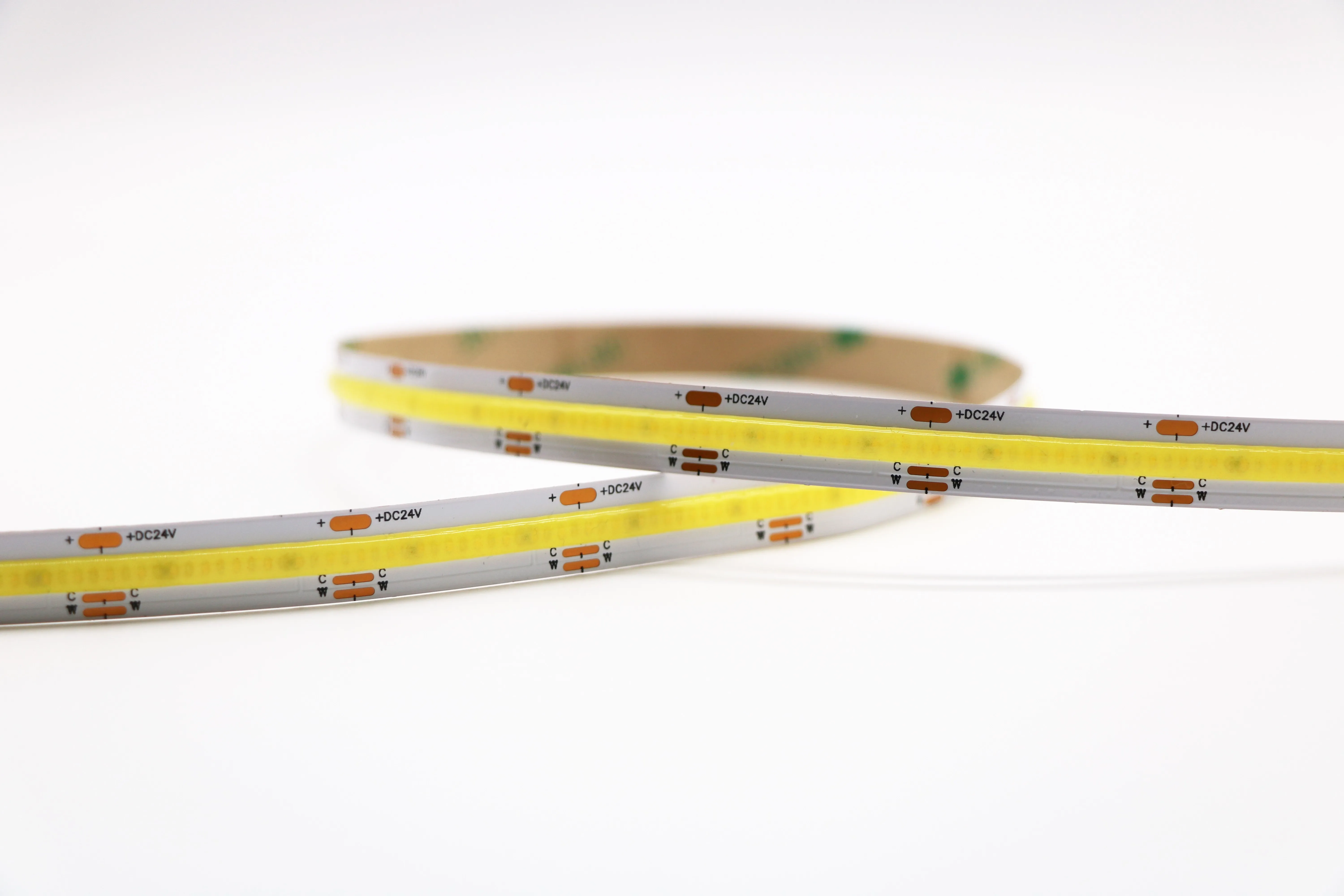

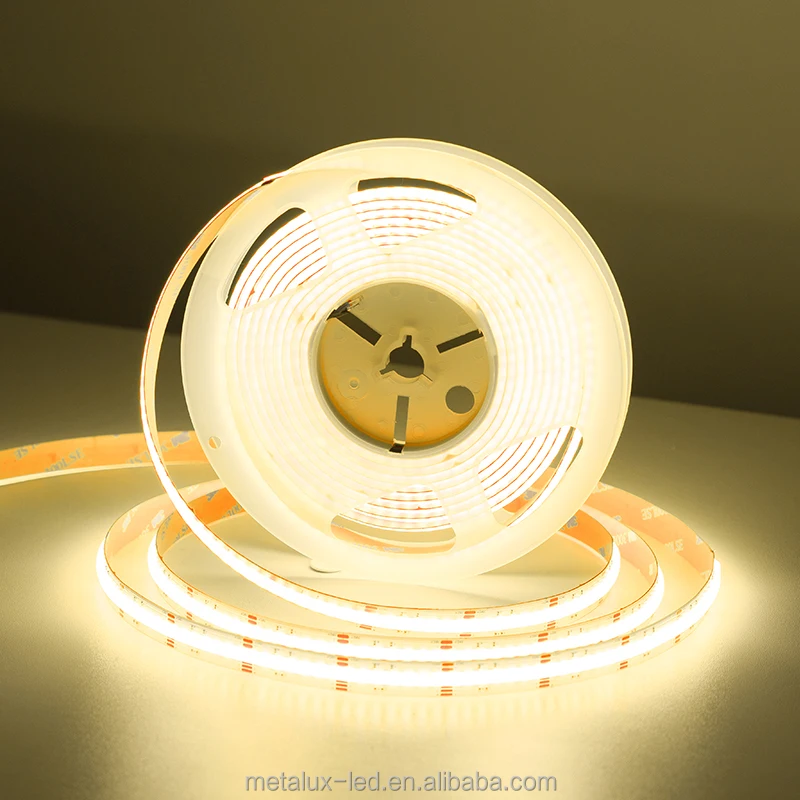

COB LED Strip Light
※New Technology, Chips On PCB Directly. Dot Free type.
※High Color Efficiency, Uniform Illumination. ※Single Color: 2700k, 3000k, 4000k, 6000k , Red, Green, Blue, Yellow. Also have RGB COB, Dual color type, 360 degree COB Led Strip. Constant current is developing.
※All of Materials Are Accord With RoHS & CE & EMC & ERP2.0 & REACH & FCC & ETL.
※Easy to Install and Preserve; can Be Bent Freely; With Original 3M Adhesive Tape On the Backside.
※Beam Angle 180°.
※As a manufacturer, we can customize different lengths, board width, voltage, power, color temperature and color rendering index according to customer requirements.
Metalux LED Limited COB LED Strip Light Parameter | ||||||||
Part Number | YQ-S2N608V12 | |||||||
Size ( Width * Height) | 10.0 x 1.6 mm | |||||||
LED Quantity | 608 LEDs/m | |||||||
PCB Width & Color | 10mm & White | |||||||
Cutting Step | 24V = 26.31mm/Cutting | |||||||
Input Voltage | DC12V & 24V | |||||||
Power & CRI（RA) | 14W/m & CRI ≥ 90 | |||||||
Lumious Flux | 110 Lm/W | |||||||
Temperature Color | 2700K & 3000K & 4000K & 6000K | |||||||
IP Grade | IP65- waterproof | |||||||
Operating Temperature & Beam Angle | -25 to 45 ℃ & 180 ° | |||||||
Cetification | CE & LVD & EMC & RoHS & REACH & ERP2.0 & FCC & ETL | |||||||
Max Length | 15m/pcs | |||||||
Package Bag Size | 5m = 167 x 170mm 10m = | |||||||
Package Carton MEAS | 5m= 10m = | |||||||
Gross Weight | 5m= 50 g 10m = | |||||||

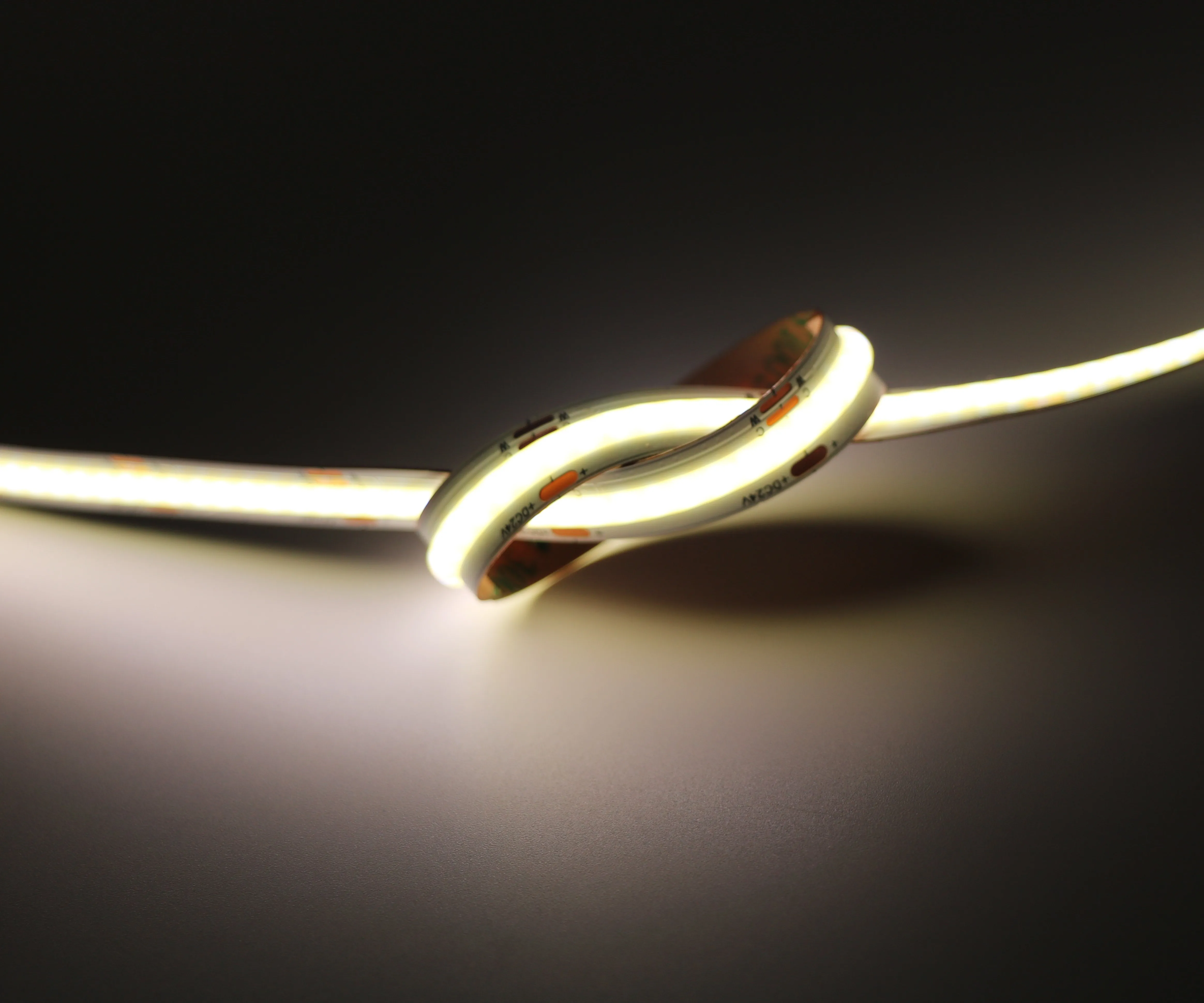

Your Super Thin, Flexible FriendYour Super Thin, Flexible Friend
Cut me, bend me, twist me Thinner and more flexible than almost anything else on the market, it means our Metalux range is so
versatile it fits most needs. No more cutting for corners Our Metalux range can navigate most corners without the need for cutting,
saving both home DIY enthusiasts and tradesmen a substantial amount of time.
versatile it fits most needs. No more cutting for corners Our Metalux range can navigate most corners without the need for cutting,
saving both home DIY enthusiasts and tradesmen a substantial amount of time.
A Spotless Finish
Say goodbye to spotting. For a number of years now, people have been appreciating the step change in lighting performance that comes with LED strip versus traditional bulb lighting. However, there has always been an aesthitic annoyance due to 'spotting' of
the light. Better than bulbs, but still not perfect lighting.
the light. Better than bulbs, but still not perfect lighting.
The future of lighting
Our Metalux range now gives you flawless no-spot LED strip lighting thanks to the latest step change in technology with the rise of COB (chip on board).How does COB stop spotting? In short, you can fit more LEDs on strip tape versus archaic SMD (surface mounted devices) thus the lightly seamlessly merges together.
LEDs per metre
Seamless Range = 320 to 840 LEDs - SMD strip = 30 to 240 LEDs
Wide Viewing Angel Up to 180 Degree Metalux COB Led strip are 180° viewing angle. SMD LED Strip type is normally 120 degree viewing angle. Put the chips on board then put Phosphor on chips let the viewing angle bigger, then it’s less dark zone.
PRODUCT FEATURE
With our experience engineer team, we can keep excellent color uniformity for continous orders, and keep Color-Consistency: 3
SDCM. Ensure your every orders same color, and continuouse provide super work for your customers.
SDCM. Ensure your every orders same color, and continuouse provide super work for your customers.
We pay attention to every details, the connect cable we use 22AWG pure copper wire. Always keep 3/8”stripped off the end of the
LED for wiring purposes.same color, and continuouse provide super work for your customers.
LED for wiring purposes.same color, and continuouse provide super work for your customers.
IP Process Technology & Certification
Adopt varieties IP process such as gel coating, silicone tube, NANO and integrated silicone extrusion,
reach IP20、IP55、IP65、IP67、IP68 protection grade and so on.
reach IP20、IP55、IP65、IP67、IP68 protection grade and so on.
Packaging & Delivery
Delivery Time
※ SMD LED Strip delivery time will be need 5-7days for normal order.
※ LED Module delivery time will be need 3-5days for normal order.
※ Aluminium Profile delivery time will be need 3-5days for normal order.
Remark: The delivery dates mentioned above are all in stock. For special products, please ask the customer service separately and serve you 24 hours a day.
FAQ
1. What is COB Strip Light?
In the LED world, COB is the abbreviation for Chip on Board, which basically means to package the LED die directly on the circuit board (PCB). The ‘Chip on Board’ LED used on flexible strip lights is also sometimes called a flip-chip.
Flip chip LEDs are basically a bare bones approach to LED structure. Take a look at the normal 5050 SMD (surface mount device)LED, it has a bulkier plastic reflector that encapsulates the LED diode itself and then covers that with a phosphor coating. The ‘flip chips’ that make up COB LED strips cut everything from their design except an LED chip, the yellow phosphor covering, and connection pads. This condensed design leads to a significant reduction in size, allowing them to be packed closer together and further miniaturize LED based lighting.
Flip chip LEDs are basically a bare bones approach to LED structure. Take a look at the normal 5050 SMD (surface mount device)LED, it has a bulkier plastic reflector that encapsulates the LED diode itself and then covers that with a phosphor coating. The ‘flip chips’ that make up COB LED strips cut everything from their design except an LED chip, the yellow phosphor covering, and connection pads. This condensed design leads to a significant reduction in size, allowing them to be packed closer together and further miniaturize LED based lighting.
2.What is the difference between LED and COB LED?
The main difference between these two technologies a side from the efficiency is the way in which the LEDs are mounted to the tape. COB LEDs are mounted directly into the circuit board with a strip over the top acting as a ‘diffuser’ enabling a seamless finish when illuminated. Being directly mounted to the circuit board means there is room for more LEDs to be mounted. Our COB LED tapes typically achieve 320, 480, 528 LEDs per metre. Compare this to current traditional LED Tape and the use of SMD (Surface Mounted Diode) Technology, where the LED chips are mounted and secured on top of the circuit board and typically the maximum number of LEDs per metre is around 240. The SMD version is much more likely to cause spotting and dark spots due to the spacing of the chips on the LED Tape, especially when installed into LED channel with a semi clear, or transparent diffuser over the top.
3.Why Choose METALUX COB LED Tape?
This tape is manufactured using the highest quality components available on the market for the price making it a professional and commercial grade product. METALUX LED COB Tapes carry a typical lifespan of 25000 Hours and come
complete with a 3-year guarantee to ensure superior quality and continued high performance.
complete with a 3-year guarantee to ensure superior quality and continued high performance.
4.Can you cut COB LED strips?
How to cut led light strips? To cut the COB strip, you only need a pair of scissors. Of course, use a ruler to measure the length you need before cutting it. The PCB board of the light strip has clearly marked the places that can be cut, and it can be cut along these lines.
5.Who can I contact for help or if I have any questions about COB Smart?
To learn more about reducing the challenges and costs associated with coordination of benefits, contact our Sales representative or email: info@metalux-led.com
Похожие товары

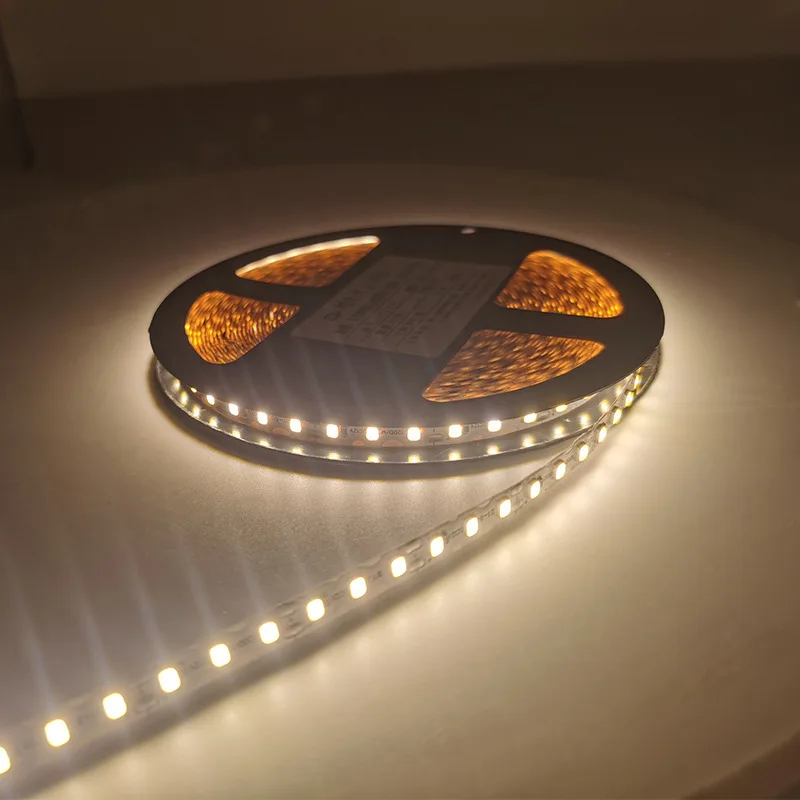

IP65 Водонепроницаемая светодиодная лента 12 Вт DC 24 В SMD2835 120 светодиоды лм/Вт низкое напряжение 5 м/рулон наружного использования Теплый/нейтральный/холодный/синий/зеленый/красный
