Модуль камеры IMX283 20 Мп 5200*3900 пикселей модуль USB камеры антенна 4 К 60 кадров в секунду беспилотная камера с интерфейсом Ethernet CVBS HDMI
- Категория: >>>
- Поставщик: Shenzhen Wasintek Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601345184803:
Описание и отзывы
Характеристики
Specification
SOC/DSP | iCatch V37M |
Image Sensor | for SONY IMX283 |
Sensor Size | 1" |
Video resolution | 4K 30FPS、2.7K 60FPS、1080P 120FPS、720P 240FPS |
Pixel | 20MP、13MP、12MP、10MP、8MP、5MP、3MP、2MP |
4K@48/50/60fps(difference) | |
4K@24/25/30/fps | |
2.7K@24/25/30/48/50/60fps | |
1080P@24/25/30/48/50/60/120fps | |
720P@24/25/30/48/50/60/120/240fps | |
Photo Resolution | 20M(5200x3900) |
13M(4160x3120) | |
12M(4000x3000) | |
10M(3648x2736) | |
8M(3264x2448) | |
5M(2592x1944) | |
3M(2048x1536) | |
2M(1920x1080) | |
Frequency Range | 2.400 GHZ~2.497 GHZ (2.4 GHz ISM Band) |
4.900 GHz~ 5.845 GHZ (5.0 GHz ISM Band) | |
Battery voltage | 6.6~8.8V |
USB interface | USB2.0 |
Wifi band | 2.4G/5.8G |
Wifi mode | AP/STA |
EFL | 6.6mm |
F/NO. | 2.8 |
FOV | H91.8° V68° D102° |
Operating temperature | -10~+60°C |
Storage temperature | -20~+80°C |
Size | 38mmx38mmx52mm |
Product Description
G1M0_Basic Camera Module
G1M0_Basic ( iCatch Vi37M Camera Motherboard + IMX283 Camera Module ), widely used in 4K sports camera, wireless wifi camera, drone camera, USB camera, HDMI camera, industrial camera, wear camera, work recorder and other video camera products.
· iCatch Vi37M Chip : supports up to 4K@60FPS (interpolated), 4K@30FPS, 2.7K@60FPS, 1080P@120FPS
· Sony IMX283: 1" inch CMOS sensor with 20 million effective pixels, paired with a 7G2P high-quality lens with a 102° field of view.

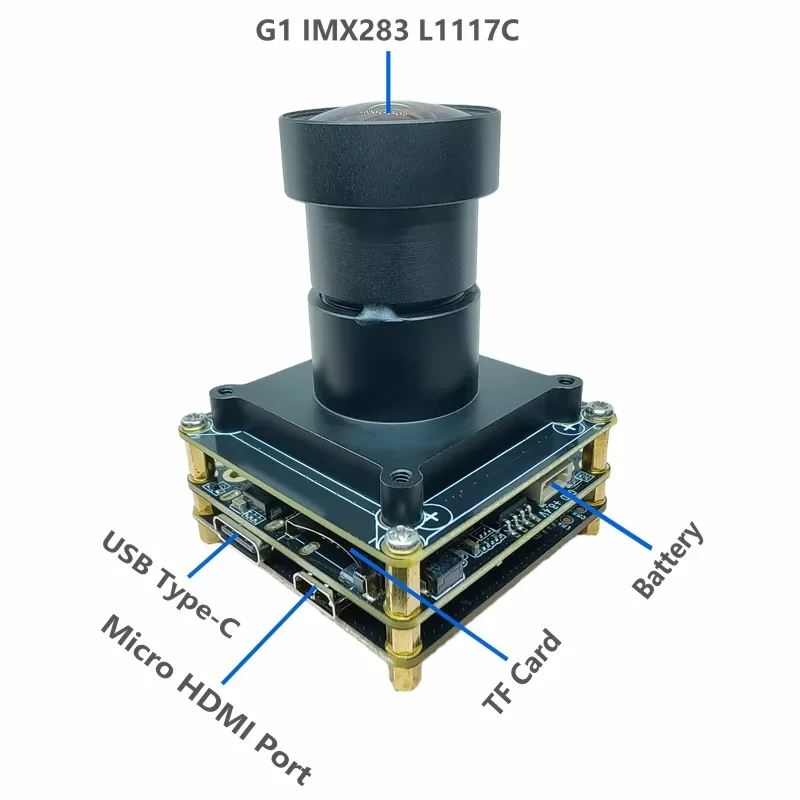

IMX283 L1117C camera module:
Supports 20-megapixel photos and 4K@30FPS video recording.
interface/Port
Onboard Support Type-C Port, HDMI Port ,TF card slot (up to 512G TF memory card support), battery 2 control buttons, digital silicon microphone, buzzer, WiFi antenna, display/touch screen, CVBS (reserved interface), serial port (Uart3), PWM, ADC five-way button, DC power supply interface, etc. PCB Size:38 * 38mm*38mm
Height:52mm
Weight:57g.
Height:52mm
Weight:57g.

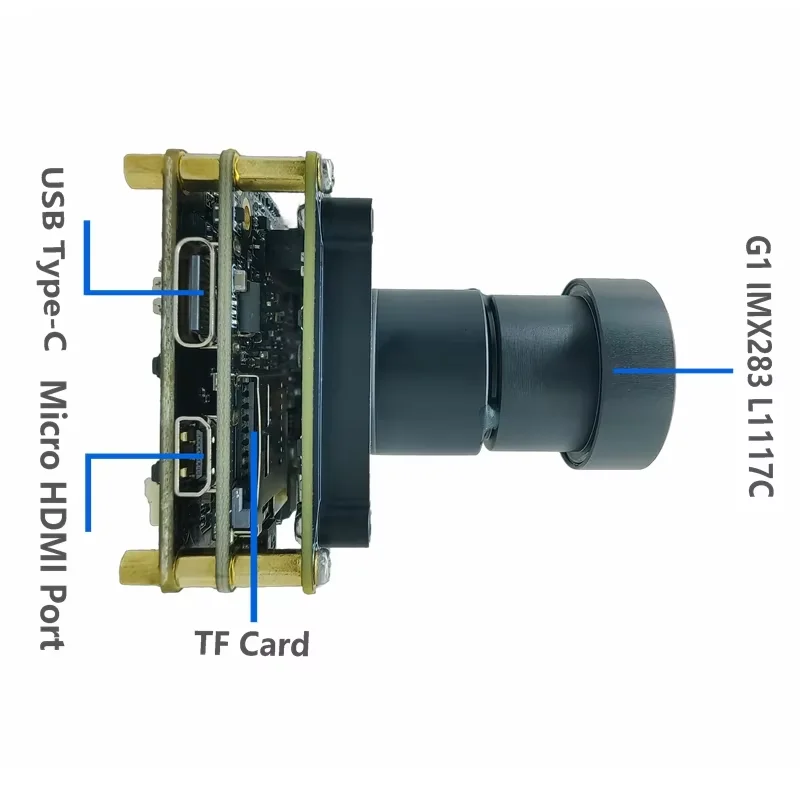

USB Type-C Port:
supports USB standard 5V power input, power supply for the camera module, can also be used to charge the battery, USB interface connected to the computer can be read directly from the TF card files, as a USB flash drive, but also can be used as a PCCAM USB camera. In the USB interface retains a camera control serial port UART3 and a camera debugging serial port UART1 (serial port function can be used with the special G1-USB serial port adapter board).
Micro HDMI interface:
Micro HDMI interface output, can support up to 4K@30FPS video signal output.

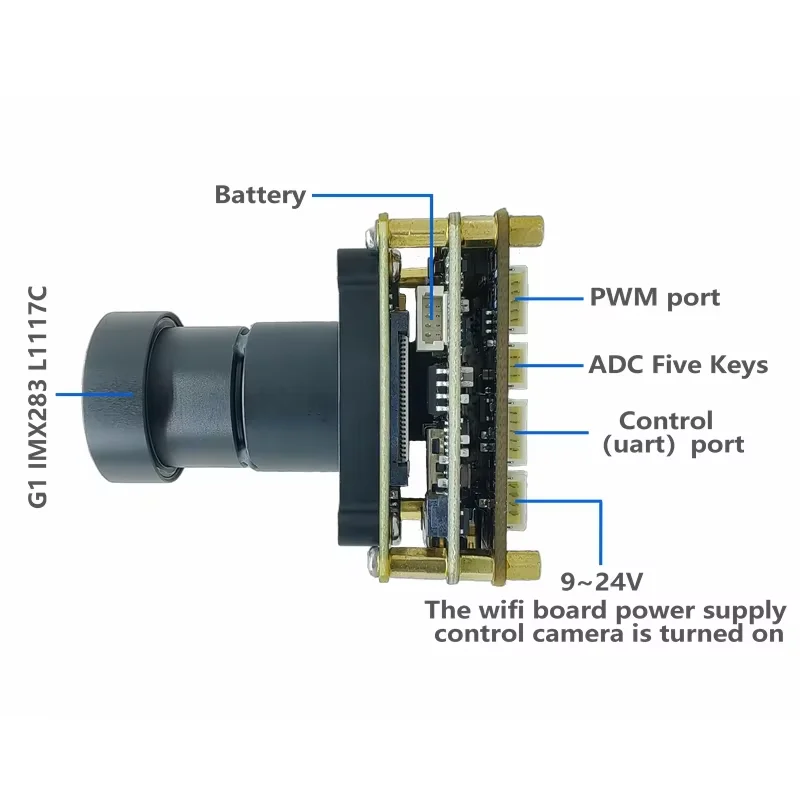

PWM Port: The above interface leads to the PWM function interface, through which you can control the camera mode switching,photo taking, video recording and other functions.
ADC five-way keypad: Supports one way ADC five-way key interface, can be connected to the up, down, left, right, confirm five keys, support external keys, control the camera power on and off.
Control serial port: Support one way analog video CVBS (TV-OUT) signal output, reserved RX3, TX3, you can set and control the camera and other operations through this serial port.
DC power supply port: 9~24V power supply can be used to control the camera to turn on automatically. It supports three ways of power supply at the same time, i.e. DC power supply from WiFi board, battery power supply from motherboard, Type-C USB power supply, or single way power supply
ADC five-way keypad: Supports one way ADC five-way key interface, can be connected to the up, down, left, right, confirm five keys, support external keys, control the camera power on and off.
Control serial port: Support one way analog video CVBS (TV-OUT) signal output, reserved RX3, TX3, you can set and control the camera and other operations through this serial port.
DC power supply port: 9~24V power supply can be used to control the camera to turn on automatically. It supports three ways of power supply at the same time, i.e. DC power supply from WiFi board, battery power supply from motherboard, Type-C USB power supply, or single way power supply
G1M0_wifi Camera Module
G1M0_wifi ( iCatch Vi37M Camera Motherboard + IMX283 Camera Module + Wifi Board), widely used in 4K sports camera, wireless wifi camera, drone camera, USB camera, HDMI camera, industrial camera, wear camera, work recorder and other video camera products.
· iCatch Vi37M Chip : supports up to 4K@60FPS (interpolated), 4K@30FPS, 2.7K@60FPS, 1080P@120FPS
· Sony IMX283: 1" inch CMOS sensor with 20 million effective pixels, paired with a 7G2P high-quality lens with a 102° field of view.
· AW CM256SM： single pass dual-band WiFi module, supports the use of single-band 2.4G or 5G wireless wifi function.
· iCatch Vi37M Chip : supports up to 4K@60FPS (interpolated), 4K@30FPS, 2.7K@60FPS, 1080P@120FPS
· Sony IMX283: 1" inch CMOS sensor with 20 million effective pixels, paired with a 7G2P high-quality lens with a 102° field of view.
· AW CM256SM： single pass dual-band WiFi module, supports the use of single-band 2.4G or 5G wireless wifi function.
IMX283 L1117C camera module:
Supports 20-megapixel photos and 4K@30FPS video recording.
interface/Port:
Onboard Support Type-C Port, HDMI Port ,TF card slot (up to 512G TF memory card support), battery 2 control buttons, digitalsilicon microphone, buzzer, WiFi antenna, display/touch screen, CVBS (reserved interface), serial port (Uart3), PWM, ADC five-way button, DC power supply interface, etc.
PCB Size:38 * 38mm*38mm
Height:52mm
Weight:57g.
Height:52mm
Weight:57g.
USB Type-C Port:
supports USB standard 5V power input, power supply for the camera module, can also be used to charge the battery, USB interface connected to the computer can be read directly from the TF card files, as a USB flash drive, but also can be used as a PCCAM USB camera. In the USB interface retains a camera control serial port UART3 and a camera debugging serial port UART1 (serial port function can be used with the special G1-USB serial port adapter board).
Micro HDMI Port:
Micro HDMI interface output, can support up to 4K@30FPS video signal output.
PWM Port:
The above interface leads to the PWM function interface, through which you can control the camera mode switching,photo taking, video recording and other functions.
ADC five-way keypad:
Supports one way ADC five-way key interface, can be connected to the up, down, left, right, confirm five keys, support external keys, control the camera power on and off.
Control serial port:
Support one way analog video CVBS (TV-OUT) signal output, reserved RX3, TX3, you can set and control the camera and other operations through this serial port.
DC power supply port:
9~24V power supply can be used to control the camera to turn on automatically. It supports three ways of power supply at the same time, i.e. DC power supply from WiFi board, battery power supply from motherboard, Type-C USB power supply, or single way power supply
G1M2 Network Camera Module
G1M2_network ( iCatch Vi37M Camera Motherboard + IMX283 Camera Module + Wifi Board), widely used in 4K sports camera, wireless wifi camera, drone camera, USB camera, HDMI camera, industrial camera, wear camera, work recorder and other video camera products.
· iCatch Vi37M Chip : supports up to 4K@60FPS (interpolated), 4K@30FPS, 2.7K@60FPS, 1080P@120FPS
· Sony IMX283: 1" inch CMOS sensor with 20 million effective pixels, paired with a 7G2P high-quality lens with a 102° field of view.
· IP101GR Network Chip： support connecting network cable
· iCatch Vi37M Chip : supports up to 4K@60FPS (interpolated), 4K@30FPS, 2.7K@60FPS, 1080P@120FPS
· Sony IMX283: 1" inch CMOS sensor with 20 million effective pixels, paired with a 7G2P high-quality lens with a 102° field of view.
· IP101GR Network Chip： support connecting network cable
Interface/Port:
Type-C Port, HDMI Port ,TF card slot (up to 512G TF memory card support), battery 2 control buttons, digital
silicon microphone, buzzer, network port, serial port (Uart3), PWM, ADC five-way button, DC DC power supply interface, MIPI output interface (reserved interface)
silicon microphone, buzzer, network port, serial port (Uart3), PWM, ADC five-way button, DC DC power supply interface, MIPI output interface (reserved interface)
PCB board size is:38mm*38mm
Height : 52mm
Weight is 57g
Height : 52mm
Weight is 57g
IMX283 L1117C camera module:
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
USB Type-C port:
It can support taking 20MP photos and recording 4K@30FPS videos.
Micro HDMI port:
can support up to 4K@30FPS video signal output.
PWM port:
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
ADC five-way keypad:
PWM function interface, through which you can control the camera mode switching,photo taking, video recording and other functions.
Uart3 interface:
Commands can be input through the Uart3 to perform operations such as setting and controlling the camera.
Network port :
Connect the network cable according to the PIN definition, the cable can be connected to the computer, router, map transfer board for rtsp pulling stream
Battery Port:
Battery voltage between 6.6V (low power shutdown) ~ 8.8V, recommended to use 7.4~7.7V high-voltage high-density lithium battery power supply
DC power supply Port:
9~24V power supply can be used to control the camera to turn on automatically. It supports three ways of power supply at the same time, DC power supply from WiFi board, battery power supply from motherboard, Type-C USB power supply, or single way power supply
