Контейнер для системы хранения энергии 1 МВт
120 000,00 $
BOOSTESS Ukraine Power Backup Italy CEI 0 21:2022 03 50 кВт 100 кВтч все в одном PV DG литий ионный аккумулятор контейнер для хранения энергии
- Категория: >>>
- Поставщик: Hangzhou Hualiqing Technology Co. Ltd.Hangzhou Ltd.
Сохранить в закладки 1601345187824:
Описание и отзывы
Характеристики
BOOSTESS Ukraine Power Backup Italy CEI 0-21:2022-03 50kW 100kWh All In One PV+DG+Lithium Ion Battery Energy Storage Container
Product Paramenters

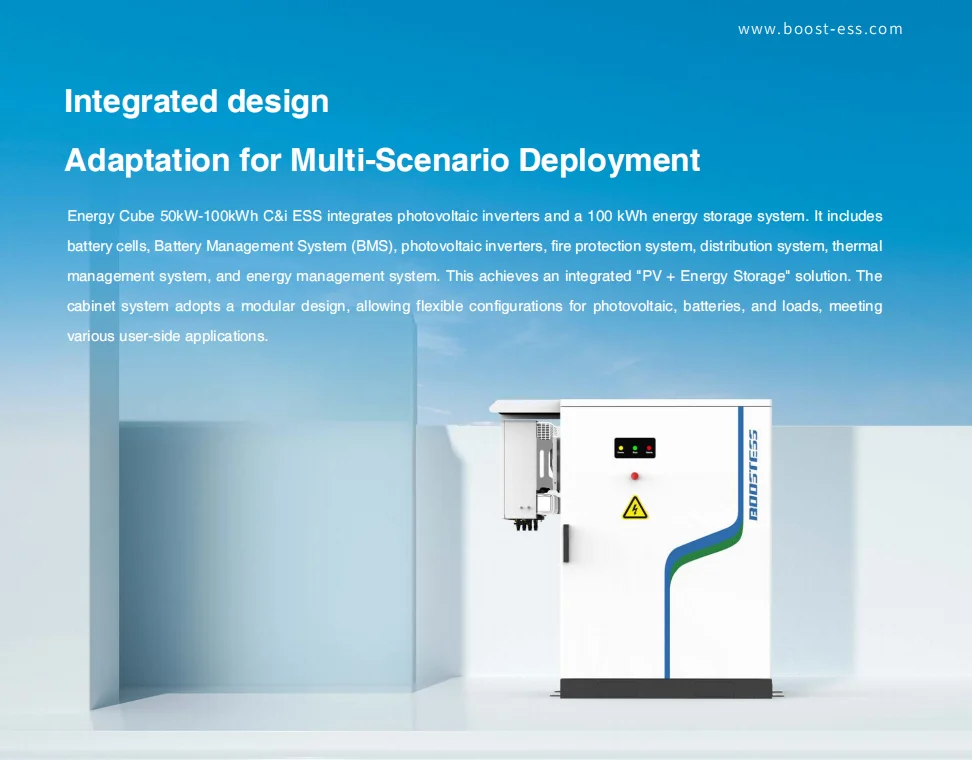

High Integration
·The equipment is highly integrated, with a compact product size, occupying only 1.2 square meters per cabinet.
Reliable Performance
·Low Loss Series Connection on the DC Side Dynamic Temperature Regulation Enhanced ESS Cycling Efficiency
Security and Stability
·Utilizing Top-Tier Battery Cell Suppliers Battery Safety Warnings and Fault Switching Automatic Fire System Response
Multi-Unit Parallel Expansion
·Flexible Scalability, On-Demand Configuration Supports Multiple Units Parallel Cooperative Control
PV / DG Application
·Directly connecting photovoltaic modules or diesel generators to establish an independent power grid.
APP Intelligent Control
·Enhance energy efficiency by controlling the operational
status and strategies of the devices through a mobile app.
status and strategies of the devices through a mobile app.
Application Scenarios
This 50kW/100kWh Highly Integrated Energy Storage Cube can be applicated in various applications.
Savings on Electricity Costs through Peak-Off-Peak Price
Differentials
Differentials
During periods of low electricity prices, use the grid to charge the devices. During periods of high electricity prices, discharge the batteries to power the load.
Used as a Backup Power Source during Power Outages
It can serve as a backup power source during power outages, providing power to critical facilities to ensure uninterrupted business operations.
Providing Power Compensation
Providing Power Compensation Function to Ensure Stable Power Supply for Businesses and Ensure Safe Equipment Operation.
PV and Energy Storage Integration Building an Independent Grid
Storing excess electricity generated by the photovoltaic system using the Energy Cube and converting it for later use.
DC Parameters | ||||||
Battery Type | LFP | Operating Voltage Range | 280V～408.8V | |||
Combination Mode | 1P112S | Charge/Discharge Current | 100A/100A | |||
Rated Capacity | 280Ah | Cooling Mode | Air Cooling | |||
Rated Energy | 100kWh | Cycle Number | 6000 | |||
Rated Voltage | 358.4V | Fire Protection System | Aerosol Extinguishing | |||
Rated Power | 50kW | Detector Type | Temperature / Smoke Sensor / Water Leak | |||
PV Parameters | ||||||
Maximum Input Power | 75kW | |||||
Maximum DC Input Voltage | 1000V | |||||
MPPT Operating Voltage Range | 200-850V | |||||
Maximum Input Current | 30A×4 | |||||
Rated Output Power | 50kW | |||||
Maximum Conversion Efficiency | 98.8% | |||||
AC Parameters | ||||||
Rated Output Power | 50kW | |||||
Rated Voltage | 3L/N/PE; 220/380V; 230/400V; 240/415V | 46.592kWh | ||||
Grid Frequency | 50/60Hz | |||||
Maximum Output Current | 83A | 0.5P/1P | ||||
Power Factor | 0.8 Lead... 0.8 lag | 0.5P/1P | ||||
System Parameters | Coolant heat dissipation | |||||
Operating Environment | -20℃～50℃（Power derating 45℃+） | 145.6~187.2V | ||||

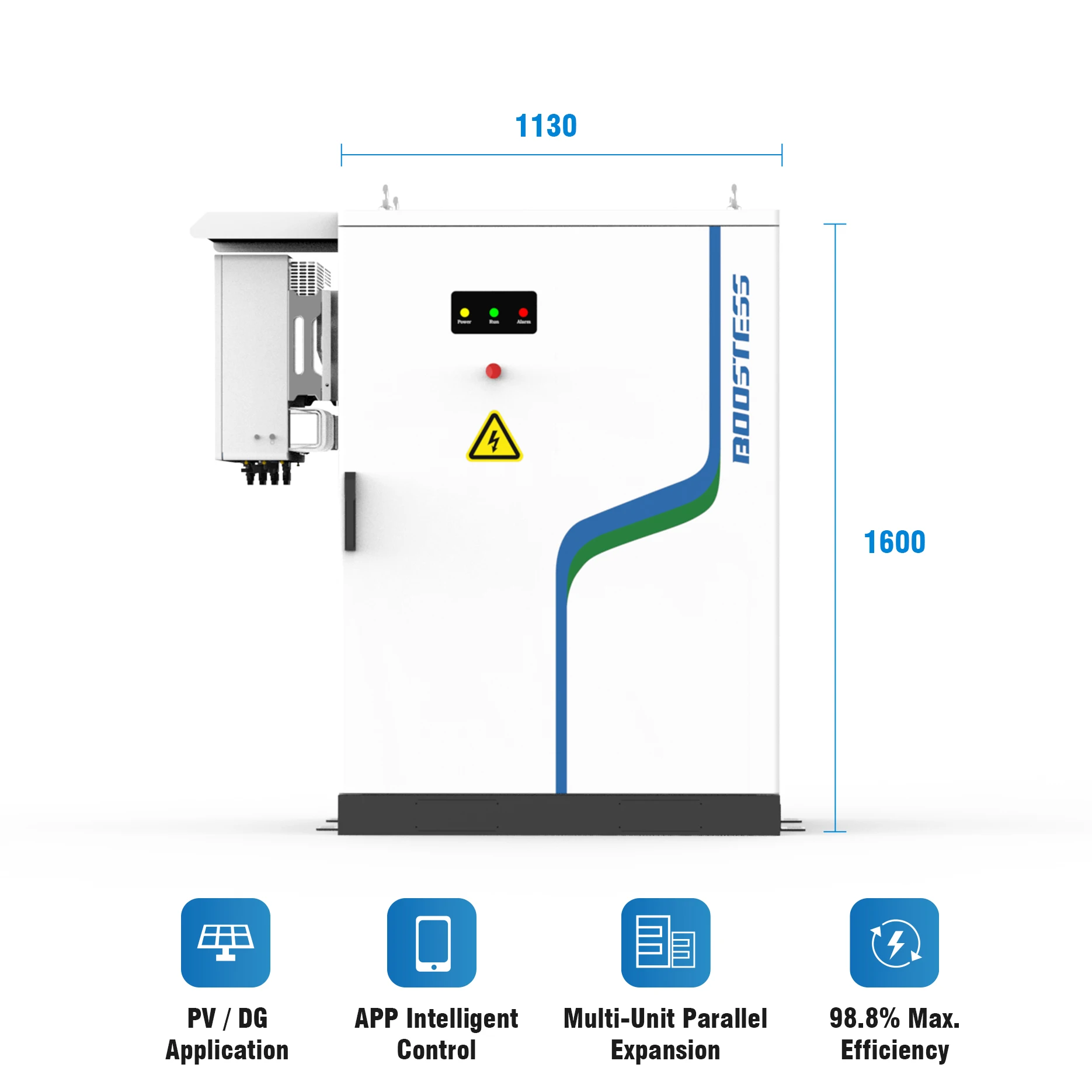

Size | 1130*1000*1600mm | |||||
Weight | About 1.4t | |||||
Class Of Protection | IP54 | |||||
Allowable Relative Humidity | 0-95% | |||||
Allowable Altitude | ≤2000m（Power derating 2000m + ） | |||||
Certification Standard | IEC62619、EN62477-1、IEC 63056 | 790*1145*245mm | ||||
Details Images
Company Profile
Exhibition
Certifications
Product packaging

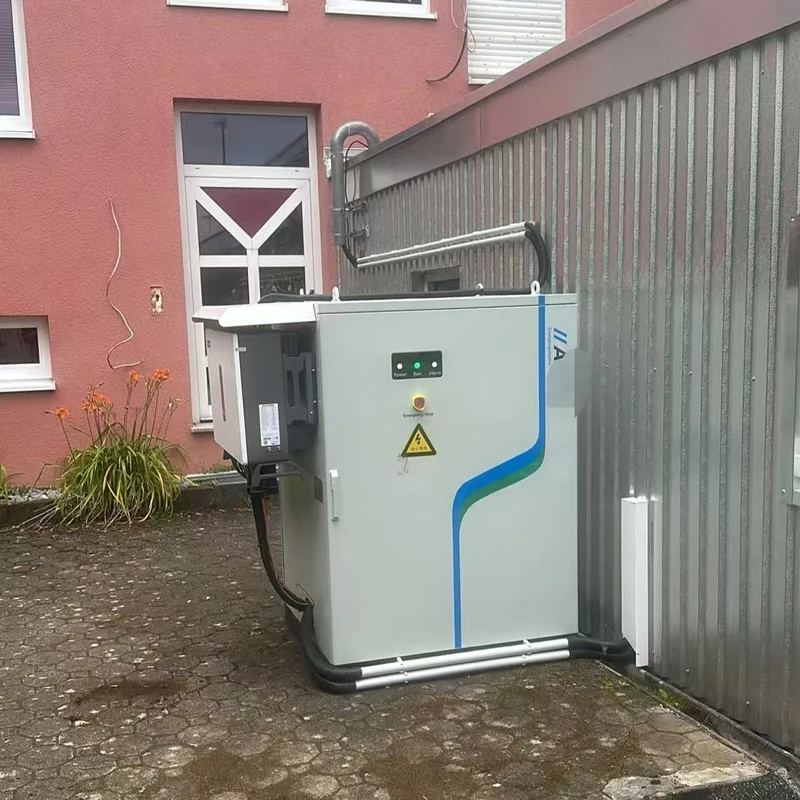

Case
FAQ
1. Q: Do you have MOQ? How long is the delivery time for your products?
A: Normally we don't have MOQ request for most of our products.
A: Normally we don't have MOQ request for most of our products.
But the delivery time depends on the inverter model you require.
* For items in stock: we can ship within 3 working days.
* For items not in stock: production typically takes 30-35 working days. If you have an urgent schedule for delivery at small qty., we suggest you to buy from our local distributors.
2. Q: What certifications do your products have?
A: Dawnice ENERGY battery products are certified to meet global standards, including:
* UN38.3, CE, EMC, UL, and REACH.
These certifications ensure compliance with international regulations, meeting the import requirements of most countries, and guaranteeing product quality and reliability. ✅\\uD83C\\uDF0D\\uD83D\\uDD0B
3. Q: Do you offer OEM & ODM services?
A: Yes, we provide both OEM and ODM services. Please note that a minimum order quantity (MOQ) is required.
4. Q: Can your battery products be shipped by sea or air?
A: Absolutely! We work with long-term, experienced freight forwarders who specialize in battery shipments, ensuring safe and efficient transportation. \\uD83D\\uDEA2✈️
5. Q: What is the warranty period for your products?
A: Our products come with an industry-leading warranty of up to 10 years.
6. Q: How do you provide after-sales service?
A: We offer comprehensive after-sales support through our overseas branches, which can handle repairs and replacements promptly.\\uD83D\\uDD27\\uD83C\\uDF0D
7. Q: Can I request a sample?
A: Yes! Please provide your contact details, and our sales manager will reach out to you shortly to arrange it. \\uD83D\\uDCDE\\uD83D\\uDCBC
* For items in stock: we can ship within 3 working days.
* For items not in stock: production typically takes 30-35 working days. If you have an urgent schedule for delivery at small qty., we suggest you to buy from our local distributors.
2. Q: What certifications do your products have?
A: Dawnice ENERGY battery products are certified to meet global standards, including:
* UN38.3, CE, EMC, UL, and REACH.
These certifications ensure compliance with international regulations, meeting the import requirements of most countries, and guaranteeing product quality and reliability. ✅\\uD83C\\uDF0D\\uD83D\\uDD0B
3. Q: Do you offer OEM & ODM services?
A: Yes, we provide both OEM and ODM services. Please note that a minimum order quantity (MOQ) is required.
4. Q: Can your battery products be shipped by sea or air?
A: Absolutely! We work with long-term, experienced freight forwarders who specialize in battery shipments, ensuring safe and efficient transportation. \\uD83D\\uDEA2✈️
5. Q: What is the warranty period for your products?
A: Our products come with an industry-leading warranty of up to 10 years.
6. Q: How do you provide after-sales service?
A: We offer comprehensive after-sales support through our overseas branches, which can handle repairs and replacements promptly.\\uD83D\\uDD27\\uD83C\\uDF0D
7. Q: Can I request a sample?
A: Yes! Please provide your contact details, and our sales manager will reach out to you shortly to arrange it. \\uD83D\\uDCDE\\uD83D\\uDCBC
Похожие товары

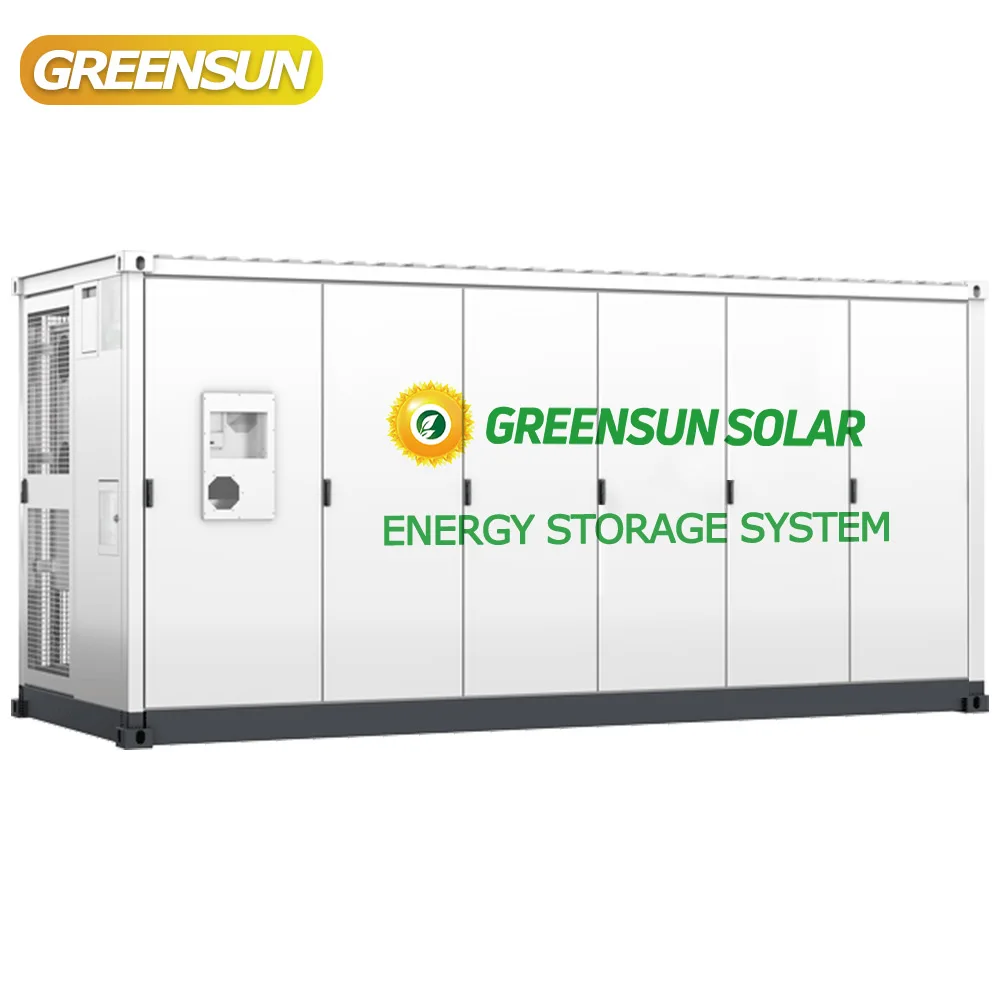

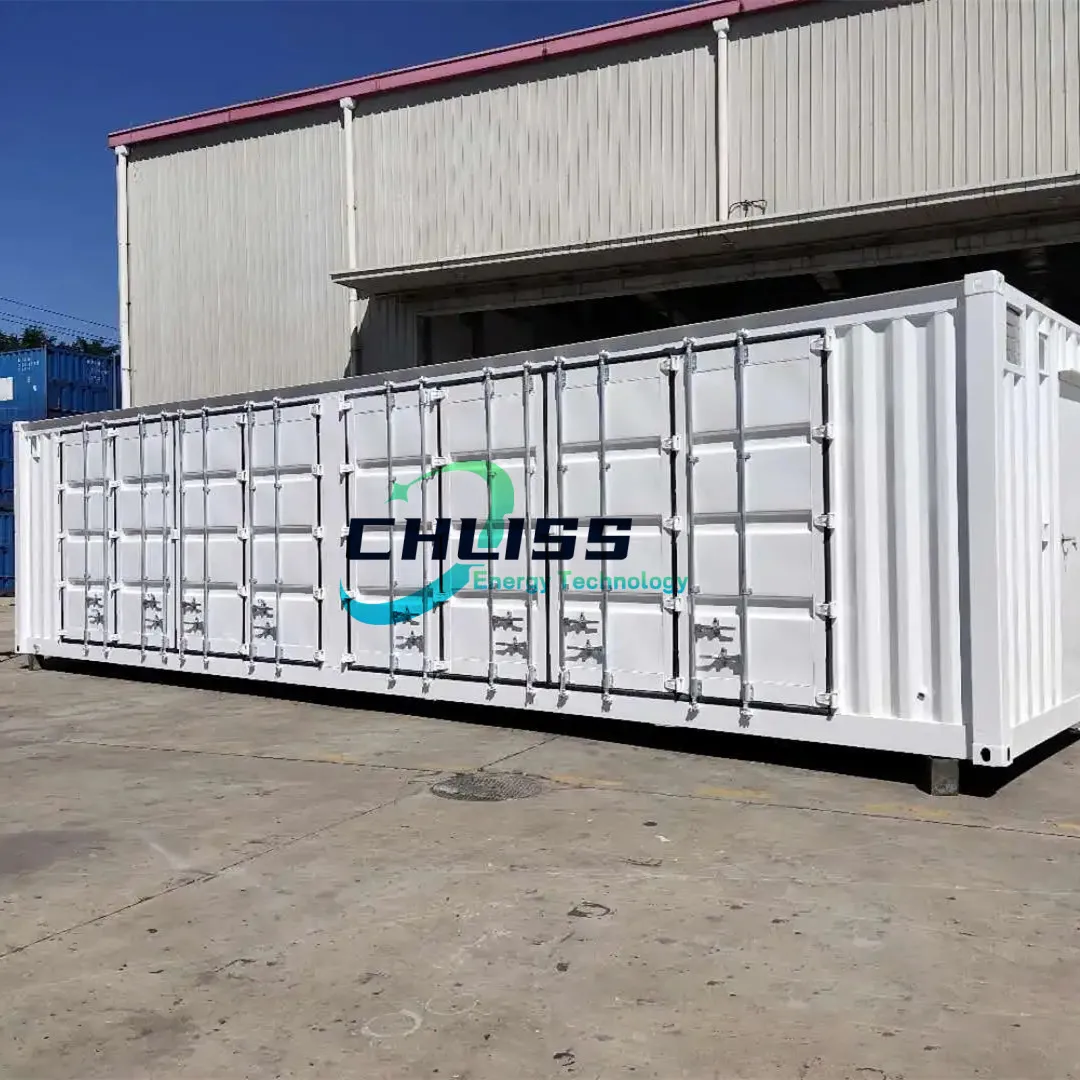

Новый дизайн 1MWH 1.2MWH контейнер система хранения энергии литиевая батарея солнечная энергия хранение
0,13-0,14 $
Модуль двунаправленного преобразователя электросети для гибридного инвертора
54 056,00-56 386,00 $
Контейнер с литиевой батареей 200 кВтч двунаправленным подключением 100 кВт С PV-панелью + солнечный инвертор MPPT DC/DC конвертер
54 056,00-56 386,00 $

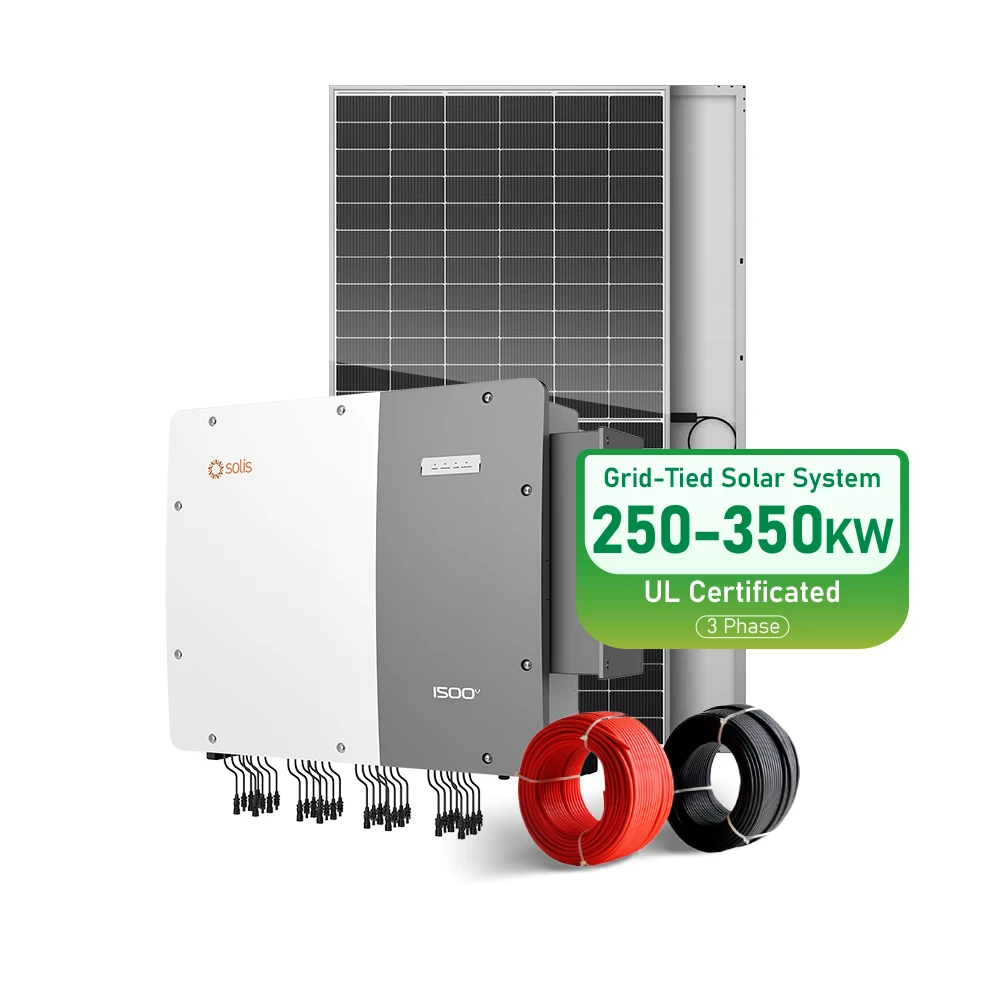

Solis все в одном солнечная энергетическая система 200Kw 255Kw 300Kw 350Kw на сетке полный комплект
0,25-0,55 $

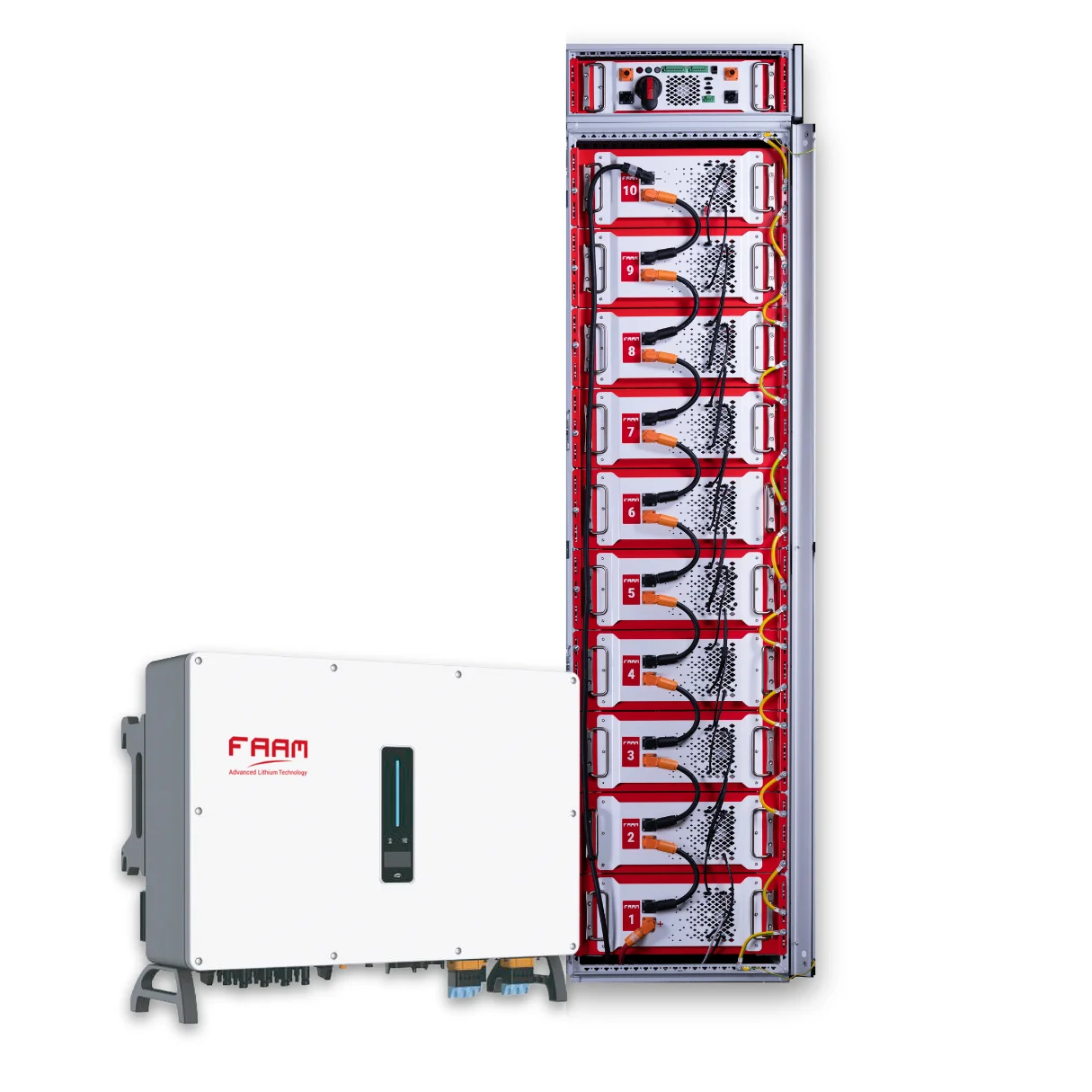

64 кВт 36 итальянская Промышленная и коммерческая аккумуляторная батарея FAAM LiFePO4
