Вилочный Погрузчик Электрический 1 5ton 1500 кг дизельный 3 т вилочный погрузчик с известным двигателем для продажи
226 251,20 ₽

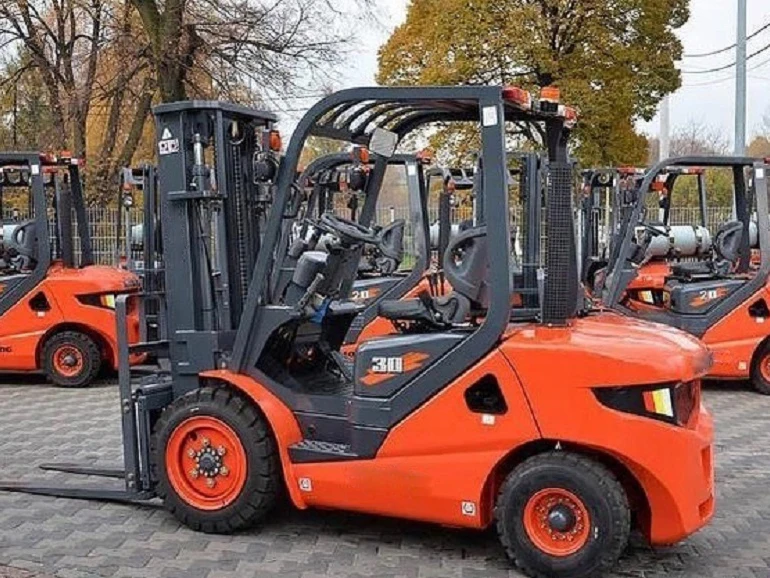

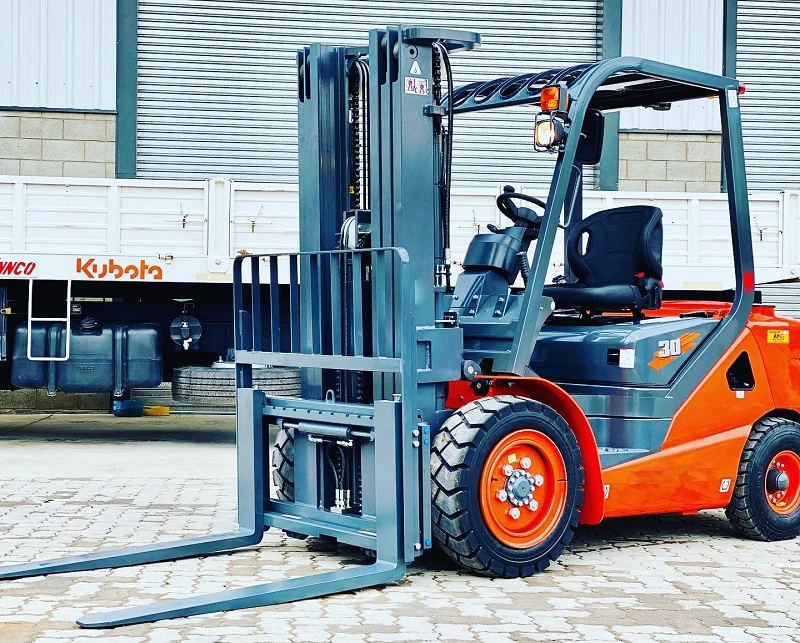

3 тонный дизельный вилочный погрузчик FD30/LG30DT с боковым переключением
- Категория: >>>
- Поставщик: Tewrex Industrial Machinery (Suzhou) Co. Ltd.Tewrex Ltd.
Сохранить в закладки 1601345202977:
Описание и отзывы
Характеристики
Contact Way
Cindy
Sales Manager
Whatsapp/Wechat/Mobile: +86-15005296982
E-mail: cindy@tewrex.com
Add: Suite 705, Building 2, Tiandu Plaza, No.211 Changjiang Road, National Hi-Tech District, Suzhou, Jiangsu, China.
Sales Manager
Whatsapp/Wechat/Mobile: +86-15005296982
E-mail: cindy@tewrex.com
Add: Suite 705, Building 2, Tiandu Plaza, No.211 Changjiang Road, National Hi-Tech District, Suzhou, Jiangsu, China.
1. Transmission box, drive axle and other core parts are self-made, their box manufacturing and assembly equipment has reached
international advanced level. The key parts of the box are imported , and box assembly failure rate is low, and has the best
quality of domestic box.
2. With attachment of various types of the masts, all use double built-in hose pulley block, and have compact structure, beautiful
appearance, good passage capacity , are first adopted in our country (Patent technology).
3. All lifting mast pipeline have equipped with explosion proof safety valve to ensure the safety of the lifting process.
4. Exhaust system use corrugated pipe to realize flexible connection with frame , and reduce the vibration and noise of the whole
vehicle.
5. The steering axle and the frame connection place has done the shock absorption processing, and the shock of whole vehicle has
reduced by 30 %.
6. With intake muffler, the air flow is expanded and intervened to suppress the intake pulse, reducing the intake noise.
7. Hose joint and transition joint in pipeline are sealed with cone form, which has good sealing effect and needs no seal ring. So
it won’t leak oil due to the sealing ring aging.
8. Seal for the key parts of the cylinder are imported, which contribute to sealing reliable and quality stable.
9. Steering trapezium use optimal program, and the maximum error is less than 1°, can reduce tire wear and improve service life.
international advanced level. The key parts of the box are imported , and box assembly failure rate is low, and has the best
quality of domestic box.
2. With attachment of various types of the masts, all use double built-in hose pulley block, and have compact structure, beautiful
appearance, good passage capacity , are first adopted in our country (Patent technology).
3. All lifting mast pipeline have equipped with explosion proof safety valve to ensure the safety of the lifting process.
4. Exhaust system use corrugated pipe to realize flexible connection with frame , and reduce the vibration and noise of the whole
vehicle.
5. The steering axle and the frame connection place has done the shock absorption processing, and the shock of whole vehicle has
reduced by 30 %.
6. With intake muffler, the air flow is expanded and intervened to suppress the intake pulse, reducing the intake noise.
7. Hose joint and transition joint in pipeline are sealed with cone form, which has good sealing effect and needs no seal ring. So
it won’t leak oil due to the sealing ring aging.
8. Seal for the key parts of the cylinder are imported, which contribute to sealing reliable and quality stable.
9. Steering trapezium use optimal program, and the maximum error is less than 1°, can reduce tire wear and improve service life.
Product Description
MODEL | LG30D(T) |
Powertype | Diesel |
Ratedcapacity(Kg) | 3000 |
JLoadcentre(mm) | 500 |
h1STDMaxliftingheight(mm) | 3000 |
h3Freeliftingheight(mm) | 125 |
L5*W*TSTDForksize(mm) | 1070×125×45 |
Masttiltangle(deg) | 6/12 |
L3Frontoverhang(mm) | 487 |
L4Rearoverhang(mm) | 550 |
R1Min.turningradius(mm) | 2520 |
Min.width for pallets 1,000×1,200 crossways (L×W)(mm) | 4200 |
Max.travelingspeed(km/h) | 20 |
Max,liftingspeed(mm/s)(load/unload) | 500/520 |
Max.gradient(%) | 20 |
STD Dead weight(kg) | 4160 |
S/PTread(frnt/rear)(mm) | 1030/980 |
L2Axledistance(mm) | 1750 |
m2Mast(mm) | 132 |
m1Frame(mm) | 165 |
Details Images
Recommend Products
Company Profile
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
Похожие товары

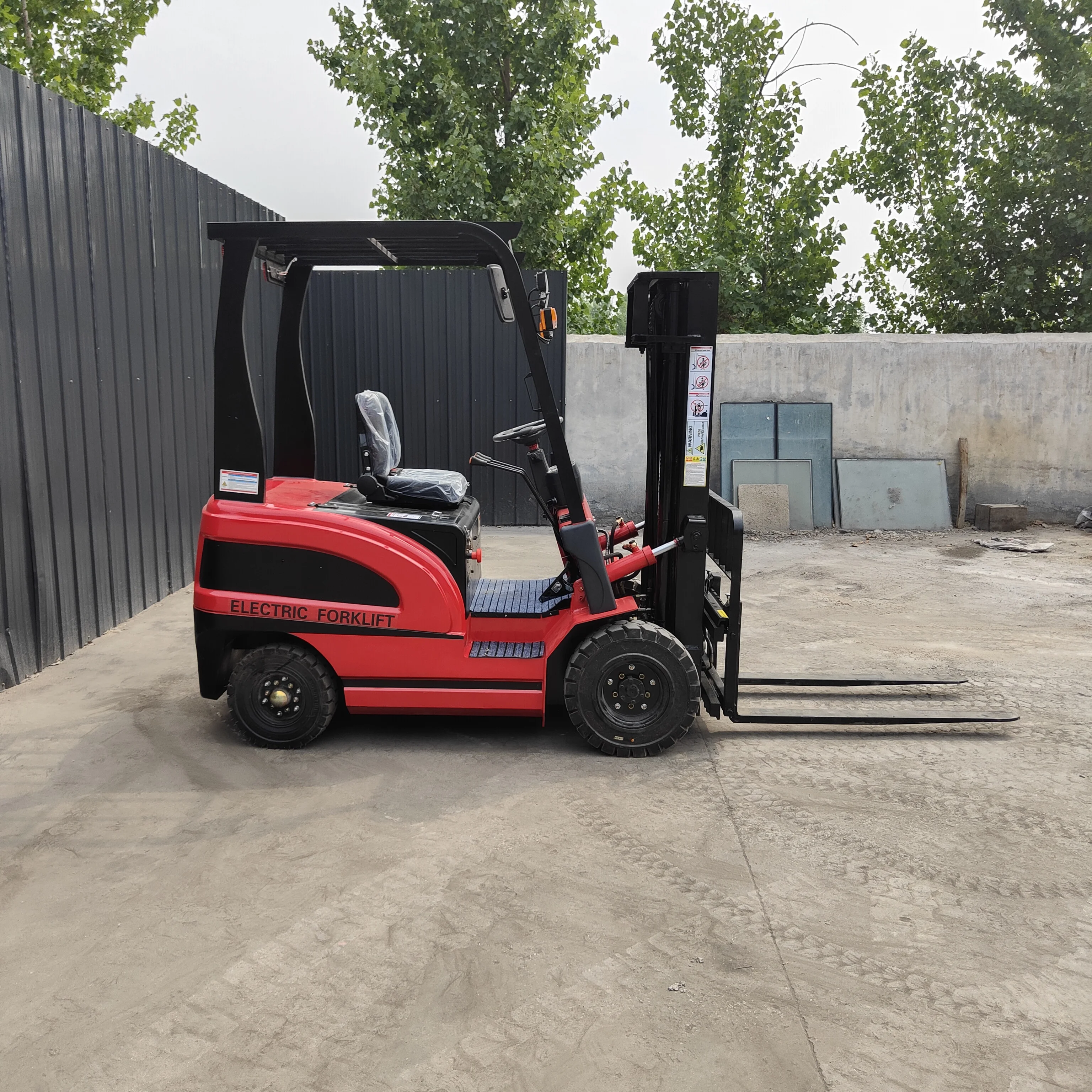

Индивидуальный и эффективный мини-электрический портативный вилочный погрузчик Самый дешевый
203 626,08 ₽
Электрический полноприводный 1 тонный погрузчик с вилочным погрузчиком
316 751,68-404 989,65 ₽
Вилочный погрузчик с аккумулятором 48 В/60 В для ферм и типографий 220 напряжение сделано в Китае
По заводской цене подъемная платформа для автомобиля высокое качество Рабочая простая в эксплуатации
237 450,64-297 520,33 ₽

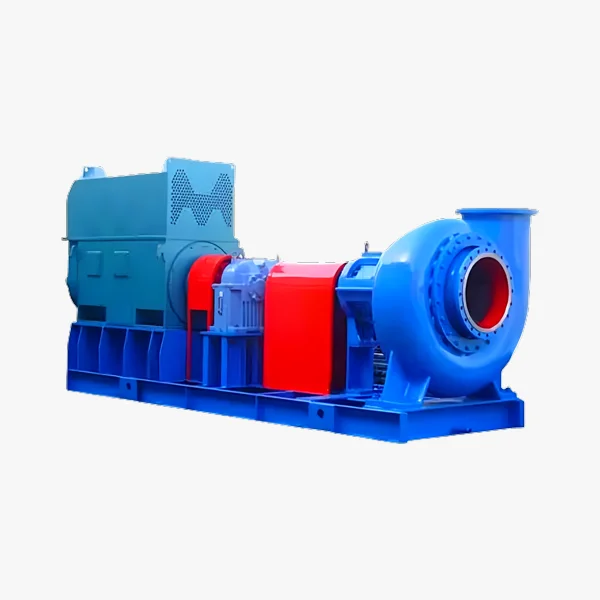

DT серии десульфурации циркуляционный насос горизонтальный
1 086 005,76-1 131 256,00 ₽
Портативный автоматический Электрический завод арматуры узел инструмент для вязания стального кабеля
11 086,31-14 140,70 ₽

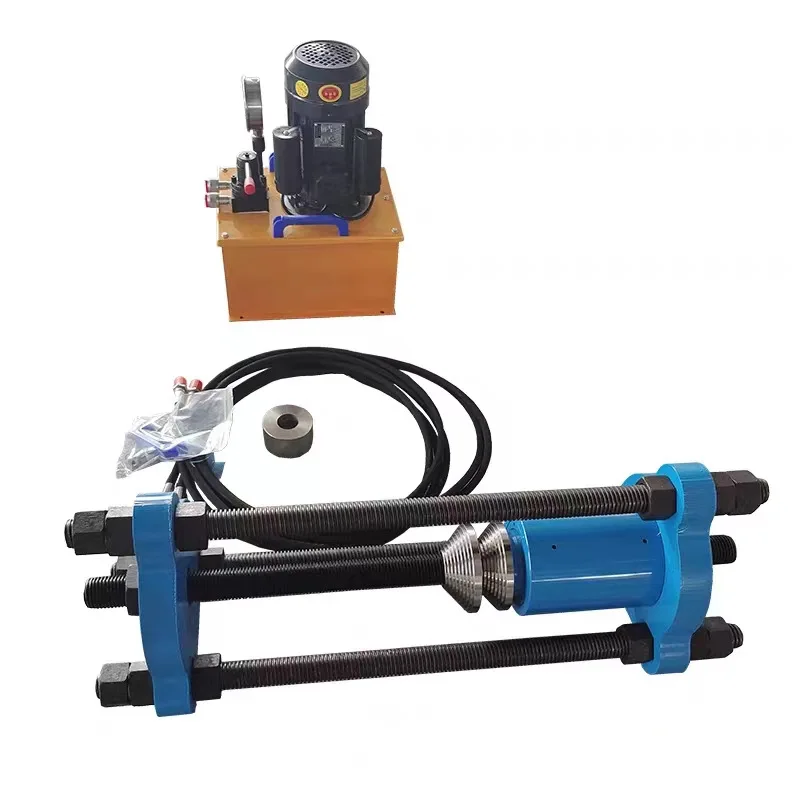

Высококачественный новый дизайн дешевая гидравлическая машина для разборки
