Гидравлический Орел ножницы для 20 40 тонного экскаватора
- Категория: >>>
- Поставщик: Wuxi Beiyi Excavator Parts FactoryWuxi Factory
Сохранить в закладки 1601345244384:
Описание и отзывы
Характеристики
Products Description
HYDRAULIC
SHEAR

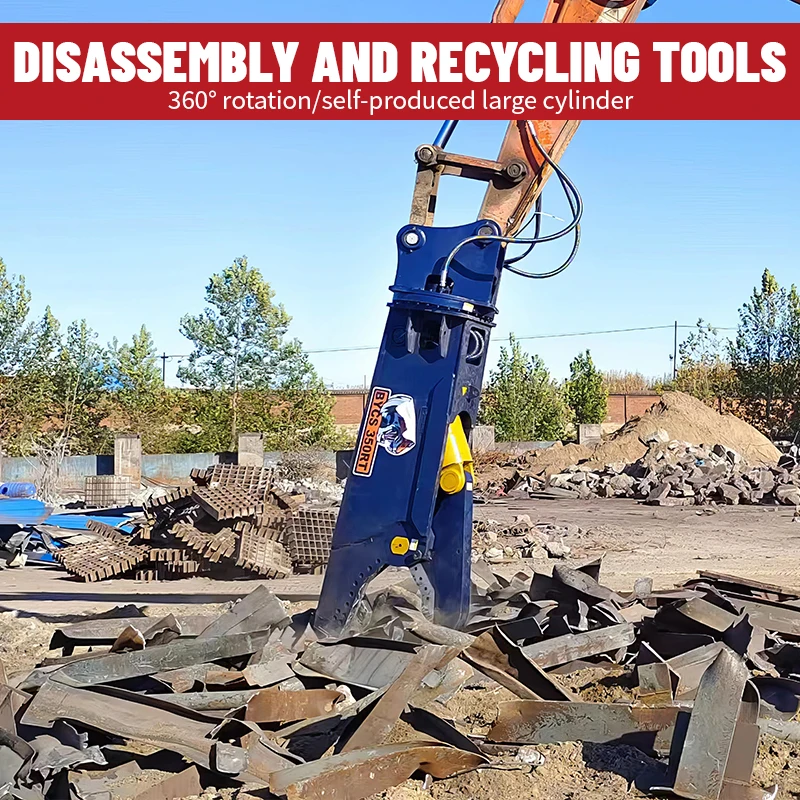

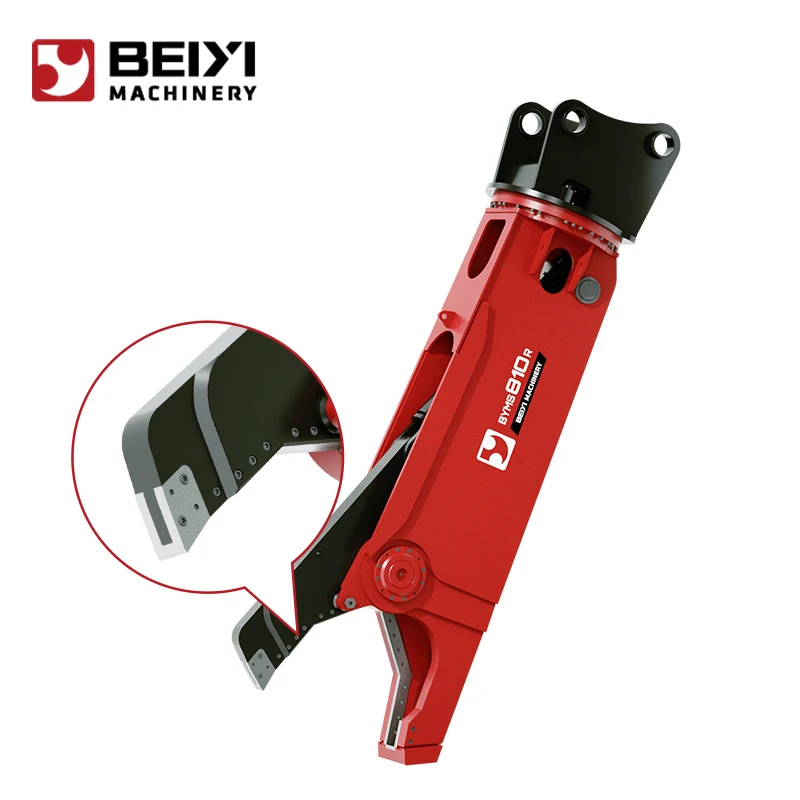

Hydraulic hawkbill shears are a front-end attachment for use with excavators. It gets its name from its shape, which resembles an eagle's beak. Hydraulic olecranon shears provide power through the hydraulic system to realize the movement of the cutter head and the opening and closing of the clamping groove. When the operating handle or control valve is activated, hydraulic oil will enter the cylinder and push the piston to move, thereby driving the movement of the cutter head and clamping groove. By adjusting the position of the control valve, different working modes of the olecranon shears can be realized, such as cutting, clamping, lifting, etc. Therefore, the hydraulic olecranon shear is a practical and efficient mobile scrap steel dismantling machine and scrap car dismantling equipment.

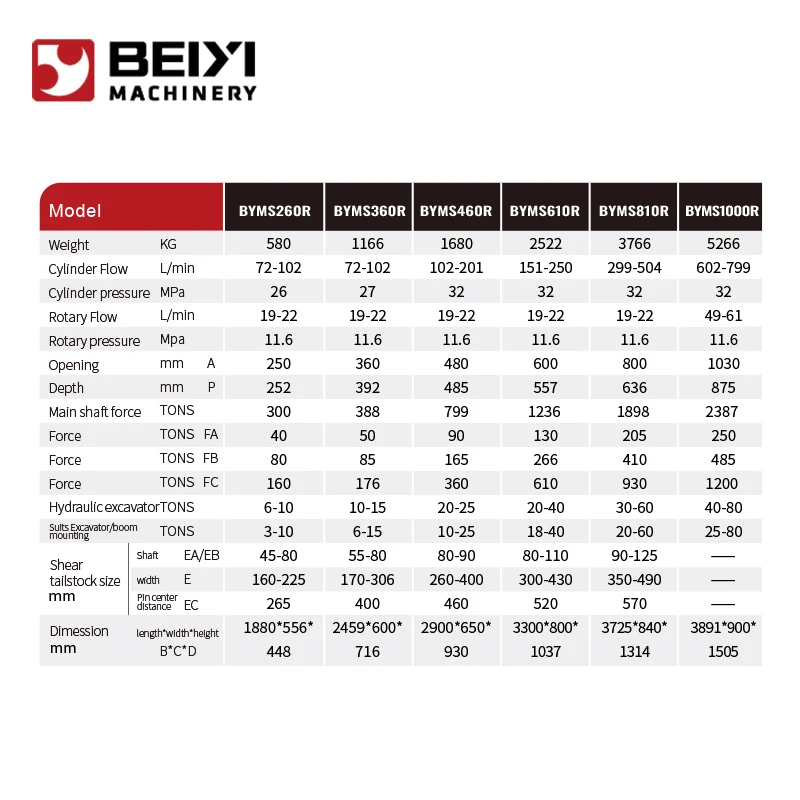

Product parameters
Model | BYMS260R | BYMS360R | BYMS460R | BYMS610R | BYMS810R | BYMS1000R | ||
Weight KG | KG | 580 | 1160 | 1680 | 2522 | 3766 | 5266 | |
Cylinder Flow L/min | L/min | 72-102 | 72-102 | 102-201 | 151-250 | 299-504 | 602-799 | |
Cylinder pressure Mpa | 26 | 27 | 32 | 32 | 32 | 32 | ||
Rotary Flow L/min | 19-22 | 19-22 | 19-22 | 19-22 | 19-22 | 49-61 | ||
Rotary pressure Mpa | 11.6 | 11.6 | 11.6 | 11.6 | 11.6 | 11.6 | ||
Opening mm A | 250 | 360 | 480 | 600 | 800 | 1030 | ||
Depth mm P | 252 | 392 | 485 | 557 | 636 | 875 | ||
Main shaft force TONS | 300 | 388 | 799 | 1236 | 1898 | 2387 | ||
Force TONS FA | 40 | 50 | 90 | 130 | 205 | 250 | ||
Force TONS FB | 80 | 85 | 165 | 266 | 410 | 485 | ||
Force TONS FC | 160 | 176 | 360 | 610 | 930 | 1200 | ||
Hyydraulic excavator TONS | 6-10 | 10-15 | 20-25 | 20-40 | 30-60 | 40-80 | ||
Suits Excavator/ boom mounting TONS | 3-10 | 6-15 | 10-25 | 18-40 | 20-60 | 25-80 | ||
Shear tailstock size / mm | Shaft EA/EB | 45-80 | 55-80 | 80-90 | 80-110 | 90-125 | ----- | |
width E | 160-225 | 170-306 | 260-400 | 300-430 | 350-4900 | ----- | ||
Pin center distance EC | 265 | 400 | 460 | 520 | 570 | ----- | ||
Dimession/ length*width*height | mm / B*C*D | 1880*556*448 | 2459*600*716 | 2900*650*930 | 3300*800*1037 | 3725*840*1314 | 3891*900*1505 | |

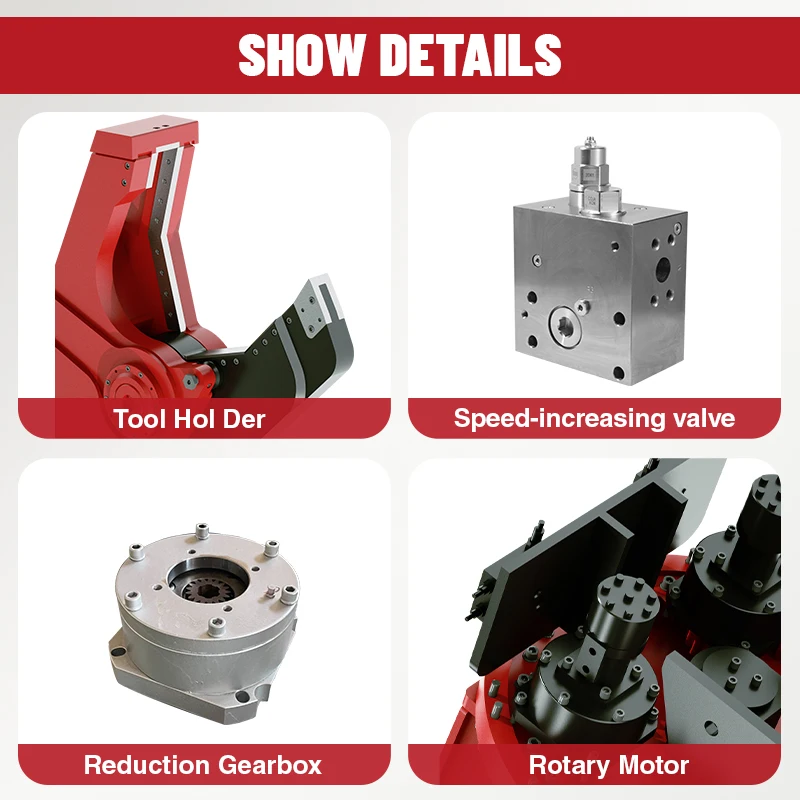

Product Details
Company introduction
Company Profile
Wuxi Beiyi Excavator Parts Manufacturing Factory was established in 2000. It is a manufacturer specializing in the production of pile machinery, excavator accessories, excavator attachments and related construction machinery. The factory is located in Luoshe Town, Huishan District, Wuxi City . The sales headquarters is located in the Smart Building, Jianghai West Road, Liangxi District, Wuxi City. The main products include: hydraulic pile breakers (including detachable circular and fixed square hydraulic pile breakers), H-shaped steel pile pullers, hydraulic crushing tongs, auger drills, auger drill rods, and olecranons. Shears, double-cylinder hydraulic shears, car demolition shears, rail shears, gantry shears, vibrating pile drivers, hydraulic tongs, breaker hammers, vibrating tampers, quick connectors, lotus grabs, rotary stone grabbers/wood grabbers and various types of And domestic excavator large, medium and small arm cylinder assemblies, etc. The company has a complete self-research and production model, adhering to the business philosophy of "breaking conventions and embracing innovation", integrating design, research and development, manufacturing and sales, providing customers with a lot of convenience. At the same time, the company has a complete after-sales service system, always implements the service tenet of "customer first", adheres to the principle of "treating people with sincerity and serving with heart" to receive customers, and also provides product customization services to meet the diversification of the market. need.
The company's operators have 20 years of operating experience. They are constantly innovating and optimizing processes, improving and improving inspection processes, and strive to supply customers and serve the market with high-quality products. Through continuous hard work and accumulation, we have established production bases in many places. At the same time, we have a large number of cooperative customer resources, and the company's products are also widely used in many fields such as photovoltaics, construction, and water engineering. Our business radiates to many places, and we have become one of the most popular construction machinery companies in the industry.
The customers we cooperate with include: China Railway Group, China Railway Construction, China Railway Fourth Bureau Group, China Coal Jiangnan, Hengli Group, China 20th Group, Shanghai Metro, Shenzhen Metro, etc.
The company's operators have 20 years of operating experience. They are constantly innovating and optimizing processes, improving and improving inspection processes, and strive to supply customers and serve the market with high-quality products. Through continuous hard work and accumulation, we have established production bases in many places. At the same time, we have a large number of cooperative customer resources, and the company's products are also widely used in many fields such as photovoltaics, construction, and water engineering. Our business radiates to many places, and we have become one of the most popular construction machinery companies in the industry.
The customers we cooperate with include: China Railway Group, China Railway Construction, China Railway Fourth Bureau Group, China Coal Jiangnan, Hengli Group, China 20th Group, Shanghai Metro, Shenzhen Metro, etc.
Recommend Products
Exhibition display
certificate display
FAQ
1. Are you a businessman or a manufacturer?
We are an industry and trade integration enterprise, the factory is located in Wuxi, Jiangsu Province.
2. How do I determine if a part is right for my excavator?
Give the correct model/machine serial number/any number on the part. Or measure parts and give us size or drawings.
3. What about the terms of payment?
We usually accept telegraphic transfer or trade guarantee. Other terms may also be negotiated.
4. What's your minimum order quantity?
It depends on what you are buying. Typically, our minimum order is one 20-foot container and LCL containers (less than one container load) are acceptable.
5. What is your delivery time?
FOB Xiamen or any Chinese port: 20 days If there are any parts in stock, our delivery time is only 0-7 days.
6. What about quality control?
We have a perfect quality control system for the perfect products. team will carefully check product quality and specifications, monitor every production process until packaging is complete, and ensure that the product is safely placed into the container
We are an industry and trade integration enterprise, the factory is located in Wuxi, Jiangsu Province.
2. How do I determine if a part is right for my excavator?
Give the correct model/machine serial number/any number on the part. Or measure parts and give us size or drawings.
3. What about the terms of payment?
We usually accept telegraphic transfer or trade guarantee. Other terms may also be negotiated.
4. What's your minimum order quantity?
It depends on what you are buying. Typically, our minimum order is one 20-foot container and LCL containers (less than one container load) are acceptable.
5. What is your delivery time?
FOB Xiamen or any Chinese port: 20 days If there are any parts in stock, our delivery time is only 0-7 days.
6. What about quality control?
We have a perfect quality control system for the perfect products. team will carefully check product quality and specifications, monitor every production process until packaging is complete, and ensure that the product is safely placed into the container
