Маленькая каменная дробилка для производства гравия передвижная PE250 * 400 руда гранитная щековая
- Категория: >>>
- Поставщик: Zhengzhou Juding Environmental Protection Equipment Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 1601346033522:
Описание и отзывы
Характеристики
Jaw crusher is typically used as primary crushers, or the first step in the process of reducing rock. They typically crush using compression. The rock salt lump is dropped between two rigid pieces of metal, one of which then move inwards towards the rock,and the rock salt lump is crushed because it has a lower breaking point than the opposing metal piece. Jaw crusher movement is obtained by using a pivot point located at one end of the "swing jaw", and an eccentric motion located at the opposite end.
Our factory can provide specialization and design customization according to your needs, to meet different customers' production requirements

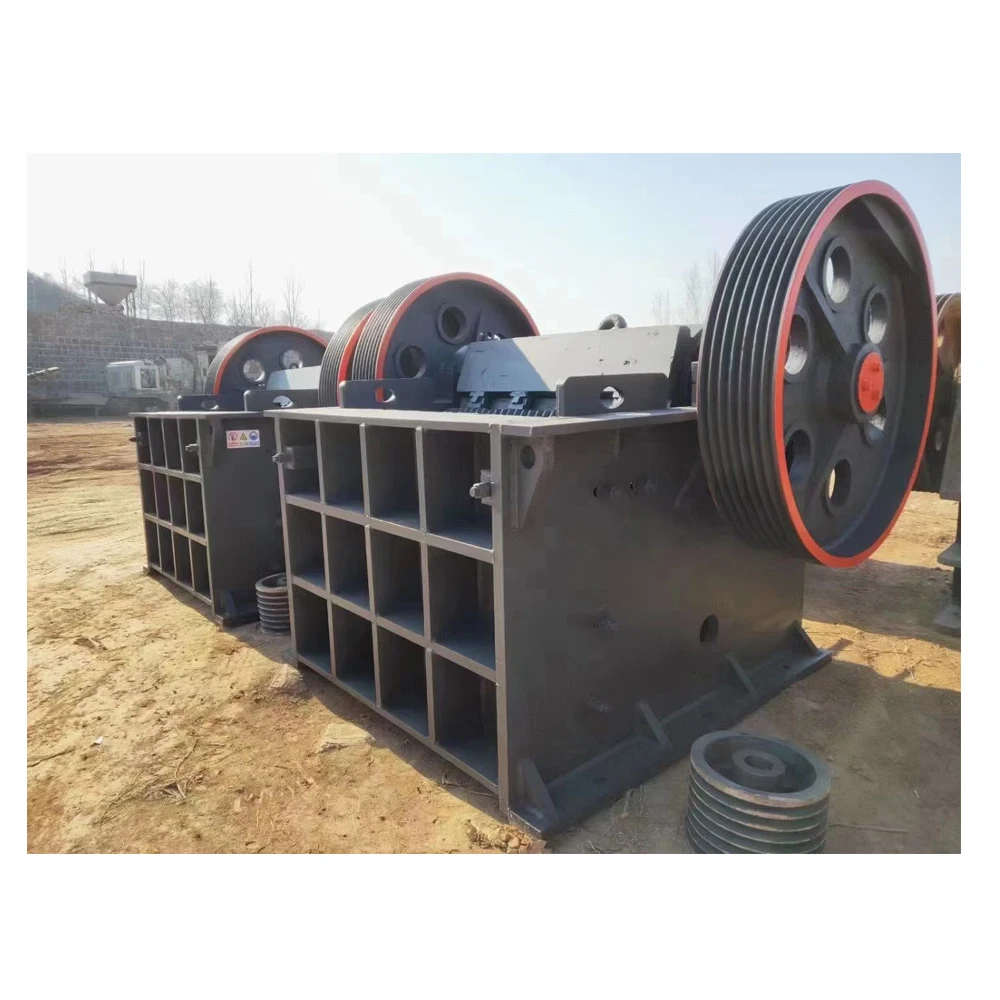

PE jaw crusher has a variety of models, among which the most popular models are PE-400 × 600, PE-500 × 750, PE-600x900 and so on.
Usage: Used for primary crushing (coarse crushing) and medium crushing of materials. Feed size: Relatively large stones.
Discharge size: Wide adjustment range of discharge port.
Usage: Used for primary crushing (coarse crushing) and medium crushing of materials. Feed size: Relatively large stones.
Discharge size: Wide adjustment range of discharge port.

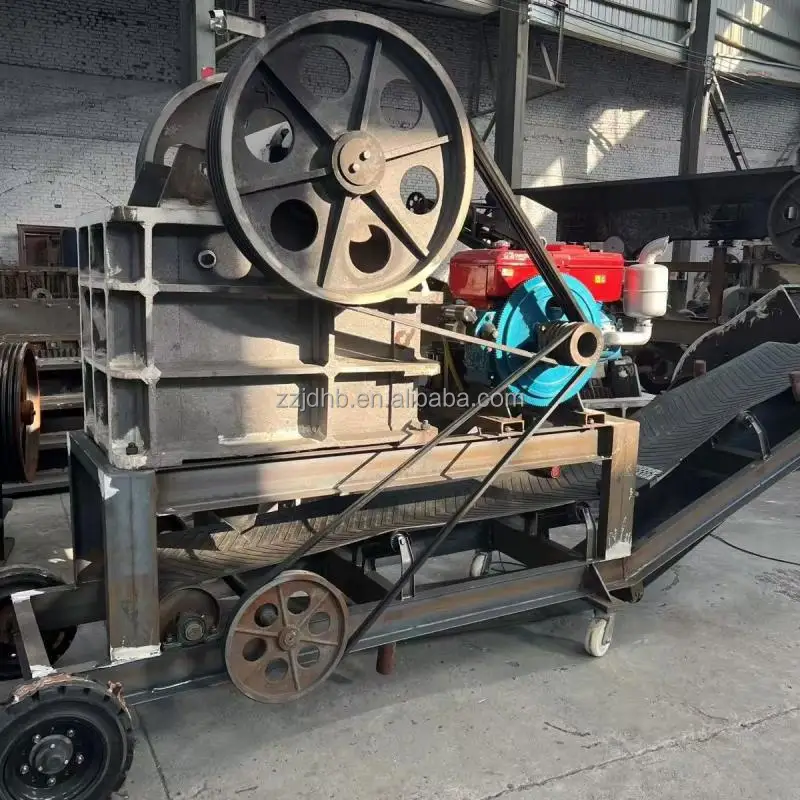

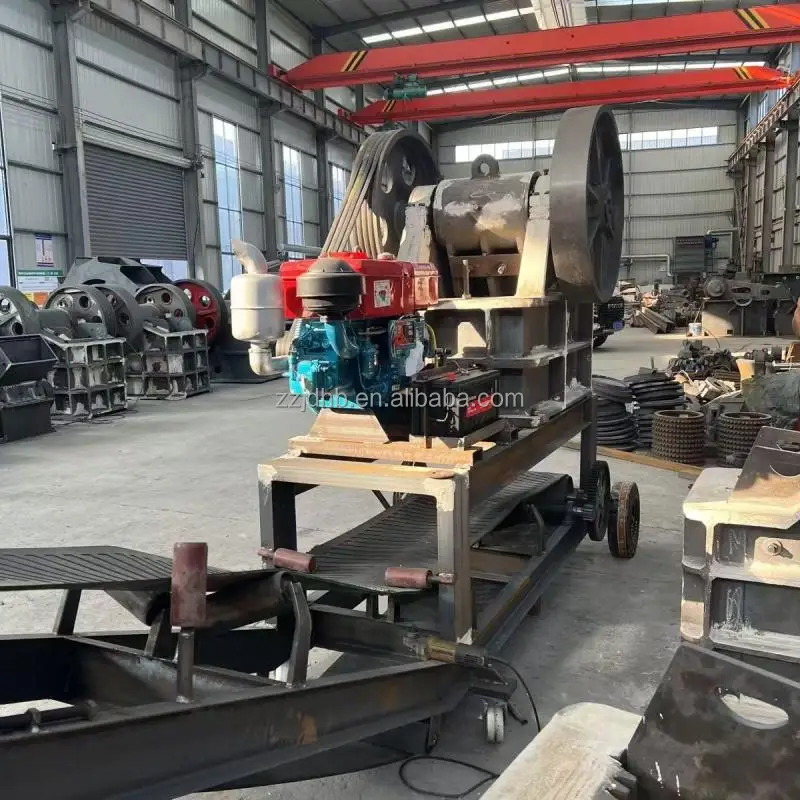

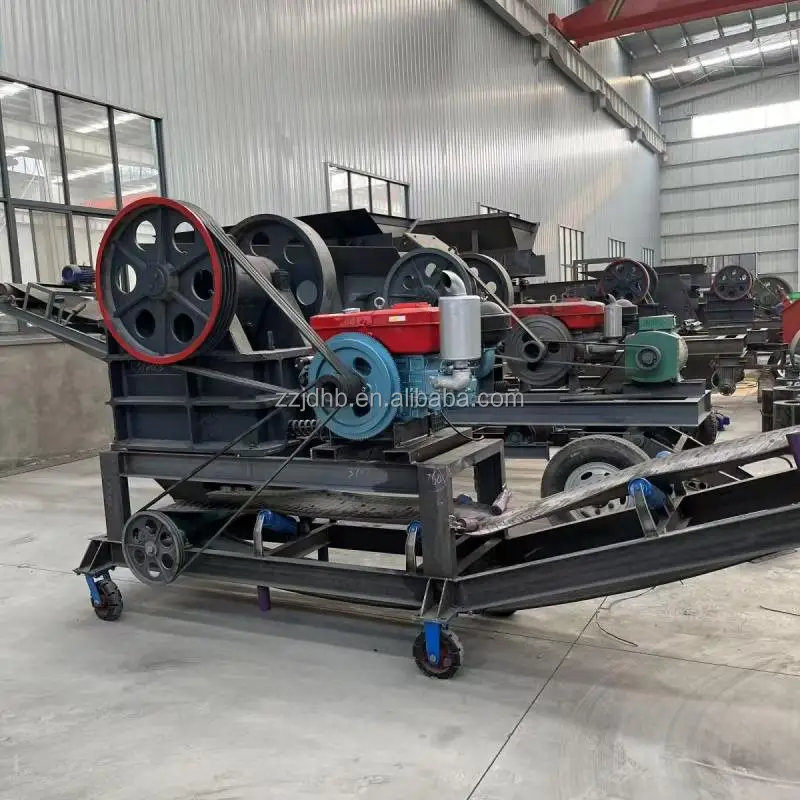

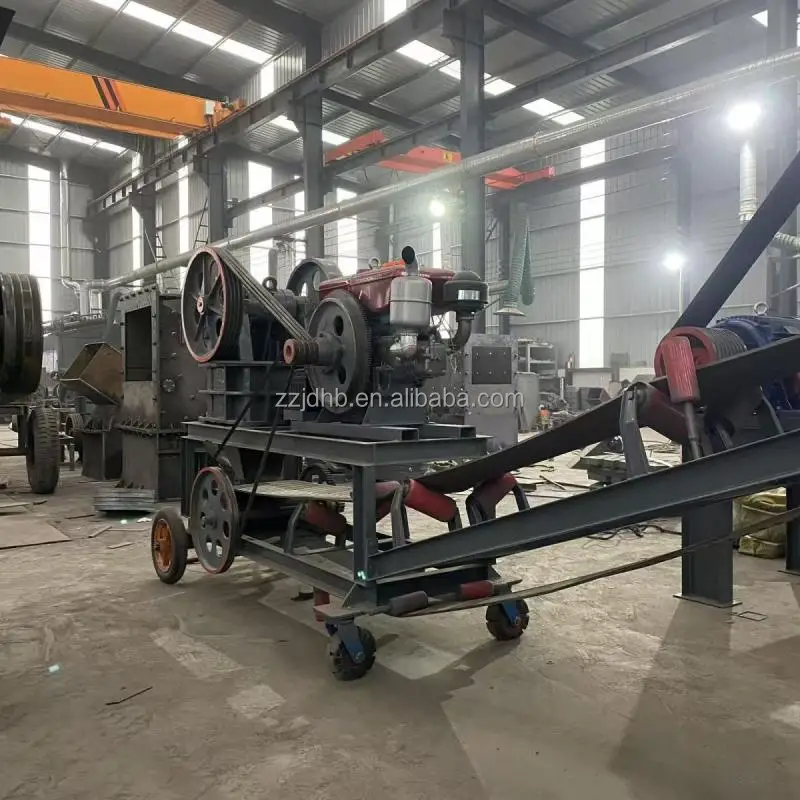

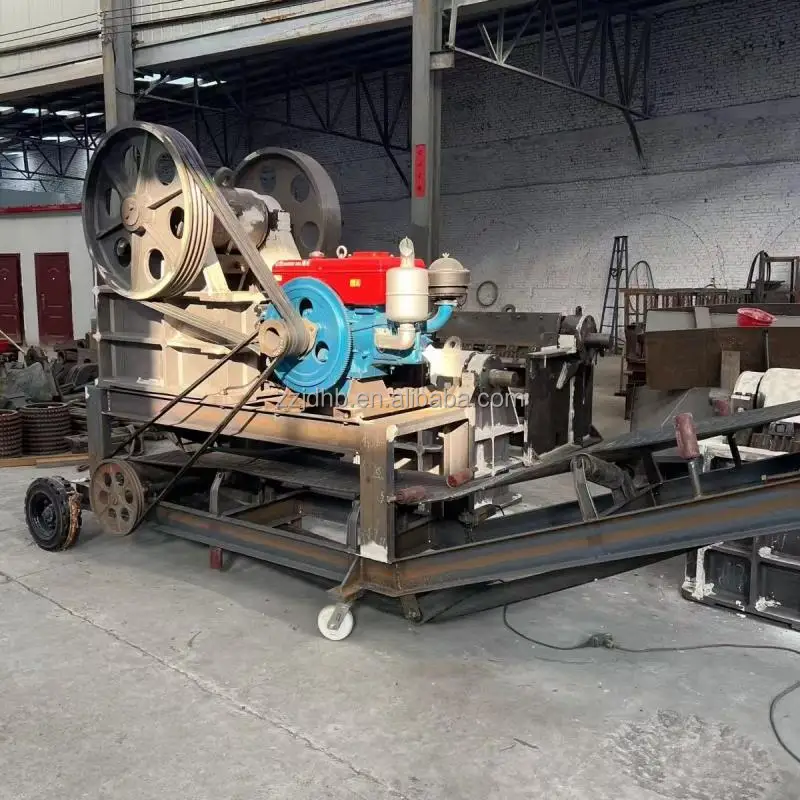

It Is Driven By Diesel Engine. The Eccentric Shaft Is Driven By The Triangle Belt And Slot Wheel To Make The Movable Jaw Plate Move By A Regulated Track. The Materials In The Crushing Cavity Composed Of Fixed Jaw Plate, Movable Jaw Plate And Cheek Plate Can Be Crushed And Discharged Through Discharging Opening.
Model | Max Feeding Size(mm) | Discharging Size(mm) | Capacity(t/h) | Motor power (KW) | Weight(t) |
PE150*250 | 125 | 15-45 | 1-3 | 5.5 | 1 |
PE200*300 | 180 | 20-50 | 2-5 | 7.5 | 1.5 |
PE250*400 | 210 | 20-60 | 5-12 | 15 | 2.8 |
PE400*600 | 340 | 40-100 | 16-64 | 30 | 7 |
PE500*750 | 425 | 50-100 | 40-110 | 55 | 12 |
PE600*750 | 500 | 150-200 | 80-240 | 55 | 15.8 |
PE600*900 | 500 | 65-160 | 50-160 | 55 | 17 |
PE750*1060 | 630 | 80-140 | 110-320 | 110 | 29 |
PE800*1060 | 640 | 130-190 | 130-330 | 110 | 29.8 |
PE830*1060 | 650 | 160-220 | 150-336 | 110 | 30.7 |
PE870*1060 | 660 | 200-260 | 190-336 | 110 | 31.5 |
PE900*1060 | 685 | 230-290 | 230-390 | 110 | 33 |
PE900*1200 | 750 | 95-165 | 220-380 | 110 | 52 |
PE1000*1200 | 850 | 195-265 | 315-500 | 110 | 55 |
PE1200*1500 | 1020 | 150-350 | 400-800 | 160-220 | 100.9 |
PE1500*1800 | 1200 | 220-350 | 500-1000 | 280-355 | 139 |
PEX100*600 | 100 | 8-30 | 1-5 | 7.5 | 1.2 |
PEX150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 |
PEX250*750 | 210 | 25-60 | 13-35 | 22 | 5.5 |
PEX250*1000 | 210 | 25-60 | 16-52 | 30 | 7 |
PEX250*1200 | 210 | 25-60 | 20-61 | 37 | 9.7 |
PEX300*1300 | 250 | 20-90 | 16-105 | 55 | 15.6 |
1. Be movable and drive by diesel engine if the working site is limited.
2. Deep crushing cavity, no dead zone, increasing capacity and output of the feeding.
3. Large crushing ratio, uniform products particle size.
4. Pad-style nesting population adjustment devices, and ease of adjustment range.
5. Simple and reliable structure,low operation costs.
6. The discharging size of jaw crusher can be adjusted to meet the requirements of different users.
7. Low noise and less dust.
2. Deep crushing cavity, no dead zone, increasing capacity and output of the feeding.
3. Large crushing ratio, uniform products particle size.
4. Pad-style nesting population adjustment devices, and ease of adjustment range.
5. Simple and reliable structure,low operation costs.
6. The discharging size of jaw crusher can be adjusted to meet the requirements of different users.
7. Low noise and less dust.
Quality: Due to high requirements for mechanical quality, raw materials selection, processing，assembly of industrial control over the industry standard, using the new design, quality manage-ment system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.
Service: continuous and efhcient after-service for the customer support. 24 hours service with.
Jaw plate :
High manganese steel,high resistance to wear.
Control bolt：
Adjustable discharge size
Principal axis：
Solid shafts, hardened and machined
Tile seat :
casting production, tile fitting, turning and pin machining.
Counterweight wheel:
Enables the machine to run smoothly when working
Side liner:
High manganese steel side guards, replaceable for wear and tear.
Zhengzhou Juding Environmental Protection Equipment Co., Ltd. is an enterprise focusing on the research and development, manufacture, sales and service of mining machinery equipment and automation equipment. The main products are: mobile crushing plant, sand making machine, sand washing machine, all kinds of crushers, vibrating screen, feeder and related accessories. The products are widely used in mining, building materials, highway, railroad, bridge, chemical industry, metallurgy, refractory materials and other industries, and are exported to Vietnam, North Korea, Central Africa, the Middle East and other countries and regions. The company adheres to the enterprise tenet of “integrity, innovation, enterprise and win-win”, takes the market as the guide and customer satisfaction as the purpose, pursues excellence and continuous improvement.
Q1: Are you a factory or a trading company?
A: We are factory. our company warmly welcome clients to visit our plant at anytime. We can also provide samples test, mine design, equipment manufacture, after-sale service, etc...
Q2: Where have your products been exported to?
A:we have lots of customers and agents in the world, such as Middle East, Malaysia, South Africa, Canada, America, etc...
Q3: What Information should customers give us, so that we can be able to provide you suitable quotation and service.
A:What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q4: How long is the warranty of your equipment? Does your company supply the spare parts?
A:The warranty period of equipment is one year. And of course we will supply the spare parts for you at lowest cost.
Q5:What is the payment terms ?
A:30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery.
Q2: Where have your products been exported to?
A:we have lots of customers and agents in the world, such as Middle East, Malaysia, South Africa, Canada, America, etc...
Q3: What Information should customers give us, so that we can be able to provide you suitable quotation and service.
A:What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q4: How long is the warranty of your equipment? Does your company supply the spare parts?
A:The warranty period of equipment is one year. And of course we will supply the spare parts for you at lowest cost.
Q5:What is the payment terms ?
A:30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery.
Похожие товары

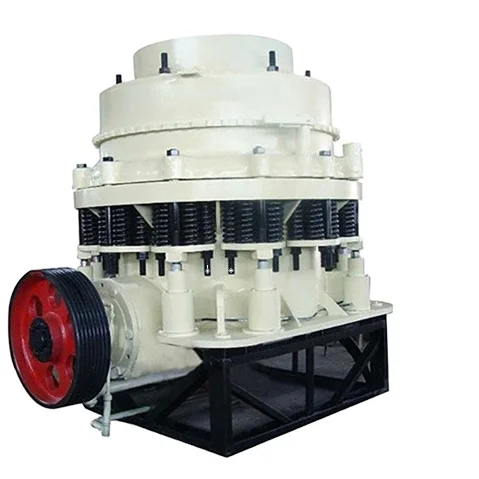

Каменная дробилка машина Sping конусная китайский поставщик
2 092 823,60 ₽
Трактор передвижная дробилка для твердых пород машина щековая добычи каменной дробилки PE 150x250 цена
3 393 768,00 ₽
Дробилка для измельчения XINLI с вертикальным валом
565 628,00-678 753,60 ₽
Щековая дробилка для дробления сплавленного алюминия
2 828 140,00-2 941 265,60 ₽

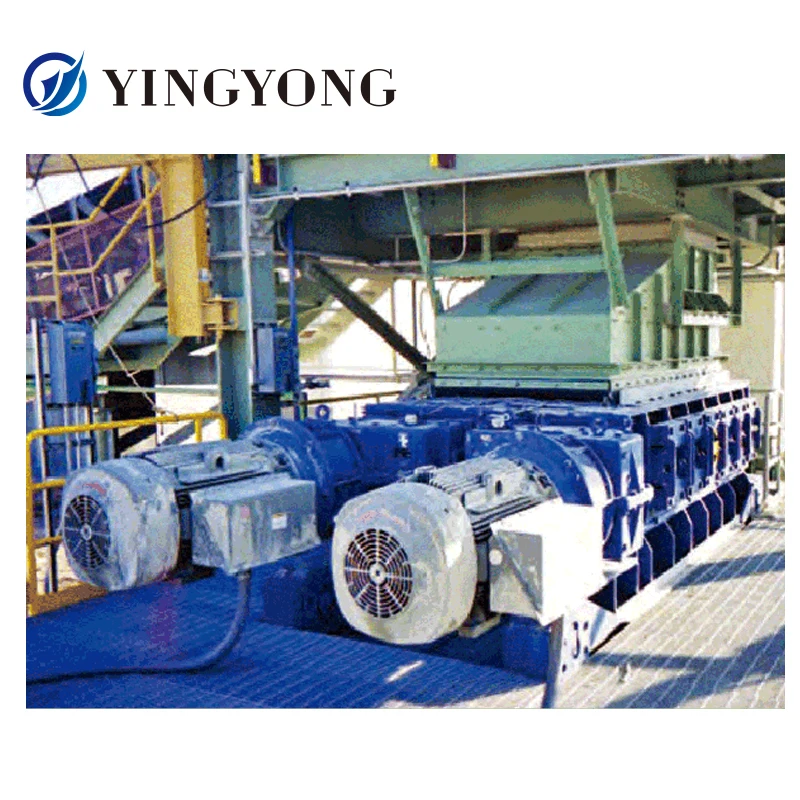

Yingyong самая популярная дробилка для соли бетона передвижная двухроликовая угля Типа 2pg-610*400
509 065,20-735 316,40 ₽

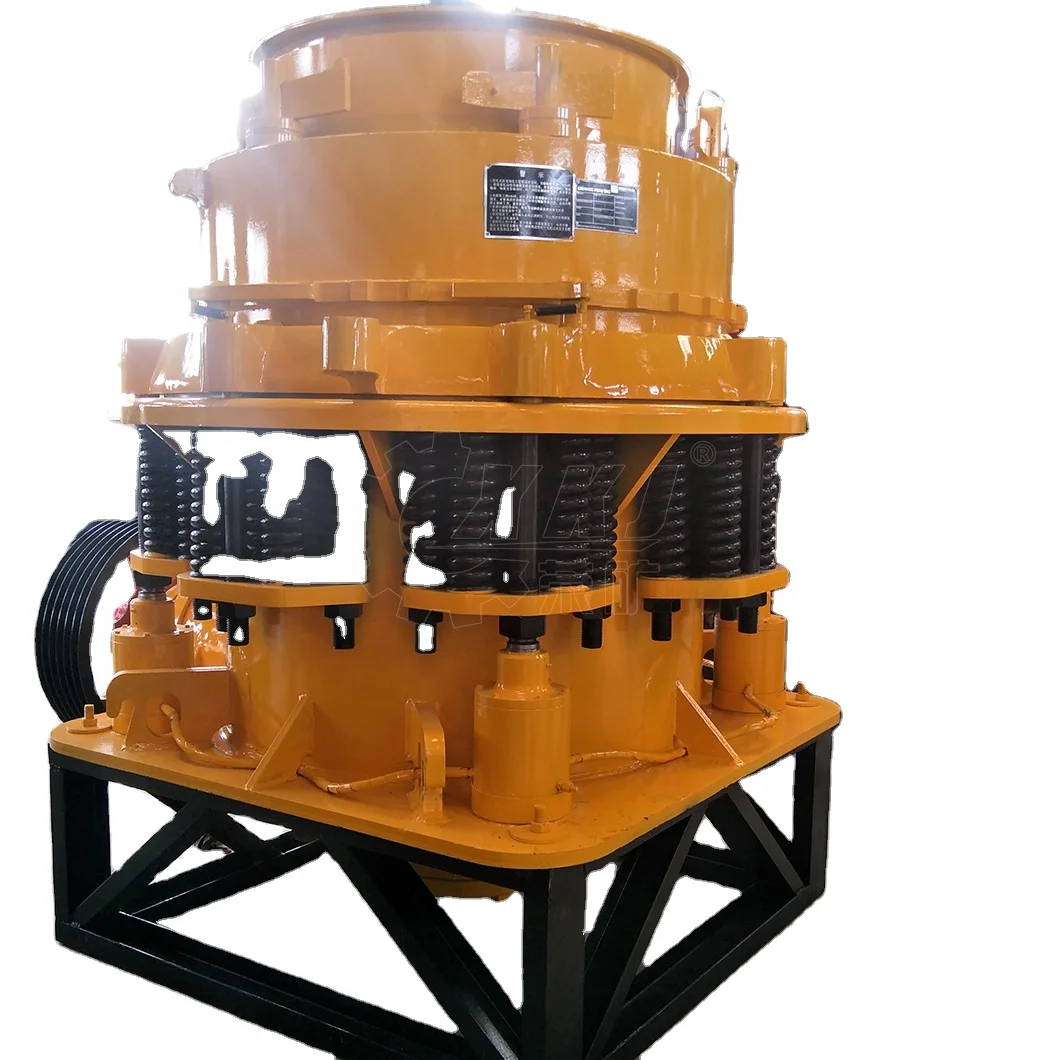

Высококачественная пружинная конусная дробилка PYB2200 широко используется в горнодобывающей металлургии и других отраслях промышленности
