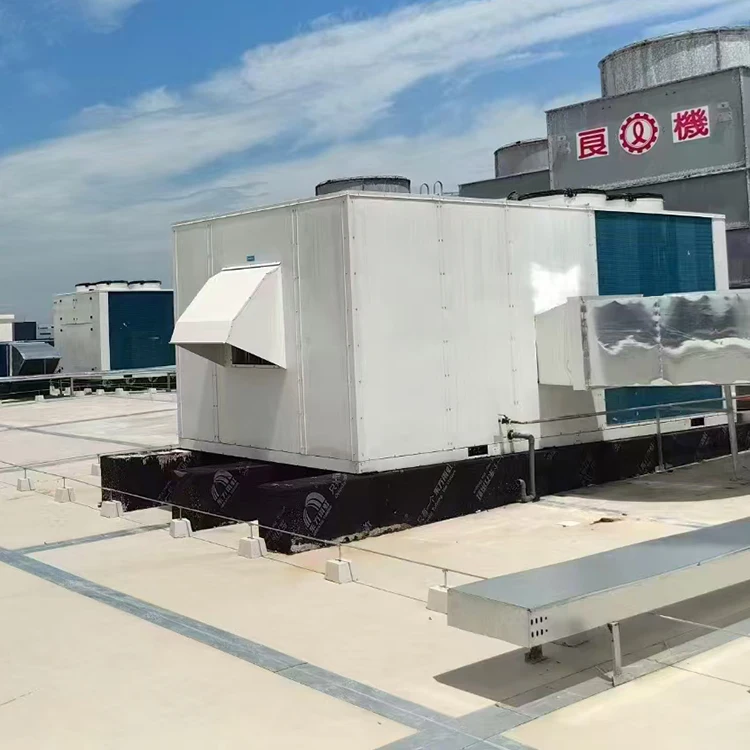

Китай Электрический шкаф кондиционер система охлаждения
10 000,00 $
По индивидуальному заказу от производителя высокомощный кондиционер с постоянной температурой и влажностью центральный
- Категория: >>>
- Поставщик: Henan Yangyi Sunshine New Energy Technology Co. Ltd.Henan Ltd.
Сохранить в закладки 1601346132380:
Описание и отзывы
Характеристики
Technical parameters of fresh air roof fan | ||||||||||||||||||
Model/TYFxxxR | 150 | 250 | 300 | 400 | 500 | 600 | 800 | 900 | ||||||||||
Power Supply | 3N-380V-50Hz | |||||||||||||||||
Cooling capacity 1*(KW) | 15 | 25.3 | 31.5 | 40.3 | 51.5 | 62.3 | 80.2 | 92 | ||||||||||
Heating capacity 2*(KW) | 9.2 | 15.6 | 19.5 | 24.6 | 29.5 | 35.9 | 46.1 | 53 | ||||||||||
Rated operating power (cooling)(KW) | 5.3 | 9 | 11.2 | 14.2 | 18 | 21.7 | 27.6 | 32.5 | ||||||||||
Capacity control 3* | 0%/100% | 0%/50%/100% | ||||||||||||||||
compressor | Fully enclosed vortex compressor | |||||||||||||||||
Shell color | white | |||||||||||||||||
Supply fan | Drive mode | belt transmission | ||||||||||||||||
Air volume(m³/h） | 1125 | 1875 | 2350 | 3000 | 3860 | 4670 | 5840 | 6900 | ||||||||||
External static pressure（Pa） | 100 | 150 | 150 | 200 | 250 | 250 | 270 | 290 | ||||||||||
Condenser water pipe（mm） | 20 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | ||||||||||
temperature control | Cooling/Heating Air Supply Constant Temperature Control | |||||||||||||||||
Air filtration | G4 | G4 | G4 | G4 | G4 | G4 | G4 | G4 | ||||||||||
Safety device | Compressor and fan motor overload protection, high voltage switch, low voltage switch, power protection, overcurrent relay (compressor and blower), fuse | |||||||||||||||||
Standard attachments | User manual, warranty certificate | |||||||||||||||||
Refrigerant | type | R410A | ||||||||||||||||
control mode | Electronic expansion valve | |||||||||||||||||
Unit weight(Kg) | 300 | 520 | 528 | 580 | 830 | 850 | 1160 | 1160 | ||||||||||
Technical parameters of return air roof unit | ||||||||||||||||||
Model/TYRxxxR | 900 | 1250 | 1500 | 1750 | 1860 | 2400 | 2750 | 3600 | ||||||||||
Power Supply | 3N-380V-50Hz | |||||||||||||||||
Cooling capacity 1*(KW) | 90 | 123 | 150 | 178 | 186 | 240 | 275 | 360 | ||||||||||
Heating capacity 2*(KW) | 90 | 124 | 152 | 182 | 190 | 252 | 277 | 362 | ||||||||||
Rated operating power (cooling)(KW) | 34.6 | 47.4 | 56.7 | 68.4 | 71.5 | 92.3 | 105.7 | 138.4 | ||||||||||
Capacity control 3* | 0%/50%/100% | 0%/25%/50%/75%/100% | ||||||||||||||||
compressor | Fully enclosed vortex compressor | |||||||||||||||||
Shell color | white | |||||||||||||||||
Supply fan | Drive mode | belt transmission | ||||||||||||||||
Air volume(m³/h） | 19800 | 25200 | 26500 | 32400 | 35300 | 45500 | 53000 | 68400 | ||||||||||
External static pressure（Pa） | 300 | 320 | 320 | 350 | 400 | 500 | 500 | 600 | ||||||||||
Condenser water pipe（mm） | 32 | 32 | 40 | 40 | 40 | 40 | 40 | 40 | ||||||||||
temperature control | Cooling/Heating Air Supply Constant Temperature Control | |||||||||||||||||
Air filtration | G4 | G4 | G4 | G4 | G4 | G4 | G4 | G4 | ||||||||||
Safety device | Compressor and fan motor overload protection, high voltage switch, low voltage switch, power protection, overcurrent relay (compressor and blower), fuse | |||||||||||||||||
Standard attachments | User manual, warranty certificate | |||||||||||||||||
Refrigerant | type | R410A | ||||||||||||||||
control mode | Electronic expansion valve | |||||||||||||||||
Unit weight(Kg) | 1200 | 2150 | 2200 | 2350 | 2750 | 3100 | 5000 | 6000 | ||||||||||
Technical parameters of heat recovery roof unit | ||||||||||||||||||
Model/TYFxxxR-ZR | 150 | 250 | 300 | 400 | 500 | 600 | 800 | 900 | ||||||||||
Power Supply | 380V/50HZ | |||||||||||||||||
Cooling capacity 1*(KW） | 27.2(12.2) | 47(20.2) | 55.2(25.2) | 70.8(30.8) | 94 (40.4) | 108.5(48.5) | 140.6(60.6) | 167.8(75.8) | ||||||||||
Heating capacity 2*(KW） | 26.3(11.3) | 43.8(18.8) | 53(23.1) | 68(28.1) | 92 (27.7) | 102(45.2) | 139(41.5) | 165(70.9) | ||||||||||
Customized cooling power consumption(KW） | 6.0 | 10.7 | 12.5 | 16.6 | 20.8 | 25.0 | 33.3 | 38.3 | ||||||||||
Customized heat consumption(KW） | 6.5 | 11.4 | 13.4 | 17.6 | 22.1 | 26.5 | 35.3 | 40.6 | ||||||||||
Hot wheel | type | Full heat recovery wheel | ||||||||||||||||
Total heat recovery efficiency(%) | 67.0 | 67.0 | 66.2 | 65.8 | 68.0 | 66.5 | 63.2 | 68.6 | ||||||||||
Temperature recovery efficiency(%) | 79 | 79 | 79 | 79 | 79 | 79 | 79 | 79 | ||||||||||
Capacity control 3* | 0%/100% | 0%/50%/100% | ||||||||||||||||
compressor | Fully enclosed vortex compressor | |||||||||||||||||
Shell color | white | |||||||||||||||||
Supply fan | Drive mode | belt transmission | ||||||||||||||||
Air volume(m³/h） | 2400 | 4000 | 5000 | 6100 | 8000 | 9600 | 12000 | 15000 | ||||||||||
External static pressure（Pa） | 250 | 300 | 320 | 350 | 350 | 380 | 400 | 400 | ||||||||||
Exhaust fan | type | centrifugal fan | ||||||||||||||||
Air volume（KW） | 1920 | 3200 | 4000 | 4880 | 6400 | 7680 | 9600 | 12000 | ||||||||||
External static pressure（Pa） | 200 | 250 | 250 | 300 | 300 | 300 | 300 | 300 | ||||||||||
Condenser water pipe（mm） | 25 | 25 | 25 | 25 | 25 | 25 | 32 | 32 | ||||||||||
temperature control | Cooling/Heating Air Supply Constant Temperature Control | |||||||||||||||||
Air filtration | G4 | G4 | G4 | G4 | G4 | G4 | G4 | G4 | ||||||||||
Safety device | Compressor and fan motor overload protection, high voltage switch, low voltage switch, power protection, overcurrent relay (compressor and blower), fuse | |||||||||||||||||
Standard attachments | User manual, warranty certificate | |||||||||||||||||
Refrigerant | type | R410A | ||||||||||||||||
control mode | Electronic expansion valve | |||||||||||||||||
Unit weight（kg） | 1100 | 1400 | 1500 | 1750 | 1900 | 2000 | 2350 | 2500 | ||||||||||
Technical parameters of constant temperature and humidity roof unit | ||||||||||||||||||
Model/TYHxxxC | 900 | 1250 | 1500 | 1750 | 1860 | 2400 | 2750 | 3600 | ||||||||||
Power Supply | 3N-380V-50Hz | |||||||||||||||||
Cooling capacity 1*(KW） | 92 | 123 | 148 | 178 | 186 | 240 | 275 | 360 | ||||||||||
Heating capacity 2*(KW） | 41 | 55 | 67 | 80 | 84 | 108 | 124 | 162 | ||||||||||
Rated operating power (cooling) 2*(KW) | 37.1 | 50.6 | 58.9 | 71.8 | 74.7 | 99.2 | 110.4 | 161.2 | ||||||||||
Input power(KW) | 91.1 | 150.6 | 170.9 | 185.5 | 192.5 | 255.8 | 302.8 | 391.6 | ||||||||||
Capacity control 3* | 0%/50%/100% | 0%/25%/50%/75%/100% | ||||||||||||||||
compressor | Fully enclosed vortex compressor | |||||||||||||||||
Shell color | white | |||||||||||||||||
Humidifier | Form 4* | Electrode type | ||||||||||||||||
Humidification capacity(kg/h) | 13 | 25 | 45 | 45 | 45 | 45 | 90 | 90 | ||||||||||
power（KW） | 11.25 | 18.75 | 33.75 | 33.75 | 33.75 | 48.6 | 68.4 | 68.4 | ||||||||||
Supply fan | Drive mode | belt transmission | ||||||||||||||||
Air volume(m³/h） | 19800 | 25200 | 26500 | 32400 | 35300 | 45500 | 53000 | 68400 | ||||||||||
External static pressure（pa） | 300 | 320 | 320 | 350 | 400 | 500 | 500 | 600 | ||||||||||
Condenser water pipe（mm） | 32 | 32 | 40 | 40 | 40 | 40 | 40 | 40 | ||||||||||
temperature control | Cooling/Heating Air Supply Constant Temperature Control | |||||||||||||||||
Air filtration | G4 | G4 | G4 | G4 | G4 | G4 | G4 | G4 | ||||||||||
Safety device | Compressor and fan motor overload protection, high voltage switch, low voltage switch, power protection, overcurrent relay (compressor and blower), fuse | |||||||||||||||||
Standard attachments | User manual, warranty certificate | |||||||||||||||||
Refrigerant | type | R410A | ||||||||||||||||
control mode | Electronic expansion valve | |||||||||||||||||
Unit weight(kg） | 1200 | 2150 | 2200 | 2350 | 2750 | 3100 | 5000 | 6000 | ||||||||||
FAQ:
Q1: How is the product quality control being handled?
A: "Quality is our top priority." Our team takes quality control very seriously from start to finish.
Q2: Where is your packaging?
A: Standard packaging:
FCL (Full Container Load): Inner bags with outer export carton packaging
LCL (Less than Container Load): Plywood box + carton packaging
Q3: What about your air conditioners?
A: All our air conditioners are designed according to market requirements.
Q4: How can I obtain after-sales service?
A: If the issue is caused by us, we will send you spare parts for free.
If it's a human-induced issue, we will also send spare parts, but you will need to pay for them.
For our air conditioners, we offer lifetime maintenance.
Q5: Do you have an inspection procedure for air conditioners?
A: We conduct a 100% self-inspection before packaging.
A: "Quality is our top priority." Our team takes quality control very seriously from start to finish.
Q2: Where is your packaging?
A: Standard packaging:
FCL (Full Container Load): Inner bags with outer export carton packaging
LCL (Less than Container Load): Plywood box + carton packaging
Q3: What about your air conditioners?
A: All our air conditioners are designed according to market requirements.
Q4: How can I obtain after-sales service?
A: If the issue is caused by us, we will send you spare parts for free.
If it's a human-induced issue, we will also send spare parts, but you will need to pay for them.
For our air conditioners, we offer lifetime maintenance.
Q5: Do you have an inspection procedure for air conditioners?
A: We conduct a 100% self-inspection before packaging.
Похожие товары
Abot бренд ac 2 тонны Сплит потолочная кассета инвертор Отопление и охлаждение кондиционера
200,00 $
Цельнозональный настенный блок катушки вентилятора кассета потолочный инвертор 20 тонн мини-кондиционеры Vrf
150,00 $

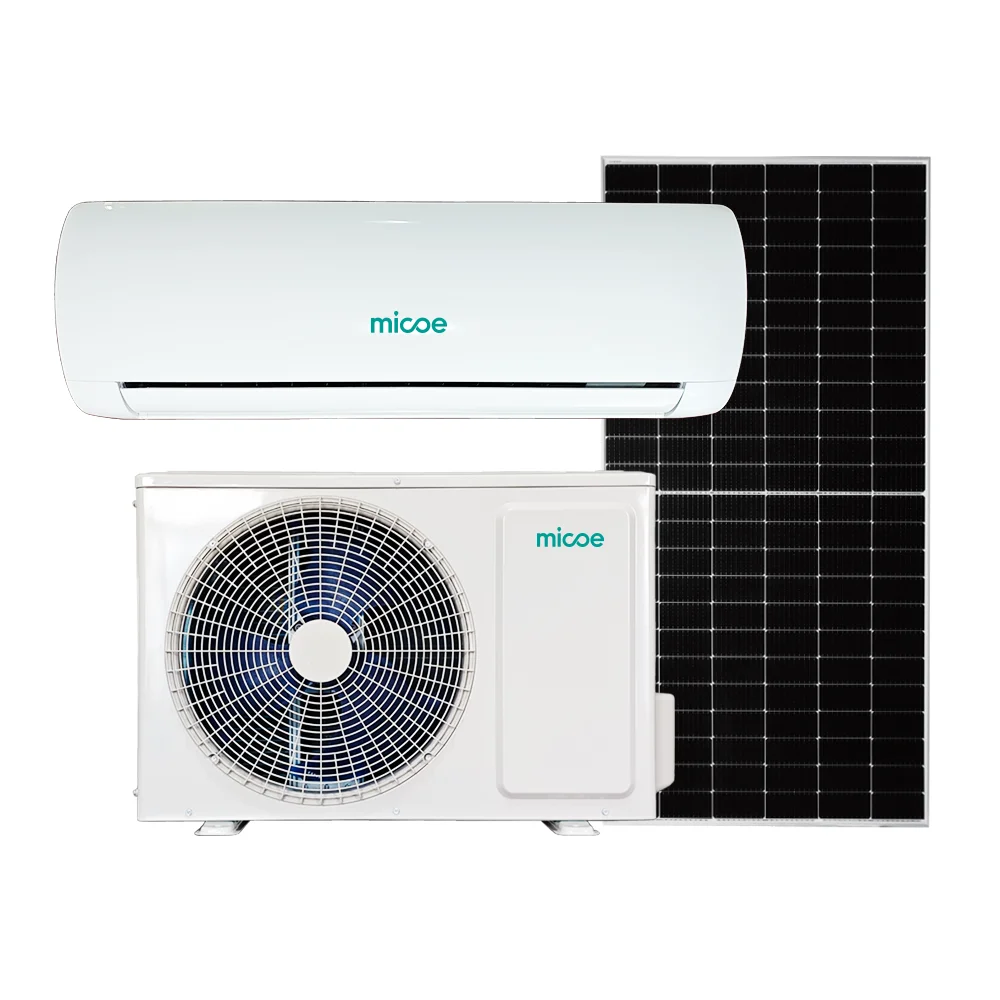

Многофункциональный солнечный кондиционер Micoe OEM R32 для охлаждения дома
369,00-955,00 $

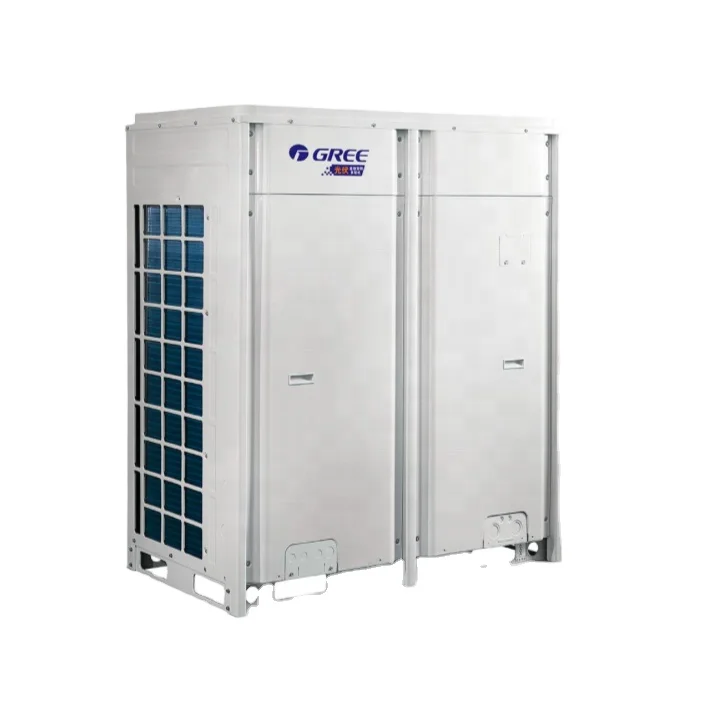

380V 30HP 85kw MVC-850WV2GN1 только охлаждение от компании \
Gree GMV Солнечная система PV питание VRF Кондиционер воздуха
4 300,00-4 500,00 $
Вертикальный тепловой насос ОВКВ низкие частоты китайский oem мини-инвертор тепловые насосы для кондиционирования воздуха в отеле

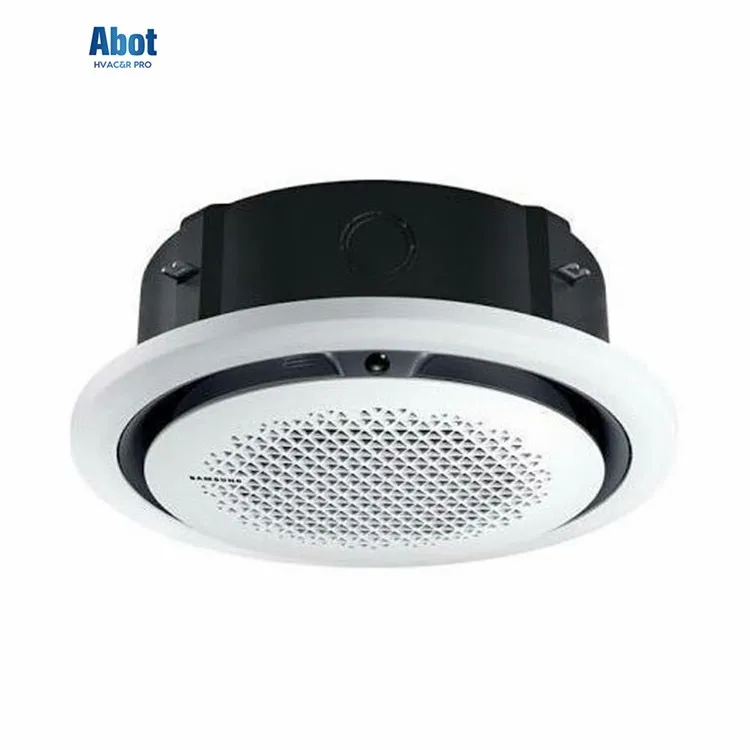

Круглая Кассетная комнатная Установка AC круглая Кассетная система кондиционирования воздуха
