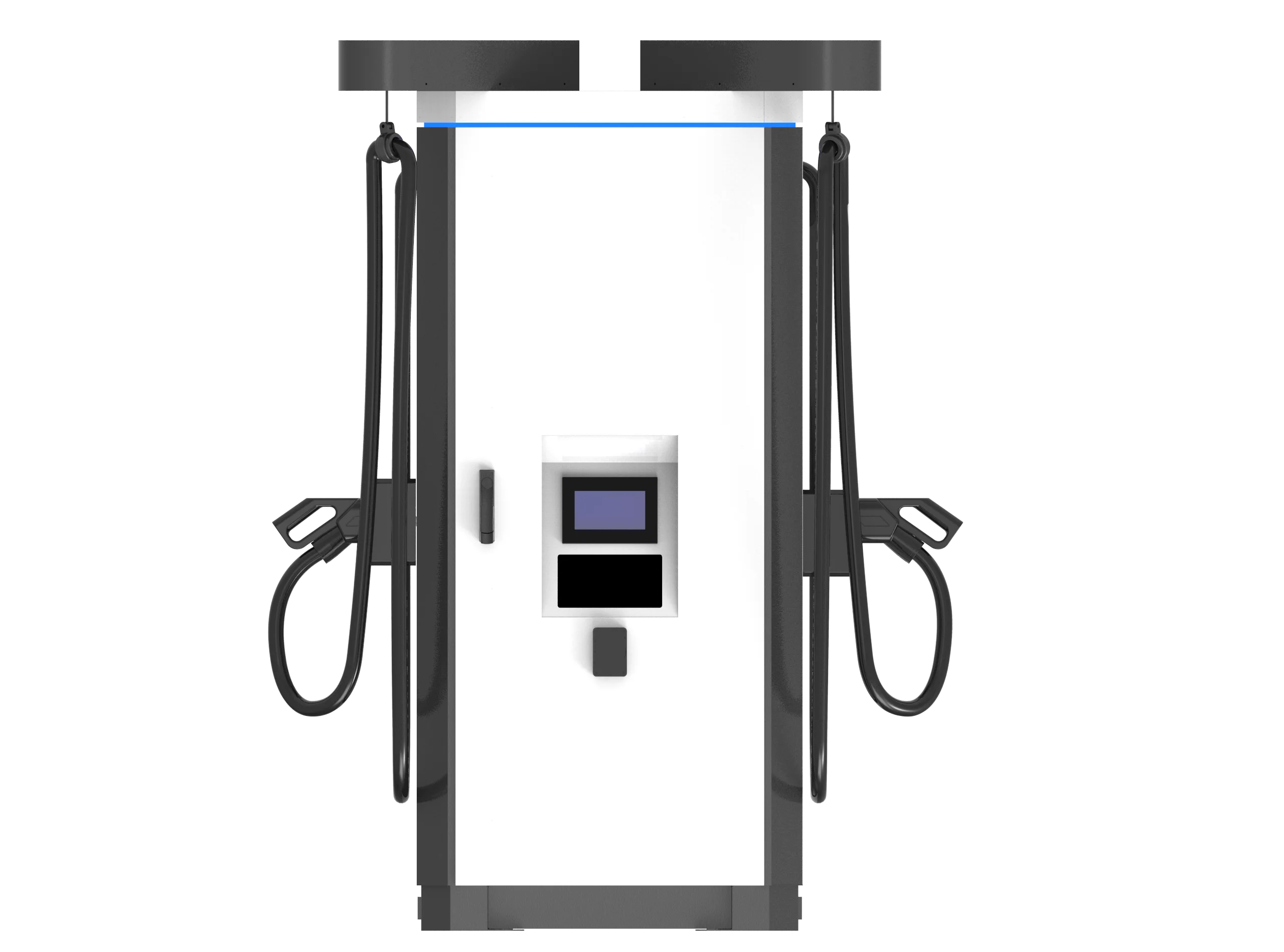

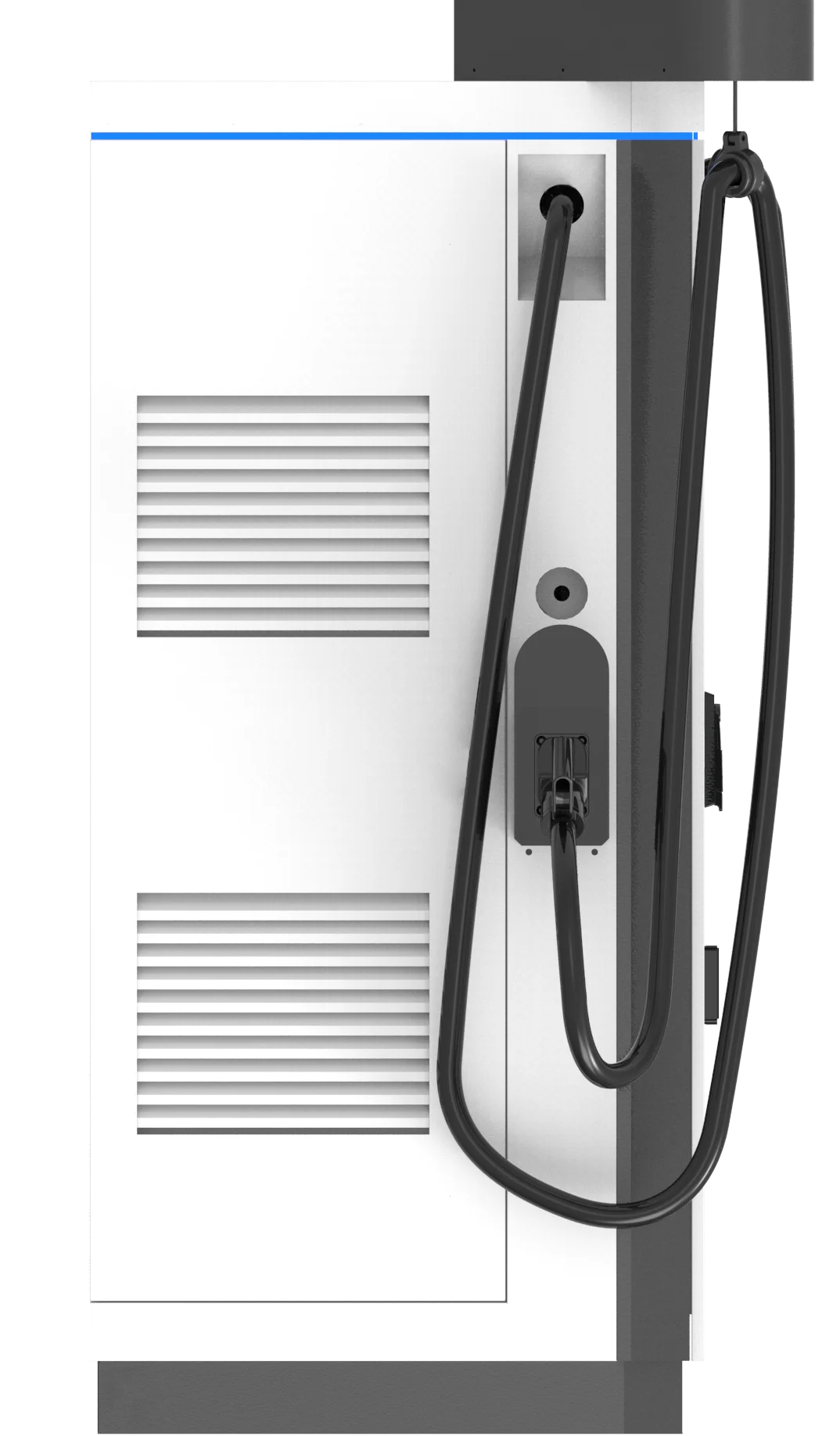

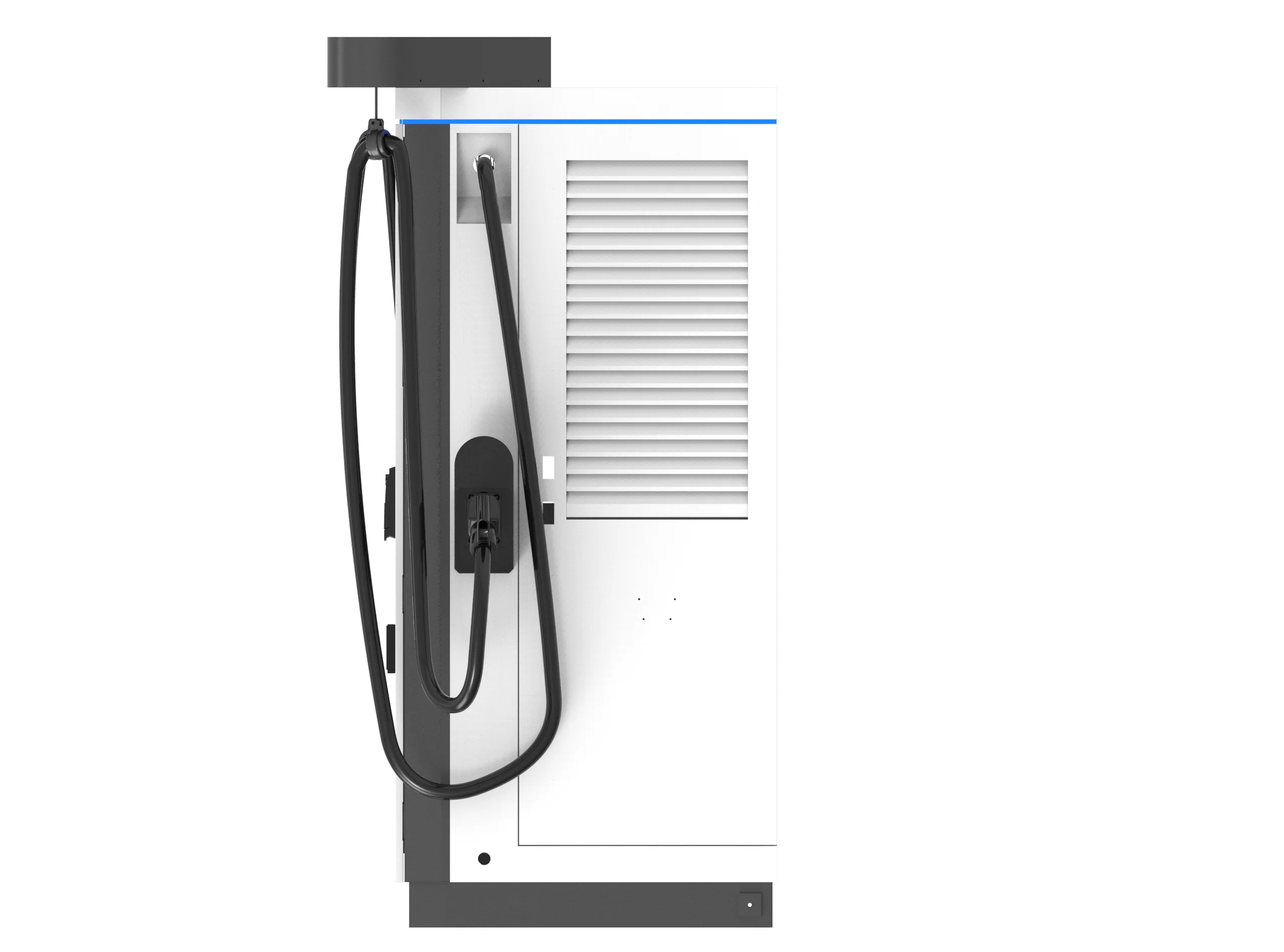

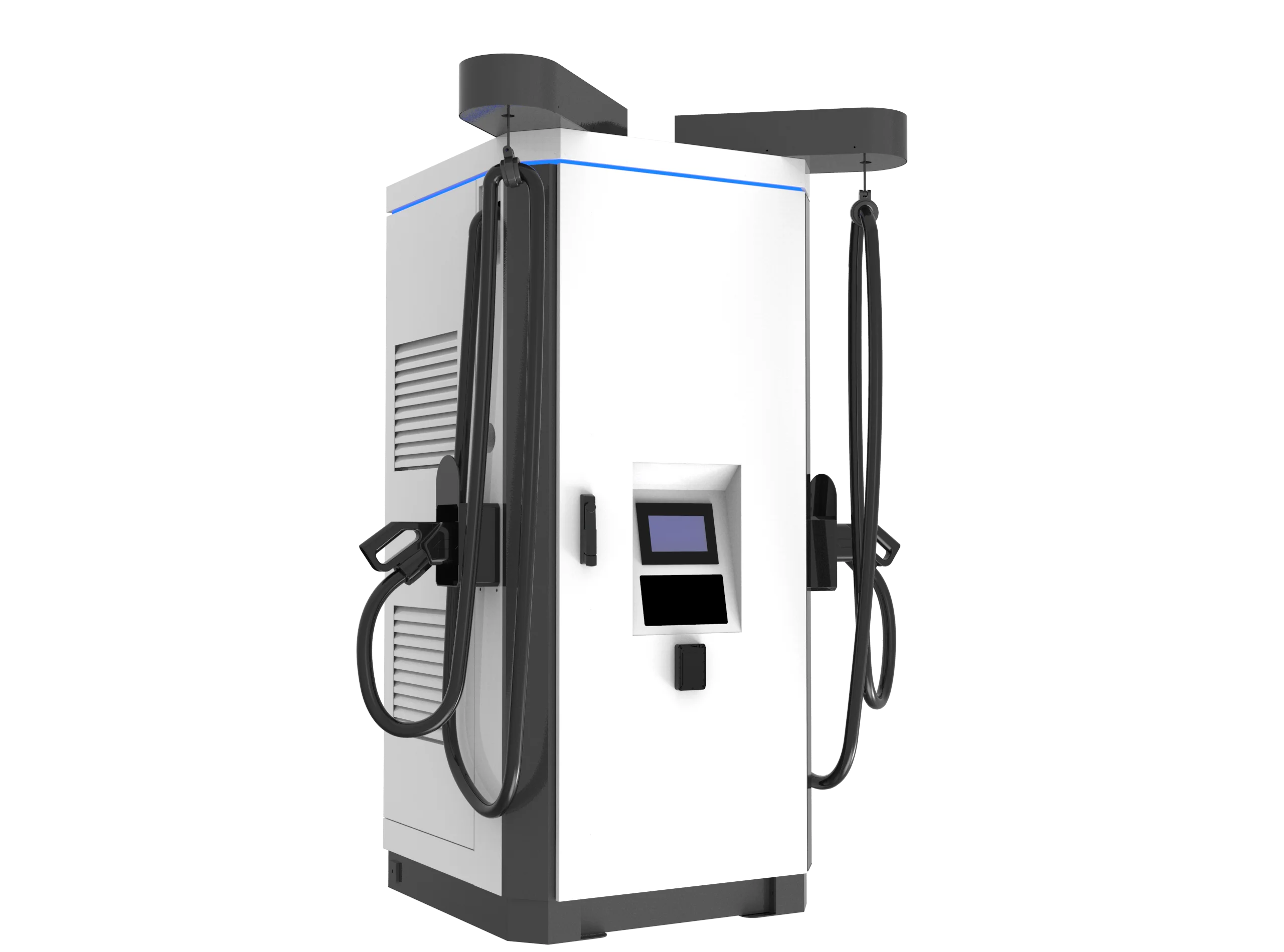

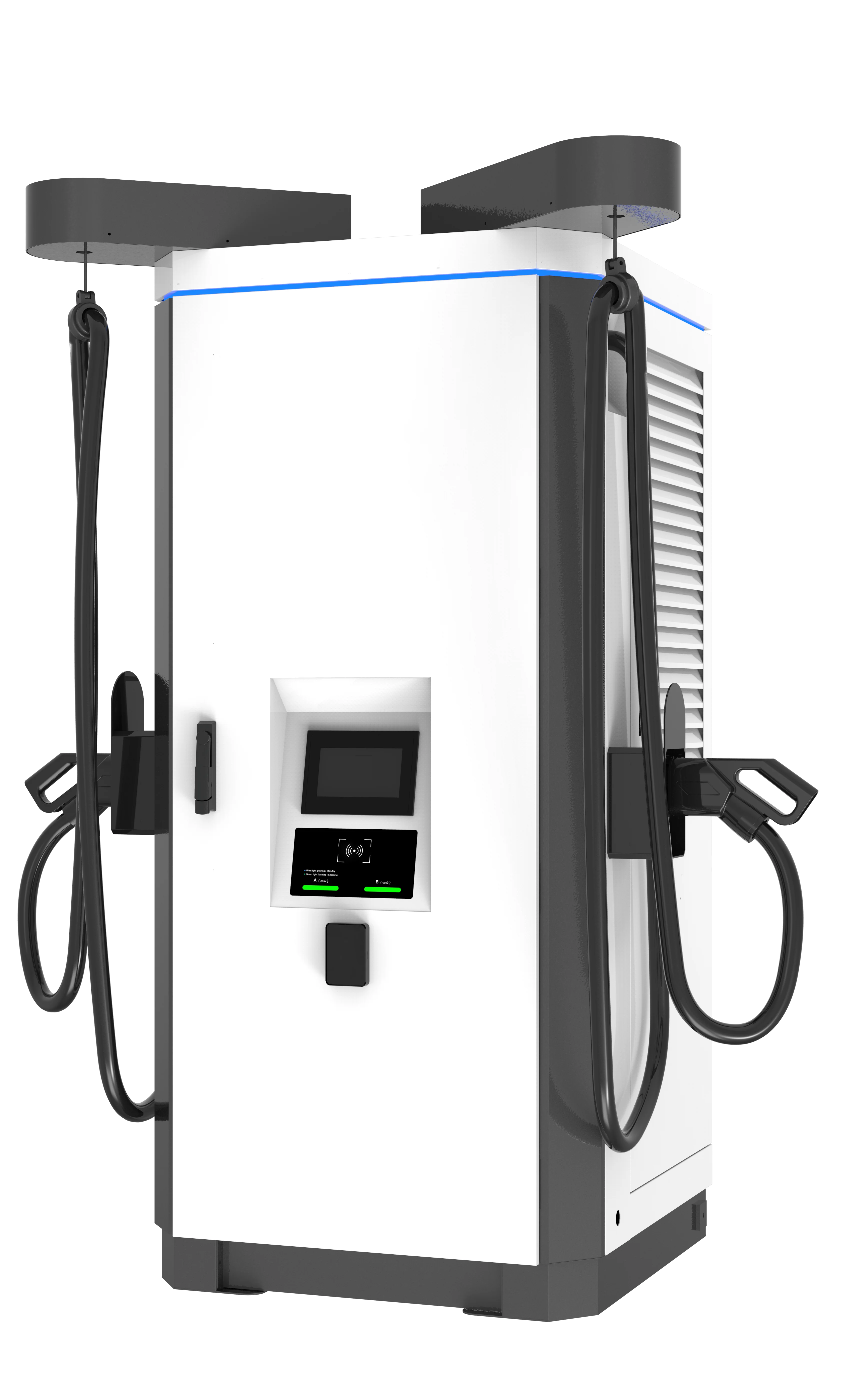

Быстрое зарядное устройство постоянного тока CCS2 DC EV 180 кВт коммерческая станция быстрого зарядного устройства
2 010 581,29 ₽
Зарядное устройство для электромобилей 120 кВт
- Категория: >>>
- Поставщик: Hunan Huarui New Energy Technology Co. Ltd.Hunan Ltd.
Сохранить в закладки 1601346867564:
Описание и отзывы
Характеристики
Input voltage | 260-480V AC | |||
Input frequency | 50/60Hz | 50/60Hz | ||
Input Amps/per phase | 155 A /AC | 155 A /AC | ||
Stand-by consumption | <30W | <30W | ||
Number of charging points: | CCS1*2 | CCS1*2 | ||
Charging mode | Level3 | Level3 | ||
Output voltage | 150-1000V DC | 150-1000V DC | ||
Max. output power | 120kW | 120kW | ||
Max output current | CCS1：0~200A DC | CCS1：0~200A DC | ||
Voltage accuracy | <±0.5% | <±0.5% | ||
Current accuracy | <±1% | <±1% | ||
Ripple coefficient | RMS: ±0.5%;Peak: ±1% | RMS: ±0.5%;Peak: ±1% | ||
THD | ≤5%@50％～100％full load | ≤5%@50％～100％full load | ||
Meeting accuracy | 0.5 | 0.5 | ||
Efficiency | ≥ 95.2% (Full load) | ≥ 95.2% (Full load) | ||
Cable Length | 5m (Customized acceptable) | 5m (Customized acceptable) | ||
Over voltage protection | √ | √ | ||
Under voltage protection | √ | √ | ||
Short circuit protection | √ | √ | ||
Over-temp protection | √ | √ | ||
Surge protection | √ | √ | ||
TypeA RCBO | √ | √ | ||
Communications protocol | OCPP 1.6 JSON | OCPP 1.6 JSON | ||
Ethernet connection | √ | √ | ||
integrated 4G;wifi; | √ | √ | ||
RFID | √ | √ | ||
QR code | √ | √ | ||
TFT Color touch display 7” | √ | √ | ||
LED indicator light | √ | √ | ||
Emergency stop button | √ | √ | ||
Ambient lighting | √ | √ | ||
Protection degree | IP54 | IP54 | ||
Environment temperature | -30~55℃ | -30~55℃ | ||
cooling | forced air cooling | forced air cooling | ||
Relative humidity | 5%-95% non-condensing | 5%-95% non-condensing | ||
Altitude | 2,000 m | 2,000 m | ||
Housing material | Stainless steel spraying | Stainless steel spraying | ||
Noise emission | ＜75db | ＜75db | ||
Storage temperature | -40~70℃ | -40~70℃ | ||
Mechanical impact resistance | IK10 | IK10 | ||
Dimension(W×D×H) | 850×840×1850 | 850×840×1850 | ||
Weight | 470kg | 470kg | ||
Mounting | Floor-mounting | Floor-mounting | ||
ETL | UL223-1 UL2231-1-2 UL 2202 CSA C22.2#281.2:2021 Ed.1+U1;U2;U3CSA C22.2#280 | UL223-1 UL2231-1-2 UL 2202 CSA C22.2#281.2:2021 Ed.1+U1;U2;U3CSA C22.2#280 | ||
ISO15118 | √ | √ | ||
Energy STAR | √ | √ | ||
FCC | √ | √ | ||
OCPP | √ | √ |
Q1:How long is the lead time?
A: The lead time is 30-45 working days, it depends on the quantity and production scheduling.
Q2: What standards do you support?
A: Grasen DC fast charging station supports Chinese national GBT standard, European CCS2 standard, America CCS1 standard, and Japanese CHAdeMo standard.
Q3: What is your warranty for EV charger?
A: Generally 2 years.If you have special requirements please contact our customer service.
Q4: Can you print our logo on the products?
A: We support OEM and ODM service, but there will be a MOQ for custom design.
Q5: What is payment term?
A: T/T 30% deposit and 70% balance before shipment or see the against of B/L.
Q6:Do your bags come with warranty?
A:Yes,we promise 24 months quality warranty according to proper using.
Q7:Can I have a sample first before large order?
A:Yes,sample order is available
Q8:How long and how to get sample from us ?
A:We provide samples, stock samples and re-customize samples according to user needs. In the case that the user only needs to add
LOGO to the product, and other fabric size models are not customized, the spot samples can be shipped in 7-15 days, and need to be
re-acquired according to the demand. Change the size, style, color sample requirements, we provide 7-10 days delivery.
Q9:How do you make our business long-term and good relationship?
1.We provide good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where
they come from.
A: The lead time is 30-45 working days, it depends on the quantity and production scheduling.
Q2: What standards do you support?
A: Grasen DC fast charging station supports Chinese national GBT standard, European CCS2 standard, America CCS1 standard, and Japanese CHAdeMo standard.
Q3: What is your warranty for EV charger?
A: Generally 2 years.If you have special requirements please contact our customer service.
Q4: Can you print our logo on the products?
A: We support OEM and ODM service, but there will be a MOQ for custom design.
Q5: What is payment term?
A: T/T 30% deposit and 70% balance before shipment or see the against of B/L.
Q6:Do your bags come with warranty?
A:Yes,we promise 24 months quality warranty according to proper using.
Q7:Can I have a sample first before large order?
A:Yes,sample order is available
Q8:How long and how to get sample from us ?
A:We provide samples, stock samples and re-customize samples according to user needs. In the case that the user only needs to add
LOGO to the product, and other fabric size models are not customized, the spot samples can be shipped in 7-15 days, and need to be
re-acquired according to the demand. Change the size, style, color sample requirements, we provide 7-10 days delivery.
Q9:How do you make our business long-term and good relationship?
1.We provide good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where
they come from.
Похожие товары
Интегрированная 4000 Вт 4 кВт
434 402,31 ₽
GK сварочная большая емкость портативная электростанция 8510Wh до 13690W встроенная батарея для хранения ЕС тип штепсельной вилки наружного использования
654 739,30-666 864,10 ₽
Изготовление на заказ 500w 300 об/мин 3 фазы переменного тока диск коррозийных свойствах свободная энергия электричества генераторов постоянных магнитах с воздушным охлаждением Генератор

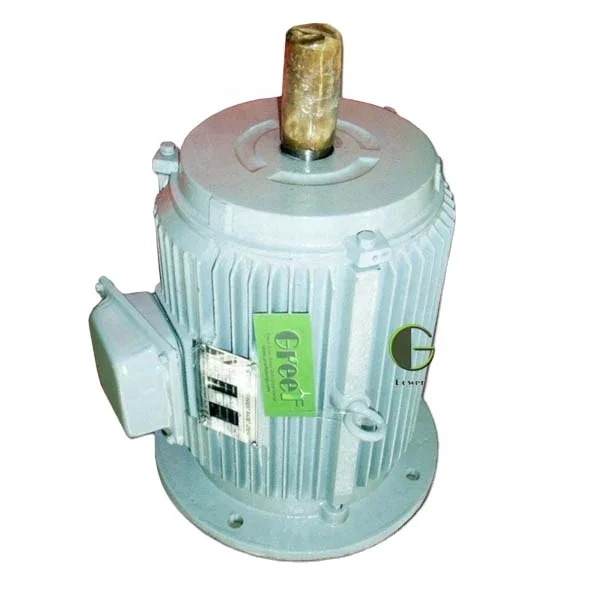

Неодимовый генератор магнитный низкая RPM высокая эффективность 500 кВт 1 МВт 2 50 Гц
339 263,68 ₽

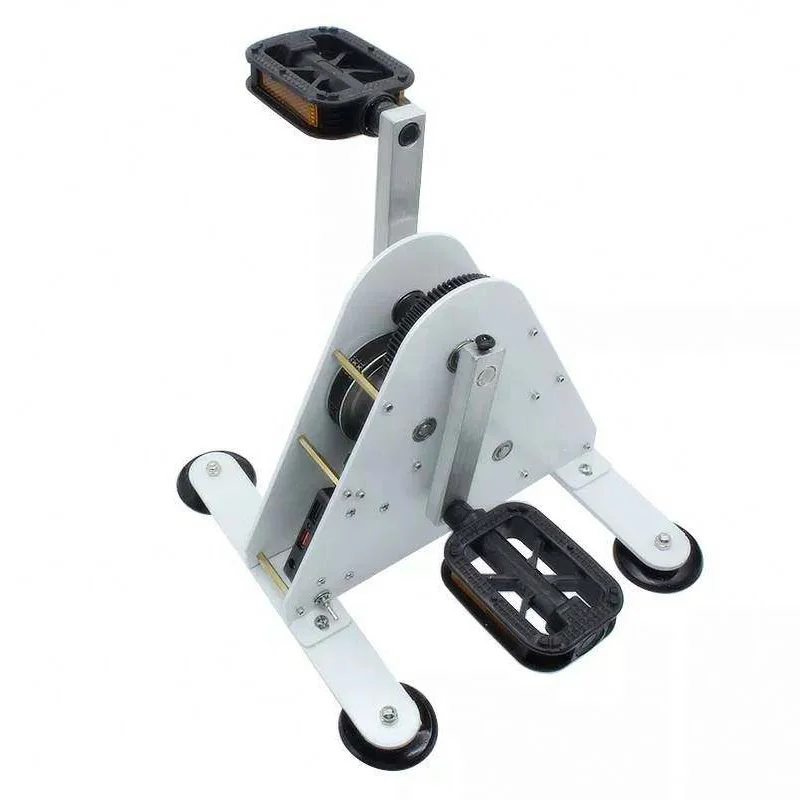

Педальный генератор с конденсатором для хранения электроэнергии 100 Вт 12Vdc выходной Портативный Ножной
18 100,10 ₽
Бессрочный магнитный генератор 5 кВт 10 100 1000 низкий об/мин
226 138,08 ₽

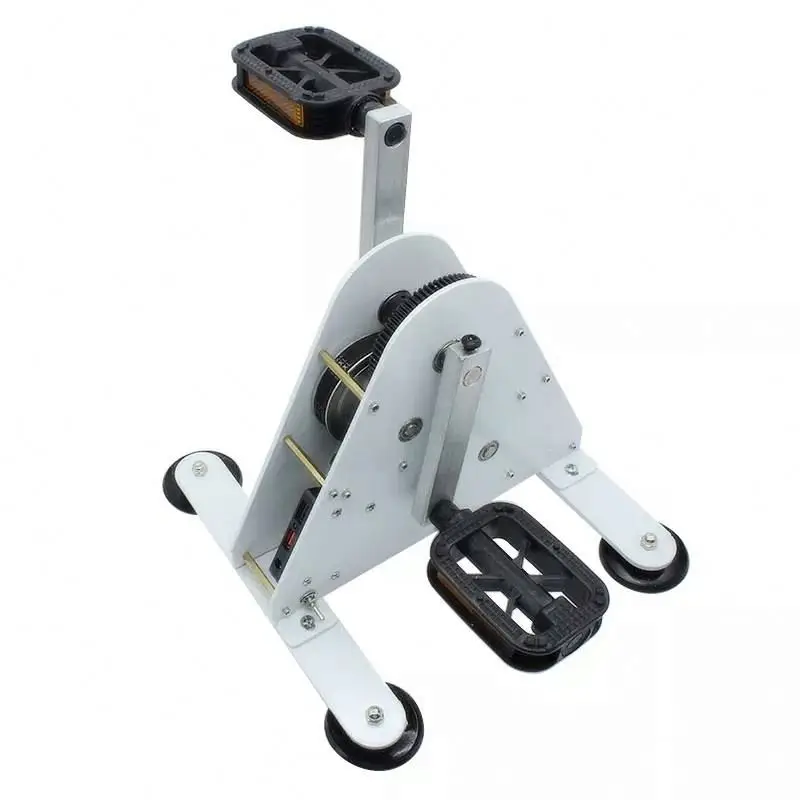

Портативный Педальный генератор устройство для тренировки Спиннинг велосипеда с двумя USB-выходами сделай сам фитнес 100 Вт педаль ног генераторы рукояткой
