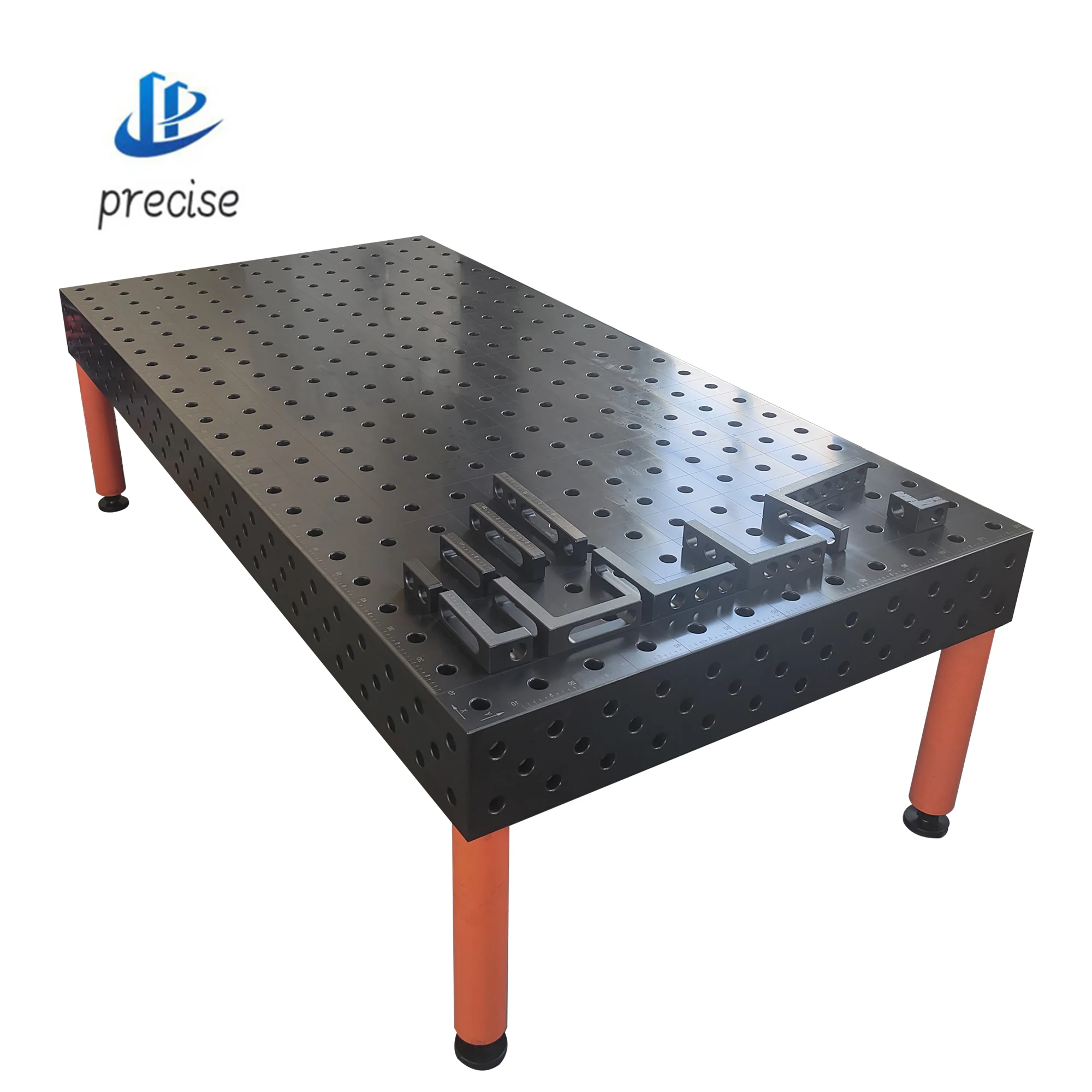

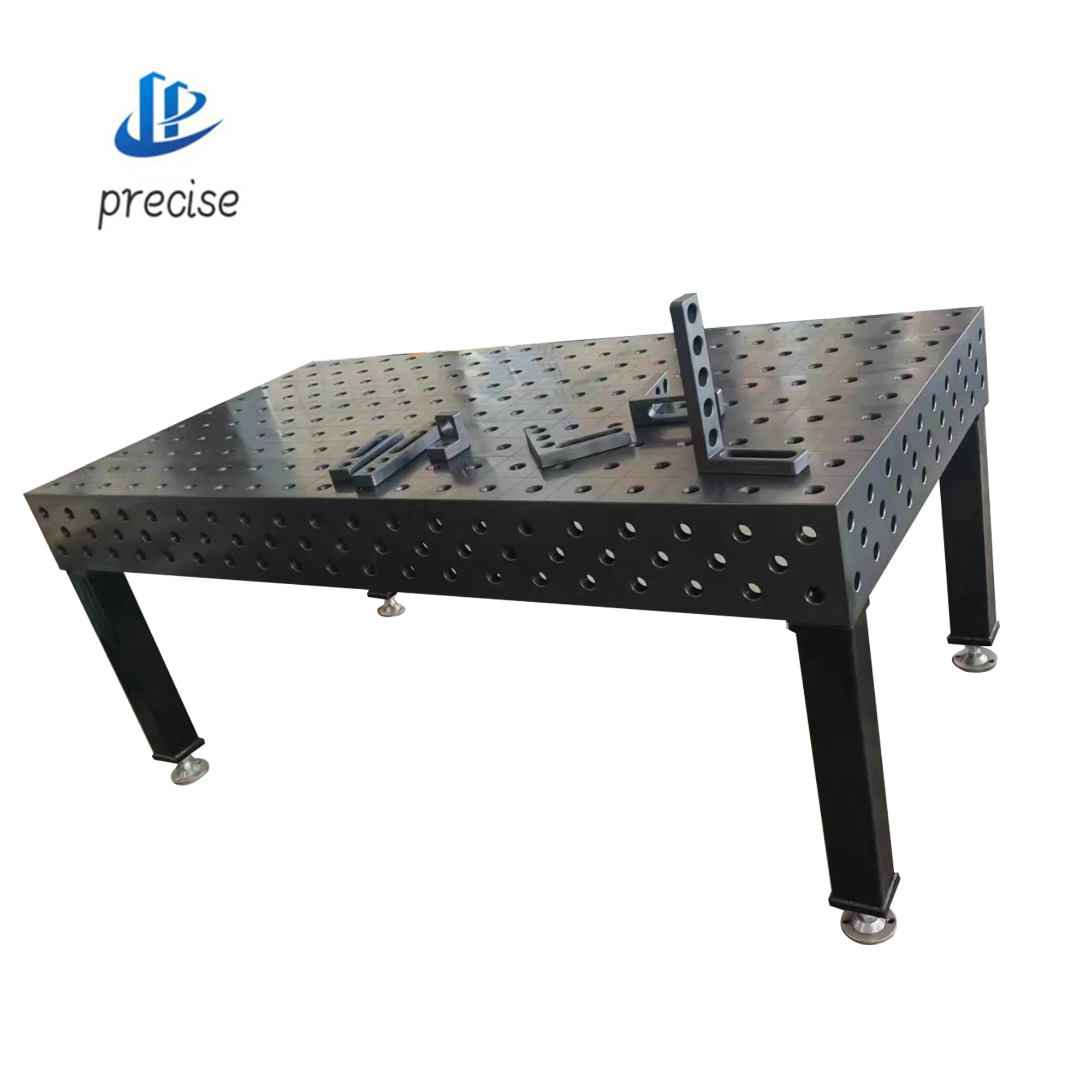

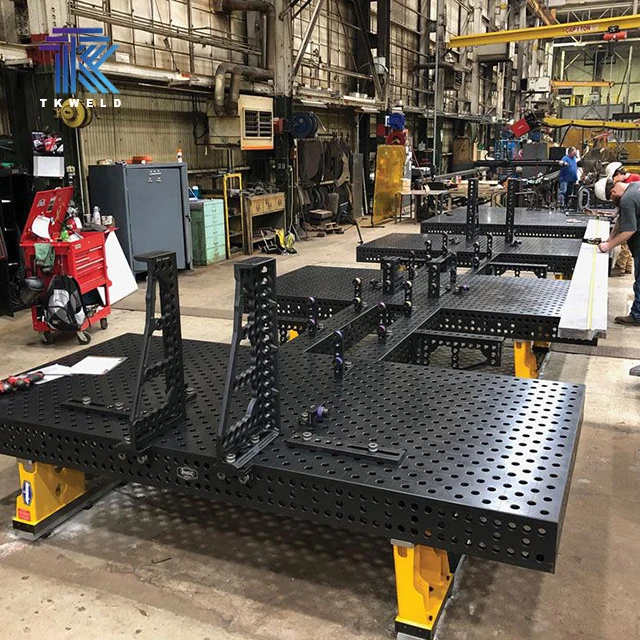

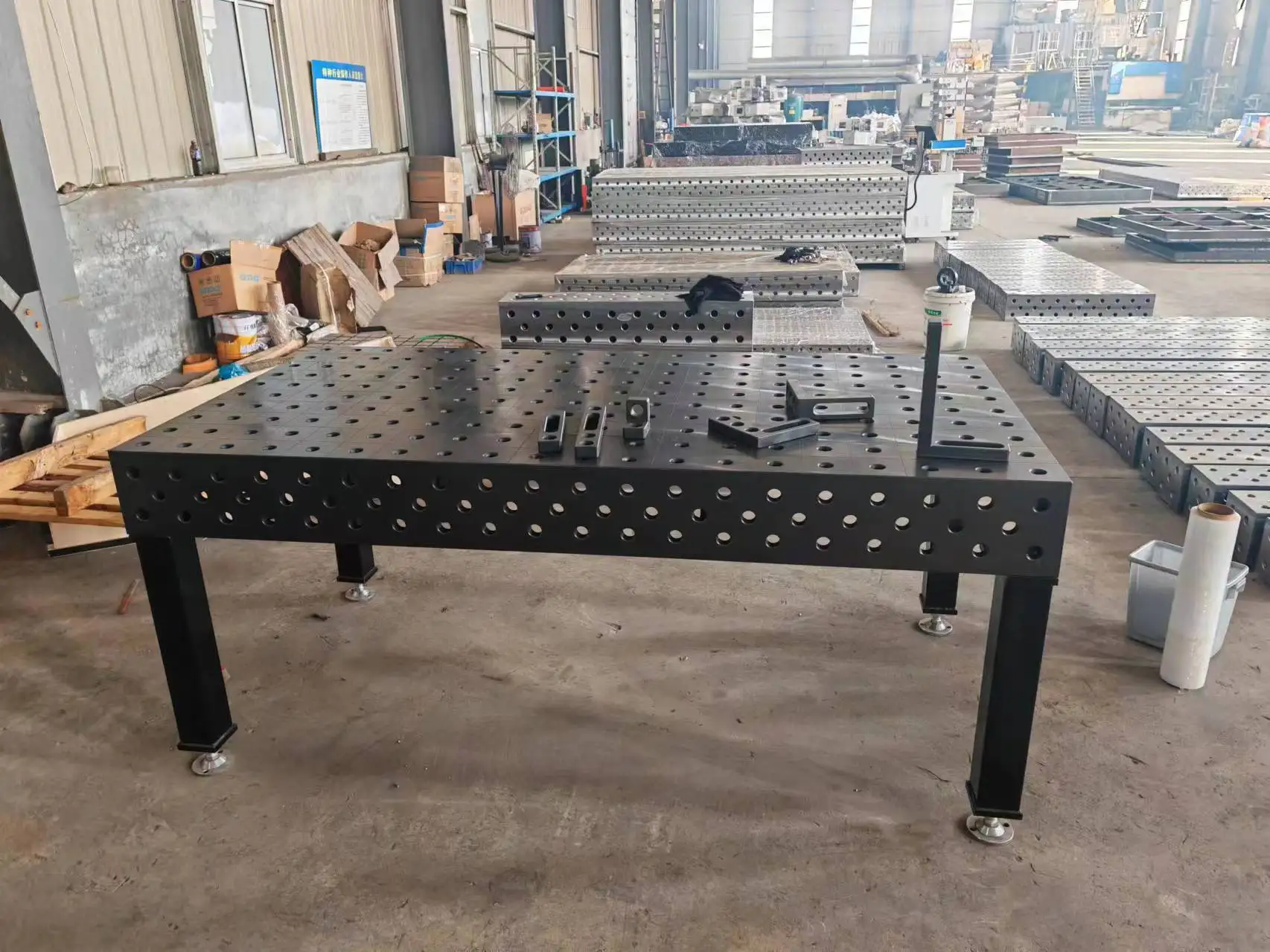

3D Welding Table is a universal welding clamping and fixturing system to meet fixing requirements of any different welding structures.

Divided by material：Steel Welding Table and Casting Welding Table

According to its hole diameter: D28 series and D16 series

Diagonal grid: D28 is 100*100mm; D16 is 50*50mm

Supporting: legs, steel frame and hydraulic lifting box,according to requirements

3D welding table — D28 series

Aperture：φ28.065--φ28.149mm
Hole spacing：L1=100±0.05mm
Flatness：0.1/1000mm
Verticality：0.1/200mm
Surface roughness：RA3.2
Standard load bearing： 2T

Frame bearing：5T
Nitriding hardness：HV450~HV630
Specifications:1000*1000~2000*4000mm

3D welding table — D16 series

Aperture：φ16.065--φ16.149mm
Hole spacing：L1=50±0.05mm
Flatness：0.1/1000mm
Verticality：0.1/200mm
Surface roughness：RA1.6
Standard load bearing：2T
Frame bearing：5T
Nitriding hardness：HV450~HV630
Specifications：1000*500~2400*1200mm

Common product specifications reference (all sizes can be customized)
D28 series					D16 series
Part NO.	Specifcation（mm）	Weight（KG）	Part NO.	Specifcation（mm）	Weight（KG）
PT-1010	10001000200	345	PT-105D	1000500100	82
PT-1212	12001200200	455	PT-1010D	10001000100	156
PT-1510	15001000200	480	PT-128D	1200800100	142
PT-1515	15001500200	725	PT-1212D	12001200100	210
PT-2010	20001000200	655	PT-1510D	15001000100	232
PT-2412	24001200200	870	PT-1515D	15001500100	345
PT-3015	30001500200	1365	PT-2010D	20001000100	297
PT-4020	40002000-200	2375	PT-2412D	24001200100	453

Modular and more
cost-effective

All components are classified, standardized and serialized, and matched with each other. With the least number of modules, a variety of fast positioning and clamping functions can be achieved.

Flexible, more versatile

Fast assembly, convenient disassembly and assembly, stronger repeatability. Users can also add a small number of positioning components according to their own needs, which can meet specific requirements.

High precision, more accurate production

Working table and various functional modules have high processing accuracy, for large workpieces about 3m square, after using a reasonable program to weld, its flatness, straightness, parallelism and perpendicularity can be controlled within ±0.1mm.

Corrosion resistance, long service life

Integrated casting greatly increases the overall structure. The platform has undergone heat treatment, and the salt spray test has reached level ten or above.

Casting

Rough Machining

Finish Machining

Nitriding Treatment

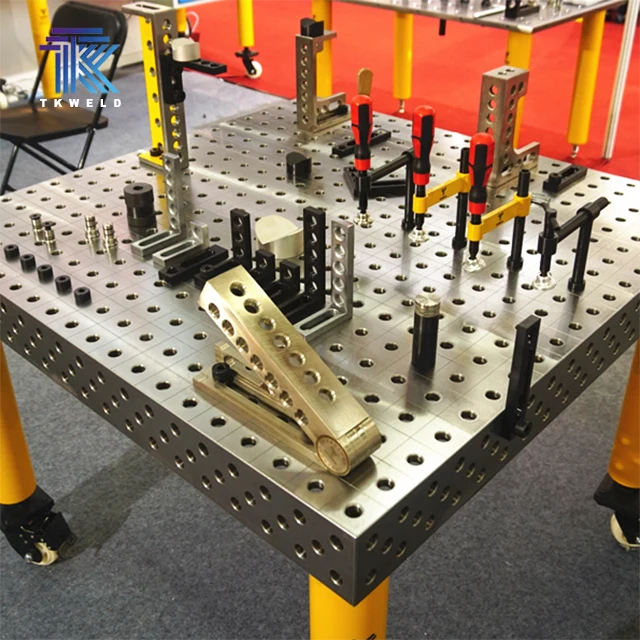

1. Tools for supporting: U-Shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge.
2. Spare parts for Locating: positioning square, positioning ruler, flat square, V-shaped positioning piece.

3. Tools for clamping:fixed quick clamping piece (screw clamping), retractable clamping piece (screw clamping), 45 degree clamping piece (screw clamping), etc.
4. Tools for fixing: quick locking pin, countersunk locking pin, countersunk quick locking pin.

5. Other matching tools and accessories: height adjuster, lifting ring, tool cart, grounding device, adjusting gasket, hexagon wrench, nylon brush, oil stone, oil can,etc.

Framework flexible combination tooling

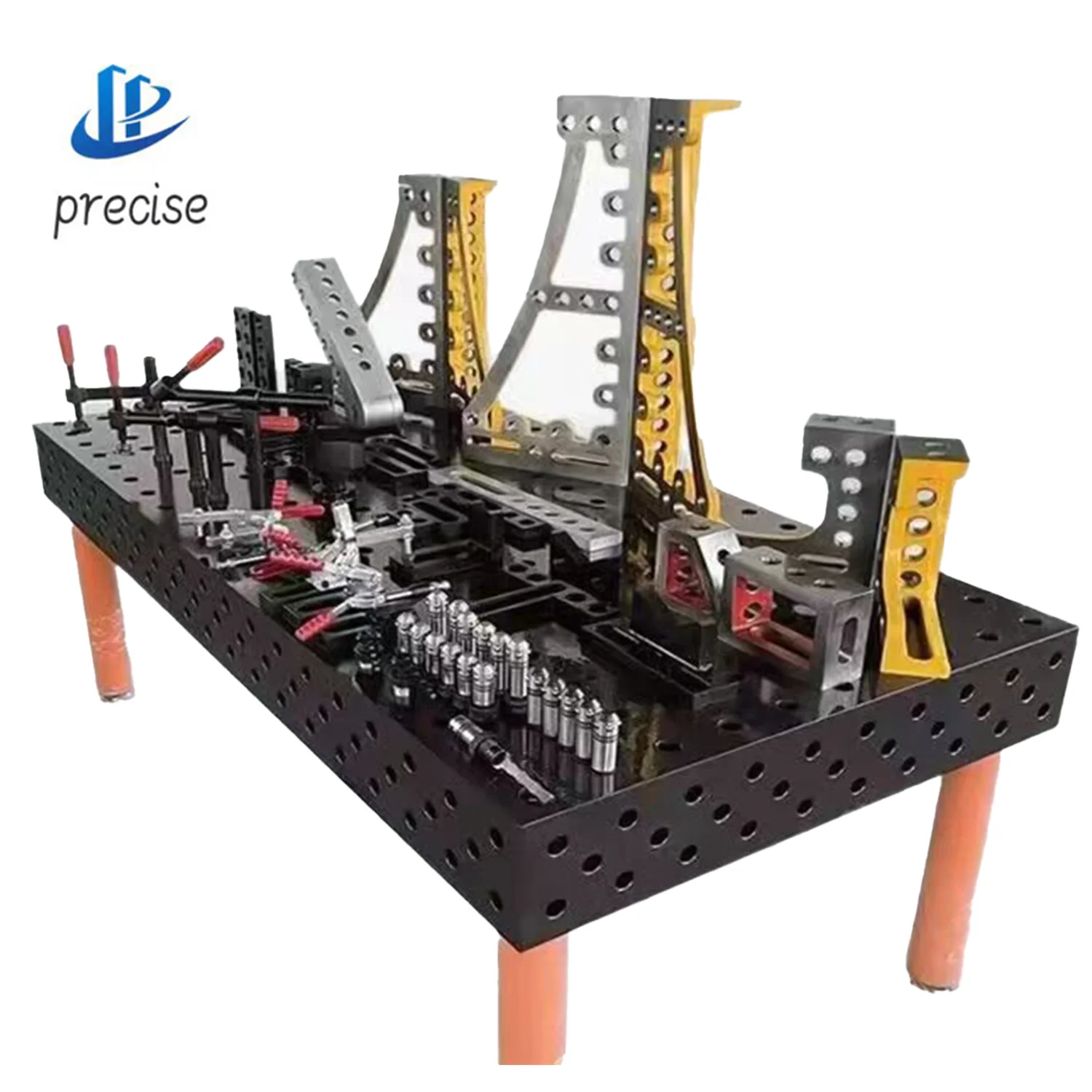

The clamping parts shown in the figure are only for demonstration purposes, and in actual operation, all clamping parts can be used for clamping work.Using CAD, Pro/e and other 3D software, it is very easy to simulate all the components on the computer.

Widely used in the manufacturing and processing of mechanical processing equipment, engineering machinery, railways, tracks,automobiles, ships, construction industries, sheet metal processing, testing and measuring instruments, and steel structures.

Hebei Precise Technology Co., Ltd.

We have 20 years of experience in domestic trade production factories. Our company's main products include the design, manufacturing, and sales of 3D flexible platforms, magnesium aluminum flat ruler series, cast iron flat ruler series, cast iron platform series, cast iron plate series, cast iron bent plate series, square box series, machine seat cushion series, granite measuring tool series, and machine bed series.
