China suopplier SCBN TOOLS wear resistant cbn inserts for roller CNMA1204/CNGA1204






PRODUCTS DESCRIPTION

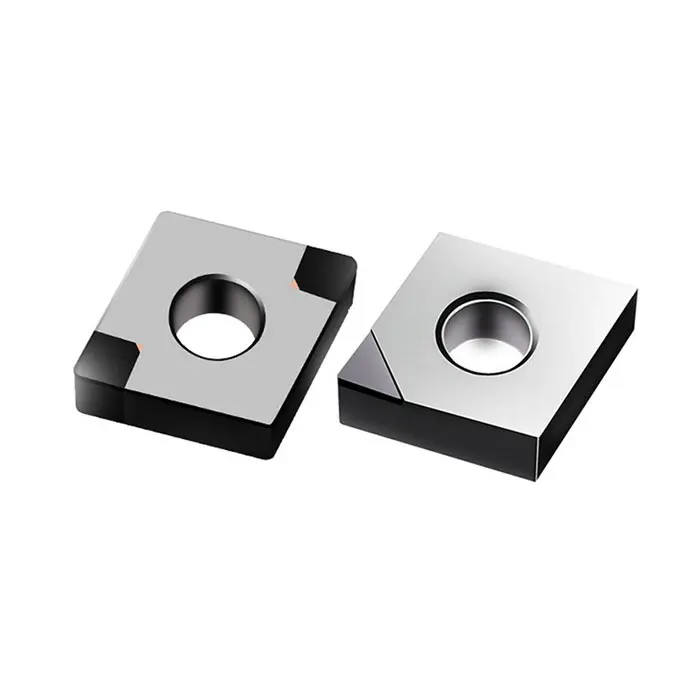

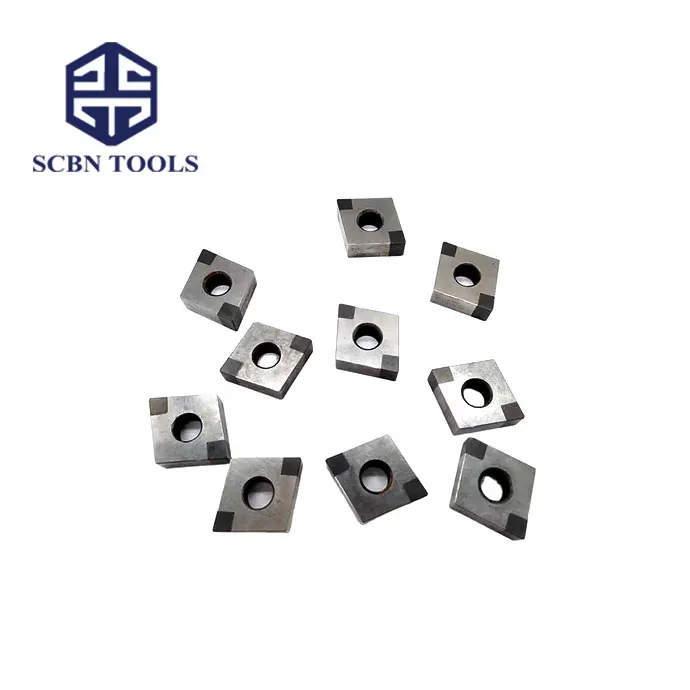

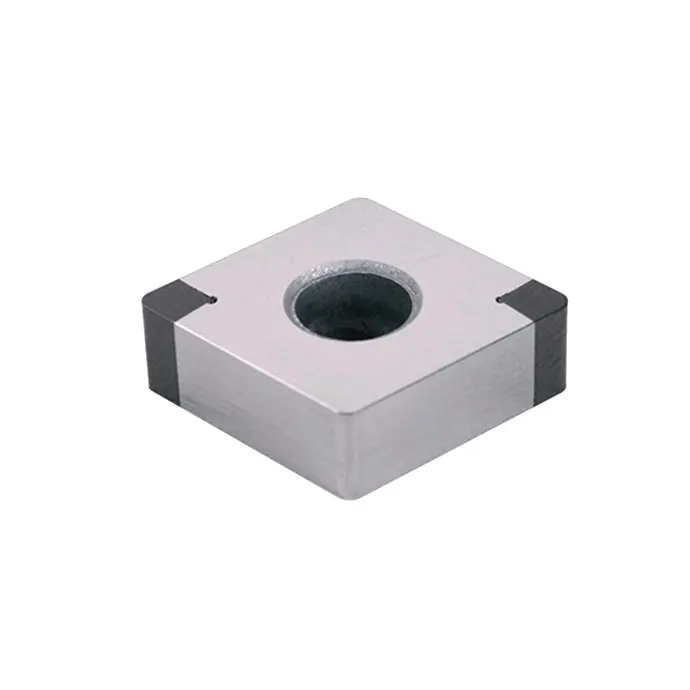

CNGA Brazed Insert Series

CNGA series brazed PCBN inserts are optimized designs. SCBN TOOLS brazed CBN inserts have stable processing performance and high durability, and can replace CNC inserts such as similar alloy coated inserts and carbide.

The head of this type of C-type PCBN integral welding insert is welded through the whole body. Now vacuum welding is used to replace the original high-frequency welding, and the integral welding replaces the original single-sided welding, which can withstand greater cutting force. Compared with the previous integral blade, the cost of cubic boron nitride is saved, and it also ensures the versatility with alloy toolholders, which can ensure accuracy and be more economical and durable. Due to the use of integral welding technology, both sides of the insert can be used, which increases the number of cutting edges, improves tool utilization, and reduces the cost of tool use for a single workpiece. Commonly used in semi-finishing and finishing processes.




Processing application: PCBN tools are mainly used in various hardened steel, quenched and tempered steel, tool steel, die steel, bearing steel (HRC45-70); chilled cast iron, high chromium cast iron, nickel-based, cobalt-chromium-molybdenum alloy, cobalt-based High temperature alloy (HRC35-70) and difficult-to-machine gray cast iron; and various other difficult-to-machine black materials.

Rolls, brake discs, brake drums, brake pads, slurry pumps, industrial pumps, diesel engines, various cast irons, hardened steel, bearing steel, high chromium steel, carbide, powder metallurgy, hardened gears, ball screws, etc. Roughing and semi-finishing of high-hardness metals with hardness between (HRC45-90°); machining smoothness can reach Ra0.8, large cutting amount, strong impact resistance, good wear resistance, and long service life.




ISO
Dimension

Standard Chamfer
L(mm)
ΦI.C(mm)
S(mm)
Φd(mm)
r(mm)
CNGA120404-4N
12
12.7
4.76
5.16
0.4


S01020
S02020
CNGA120408-4N
12
12.7
4.76
5.16
0.8
CNGA120412-4N
12
12.7
4.76
5.16
1.2
CNGA120416-4N
12
12.7
4.76
5.16
1.6


APPLICATION





PRODUCT RANGE










Henan WEGCL New Materials Co., Ltd. (Named SCBN TOOLS), originated from China Henan New Materials Research Institute (formerly a comprehensive materials research institution directly under the Ministry of Machinery Industry of China), focusing on the research and development and production of superhard materials, is committed to providing the best cutting solutions and tools for global customers, and is regarded by customers as a reliable supplier of superhard material tools.
After several years of rapid development, SCBN TOOLS has formed an industrial pattern based on the advantages of raw materials and turning tools, and has realized the self-sufficiency of the whole industry chain. In the application technology and material research and development of superhard materials, it is at the leading level in China, and has passed the IOS9001 quality system certification.

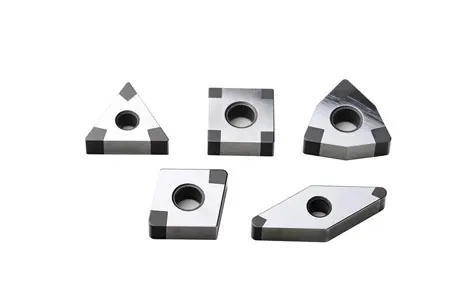

The main products are: Solid CBN inserts, Tipped PCBN Inserts and other precision machine cutting tools, etc. Solid CBN Grade SBN800,SBN850, have unique advantages on cast iron materials. It has an absolute cost-effective advantage in the processing of typical parts brake discs and brake drums.
Products are widely used in gears, bearings, automobiles, iron and steel metallurgy and aerospace and other industries, has reached cooperation with many well-known enterprises around the world, and our products are exported to Germany, Italy, South Africa, South Korea and other countries in Southeast Asia.




Why Choose Us




01 Technical support: We have a professional technical team that provides comprehensive technical support and consultation services. Please contact us at any time when you have any problems and we will provide timely solutions.

02 Quality guarantee: All SCBN TOOLS products undergo strict quality control and testing to ensure they meet ISO standards. If there are any quality issues, please contact us and we will handle them promptly. We are committed to providing our customers with high-quality products and services.

03 Fast response service: We promise to respond within 24 hours of receiving your feedback, and provide you with a solution in the shortest possible time.

04 Fast shipping: We promise to arrange delivery as soon as possible after receiving your order and choose the fastest express delivery method to ensure you receive the product as soon as possible. (DHL, FedEx, UPS, TNT)




FAQ




1 Who Are We?
SCBN TOOLS are based in Zhengzhou,Henan,China,originated from China Henan New Materials Research Institute (formerly a comprehensive materials research institution directly under the Ministry of Machinery Industry of China).

2 How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always multiple quality inspection steps in the production and final inspection before shipment;

3 What Can You Buy From Us?
Solid cbn inserts,tipped pcbn inserts,coating pcbn inserts,wiper pcbn inserts,CBN Grooving Inserts,Chipbreaker PCBN Inserts and any other customized CBN Inserts.

4 Why Should You Buy From Us Not From Other Suppliers?
1) Integrating R&D, production and sales.
2) Formerly known as Henan Advanced Materials Research Institute, located in China's Superhard material Base.
3) Known for "SCBN TOOLS" Brand and have exported our products to various countries.

5 What Services Can We Provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,German,Russian,Korean
