Products Description

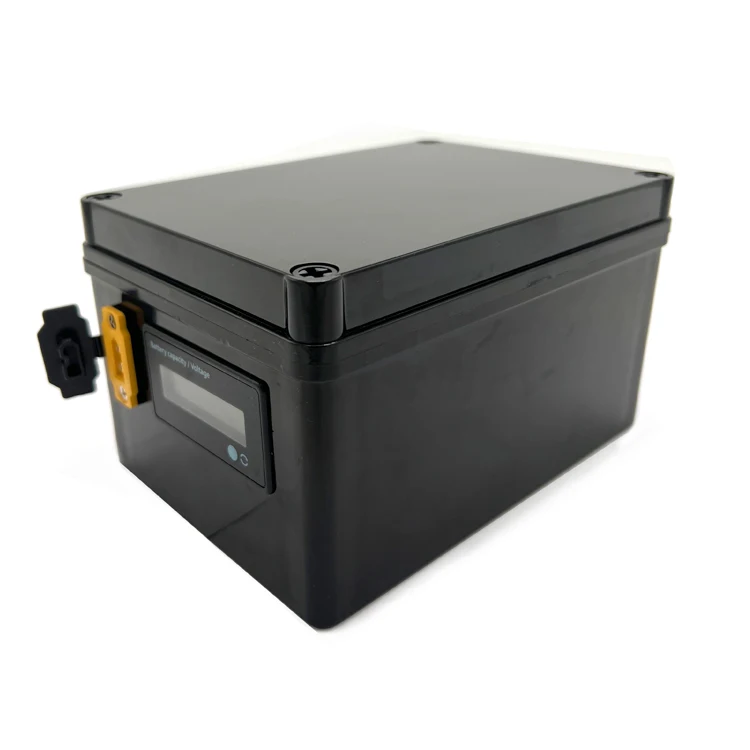

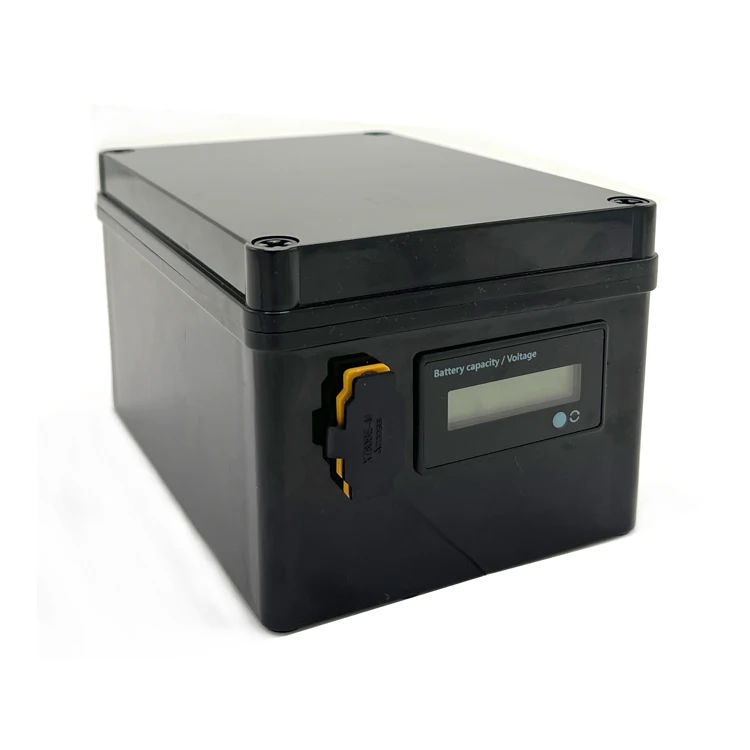

Rechargeable Wholesale 25.2V 10Ah Custom Li-ion Battery Pack With display 18A resettable fuse and USB port for phone recharge
Overview:
This battery is used for shipping cart, so it will have a good water-proof function. The water-proof grade is IP67 with a very good sealing on the plastic case.
The plastic case have two options, we can offer white and black plastic case to choose.

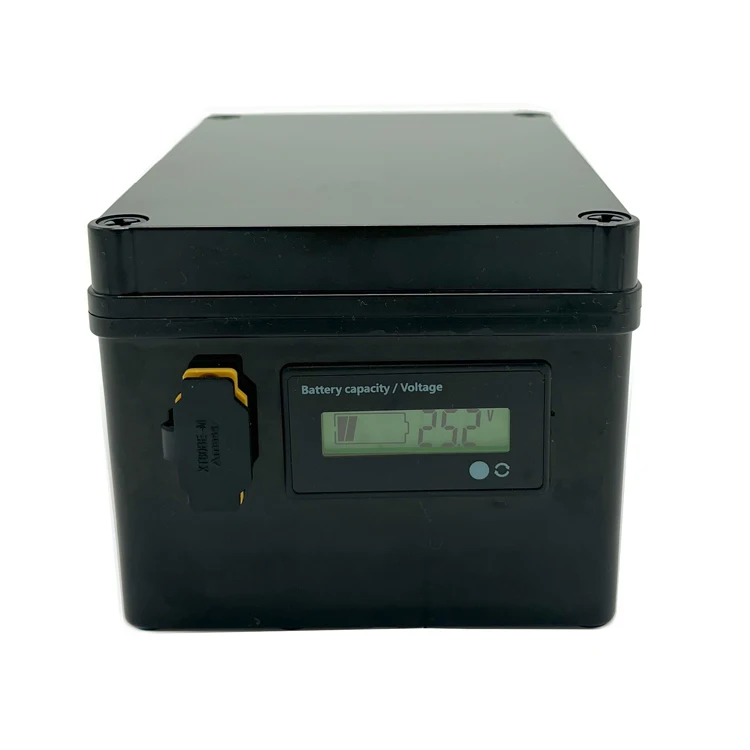

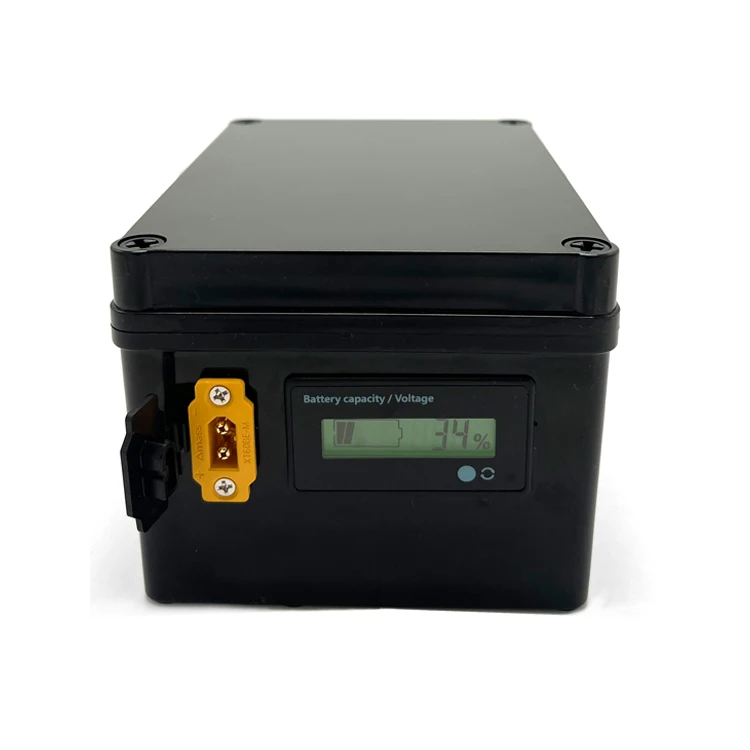

It has a display on the plastic case to monitor the voltage and percentage of power. It will be easy for customers to check if they need to recharge the battery or not.
It has a resettable fuse of 20A. When the current is more than 20A, it will cut-off to protect the BMS board and battery. It's very useful.
The BMS board has many functions: over-current, over-charge, over-discharge, short circuit and over-temperature by a thermistor.
To make the storage tidy, we use the XT60ME connector on the plastic case, which has a cover to protect the PINs to have a long life.
The 1m cable is removed and it's easy to storage and change. It is with XT60 female connectors on both ends. We can also offer other connectors to choose, like Anderson PP30A, DC Jack 5.5*2.1mm male and female etc. They are convenient for foreign customers.
The battery has a 29.2V 3A charger, whose length is about 1.5m+1.5m(total 3m). It's very long to recharge the battery without taking it off the cart.
We can customize the battery as your ideas, more functions to design and add by your special needs.
Including:
1. 25.2V 10Ah plastic case battery
2. 1m cable
3. 29.2V 3A charge
4. special package
Specifications for custom 25.2V 13Ah Li ion Battery | ||||||
Voltage: | 25.2V | Size: | 175*125*100mm | |||
Capacity: | 10Ah | Weight: | 3KG | |||
Working current: | 15A | Cable and connector: | 1m cable with XT60 female on both end | |||
Charger: | 29.2V 3A | Custom: | Yes | |||
Settable fuse: | 20A | Display: | Yes | |||
Specification:
Product Name: | Lithium ion battery |
Nominal Voltage: | 25.2V |
Nominal Capacity: | 10Ah |
Electric Energy: | 252Wh |
Discharge Cut-off Voltage: | 19.25V |
Charge Current: | 3A |
Charging Ratio: | less than 0.5C |
Discharge Current: | 15A |
Max Continuous Discharge Current: | 15A |
Discharge Ratio: | 3C |
Self Discharge: | 3% |
Cycle Life: | 500 cycles |
BMS Functions: | over current, over discharge, over charge, short circuit and over temperature |
Case: | Plastic case |
Approx. Dimensions: | 175*125*100mm |
Approx. Weight: | 3kg |
Storage Temperature: | -20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity |
Recommend Products
Company Profile
HIMAX ELECTRONICS is a professional manufacturer of LiFePO4, Lithium-ion, Li-Polymer, Ni-MH battery packs with factory in Shenzhen China and subsidiary in Australia.
After 12 years of continuous study and exploration, HIMAX has become a global-oriented multinational company integrating R&D and production, providing specialized and customized products. We focus on battery solutions for Energy Storage Systems, Solar Street Lighting, RV, Electric Vehicles, Medical Equipment, UPS, etc…
HIMAX has passed ISO9001 quality management system certification, and its products have obtained UL, CE, UN38.3, MSDS, IEC, and other international certificaitons.
With reliable quality, positive service, and competitive price, we have cooperated with more than 2,000 customers from all over
the world.
We are looking forward to be your battery partner. OEM & ODM are welcome.
With reliable quality, positive service, and competitive price, we have cooperated with more than 2,000 customers from all over
the world.
We are looking forward to be your battery partner. OEM & ODM are welcome.
Certifications
Exhibition
Packaging & Shipping
The goods will be packaged in good quality cartons if no special demand. If you need special demand, please feel free to let us know, we offer the customized package as your demand.
2). Carton Size: Customized or based on actual weight and volume.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
will be provided.
Item | USA | Europe | Australia | Others |
ETD | 1-3 days | 1-3 days | 1-3 days | 1-3 days |
ETA | 25-30 working days | 30-35 working days | 25-30 working days | CUSTOMER SERVICE |
Transportation | By sea+FEDEX (DDP,Tax free) | By railway+UPS (DDP,Tax free) | By sea+Delivery (DAP) |
Any other question and requirement about the Shipping by CLICKING HERE , so that we can provide solution to save your budget and
meet your need !
meet your need !
Q1: Can I get free sample?
A1: Generally we don't provide free sample, but we can return sample cost when the buyer plant a bulk order.
Q2: How should I pay?
A2: You can pay via T/T,L/C at sight, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
Q3: What is delivery time if we place an order?
A3: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place offical order.
Q4: Are your factory or trading company?
A4: We are proffesional lithium-ion rechargeable batteries manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients around globe.
Q5.What is your warranty?
A5: We offer 2 years warranty for all our battery pack.we ensure at least 2000 cycle life for the LiFePO4 battery pack, which means,after 2000@80% DOD,there will still around 60% capacityt left.You can use it for at least 5 years for normal 1 time charge and discharge everyday.
Q6.Can we put different LiFePO4 battery pack in parallel or series by ourself?
A6: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention:
1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate;
2> Do not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack;
3> Do not put the batteries in series.
4> If you are not professional in parallel batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery;
A1: Generally we don't provide free sample, but we can return sample cost when the buyer plant a bulk order.
Q2: How should I pay?
A2: You can pay via T/T,L/C at sight, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
Q3: What is delivery time if we place an order?
A3: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place offical order.
Q4: Are your factory or trading company?
A4: We are proffesional lithium-ion rechargeable batteries manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients around globe.
Q5.What is your warranty?
A5: We offer 2 years warranty for all our battery pack.we ensure at least 2000 cycle life for the LiFePO4 battery pack, which means,after 2000@80% DOD,there will still around 60% capacityt left.You can use it for at least 5 years for normal 1 time charge and discharge everyday.
Q6.Can we put different LiFePO4 battery pack in parallel or series by ourself?
A6: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention:
1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate;
2> Do not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack;
3> Do not put the batteries in series.
4> If you are not professional in parallel batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery;
For more information, Please contact us now
You will get the best design solution for FREE !!!
( Just click here , or click on the customer service on the right side)
Похожие товары
Аккумулятор электрический скутер 3 7 В 3500 мАч 3400 3200 цилиндрические литиевые элементы NMC аккумуляторы литий-ионные lifepo4
3,15-3,40 $
Аккумуляторная батарея 3 7 В литий-ионная 18650 2600 мАч элементы для 3C мощного электрического устройства
0,77-0,96 $

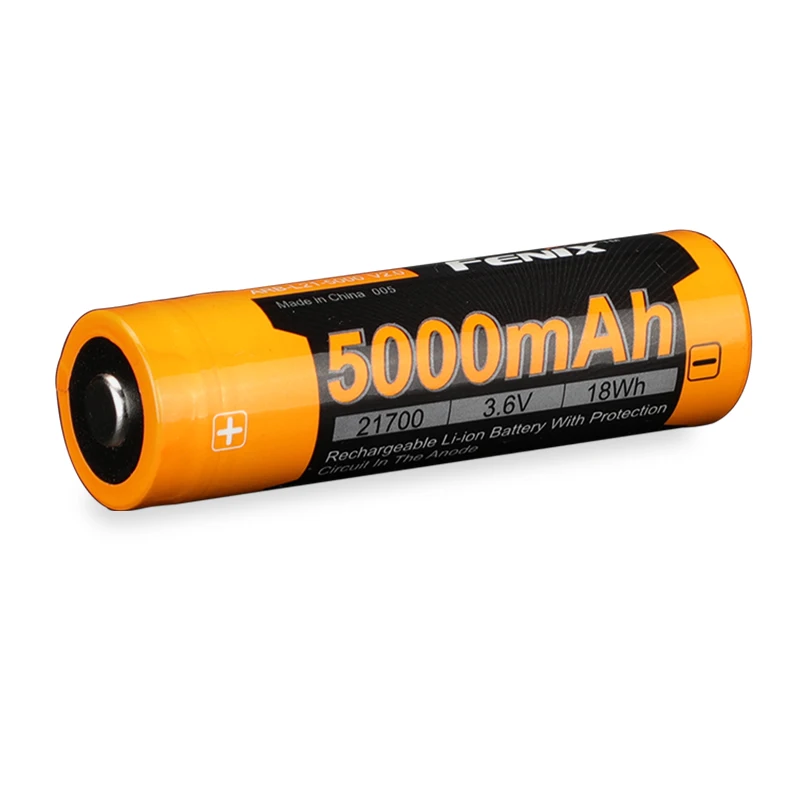

ARB L21 V2.0 21700 3 6 в 5000 мАч перезаряжаемая литий-ионная батарея для электровелосипеда скутера с более длительным сроком службы
