45 градусов угол инструмента токарного станка с ЧПУ вставки карбида внутренний держатель токарных инструментов
8,99-19,99 $
Сверхжесткие cbn вставки для обработки высокоскоростных стальных рулонов от SCBN инструментов высокой квалификации DNGA1504/DNGA150404/DNGA150412
- Категория: >>>
- Поставщик: Henan Wegcl New Materials Co. Ltd.Henan Ltd.
Сохранить в закладки 1601349766970:
Описание и отзывы
Характеристики
Super hard cbn inserts machining high speed steel rolls from SCBN TOOLS high qualify DNGA1504/DNGA150404/DNGA150412
Brazed PCBN Inserts are a type of cutting tool used in machining operations that require high precision and durability. PCBN stands for polycrystalline cubic boron nitride, which is a superhard material that is second only to diamond in terms of its cutting ability. Brazing is a process of joining two materials together using a filler material that melts and flows into the joint under high heat. In the case of Brazed PCBN Inserts, the PCBN cutting edge is brazed onto a tungsten carbide substrate, which provides structural support.

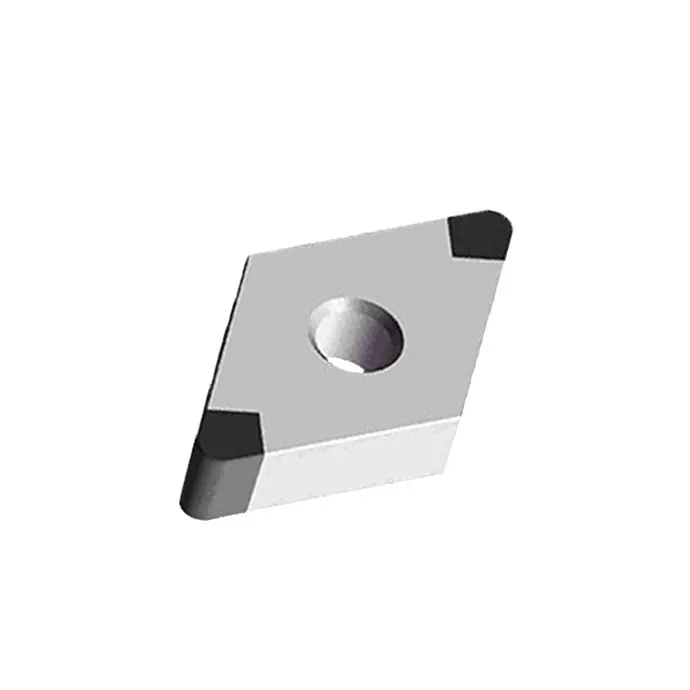

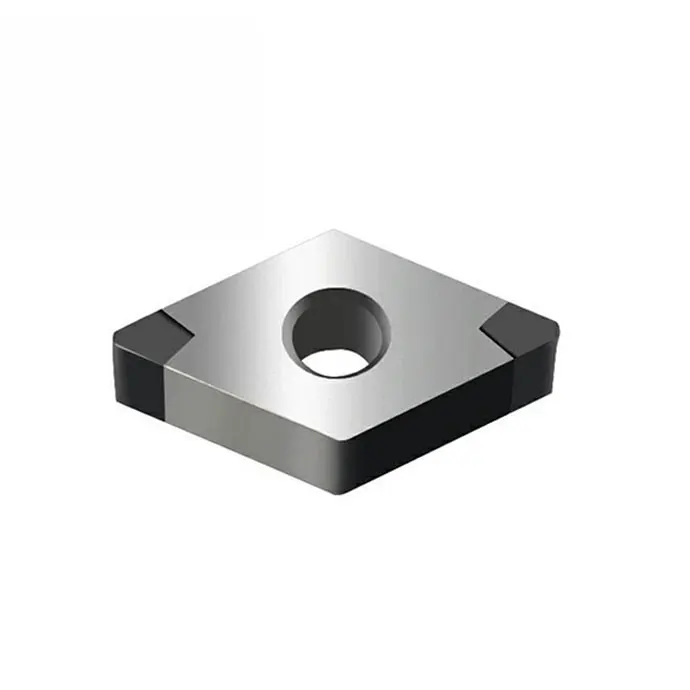

* DNGA brazed pcbn inserts are 55 degree diamond inserts for hard turning ferrous metals of cast iron and hardened steel, the edge of the cbn inserts is made of polycrystalline cubic boron nitride, the indexable inserts with cbn tips are Precision cutting tool, welded from top to bottom, has 4 cutting edges, which is more economical and efficient than ordinary welded CBN inserts.
ISO | Dimension | Standard Chamfer | ||||||||
L(mm) | ΦI.C(mm) | S(mm) | Φd(mm) | r(mm) | ||||||
DNGA150404-4N | 15 | 12.7 | 4.76 | 5.16 | 0.4 | S01020 S02020 | ||||
DNGA150408-4N | 15 | 12.7 | 4.76 | 5.16 | 0.8 | |||||
DNGA150412-4N | 15 | 12.7 | 4.76 | 5.16 | 1.2 | |||||
DNGA150604-4N | 15 | 12.7 | 6.35 | 5.16 | 0.4 | |||||
DNGA150608-4N | 15 | 12.7 | 6.35 | 5.16 | 0.8 | |||||
DNGA150612-4N | 15 | 12.7 | 6.35 | 5.16 | 1.2 | |||||
ROLLS
Common Rolls Materials include Cast Iron Rolls, Cast Steel Rolls, These rolls are general of high hardness, prone to casting defects, and difficult to process.
Therefore, the cbn inserts is the most suitable choice because it has the following advantages:
1. Excellent surface finish;
2. High speed turning, high performance;
3. More flexibility in machining;
4. Less investment in machines;
5. Not required coolant;
6. Easier in recycling and treatment of chips;
7. Easier in removal of outlet of chips.
Therefore, the cbn inserts is the most suitable choice because it has the following advantages:
1. Excellent surface finish;
2. High speed turning, high performance;
3. More flexibility in machining;
4. Less investment in machines;
5. Not required coolant;
6. Easier in recycling and treatment of chips;
7. Easier in removal of outlet of chips.

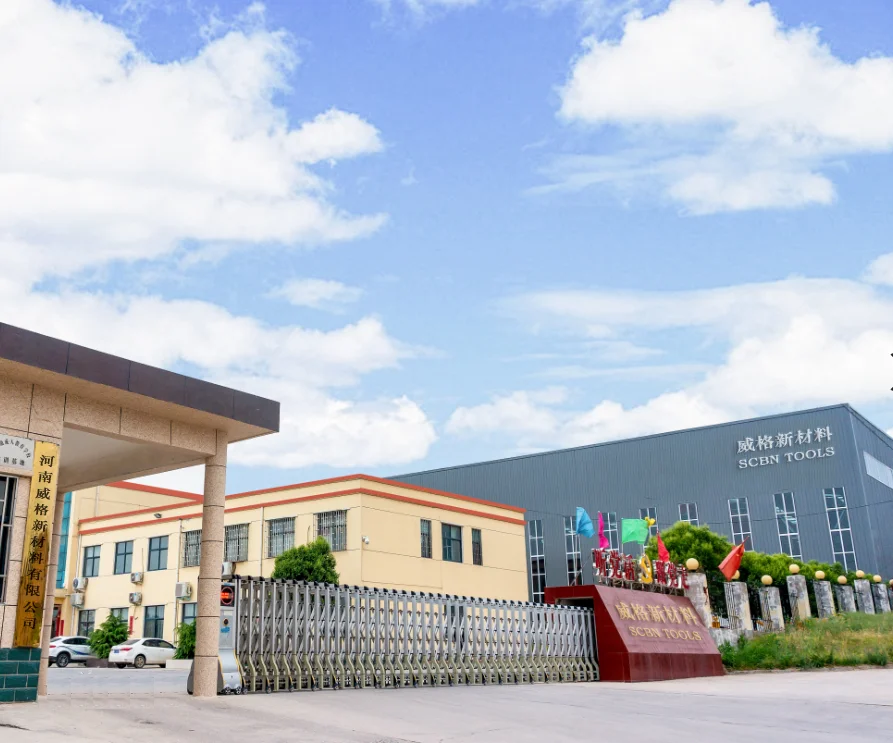

Company Profile
Henan WEGCL New Materials Co., Ltd. (Named SCBN TOOLS), originated from China Henan New Materials Research Institute (formerly a comprehensive materials research institution directly under the Ministry of Machinery Industry of China), focusing on the research and development and production of superhard materials, is committed to providing the best cutting solutions and tools for global customers, and is regarded by customers as a reliable supplier of superhard material tools.
After several years of rapid development, SCBN TOOLS has formed an industrial pattern based on the advantages of raw materials and turning tools, and has realized the self-sufficiency of the whole industry chain. In the application technology and material research and development of superhard materials, it is at the leading level in China, and has passed the IOS9001 quality system certification.

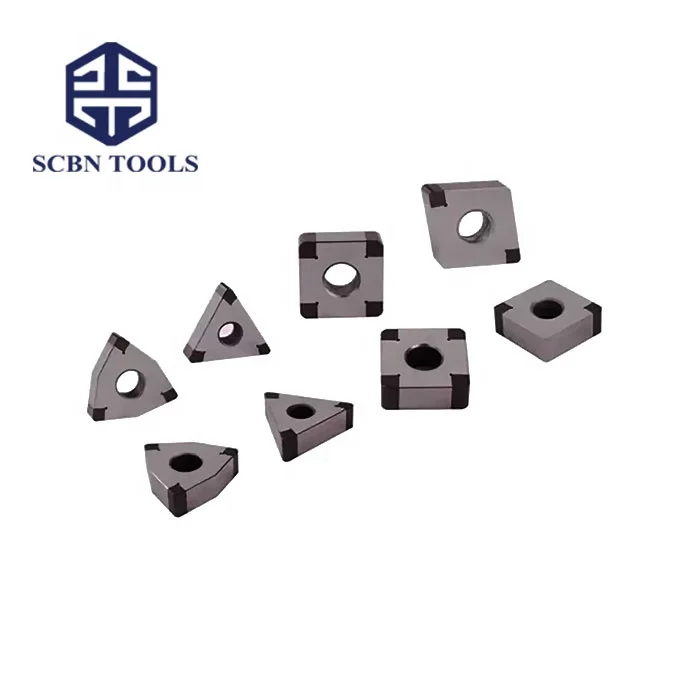

The main products are: Solid CBN inserts, Tipped PCBN Inserts and other precision machine cutting tools, etc. Solid CBN Grade SBN800,SBN850, have unique advantages on cast iron materials. It has an absolute cost-effective advantage in the processing of typical parts brake discs and brake drums.
Products are widely used in gears, bearings, automobiles, iron and steel metallurgy and aerospace and other industries, has reached cooperation with many well-known enterprises around the world, and our products are exported to Germany, Italy, South Africa, South Korea and other countries in Southeast Asia.
After several years of rapid development, SCBN TOOLS has formed an industrial pattern based on the advantages of raw materials and turning tools, and has realized the self-sufficiency of the whole industry chain. In the application technology and material research and development of superhard materials, it is at the leading level in China, and has passed the IOS9001 quality system certification.
The main products are: Solid CBN inserts, Tipped PCBN Inserts and other precision machine cutting tools, etc. Solid CBN Grade SBN800,SBN850, have unique advantages on cast iron materials. It has an absolute cost-effective advantage in the processing of typical parts brake discs and brake drums.
Products are widely used in gears, bearings, automobiles, iron and steel metallurgy and aerospace and other industries, has reached cooperation with many well-known enterprises around the world, and our products are exported to Germany, Italy, South Africa, South Korea and other countries in Southeast Asia.
Company Advantage
Why Choose Us
01 Technical support: We have a professional technical team that provides comprehensive technical support and consultation services. Please contact us at any time when you have any problems and we will provide timely solutions.
02 Quality guarantee: All SCBN TOOLS products undergo strict quality control and testing to ensure they meet ISO standards. If there are any quality issues, please contact us and we will handle them promptly. We are committed to providing our customers with high-quality products and services.
03 Fast response service: We promise to respond within 24 hours of receiving your feedback, and provide you with a solution in the shortest possible time.
04 Fast shipping: We promise to arrange delivery as soon as possible after receiving your order and choose the fastest express delivery method to ensure you receive the product as soon as possible. (DHL, FedEx, UPS, TNT)
FAQ
1 Who Are We?
SCBN TOOLS are based in Zhengzhou,Henan,China,originated from China Henan New Materials Research Institute (formerly a comprehensive materials research institution directly under the Ministry of Machinery Industry of China).
2 How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always multiple quality inspection steps in the production and final inspection before shipment;
3 What Can You Buy From Us?
Solid cbn inserts,tipped pcbn inserts,coating pcbn inserts,wiper pcbn inserts,CBN Grooving Inserts,Chipbreaker PCBN Inserts and any other customized CBN Inserts.
4 Why Should You Buy From Us Not From Other Suppliers?
1) Integrating R&D, production and sales.
2) Formerly known as Henan Advanced Materials Research Institute, located in China's Superhard material Base.
3) Known for "SCBN TOOLS" Brand and have exported our products to various countries.
5 What Services Can We Provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,German,Russian,Korean
SCBN TOOLS are based in Zhengzhou,Henan,China,originated from China Henan New Materials Research Institute (formerly a comprehensive materials research institution directly under the Ministry of Machinery Industry of China).
2 How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always multiple quality inspection steps in the production and final inspection before shipment;
3 What Can You Buy From Us?
Solid cbn inserts,tipped pcbn inserts,coating pcbn inserts,wiper pcbn inserts,CBN Grooving Inserts,Chipbreaker PCBN Inserts and any other customized CBN Inserts.
4 Why Should You Buy From Us Not From Other Suppliers?
1) Integrating R&D, production and sales.
2) Formerly known as Henan Advanced Materials Research Institute, located in China's Superhard material Base.
3) Known for "SCBN TOOLS" Brand and have exported our products to various countries.
5 What Services Can We Provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,German,Russian,Korean
