Лучший дизайн V образный 3 х осевой 50000 литров грузовой ящик для прицепов цистерн с грузом 50 куб. М газовое топливо дизельный бак полуприцеп в Кении

Лучший дизайн V образный 3 х осевой 50000 литров грузовой ящик для прицепов цистерн с грузом 50 куб. М газовое топливо дизельный бак полуприцеп в Кении

Категория: >>>
Поставщик: Shandong Hstar Auto Co. Ltd.Shandong Ltd.

Цена:11 724,13-15 394,30 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

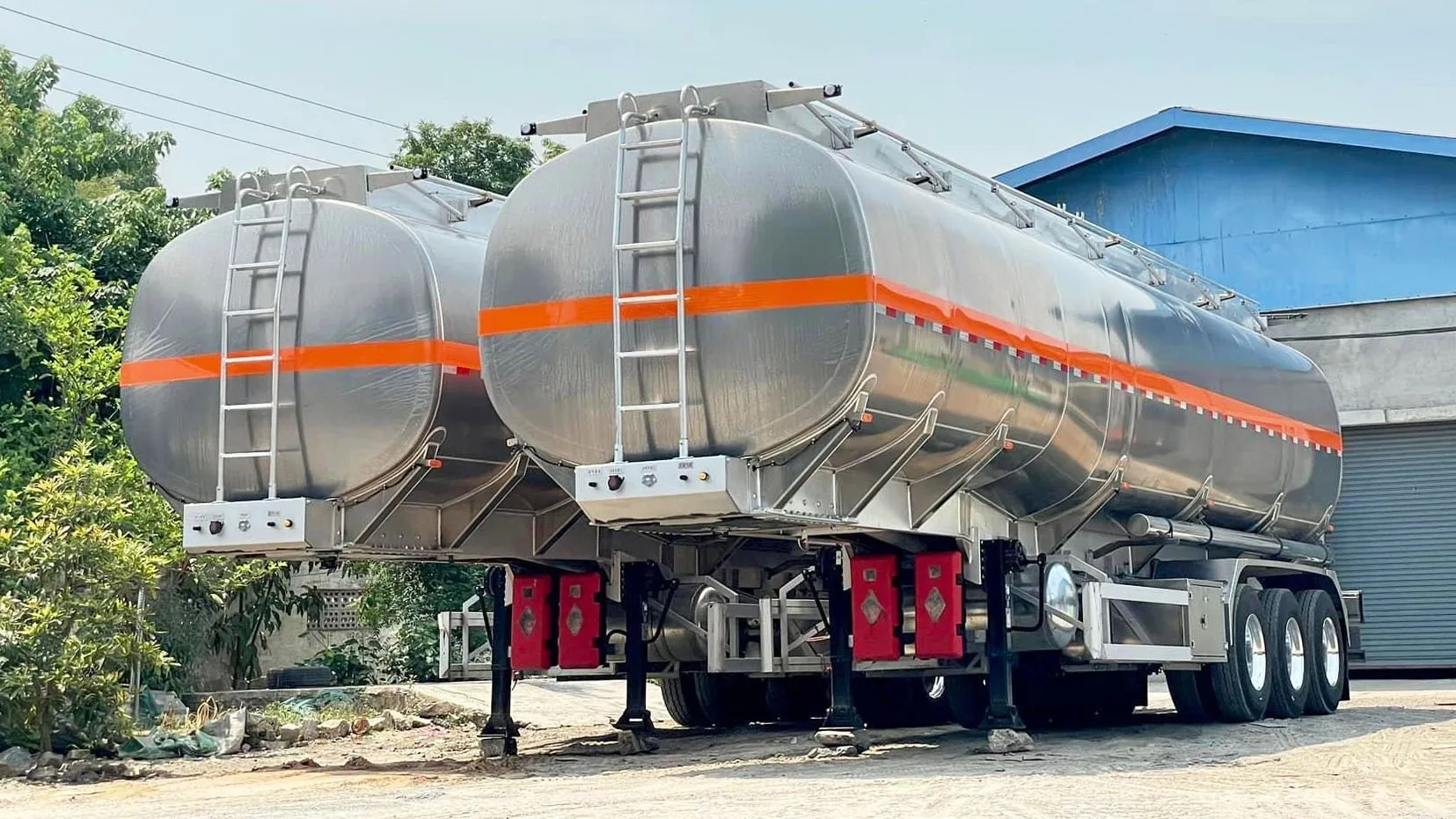

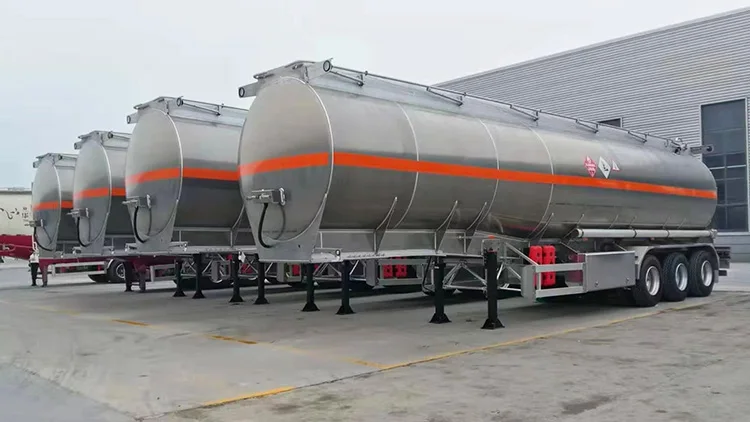

Oil Tanker Semi Trailer

Specifications
Product Name: 3 Axle Oil Tanker Semi Trailer
Over Dimensions: 1350025003900mm
Steel Structure
Material	Q235 Steel
Frame	Main beam height is 500mm
Frame Beam	Upper plate is 14mm,down plate is 16mm,middle plate is 8mm
Landing Gear	Chinese brand 28 Tons
Subsea Valve	7
Oil Valve	7
Tanker
Volume	50 CBM 7+8+7+7+7+7+7
Body Thickness	6mm
Front/End Plate	6mm
Compartments	7 compartments
Specification
Axle Brand	13TON Axle,
Axle Number	Three
Suspension System	Mechanical suspension
Steel Spring	10/10/10 leaf spring suspension
Rim	9.0-22.5
Tire
Tire Type and Quality	385/65R22.5 ,7 units
Number of Tire	7 pieces
Spare Wheel Bracket	1 pieces
Brake
Brake System	Dual line braking system
Brake Chamber	Four Double and two single chamber, optional WABCO
Electrical System
Cable	One set 6-core standard Cable.
Voltage	24V
Receptacle	7 ways(7 wire harness)
Light	Tail lamp with turn signal,brake light&reflector,side lamp etc.
Miscellaneous
Side Guard	With
Painting&Marking	According to customers’ requirement

Company Profile

Our Factory

Customer Photos

Packing & Delivery

FAQ

Q1: Does your company is a factory or trade company?
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.

Q2: Whats the qualify assurance we provided and how do we control quality?

A2: Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process. 100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.

Q3: What's your MOQ?
A3: One unit trailer or truck.

Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
