Высококачественный 10 г/ч 80 Вт 14 кГц Регулируемый черный кварцевый генератор озона комплект от производителя для стиральной машины
- Категория: >>>
- Поставщик: Pinus Longaeva (Shenzhen) Industrial Co. LtdPinus Ltd
Сохранить в закладки 1601349786972:
Описание и отзывы
Характеристики
Our test equipment:
AC voltage regulator, DC voltage regulator, voltage stabilizer, LCR digital bridge tester, intelligent program-controlled frequency conversion power supply, electrical parameter meter, ozone concentration analyzer, oxygen cylinder, oxygen machine, air compressor, oil-water separator, pressure regulating valve, flow meter, ambient temperature and humidity meter, aging test bench...
AC200V-AC240V, we will set: AC240V 50HZ for you.
AC100V-AC130V, we will set: AC130V 60HZ for you.
South Korea, Brazil, Peru, Philippines, Saudi Arabia: AC240V 60HZ.
Japan: AC110V 60HZ.
If the local voltage or frequency is special, when you order our products, you can leave a message to us.
When you get this product, please read the installation and operation instructions carefully, it is very important.
Patented product, low frequency, lower temperature rise, higher ozone concentration, stable output, more efficient, longer service life, warranty 2 years.
(The ozone PSU cannot work alone, you need to correctly install the ozone tube and the ozone PSU, connect them together, install 2pcs 8cm or 1pc 12cm cooling fan to cool the ozone tube, turn on the air/oxygen source, and then you can turn on the ozone generator)

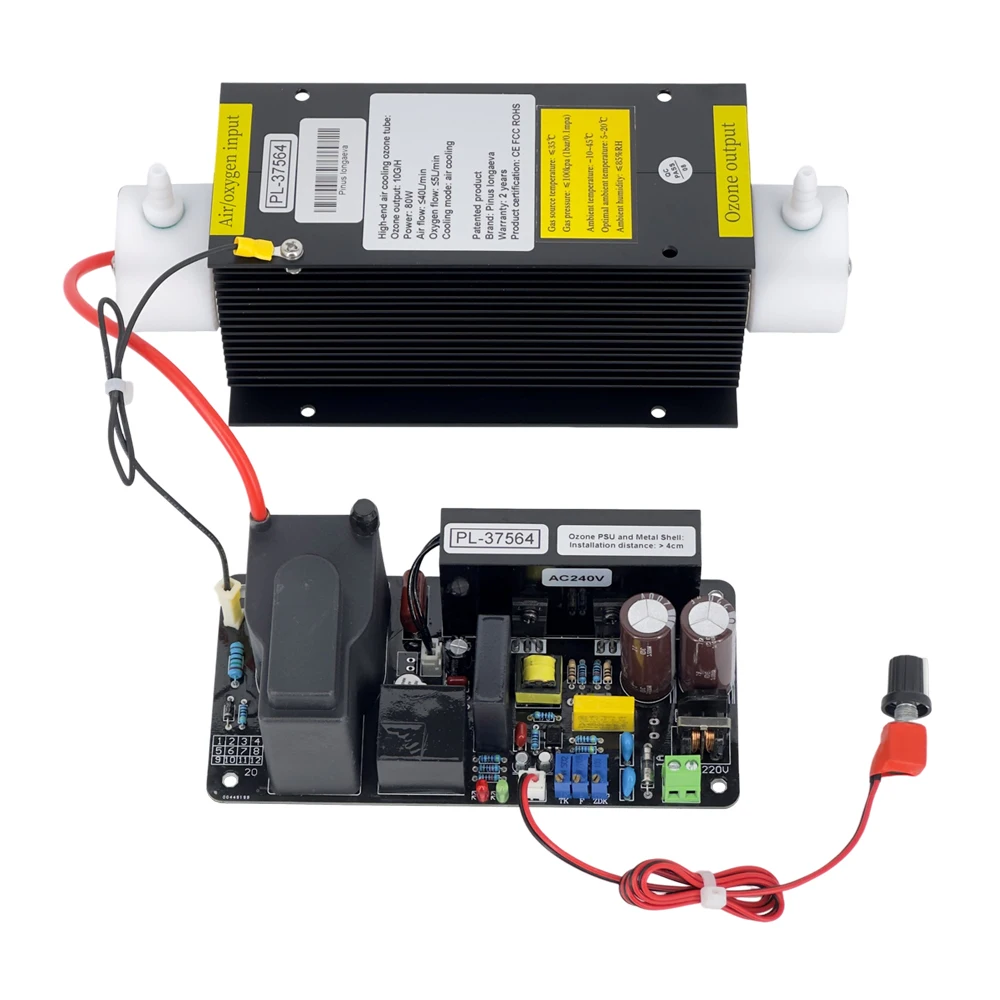

High-end 10g/h adjustable air cooling ozone generator kit:
Product model: PL-10QBAO
Ozone output: 10g/h (adjustable)
Power: 80w
Output frequency: 14khz
Air flow: ≤40L/min
Oxygen flow: ≤5L/min
Cooling mode: air cooling
Gas source: air source, oxygen source
Gas source temperature: ≤35℃
Gas pressure: ≤100kpa (1bar/0.1mpa)
Ambient temperature: -10~45℃
Optimal ambient temperature: 1-20℃
Environmental humidity: ≤85%RH
External electrode: pure aluminum foil
Dielectric material: high-purity quartz glass tube
Inner electrode: 316L stainless steel tube
Discharge gap: 0.5mm
Patented product
Brand: Pinus longaeva (we can print your logo and paste it on the ozone tube)
Product certification: CE FCC ROHS
Product application: air purification and water sterilization
Service life / Warranty: more than 20000 hours / 2 years
Customized: can be customized
We have set the correct parameters for this ozone PSU, so please do not adjust the knob on the ozone PSU.
TK: set the maximum power of the ozone PSU (rotate to the right to increase the power).
F: set the output frequency (you need an oscilloscope) (rotate to the right to increase the frequency).
ZDK: feedback and compensation power, used to stabilize the output power of ozone PSU.
Indicator light:
Red: power on indicator.
Green: working indicator.
Size:
Ozone tube: 223*70*84mm 1kg
Ozone PSU: 155*76*55mm 0.4kg
Cooling fan:
You can use M4 screw length 120mm to install and fix 2pcs 8cm cooling fan on the ozone tube heat sink, there are reserved mounting holes on the ozone tube, if you need the ozone tube with the cooling fan, please click here >>>
Joint:
Air / oxygen input: we recommend that you use 4*7mm silicone tube or 5*8mm PU tube.
Ozone output: we recommend that you use 6*8mm teflon tube.
If you need 8mm small air nozzle, please contact us.
Product features:

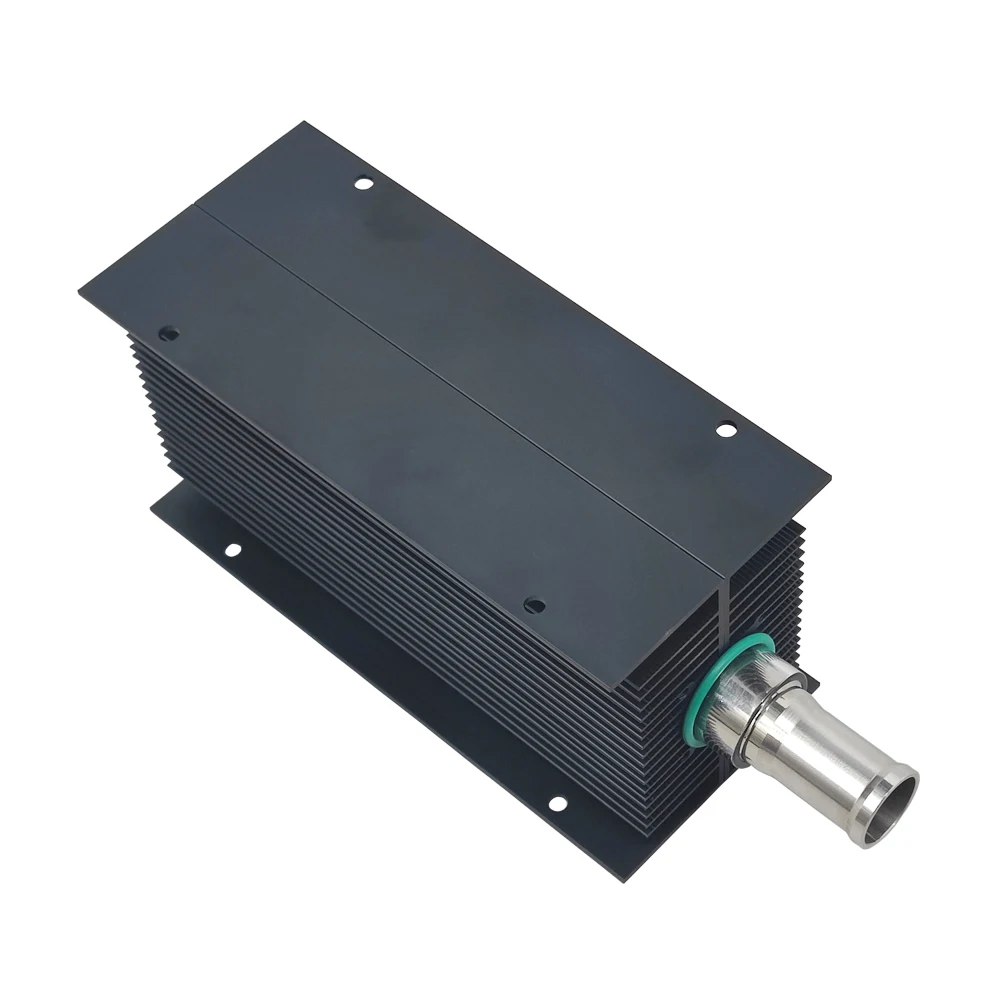

Ozone tube:
Patented product, smaller size, larger heat dissipation area, lower temperature rise, higher ozone concentration, more efficient, built-in 316L stainless steel tube, longer service life.

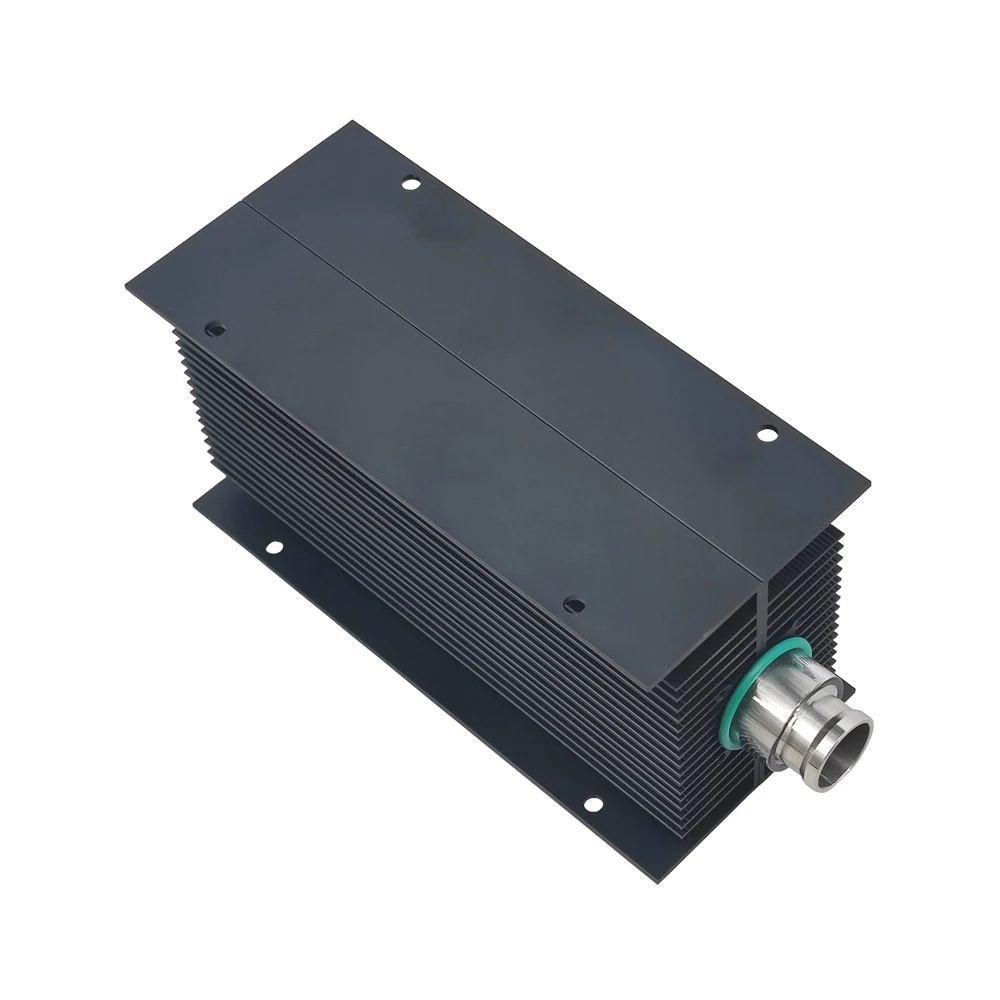

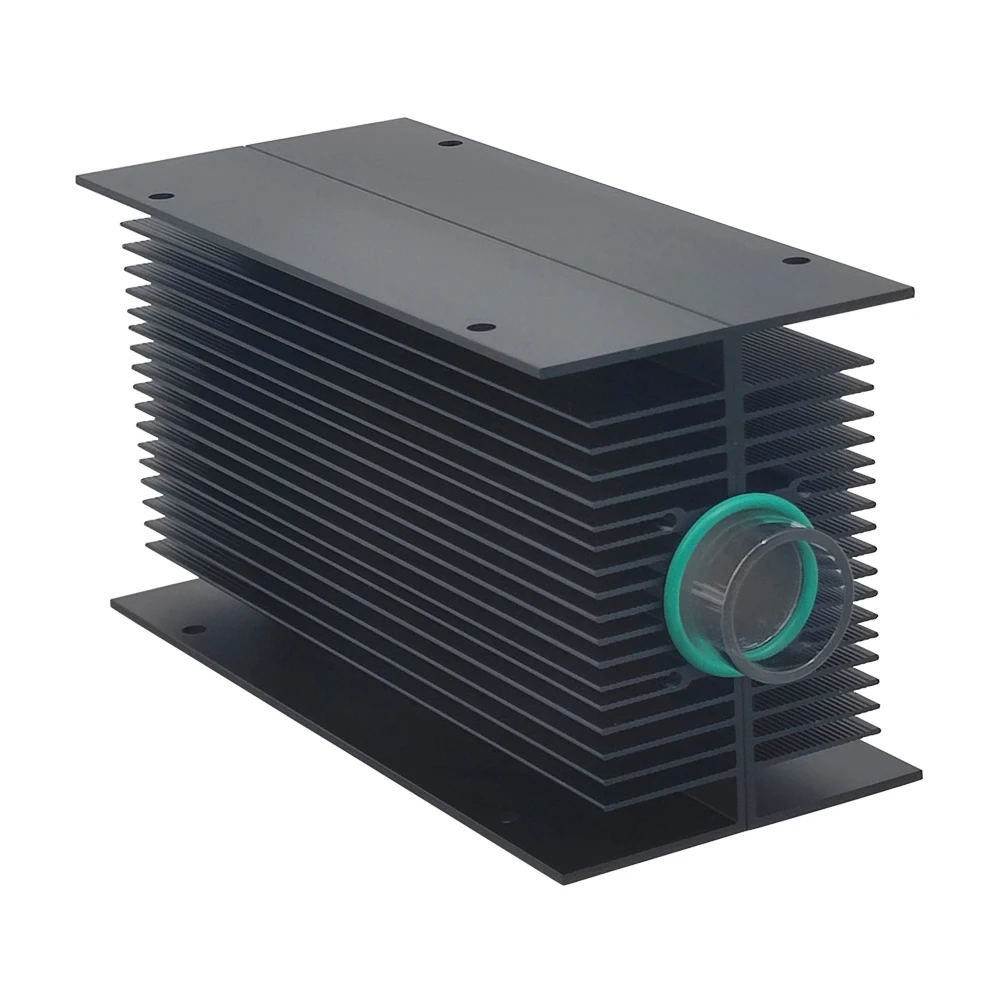

The ozone tube heat sink has 4 reserved holes, you can fix 2pcs 8cm cooling fans on the ozone tube to increase the cooling effect.

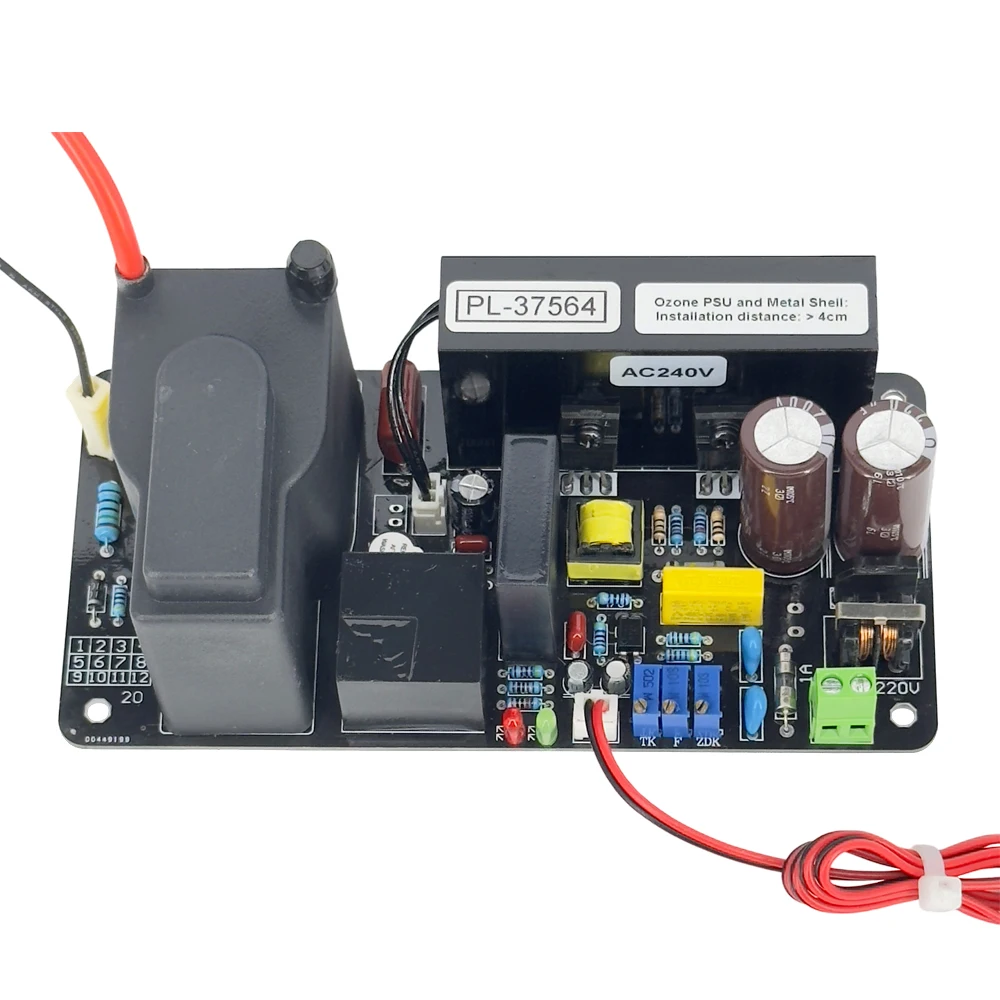

Ozone PSU:
1. lower temperature rise, more stable, longer service life.
2. ozone tube short circuit/open circuit, the ozone PSU will automatically reduce output power.
3. the optimal output frequency is 14khz, the low output frequency is conducive to reducing the heat of the ozone tube, when the oxygen flow rate is less than or equal to 1L/min, it can effectively improve the ozone concentration.
4. the output power of the ozone PSU is very stable, power fluctuation ≤1w.
5. the maximum power of this ozone PSU is 100w, and the optimal output power ≤90w, this 10G ozone tube only needs 80w, this ozone PSU can easily start this ozone tube.
6. we have added the function of switching input voltage (AC240V/AC130V), please let us know if you need to switch the input voltage.

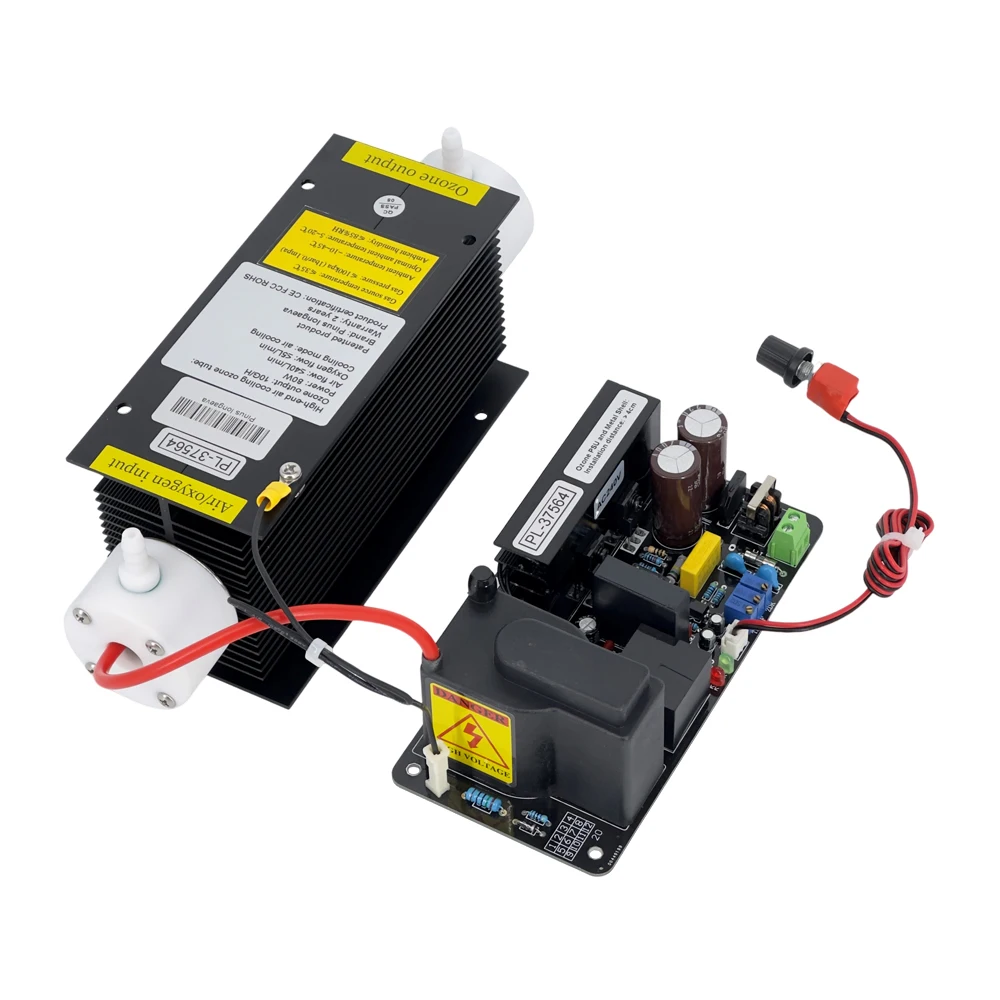

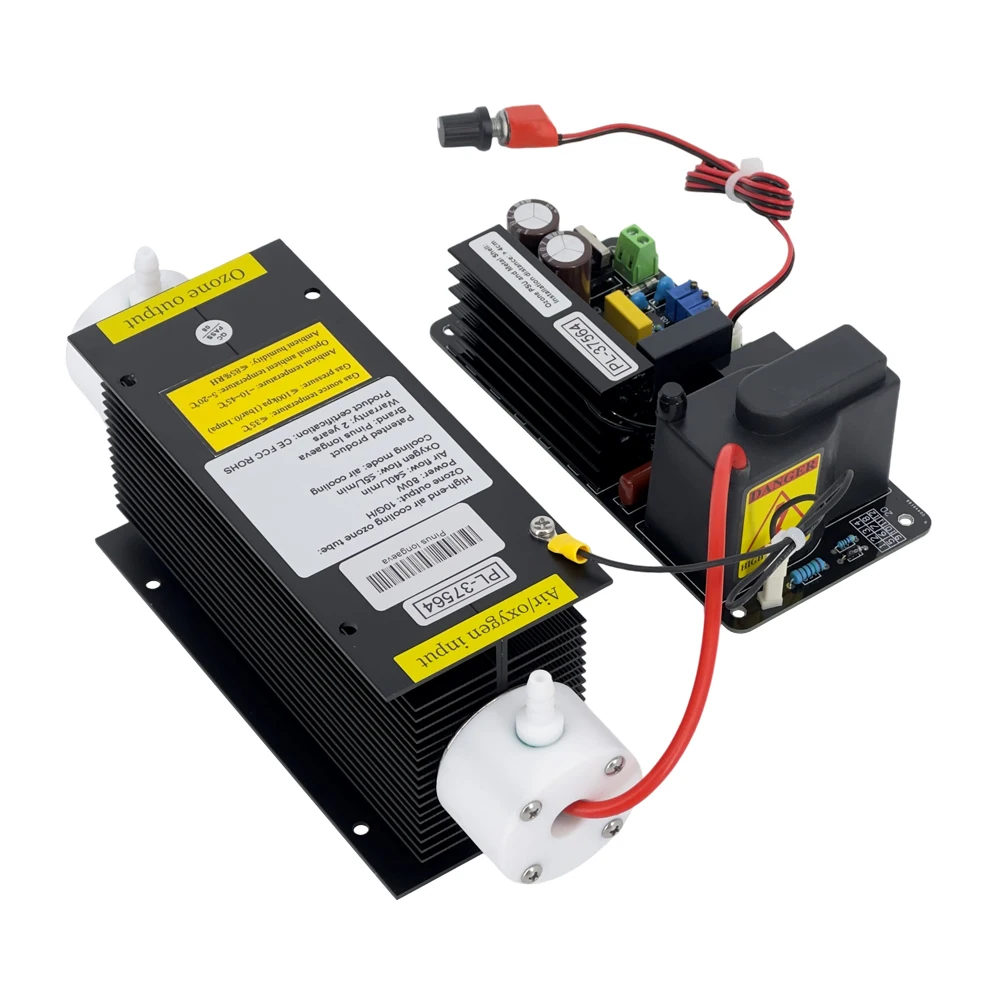

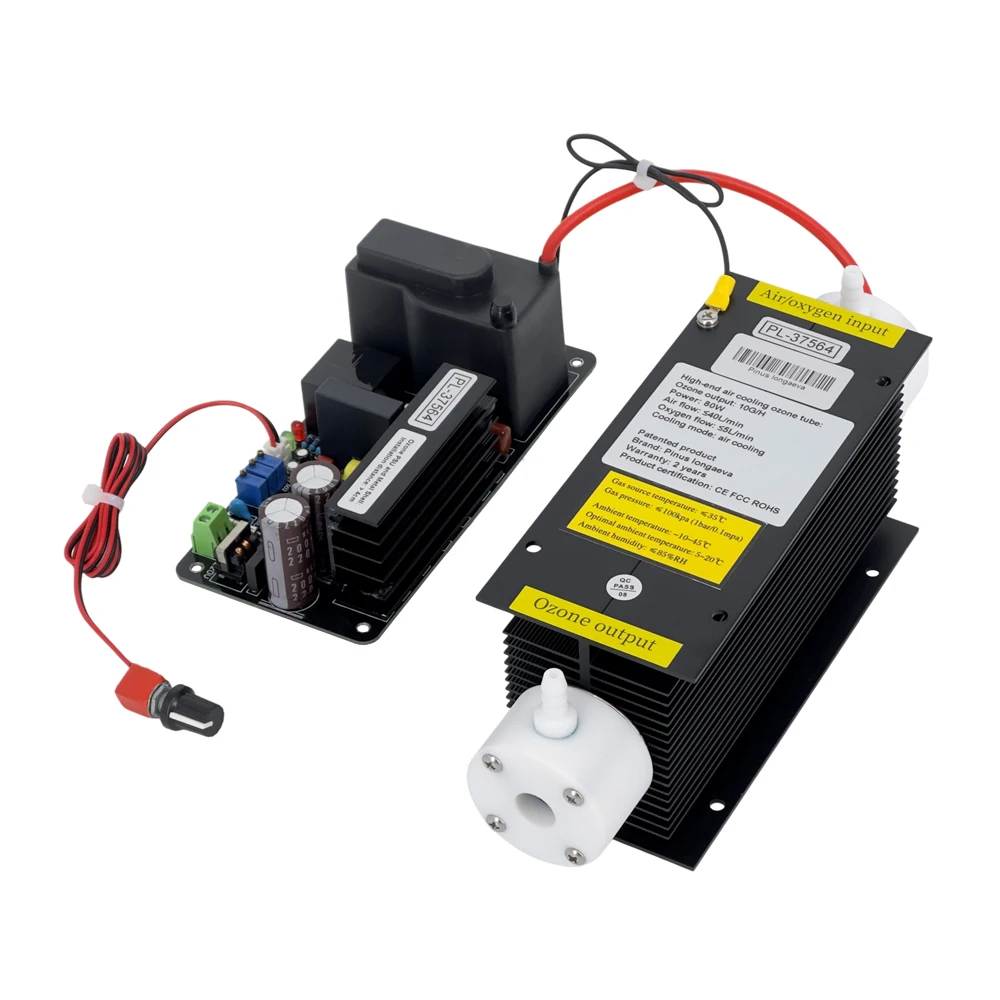

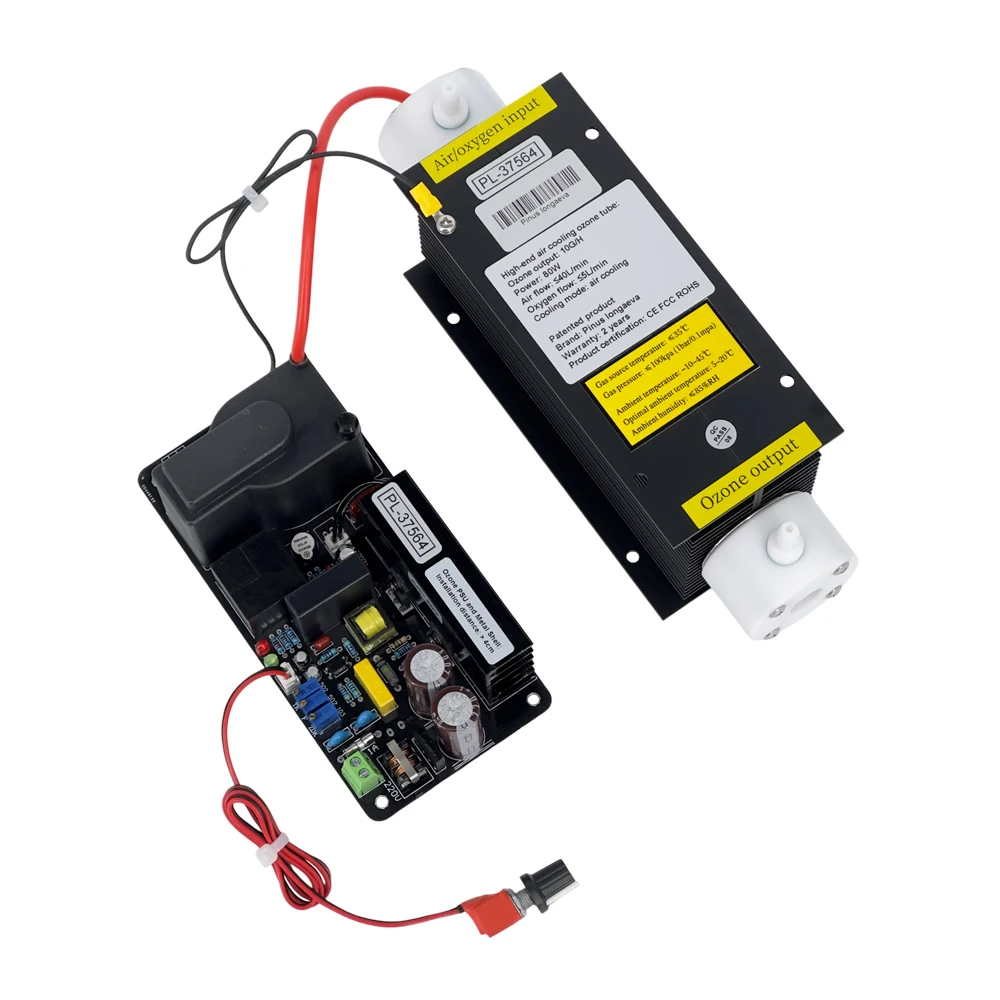

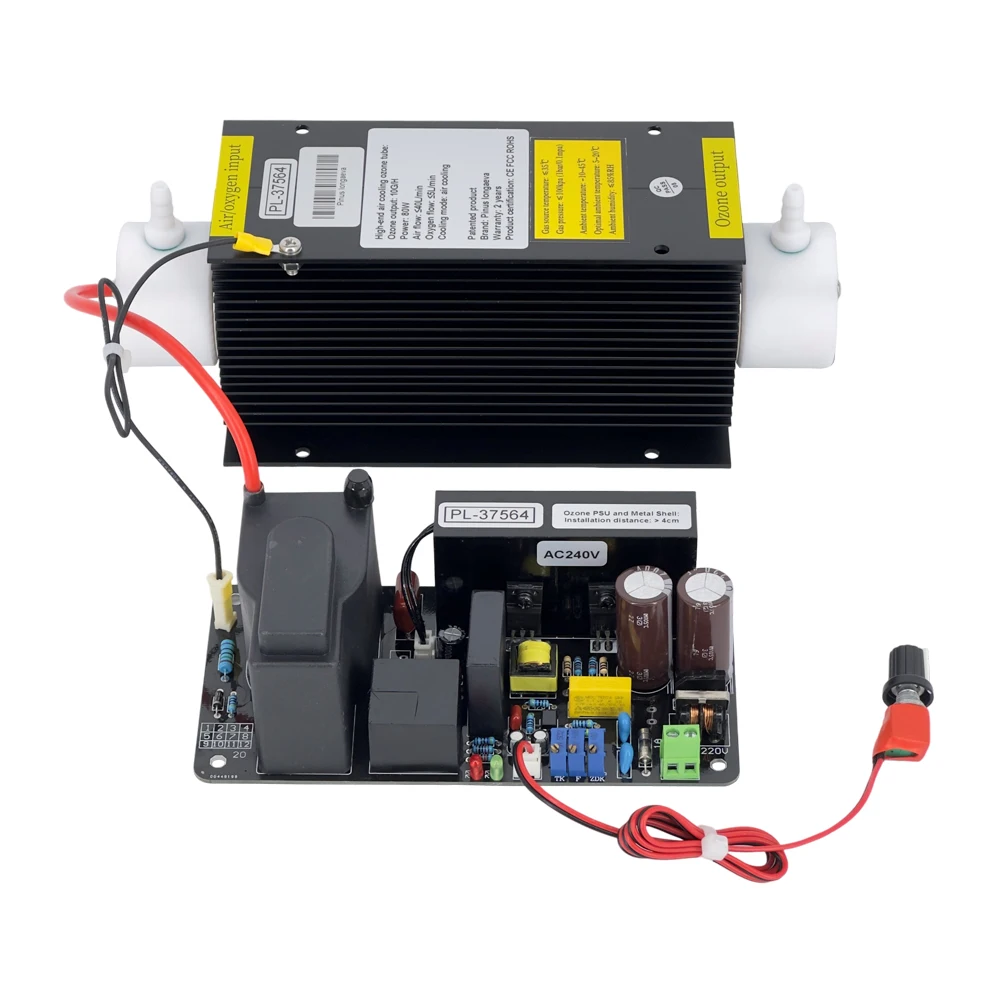

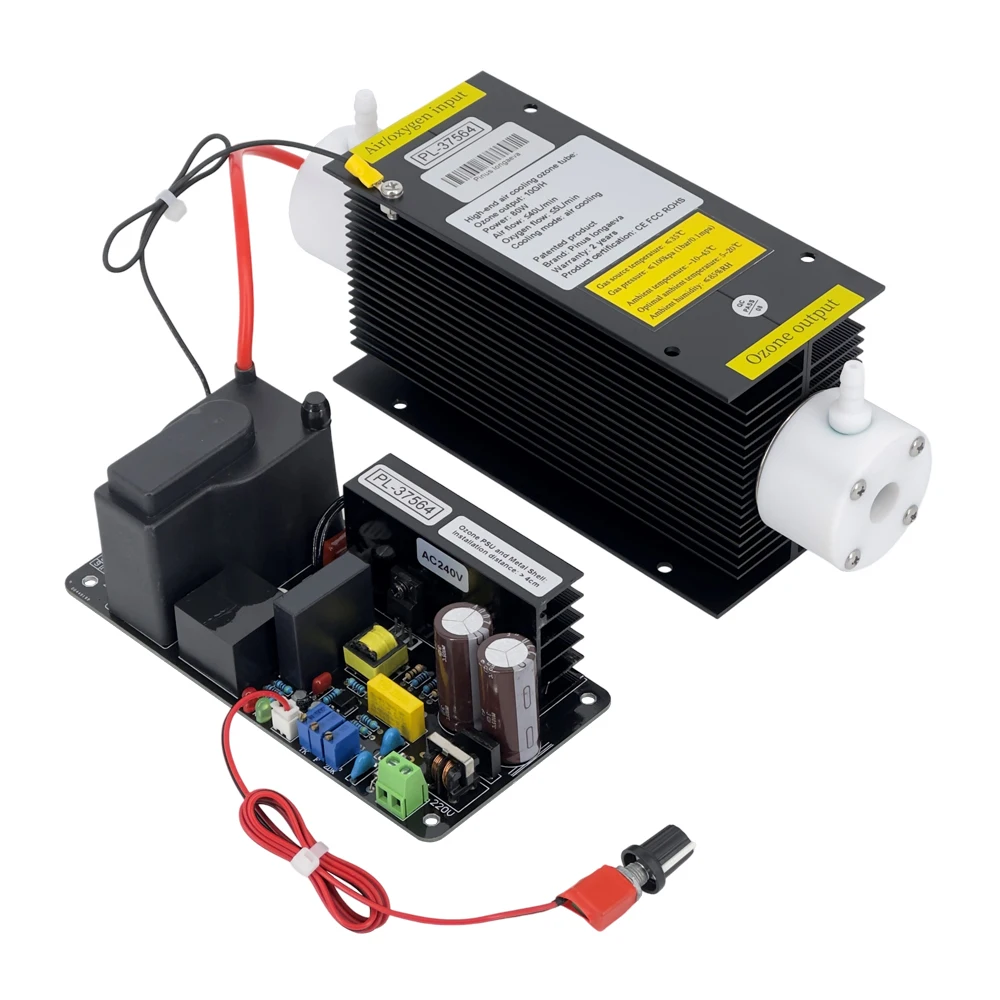

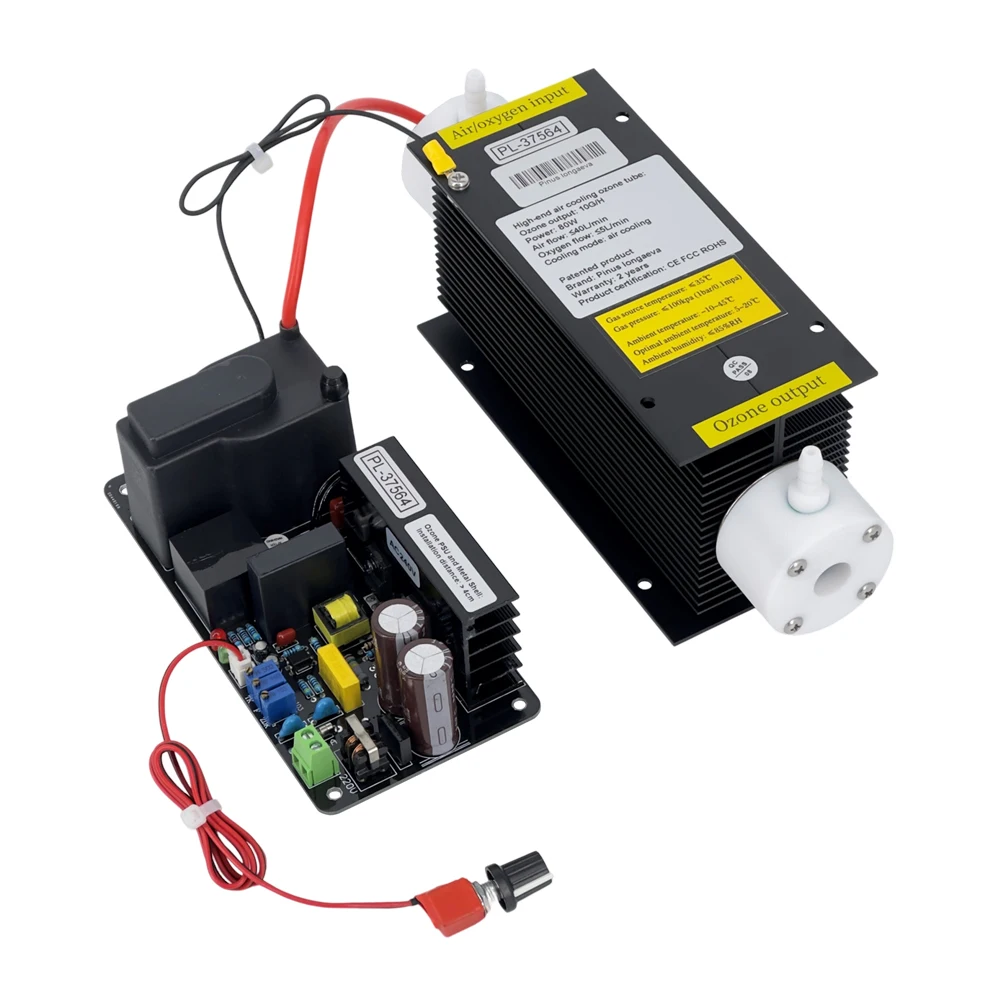

Product picture: (when the product works, there is no electricity on the black radiator, which is very safe)
Installation requirements:
1. Ozone tube: you need to install it on the insulating board, away from the metal shell for more than 2cm. (If you install it on a metal shell, please connect an additional ground wire.)
2. Ozone PSU: you can use 5cm long screws to install the ozone PSU (ozone power supply) away from the ozone tube (metal shell or other electrical appliances) more than 4cm.
3. The closest distance between the ozone PSU and the metal shell or other electrical appliances is 4cm.
4. The closest distance between 2pcs ozone PSU is 8cm.
5. Red high voltage wire: away from the metal shell and other wires for more than 2cm.
6. You need a dry and clean air source or oxygen source.
7. You should push the thick red wire at the middle of the ozone tube and fix another wire on the radiator.
8. You need cooling fan to cool the ozone tube and the ozone PSU.
9. If you need to disinfect water, you can connect ozone output to air stone or venturi through the teflon tube.

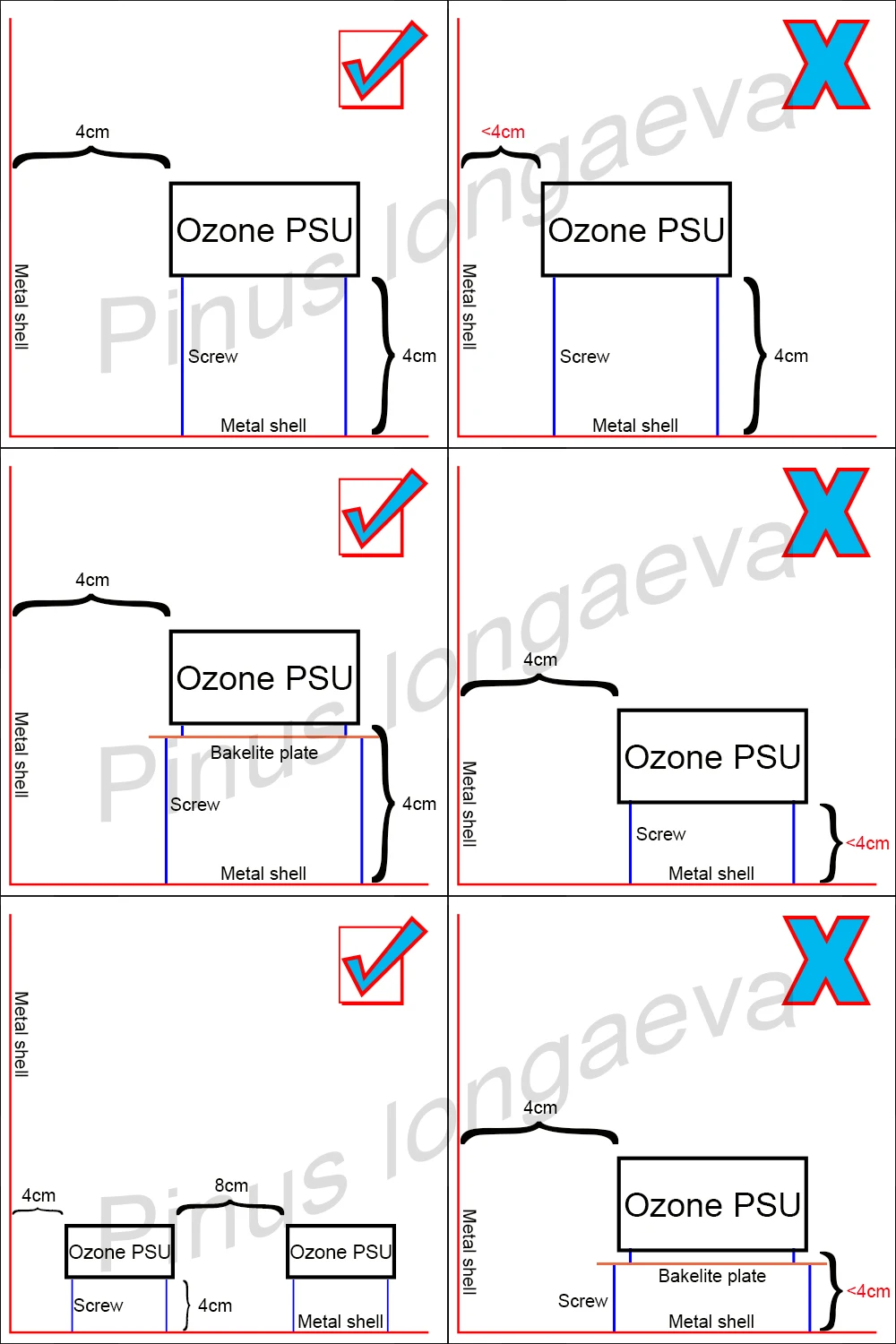

Ozone PSU away from ozone tube / metal plate / metal shell / other electrical appliances (A B C D), more than 4cm.
When you get our products, you will get installation instructions, operation instructions and wiring diagrams.
If you still have any questions, you can contact us at any time.

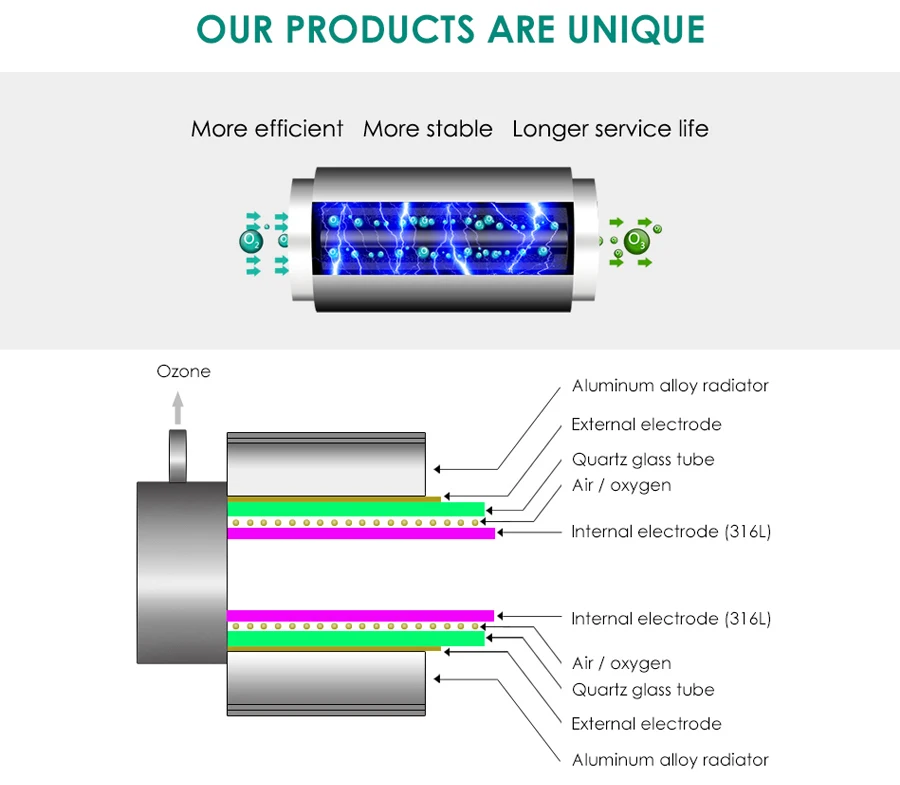

Dehydroxylation high purity silica quartz tube ozone generator kit:
#1: Quartz tube composition: 99.9% silica, with strong hardness, high temperature resistance, low coefficient of thermal expansion (CTE), thermal shock resistance, good chemical stability & electrical insulation properties.
#2: High efficiency: narrow-gap discharge of 0.5mm, with high ozone conversion rate and low noise.
#3: Low power consumption: high-voltage high-frequency corona discharge, with a power consumption rate of 8KW.h/kg O3.
#4: High voltage resistance: the operating voltage of the tube is only 1/6 of its breakdown voltage, with a high dielectric constant. #5: High quality: the dielectric material is made of high-purity silica quartz, sintered at the high temperature, with high precision and uniform discharge. It is equipped with the 316L stainless steel inner electrode, PTFE flange gas nozzle and anti-corrosion high-purity fluorine rubber ring seals. Using the latest patented high-density aluminum alloy heat sink technology is applied for external air cooling of heat dissipation, which can achieve more efficient heat dissipation. And the long time ozone decay is very low, <1/10.
#6: Service life: more than 20,000 hours.
#7: Ozone PSU: with over-current and over-voltage protection, short-circuit protection, open-circuit protection. If the quartz glass tube is damaged, ozone PSU will automatically stop output high voltage.
