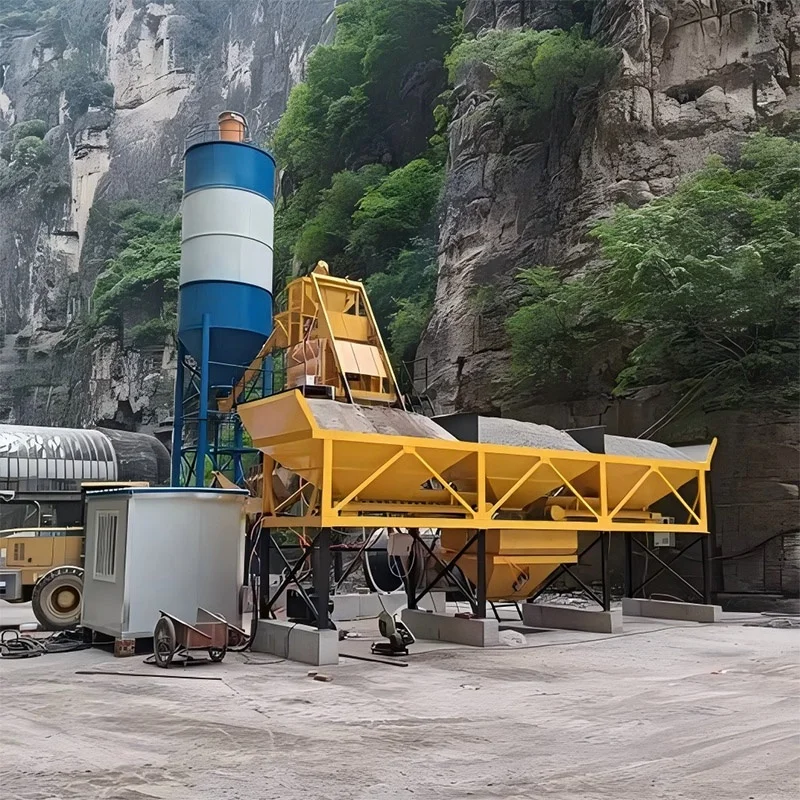

25M3/H 35M3/H 50M3/H 75M3/H Bucket Type Concrete Batching Plant
HZS series concrete batching plant is the developed product, which is integrated the advantages of a variety of models and advanced technology home and abroad, combined with our years' experience in the production of concrete mixing equipment, The concrete batch plant enjoys the benefits of small footprint and simple structure. Batching plant is widely used in the hydropower project, airports, roads, bridges and other small and medium scale construction projects and commodities concrete production etc.
Product Advantages
Mixing System
1. Perfect multi-sealing system to avoid leakage and protect shaft ends.
2. Equipped with changeable wear-resistance blade and liner plates, lifetime is over 60,000 times.
3. Equipped with auto lubrication pump, once fill for 5-7 days running.
4. Advanced motor and reducer driven system to keep stable performance.
Weighing System
1. Powder and water or additives are measured independently, ensuring rapid action and high accurate measurement.
2. High accuracy sensor ensures the error no more than 1%.
2. High accuracy sensor ensures the error no more than 1%.
Aggregate Batching System

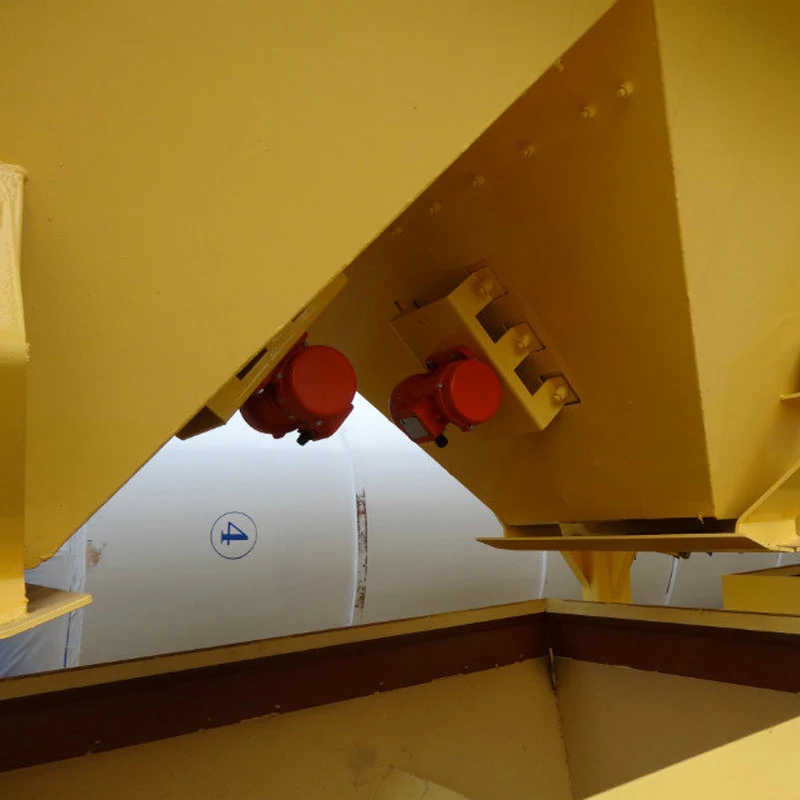

1. Sand storage bin is with large vibrator, guarantee smooth and fast discharge.
2. Accumulative weighing system and separate weighing system are available choice.
3. High accuracy sensor ensures the error no more than 2%.
Aggregate Conveying System
1. Adopt a climbing bucket feeding mode, flexible feeding and simple operation.
2. Assemble ladder, sidewalk and handrail, easily for worker maintenance.
Control System
1. Automatic or manual can be adjusted flexibly smoothly.
2. All wires & cables are coded, easy to track and maintenance.
3. Intelligent management system for task tracking, printing, etc.
4. Computer+ PLC control system to ensure simple and stable operation, HD display can show clearly about the operation of each part.
Cement Screw Conveyor
1. High revolving speed, large conveying capacity, high precision and nice conveying condition.
2. Easy assembly, easy connection, reliable sealing and wide application.
3. Suitable for conveying a variety of powder, granular, small bulk materials.
4. Diameter as φ219mm/φ273mm/φ325mm, lengths as 6m, 8m or 10m, all can be customized.
1. High revolving speed, large conveying capacity, high precision and nice conveying condition.
2. Easy assembly, easy connection, reliable sealing and wide application.
3. Suitable for conveying a variety of powder, granular, small bulk materials.
4. Diameter as φ219mm/φ273mm/φ325mm, lengths as 6m, 8m or 10m, all can be customized.
Cement Silo
1.Vertical cement silo and horizontal cement silo are available for selection.
2. Capacity range from 50T to 300T. Accessories are including air-break device, gate valve, relief valve, level indicator, dust collector, etc.
3. High-quality steel, good sealing, stable support and long service life.
1.Vertical cement silo and horizontal cement silo are available for selection.
2. Capacity range from 50T to 300T. Accessories are including air-break device, gate valve, relief valve, level indicator, dust collector, etc.
3. High-quality steel, good sealing, stable support and long service life.
More details, please contact us by clicking here. Thank you!
Details Images
Concrete Mixer Blades
Concrete Mixer Electric Oil Pump
Hydraulic Cylinders
Electric Automatic Control System,
Screw Conveyor
Hopper Or Belt Loading Device

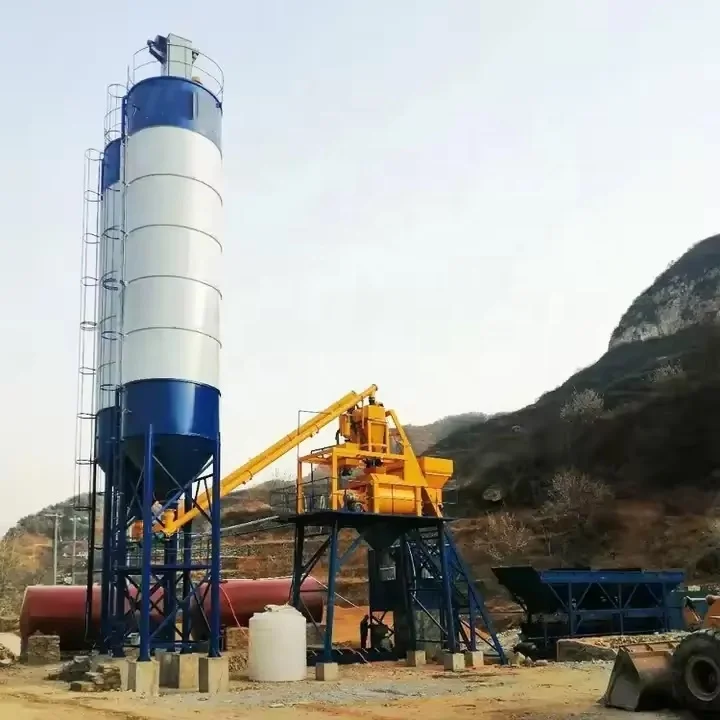

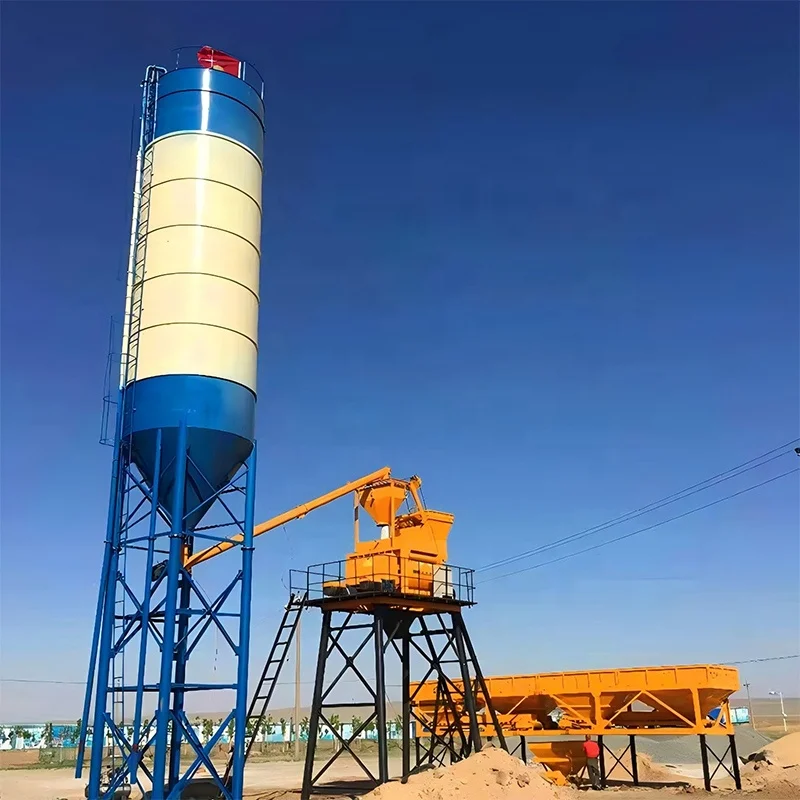

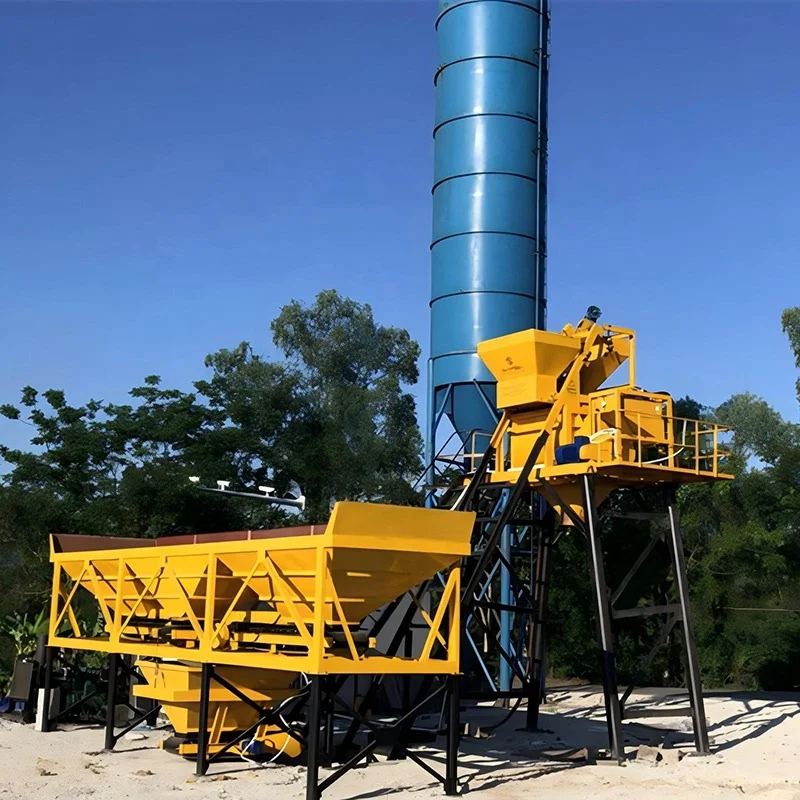

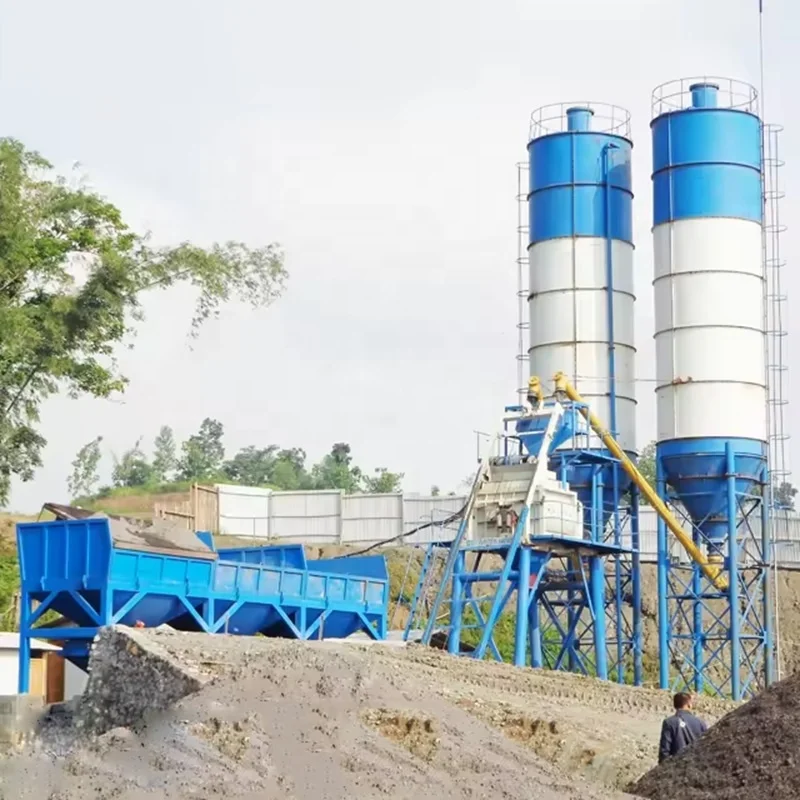

Customer Site
More details, please contact us by clicking here. Thank you!
Product Paramenters
Model | HZS25 | HZS35 | HZS50 | HZS75 | |||
Theoretical Productivity | 25M3/H | 35M3/H | 50M3/H | 75M3/H | |||
Total Power | 40kw | 60kw | 88kw | 120kw | |||
Working Cycle | 60S | 60S | 60S | 60S | |||
Concrete Mixer | JS500 | JS750 | JS1000 | JS1500 | |||
Mixer Power | 18.5kw | 30kw | 2*18.5kw | 2*30kw | |||
Batching Machine | PLD800 | PLD1200 | PLD1600 | PLD2400 | |||
Aggregate Weighing Accuracy | ±2% | ±2% | ±2% | ±2% | |||
Water Accuracy | ±1% | ±1% | ±1% | ±1% | |||
Additives Accuracy | ±1% | ±1% | ±1% | ±1% | |||
Cement Accuracy | ±1% | ±1% | ±1% | ±1% | |||
Control System | Full Automatic or Manual According to practical condition. | ||||||
Company Profile
Henan Zhucheng Machinery Manufacturing CO., LTD is one of the scientific and technological enterprises integrated with research and development, manufacture, sales and service.
Henan Zhucheng: To provide low failure rate, real after-sales concrete mixing equipment, including site planning, station construction, installation and commissioning, Operation Training and equipment life-cycle after-sales service.
Serving customers: over the years, has served many large enterprises, such as China Construction Group, China Nuclear Group, China Communications Group, China Railway Group, etc.
Mission: Assist the completion of the project on schedule!
Values: Integrity-based, Service first.
Keep every promise! Cherish every trust! Guard every trust!
ZHUCHENG can not determine the progress of your project, but can help speed up the project: Try out best to keep the continuous supply of concrete for the project.
Henan Zhucheng: To provide low failure rate, real after-sales concrete mixing equipment, including site planning, station construction, installation and commissioning, Operation Training and equipment life-cycle after-sales service.
Serving customers: over the years, has served many large enterprises, such as China Construction Group, China Nuclear Group, China Communications Group, China Railway Group, etc.
Mission: Assist the completion of the project on schedule!
Values: Integrity-based, Service first.
Keep every promise! Cherish every trust! Guard every trust!
ZHUCHENG can not determine the progress of your project, but can help speed up the project: Try out best to keep the continuous supply of concrete for the project.
Raw Material
Machine Finishing
Finished Products For Delivery
Foreign Trade Department
Technology R&D Department
Production Workers
More details, please contact us by clicking here. Thank you!
Customer Visits
Packing&Delivery
Packing And Delivery
Through over 20 years hard effort, we have exported to over 40 countries and areas. Establish one complete set of service system and experienced service team, and also build up the golden and valuable ZHUCHENG Brand with top honesty, super quality and intimate service as well as high honor all over the world.
FAQ
Q1: What’s the capacity of concrete batching plant do you have?
A: We have Stationary type from 25m3/h ~240m3/h. Mobile type from 25m3/h~100m3/h.
Q2: Is the Belt conveyor necessary ?
A: Small capacity (Below 60m3/h) normally use Skip Hopper to feed aggregate, no need to use belt conveyor.
While for large capacity, (Larger than 60m3h), normally use Delivery belt to raise efficiency.
A: We have Stationary type from 25m3/h ~240m3/h. Mobile type from 25m3/h~100m3/h.
Q2: Is the Belt conveyor necessary ?
A: Small capacity (Below 60m3/h) normally use Skip Hopper to feed aggregate, no need to use belt conveyor.
While for large capacity, (Larger than 60m3h), normally use Delivery belt to raise efficiency.
Q3: How to choose the suitable model of batch plant?
A: Just tell us the capacity (m3/h,t/h) of concrete you want to produce per hour or per month, then we can design the reasonable plant for you with our best price.
A: Just tell us the capacity (m3/h,t/h) of concrete you want to produce per hour or per month, then we can design the reasonable plant for you with our best price.
Q4: How to choose the concrete batching machine of concrete mixing station?
A: Most of the batching machines are PLD series. The number of storage bins in dosing machine is determined according to the types of coarse aggregate such as sand and gravel from customers.
A: Most of the batching machines are PLD series. The number of storage bins in dosing machine is determined according to the types of coarse aggregate such as sand and gravel from customers.
Q5: Is the control system of the concrete mixing station computerized?
A: The electric control system of concrete mixing station can be divided into two types, one is a simple centralized control system, and the other is a fully automatic computer control system.
A: The electric control system of concrete mixing station can be divided into two types, one is a simple centralized control system, and the other is a fully automatic computer control system.
Q6: Is the concrete mixing station measured separately?
A: In the concrete mixing station, water, cement, fly ash and additives are mostly measured separately, among which sand and gravel aggregate can be measured separately or cumulatively.
A: In the concrete mixing station, water, cement, fly ash and additives are mostly measured separately, among which sand and gravel aggregate can be measured separately or cumulatively.
Q7: What is the service life of your concrete mixing station?
A: A set of concrete mixing equipment, which is made by a large domestic manufacturer with guaranteed quality, has a normal service life of 8-10 years.
A: A set of concrete mixing equipment, which is made by a large domestic manufacturer with guaranteed quality, has a normal service life of 8-10 years.
Q8: Can the concrete mixing station be installed by ourselves?
A: Theoretically, it can be installed by yourself according to the installation drawings. Generally speaking, during the installation process, the manufacturer will assign technicians to guide the installation work on site, and the user only needs to provide the crane and the cooperation of the personnel.
A: Theoretically, it can be installed by yourself according to the installation drawings. Generally speaking, during the installation process, the manufacturer will assign technicians to guide the installation work on site, and the user only needs to provide the crane and the cooperation of the personnel.
Q9: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
Q10: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
Q11: How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment.
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
A: Generally, TT, 30% deposit 70% before shipment.
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
Похожие товары
Китай Бетономешалка
5 506 630,64-5 663 274,40 ₽

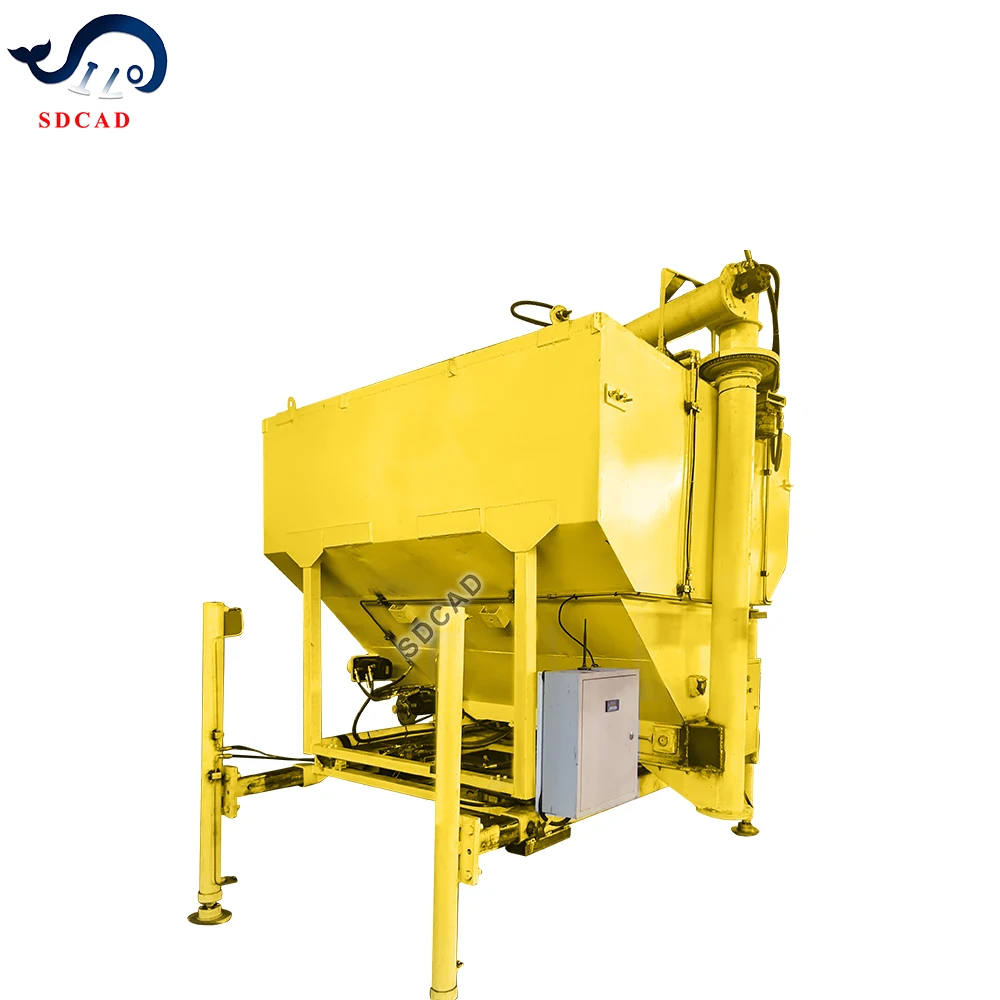

SDCAD химическое удобрение силос для мочевины хлорида натрия
