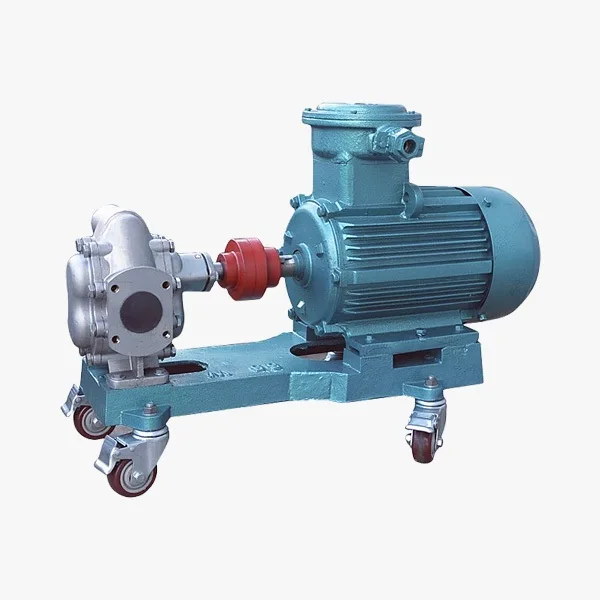

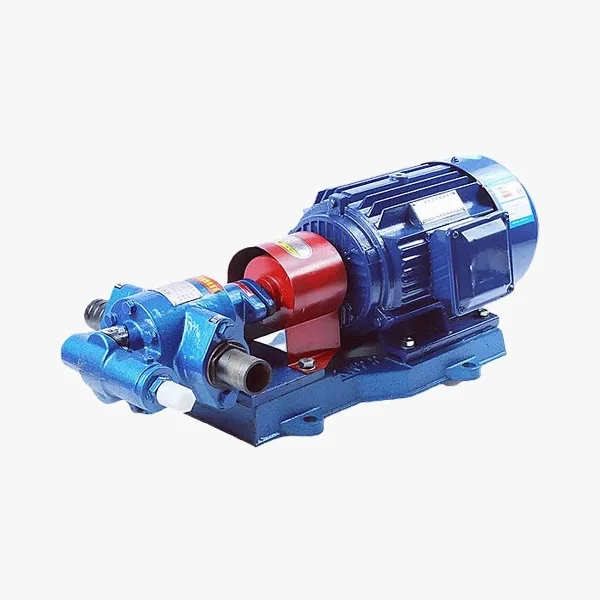

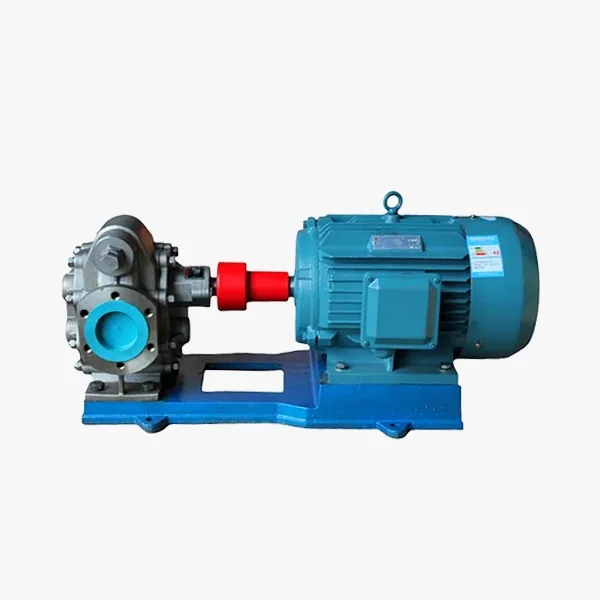

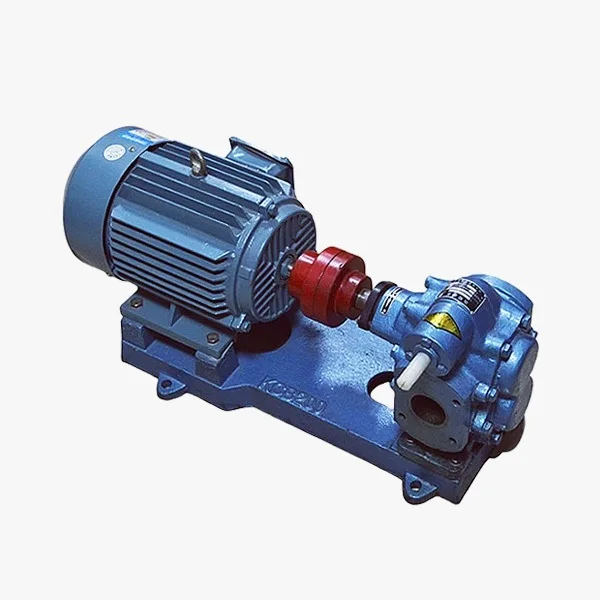

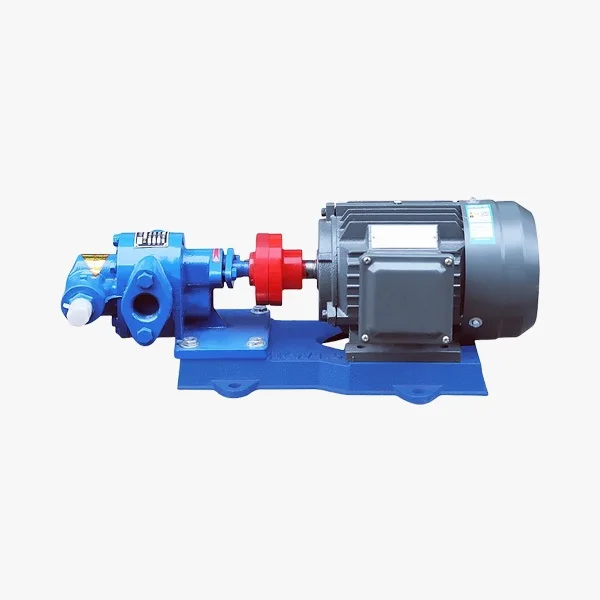

Хит продаж насос для смазки шестерни серии 2CY
- Категория: >>>
- Поставщик: Hton Machanical Equipment (tian Jin) Co. Ltd.Hton Ltd.
Сохранить в закладки 1601350076479:
Описание и отзывы
Характеристики
Products Description
Specification
KCB/2CY type gear oil pump product features | 1.2 CY, KCB gear type oil pump structure is simple and compact. Easy to use and maintain. 2.2 CY, KCB gear type oil pump has good self-priming, it does not need to fill the liquid before starting the pump each time. 3.2 The lubrication of CY and KCB gear type oil pump is automatically achieved by conveying liquid. Therefore, it is not necessary to add lubricating liquid in daily work. 4. The use of elastic couplings to transmit power can compensate for small deviations caused by installation. When the pump is subjected to the inevitable hydraulic impact, it can play a relatively large buffer role. |
mainly application | Flow rate (Q) ≤550m3/h Lift (H) ≤80m Power (K) ≤132kw Medium temperature: -40℃ ~ 180℃ Working pressure: ≤ 1.6MPa Self-priming height: 2.5 ~ 7 m Outlet diameter: φ16mm-φ800mm Material: Cast steel, stainless steel, engineering plastic |
Model | Flow Rate (m3/h) | Pressure (MPa) | vacuum degree (m.H20) | Outlet | Motor Model | Power (kw) |
KCB18.3 (2CY1.1/14.5) | 1.1 | 1.45 | 5 | G3/4" | Y902-4 | 1.5 |
KCB33.3 ( 2CY2/14.5) | 2 | 1.45 | 5 | G3/4" | Y100L1-4 | 2.2 |
KCB55 (2CY3/3.3) | 3.3 | 0.33 | 5 | G1" | Y90L-4 | 1.5 |
KCB83.3 (2CY5/3.3) | 5 | 0.33 | 5 | G1 1/2" | Y100L2-4 | 2.2 |
KCB133 (2CY8/3.3) | 8 | 0.33 | 5 | G2" | Y132S-6 | 3 |
2CY8/6 | 8 | 0.6 | 5 | G2" | Y132M1-6 | 4 |
2CY8/10 | 8 | 1.0 | 5 | G2" | 132M2-6 | 5.5 |
2CY12/1.3 | 12 | 0.13 | 5 | G2" | 112M-4 | 4 |
KCB200 (2CY12/3.3) | 12 | 0.33 | 5 | G2" | 132S-4 | 5.5 |
2CY12/6 | 12 | 0.6 | 5 | G2" | 132S-4 | 5.5 |
2CY12/10 | 12 | 1.0 | 5 | G2" | 132M-4 | 7.5 |
KCB300 (2CY18/3.6) | 18 | 0.36 | 5 | 70 | 132M2-6 | 5.5 |
2CY18/6 | 18 | 0.6 | 5 | 70 | 160M-6 | 7.5 |
KCB483 (2CY29/3.6) | 29 | 0.36 | 5 | 70 | 132M-4 | 7.5 |
2CY29/6 | 29 | 0.6 | 5 | 70 | 160M-4 | 11 |
KCB6339 (2CY38/2.8) | 38 | 0.28 | 5 | 100 | 160L-6 | 11 |
2CY38/6 | 38 | 0.6 | 5 | 100 | 200L2-6 | 22 |
KCB960 (2CY60/3) | 60 | 0.3 | 5 | 100 | 180L-4 | 22 |
2CY100/3 | 100 | 0.3 | 5 | 150 | 250M-8 | 30 |
2CY100/6 | 100 | 0.6 | 5 | 150 | 315S-8 | 55 |
2CY120/3 | 120 | 0.3 | 5 | 150 | 250M-8 | 30 |
2CY120/6 | 120 | 0.6 | 5 | 150 | 315S-8 | 55 |
2CY150/3 | 150 | 0.3 | 5 | 150 | 280S-8 | 37 |
2CY150/6 | 150 | 0.6 | 5 | 150 | 315M1-8 | 75 |
2CY1.08/10 | 1.08 | 1 | 5 | G3/4" | 802-4 | 0.75 |
2CY1.08/25 | 1.08 | 2.5 | 5 | G3/4" | 90L-4 | 1.5 |
2CY2.1/10 | 2.1 | 1 | 5 | G1" | 90L-4 | 1.5 |
2CY2.1/25 | 2.1 | 2.5 | 5 | G1" | 100L2-4 | 3 |
2CY3/10 | 3 | 1 | 5 | G1" | 100L1-4 | 2.2 |
2CY3/25 | 3 | 2.5 | 5 | G1" | 112M-4 | 4 |
2CY4.2/10 | 4.2 | 1 | 5 | G1 1/4" | 100L2-4 | 3 |
2CY4.2/25 | 4.2 | 2.5 | 5 | G1 1/4" | 132S-4 | 5.5 |
2CY7.5/10 | 7.5 | 1 | 5 | G1 1/2" | 112M-4 | 4 |
2CY7.5/25 | 7.5 | 2.5 | 5 | G1 1/2" | 132M-4 | 7.5 |
2CY12/6 | 12 | 0.6 | 5 | G2" | 132S-4 | 5.5 |
2CY12/10 | 12 | 14 | 5 | G2" | 132M-4 | 7.5 |
2CY18/3.6 | 18 | 0.36 | 5 | 75 | 132M2-6 | 5.5 |
2CY29/3.6 | 29 | 0.36 | 5 | 75 | 132M-4 | 7.5 |
Equipment Workshop
Package And Shipping
Company Profile
Company Advantage
Our Certificate
Exhibition
1、Q：Where is your company located and is your company a trader or a factory?
A：We are a trading company located in Tianjin city, China. We have about 10 years of export experience, our products are widely exported to Russia, the Middle East, Southeast Asia and some other countries and regions and have got a good reputation, we hope to also become your trusted supplier.
2、Q：What payment terms acceptable for your company?
A：We accept L/C, T/T（30/70 or 40/60）, D/P, etc.
3、Q：Can we customise some special products , can we put our logo on the products?
A： Of course we can, we can produce according to your requirements and help you choose the most suitable and reliable manufacturer.
4、Q：What’s your package?
A：All of our packaging are strictly with export packaging requirements, and we understand the importance of attractive and sturdy packaging for merchandise.
5、Q：What is the minimum order?
A：1 units for mud pump; accessories and other products should be negotiated, we’ll try our best to satisfy our client’s requirement and provide good service.
6、Q：How long is the delivery period usually?
A：For stocks in available, it could be shipped out within 3 days after receiving the prepayment. For products need to be produced, usually 35-40 working days.
7、Q:Could you supply samples?
A:Yes, we could. We are glad to supply samples, but with sample fees.
8、Q:：Advantages of our company, why should choose us?
A：(1)、About our Company：
A.Specialized in petroleum machinery and parts, because of focus, so professional.
B. High credibility, Professional and Efficient, suitable for long-term cooperation.
(2)、About our products：
A. High stability, good product quality, Competitive price and fast delivery.
B. Overseas technical after-sale service，be serious and responsible.
9、Q：Does your company have certificates of compliance or international certifications from major brands?
A：Our products have CE, ISO 9001:2000, ISO 9001:2008, API-7K, etc. Our products are all qualified product because they are all strictly inspected before leaving the factory, please don't worry.
10、Q：What is the scope and period of your after-sales service?
A：We will provide customers with perfect after-sales service guarantee and related technical support.
A：We are a trading company located in Tianjin city, China. We have about 10 years of export experience, our products are widely exported to Russia, the Middle East, Southeast Asia and some other countries and regions and have got a good reputation, we hope to also become your trusted supplier.
2、Q：What payment terms acceptable for your company?
A：We accept L/C, T/T（30/70 or 40/60）, D/P, etc.
3、Q：Can we customise some special products , can we put our logo on the products?
A： Of course we can, we can produce according to your requirements and help you choose the most suitable and reliable manufacturer.
4、Q：What’s your package?
A：All of our packaging are strictly with export packaging requirements, and we understand the importance of attractive and sturdy packaging for merchandise.
5、Q：What is the minimum order?
A：1 units for mud pump; accessories and other products should be negotiated, we’ll try our best to satisfy our client’s requirement and provide good service.
6、Q：How long is the delivery period usually?
A：For stocks in available, it could be shipped out within 3 days after receiving the prepayment. For products need to be produced, usually 35-40 working days.
7、Q:Could you supply samples?
A:Yes, we could. We are glad to supply samples, but with sample fees.
8、Q:：Advantages of our company, why should choose us?
A：(1)、About our Company：
A.Specialized in petroleum machinery and parts, because of focus, so professional.
B. High credibility, Professional and Efficient, suitable for long-term cooperation.
(2)、About our products：
A. High stability, good product quality, Competitive price and fast delivery.
B. Overseas technical after-sale service，be serious and responsible.
9、Q：Does your company have certificates of compliance or international certifications from major brands?
A：Our products have CE, ISO 9001:2000, ISO 9001:2008, API-7K, etc. Our products are all qualified product because they are all strictly inspected before leaving the factory, please don't worry.
10、Q：What is the scope and period of your after-sales service?
A：We will provide customers with perfect after-sales service guarantee and related technical support.
Похожие товары
Машина для обнаружения подземных скважин бурения грунтовых вод локатор гидрологов
600,00 $
Машина для обнаружения подземных скважин бурения грунтовых вод локатор гидрологов
Одноступенчатые одноступенчатые консольные химические центробежные насосы IJ IJT из титаново-никелевого сплава

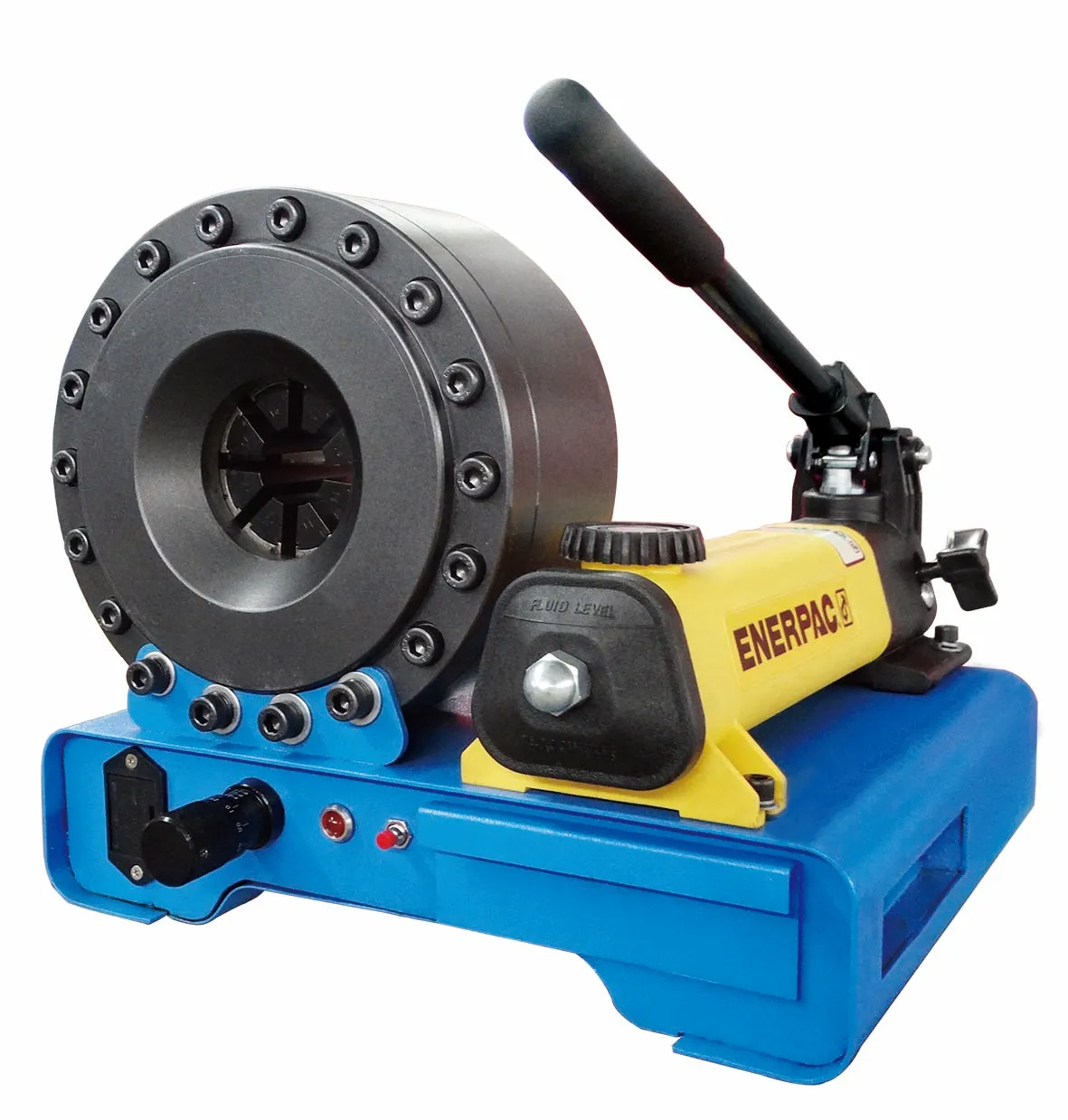

Портативный 1 'ручной обжимной станок для шланга P16 гофрировочный Новый гидравлический прессовочный комплект переменного тока производственный завод с ручным управлением
1 550,00 $

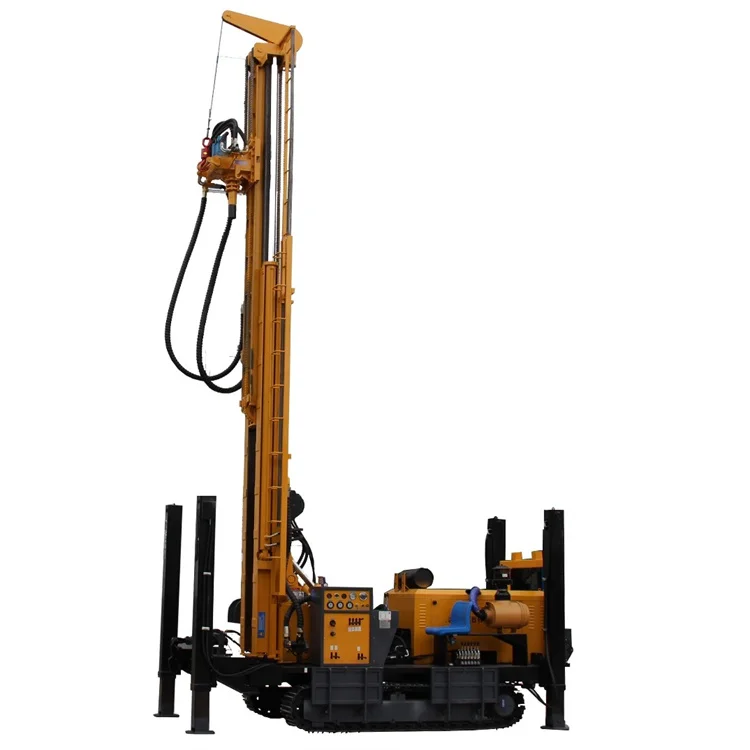

CNSW500Y оборудование для бурения водяных отверстий пневматическая буровая установка продажи
28 000,00 $

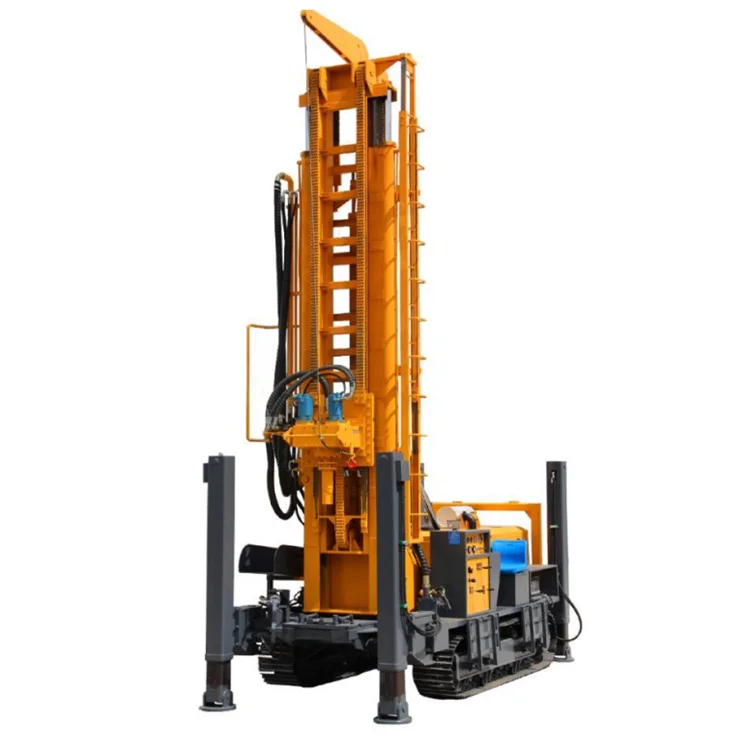

Буровая установка Hard rock dth 800 м 2625 фут 1500 глубина воды буровая для продажи
28 000,00 $

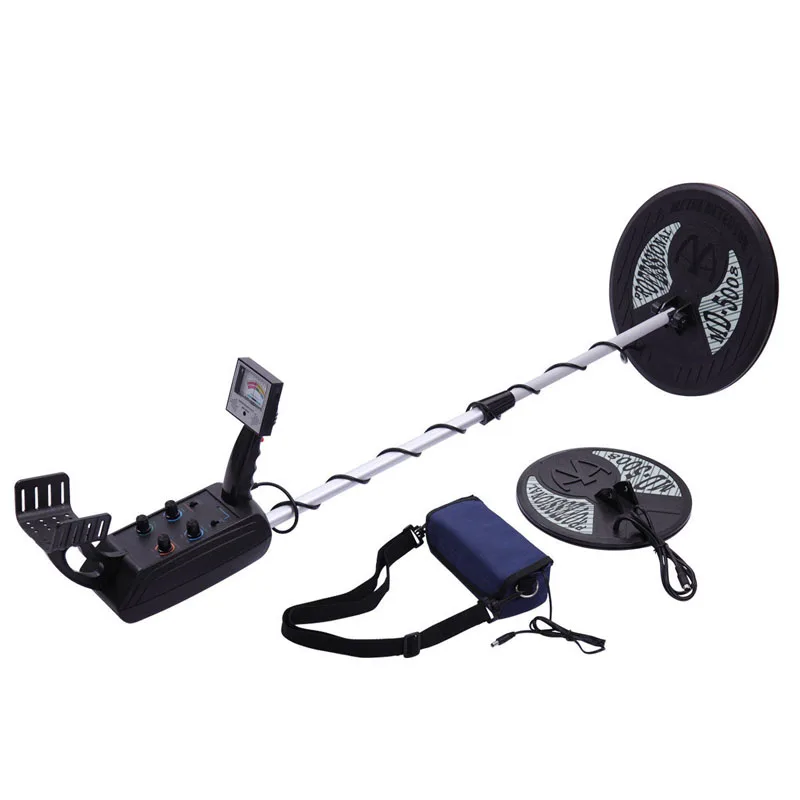

Высокое качество металлоискатель золота Long Range Металлоискатель
