Sense M8 корпус IP65 светоотражающий оптический фотоэлемент фотоэлектрический датчик положения видимого света

Сохранить в закладки 1601350186439:


Цена:3 317,71-3 822,83 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Product Description:









































































































































Sensing type


Disffuse reflection





Sensing distance


≤30 mm white paper 30*30 mm)





Hysteresis


<20%





Light source


IR Diode ( 940 nm )





Operating voltage


12~24V DC ± 10% ripple(p-p)<10%





No-load supply current


≤30mA





Control output


NPN open-collector output


PNP open-collecter output


Swtich Type


L.on





Protective Circuit


Short circuit protection,reverse polarity protection,anti-interference protection





Response time


<3ms(Action);<3ms(Reset)





Ambient light


With incandescent light on the surface of receiver:3000Lux:sunlight:10000Lux





Ambient temperature


Operation temperature:-25~55℃;

storage temperature:-30~70℃ (no freezing, no condensation)






Ambient humidity


Operation humidity: 30~85%RH;

storage humidity: 35~95%RH






Insulation resistance


>20ΜΩ





Withstand volatge


500V DC 50/60Hz 1min





Anti-vibration


10~55Hz amplitude 1.5mm;XYZ 3 directions,2 hours each





Impact resistance


500m/s² for 3 times each in XYZ directions





Degree of protection


IP65





Connection


Pre-wired (standard length 2 m), 3 wire





Weight


Approx.80g





Material


Stainless steel

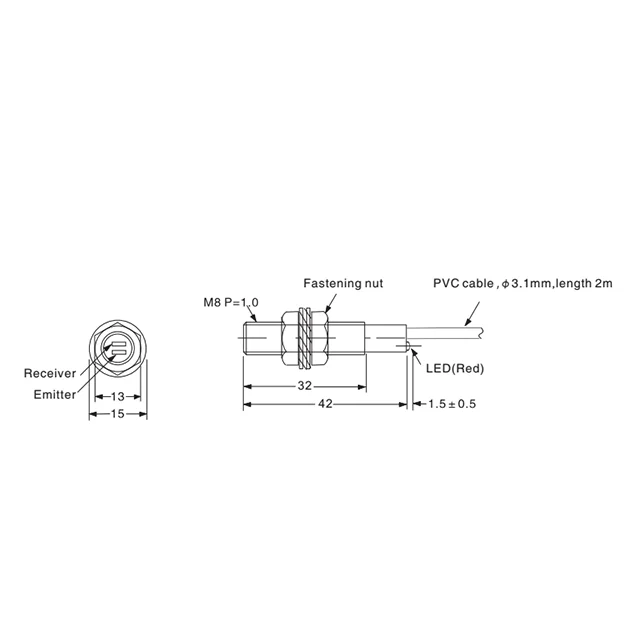

Model No.


PM08-D03NO


PM08-D03PO





Company Profile:


Sense is an innovative company specializing in industry photoelectric sensors and deep learning technologies, with a primary focus on precision positioning, displacement measurement, Al image recognition, and area safety solutions in 3C electronics, new energy, semiconductor process, medical electronics, and service robots with precision intelligence and Al sensing technologies.






FAQ:


1. Who are we?


We are based in Guangdong, China, Start from 2010, Sell to Eastern Asia(30.00%), Southeast Asia(30.00%), Western Europe(15.00%), North America(10.00%), South America(3.00%), Eastern Europe(3.00%), Central America(2.00%), Northern Europe(2.00%), SouthAsia(1.00%), Oceania(1.00%), Southern Europe(1.00%), Africa(1.00%), Mid East(1.00%), Domestic Market(0.00%). There are about 201-300 people in our office.





2. How can we guarantee quality?


Always a pre-production sample before mass production;


Always final Inspection before shipment;





3. What can you buy from us?

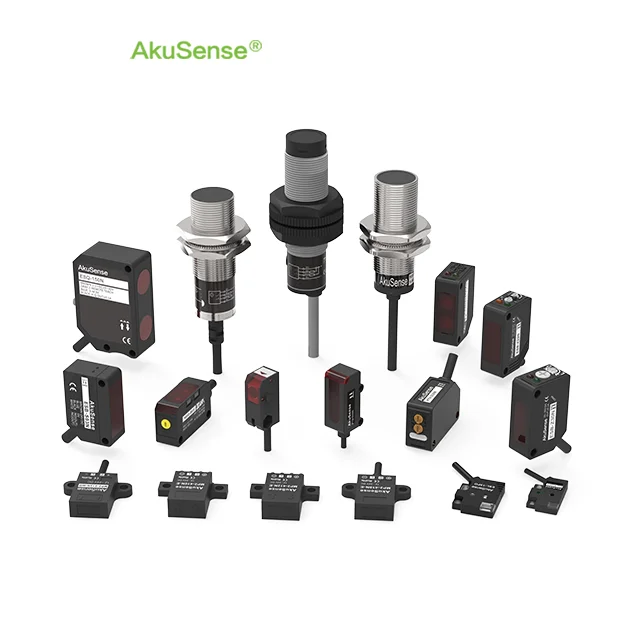

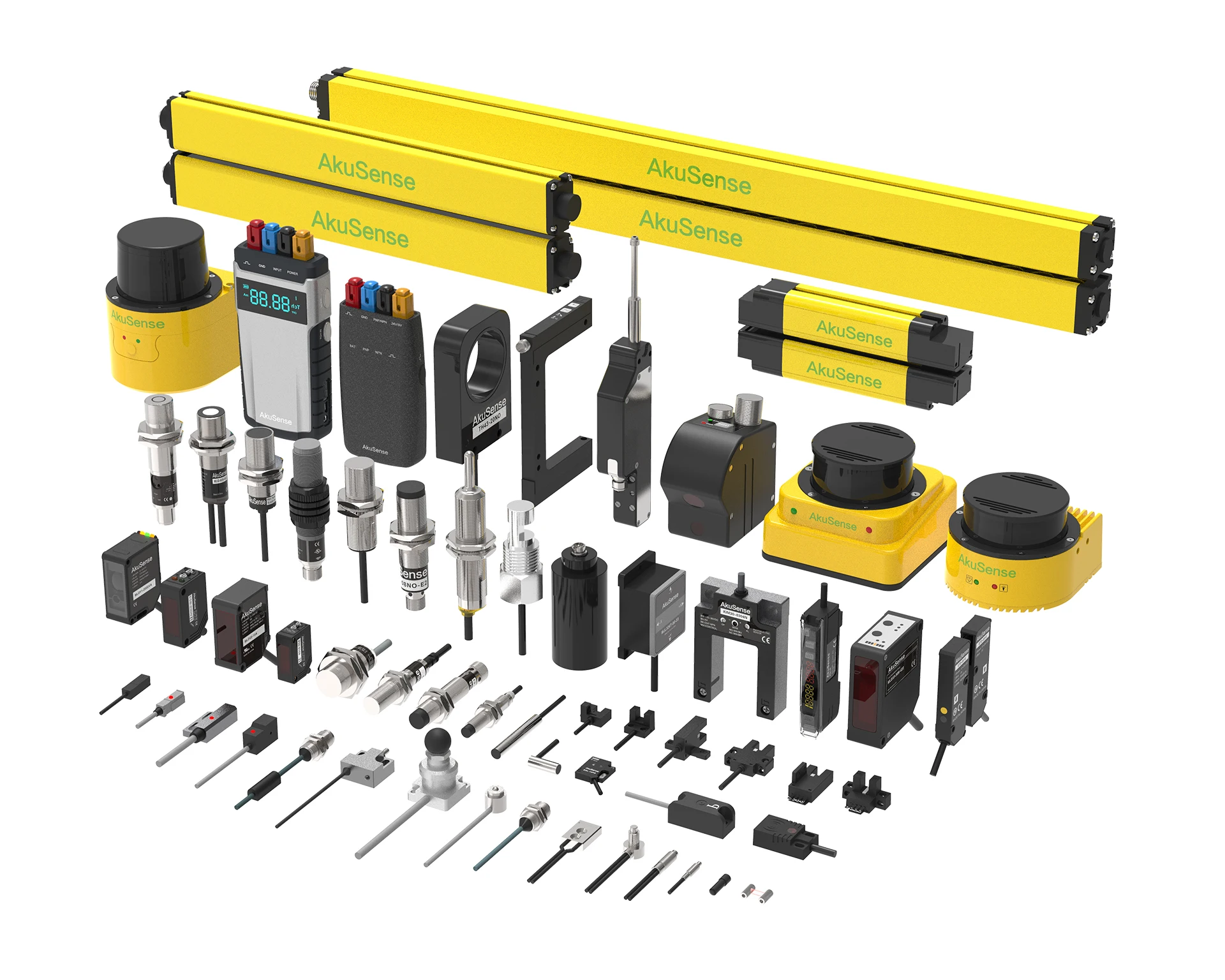

Photoelectric Sensor, Proximity Sensor, Fiber Optic Sensor, LiDAR Scanner, Vision System





4. Why should you buy from us not from other suppliers?


Focus on optoelectronic and proximity technology, while good at magnetism, ultrasonics, piezoelectricity, wireless transmission, focusing on 3c, new energy, rail transit, medical, logistics, service robots, etc.





5. What services can we provide?


Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, CPT, DDP


Accepted Payment Currency: USD, EUR, AUD, HKD, CNY;


Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash, etc.


Language Spoken: English
