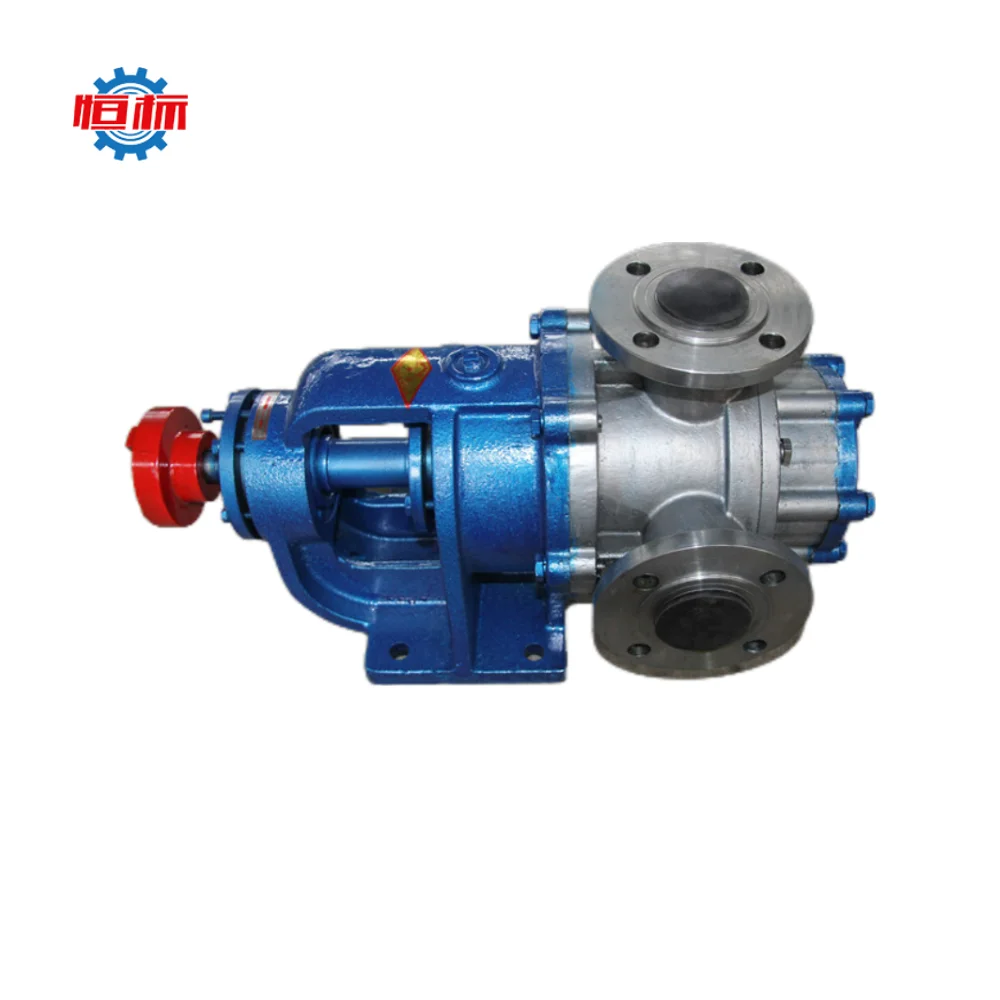

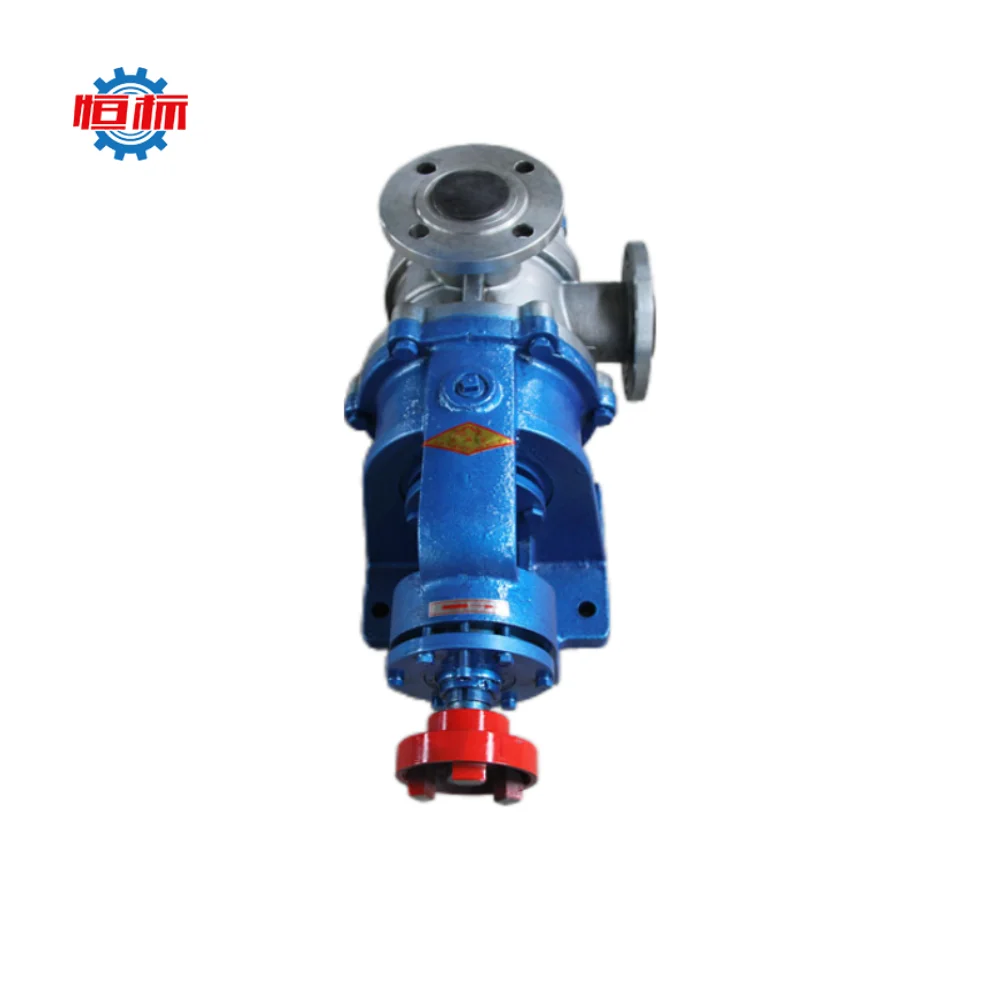

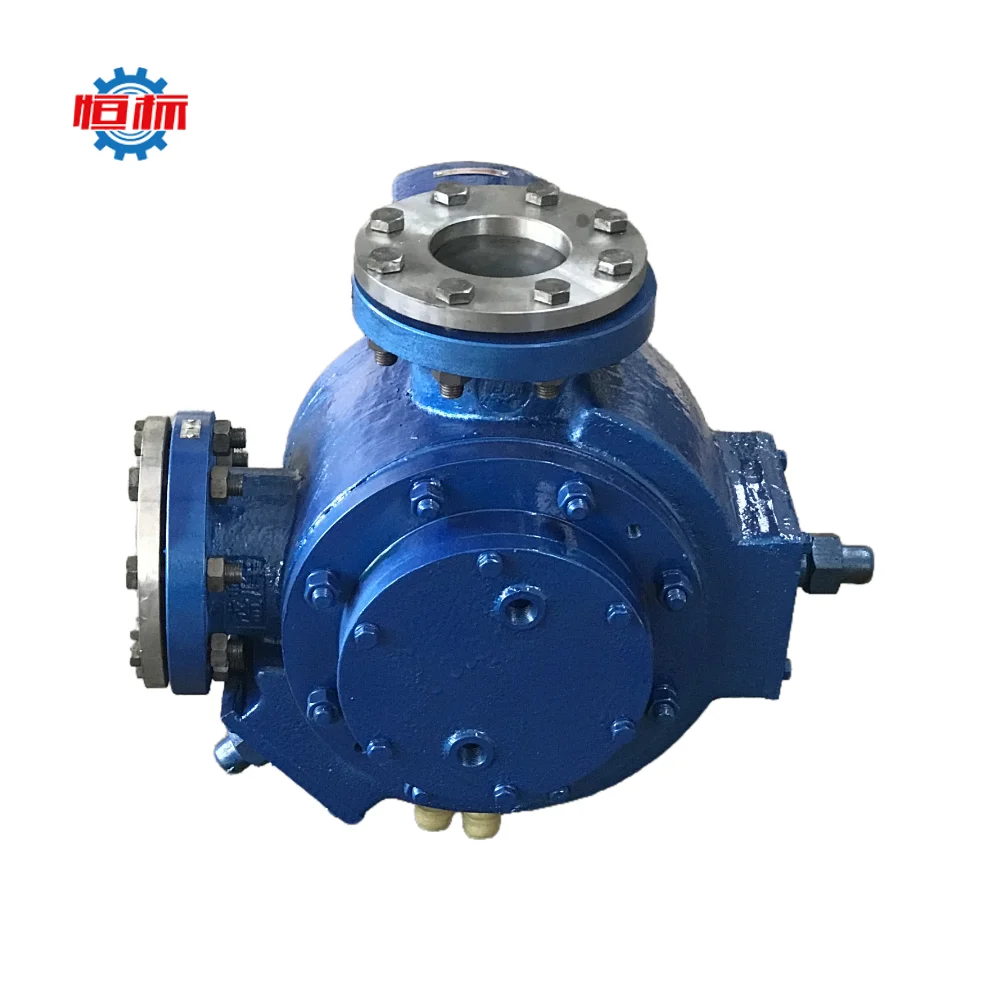

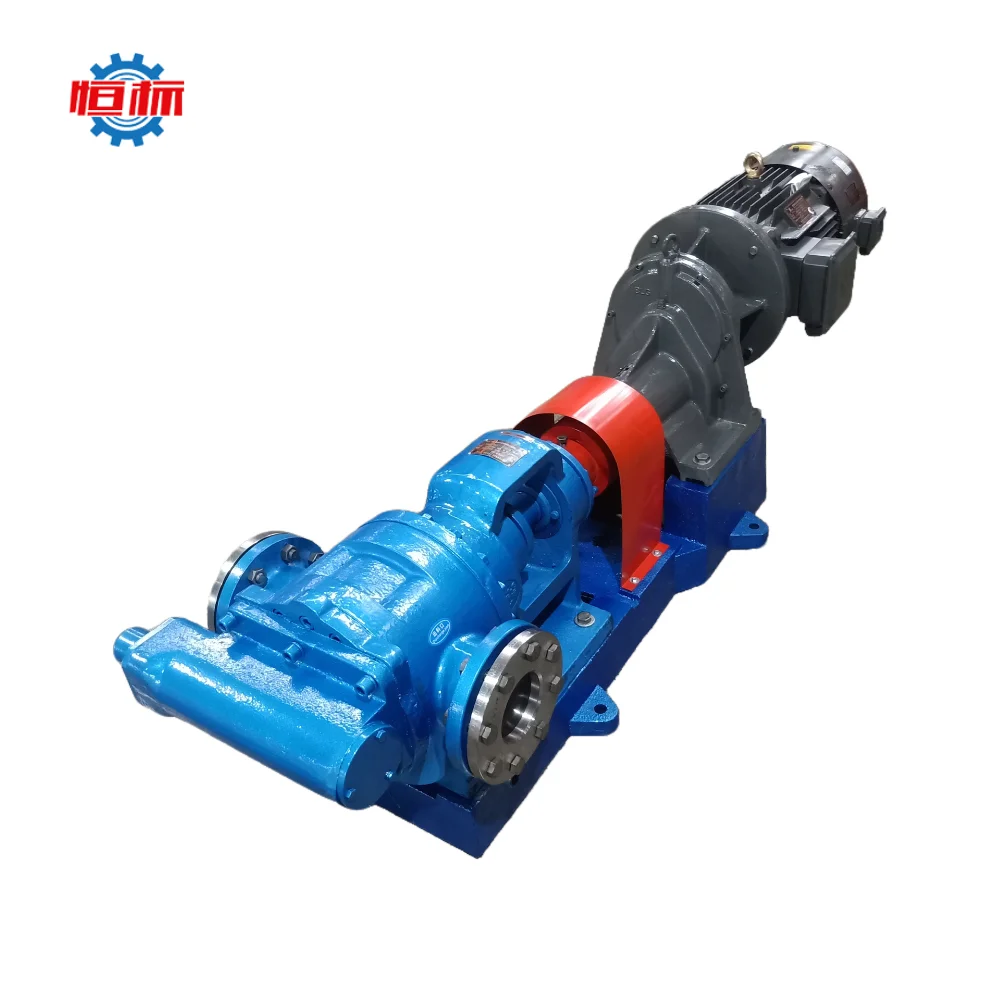

2CY серии Шестеренчатый насос для впрыска смазочного масла нагнетательный под давлением
789,00 $
Стабильная Масляная Станция смазочный масляный насос внутренний шестеренный топливные насосы
- Категория: >>>
- Поставщик: Hebei Shenghui Pump Co. Ltd.Hebei Ltd.
Сохранить в закладки 1601350779082:
Описание и отзывы
Характеристики
Product Description
Proper medium temperature: -10℃ ~ 200℃ Proper medium viscosity: 1cst ~ 600.000cst
Work principle:
Driving gear (outside rotor) with internal tooth drives the internal rotor and turns in same direction in the full closed pump body. The pump casing and crescent of the front cover separate the inlet from the outlet. When it turns, negative pressure formed at the suction port, the liquid inhaled and being take to the outlet by rotor, then the liquid is expelled from the discharge port as the gears mesh. The transportation of liquid finished.
Driving gear (outside rotor) with internal tooth drives the internal rotor and turns in same direction in the full closed pump body. The pump casing and crescent of the front cover separate the inlet from the outlet. When it turns, negative pressure formed at the suction port, the liquid inhaled and being take to the outlet by rotor, then the liquid is expelled from the discharge port as the gears mesh. The transportation of liquid finished.
Details Images
Advantage:
1.Steady delivery without pulsation, little vibration and low noise.
2.Outstanding self-priming ability.
3.If selecting proper parts material, the pump can deliver a variety of corrosive mediums and the working temperature can reach 300℃.
4.The same rotary direction of internal rotor and outside rotor results in little wear and long operation life.
5.The pump's flow capacity can be changed through adjusting the speed.
6.It's suited to deliver high viscosity mediums very much
1.Steady delivery without pulsation, little vibration and low noise.
2.Outstanding self-priming ability.
3.If selecting proper parts material, the pump can deliver a variety of corrosive mediums and the working temperature can reach 300℃.
4.The same rotary direction of internal rotor and outside rotor results in little wear and long operation life.
5.The pump's flow capacity can be changed through adjusting the speed.
6.It's suited to deliver high viscosity mediums very much

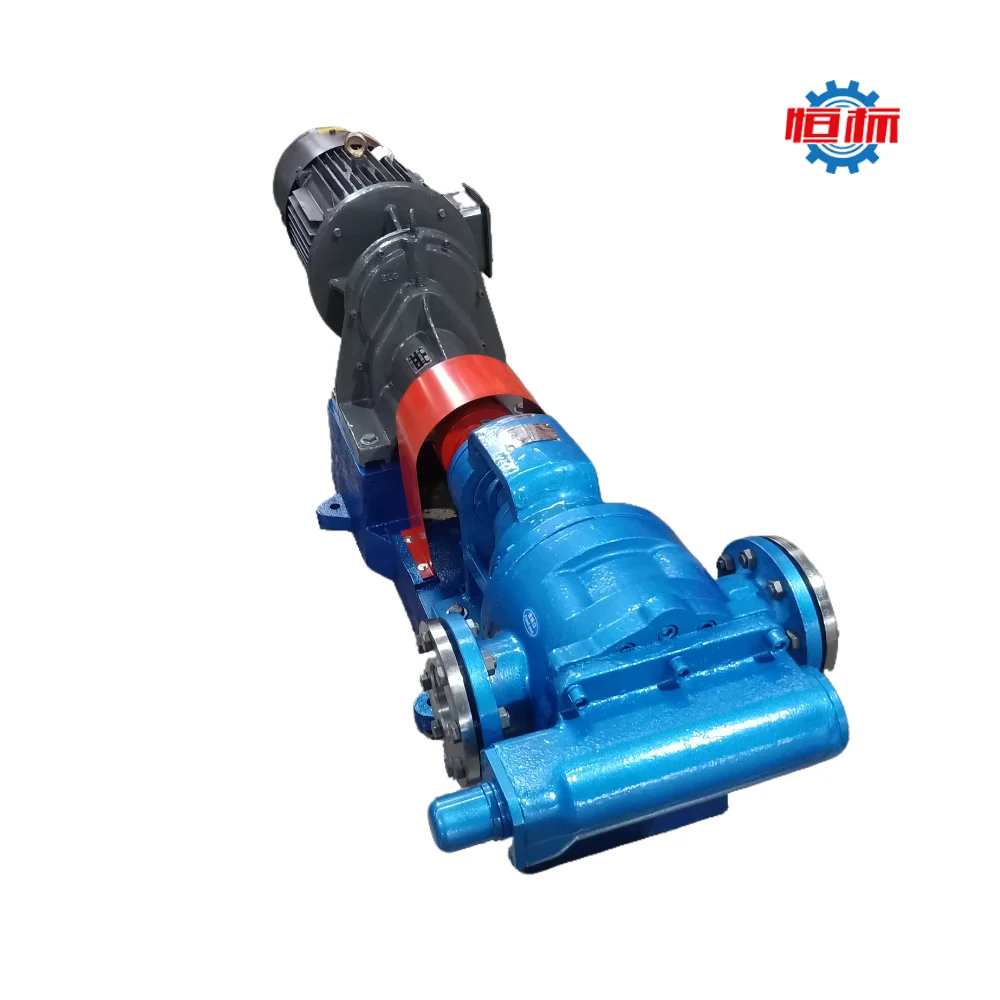

1, According to rotary speed difference., there are two kinds of speed reducer.
2, According to different structure, there is horizontal type and vertical type
3, According to different liquid, there are two kinds of materials:
Related Products
Product Paramenters
Model | Inlet/outlet(mm) | Capacity (L/100rev) | Viscosity (cSt) | Rev (r/min) | Pressure(Mpa) | ||||||
0.4 | 0.6 | 0.8 | 1.0 | ||||||||
capacity(L/min) | |||||||||||
NYP0.78 | 15 | 0.78 | 20 | 1390 | 9.3 | 9 | 8.8 | 8.6 | |||
60 | 1390 | 9.5 | 9.2 | 9 | 8.9 | ||||||
200 | 1390 | 10.4 | 10.2 | 10 | 9.9 | ||||||
600 | 1390 | 10.4 | 10.3 | 10.3 | 10.2 | ||||||
2000 | 910 | 6.8 | 6.8 | 6.8 | 6.7 | ||||||
6000 | 720 | 5.4 | 6.1 | 6.8 | 6.8 | ||||||
NYP7.0 | 40 | 7 | 20 | 1450 | 98.1 | 96 | 94.7 | 93 | |||
60 | 1450 | 99 | 97 | 96.4 | 95 | ||||||
200 | 1450 | 99.8 | 98 | 97.5 | 97 | ||||||
600 | 960 | 62 | 65 | 44 | 64 | ||||||
2000 | 960 | 67 | 66 | 65 | 65 | ||||||
6000 | 640 | 44.5 | 44 | 44 | 44 | ||||||
20000 | 583 | 40.5 | 40 | 40 | 40 | ||||||
60000 | 455 | 31.5 | 31 | 31 | 31 | ||||||
NYP24 | 50 | 24 | 20 | 720 | 165 | 161 | 158 | 155 | |||
60 | 720 | 166 | 164 | 162 | 158 | ||||||
200 | 610 | 143 | 141 | 139 | 136 | ||||||
600 | 541 | 127 | 125 | 124 | 122 | ||||||
2000 | 475 | 112 | 111 | 110 | 109 | ||||||
6000 | 357 | 85 | 84 | 83 | 83 | ||||||
20000 | 303 | 72 | 72 | 72 | 71 | ||||||
60000 | 228 | 54 | 54 | 54 | 54 | ||||||
NYP52 | 50 | 20 | 720 | 362 | 355 | 348 | 340 | ||||
60 | 720 | 364 | 358 | 352 | 346 | ||||||
200 | 610 | 309 | 304 | 300 | 294 | ||||||
600 | 541 | 275 | 271 | 268 | 264 | ||||||
2000 | 475 | 243 | 238 | 237 | 235 | ||||||
6000 | 357 | 184 | 182 | 181 | 180 | ||||||
20000 | 303 | 157 | 156 | 155 | 155 | ||||||
60000 | 228 | 119 | 118 | 118 | 118 | ||||||
NYP80 | 80 | 80 | 20 | 615 | 471 | 461 | 451 | 433 | |||
60 | 615 | 474 | 465 | 457 | 448 | ||||||
200 | 544 | 421 | 414 | 408 | 401 | ||||||
600 | 479 | 372 | 367 | 362 | 356 | ||||||
2000 | 417 | 326 | 322 | 319 | 315 | ||||||
6000 | 305 | 239 | 237 | 326 | 233 | ||||||
20000 | 228 | 180 | 179 | 178 | 177 | ||||||
60000 | 188 | 149 | 149 | 149 | 148 | ||||||
NYP111 | 80 | 111.4 | 20 | 615 | 660 | 647 | 634 | 622 | |||
60 | 615 | 664 | 652 | 642 | 631 | ||||||
200 | 544 | 589 | 580 | 573 | 563 | ||||||
600 | 479 | 521 | 514 | 508 | 502 | ||||||
2000 | 417 | 455 | 450 | 447 | 442 | ||||||
6000 | 305 | 335 | 332 | 331 | 328 | ||||||
20000 | 228 | 251 | 250 | 249 | 248 | ||||||
60000 | 188 | 209 | 208 | 208 | 207 | ||||||
NYP160 | 100 | 160 | 20 | 600 | 930 | 916 | 902 | 888 | |||
60 | 600 | 935 | 922 | 910 | 898 | ||||||
200 | 550 | 866 | 859 | 852 | 845 | ||||||
600 | 480 | 754 | 747 | 740 | 737 | ||||||
2000 | 355 | 560 | 556 | 552 | 548 | ||||||
6000 | 319 | 505 | 502 | 500 | 497 | ||||||
NYP220 | 125 | 220 | 20 | 430 | 902 | 880 | 858 | 836 | |||
60 | 430 | 909 | 890 | 871 | 852 | ||||||
200 | 355 | 753 | 739 | 726 | 713 | ||||||
600 | 320 | 682 | 671 | 660 | 649 | ||||||
2000 | 254 | 544 | 537 | 530 | 523 | ||||||
6000 | 244 | 483 | 478 | 473 | 468 | ||||||
20000 | 160 | 347 | 345 | 343 | 341 | ||||||
60000 | 117 | 256 | 255 | 254 | 253 | ||||||
NYP320 | 125 | 320 | 20 | 430 | 1306 | 1270 | 1235 | 1200 | |||
60 | 430 | 1316 | 1285 | 1255 | 1225 | ||||||
200 | 355 | 1091 | 1068 | 1046 | 1024 | ||||||
600 | 320 | 987 | 968 | 950 | 932 | ||||||
2000 | 284 | 881 | 867 | 854 | 841 | ||||||
6000 | 222 | 693 | 684 | 675 | 666 | ||||||
20000 | 168 | 529 | 525 | 522 | 519 | ||||||
60000 | 125 | 397 | 396 | 395 | 394 | ||||||
Application
Application Scope
NYP series internal gear pump is a kind of new positive displacement pump that's designed according to the different fields'requirements of petroleum, chemical industry, paint, grease, pharmacy, foodstuff, and so on. It's widely applyed to pumping a variety of mediums with different property and viscosity because of special structure and selected different pump's materials.
Comanpy information
Packaging&Shipping
FAQ
1. Who are we?
We are based in Hebei, China, start from 2010,sell to Mid East(20.00%),Southeast Asia(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South Asia(5.00%),North America(5.00%),South America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
We are based in Hebei, China, start from 2010,sell to Mid East(20.00%),Southeast Asia(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South Asia(5.00%),North America(5.00%),South America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Lobe Pump/Gear Pump/Screw Pump/Centrifugal Pump/High Viscosity Liquid Rotor Pump
4. Why should you buy from us not from other suppliers?
Hebei Shenghui Pump Co., Ltd is a professional pump manufacturing base with research,developing,manufacturing and operating enterprise. And it has rich manufacturing experience and technology.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean, Hindi,Italian
3.What can you buy from us?
Lobe Pump/Gear Pump/Screw Pump/Centrifugal Pump/High Viscosity Liquid Rotor Pump
4. Why should you buy from us not from other suppliers?
Hebei Shenghui Pump Co., Ltd is a professional pump manufacturing base with research,developing,manufacturing and operating enterprise. And it has rich manufacturing experience and technology.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean, Hindi,Italian
Похожие товары
KCB 2cy высококачественный масляный насос для смазки перекачки топлива роторный шестеренный
78,00-88,00 $
CNC LY с лучшим качеством всех видов системы смазки машины масляный насос автоматический цифровой дисплей
32,00-36,00 $
Пневматический смазочный насос с катушком настенный масляный Комплект Смазочного насоса соплом
390,00-410,00 $

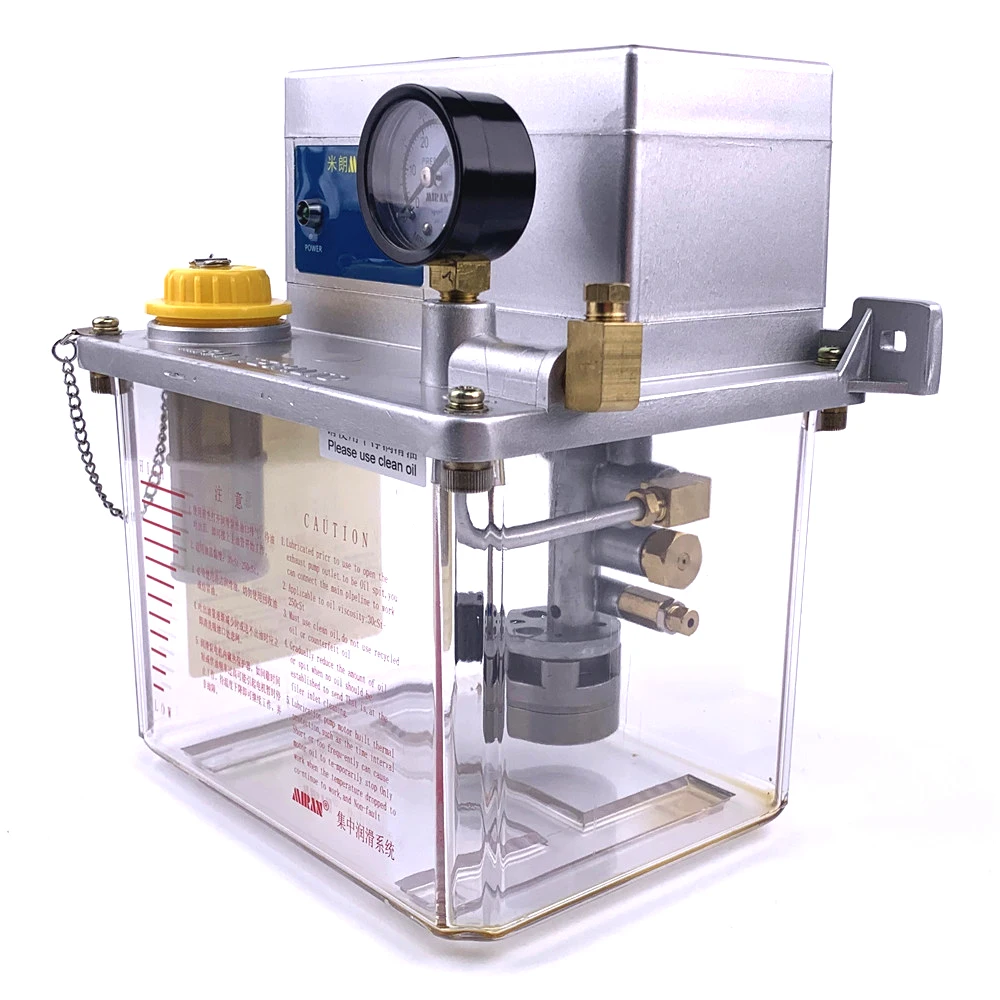

Масляный насос для смазки MIRAN 3L легкой промышленности и автоматизации ковки
55,00-65,00 $

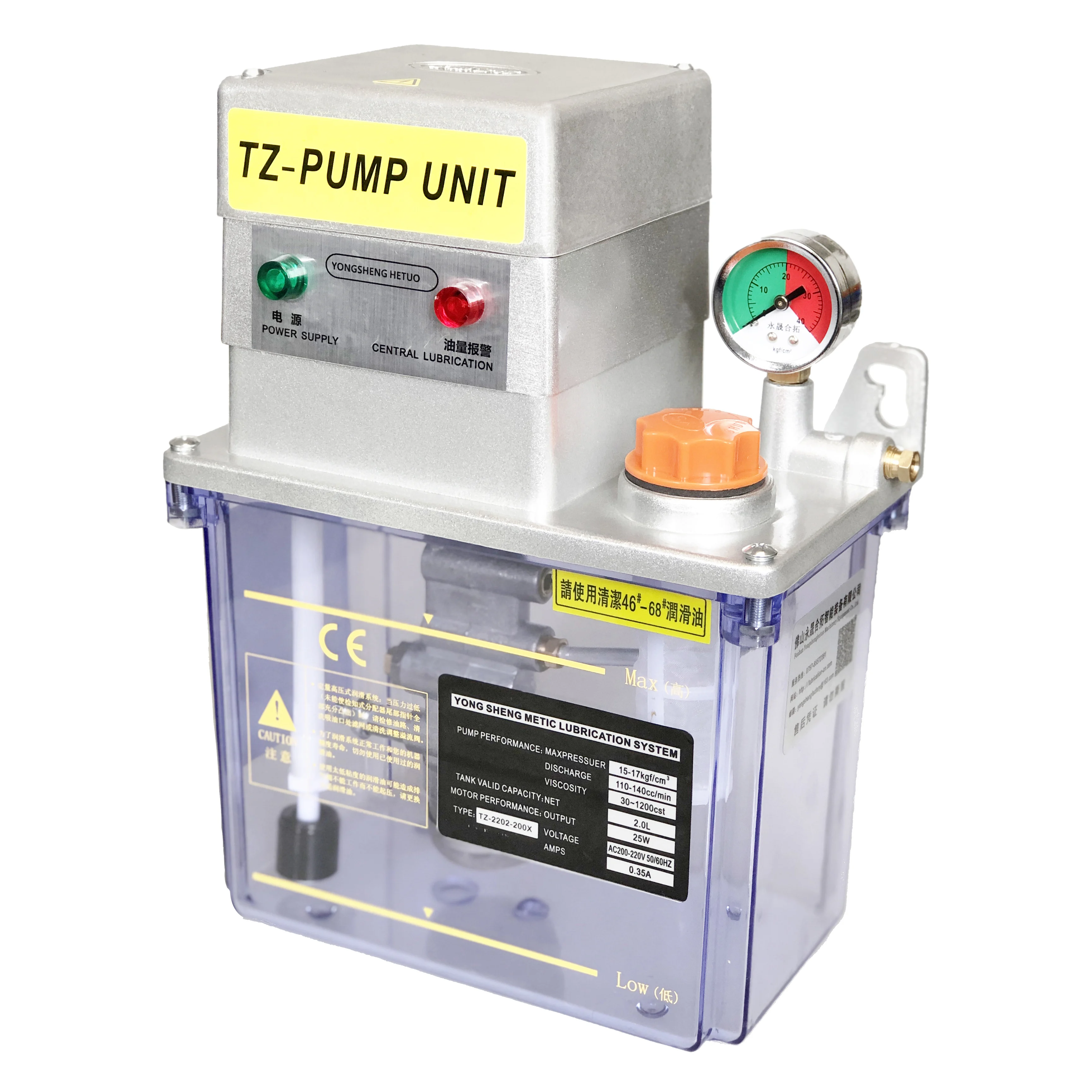

TZ2202-200X PLC-контроль AC220V 2-литровый Электрический масляный смазочный насос автоматический для смазочной системы

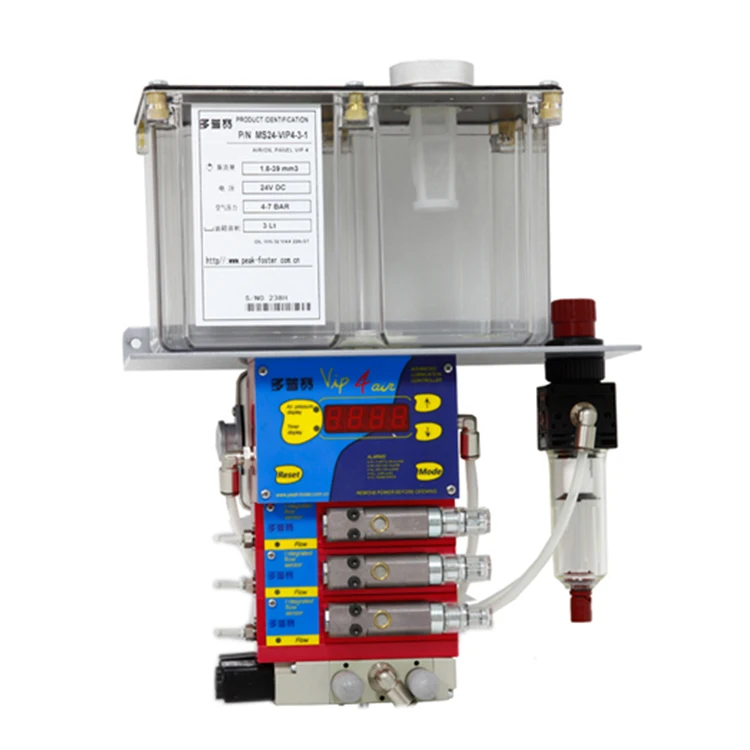

Смазочный насос с ЧПУ устройство для смазки воздушного масла MS24-VIP 4-3-1 MQL (минимальная смазка) резки металла
1 260,00 $

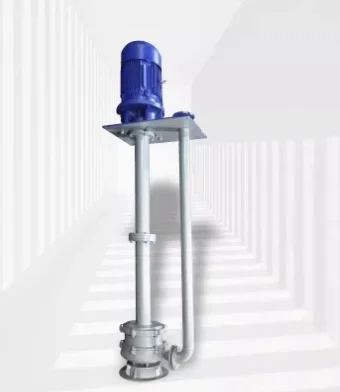

Незабитые Подводные Канализационные Насосы 25-8-22-1 1 32-12-15-1 40-15-30-2 2 50-20-15-1 5 50-18-30-3 304 50-25-32-5.5
