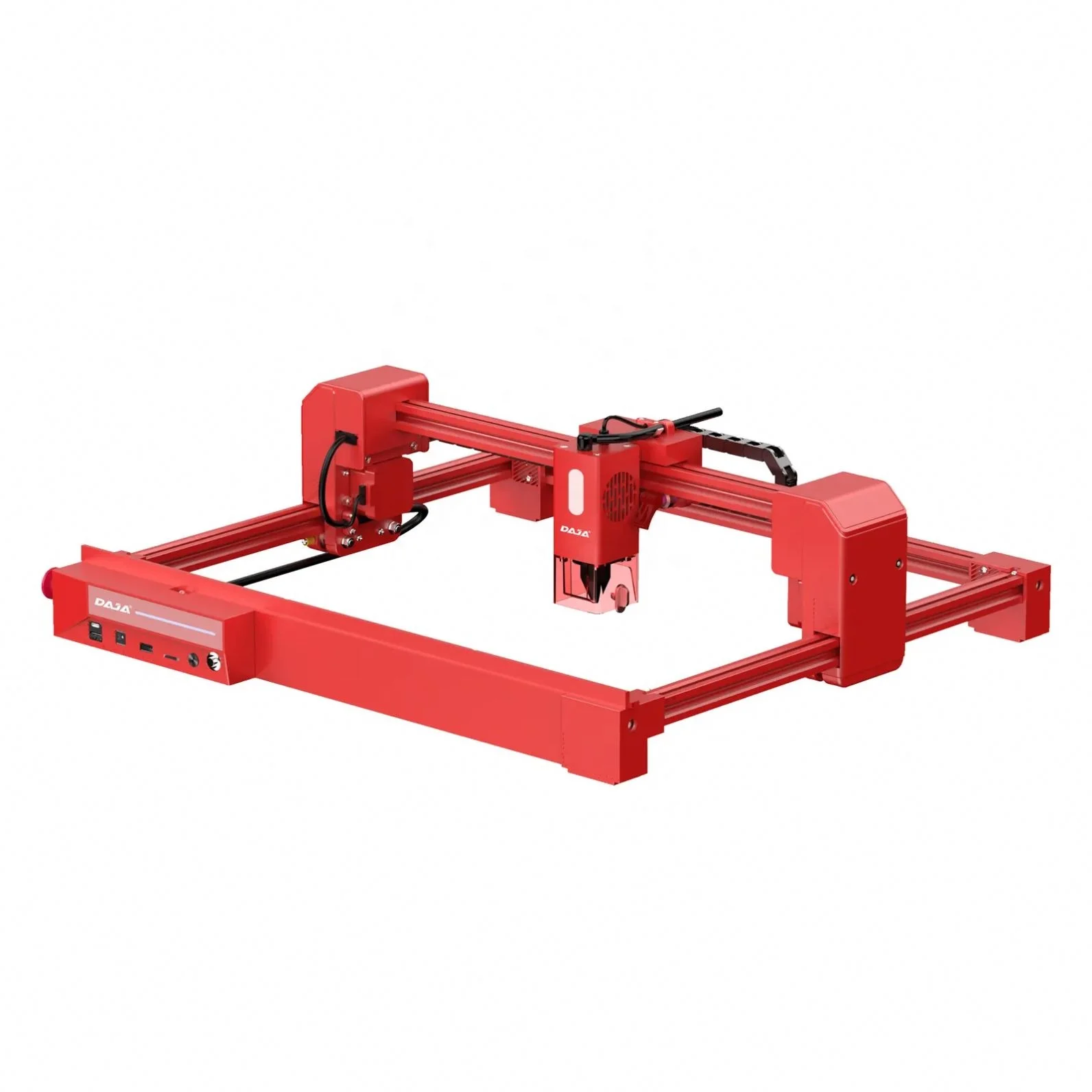

DAJA DJ6 лидер продаж портативный мини-лазерный гравер с подключением Wi-Fi для металлических кредитных карт по дереву лазерный гравировальный
15 676,14-18 106,54 ₽
Лазерная печатная машина гравировка металла
- Категория: >>>
- Поставщик: Jinan Reci Cnc Machine Co. Ltd.Jinan Ltd.
Сохранить в закладки 1601351352583:
Описание и отзывы
Характеристики
Product Description

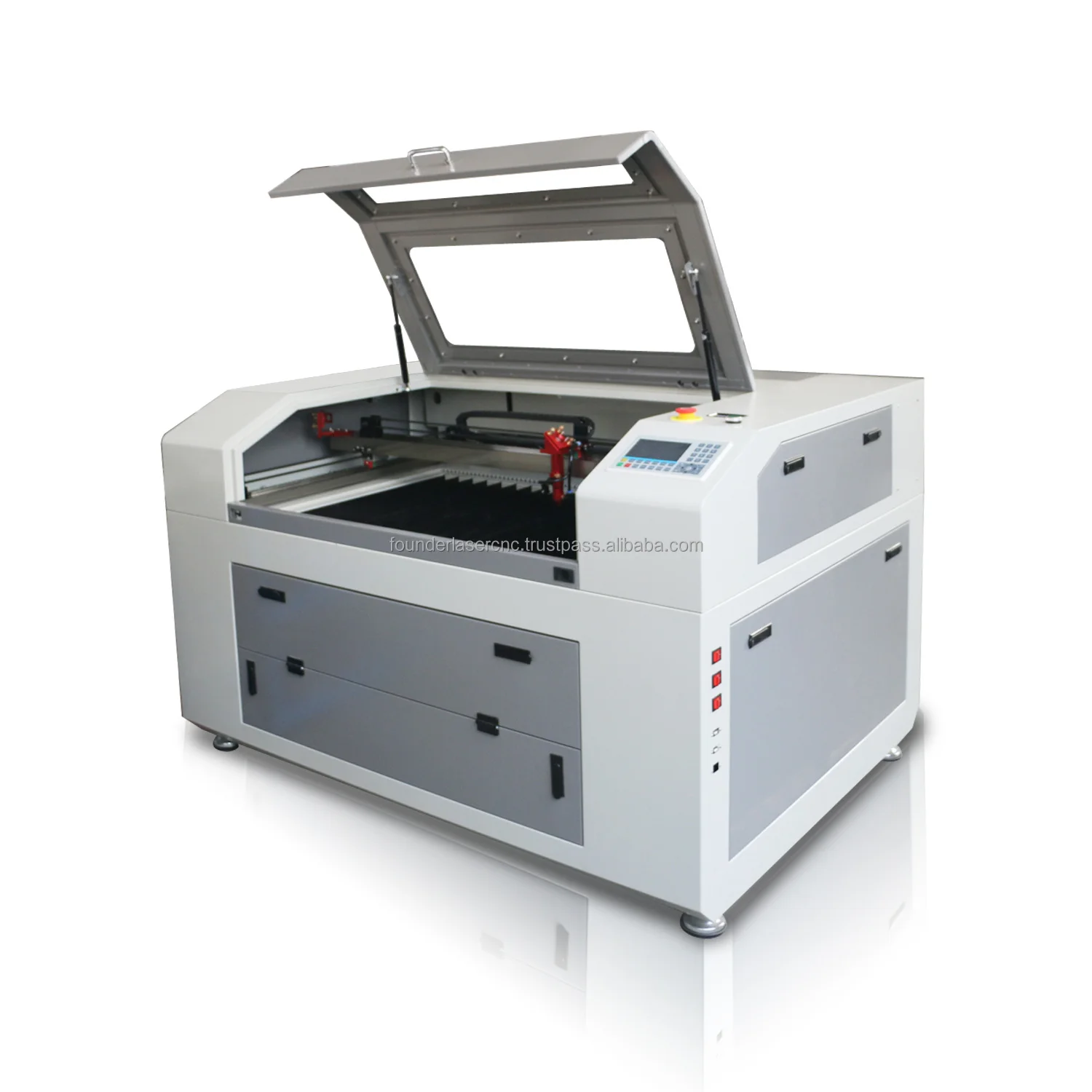

Laser Printing Machine Engraving Metal Engraving Machinery
1. The non-metal cutting engraving ability: acrylic, mdf,wood, leather, cloth,rubber,paper, glass,stone,etc.2. High accuracy: high quality RECI laser generator , stepper motor and servo motor optional; belt and ball screw and rack optional greatly improve engraving cutting speed accuracy. Service life of the machine is prolonged accordingly.
3. The constant light path system: the machine adopts the constant light path system, and equip with anti- reflection system, protect the laser tube effectively.
Specifications | ||||||||||
Model | Working Size | Z Axis Stroke | Dimension | Weight | Remarks | |||||
RC3050 | 300*500mm | / | 1320*750*470 mm | 40kg | linear guide rail | |||||
RC6040 | 600*400mm | optional | 1400*900*1300mm | 240kg | linear guide rail | |||||
RC6090 | 600*900mm | optional | 1700*1200*1800mm | 300kg | linear guide rail | |||||
RC1390 | 1300*900mm | optional | 1960*1490*1340mm | 400kg | linear guide rail | |||||
RC1325 | 1300*2500mm | optional | 3750*2220*1200mm | 750kg | linear guide rail | |||||
RC1610 | 1600*1000mm | optional | 2380*1530*1210mm | 480kg | linear guide rail | |||||
Series | RC Series Cutting & Engraving Machine | |||||||||
Laser Power | 60W/80W/100W/130W/150W/280w/300w | |||||||||
Engraving Speed | 0-1000mm/s | |||||||||
Min Engraving Size | Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm | |||||||||
Highest Scanning Precision | 4000DPI | |||||||||
Cutting Speed | 0-800mm/s | |||||||||
Cutting thickness | 0-50mm | |||||||||
Positioning Accuracy | <0.1mm | |||||||||
Control System | Ruida RDC6445G+Rdworks | |||||||||
File Format | DST/DXF/AI/PLT/BMP/CDR,etc | |||||||||
Cooling Way | Water cooling | |||||||||
Drive System | Stepper Motor+Stepper Driver | |||||||||
Machine Accessories | Industrial Chiller,550W Fan,Air Compressor | |||||||||
Machine Structure | Covered and protected | |||||||||
Power supply | 110V/220V,50HZ/60HZ | |||||||||
Total power | 2KW-3KW | |||||||||
Working Environment | Temperature:0-45,Humidity 5-95% | |||||||||
CUTTING ABILITY
40w | 50w | 60w | 80w | 100w | 130w | 150w | |||||||
wood | 1.5mm | 3.5mm | 5.5mm | 8.5mm | 10.5mm | 11.5mm | 13.5mm | ||||||
plywood | 0.5mm | 2.5mm | 4.5mm | 8.5mm | 10.5mm | 11.5mm | 13.5mm | ||||||
class | / | / | / | / | / | / | / | ||||||
leather | 0.5mm | 1.5mm | 2.5mm | 3.5mm | 4.5mm | 5.5mm | 6.5mm | ||||||
acrylic | 1mm | 3.5mm | 9mm | 13mm | 17mm | 20mm | 23mm | ||||||
pvc | 0.5mm | 1.5mm | 2.5mm | 3.5mm | 4.5mm | 5.5mm | 6.5mm | ||||||
pleixglass | 0.5mm | 1.5mm | 3.5mm | 7.5mm | 9.5mm | 11.5mm | 14.5mm | ||||||
plastic | 0.5mm | 0.5mm | 1.5mm | 2.5mm | 3.5mm | 4.5mm | 5.5mm | ||||||
rubber | 1mm | 1.5mm | 1.5mm | 2.5mm | 3.5mm | 4.5mm | 5.5mm | ||||||
crystac | / | / | / | / | / | / | / | ||||||
clothing | 1mm | 1.5mm | 1.5mm | 2.5mm | 3.5mm | 4.5mm | 6.5mm | ||||||
bamboo | 0.5mm | 1mm | 1.5mm | 2.5mm | 3.5mm | 4.5mm | 5.5mm | ||||||
paper | 0.5-5mm | ||||||||||||
150w | 280w | |
stainless steel | 1mm | 2mm |
carbon steel | 1.5mm | 3mm |
MATERIALS | Engrave | Cut |
Wood | √ | √ |
Acrylic | √ | √ |
Cloth | √ | √ |
Leather | √ | √ |
Mat Board | √ | √ |
Melamine | √ | √ |
Paper | √ | √ |
Mylar | √ | √ |
Pressboard | √ | √ |
Rubber | √ | √ |
Wood Veneer | √ | √ |
Fiberglass | √ | √ |
Plastic | √ | √ |
Cork | √ | √ |
Corian | √ | √ |
Twill | √ | √ |
Painted Metals | √ | |
Tile | √ | |
Glass | √ | |
Coated Metals | √ | |
Ceramics | √ | |
Marble | √ | |
stainless steel | √ | |
carbon steel | √ |
The advantages of our co2 laser engraving cutting machine:
1) Advanced LCD Touch Screen+ USB port+ DSP Offline Control: which can not only work without computer, but also connect to U disk, USB communication.
2) LCD Control System own 128M Big Memory: which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
3) Imported high precision linear guide rail and professional optical system: dust-proof and lubricate, which improve the engraving quality and prolong machine lifetime.
4) Professional Strip work table: meets the needs of diversified laser process;
5) Water Cooling System with Alarm Protection: adopt CW-5000 or CW-6000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
6) Equipped with luxury Consumables: Imported Focus Lens and reflect mirror, makes high efficiency and steady.
7) High speed stepper subdivision driver control: numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
8) Red Light Pointer: realizes the exact position without laser.
9) Matched Professional cutting software: is particularly designed and written for both metal and non-metallic cutting, with high compatibility, support any computer operating system.
2) LCD Control System own 128M Big Memory: which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
3) Imported high precision linear guide rail and professional optical system: dust-proof and lubricate, which improve the engraving quality and prolong machine lifetime.
4) Professional Strip work table: meets the needs of diversified laser process;
5) Water Cooling System with Alarm Protection: adopt CW-5000 or CW-6000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
6) Equipped with luxury Consumables: Imported Focus Lens and reflect mirror, makes high efficiency and steady.
7) High speed stepper subdivision driver control: numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
8) Red Light Pointer: realizes the exact position without laser.
9) Matched Professional cutting software: is particularly designed and written for both metal and non-metallic cutting, with high compatibility, support any computer operating system.
Product Details

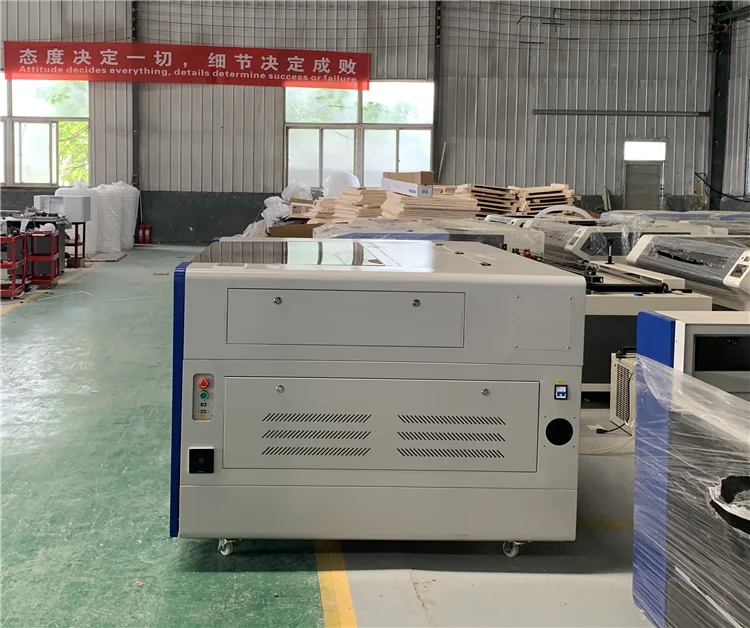

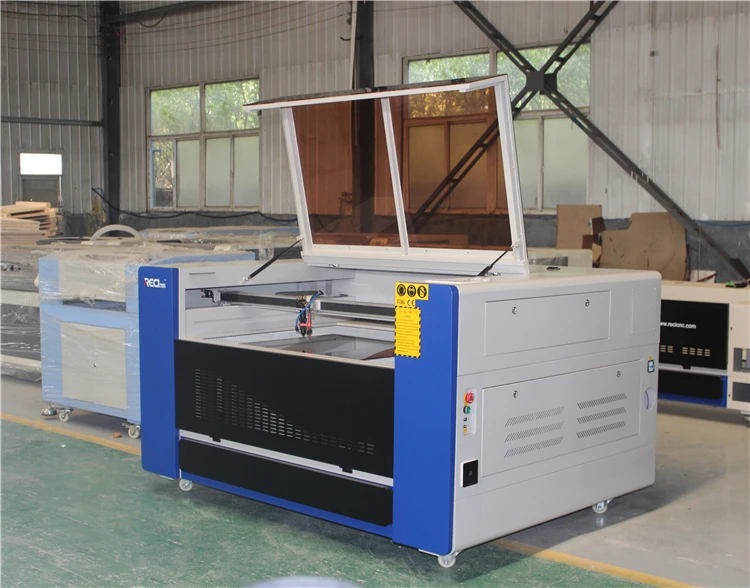

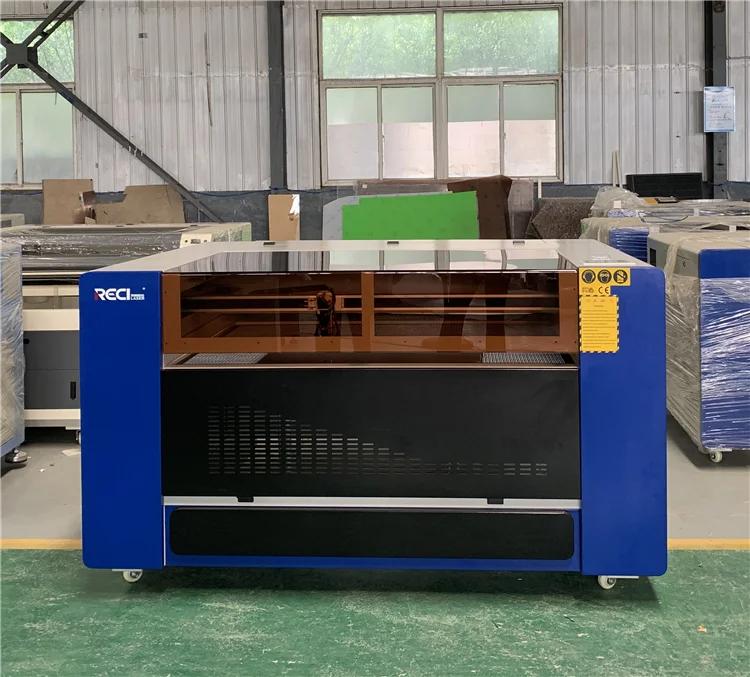

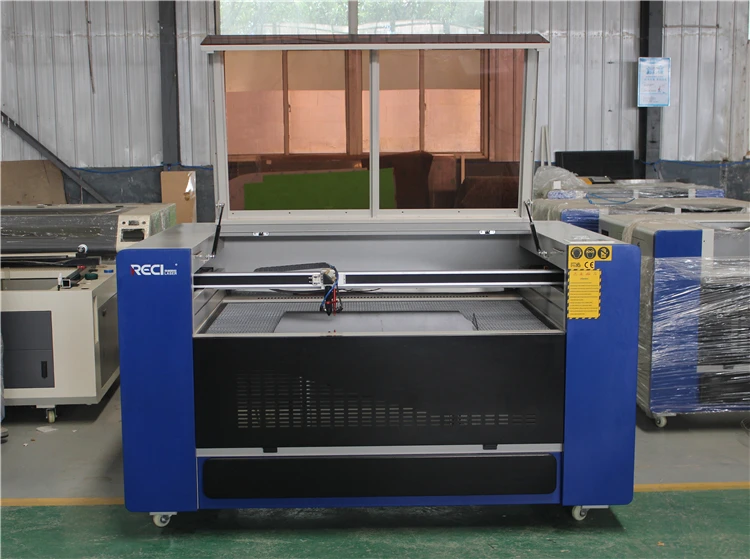

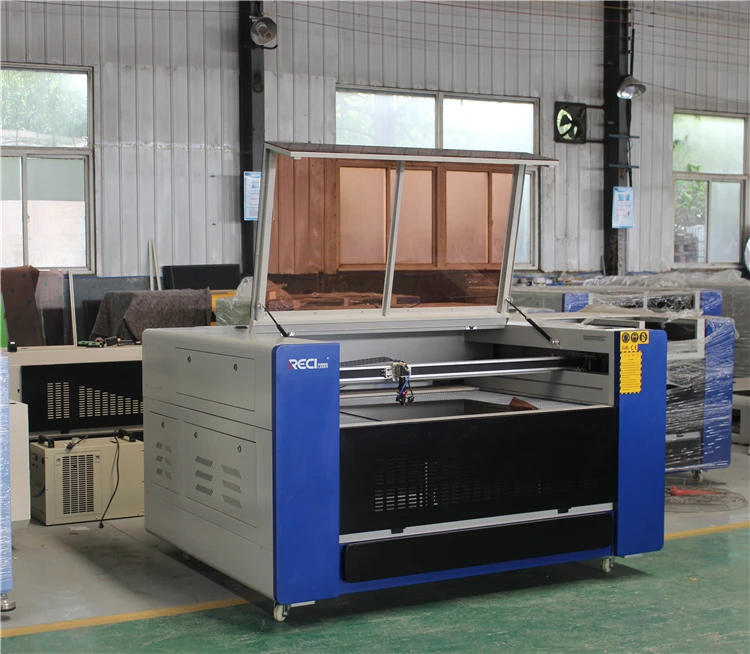

Cutting-edge design and high-quality accessories ensure the RC-1390's leading position in the industry, providing you with high-speed, high-precision, high-reliability laser equipment.
Other Optional
Double heads laser cutting machine.
If you need the highest possible efficiency, you can choose to have dual laser heads to double the efficiency.
The operation is very simple and can be done with the tools that came with the machine.
Auto feeding laser cutting machine.
Automatic cutting leather laser cutting machine with smooth and fine cuts to meet the cutting and processing of the entire cloth;
Imported linear guides and high-speed stepper motors and drivers to make cutting edges smooth and burr-free;
Imported linear guides and high-speed stepper motors and drivers to make cutting edges smooth and burr-free;
Quality Control
We are the reliable manufacture and have been in this field since 2023, you will get the best quality and after-sale service if you choose us, cause long time cooperation and business are what we want,we won't leave any customer who bought machine from us. INTEGRITY&QUALITY&RESPONSIBILITY are our company rule), and you will know about our quality, after-sale service after you build the cooperation with us)
It's our honor that you can choose our products！
It's our honor that you can choose our products！
Our services
---Pre-Sales Service:
Free Pre-Sales Consulting / Free Sample Marking
Reci Laser offer 12 hours quick pre-sales response and free consulting.
Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.
---After-sales Services :
1. 2 year guaranteefor fiber laser cutting machine .
2. Full technical support\\ by e-mail, call and video
3. Lifelong maintenance and spare partssupply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
Packing&Shipping
1. Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool.
2. Wooden box: Our box is fumigation-free plywood box, do not need to check the wood, saving the transport time.
3. Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust. The outermost is a wooden box with a fixed template.
4. Wooden box at the bottom of a solid iron socket for easy handling.
2. Wooden box: Our box is fumigation-free plywood box, do not need to check the wood, saving the transport time.
3. Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust. The outermost is a wooden box with a fixed template.
4. Wooden box at the bottom of a solid iron socket for easy handling.
Company Introduction
Jinan Reci CNC Machine Co.,Ltd is a professional direct manufacturer of fiber laser cutting machine, co2 laser engraving &cutting machine ,fiber laser marking machine , co2 laser martking machine, UV laser marking machine, Laser welding machine, Laser cleaning machine, 3d robot cutting machine, etc advertising equipment .not vendor. So good price, complete after sale service, technical support and full set of available accessories is our advantage.
We have many other models.If you have special requirement, such as need double laser heads, need water chiller or rotary attachment, pls contact with us for quotation.We are looking for distributor from all over the world. If you are interested in, please contact with us.
FAQ
1. Q:Why should we choose you?
A: If you choose us, you will get top quality,best service,reasonable price and reliable warranty.
2. Q:I'm not familiar with the machine,how to choose?
A: Just tell us materials, thickness and working size, I will recommend the suitable machine.
3. How to operate the machine?
A: We will deliver English manual and video with the machine to you.If you still need our further help,please contact us.
4. Q:Can I get the sample to check quality of machine?
A: Of course.Please provide your logo or design to us, free samples can be provided for you.
5. Q:Can the machine be customized according my requirements?
A: Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.
6. Q:Can you arrange the shipment for us?
A: Of course.We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
A: If you choose us, you will get top quality,best service,reasonable price and reliable warranty.
2. Q:I'm not familiar with the machine,how to choose?
A: Just tell us materials, thickness and working size, I will recommend the suitable machine.
3. How to operate the machine?
A: We will deliver English manual and video with the machine to you.If you still need our further help,please contact us.
4. Q:Can I get the sample to check quality of machine?
A: Of course.Please provide your logo or design to us, free samples can be provided for you.
5. Q:Can the machine be customized according my requirements?
A: Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.
6. Q:Can you arrange the shipment for us?
A: Of course.We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
Pls feel free to contact us if you have any questions, our sales manager are 24/7 on-line for receiving your question or requesting, Providing solution within 12 hours!
