Milg Electric 3 Wheeler Motorcycle Wheels Adult 160 for German Style

Milg Electric 3 Wheeler Motorcycle Wheels Adult 160 for German Style

Категория: >>>
Поставщик: Guangdong Futengda Technology Co. Ltd.Guangdong Ltd.

Цена:560,00-580,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product name	ZS
Certificate	CCC CE
Motor	800W
Battery Capacity	48V/60/20Ah Lead Acid/ Lithium
Controller	48V/60V&23A-6T
Input Voltage	220V
Recharging time	4-6h
speed	20-40km/h
Full charge endurance	60-120km
Wheelbase	1900x740x1240 mm
Weight	80kg
Dimensions	1737687cm
Torque	50-60N
tire	3.00-10 Tubeless Tyre
Front fork	Front Hydraulic Fork
Alarm	yes
Charger	48V/60V 2-3A
Shock absorber	Front and rear shock absorption
Brake system	Front Disc / Rear Drum Brake
Climbing Degree	15
MOQ	2
Container	40HQ
Suggestion loading	350KG

ZS is one economic 3-wheeled scooter with silent-design BLDC differential motor, rear drive style. Two passenger seat, sensitive twist throttle, 3 speed levels, reverse gear make it the most comfortable mobility scooter for daily commute or short travel purpose in the city streets. Different with two wheel scooters, you have no need to adjust the center of gravity, and feel more ease to ride.

Features:

 Black&White Digital Display
 LED High/Low Beam Headlight, Turn Signals, Brake Lights and Tail Lights

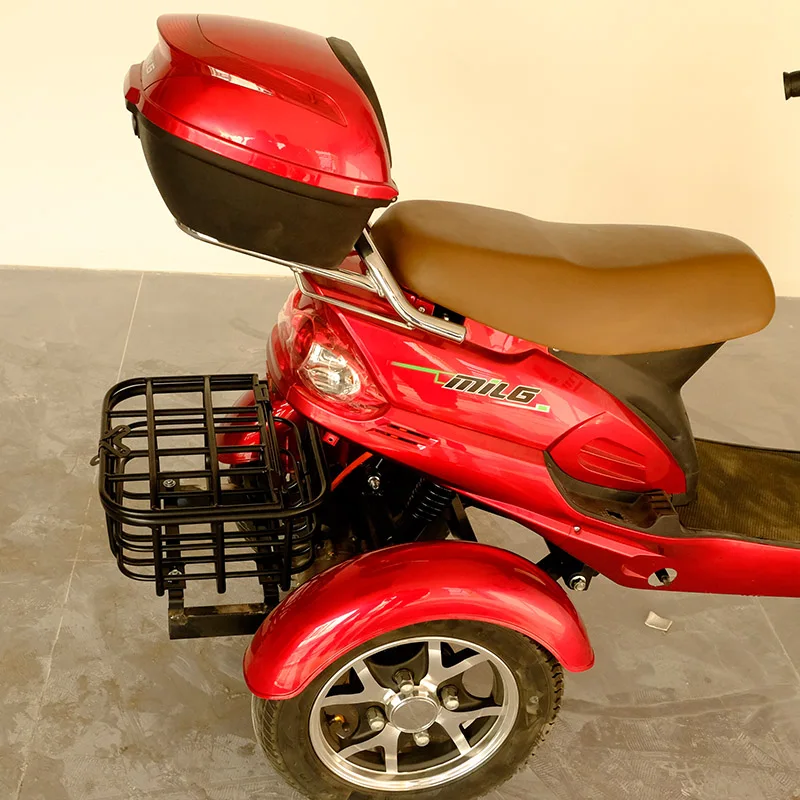

 Tail Box Storage & Two Storage Slot in Front
 D / R Gear Switch

1 / 2 / 3 Speed Level
 Two Pairs of Power Key & Remote Key
 Front Hydraulic Fork
 Double Rear Hydraulic Shock
 Power / Seat 2-in-1 Lock
 Front Hydraulic Disc Brake Rear Drum Brake

Specifications
Frame: Q235 Steel
Load Capacity: 400 lbs
Product Weight: 243 lbs

Nominal Power: 800Watt (need to modify when you do advertising, avoid laws
issues,motor mark 60V700W)
Peak Power: 1305Watt (can hide)

Battery Type: 60V 20AH / Lead Acid Battery
Battery Position: Battery Bay on the frame
Removable: NO
Controller: 60V 15Tube 35A (can hide)

Maximum Speed: 20 mph
Maximum Climbing Angle: 13 degrees (23% Slope)
Drive Range: 40 miles
Charger: 60V 3A Lead Acid Type
Charging Time: 6~7 hours

Protection Design: Reverse Protection, Short Circuit Protection, Overvoltage Protection,
Overload Protection, Overcurrent Protection, Brake Cut-off (can hide)

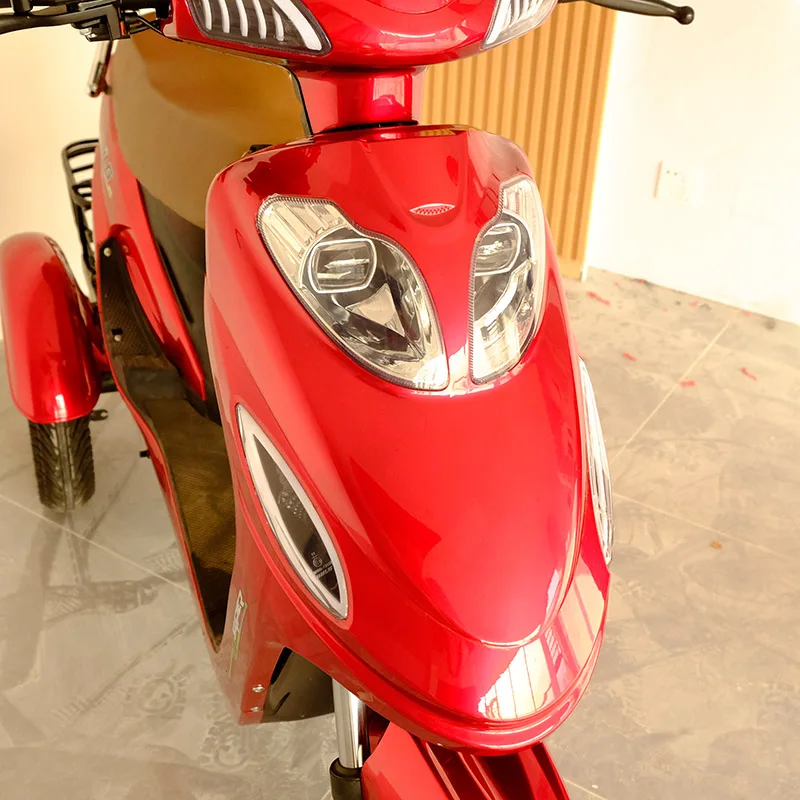

Headlight: LED Array

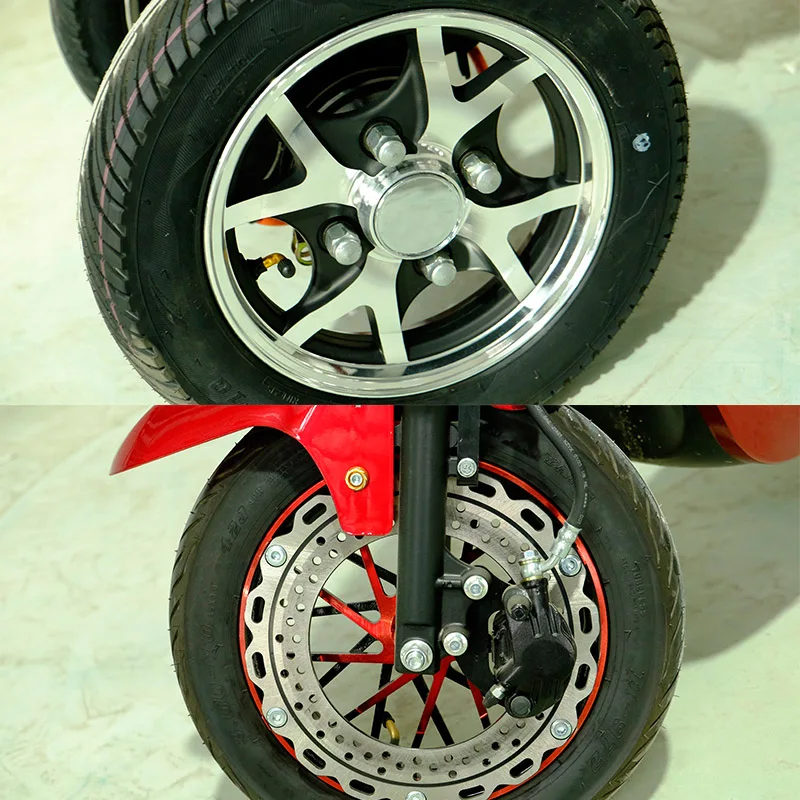

Rims: Aluminum

Front Tyre: 3.00-10 Tubeless (the tyre mark apply for rim, actual outer size is approaching
15inches)

Rear 2 Tyre: 3.00-10 Tubeless (the tyre mark apply for rim, actual outer size is
approaching 15inches)

Fork Type: Hydraulic
Rear Shock: Double Hydraulic
Brake Method: Handlebar Lever

Front Brake System: Hydraulic Disc
Rear Brake System: Drum
Remote Key: Two Pairs

Title goes here.

Rear View Mirror: One Pair
Passengers: Two

High Quality Lighted Buttons

Reference Dimensions:
Whole Vehicle: 1900x740x1240 mm
Wheelbase: 1330 mm
Rear Axle Track: 700 mm
Minimum Ground Clearance: 120mm
Seat Length: 22 inches
Ground to Seat: 27 inches (the lowest height of seat)

Our goods are packed in wooden boxes, iron frames, 5-layer or 7-layer cartons.

If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.

On-site demonstration of our factory, welcome to video call at any time, visit our factory online, we will show you the production
site of the factory.

Since its establishment, our company has established continuous and good cooperative relations with the Chinese government, China Post Office, Meituan Takeaway and many other partners.

Our products have been sold in more than 100 countries in Southeast Asia such as Europe, America, Africa, etc., and there are more than 30 cooperative exclusive agents and wholesalers.
