Взрывозащищенный робот RXR MC80BD пожаротушения ATEX
- Категория: >>>
- Поставщик: Shandong Guoxing Intelligent Technology Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601351885559:
Описание и отзывы
Характеристики

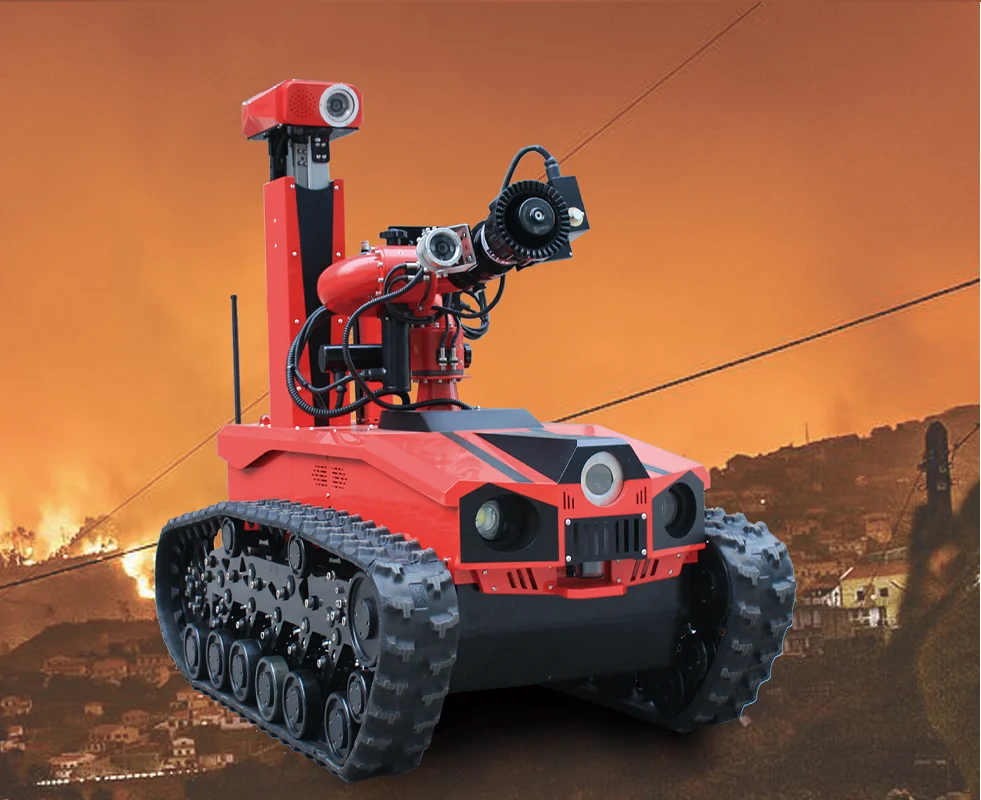

RXR-MC80BD
The whole body of RXR-MC80BD is explosion-proof, the body is solid, the simple body design is more stable, and the high-power DC reduction motor makes jumping over obstacles particularly simple. The body is equipped with a lifting PTZ, which can monitor the surrounding environment of the fire scene in a wider range and bring faster and more accurate decision-making for fire extinguishing.
Product Features
• Imported fire water monitor: 80L/s flow, water/foam dual-use, range 85m; • Image acquisition: collect 4 channels of images around the robot and send them to the control center remotely;
• Bidirectional voice: collect the sound around the robot body and call through the controller;
• Lighting: double LED strong light;
• Audible and visual alarm: audible and visual alarm is given when the robot body is running;
• Automatic obstacle avoidance: detect obstacles in front when traveling to avoid collision;
•Spray cooling: double water curtain spray cooling;
• Infrared thermal camera: detect life body, fire source temperature and fire source center point;
• Explosion proof sign: Ex d ib mb IIB+H2 T6 Gb.
Parameters
Item | Specs | |||
Robot Chassis | Motor | 48V DC Motors | ||
Working Temperature | -20℃~60℃ | |||
Suspension | Christie | |||
Rated Power | 3KW*2 | |||
Battery | 48V 100AH | |||
Speed | 0-1.5m/s | |||
Max Obstacle Surmount | 220mm | |||
Wireless Operation Distance | 1000M | |||
Working time | >5h | |||
（Parameters are for reference only, please consult for the latest parameters.） | ||||
Size | Outline Size | 1612*900*1427mm | ||
Height above Ground | 150mm | |||
Track Width | 150mm | |||
Track Grounding Length | 726mm | |||
Weight | Self Weight | 230kg | ||
Load Weight | 80kg | |||
Material | Wheels | Aluminum Alloys | ||
Body | Carbon Steel | |||
Track | Quality Rubber Embeded with STEEL | |||
Surface Treatment | Plastic Coated/Painting | |||
（Parameters are for reference only, please consult for the latest parameters.） | ||||
Fire Monitor | Flow | 80L/S | ||
Working Pressure | 1.0Mpa | |||
Pressure Range | 0.8～1.2Mpa | |||
Water Range | Water≥80m Water/Foam≥70m） | |||
Horizontal Angle | -90° ~ 90° | |||
Pitch Angle | +30～+90° | |||
Self-rotation | Yes | |||
Guoxing produce full serise firefighting robot, including not limited below items,
Feel free to send message to get the latest price list.
Order delivery cases
Guoxing always promises to deliver the order to customer on time!
Trade with Guoxing, your order is guaranteed!
With hundreds or thousands of cases of firefighting robots, Guoxing will be your first choice.

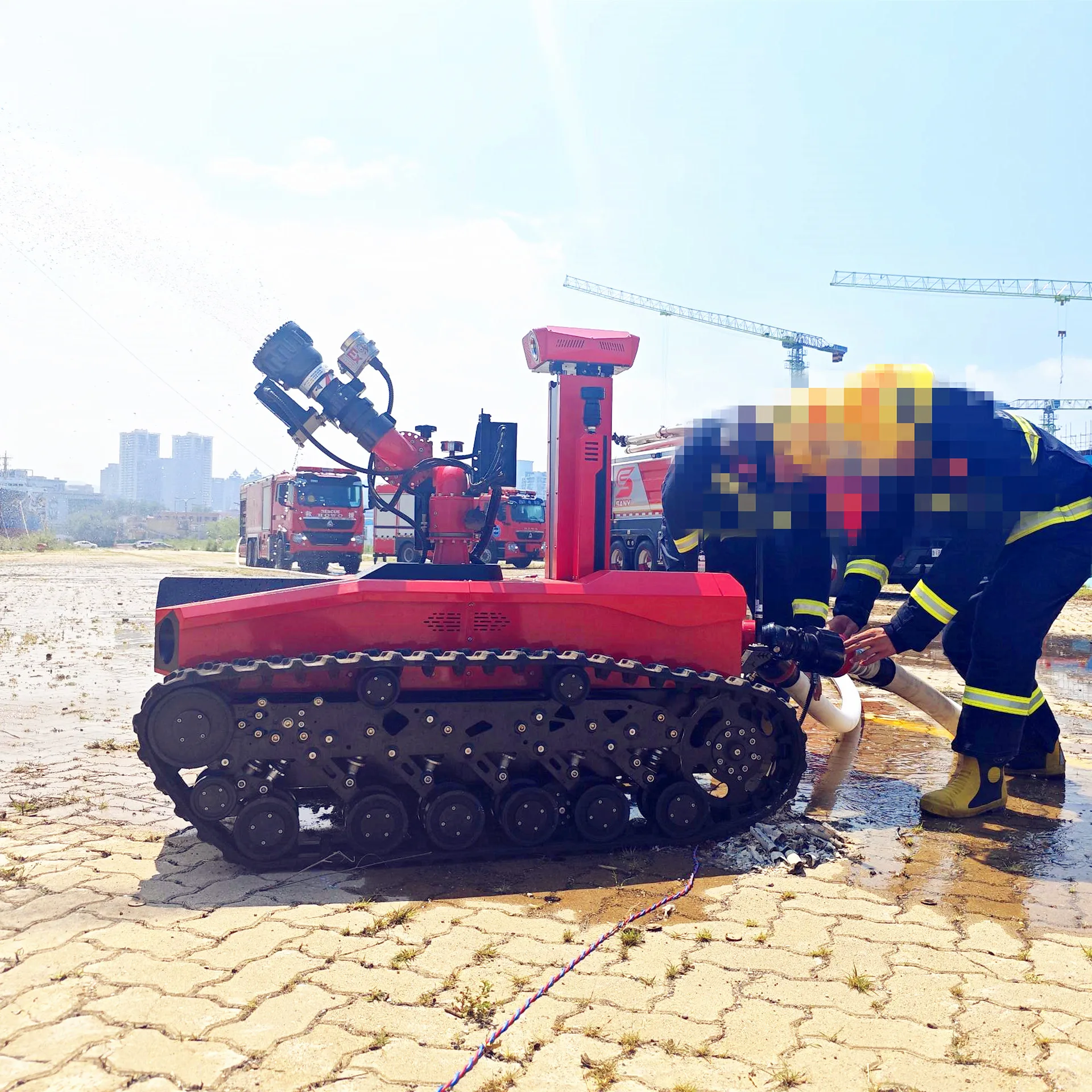

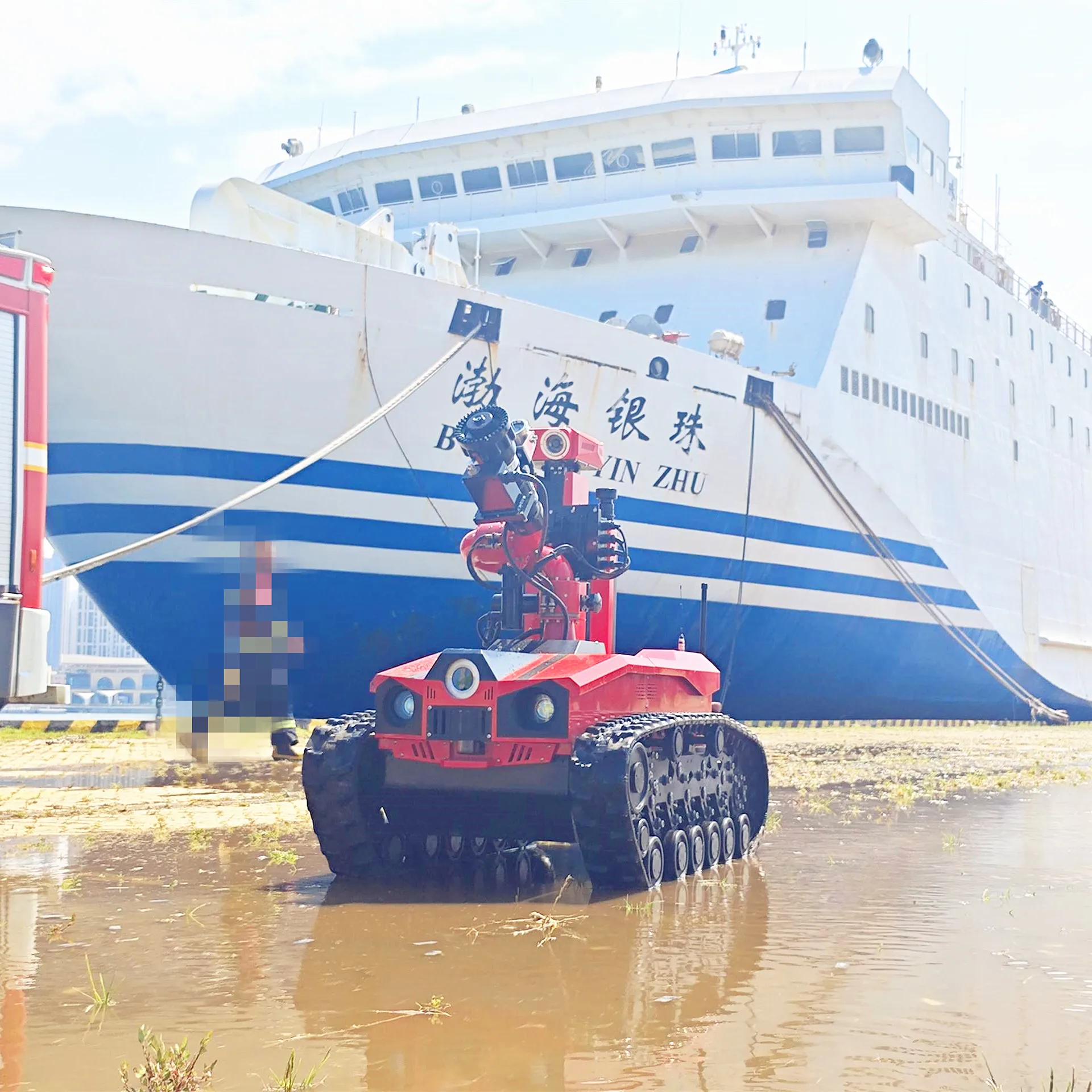

Delivery cases of fire rescue
Delivery cases of State Grid
Make firefighting smarter and firefighters safer.
Local hand over and training
Ensure that customers can use the equipment correctly
Batch delivery
With these real customer cases, let customers more confidence in Guoxing.
No hesitate to send your reuqirements now, Guoxing alwasy willing to offer the best service!
Company Profile
Shandong Guoxing intelligent Technology Co., Ltd. Founded in 2004, successfully transitioned in 2014, expanding our global reach with a portfolio of over 60 products across 5 major series: Firefighting Robots, Coal Mine Robots, Petrochemical Robots, National Grid Robots, and robotic Chassis.
The company has a complete organization management system, has passed the lSO9001 quality system certification, ISO14001 environmental system management certification and ISO45001 occupational health and safety management system certification.
Moreover, This strategic intellectual property layout and risk prevention approach lead to our recognition as an Intellectual Property Standardized Enterprise in 2019. Our products undergo rigorous scrutiny at every stage, from research and design to production and promotion, ensuring their performance is thoroughly validated by both domestically and internationally market.
We are the leading force behind the establishment of Shandong Province Special Robot lntergration and Application Technology Manufacturing innovation Center, Our expertise lies in the research development, production, and sale of specialized robots designed for use in high-risk and complex environments.is a national level recognized "Little Giant" enterprise specializing in innovative and advanced technologies.
The company has a complete organization management system, has passed the lSO9001 quality system certification, ISO14001 environmental system management certification and ISO45001 occupational health and safety management system certification.
Moreover, This strategic intellectual property layout and risk prevention approach lead to our recognition as an Intellectual Property Standardized Enterprise in 2019. Our products undergo rigorous scrutiny at every stage, from research and design to production and promotion, ensuring their performance is thoroughly validated by both domestically and internationally market.
Enterprise qualifications
• Certificate of High tech Enterprise
• National Science and Technology SME Certificate
• Shandong Province "Gazelle Enterprise"
• The 1st prize of innovative competitive action for small and medium-sized enterprises in Yantai
• Shandong Provincial Small & Medium sized Enterprise
• Shandong Provincial "One Enterprise One Technology" R&D Center
• Establishment of Shandong Special Robot Integrated Application Technology Manufacturing Innovation Center
• Shandong Province "Gazelle Enterprise"
• The 1st prize of innovative competitive action for small and medium-sized enterprises in Yantai
• Shandong Provincial Small & Medium sized Enterprise
• Shandong Provincial "One Enterprise One Technology" R&D Center
• Establishment of Shandong Special Robot Integrated Application Technology Manufacturing Innovation Center
• Enterprise implementing intellectual property standards
• AI enterprises with outstanding performance in fighting COVID- 19
• China Patent Excellence Award/Yantai Patent First Prize
• Third Prize of Science and Technology Award of China Federation of Commerce
• Shandong Provincial “Industrial Design Center”
• Gold Award of "Mayor's Cup" of Yantai City
• Silver Medal of Shandong Provincial Governor's Cup
• National level specialized and new little giant
• AI enterprises with outstanding performance in fighting COVID- 19
• China Patent Excellence Award/Yantai Patent First Prize
• Third Prize of Science and Technology Award of China Federation of Commerce
• Shandong Provincial “Industrial Design Center”
• Gold Award of "Mayor's Cup" of Yantai City
• Silver Medal of Shandong Provincial Governor's Cup
• National level specialized and new little giant
Research Team and Automated production base
With over 30,000 square meters of research and production facilities and a 13,000 square meter testing and experimen-tation base, we have cultivated a team of more than 140 employees, Our R&D capabilities are strengthened by the presence of 3 national-level experts, 1 “TaiShan industry leader",4 “TaiShan Scholars", and 1 "New Century Talent.
Production Equipment
Including Laser cutting & bending, Machining, Radial drilling machine, Sawing machine, Machining center, CNC, Welding, Painting Machines to make sure all of the products are home made.
Products Certifications and Patents
Explosion proof certificate
Issued by National Explosion proof Center (highest level: Exdib Ⅱb+H2T6Gb)
Issued by National Explosion proof Center (highest level: Exdib Ⅱb+H2T6Gb)
CE & ISO & US.Patent & Certifications
Total over 300 patents, including not limted:
113 items Invention Patent
55 items Utility model
20 items Registration & Certification
9 items Software work
5 items National
standard
standard
FAQ
Q1: Are you a manufacturer?
Q4:Where are your products sold?
A4: Our products are sold to Southeast Asia, Central Asia, America, and Europe.
Q5: What's your MOQ?
A5: One unit for standard and for OEM or ODM orders, moq is 2 units.
A1: Yes. We are a professional manufacture of Firefighting Robots, Coal Mine Robots, Petrochemical Robots, National Grid Robots, and robotic Chassis from 2004.
Q2: What certificates do you have?
A2: We have CE, ATEX, ISO 9001, ISO 45001, ISO14001 etc.
Q3: What are the advantages of all your models robots?
A3: Our Intelligent Robots has advantages like:
1.We are Original MFR:
with 20 year+ experience, we have our own produce line and the Competitive price Without 3rd-party commission.
2.We have our strong R&D team:
25% of R&D member for Support customized, Support OEM, Support total solution
3.We have Completed production chain:
we have 130,000 ㎡ production base to ensure the Quality & delivery time assured like Production capacity 50 units/month
4.We have Certificated products:
1.We are Original MFR:
with 20 year+ experience, we have our own produce line and the Competitive price Without 3rd-party commission.
2.We have our strong R&D team:
25% of R&D member for Support customized, Support OEM, Support total solution
3.We have Completed production chain:
we have 130,000 ㎡ production base to ensure the Quality & delivery time assured like Production capacity 50 units/month
4.We have Certificated products:
More than 300+ patents, International certificated: CE, ATEX, ISO9001+ISO45001+ISO14001
Q4:Where are your products sold?
A4: Our products are sold to Southeast Asia, Central Asia, America, and Europe.
Q5: What's your MOQ?
A5: One unit for standard and for OEM or ODM orders, moq is 2 units.
