1 тонн 2 тонны или 3 Грузоподъемная машина строительное оборудование подъемники пассажирский лифт Подъемник с сертификатом CE
19 800,00-21 300,00 $
Specially Designed Variable Frequency 1600kg Construction Hoist for
- Категория: >>>
- Поставщик: Dahan Technology Co. Ltd.Dahan Ltd.
Сохранить в закладки 1601352221502:
Описание и отзывы
Характеристики
About our products

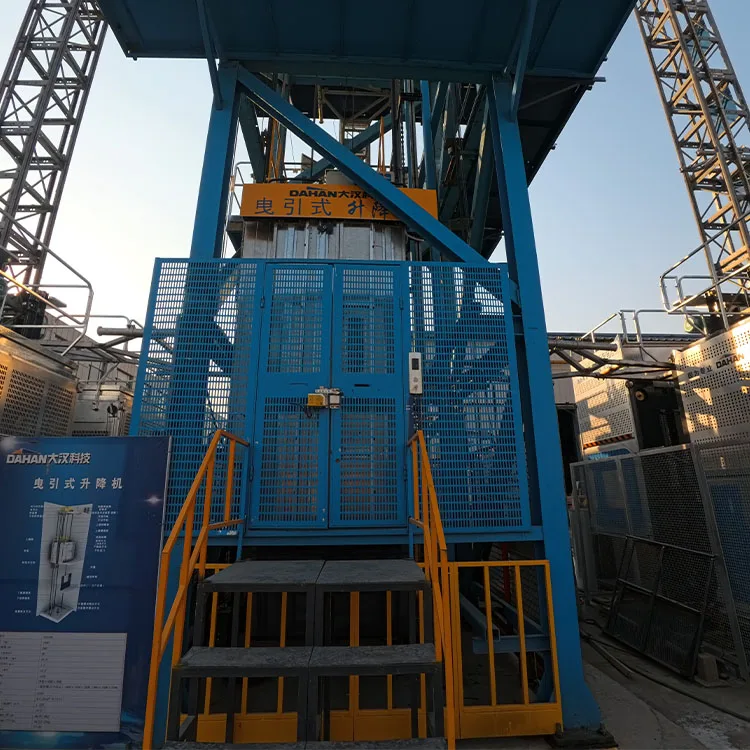

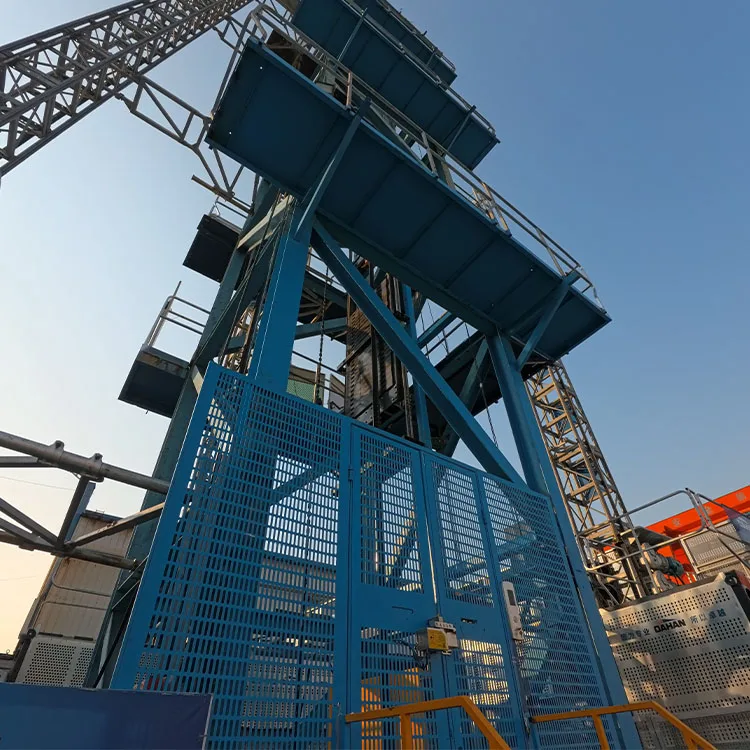

Product display

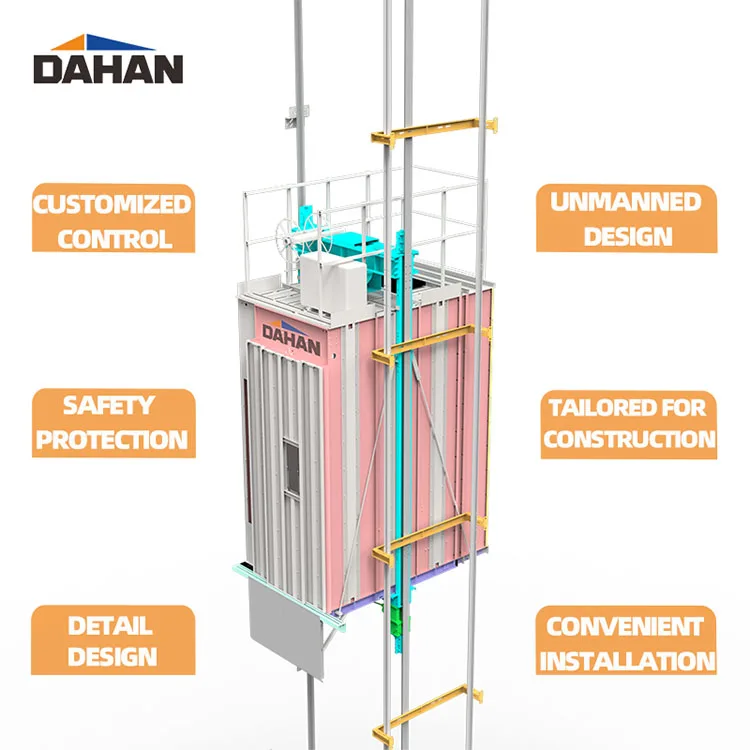

3D Product Diagram
Product Paramerers
Parameter table of traction ladder | ||||||
No | Item | Parameter | Remarks | |||
1 | Model | SSD160A | ||||
2 | Rated load | 1600kg | ||||
3 | Rated speed | 105m/min(1.75m/s) | ||||
4 | Number of people | 8+1persons | ||||
5 | Cage size | Width (1,500)*Depth (1,900-2,600)* Height (3,100)mm | Non-standard customization is available | |||
6 | Door opening size | Width (1,200)*Height (2,700)mm | Non-standard customization is available | |||
7 | Well size | Width(≥2,100)*Depth(≥2,100)mm | Non-standard customization is available | |||
8 | Drag mode | Permanent magnet synchronous motor without gear box | ||||
9 | Control mode | VVVF(variable-frequency speed control system) | ||||
10 | Maximum installation height | 300m | Non-standard customization is available | |||
11 | Motor power | 18.2Kw | ||||
12 | Control cabinet | 22Kw | ||||
13 | Wire rope | 5-φ12 | ||||
Configuration list | ||||||
No | Item | Configuration | Remarks | |||
1 | Opening mode | Automatic door opening | ||||
2 | Cage material | 1.5 mm texture stainless steel | Non-standard customization is available | |||
3 | Waterproof cage | Standard | ||||
4 | Lidaranti-pinch monitoring | Standard | ||||
5 | Remote monitoring | Optional | ||||
6 | Number recognition intelligent control | Optional | ||||
7 | One-click call rescue device | Optional | ||||
8 | Bluetooth debugging | Standard | ||||
9 | First floor maintenance and operation | Standard | ||||
10 | Folding table and chair set | Standard | Without when there is no driver | |||
11 | Aluminum alloy ladder | Standard | ||||
12 | Energy and time feedback device | Optional | ||||
13 | Power outage emergency leveling | Optional | Power outage automatic leveling | |||
14 | Intelligent floor door lock | Optional | Choose when there is no driver | |||
15 | Cage air conditioning | Optional | ||||
16 | Self-climbing device | Optional | Choose for ascending self-climbing | |||
17 | Door opening hold function | Standard | ||||
18 | Voice announcement function | Standard | ||||
19 | Driver operation running | Standard | ||||
20 | Low speed self-rescue function | Standard | ||||
21 | Overload protection function | Standard | ||||
22 | Running time/frequency record | Standard | ||||
23 | Faultdata record | Standard | ||||
24 | Idle return to base station function | Standard | ||||
About our Company
FAQ
Q1:Which country do you export to? Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc. Middle
east:Saudi Arabia,UAE,Jordan,Oman,Pakistan,etc. Europe:Russia,Ukraine,Belarus,Bulgaria,etc. Africa:South
Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Venezuela,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
60% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term
customers.TT,L/C,D/P,depending on the cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
Q5 Aftersales service?
Free Wearing Parts offered for change when delivery; video support, manual support; 24/7 online video support;
Q6 OEM ?
Yes,customs logo always welcome;
east:Saudi Arabia,UAE,Jordan,Oman,Pakistan,etc. Europe:Russia,Ukraine,Belarus,Bulgaria,etc. Africa:South
Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Venezuela,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
60% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term
customers.TT,L/C,D/P,depending on the cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
Q5 Aftersales service?
Free Wearing Parts offered for change when delivery; video support, manual support; 24/7 online video support;
Q6 OEM ?
Yes,customs logo always welcome;
