Источник питания в режиме переключателя постоянного тока источник высокого напряжения 20 кВ 12 В 30 А
- Категория: >>>
- Поставщик: Shenzhen Lester Lighting Technology Company LimitedShenzhen Limited
Сохранить в закладки 1601352461471:
Описание и отзывы
Характеристики
Recommend Products
150W 12V Waterproof power supply
Aluminum Shell IP67 Waterproof Ultra Thin Series
150w 24vdc output, 100-240vac input
led switching power supply/lighting transformer
( Package: 1 x CLPS150-W1V24 )
| FX 250W | ||||||||||
| FEATURES | ||||||||||
| 100% full load burn-in test | ||||||||||
| Universal AC input | ||||||||||
| Small size,light weight and high efficiency | ||||||||||
| Conform to EMC EN5502 GB9254 | ||||||||||
| Stable output current, both double insulated wire AC&DC | ||||||||||
| Comply with the safety standards GB4943 IEC60950-1 EN60950-1 | ||||||||||
| Protection: short circuit/over current/over load/over temperature | ||||||||||
| MODEL | CLPS150-W1V12 | CLPS150-W1V24 | ||||||||
| OUTPUT | DC VOLTAGE | 12.6V | 25.2V | |||||||
| VOLTAGE TOLERANCE | ±5% | ±5% | ||||||||
| RATED CURRENT | 12.5A | 6.25A | ||||||||
| CURRENT RANGE | 0-12.5A | 0-6.25A | ||||||||
| RATED POWER | 150W | 150W | ||||||||
| RIPPLE& NOISE (MAX.) | 120mVp-p | 150mVp-p | ||||||||
| POWER FACTOR(Typ.) | 0.6 | 0.6 | ||||||||
| INPUT | VOLTAGE RANGE | 100-240VAC | ||||||||
| FREQUENCY RANGE | 50/60 Hz | |||||||||
| AC CURRENT(Typ.) | 2.56A/115V;1.28A/230V | |||||||||
| EFFICIENCY(Typ.) | 85%/87% | |||||||||
| COLD START CURRENT | 30A/AC220V | |||||||||
| SETUP, RISE, HOLD UP TIME | 200ms, 100ms, 30ms | |||||||||
| NO-LOAD CURRENT | <50mA/240VAC | |||||||||
Product Wiring

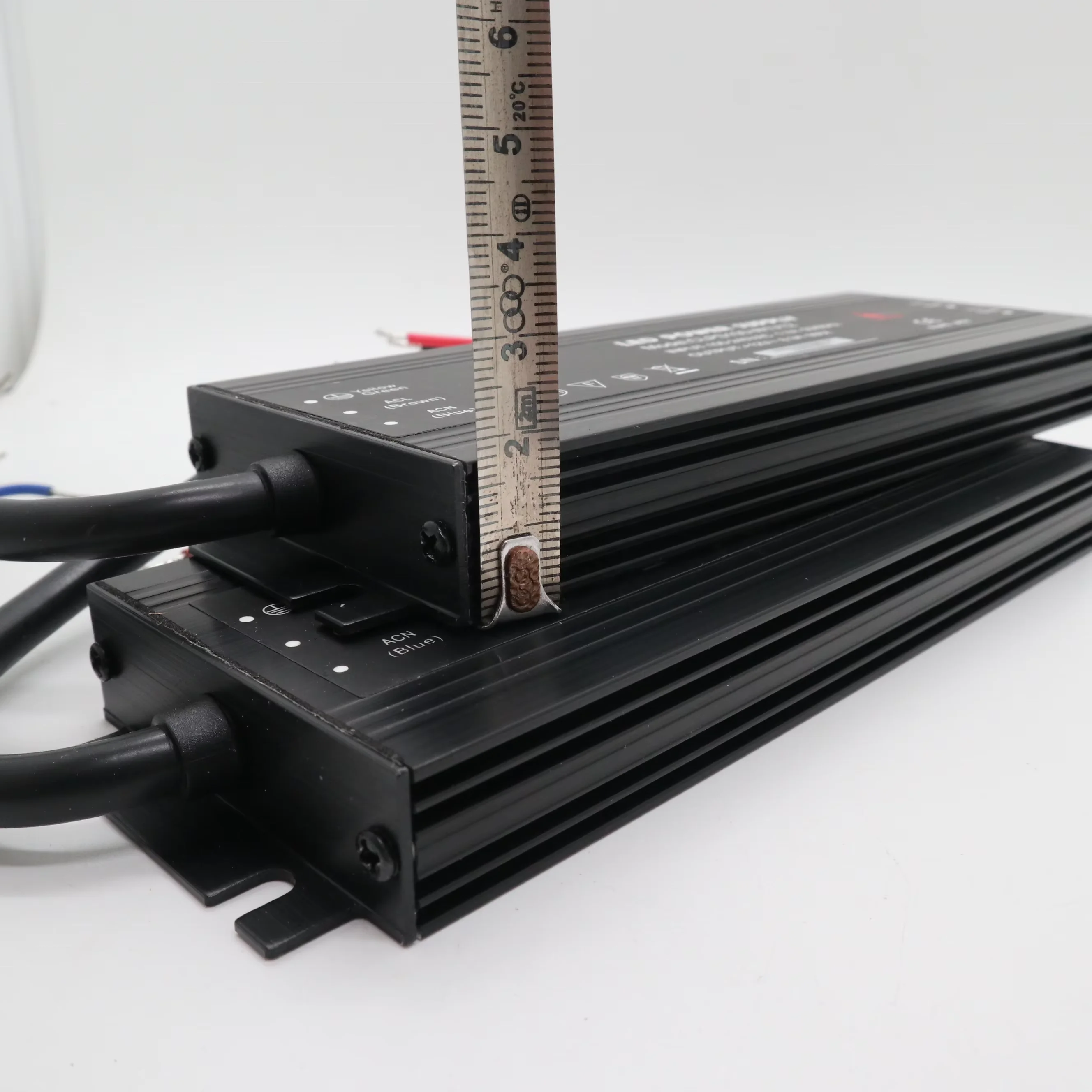

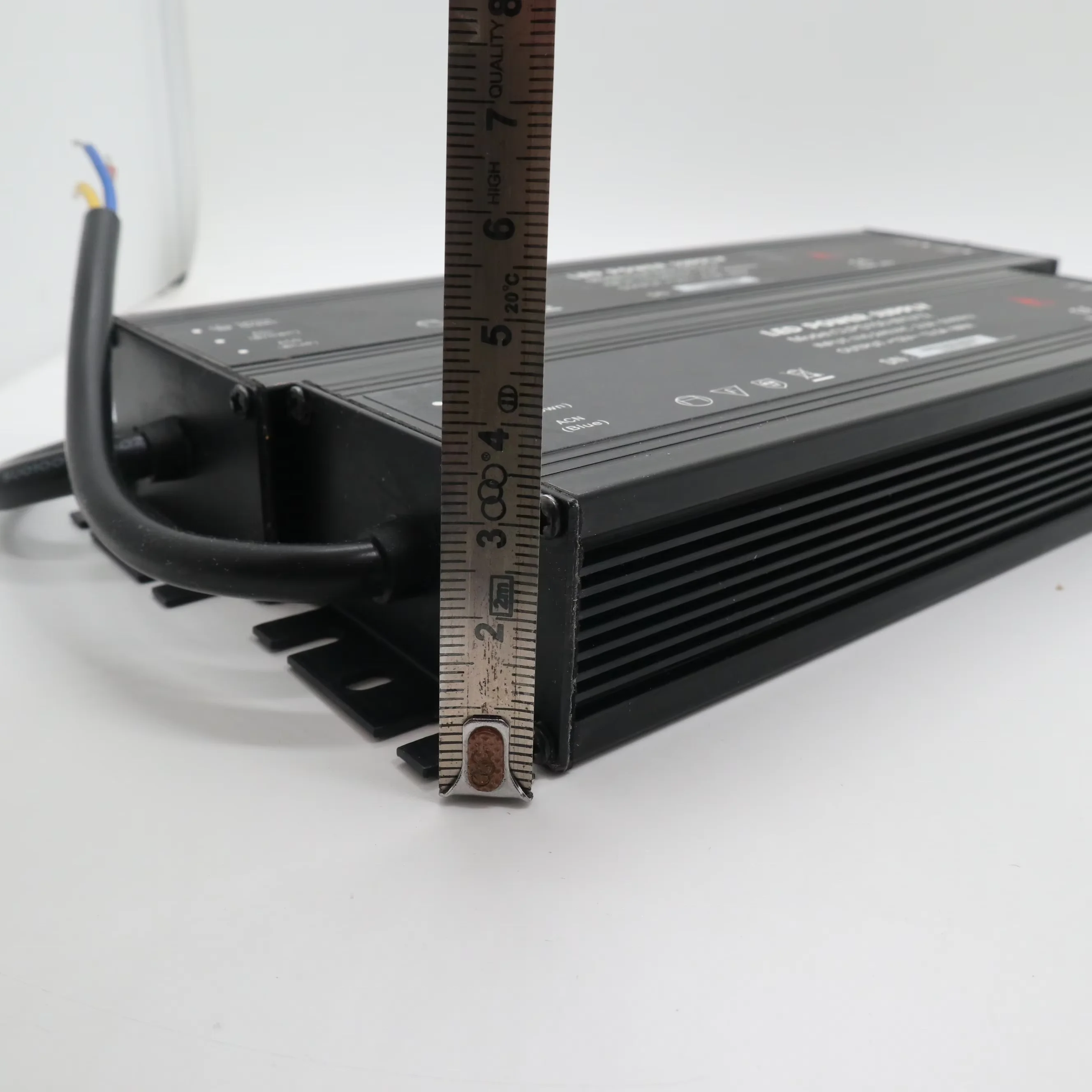

Product Dimension(mm)
59*32.3*207.8mm
Product Packing
100% Brand New, High Quality
Waterproof Electronic LED Driver
Switching voltage: AC 110-260V to DC12V or DC24V or DC36V or DC48V
Output: 12V 10W /15W /20W /25W /30W/ 36W /45W /50W / 60W /80W/ 100W/120W/150W/200W/250W/300W
24V 10W /15W /20W /25W /30W/ 36W /45W /50W / 60W /80W/ 100W/120W/150W/200W/250W/300W
Size:
DC12V /DC 24V -10W : 132*30*20
DC12V /DC 24V -15W : 132*30*20
DC12V /DC 24V - 20W : 182*30*20
DC12V /DC 24V - 25W :182*30*20
DC12V /DC 24V -30W : 182*30*20
DC12V /DC 24V - 36W : 182*30*20
DC12V /DC 24V - 45W : 222*30*20
DC12V /DC 24V - 50W : 222*30*20
DC12V /DC 24V - 60W : 190*48*34
DC12V /DC 24V - 80W : 190*48*34
DC12V /DC 24V - 100W : 180*69*43
DC12V/DC24V-120W:215*69*43
DC12V/DC24V-150W:245*70*48
DC12V/DC24V-200W:245*70*48
DC12V/DC24V-250W:235*120*56
DC12V/DC24V-300W:235*120*56
Trade term:
Payment: T/T or Western Union in advance.
MOQ: 50 pcs. No MOQ set for sample order.
Lead time: 3-7 days for sample order,10 to 15 days after large order
Shipping methods: by international express.
Shipping freight are quoted under your requests.
Shipping Port: Shenzhen, China
Discounts are offered based on order quantities
Our service:
1. Your inquiy related to our products or prices will be replied in 24hrs
2. Customers’ company LOGO, website or item number can be printed on the PCB board or back of aluminum body
3. OEM &ODM, and your customized lightings we can help you to design and put into products.
4. Protection of your sales area, ideas of design and all you provide information
5. A large stock at least 500pcs
Company Information
About Guarantee
1. 100% new. Original packing.
2. 2 years Manufacturer’s limited Warranty for defective items (excluding items damaged and/or misused after receipt).
3. Defective items please open its case and take detailed photos.
Then send to the seller to discuss how to do next, repair or replacement.
0~6 months. Not working and seller promise to send back to repair. The seller will pay both the shipping fee.
6~12 months. Not working and seller promise to send back to repair. The buyer will pay the shipping fee from buyer's address to seller's address
and the seller will pay the shipping fee from seller's address to buyer's address after repairing.
12~24 months. Not working and seller promise to send back to repair. The buyer will pay both the shipping fee.
4. We don't repair or replace item withan expired warranty.
About Feedback
1. Your feedback is very important to other buyers and us. Just 1~2 mins, your feedback can help many others.
2. The buyer who left feedback will get discount coupon randomly.
3. No doubt to leave your 4 or 5 stars feedback and words about our product and service.
4. Before leaving your 3/2/1 stars feedback, contact the shopkeeper to find the solution. We will try our best to help you and your satisfaction.
