Линейный модуль шариковой винтовой направляющей MCL06030H10K MCM03015 MCM05025 MCM08048 H051020K00 MCH06030H резьбовой вал линейный привод
45 250,24-47 512,76 ₽

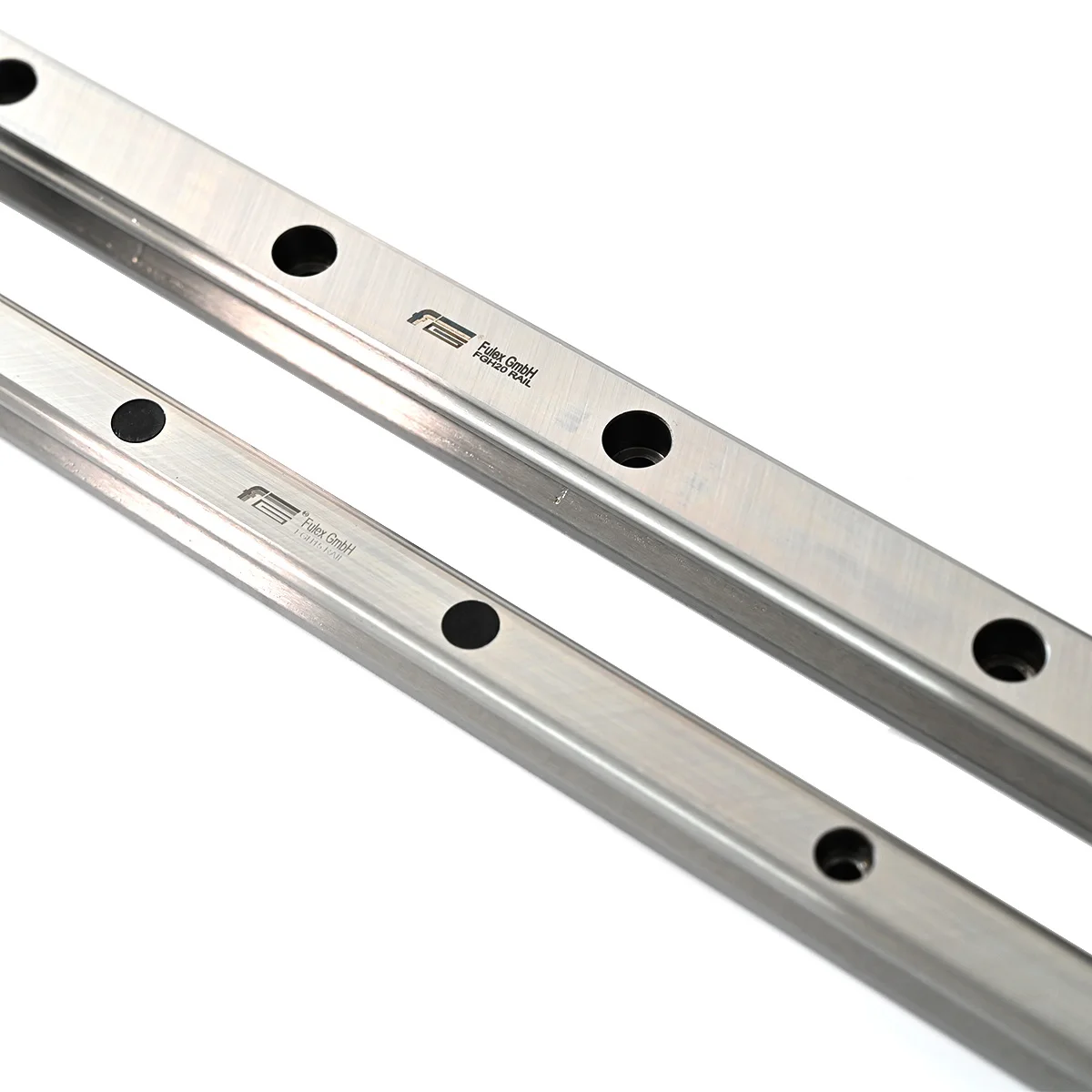

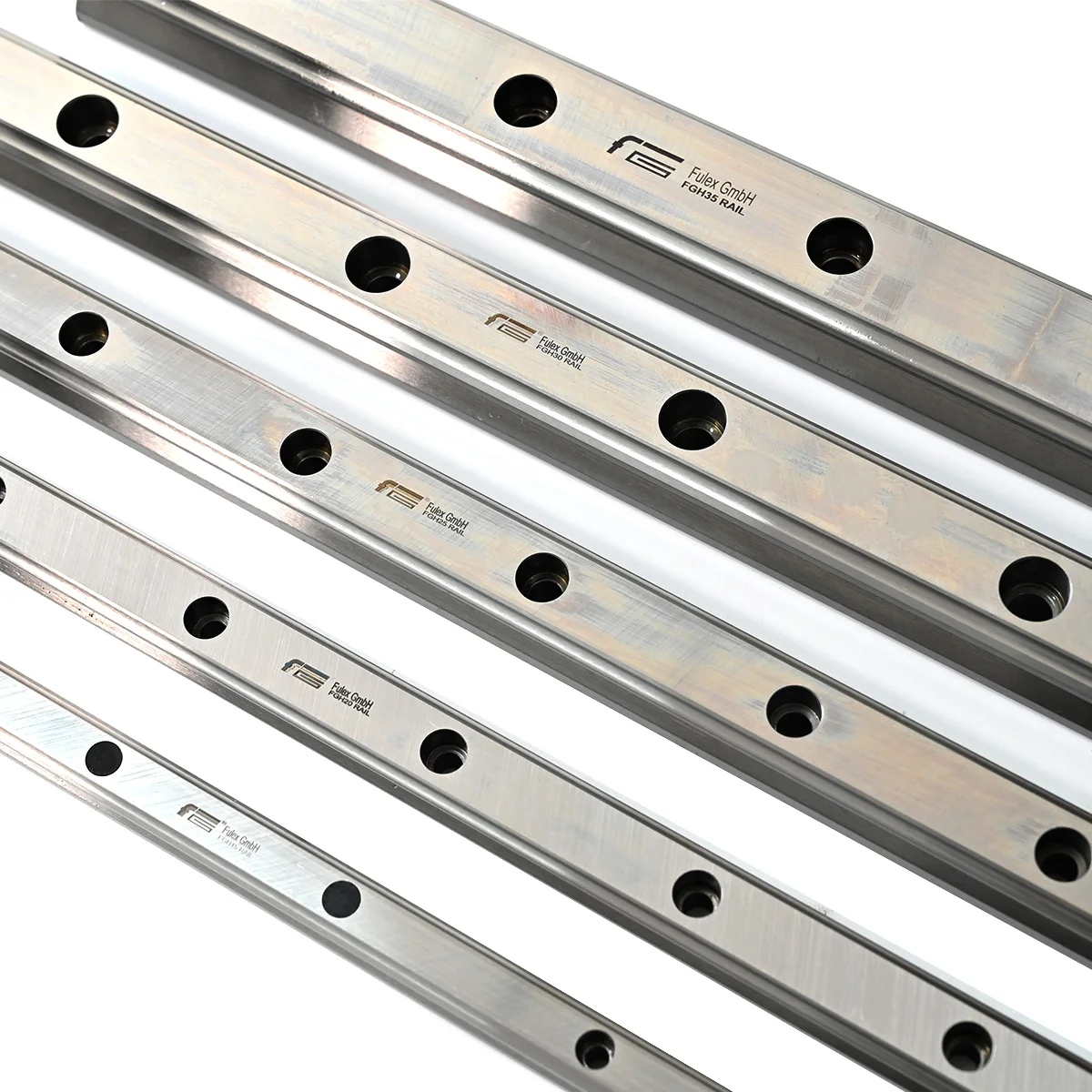

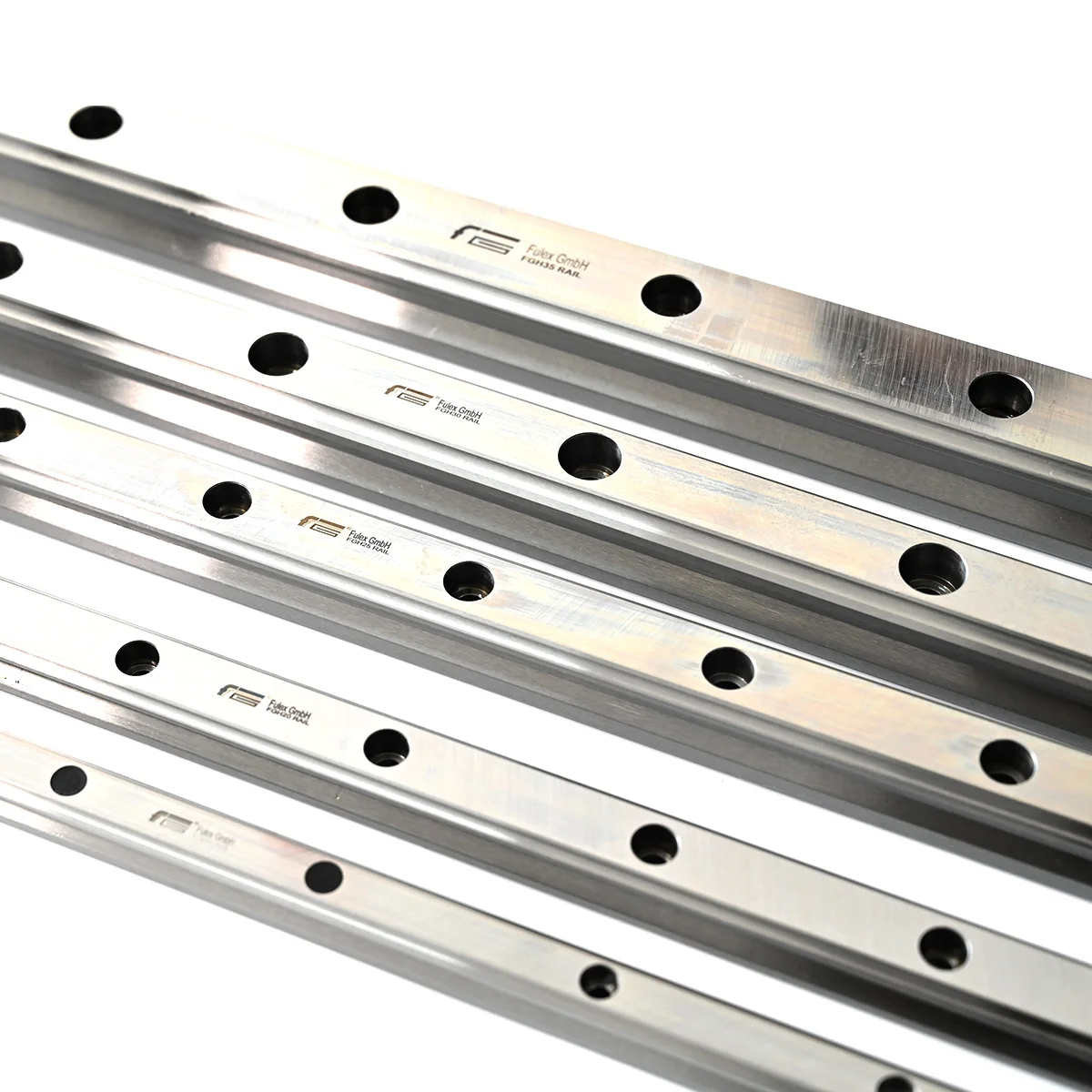

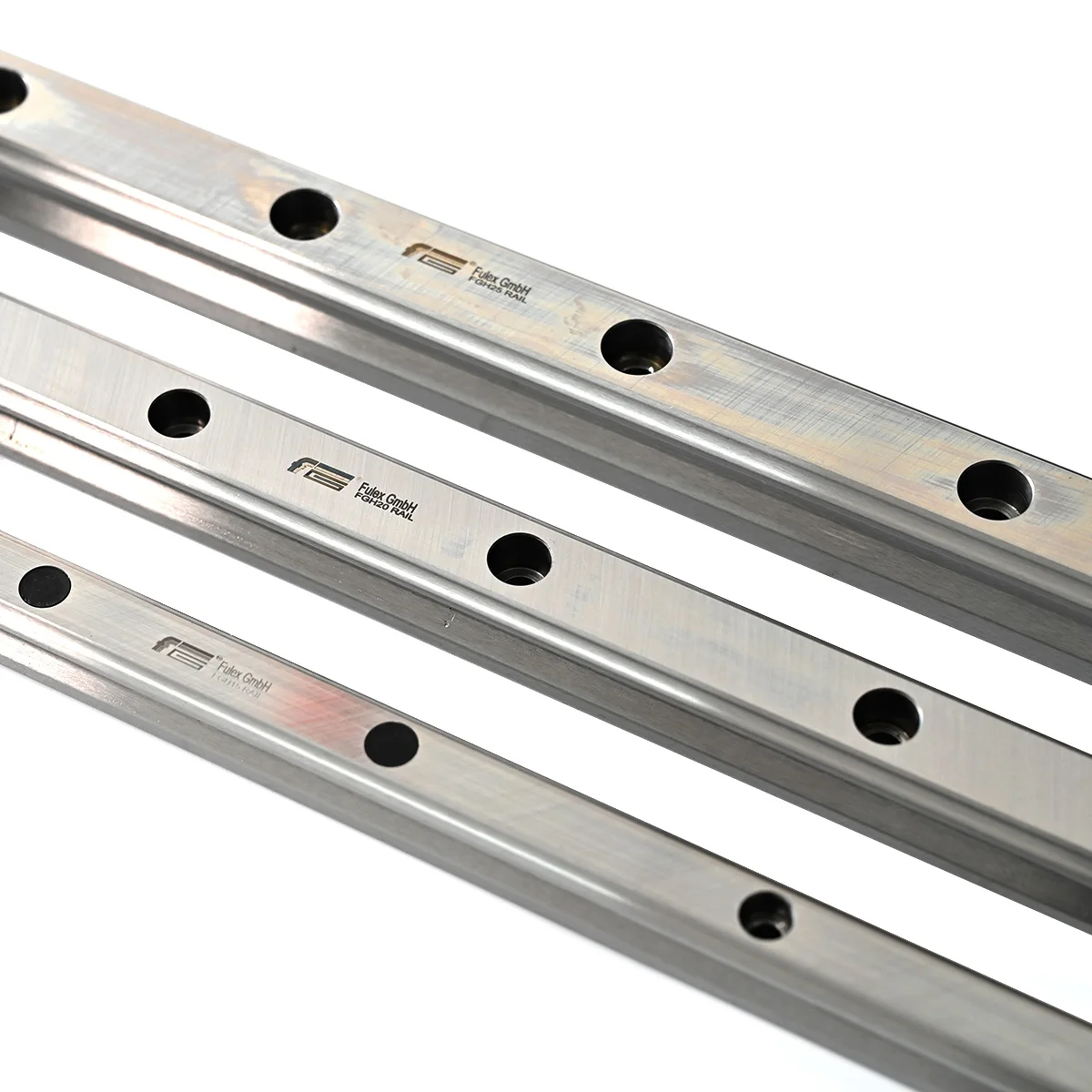

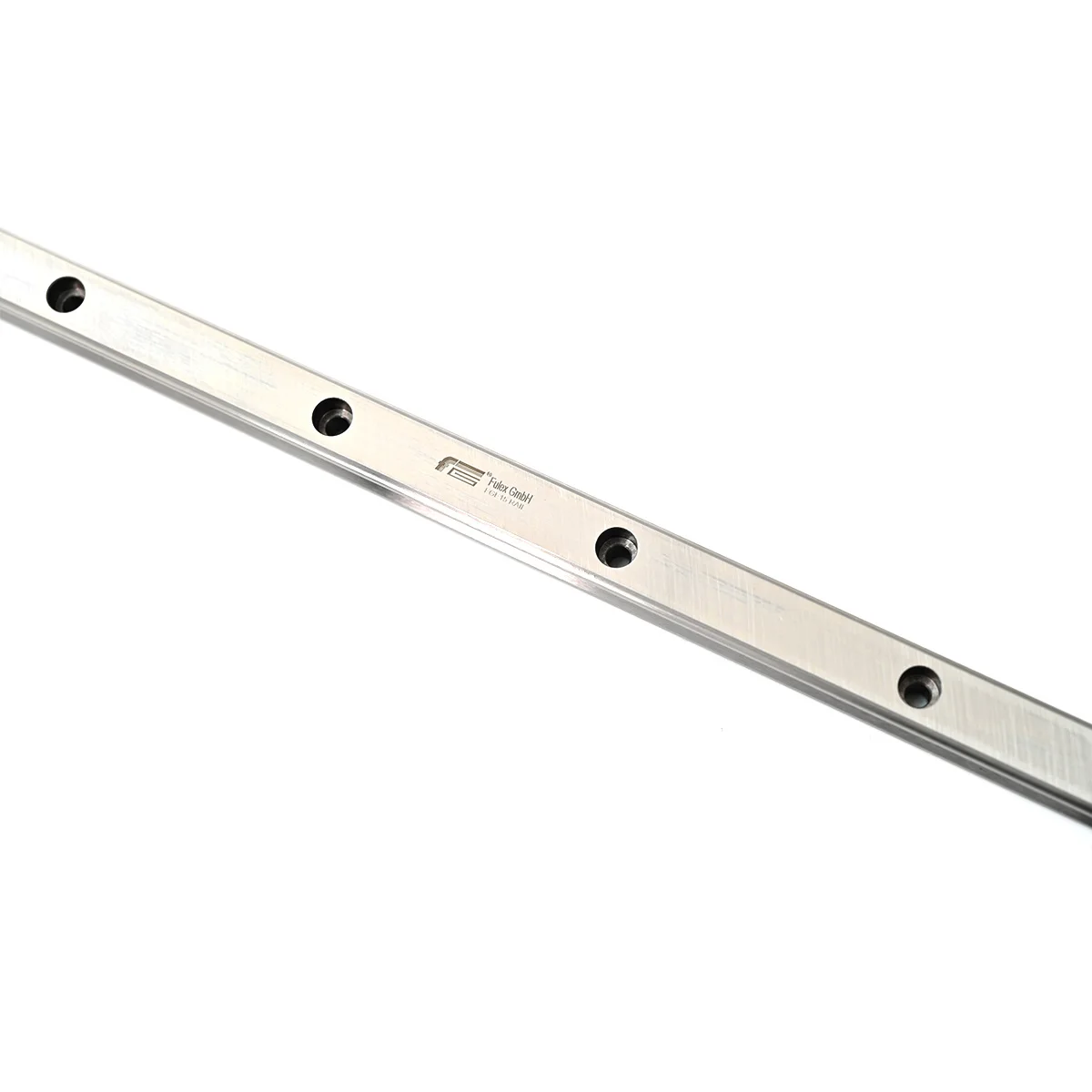

FGHR15R2400C может заменить линейную направляющую HIWIN с сильной взаимозаменяемостью и высокой стоимостью
- Категория: >>>
- Поставщик: Shandong Jieyin Electromechanical Technology Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601352493830:
Описание и отзывы
Характеристики
Product Description
Linear guide rail is a mechanical transmission component that moves on a guide rail by sliding a load. It consists of a slider, guide rail, and ball bearings. The slider is equipped with ball bearings, which slide on the guide rail through rolling, allowing the guide rail to have high-precision linear motion. The material of the slider and guide rail is usually high-strength alloy steel or S55C carbon steel, which is processed and heat-treated with precision to give its surface high hardness and low friction coefficient. This design enables linear guides to have high positioning accuracy, high speed, and wear resistance
| specifications | FGHR15R | |||||
| Slider material | SCM420H alloy steel | |||||
| Linear guide rail material | S55CCarbon Steel | |||||
| Matchable slider type | Square type heavy load, square type overweight load, flange type heavy load, flange type overweight load, | |||||
| accuracy class | C,H,P | |||||
| advantage | The four column single arc tooth contact linear guide, combined with the optimized structural design of heavy-duty precision linear guide, enhances the load and rigidity capabilities; Featuring four-way load characteristics and automatic centering function, it can absorb assembly errors on the installation surface and meet high-precision requirements. | |||||
| length | Custom-defined, can accept multi-segment splicing. | |||||
| Splicing process | End face grinding and docking, with an error controlled within 5 threads | |||||
| Application | Mechanical machining centers, injection molding machines, tool machines, punch presses, precision machining machines, heavy-duty cutting machines for automation devices, transportation equipment, marble cutting machines, measuring instruments, and grinding machines. | |||||
Company Information
Shandong Jieyin Electromechanical Technology Co., Ltd. was established on November 4, 2014, located in Jinan City, Shandong Province. The company focuses on the mechanical transmission industry and is a comprehensive company that integrates production and sales. Its products include slides, screws, modules, racks, etc. Our company is a strong agent of the Faure brand, adhering to the service concept of "customer first", serving every customer with care, resolutely implementing product quality, strictly demanding high standards, and striving to provide customers with convenient, fast, high standard, and high-quality services.
We firmly believe that quality creates a brand, and integrity shapes the future
Our vision is to build the company into a leading world-class revival enterprise in the industry
Benefit all customers from the company
Benefit all employees of the company
Product specificatio
Usage of linear guid
| 1. Before installing the linear guide rail, it is necessary to check the geometric shape, size, and cleanliness of the rail. To ensure that the geometric shape of the guide rail meets the design requirements, the dimensions are accurate, the surface is smooth, and the installation foundation of the guide rail is flat, rigid, and free of debris. Before installation, it is necessary to carefully clean the surface of the guide rail to avoid the influence of debris on the motion accuracy. | ||||||
| 2. When installing linear guides, professional installation tools are required to ensure that the parallelism and perpendicularity of the slider and guide rail meet the design requirements. For equipment with long axis or multiple guide rail arrangements, the relative position between each guide rail should be adjusted to meet the design requirements. | ||||||
| 3. When operating, it is necessary to choose the load and stroke of the guide rail reasonably, and avoid exceeding its load range. At the same time, the weight of the slider should be balanced to prevent tilting or rusting. | ||||||
| 4. Regular maintenance and cleaning of dust and foreign objects should be carried out on the guide rail during use. If there are issues such as poor sliding or abnormal noise, inspection and repair are necessary. At the same time, attention should be paid to waterproofing, moisture resistance, and corrosion prevention to ensure the long-term service life of the guide rail. |
Warehouse reality
