Product Description
LX-225 servo is a full metal gearserial bus servo with three connectors. The servo can be connected in series, simplifying the wire connection.It can provide temperature, position feedback. LX-225 servo can be used in different bionic robot joints.
Packing List
* 1*LX-225 servo
* 1*Plastic main servo horn
* 1*Plastic assistant servo horn
* 1*Servo wire(200mm)
* 1*Screw package
* 1*Plastic main servo horn
* 1*Plastic assistant servo horn
* 1*Servo wire(200mm)
* 1*Screw package

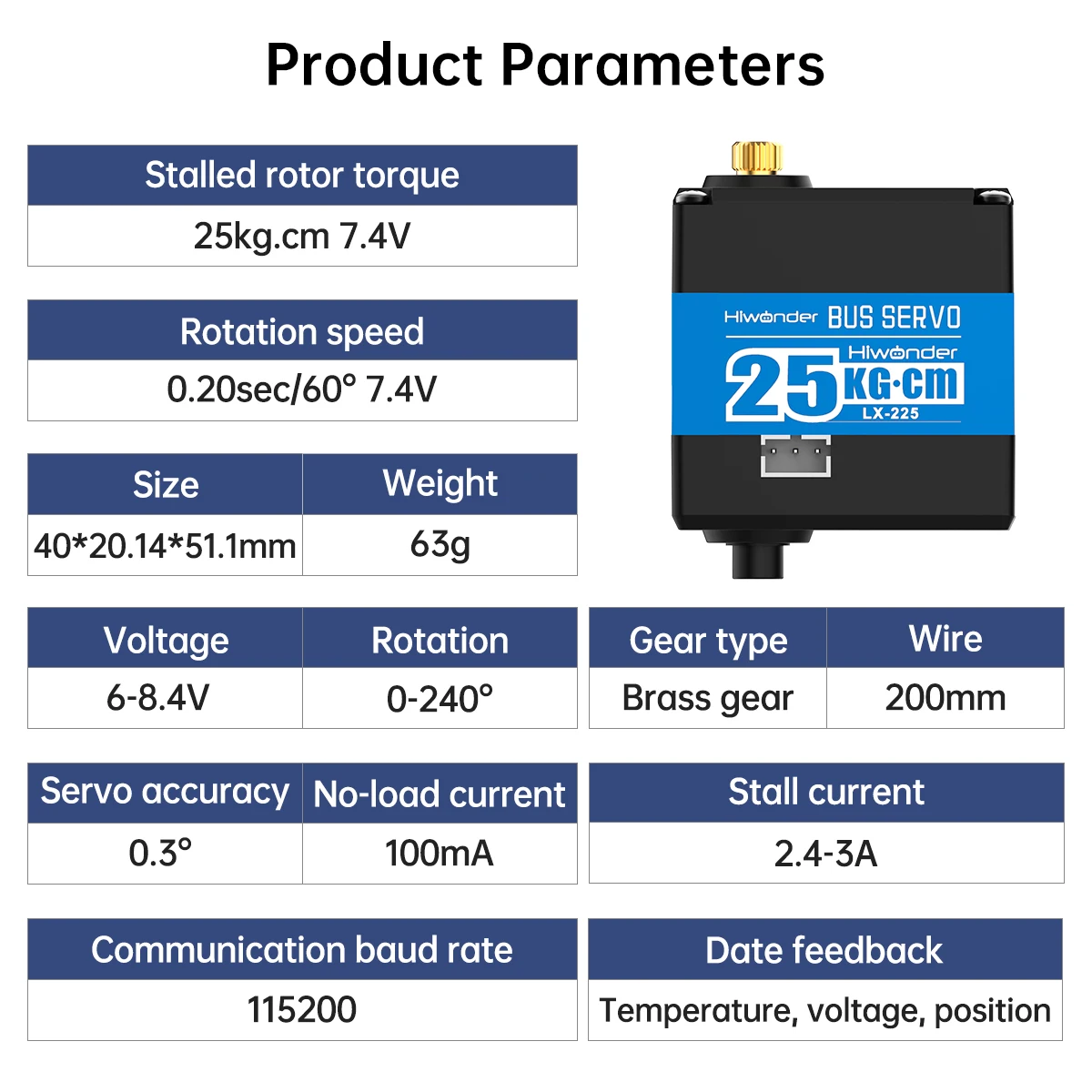

Weight | 63g |

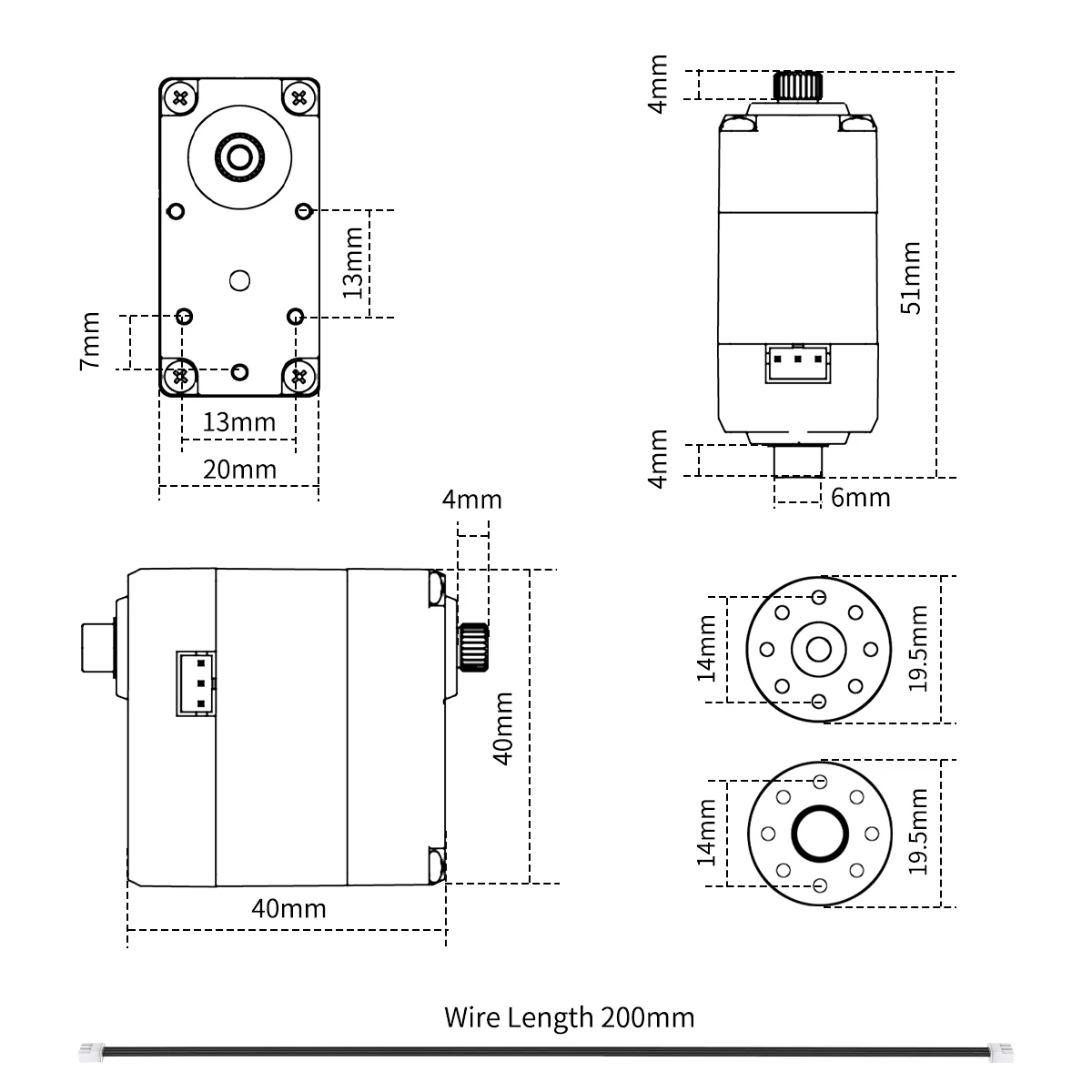

Size | 40x20.14x51.1mm |
Working voltage | 6-8.4V |
Speed | 0.20sec/60°7.4V |
Torque | 25kg.cm 7.4V |
Rotation | 0-240° |
No-load current | 100mA |
Stall Current | 2.4~3A |
Servo accuracy | 0.3° |
Control method | UART serial command |
Communication baud rate | 115200 |
Storage | Save data when the power off |
Servo ID | 0~253 for user setting, ID 1 is default |
Angel read back function | Support |
Protection | Avoid stalling and overheat |
Data feedback | Temperature, Voltage, Position |
Working mode | Servo mode and deceleration motor mode |
Control angle range | 0-1000, correspond to 0-240 |
Wire | 200mm |

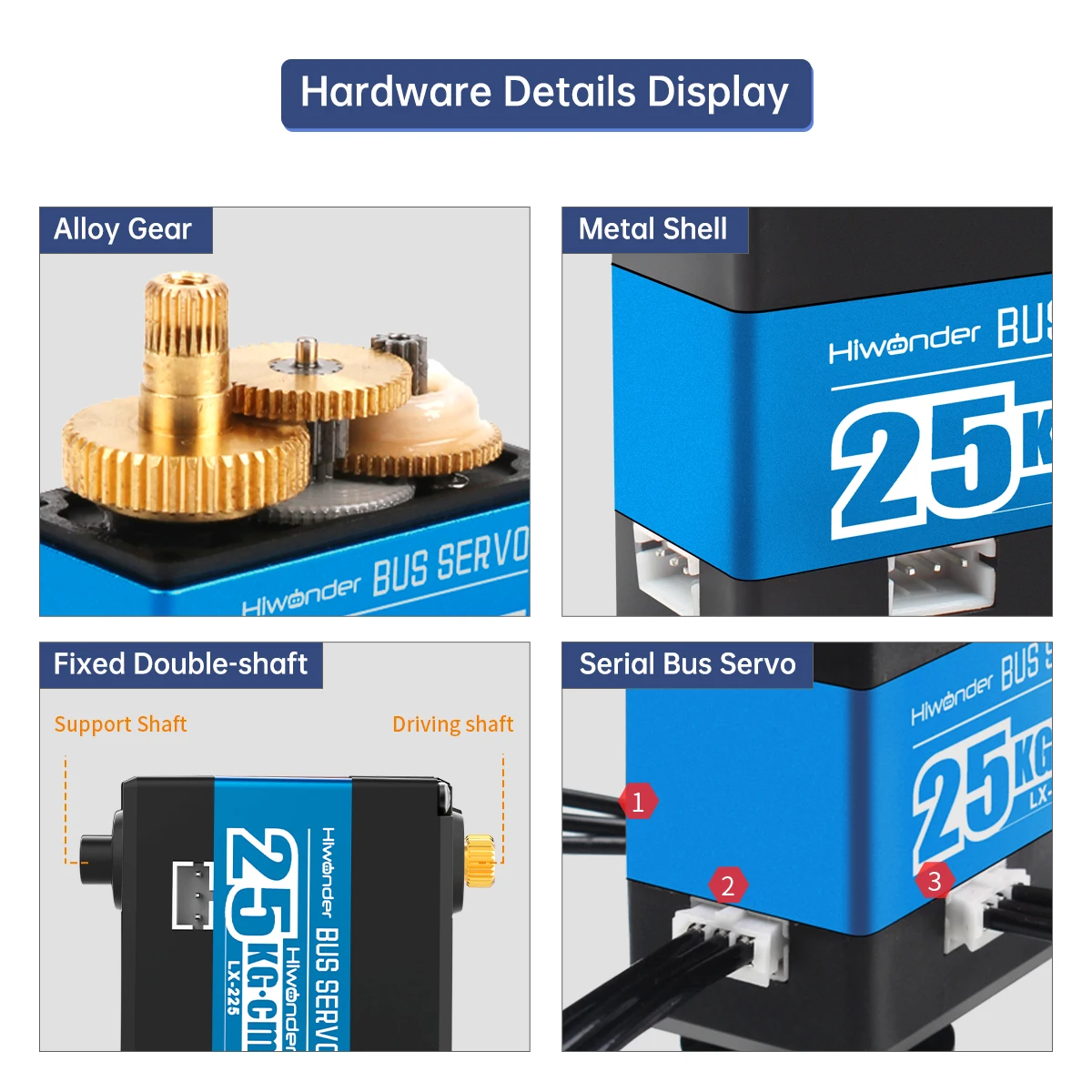

Gear | Metal |

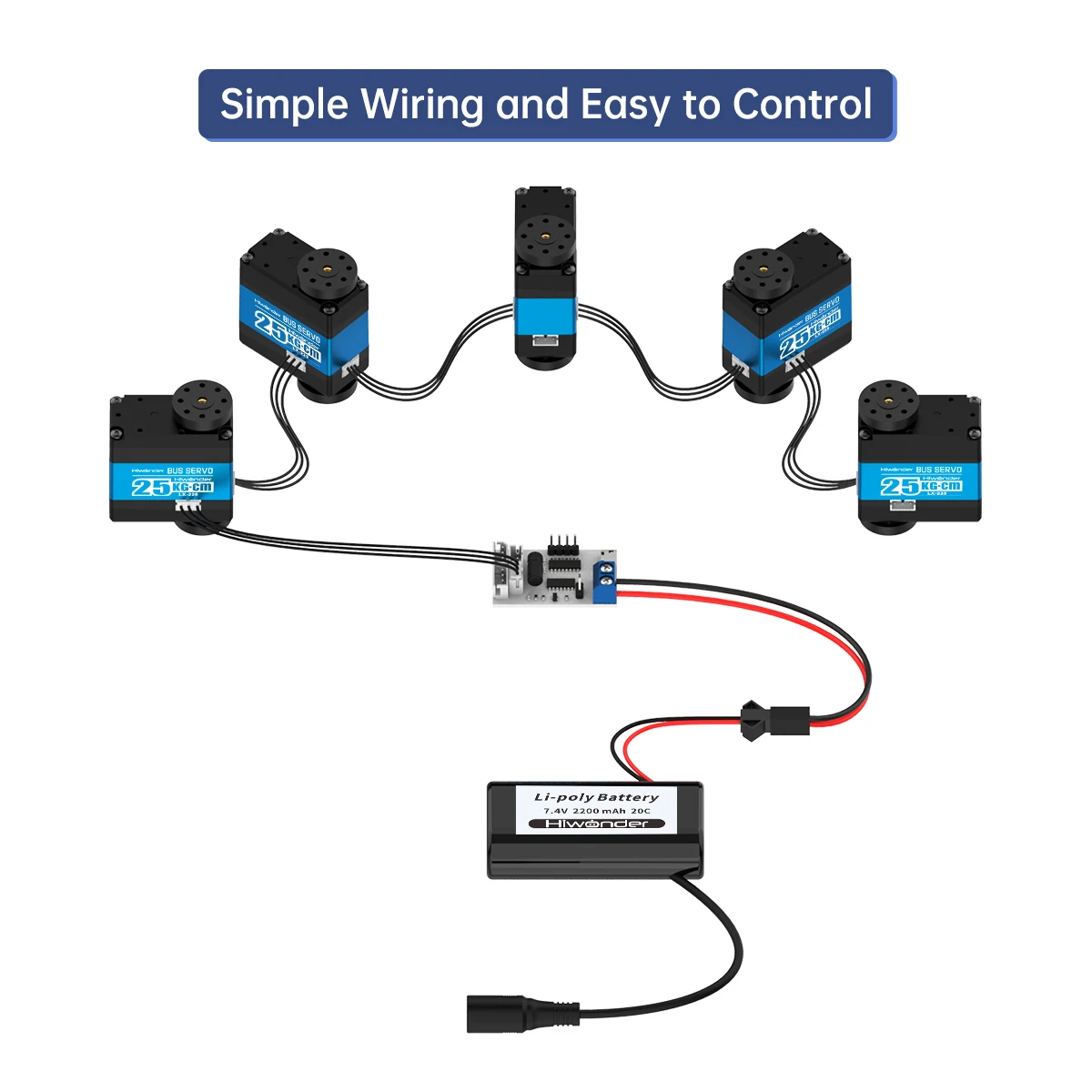

Bus Servo Communication
The user can set and assign an ID number to each servo, and use the controller to issue instructions to make the servo perform actions according to the instructions.
High-voltage Servo and 35KG Large Torque
The servo has a maximum torque of 25kg.cm 7.4V, which is powerful and gives your robot plenty of power.
High Quality Potentiometer
The servo adopts a high-precision potentiometer, which improves the accuracy and linearity, makes the operation more stable and prolongs the service life.

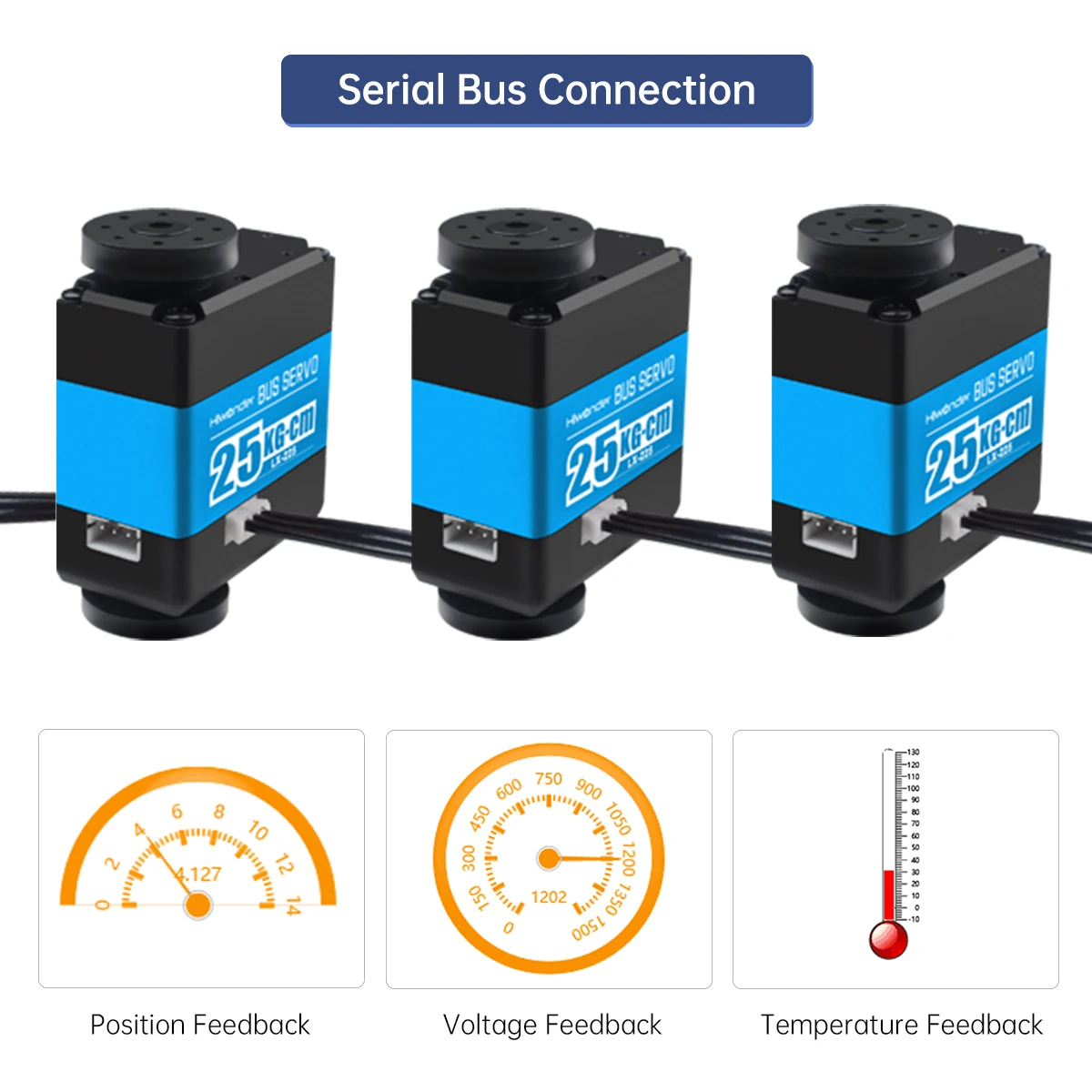

Intelligent Feedback and Two Working Modes
The servo supports servo mode and reduction motor mode, and has position, temperature and voltage feedback to protect the normal operation of the servo.
