3MP:
| 3MP WIFI RTMP |
Main control chip | MSC335 |
imaging sensor | 1 / 2.9 " 3-megapixel low-illumination CMOS |
video processing | H.265+/H.265/H.264 Video coding, support code stream 0.1 M ~ 8 Mpbs adjustable; support frame rate 1~ 1 5 frames / s adjustable; |
image output | Main code stream: 23041296,19201080,1280720; |
Subcode stream: D1, VGA, 640360; | |
Audio interface | Support 1 channel MIC input, 1 road with power amplifier output (8 Ω 2W / 4 Ω 3W); |
Audio processing | G.711 encoding standard, support two-way voice intercom, support audio and video synchronization; |
network interface | 1 RJ 45 Ethernet interface, 10 / 100M adaptive; |

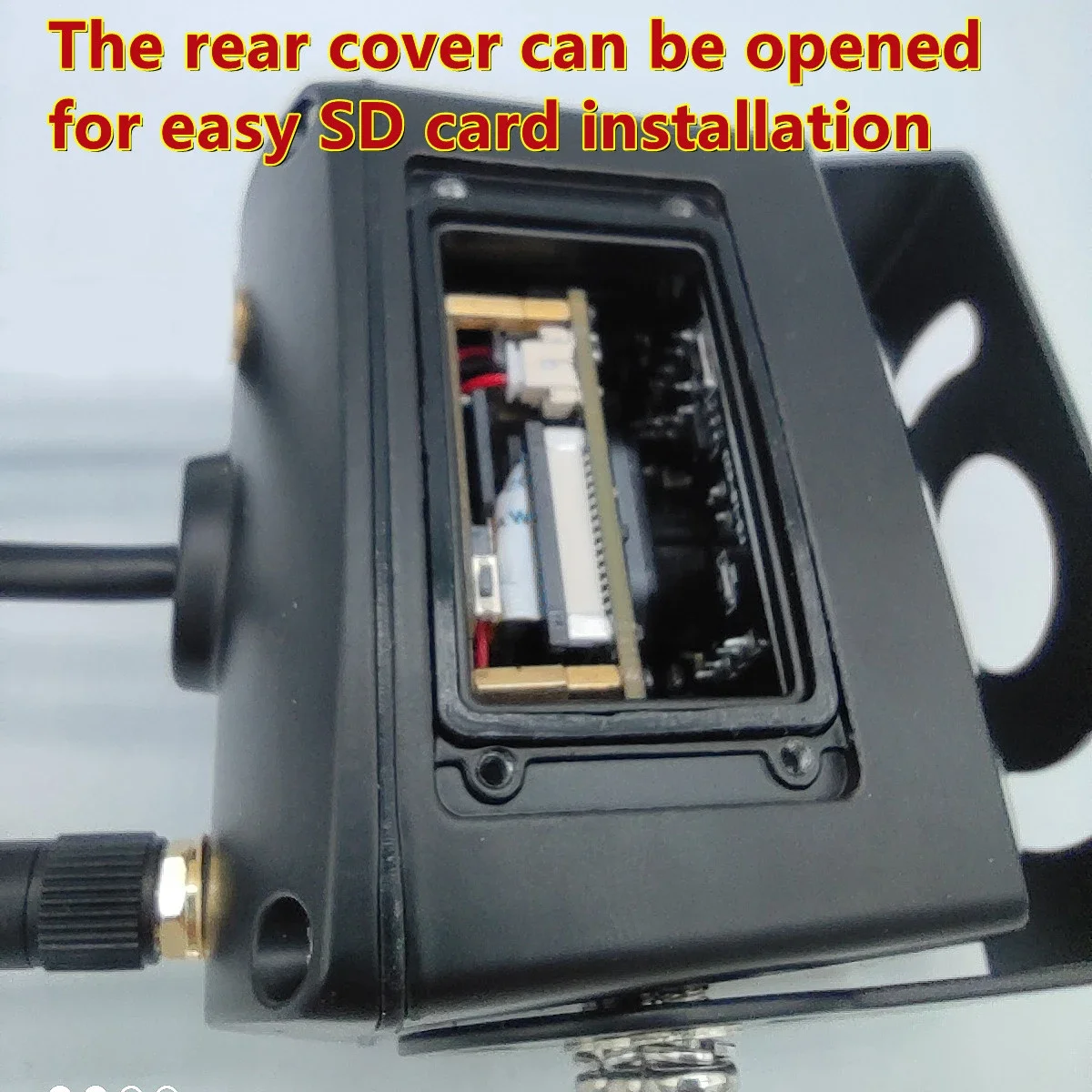

TF joggle | 1 TF storage interface, up to 256G support; |
WiFi | Support for the 2.4GHz,1T1R,IEEE802.11b/g/n protocol; |
Reset key interface | Support for hardware reset; |
reliability | Power supply, network comprehensive lightning protection, in line with the national standard GB / T17626.5, international standard IEC61000-4-5; |
Business function | Support OSD, support real-time audio and video transmission, humanoid detection, dual-light source alarm, sound alarm; |
networking protocol | Support for TCP / TP, IPv4, DHCP, RTSP, P2P; |
Mobile phone monitoring | Support mobile phone monitoring (iOS, Android) support AC18Plus / doodle / Danale optional services; |
source | The DC12V power supply input interface |
work environment | -20~65℃ |
5MP:
model |
|
Main control chip | SSC377D |
imaging sensor | 5 megapixels, 1 / 3 " CMOS |
video processing | H.265+/H.265/H.264 Video coding, support code stream 0.1M~4Mbps adjustable; support frame rate 1~25 frames / s adjustable; |
image output | Main code stream: 25 FPS @ (25921944,25601440,23041296,19201080,1280720); |
Subcode stream: D1, VGA, 640360; | |
Audio interface | Audio linear 1 input 1 output; |
Audio processing | G.711 encoding standard, |
IRCUT joggle | Integrated IRCUT switching circuit, automatic / external control / manual / timing to control the IRCUT day and night mode |
network interface | 1 RJ 45 Ethernet interface, 10 / 100M adaptive; |
Lamp interface |
|
reliability | Power supply, network comprehensive lightning protection, in line with the national standard GB / T17626.5, international standard IEC61000-4-5; |
Business function | Support OSD, support real-time audio and video transmission, accurate humanoid detection, |
networking protocol | Support for network protocols such as HTTP / RTSP / DHCP / NTP / ONVIF |
source | The power consumption of the DC12V power input interface is 120mA |
work environment | -40~+65℃ |
size |
