Высокая отражательная способность плоское Солнечное Зеркало слот для системы солнечной энергии
- Категория: >>>
- Поставщик: Qingdao Ultra Beauty Glass Technology Co. Ltd.Qingdao Ltd.
Сохранить в закладки 1601353428044:
Описание и отзывы
Характеристики
Solar thermal power generation
Solar thermal power generation refers to the use of large-scale arrays of parabolic or disc-shaped mirrors to collect solar thermal energy, provide steam through heat exchange devices, and combine traditional turbine generator processes to achieve the purpose of power generation. By adopting solar thermal power generation technology, the expensive silicon crystal photoelectric conversion process is avoided, which can greatly reduce the cost of solar power generation. Moreover, this form of solar energy utilization has an advantage that other forms of solar energy conversion cannot compare to, that is, the water heated by solar energy can be stored in huge containers and can still drive steam turbines to generate electricity several hours after the sun sets.
Solar thermal power generation is an important direction for the utilization of new energy. There are four main forms of systems: trough type, tower type, Fresnel type, and disc type.

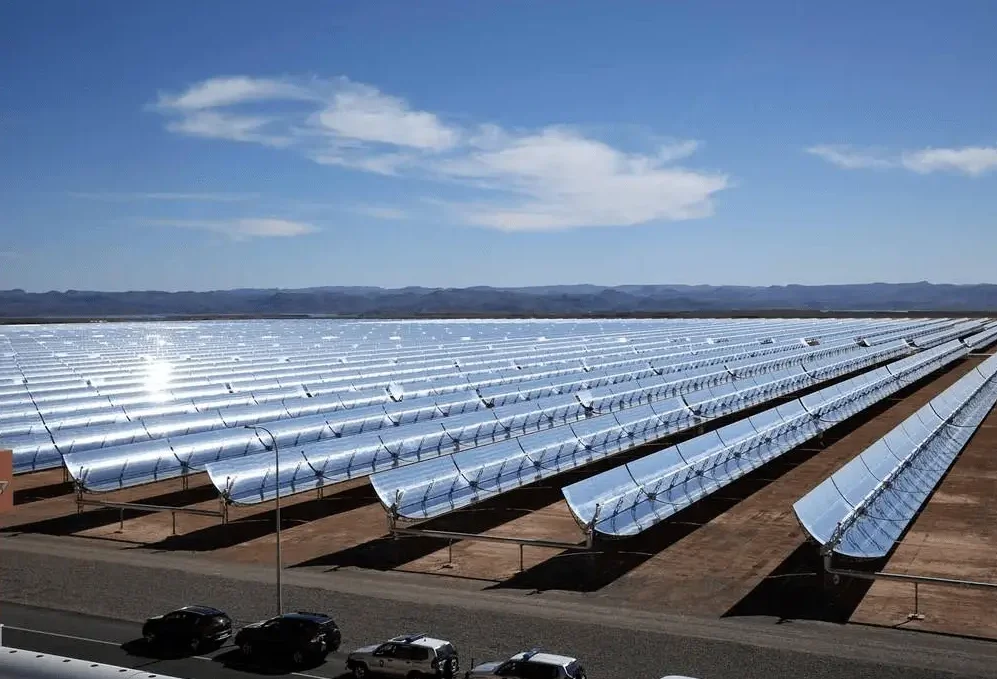

Trough solar thermal power generation

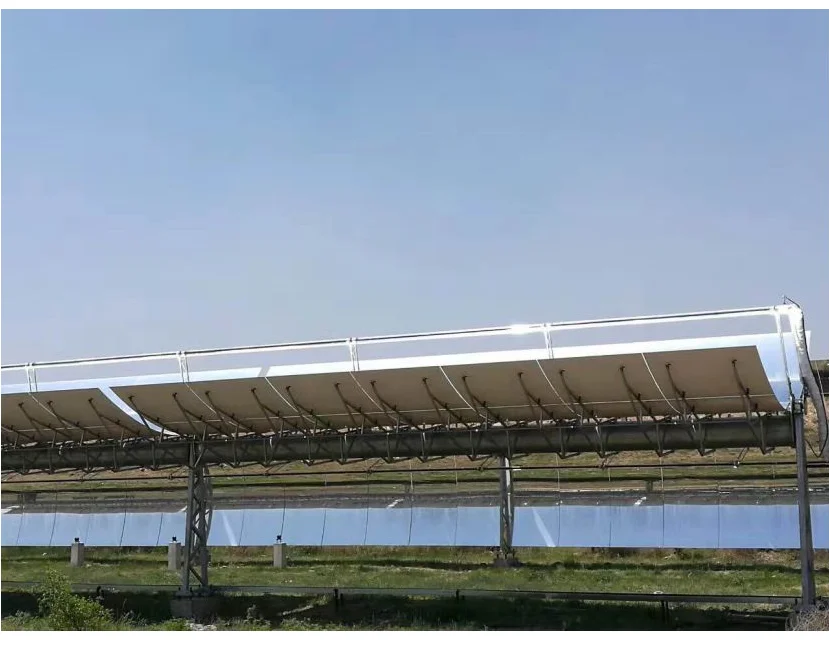

The principle of trough type solar thermal power generation is to use trough type concentrating mirrors to gather sunlight on a line, on which a tubular collector is installed to absorb solar energy and heat the heat transfer medium. The heated working fluid flows through the heat exchanger to heat water and generate steam, which is then used to generate electricity through the power cycle of steam
Heat collection system (also known as Sun Island): includes groove type curved mirrors, vacuum heat collection tubes, daily controllers, and steel structure supports.
Parabolic mirror. Thickness 4mm, (according to size and curvature requirements)
Vacuum collection tube, conventional steel tube outer diameter: 70mm, 80mm, 90mm, length: 4060mm. Operating medium: thermal oil/molten salt, operating temperature: 80-550 degrees.
Daily controller: responsible for the system's overall automatic real-time tracking of the sun, ensuring maximum exposure to sunlight at all times
Steel structure bracket: serves as a support
Parabolic mirror. Thickness 4mm, (according to size and curvature requirements)
Vacuum collection tube, conventional steel tube outer diameter: 70mm, 80mm, 90mm, length: 4060mm. Operating medium: thermal oil/molten salt, operating temperature: 80-550 degrees.
Daily controller: responsible for the system's overall automatic real-time tracking of the sun, ensuring maximum exposure to sunlight at all times
Steel structure bracket: serves as a support

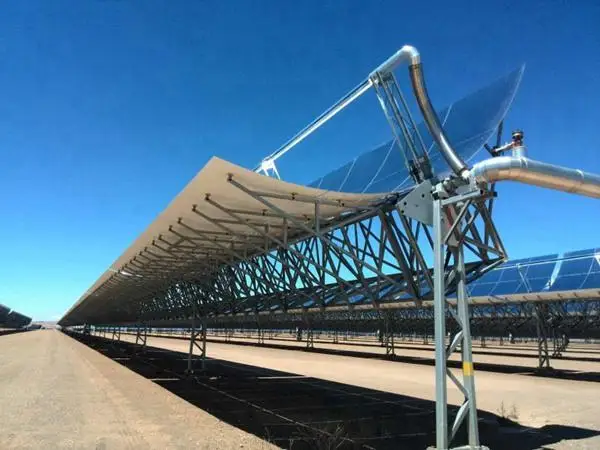

The collector tracks the sun through a single axis, reflecting and concentrating the sunlight projected onto the parabolic mirror to the collector tube located at the focal line position. The heat transfer oil flowing inside the heating tube transfers heat to the steam generator, heating water to produce superheated steam. The steam enters the turbine unit to generate electricity, and then the heat transfer oil returns to the collector for further heating, thus entering the next cycle.

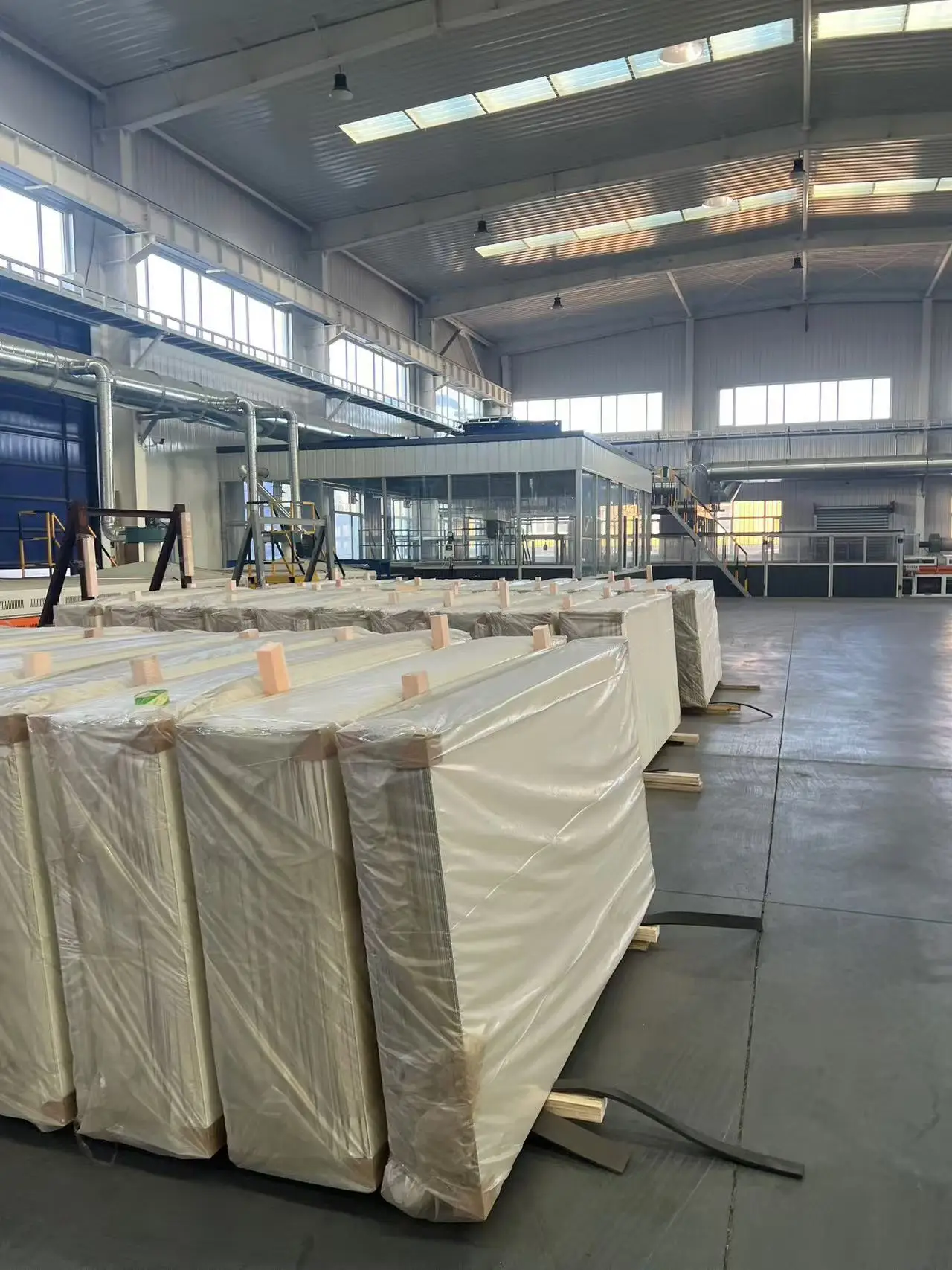

We have a first-class glass production line and a professional technical team that can provide a complete set of installation services and technical support.
Butterfly solar power generation
The disc-shaped solar thermal power generation system collects the energy of sunlight using a disc-shaped parabolic condenser and reflects it to the focal point of the condenser, gathering concentrated, high-temperature, and high heat flux to drive the solar Stirling engine placed near the focal point of the condenser, thereby driving the generator to generate electricity.
The disc solar thermal power generation system includes a Stirling engine, a bracket, a tracking system, a disc mirror, and a disc collector
The spotlight ratio of a typical optical disc system can reach over 2000, and the working temperature of the heater surface is maintained between 600 ℃ and 750 ℃. The peak photoelectric conversion efficiency of the system can reach over 25%.
Product parameters: Disc diameter: 11.7 m, Disc focal length: 6.7 m, Number of reflectors: inner ring 13, outer ring 27, a total of 40, Disc focusing area: 90 m2, Mirror reflectivity: 95%
Tower type solar thermal power generation
Tower solar power generation is mainly achieved by focusing sunlight onto a central receiver with thousands of mirrors. The receiver converts the concentrated solar energy into thermal energy, which is then transferred to a thermal cycle tool to drive the heat engine to do work and generate electricity
The thickness of reflective lenses is generally between 1.1mm and 8mm, and the maximum size of the lens can reach 3660 * 2440mm. The specific thickness and size can be selected according to the needs, usually using ultra white glass as the substrate, with a transmittance of up to 91%.
The tower solar power generation system includes a sun tracking mirror, a receiver, a heater, an energy storage system, and a steam turbine unit
The collection device consists of a multi-faceted heliostat, tracking device, support structure, etc
The system achieves optimal tracking of the sun by controlling the collection device, accurately focusing the reflected light of the sun onto the heat absorber inside the central receiver, causing the heat transfer medium to heat up and enter the steam generator to generate steam, ultimately driving the steam turbine unit to generate electricity. In addition, to ensure continuous power supply, a thermal storage device is needed to store the heat during peak hours for use in the morning, evening, and rainy periods
The collection device consists of a multi-faceted heliostat, tracking device, support structure, etc
The system achieves optimal tracking of the sun by controlling the collection device, accurately focusing the reflected light of the sun onto the heat absorber inside the central receiver, causing the heat transfer medium to heat up and enter the steam generator to generate steam, ultimately driving the steam turbine unit to generate electricity. In addition, to ensure continuous power supply, a thermal storage device is needed to store the heat during peak hours for use in the morning, evening, and rainy periods

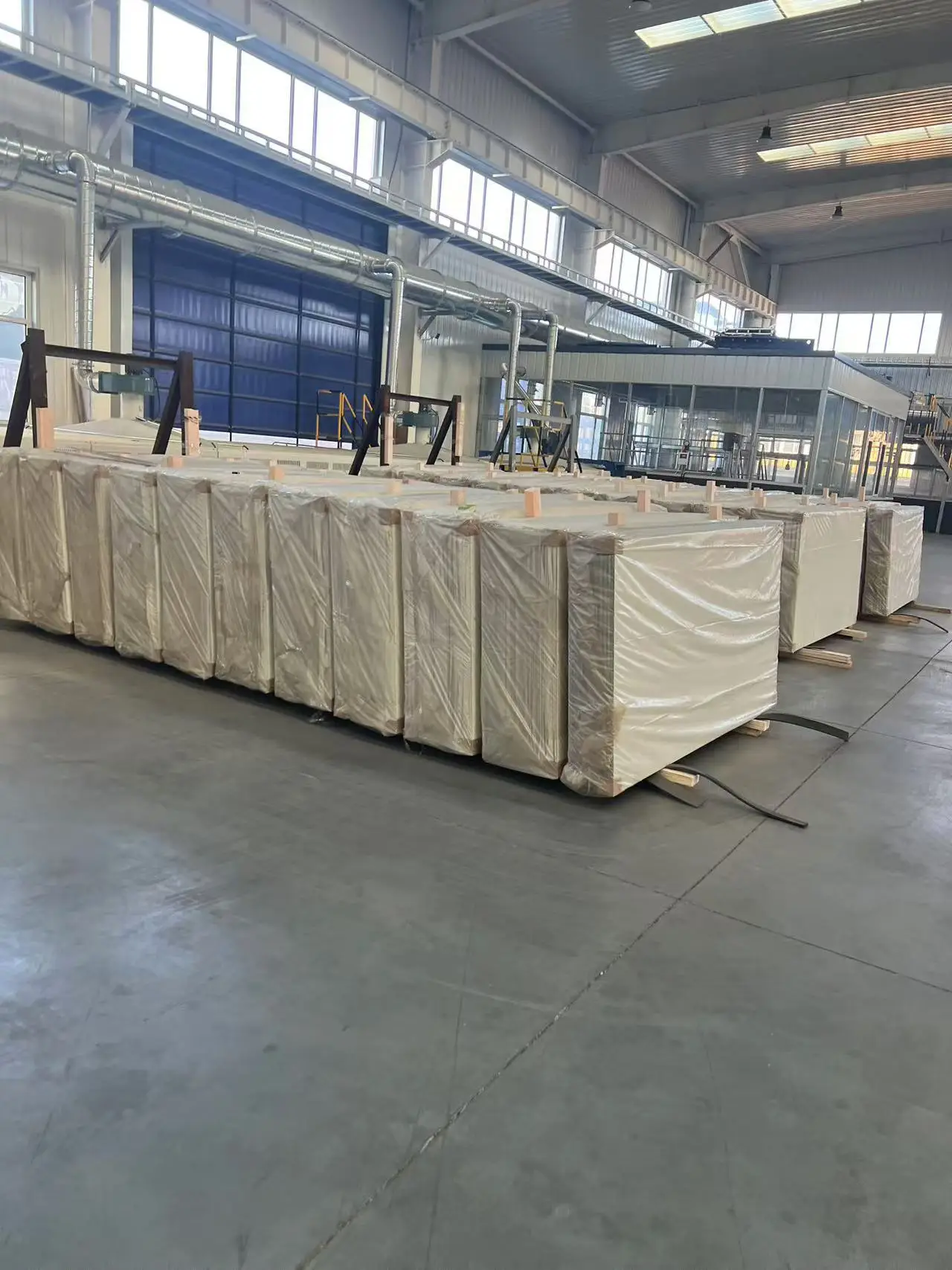

We have a first-class glass production line and a professional technical team that can provide a complete set of installation services and technical support.
Fresnel type spotlight power generation
The Fresnel solar thermal power generation system uses Fresnel lenses as the light focusing device. These lenses are usually flat mirrors that reflect sunlight onto a secondary condenser above through a uniaxial solar tracking system, and then converge it into a long tubular heat absorption tube to heat water and produce high-temperature steam. These vapors then drive turbine generators to generate electricity.
The Fresnel power generation system includes: reflector, receiver, steam turbine, generator, condenser, and water pump. The operating temperature range of the strip type Fresnel spotlight device is generally between 100 ℃ and 400 ℃. It can directly use water as a medium (or molten salt), which means heating water directly into steam to drive a steam engine to generate electricity.
The receiver of the Fresnel power generation system does not have the ability to separate steam and water, and there will be liquid water in the output steam, which is not conducive to the operation of the steam turbine. Therefore, steam and water separation must be carried out to further heat the separated steam into superheated steam to drive the steam turbine, and send the separated water back to the receiver for heating.
The Fresnel spotlight collection device is divided into two parts. The first stage Fresnel spotlight collection device heats water into water vapor containing water. The water vapor containing water (two-phase flow) enters the steam water separator, and the separated water enters the first stage Fresnel spotlight collection device again for heating through a water pump. The separated steam is then sent to the second stage Fresnel spotlight collection device for further heating into superheated steam, which drives the steam turbine to generate electricity
The Fresnel spotlight collection device is divided into two parts. The first stage Fresnel spotlight collection device heats water into water vapor containing water. The water vapor containing water (two-phase flow) enters the steam water separator, and the separated water enters the first stage Fresnel spotlight collection device again for heating through a water pump. The separated steam is then sent to the second stage Fresnel spotlight collection device for further heating into superheated steam, which drives the steam turbine to generate electricity
We have a first-class glass production line and a professional technical team that can provide a complete set of installation services and technical support.
Похожие товары

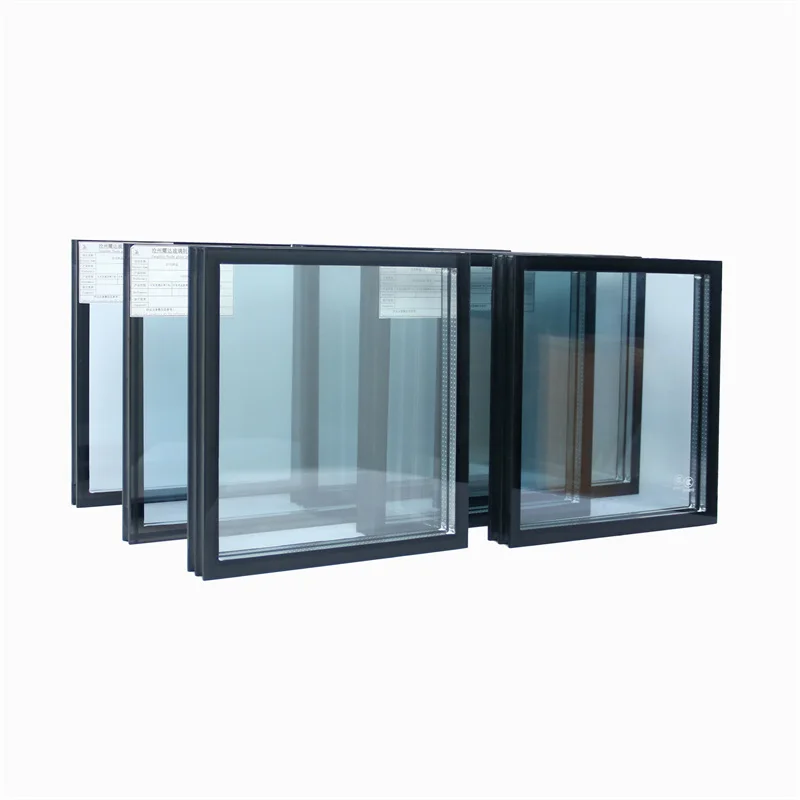

5 + 6A 6 9A 8 12A высококачественное прозрачное архитектурное изоляционное стекло для окон и навесных стен
Доступный карбонат кальция для производства стекла
6 674,42 ₽
Производство Китай производственная линия по производству лестниц сырьевые материалы строительные промышленные банки для ванной комнаты душевая дверь Малайзия прозрачное Флоат-стекло
Оптовая продажа Китай поставщик стекла высокого качества 2 мм 3 4 5 6 8 10 12 15 19 цветной черный прозрачный флоат стеклянная стена
1 015,87-1 230,81 ₽
Твердые структурные измельченные стеклянные чипсы для ландшафтного дизайна или терраццо гостиничного применения

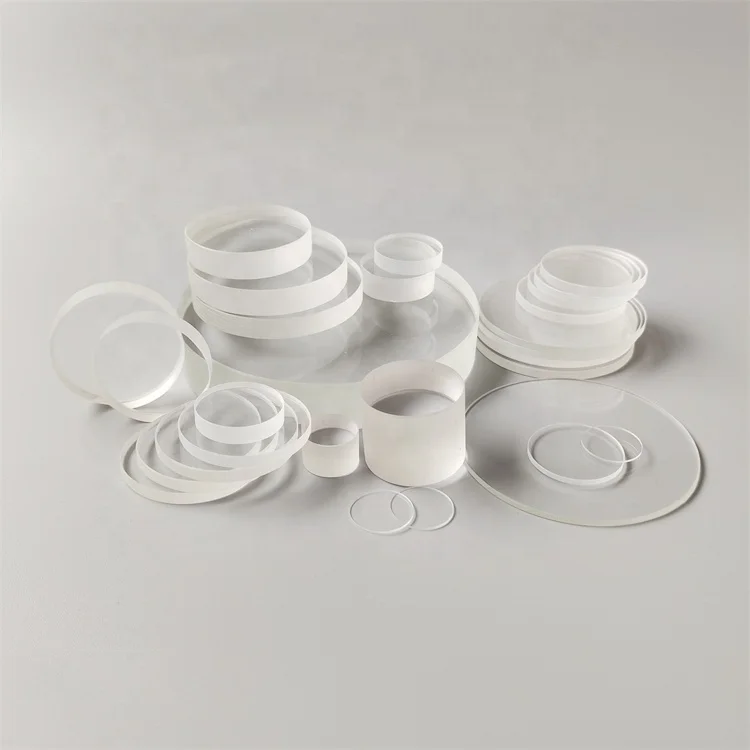

Боросиликатное стекло на заказ высокотемпературное боросиликатное 3
