300t/h 400t/h 500t/h 600t/h Stabilized Soil Mixing Station
Stationary stabilized soil mixing plant is suitable for large scale continuous operation of the stable layer of highway construction. The aggregate, power and water adopt frequency conversion to control the rate of flow, which achieves high measuring accuracy and stability. The quantity of aggregate storage bins can be changed from four to six according to the needs of the project.
Product Advantages
Mixing System
1. The main engine adopts bilateral four-hole maintenance position, so it is convenient and quick to clean the machine and replace the blades during production.
2. Double-bearing liner-less cylinder body reduces blade wear, and eliminates failures such as material jam, hard scratch, etc.
3. Wear-resistant round steel mixing knife wall and blade, non-stick material, easy to clean.
Batching System
1. The batching hopper has a large volume and a wide feeding hole, which can realize bilateral feeding.
The whole frame is made of H steel, which has strong compression resistance and no deformation.
The whole frame is made of H steel, which has strong compression resistance and no deformation.
2. Built-in vibrator is standard, which solves the problems of blocked silo and poor blanking.
3. Sensor weighing, measuring materials separately, improving batching accuracy.
Conveying System
1.It is divided into two parts: the screw conveyor and the belt conveyor.
2. The spiral conveyor adopts automatic welding technology and baking paint treatment technology, thickening spiral blades, mature technology and stable quality.
3. Belt conveyor adopts skirt conveyor belt, which does not spill or leak materials in the middle of production process, reducing production cost and waste of raw materials.
Finished Product Hopper
1. The whole series is equipped with waiting bins, which can change cars without stopping in the production process, which is simple to operate and reduces the waste of raw materials.
2. Fully automatic control of door opening and closing saves manual operation cost.
Control System
1. The working panel has clear flow, simple operation, and the system intelligently detects and displays each measurement and weighing.
2. As a state, it has the function of self-vibration due to lack of materials and alarm for over-shortage.
3. At the same time, in special circumstances, it can also be operated manually, and the whole process can be completed by only one person.
Cement Silo
1.Cement silo can be equipped with flaky cement silo, vertical cement silo and horizontal cement silo.
2. The cement silo is equipped with a material level device and a dust removal system, and the cone of the silo is equipped with an arch breaking device.
3. Powder conveying is fully sealed, pollution-free and waste-free.
1.Cement silo can be equipped with flaky cement silo, vertical cement silo and horizontal cement silo.
2. The cement silo is equipped with a material level device and a dust removal system, and the cone of the silo is equipped with an arch breaking device.
3. Powder conveying is fully sealed, pollution-free and waste-free.
More details, please contact us by clicking here. Thank you!
Details Images
Concrete Mixer Machine
Concrete Mixer Arms
Batching Machine Weighing Hopper
Cement Conveying System
Screw Conveyor
Hopper Or Belt Loading Device

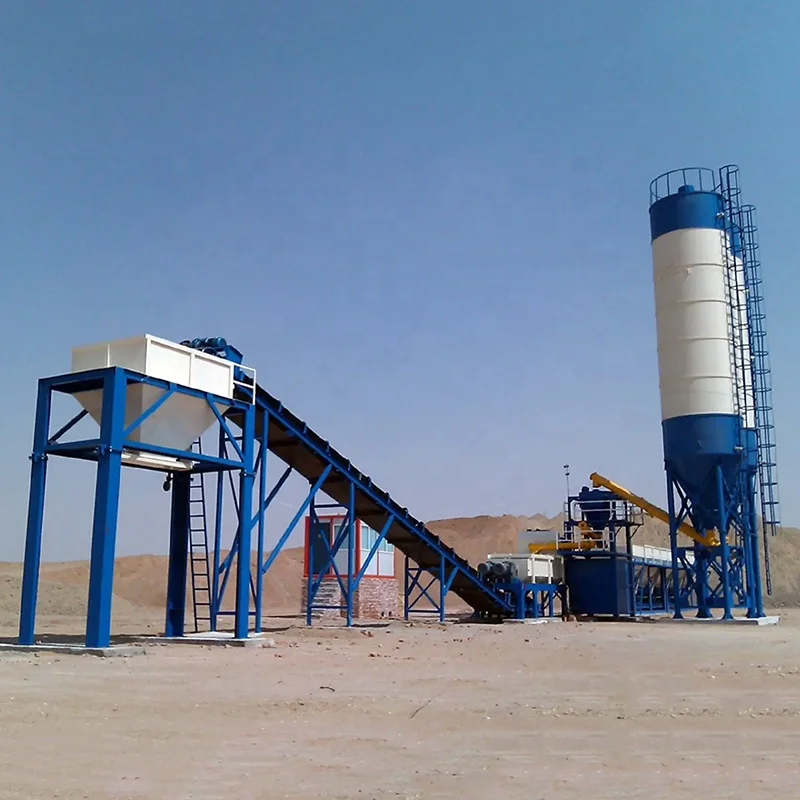

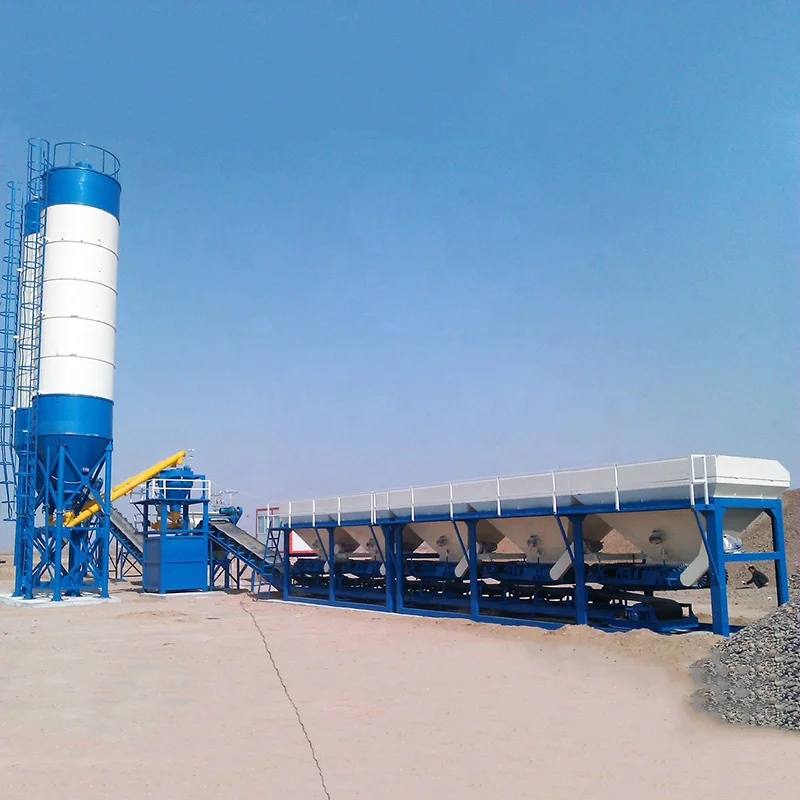

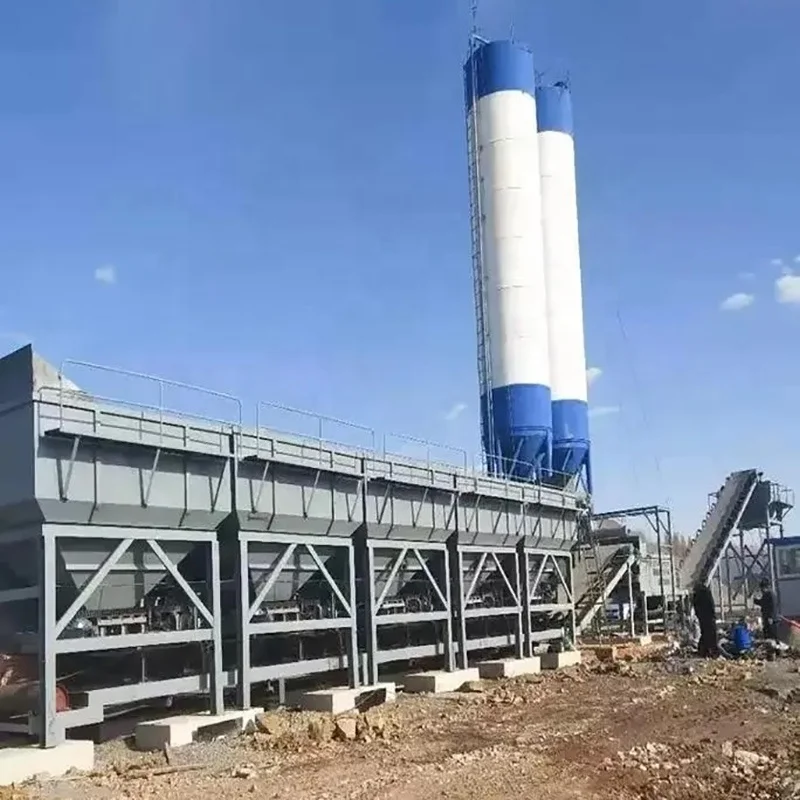

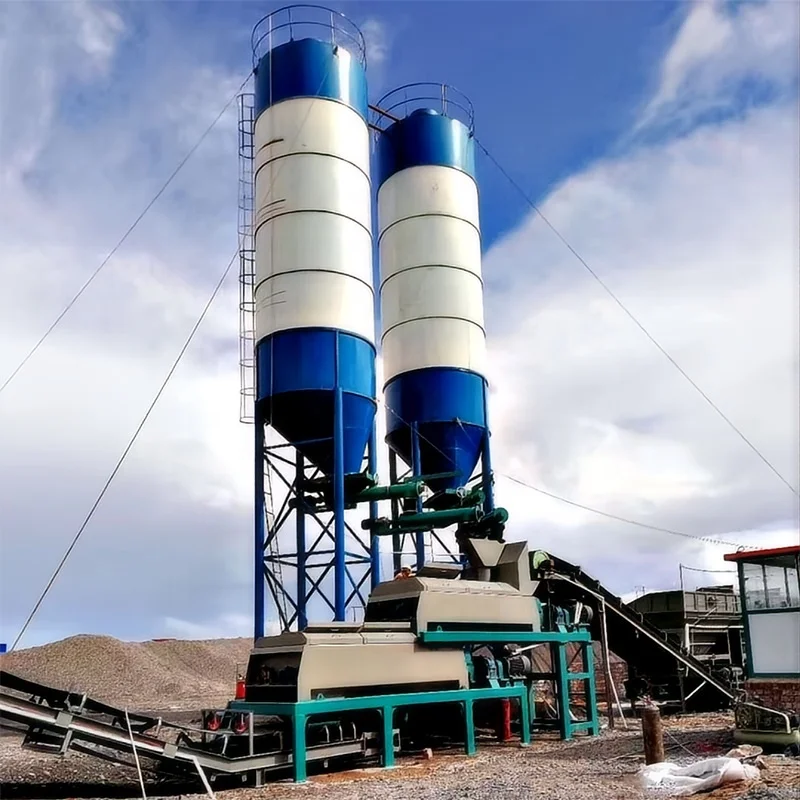

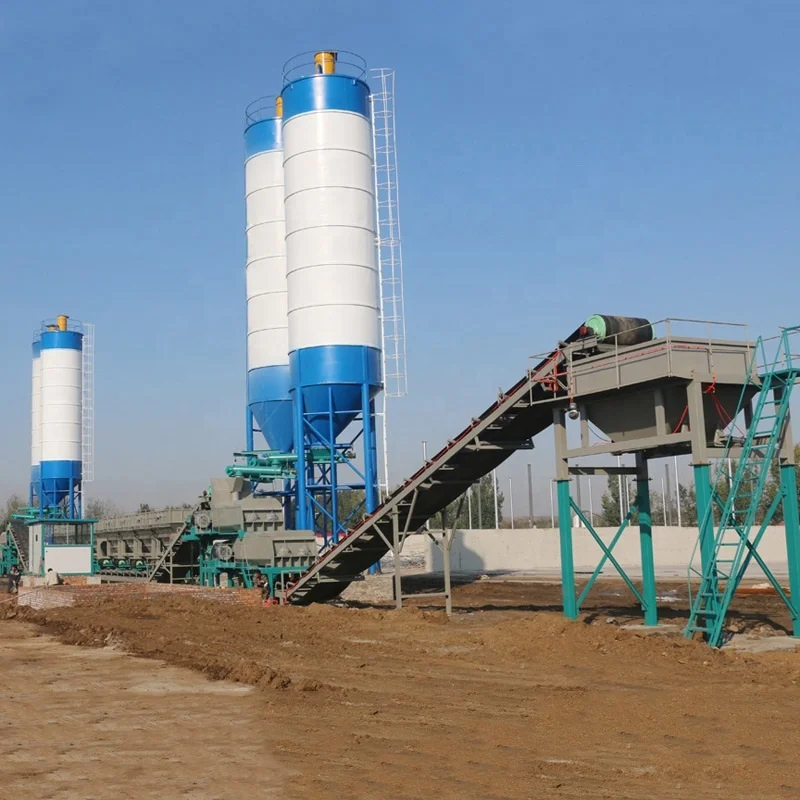

Customer Site
More details, please contact us by clicking here. Thank you!
Product Paramenters
Model | WBZ300 | WBZ400 | WBZ500 | WBZ600 | |||
Theoretical Productivity | 300T/H | 400T/H | 500T3/H | 600T/H | |||
Total Power | 98kw | 110kw | 120kw | 140kw | |||
Batching Machine Volume | 3×6m³ | 4×6m³ | 4×8m³ | 4×10m³ | |||
Finished Product Hopper | 6m³ | 6m³ | 8m³ | 10m³ | |||
Max. Aggregate Size | ≤60mm | ≤60mm | ≤60mm | ≤60mm | |||
Mixer Power | 37kw | 45kw | 55kw | 90kw | |||
Mixer Rotating Speed | 117r/min | 117r/min | 117r/min | 117r/min | |||
Total Weight | 32000kg | 39000kg | 44000kg | 47000kg | |||
Aggregate Weighing Accuracy | <±2% | <±2% | <±2% | <±2% | |||
Water Weighing Accuracy | <±1% - ±2% | <±1% - ±2% | <±1% - ±2% | <±1% - ±2% | |||
Cement Weighing Accuracy | <±1% | <±1% | <±1% | <±1% | |||
Control System | Full Automatic | ||||||
Company Profile
Henan Zhucheng Machinery Manufacturing CO., LTD is one of the scientific and technological enterprises integrated with research and development, manufacture, sales and service.
Henan Zhucheng: To provide low failure rate, real after-sales concrete mixing equipment, including site planning, station construction, installation and commissioning, Operation Training and equipment life-cycle after-sales service.
Serving customers: over the years, has served many large enterprises, such as China Construction Group, China Nuclear Group, China Communications Group, China Railway Group, etc.
Mission: Assist the completion of the project on schedule!
Values: Integrity-based, Service first.
Keep every promise! Cherish every trust! Guard every trust!
ZHUCHENG can not determine the progress of your project, but can help speed up the project: Try out best to keep the continuous supply of concrete for the project.
Henan Zhucheng: To provide low failure rate, real after-sales concrete mixing equipment, including site planning, station construction, installation and commissioning, Operation Training and equipment life-cycle after-sales service.
Serving customers: over the years, has served many large enterprises, such as China Construction Group, China Nuclear Group, China Communications Group, China Railway Group, etc.
Mission: Assist the completion of the project on schedule!
Values: Integrity-based, Service first.
Keep every promise! Cherish every trust! Guard every trust!
ZHUCHENG can not determine the progress of your project, but can help speed up the project: Try out best to keep the continuous supply of concrete for the project.
Raw Material
Machine Finishing
Finished Products For Delivery
Foreign Trade Department
Technology R&D Department
Production Workers
More details, please contact us by clicking here. Thank you!
Customer Visits
Packing&Delivery
Packing And Delivery
Through over 20 years hard effort, we have exported to over 40 countries and areas. Establish one complete set of service system and experienced service team, and also build up the golden and valuable ZHUCHENG Brand with top honesty, super quality and intimate service as well as high honor all over the world.
FAQ
Q1: What’s the capacity of concrete batching plant do you have?
A: We have Stationary type from 25m3/h ~240m3/h. Mobile type from 25m3/h~100m3/h.
Q2: Is the Belt conveyor necessary ?
A: Small capacity (Below 60m3/h) normally use Skip Hopper to feed aggregate, no need to use belt conveyor.
While for large capacity, (Larger than 60m3h), normally use Delivery belt to raise efficiency.
A: We have Stationary type from 25m3/h ~240m3/h. Mobile type from 25m3/h~100m3/h.
Q2: Is the Belt conveyor necessary ?
A: Small capacity (Below 60m3/h) normally use Skip Hopper to feed aggregate, no need to use belt conveyor.
While for large capacity, (Larger than 60m3h), normally use Delivery belt to raise efficiency.
Q3: How to choose the suitable model of batch plant?
A: Just tell us the capacity (m3/h,t/h) of concrete you want to produce per hour or per month, then we can design the reasonable plant for you with our best price.
A: Just tell us the capacity (m3/h,t/h) of concrete you want to produce per hour or per month, then we can design the reasonable plant for you with our best price.
Q4: How to choose the concrete batching machine of concrete mixing station?
A: Most of the batching machines are PLD series. The number of storage bins in dosing machine is determined according to the types of coarse aggregate such as sand and gravel from customers.
A: Most of the batching machines are PLD series. The number of storage bins in dosing machine is determined according to the types of coarse aggregate such as sand and gravel from customers.
Q5: Is the control system of the concrete mixing station computerized?
A: The electric control system of concrete mixing station can be divided into two types, one is a simple centralized control system, and the other is a fully automatic computer control system.
A: The electric control system of concrete mixing station can be divided into two types, one is a simple centralized control system, and the other is a fully automatic computer control system.
Q6: Is the concrete mixing station measured separately?
A: In the concrete mixing station, water, cement, fly ash and additives are mostly measured separately, among which sand and gravel aggregate can be measured separately or cumulatively.
A: In the concrete mixing station, water, cement, fly ash and additives are mostly measured separately, among which sand and gravel aggregate can be measured separately or cumulatively.
Q7: What is the service life of your concrete mixing station?
A: A set of concrete mixing equipment, which is made by a large domestic manufacturer with guaranteed quality, has a normal service life of 8-10 years.
A: A set of concrete mixing equipment, which is made by a large domestic manufacturer with guaranteed quality, has a normal service life of 8-10 years.
Q8: Can the concrete mixing station be installed by ourselves?
A: Theoretically, it can be installed by yourself according to the installation drawings. Generally speaking, during the installation process, the manufacturer will assign technicians to guide the installation work on site, and the user only needs to provide the crane and the cooperation of the personnel.
A: Theoretically, it can be installed by yourself according to the installation drawings. Generally speaking, during the installation process, the manufacturer will assign technicians to guide the installation work on site, and the user only needs to provide the crane and the cooperation of the personnel.
Q9: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
Q10: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
Q11: How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment.
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
A: Generally, TT, 30% deposit 70% before shipment.
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
