ZGF 1600 1600 Вт геомембранная мембранная сварочная машина для водонепроницаемого ПВХ мембранного сварщика пластиковая нагревательная

ZGF 1600 1600 Вт геомембранная мембранная сварочная машина для водонепроницаемого ПВХ мембранного сварщика пластиковая нагревательная

Категория: >>>
Поставщик: Zeng Gong Fu Welding Equipment (wuhan) Co. Ltd.Zeng Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

PRODUCT SPECIFICATIONS

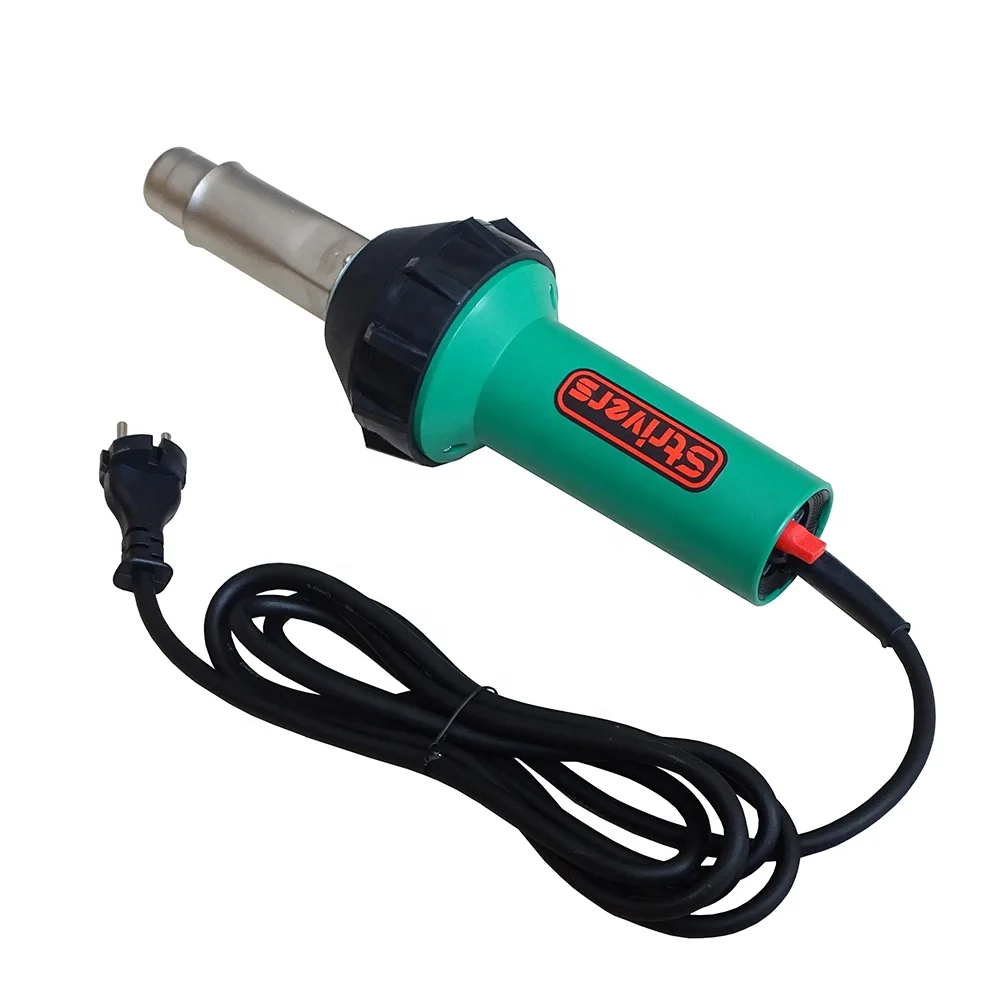

1600W hot air welding gun

"Strivers" ZGF-1600 is a professional industrial hot air welding gun, it is used in welding hot melt plastic materials such as PVC, PVDF, TPO, PP, PE for welding roofs, vinyl floors, tarpaulins, banners, etc. Also it is used in other works like hot forming, shrinking, drying , and igniting.

Right elevation

Left elevation

Front elevation

No	Item	Data
1	Welding Kit	1. ZGF-1600 hot air welder/1pc 2. H001 220V 110V 1600W heat element/1pc 3. M001 1600W mica tube/1pc 4. N013 20mm flat welding nozzle/1pc 5. N014 20mm 60 degree flat welding nozzle/1pc 6. R002R 28mm red silicone hand pressure roller/1pc 7. R002G 28mm green silicone hand pressure roller/1pc 8. N012 40mm flat welding nozzle/1pc 9. N024 40mm 60 degree flat nozzle/1pc 10. R009R 40mm red silicone hand pressure roller and 6mm brass penny roller/1pc 11. R009G 40mm green silicone hand pressure roller and 6mm brass penny roller/1pc
2	Rated Voltage & Power	230V/1600W, 120V/1600W, 50/60HZ
3	Welding Temperature	20~700C (adjustable)
4	Static Pressure	Approx. 3000pa
5	Noise Emission Level	<=65dB
6	Dimension(LXWXH)
7	Protection class	ll (double insulation)
8	Motor	Brushed
9	Air Volume	Max. 300l/min
10	Net weight	1.1kgs with 3m power cord
11	Certificate	CE, ROHS
12	Warranty	1 Year for distributors

What we can do for our partners?

* We are a professional manufacturer for hot air tools, hot air welding machines, hot wedge welders, plastic extrusion welders, heaters, rollers, weld nozzles, etc. We do OEM production for many global traders for years. Not only make business, but also make friends with trading partners! We will search for more new partner friends all over the world!
* We won’t sell our brand products on Cross border e-commerce platforms, because many of the products there are disposable and without after-sales service. This is neither economical nor environmentally.
* As you know, the after-sale service for tools and machines can be very difficult for those producuts exported to other countries. Even some well-known global brand manufacturers have expensive after-sales service and cannot handle it in a timely manner. While for our products, we will always prepare some spare parts for partners for free. Our company will ensure our partners have sufficient spare parts for repairing, and we will design our products even more easy to repair, and for sure we will guide you how to repair in every detail.

Our company name: ZENG GONG FU WELDING EQUIPMENT (WUHAN) CO., LTD
We have been doing OEM production for oversea customers for many years!

Our boss is Mr. ZENG
"GONG FU" is a Chinese word, In other countries, people say it Chinese Kung fu!
There is a Chinese saying goes: Deep Gong fu can turn the iron rod into a needle! It means that if we always strive to do one thing with great patience, we will get success finally.

We will strive to be Strivers! Brand name: Strivers

What we will strive for?

1) We will always Strive to make our products with” Good quality , Innovative, Best service, Lowest price”.

2) We will always strive to design our tools with excellent performance, simple maintenance and easy to repair!

3) We will always carefully consider about our partner’s ideas and improve again and again!

4) We will always Strive to be loyal to our partners and work together to seek win-win development!

FEATURES AT A GLANCE

Quality is in details ! Details of the external structure and materials of the product

① Compact design and light weight.
② The air gun nozzles are made of SUS304 stainless steel with thickness of 1mm.
③ The plastic material we use is Glass-Fiber reinforced PA66.
④ The sealing ring material we used is silicone , other suppliers use rubber. Silicone is more soft and more
environmentally, rubber is susceptible to get hardening and aging.
⑤ Our power cord sleeves are made of silicone. Most of others use rubber.
⑥ Our power cords are made of high quality copper and pure rubber, so it is softer than others.

Quality is in details ! Details of the internal structure and materials of the product

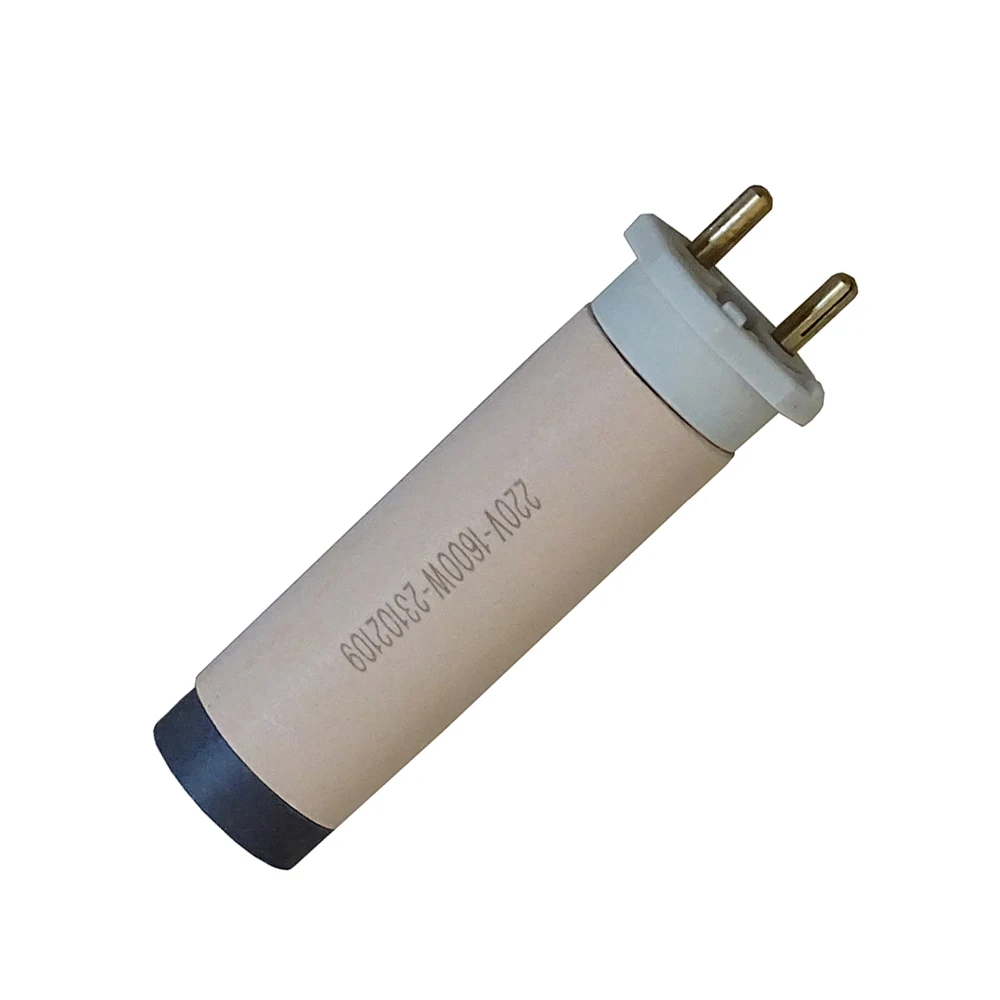

① Our heating elements are made by skilled workers with many years of experiences, and each product is laser-numbered for quality tracking. We are very strict about quality management!
② Our mica tube is very good quality made of Phlogopite material which can bear temperatures of 800 degrees for long time. If you use finger to pinch it you will find it’s difficult to break it.
③ For electronic parts, our light sensors and overheat protectors, thyristors, potentiometers, power switches , etc. are all in excellent quality, with years’ of experiences, damage rate of 1 in 1000, for circuit control board, damage rate of 2 in 1000, because sometimes voltage problem at working site may cause it broken. However, we will always prepare enough parts to our distributors for free.
④ Our motors adopts Japan NSK bearings and German material carbon brush.
⑤ Our circuit boards adopts all-in-one plug-in design, so it is very easy to replace.

Spare parts list

P001-gun nozzle	H001-heat element	M001-mica tube	P002-Asbestos gasket	P003 - plastic cover
P004-silicone sealing ring	P005-Blade fairing	P006-Blade fairing seat	P007-handle	P008-Circuit holders
P009-cable clip	P010-Dust filter	P011-knob	P012-cable protection sleeve	P013-light sensor
P014-overheat protector	P015-thyristor	P016-circuit board	P017-potentiometer	P018-power switch
P019-power cord	P020-fan blade	P021-Motor	C001-carbon brush

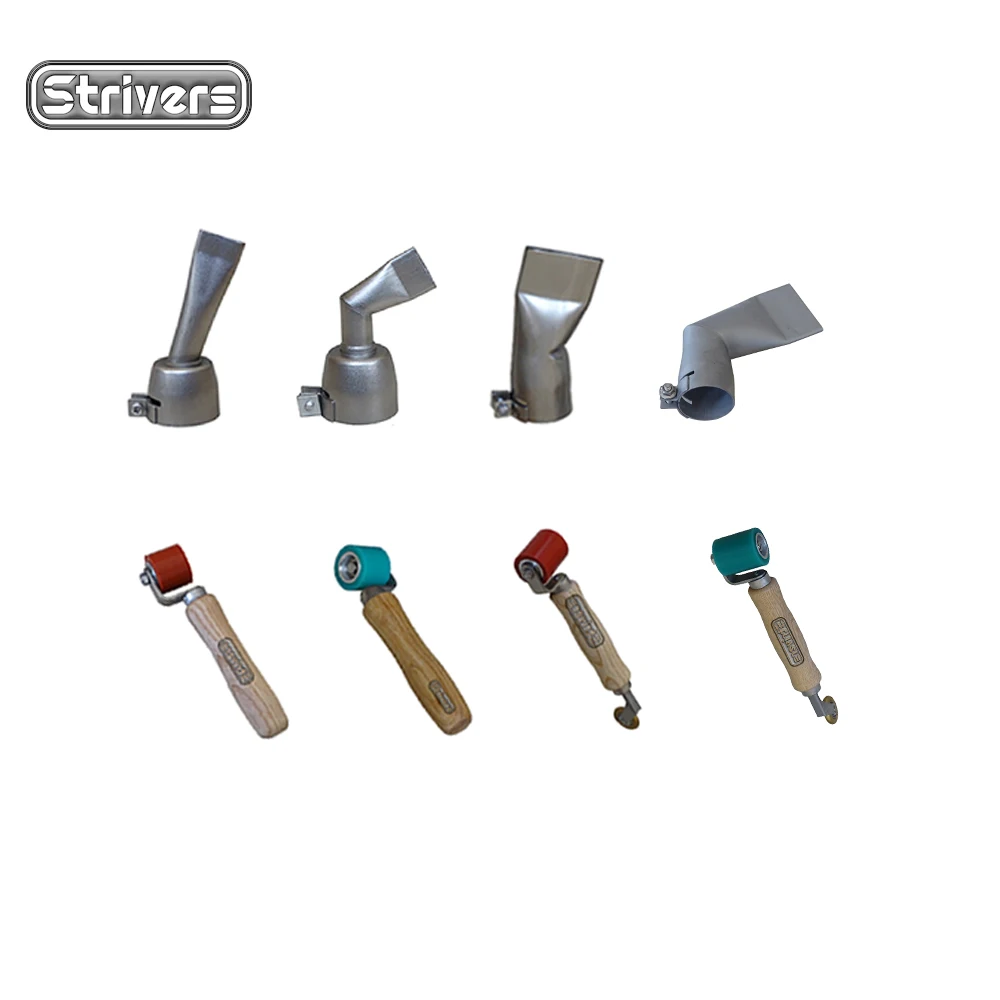

Accessories for 1600W welding guns

Application

Welding PVC TPO EPDM single ply roofing membranesWelding advertising banners
Welding pvc vinyl flooring covering and linoleum
Welding all thermoplastics
Welding of technical textiles
Welding pond foil liners
Welding swimming pools
Welding vinyl decking
Welding Roofing flashing
Repairing automobile tarpaulins and tents
Shrinking packaging foils and moulding
Sterilizing packaging materials
Removing plastic flashes and shining plastic surfaces
Using in elector mechanical work
Shrinking shrink tubes, packaging foils
