Нагреватель из нержавеющей стали плюс реактор высокого давления высокая температура горячего расплава клея производственной линии химический
436 238,48-1 125 036,08 ₽
Вакуумный нагреватель из нержавеющей стали плюс реактор высокого давления высокая температура горячего расплава клея производственной линии химический
- Категория: >>>
- Поставщик: Yangzhou Lianhe Chemical Machinery Co. Ltd.Yangzhou Ltd.
Сохранить в закладки 1601353699021:
Описание и отзывы
Характеристики
Products Description

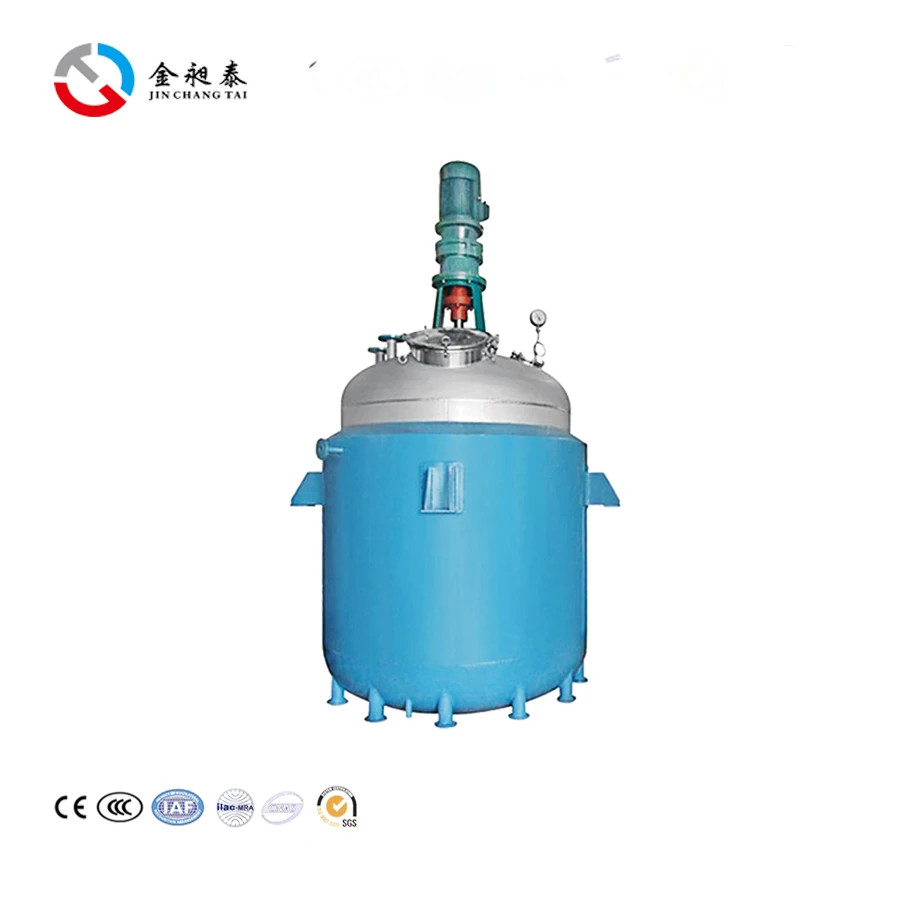

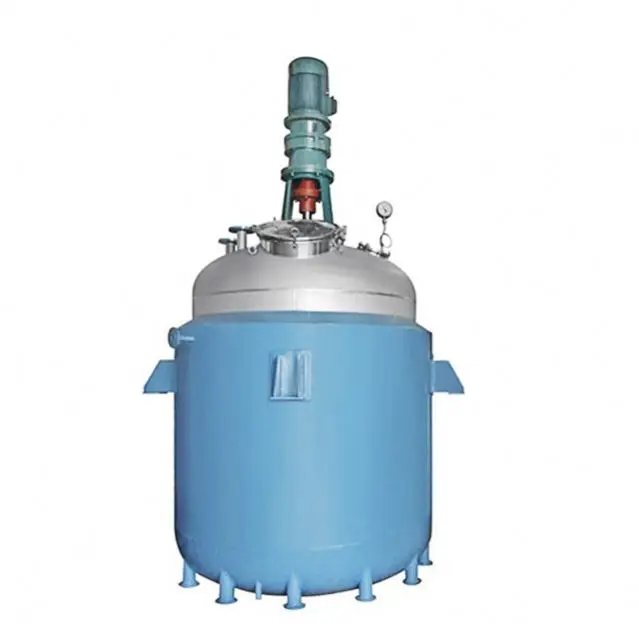

stainless steel Chemical reactor tank reactor
Application:
It is widely applied for producing construction materials, chemicals, foodstuffs, pigments and resinic products.
Application:
It is widely applied for producing construction materials, chemicals, foodstuffs, pigments and resinic products.
Performance Characteristics and Advantages:
1. rapid heating,
2. corrosion resistance,
3. high temperature resistance,
4. non environmental pollution,
5. automatic heating without boiler and simple & convenient operation.
Configuration:
1.Volume: 50L~50000L (series of specifications), can be customized as per customer requirement;
2.Components: autoclave body, cover, jacket, agitator, shaft seals,bearing and driving device;
3.Optional Reactor type: Electric heating reactor, Steam heating reactor, Heat conduction oil heating reactor;
4.Optional Agitator type: Anchor type, Frame type, Paddle type, Impeller type, Vortex type, Propeller type, Turbine type, Push-in type or Bracket type;
5.Optional Structure type: Outer coil heating reactor, Inner coil heating reactor, Jacket heating reactor;
6.Optional tank material: SS304, SS316L, Carbon steel;
7.Optional inner surface treatment: mirror polished, anti-corrosion painted;
8.Optional outer surface treatment: mirror polished, machinery polished or matt;
9.Optional Shaft Seal: Packing seal or Mechanical seal;
10.Optional feet form: three pyramidal form or tube type;
1. rapid heating,
2. corrosion resistance,
3. high temperature resistance,
4. non environmental pollution,
5. automatic heating without boiler and simple & convenient operation.
Configuration:
1.Volume: 50L~50000L (series of specifications), can be customized as per customer requirement;
2.Components: autoclave body, cover, jacket, agitator, shaft seals,bearing and driving device;
3.Optional Reactor type: Electric heating reactor, Steam heating reactor, Heat conduction oil heating reactor;
4.Optional Agitator type: Anchor type, Frame type, Paddle type, Impeller type, Vortex type, Propeller type, Turbine type, Push-in type or Bracket type;
5.Optional Structure type: Outer coil heating reactor, Inner coil heating reactor, Jacket heating reactor;
6.Optional tank material: SS304, SS316L, Carbon steel;
7.Optional inner surface treatment: mirror polished, anti-corrosion painted;
8.Optional outer surface treatment: mirror polished, machinery polished or matt;
9.Optional Shaft Seal: Packing seal or Mechanical seal;
10.Optional feet form: three pyramidal form or tube type;
A: Manhole | B: Material Inlet | C: Standby | D: Light | E: Distillation Mouth |
F: Blackflow Mouth | G: Standby | H: Pressure Meter | I: Temperatre Measuring Mouth | J: Endoscopic Mouth |
K: Overflow Mouth | L: Air Mouth | M: Waste Outlet | O: Discharge Outlet | P: Electric-heating Power |
Explosion-proof Heater
Structure | Vertical, ellipse top or flat top, support by legs or lifting lugs. Single wall, or with jacket, or with insulation. | ||||||
Material | Material adopts S31603, or S304 | ||||||

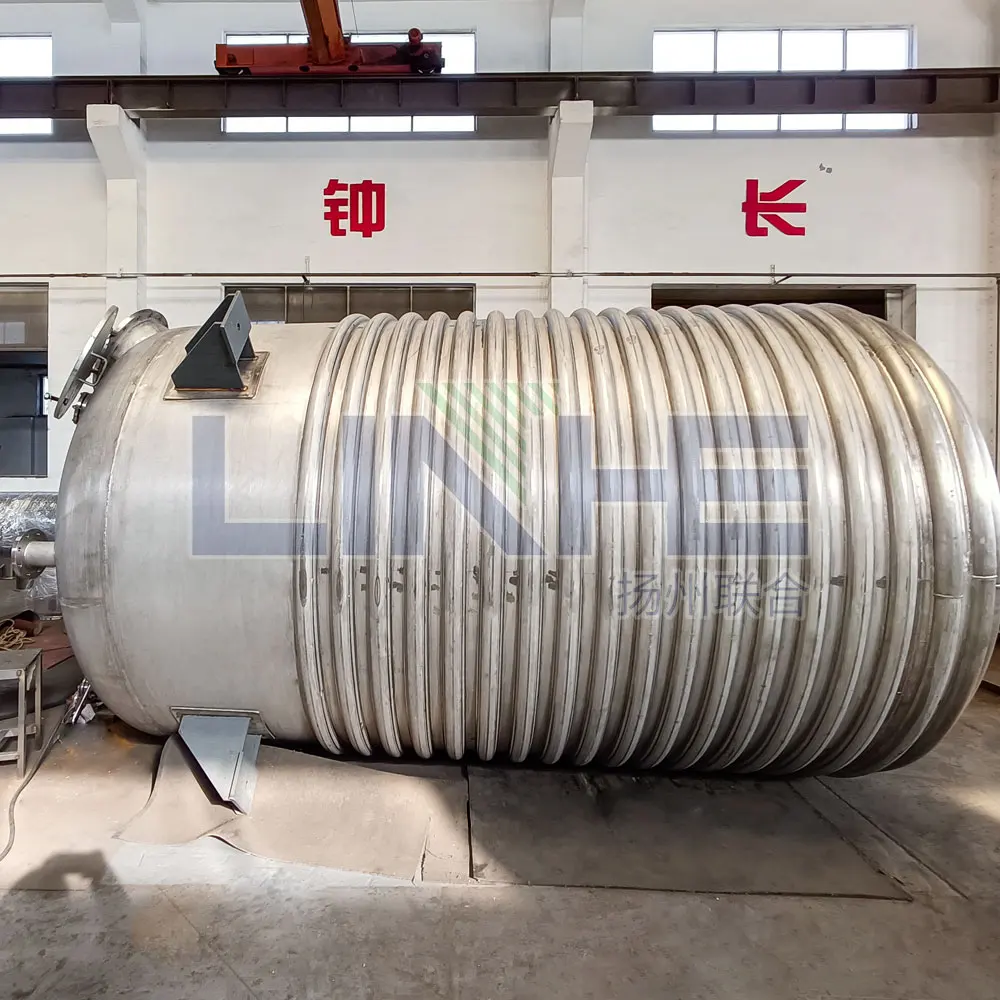

Jacket Type | Full jacket, internal coil, external semi-coil, dimple jacket. | ||||||
Insulation | Adopts aluminum silicate or polyurethane, thickness 50 mm or 75 mm. | ||||||
Surface Finishing | Mechanical polishing, internal mirror polishing Ra 0.45; External matte, Ra 0.8 | ||||||
Heating Method | Steam heating, electric heating, thermal oil/hot water heating | ||||||
Agitation System | Adopt top center-entry agitator or side-entry agitator. Agitator type: frame, anchor, paddle, turbine, spiral, screw, magnetic stirring. Agitation speed: 10~120rpm, fixed speed or frequency speed. Motor power: 0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 5.5kw, 7.5kw, etc. | ||||||
Accessories | Manhole, CIP spraying ball, thermometer, piezometer, air filter, sight glass, light, counter flange. | ||||||
Standard | All according to GMP requirements and GB150.1~4-2011 Design, Fabrication, Inspection and Acceptance. | ||||||
ODM/ODM | Can be customized according to customers requirement and product process. | ||||||
Technical Parameters:
Type | LH-50L | LH-100L | LH-200L | LH-300L | LH-500L | LH-1000L | LH-2000L | LH-3000L | LH-4000L |
Cylinder Size(mm) | 450*500 | 450*500 | 600*700 | 750*750 | 900*800 | 1200*1000 | 1400*1500 | 1600*1500 | 1700*1800 |
Actual Capacity (L) | 61 | 150 | 253 | 396 | 699 | 1393 | 3000 | 4066 | 5400 |
Jacket Capacity(L) | 65 | 120 | 200 | 250 | 290 | 560 | 750 | 1015 | 1226 |
Heating Area (m2) | 0.78 | 1.36 | 1.9 | 2.41 | 2.7 | 4.5 | 7.0 | 9.0 | 11.0 |
Motor Power (KW) | 0.55 | 1.1 | 1.5 | 3.0 | 2.2 | 4.0 | 5.5 | 7.5 | 11.0 |
Rotating Speed (r/min) | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 63 | 63 |
Discharging Valve | DN25 | DN25 | DN40 | DN40 | DN50 | DN50 | DN65 | DN65 | DN80 |
Company Profile
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory specialized in daily cosmetic and perfume equipment and other pressure vessels. Such as, water
treatment,vacuum emulsifier, shampoo and liquid soap mixers , perfume making machine, storage tank, filling and packing machines etc. And we have relative pressure certificate to remove your worries.
Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Jiangsu, China, welcome to visit us at any time. You can take the plane to Shanghai and then take the highway to Zhenjiang Station(1 hour and 40 minutes), then we will pick u up.
Q3: How does your factory do regarding quality control?
A3: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.
Q4: What’s the guarantee if we purchase from you?
A4: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any wearing part be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free.
Q5: How about the after service?
A5: There’s no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer.
Q6:Can you make the machine as per our request?
Yes, customized machines are acceptable. We can make the machine as per your request.
A1: We are a factory specialized in daily cosmetic and perfume equipment and other pressure vessels. Such as, water
treatment,vacuum emulsifier, shampoo and liquid soap mixers , perfume making machine, storage tank, filling and packing machines etc. And we have relative pressure certificate to remove your worries.
Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Jiangsu, China, welcome to visit us at any time. You can take the plane to Shanghai and then take the highway to Zhenjiang Station(1 hour and 40 minutes), then we will pick u up.
Q3: How does your factory do regarding quality control?
A3: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.
Q4: What’s the guarantee if we purchase from you?
A4: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any wearing part be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free.
Q5: How about the after service?
A5: There’s no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer.
Q6:Can you make the machine as per our request?
Yes, customized machines are acceptable. We can make the machine as per your request.
