M80 IPTV на 32 RF канала аналоговый NTSC PAL модулятор с поддержкой большой полнофункциональной ЖК меню ручки челнока

M80, analog modulator with LCD Screen can ingest multiple HD or SD IP streams in either MPEG-2/ H.264 /H.265 format and convert them to PAL-B/G, PAL-DK, PAL-I, PAL-M, PAL-N, NTSC modulated RF analog outputs for delivery to legacy analog TV networks.

It can decode MPEG-2, H.264 and H.265 encoded video streams in SD and HD quality. In case of HD decoding, automatic downscaling to SD resolution is performed. Numerous audio formats and modes can be decoded and modulated on TV channels.

M80 ensures a high agility inside the whole RF output frequency range. This enables full flexibility and makes the most efficient use of the available channel spectrum. This allows operators to support legacy analog tiers of service while simplifying headend equipment and power consumption and integrating with modern IP video headend architectures.

Features

•



  • 2/4 GE ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each GE input

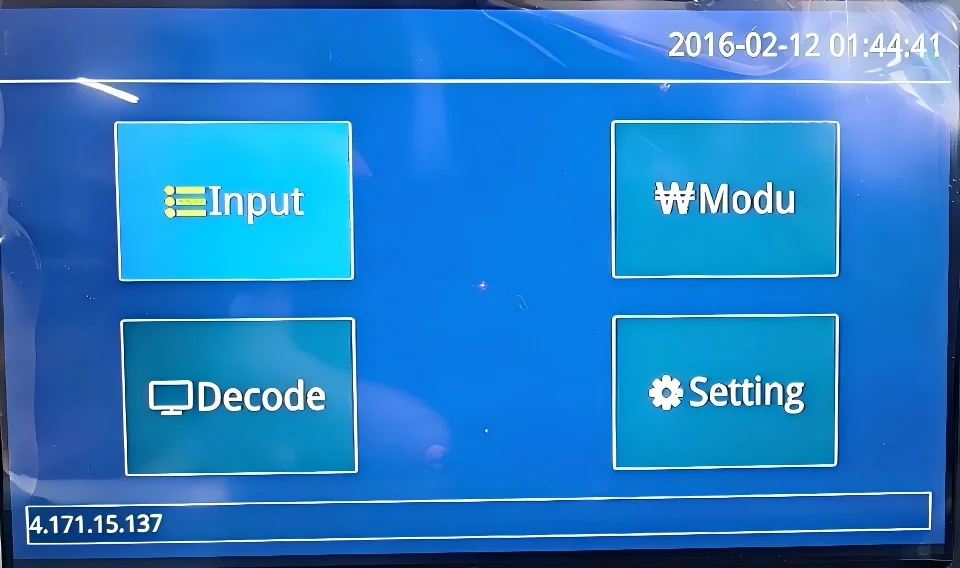

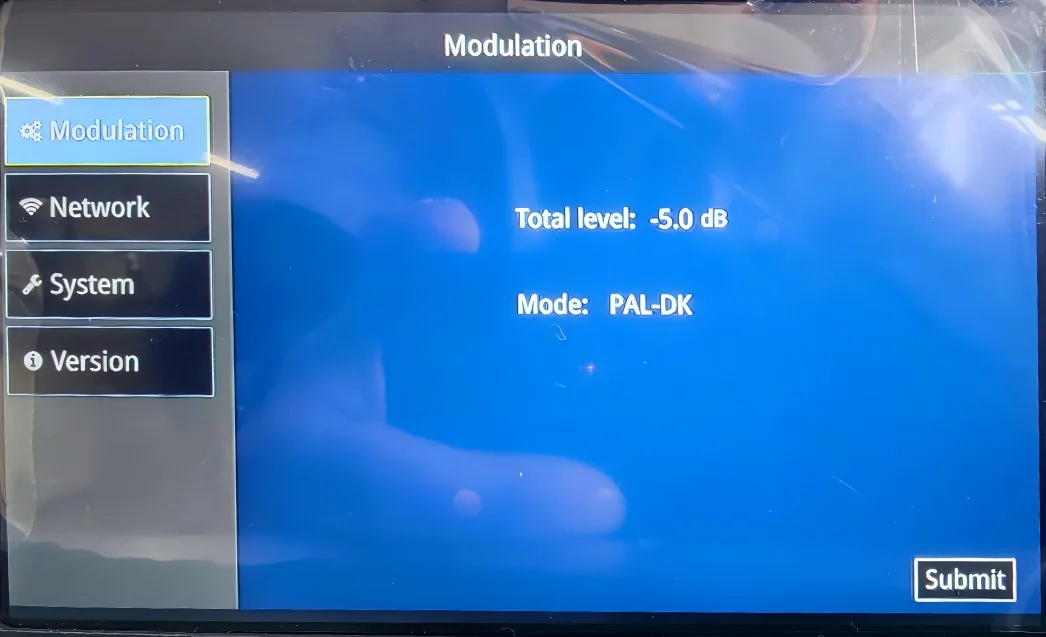

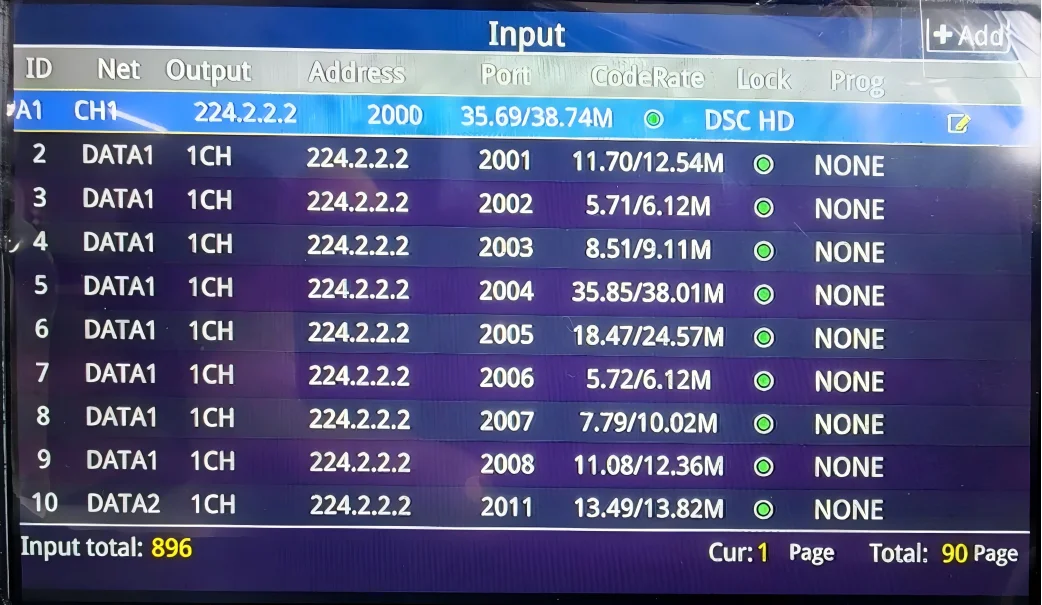

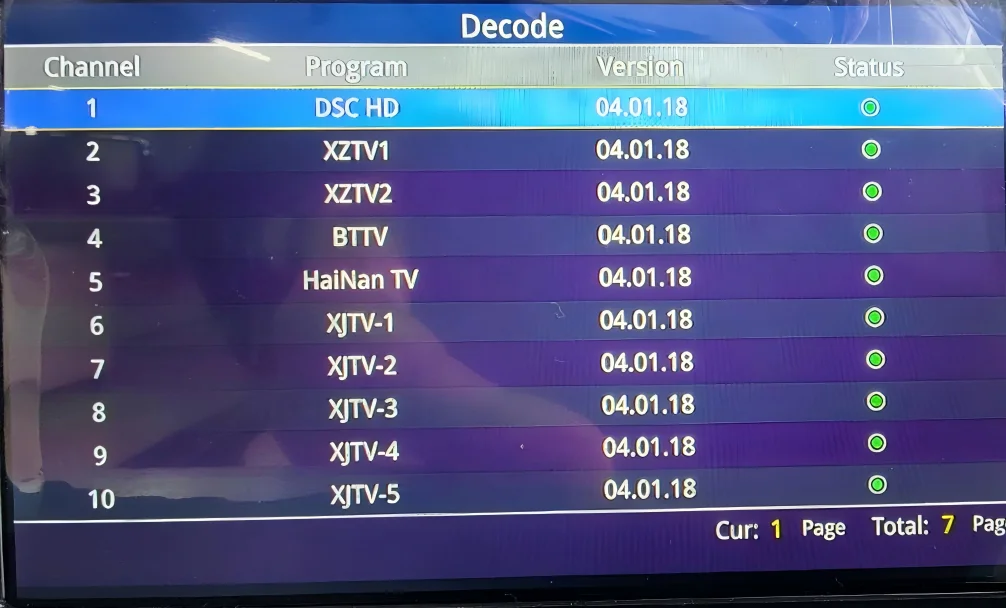

  • Supports LCD and menu function, can detect IP input and output programs, demodulate displays, and set output levels


  • Suport CC/Subtitle/Teletext


  • Support program info modify, multiple audio select


  • Support automatic decoding reset function


  • Support H.265/HEVC H.264/AVC, MPEG-2 TS Decoding


  • MPEG-1/2 Layer 1/2, (HE-)AAC, AC3, E-AC3 audio decoding

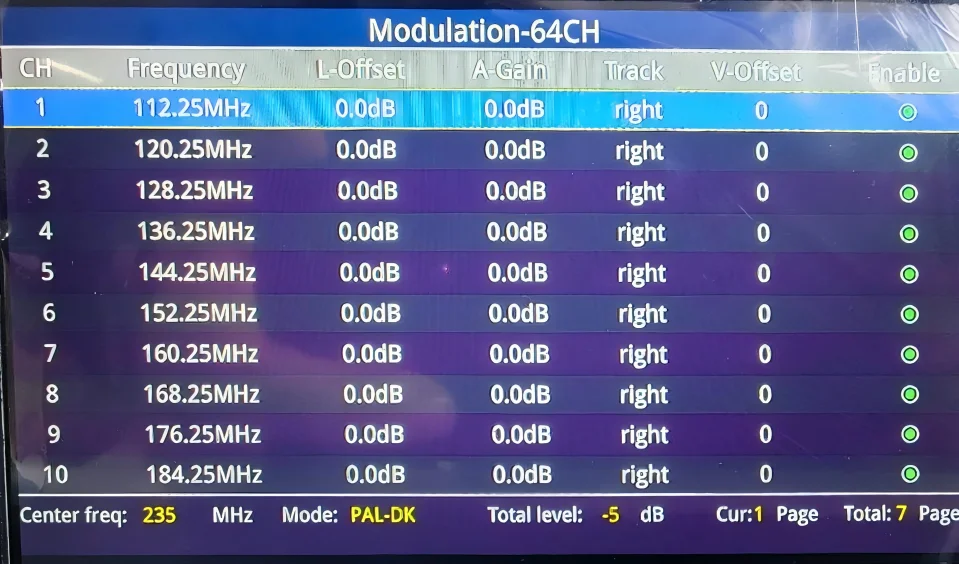

  • 32 (or 48/64) standard PAL or NTSC or SECAM TV programs output via 32 (or 48/64) non-adjacent or adjacent carriers output within 400MHz


  • Automatic HD to SD downscaling


  • Multi-system (PAL-B/G, PAL-DK, PAL-I, PAL-M, PAL-N, NTSC) support


  • support Brightness, Saturability, Contrast adjust


  • Support Web-based Network management


  • passed the EU CE&RoHS certification





Technical Specifications

Input

Types: 2/4 GE ports (max 64 IP input)

Max:  840Mbps for each GE input

Stream :  UDP, UDP / RTP, 1-7 packets, FEC, SPTS, MPTS

Transport Protocol :    TS over UDP/RTP, unicast and multicast, IGMP V2/V3

Packet Length : 188 / 204 Bytes

Decoding Parameters

Video :  H.265/HEVC, H.264/AVC Level 4.1 HP, MPEG-2 MP@HL

Data Teletext , CC, DVB subtitle

Resolution

MPEG-2:  1080 @60I, 1080 @50I, 720 @60P,720 @50P, 576 @50I, 48 0@60I

H.264 : 1080 @60I, 1080 @50P, 1080 @50I, 1080 @30P,1080 @25P, 720 @60P, 720 @50P, 576 @50I, 480 @60I

H.265:  1080 @60P ,1080 @60I, 1080 @50P,1080 @50I, 720 @60P, 720 @50P

Aspect ratio:  4:3/16:9

Audio : MPEG-1/2 Layer 1/2, (HE-)AAC, AC3, E-AC3

Audio Channel:  Mono L, Mono R, Mono L+R

A2 Dual Mono (L, R), A2 Stereo

NICAM Dual Mono (L, R), NICAM Stereo

Note: when applying dual audio, one TV program with dual audio will occupy 2

frequencies, which means the total output channels will reduce respectively.

Modulation Parameters

Number of channels:  32/48/64

Connectors:  75Ω, F-jack

Frequency range:  43.25 – 951.25MHz, digital modulation

Output level maximum:  112dBμV

Return loss:  ≥ 14dB

Spurious frequency:  dist. ≥ 60dB

Stereo cross talk:  > 55dB

Residual carrier accuracy:  1%

TV standard:  PAL-B/G, PAL-DK, PAL-I, PAL-M, PAL-N, NTSC,

SECAM (under developing)

Video-signal to noise ratio:  ≥ 60dB

Network Interface

Management:  1 x 100 Base-T Ethernet (RJ 45)

Data 2 x 1000 Base-T Ethernet (RJ 45)

Protocol IEEE802.3 Ethernet, RTP, ARP, IPv4, TCP/UDP,

HTTP, IGMPv2/v3

Others

CNR (after internal combining):  60 dB

SNR (after internal combining):  > 53 dB

Sampling frequency:  48, 44.1, 32

Output volume adjustment:  0 - 100 %

Image resolution output:  480i/576i

OSD logo: JPG, BMP, PNG

CAPTION: support multiple languages, scrolling

direction and speed customized

General

Dimension:  483mm×330mm×88mm (WxLxH)

Temperature:  0~45℃(operation), -20~80℃(storage)

Power Supply:  AC100V±10%, 50/60Hz or AC 220V±10%,50/60Hz
