Specification

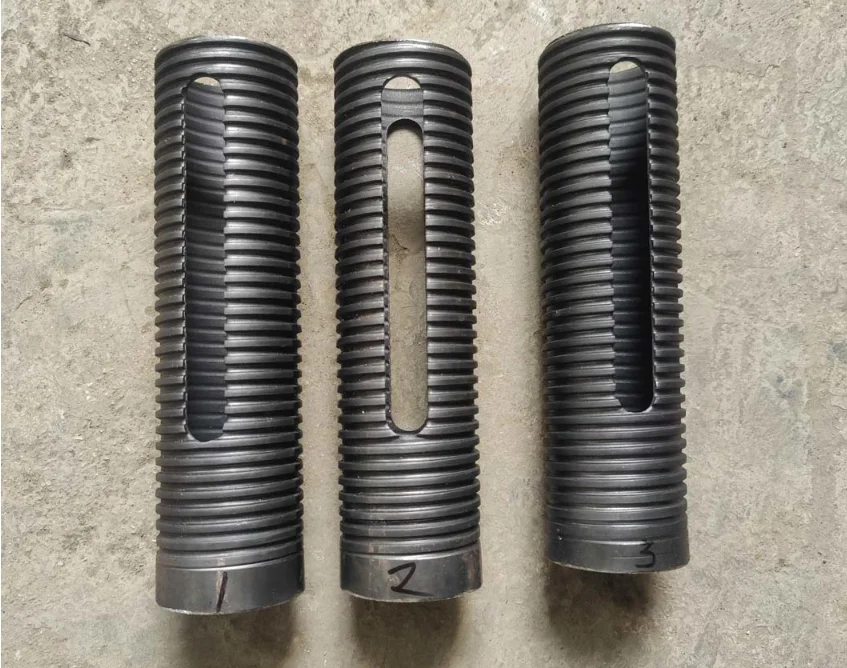

Adjustable Prop Sleeve and Cup Type Nut for Scaffolding Shoring and Formwork
Made by threading rolling machine in our factory, the outer diameter is 60mm, thickness 3.5mm, black or zinc plated finishing.
When it is used, it will be welded on the outer tube end and make the inner tubes adjustable according to the height requirement.
Different sizes and thickness can be made.

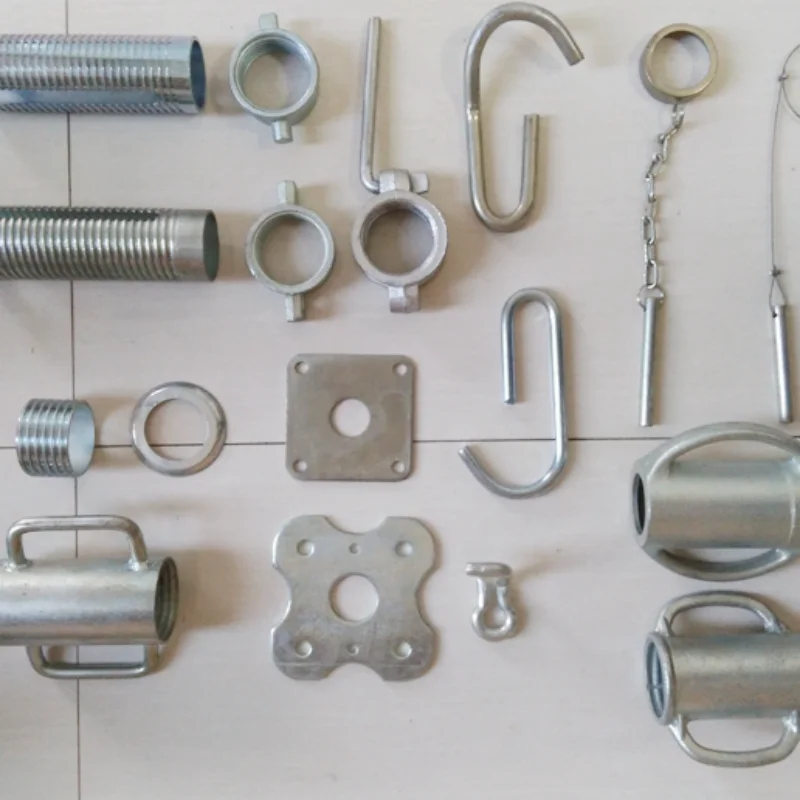

A complete set of steel prop consists of Top Plate, Base Plate,Inner pipe,Outer pipe, Prop Sleeve, Prop Nut, Support Pin or G Pin,
Tripod and Fork Head.
Made by threading rolling machine in our factory, the outer diameter is 60mm, thickness 3.5mm, black or zinc plated finishing.
When it is used, it will be welded on the outer tube end and make the inner tubes adjustable according to the height requirement.
Different sizes and thickness can be made.
A complete set of steel prop consists of Top Plate, Base Plate,Inner pipe,Outer pipe, Prop Sleeve, Prop Nut, Support Pin or G Pin,
Tripod and Fork Head.

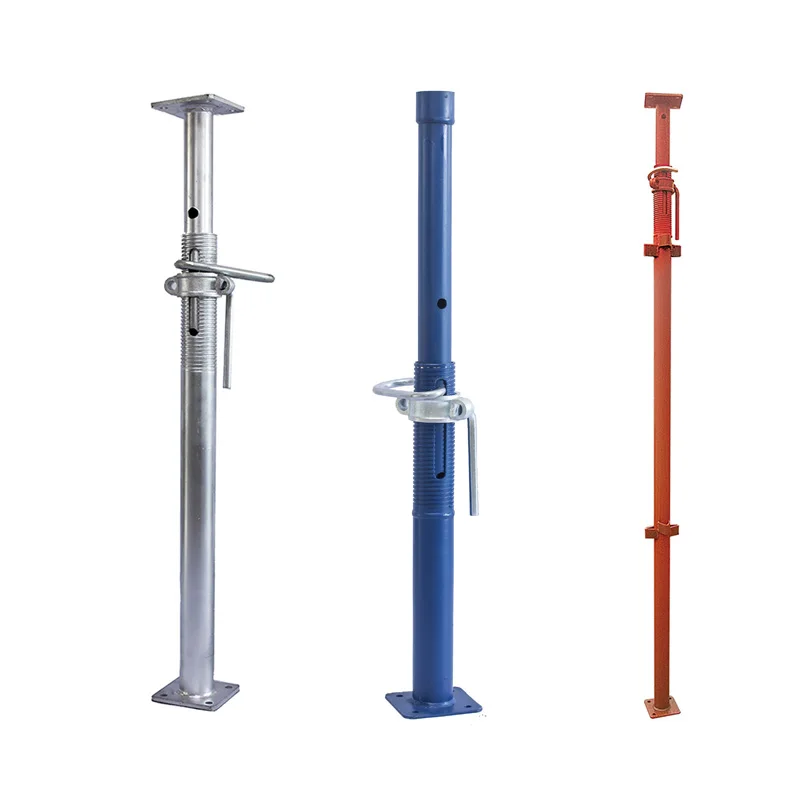

Light Duty Adjustable Props | Min Length | Max Length | Inner Tube | Outer Tube |
1.7m | 3.0m | 40*2.0mm | 48*2.0mm | |
1.8m | 3.5m | 48*2.0mm | 56*2.0mm | |
2.0m | 3.5m | 48*2.0mm | 56*2.0mm | |
(OEM is available) | 2.2m | 4.0m | 48*2.0mm | 56*2.0mm |
Heavy Duty Adjustable Props (OEM) | Min Length | Max Length | Inner Tube | Outer Tube |
1.8m | 3.2m | 48*2.0mm | 60*2.0mm | |
1.8m | 3.6m | 48*3.0mm | 60*3.0mm | |
2.0m | 4.0m | 48*2.0mm | 60*2.0mm | |
2.2m | 4.0m | 48*3.0mm | 60*3.0mm |
Shoring Prop Sleeve | Diameter | 60/76mm | Length | 195-400mm |
Thickness | 2.5-4.0mm | Thread | Threading / Rolling | |
Material | Q235 | Finishing | Original color Galvanized |

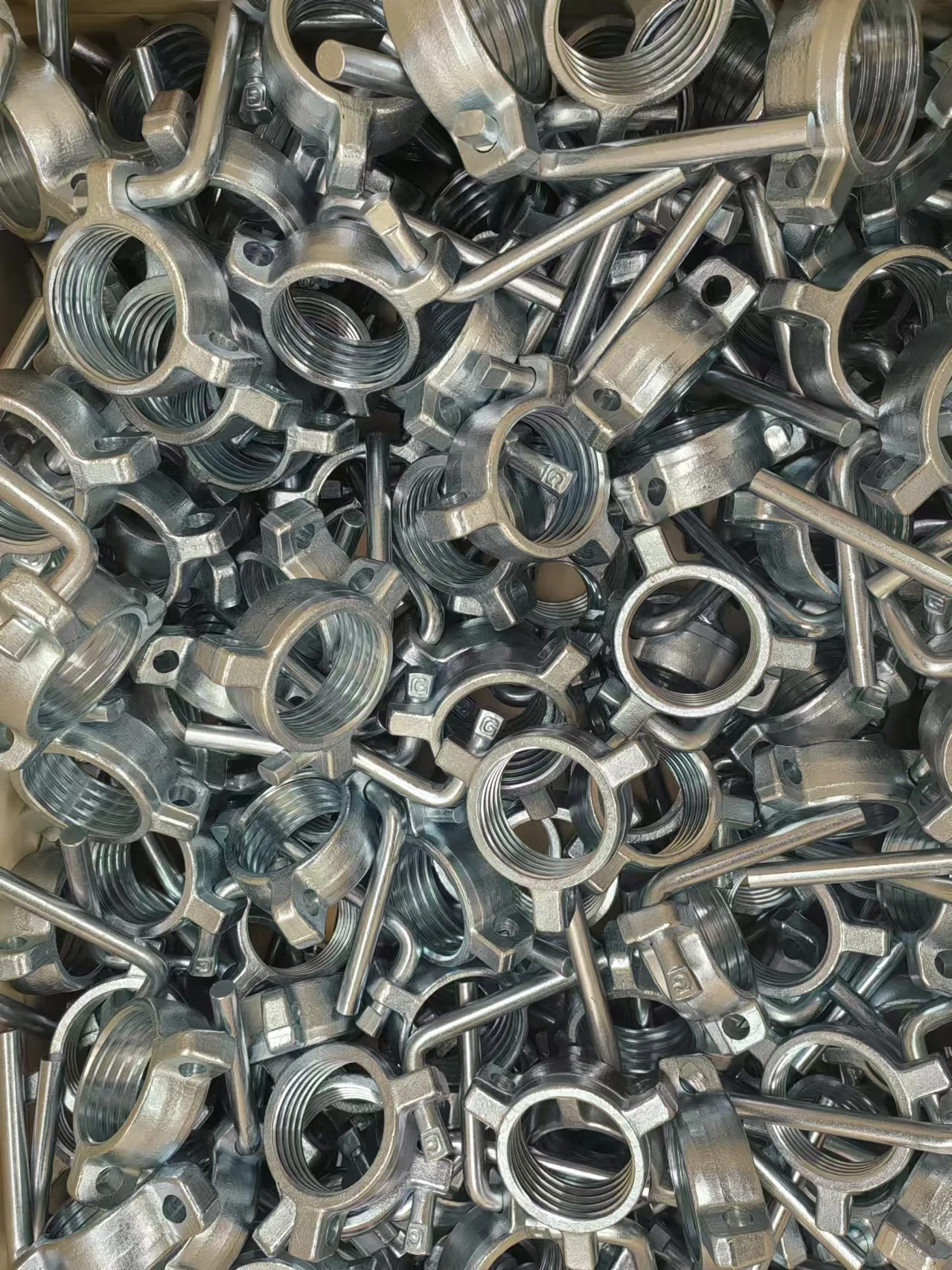

Prop Nut | Dia: 60/76mm | Weight: 0.45/0.56/0.78kg | Material:Ductile Iron | Finishing: Original color Galvanized |
Cup nut | Dia:48/40mm 56/48mm | Length: 120/130/135mm etc | Material: Q235 | Finishing: Original color Galvanized |
G Pin | Chain pin | Dia: 11/12/14/16mm | Material: Q235/ 45# | Finishing: Original color Galvanized |
Base Plate | Flower & Square type | 120*120*5mm 140*140*8mm 150*150*6mm | Material: Q235 | Finishing: Original color Galvanized |
Product Description

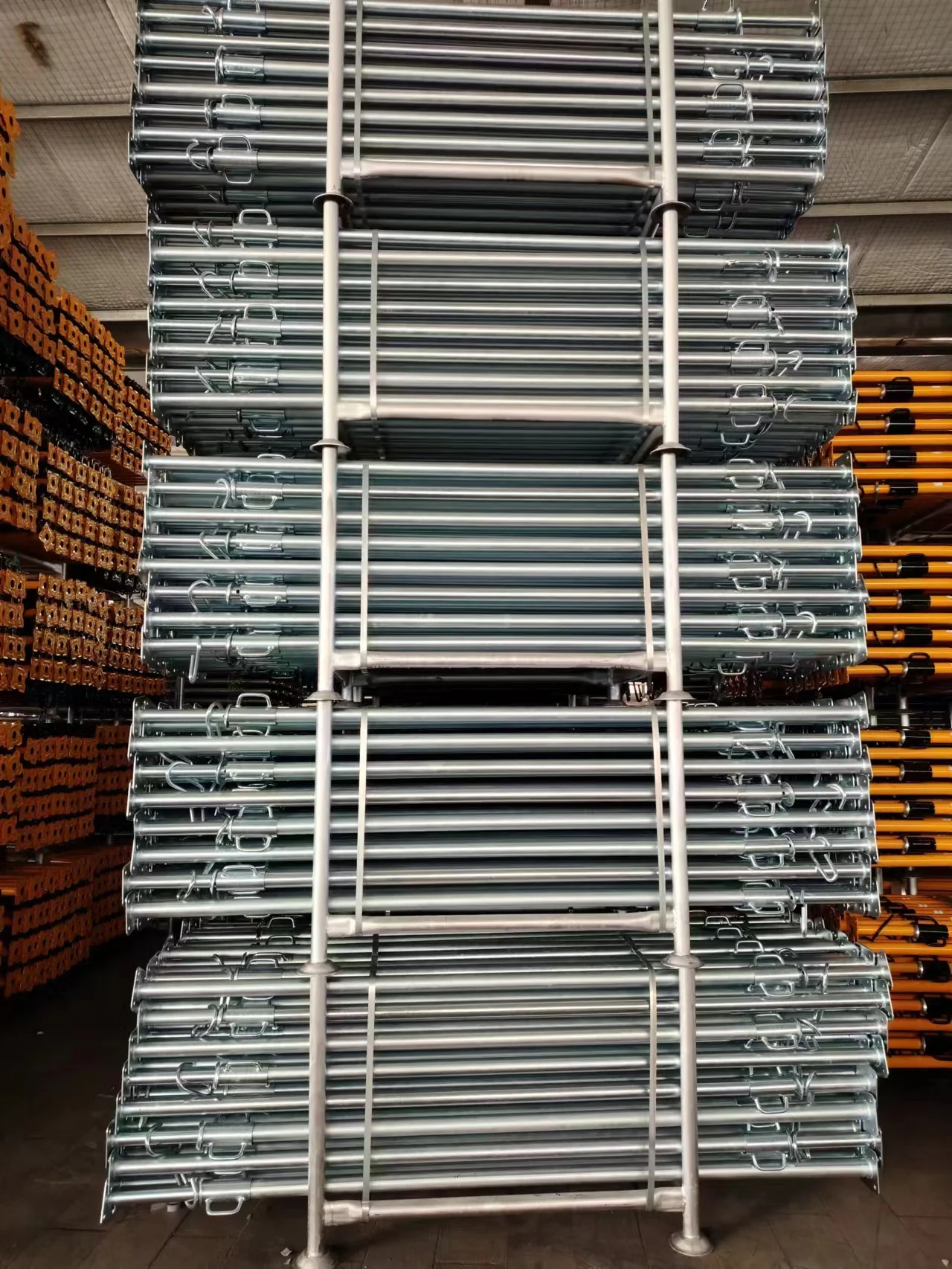

Packing & Delivery
Certifications
Company Profile
Rizhao Weiye Tools Co.,Ltd. is a leading manufacturer of system scaffoldings and accessories, forged couplers, shoring props, formwork accessories, fences, ladders, frame scaffolding and other related products in Rizhao City, Shandong, China.
We have been in the business for 25 years, and all our products are BS 1139 and EN 74, AS 1576 certified, the quality is the best. Our products are very popular in European countries, Australia, North America, Mid-east countries, and South East Asia and some African countries, etc.
Currently, we have well-trained workers of more than 300, advanced forging lines of 10 and many other advanced equipment. We are also capable of tooling designing, performance testing, new products researching and developing. We have two factories taking up to 160000 square meters. With years of development, we can reach a production capacity of more than 20 containers per month. We are growing all the time.
We have our own zinc plating and powder coating workshops and cast steel/cast iron part processing workshop, which enable fastest delivery and most consistent quality of the products.
We are looking forward to establishing long term business relationship with you in the near future!
Main Business:
1. System scaffolding:
Include: Kwikstage system scaffolding and accessories; Ringlock system scaffolding and accessories; Cuplock system scaffolding and accessories; Haki system scaffolding and accessories.
2. Couplers/Clamps:
We can manufacture all kinds of drop forged or pressed couplers, include: British type couplers, Italian type couplers, German type couplers, American type couplers, and many other kinds of couplers as per your drawings.
3. Frames
Mainly include: Mason (Ladder type) frames and walk through (door type) frames, we can also manufacture as per your drawings.

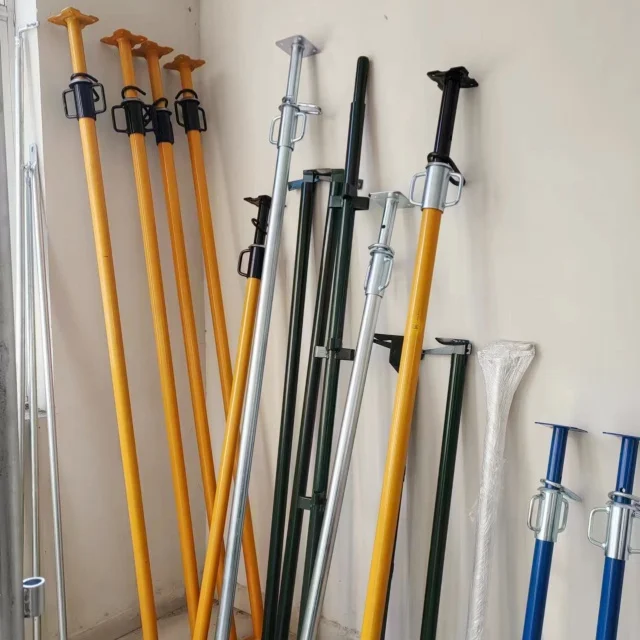

4. Shoring Props
Quality shoring props of different specifications can be manufactured in our factory.

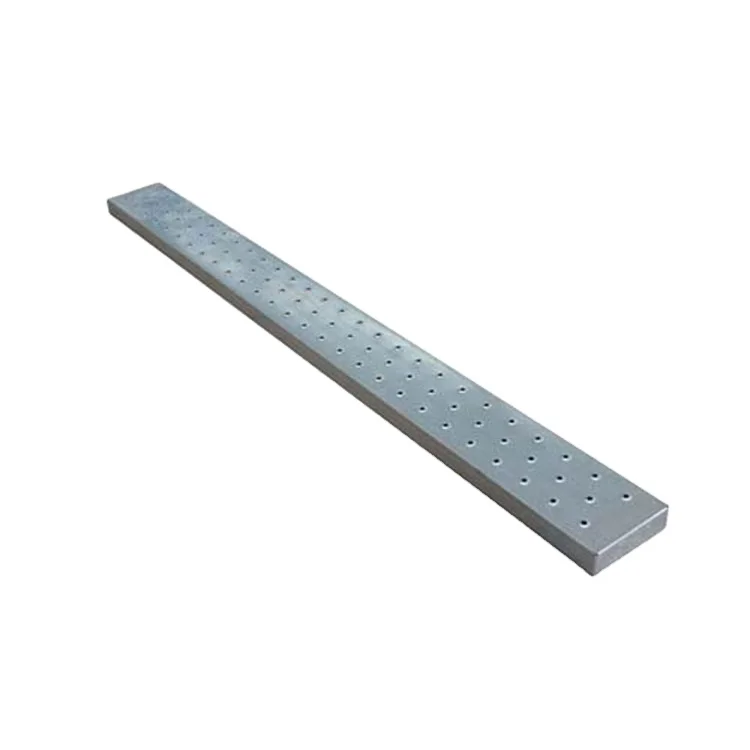

5. Planks/ Toe Board:
Both aluminum and steel planks can be manufactured in our factory.
6. Others
We can also manufacture casting parts, fences, ladders, steel trays/stillages and other related products that are needed in the erection of scaffolding.
All staff from Rizhao Weiye Tools Co.,Ltd welcome you to visit us, thanks!
Our Advantages
Advanced and Automatic Machines
--- 10 sets of Automatic Robert Arm Welding Machines which makes welding process faster and safer.
--- 6 sets of High Speed Laser Cutting Machines which makes Production more efficient and qualified.
--- 2 Advanced Production Line which extends scaffolding products items and realizes fast delivery.
Exhibition
FAQ
1. Q: What's your MOQ(minimum order quantity)?
A: One full 20ft container,mixed acceptable .
2. Q: What's your packing methods?
A: Packed in Steel Pallet (customed is accepted).
3. Q: What's your delivery time?
A: 20-25 days after received the advance payment .
4. Q: Are you manufacturer or trader?
A: We are a professional Scaffolding manufacturer Since WEIYE's inception in 1990.
5. Q: Where's your factory?
A: Our factory is in Rizhao city, Shandong Province, close to Qingdao Port
6. Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, will arrange the professional sales team to follow up.
7. Q: Can you supply other scaffolding Products?
A: Yes. All related construction materials.
A: One full 20ft container,mixed acceptable .
2. Q: What's your packing methods?
A: Packed in Steel Pallet (customed is accepted).
3. Q: What's your delivery time?
A: 20-25 days after received the advance payment .
4. Q: Are you manufacturer or trader?
A: We are a professional Scaffolding manufacturer Since WEIYE's inception in 1990.
5. Q: Where's your factory?
A: Our factory is in Rizhao city, Shandong Province, close to Qingdao Port
6. Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, will arrange the professional sales team to follow up.
7. Q: Can you supply other scaffolding Products?
A: Yes. All related construction materials.
Похожие товары

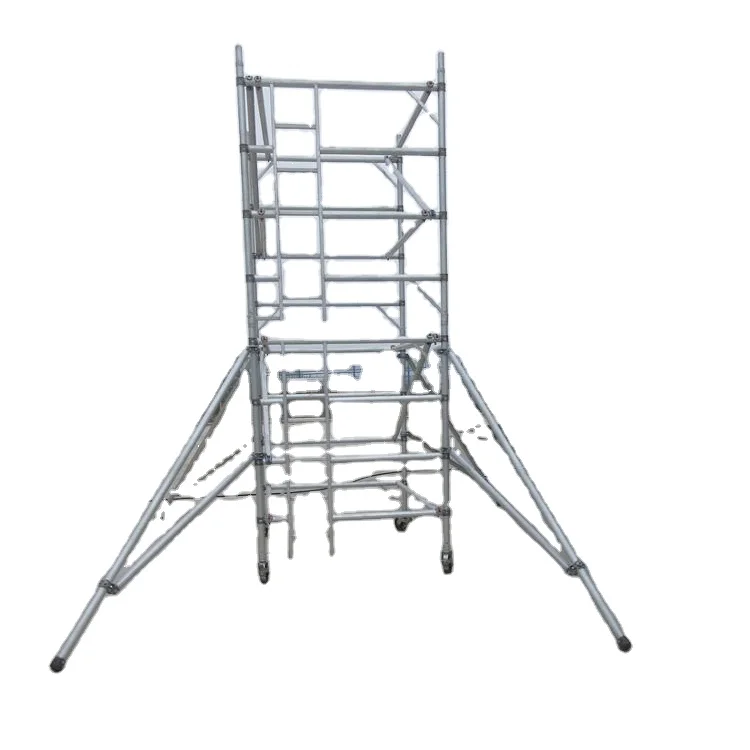

SONGMAO двойная Ширина алюминиевая Мобильная башня строительных лесов
1 735,49-2 002,49 ₽

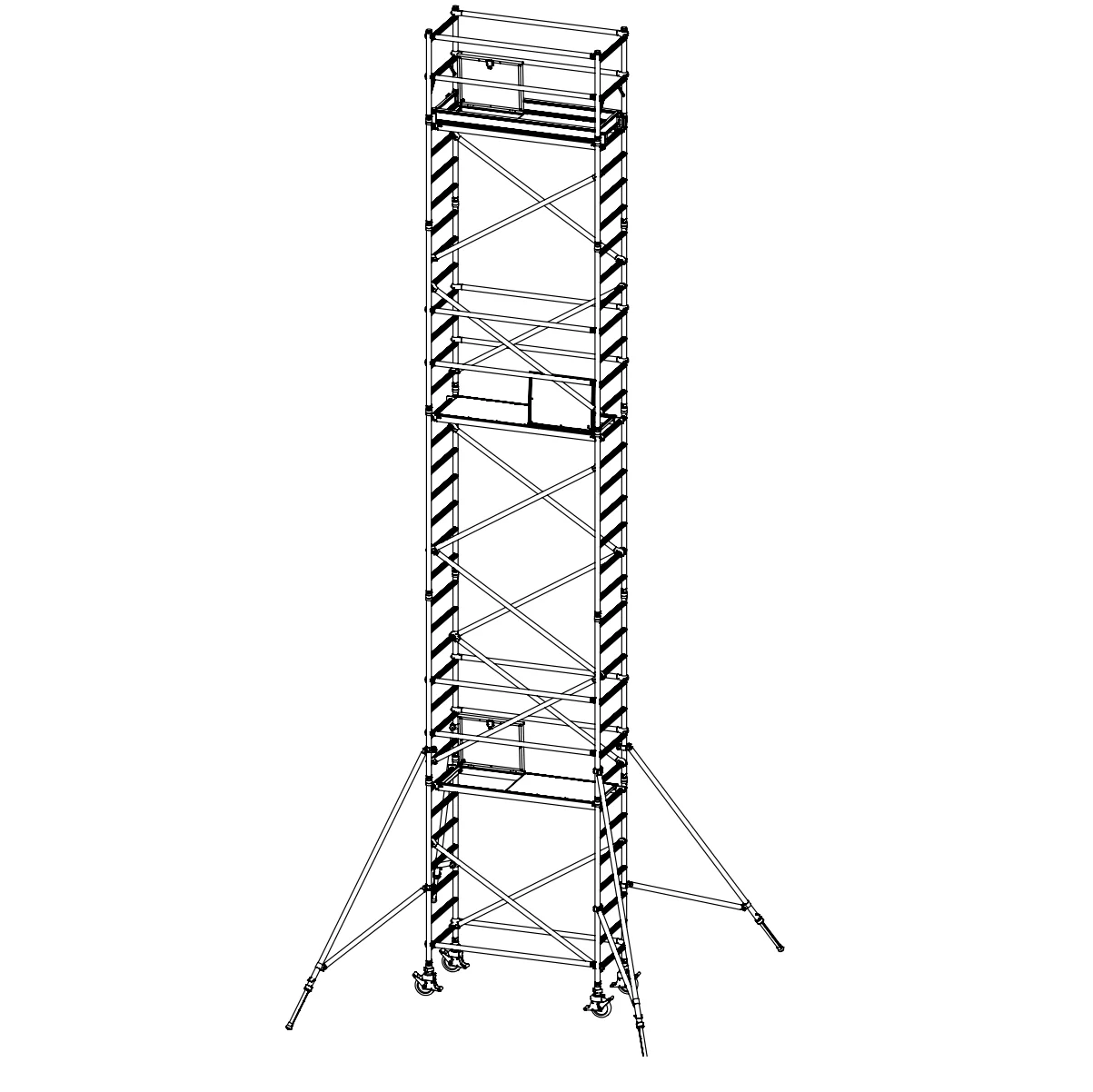

4 м алюминиевая передвижная платформа для строительных лесов
143 797,49-144 433,20 ₽
Строительная металлическая сталь гальванизированная Регулируемая опорная стойка телескопическая опалубка для строительных лесов
Обеспечить безопасность и соответствие требованиям во время проверок с помощью надежных систем строительных лесов
69 928,05-82 642,24 ₽
Алюминиевая доска для строительных лесов Kwikstage 4 м 5
129 684,74-150 027,45 ₽

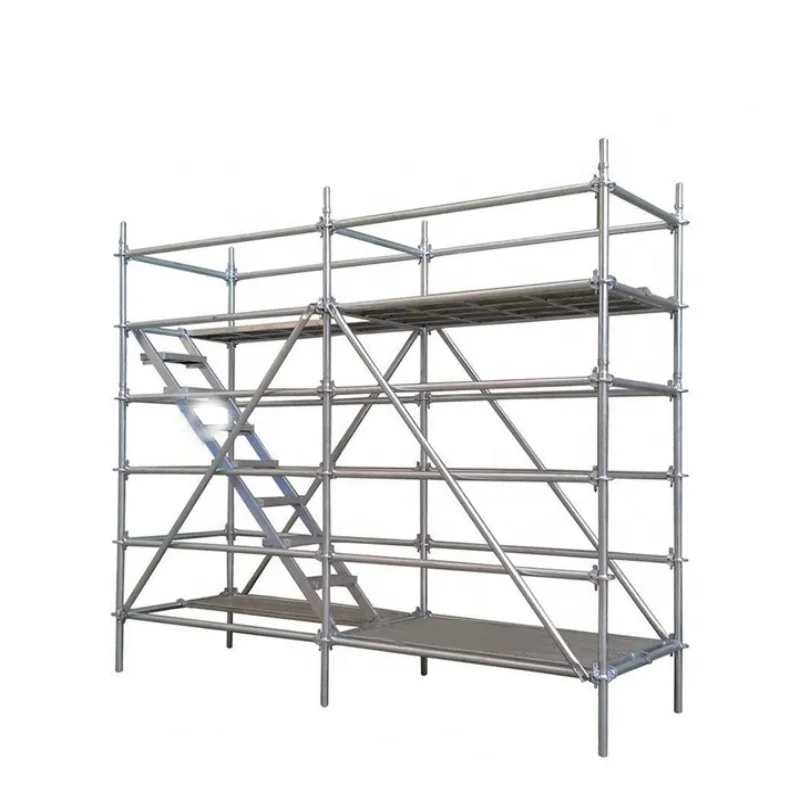

Горячая оцинкованная сталь для строительных лесов Cuplock/Cuplok System Andamios название деталей материалов
