Мобильное настенное зарядное устройство Simsukian wallbox eu type2 22 кВт Электромобиль зарядка интеллектуальное ev
- Категория: >>>
- Поставщик: Senshuqiang (huizhou) Technology Co. Ltd.Senshuqiang Ltd.
Сохранить в закладки 1601354315805:
Описание и отзывы
Характеристики

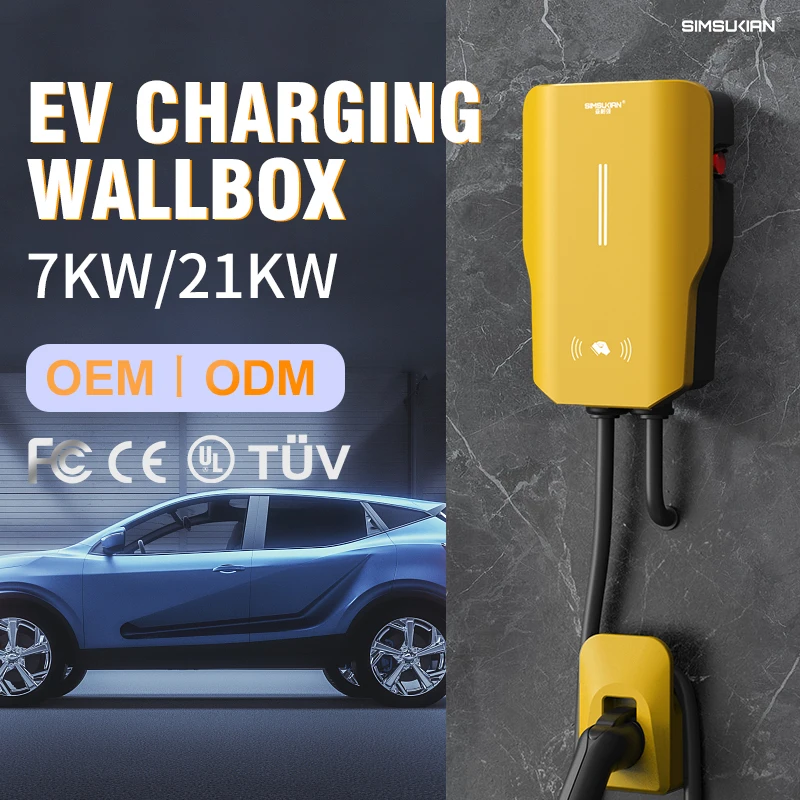

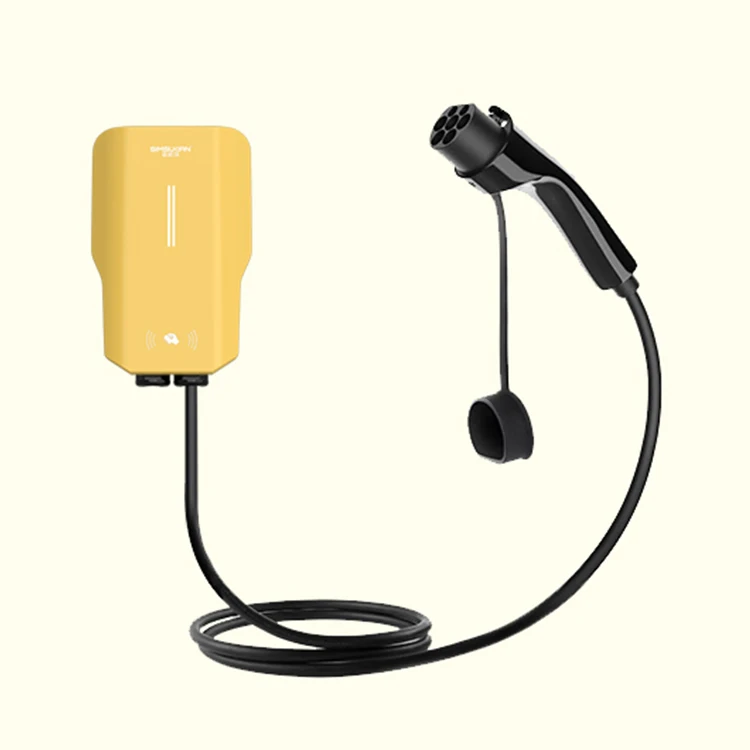

mobile wallbox eu type2 22kw ev charger wall box electric car charging intelligent wall charger ev 22kw
Details Images
Our AC EV car chargers have been sold to over 40 countries , such as Germany, Israel, USA, Canada, Netherlands, Switzerland, Luxembourg, Belgium, Bolivia, Thailand, Netherlands, Switzerland etc.
1. We can custom color, print your logo on the panel
2. "9 kinds of protection" system makes charging safe and reliable
3. Wearable and resistance certificated charging cable
4. Different modes for your optional choices, whatever you need a residential or commercial ev charger stations
"One button to start charging",
"Tap a RFID card to start charging"

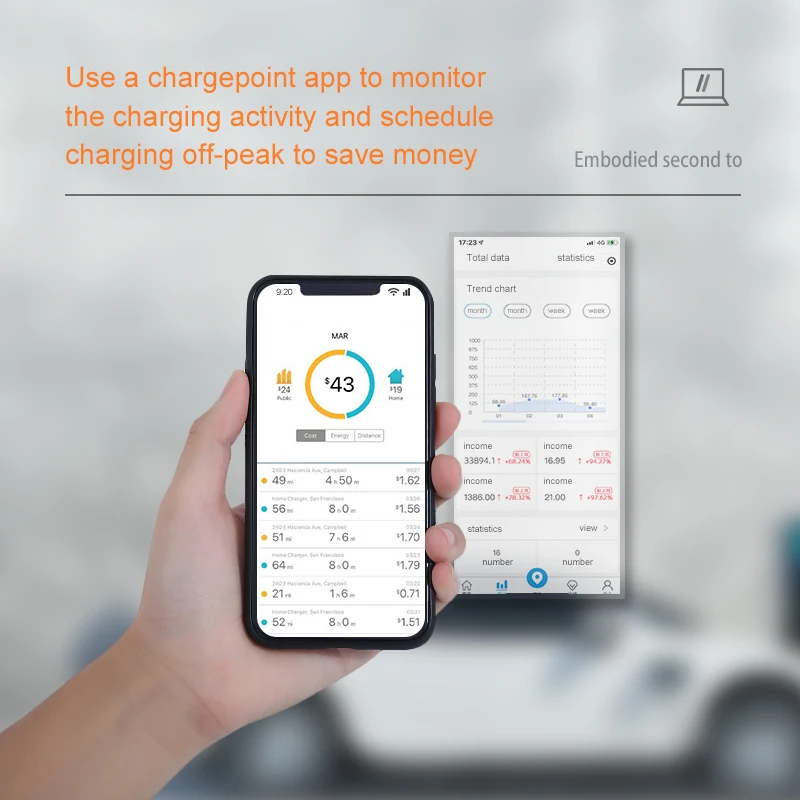

"APP control to monitor charging "
“Scan a code to pay for charging for your cars ”
5. IP65 waterproof level, Can be installed outdoors. It's easy to install both wall-mounted and pillar-mounted ev chargers.
6. Chinese AC EV charger, American level 2 AC EV charger, European Mode 3 EV charger. We customize according to your different needs.
Products Description
Product Name | wall charger ev 22kw | ||||||
Model | SK-AC09 | ||||||
Power Rating | 7KW/22KW | 7.6KW/9.6KW/11KW | 7KW/22KW | ||||
Charging Gun Connector | GB/T | Type 1 | Type 2 | ||||
Input Voltage | 220V± 2 0 % | 208V/240V± 2 0 % | 230V/380V± 2 0 % | ||||
Input Current | 32A | 32A/48A | 32A | ||||
Compatibility | 99% of electric vehicles on the market | ||||||
insulation resistance | 1G Ω | ||||||
service frequency | 50±1Hz | ||||||
Dustproof&Waterproof | Temperature protection | Compression and Flame Retardant | Overcurrent Protection | ||||
Anti-static Protection | Under voltage Protection | Earth Leakage Protection | Lightning Protection | ||||
Short Circuit Protection | |||||||
IP65 Waterproof Level | |||||||
Optional Function | Home Use | One button to start charging | Tap the RFID card to start charging | APP Control | |||
Commercial Use | APP Control | Scan code to charge | |||||
LED Indicator | Optional | ||||||
LCD Screen | Optional, (SK-AC08 Model has 4.3 inch LCD screen, no screen for SK-AC09) | ||||||
Network | 4G/Wifi, optional | ||||||

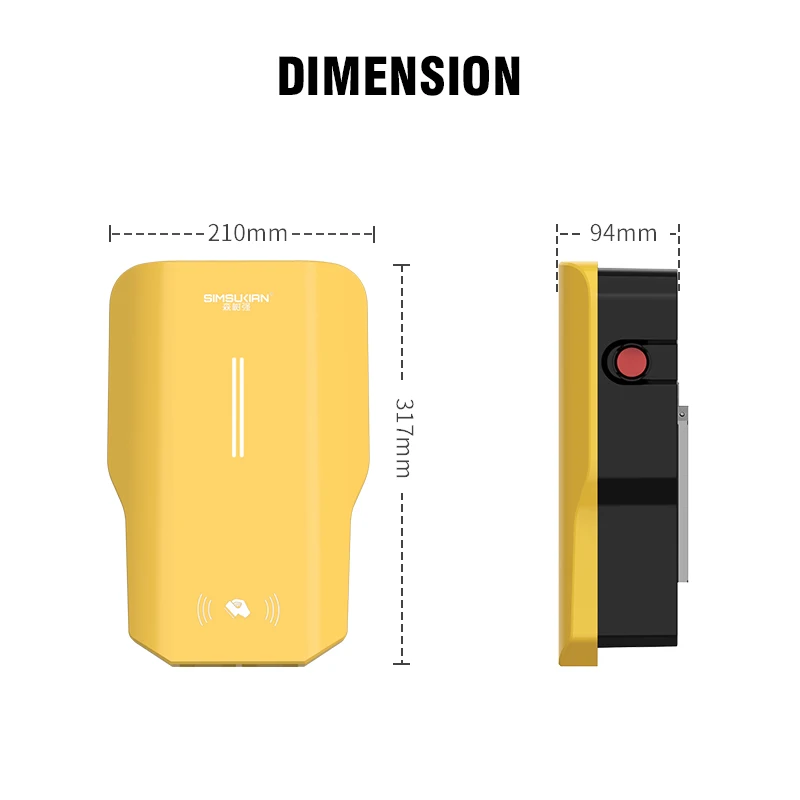

Dimensions | 317*210*94mm | ||||||
Cable length | 5m, custom length requests are available | ||||||

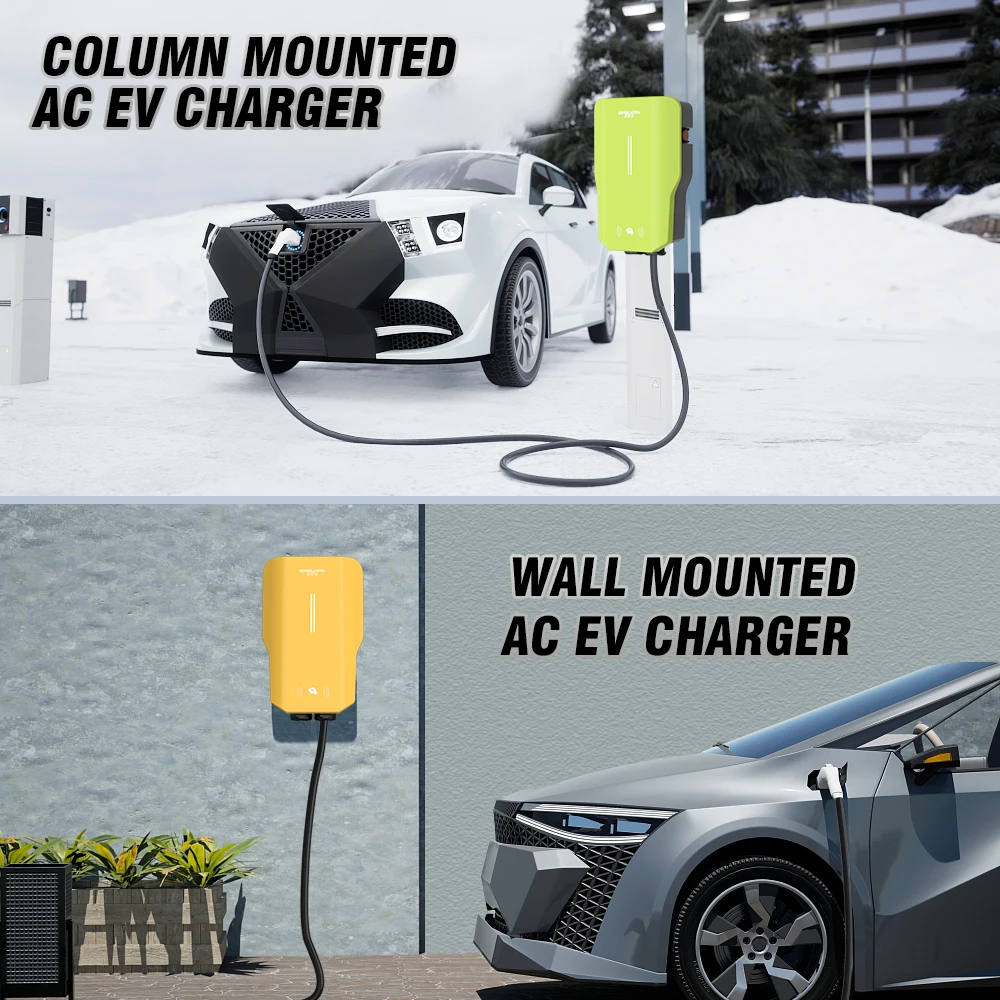

Set-up Methods | Wall-mounted, or Pillar-mounted | ||||||
Color | yellow, green, grey, A variety of colors are available | ||||||
Material | Plastic | ||||||
Workplace | Indoor / outdoor, no flooding, keep ventilated | ||||||
working temperature | -25~50℃ | ||||||
ambient humidity | Less than 95% | ||||||
Application
our SK-AC** ev charger series is suitable for Audi A3 e-Tron, for BMW i3,BMW i8, for Chevrolet Spark, for Mercedes
B Class E-Celi, for Mercedes S500 PHEV, for Mercedes Vito E-Cell Van, for Porsche Panamera S PHEV, for Vollkswagen e-Up, for Volkswagen e-Golf, for Volvo V60 PHEV, for Tesla S/X, for Chevrolet Volt, for Citroen C-Zero, for Fisker Karma, for Ford Focus Electric, for Ford C-Max Energi, for Mia, for Mia Electric Van, for Mitsubishi-I Miev, for Mitsubishi Outlander Phev, for Nissan NV200 SE Van, for Nissan Leaf, for Peugeot Ion, for Renault Fluence, for Renault Kangoo, for Smiths Edison Van, for Smiths Newton, for Tata Indica Vista EV, for Toyota Prius, for Vauxhall Ampera etc.
B Class E-Celi, for Mercedes S500 PHEV, for Mercedes Vito E-Cell Van, for Porsche Panamera S PHEV, for Vollkswagen e-Up, for Volkswagen e-Golf, for Volvo V60 PHEV, for Tesla S/X, for Chevrolet Volt, for Citroen C-Zero, for Fisker Karma, for Ford Focus Electric, for Ford C-Max Energi, for Mia, for Mia Electric Van, for Mitsubishi-I Miev, for Mitsubishi Outlander Phev, for Nissan NV200 SE Van, for Nissan Leaf, for Peugeot Ion, for Renault Fluence, for Renault Kangoo, for Smiths Edison Van, for Smiths Newton, for Tata Indica Vista EV, for Toyota Prius, for Vauxhall Ampera etc.
Recommend Products
Certifications
Product packaging
wall charger ev 22kw packing methods:
1. Packing size: W 515 mm x D 402 mm x H 160 mm, carton box + protective card.
2. Custom Package with printing your logo is available.
3. Safe storage and negotiate to choose a better mode of transport.
Company Profile
COMPANY PROFILE
Shenzhen Simsukian Electronic Technology Co., Ltd. has been deeply involved in the field of power energy supply for 27 years. Senshuqiang (Huizhou) Technology Co., Ltd. is its subsidiary and an innovative enterprise dedicated to new energy vehicle charging piles.
We’re providing premium, smart end-2-end energy solutions, including CE&UL certified AC/DC EV Charging Stations, CSMS(Charging Station Management System), with reliable hardware & software design.
Focus on the design, development and manufacture of electric vehicle charging equipment. Whether it is an AC charging wallbox for home use, or a commercial DC
We’re providing premium, smart end-2-end energy solutions, including CE&UL certified AC/DC EV Charging Stations, CSMS(Charging Station Management System), with reliable hardware & software design.
Focus on the design, development and manufacture of electric vehicle charging equipment. Whether it is an AC charging wallbox for home use, or a commercial DC
fast charging station,we are constantly developing new solutions to meet the market challenges. We believe that the electrification of vehicles is revolutionizing the future. As charging needs evolve, we will continue to be customer-focused, providing the infrastructure and expertise needed to adopt electric mobility. At the same time, with high-quality service support, to satisfy customers, promote the revolution of automobile electrification, and contribute to the sustainable development of green travel and the environment.
FAQ
1. Q: What is your terms of payment?
A: Alibaba online fast payment, T/T
2. Q: Do you test all your chargers before shipping?
A: All major components are tested before assembly and each charger is fully tested before shipped
3.Q: Can I order some samples? How long?
A: Yes, up to 10 sets is ok, and usually 7-10 days to production and 7-10 days to express.
4.Q: How long to fully charge a car?
A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h, obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.
5.Q: Are you Trading Company or manufacturer?
A: We are professional EV charger manufacturer.
A: Alibaba online fast payment, T/T
2. Q: Do you test all your chargers before shipping?
A: All major components are tested before assembly and each charger is fully tested before shipped
3.Q: Can I order some samples? How long?
A: Yes, up to 10 sets is ok, and usually 7-10 days to production and 7-10 days to express.
4.Q: How long to fully charge a car?
A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h, obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.
5.Q: Are you Trading Company or manufacturer?
A: We are professional EV charger manufacturer.
