Одновальная машина для измельчения пластиковых отходов
- Категория: >>>
- Поставщик: Zhangjiagang Regulus Machinery Co. Ltd.Zhangjiagang Ltd.
Сохранить в закладки 1601354326203:
Описание и отзывы
Характеристики
Product Details

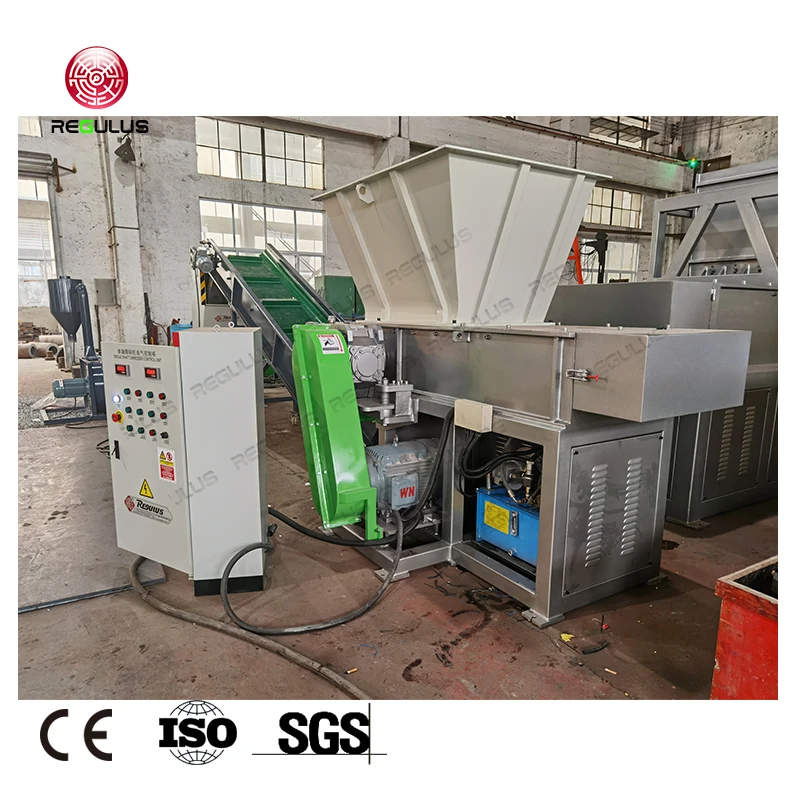

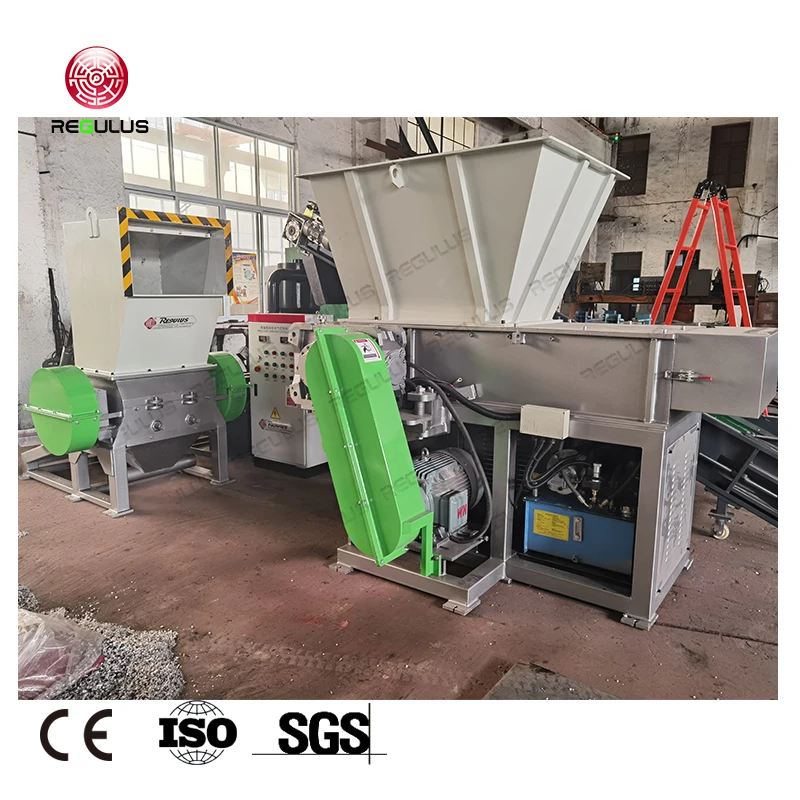

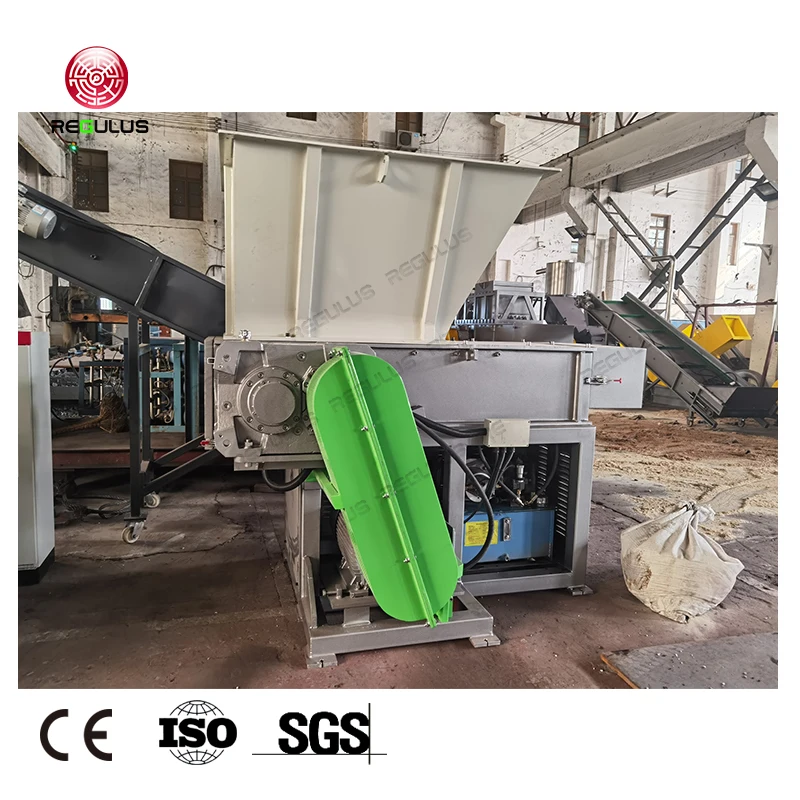

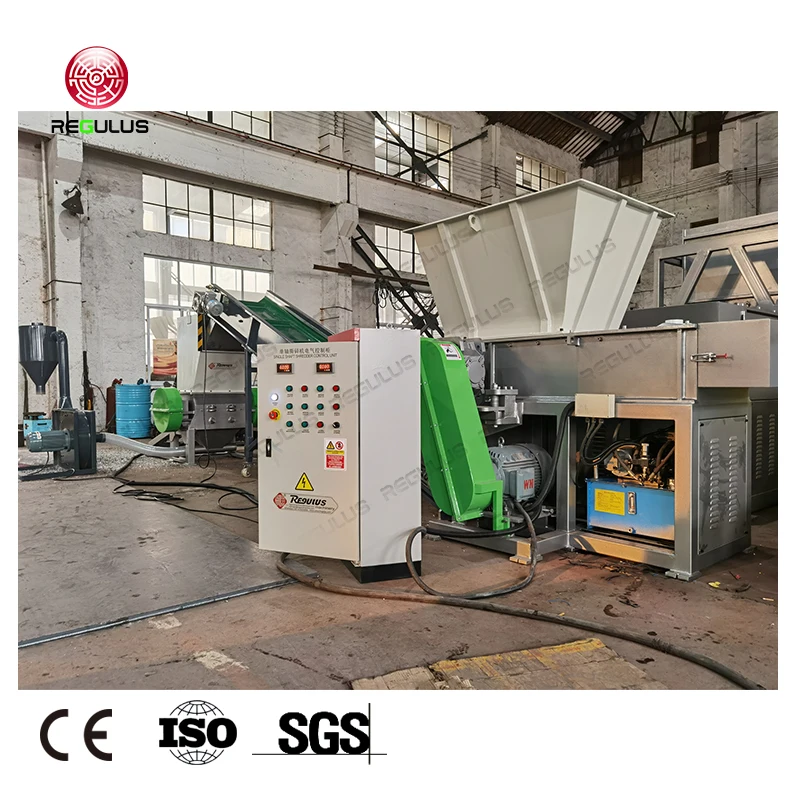

REGULUS series single shaft shredder
REGULUS single-shaft shredder is a model specially developed for recycling companies with large waste plastic disposal capacity. It is an ideal machine for plastic, paper, fiber, rubber, organic waste and a wide variety of materials.
Advantages of shredder
Shredder can be large pieces of material for coarse crushing, and then into the crusher fine, can protect the blade, extend the service life of the blade.
Application：
a) Plastic
film, woven bags, pet bottle
b) Wood
c) Cable
d) Paper
e) Light Metal
aluminum can,aluminum scrap and etc
f) White Goods
TV shell,washing machine shell and etc
g) Solid Waste
medical waste,industrial waste and etc
h) Hard Plastic
plastic lump,fiber, ABS,PC,PPS and etc
Main Parts:
Ram
Screen
Rotor
Hydraulic Station
Gear Box
Bearing Seat
PRODUCT SPECIFICATIONS
Single shaft shredder :
Single shaft shredder is suitable for shredding
1. Plastics: plastic films, plastic bags, plastic bottles, lumps, plastic barrels, plastic pipes, plastic plates, and other general plastics;
2. Paper: hardboard paper, books, document paper;
3. Home appliance plastic casing, wood; chemical fiber.
3. Home appliance plastic casing, wood; chemical fiber.
Model | WT2260 | WT4080 | WT40100 | WT40120 | WT40150 |
Dimension L*W*H(mm) | 1870*1350 *1790 | 2750*1750 *2000 | 2800*1950 *2100 | 2950*2250 *2100 | 2950*2750 *2200 |
Cutting Chamber A*B(mm) | 850*600 | 1300*800 | 1300*1000 | 1400*1200 | 1400*1400 |
Heifht of discharge port C(mm) | 650 | 850 | 850 | 850 | 850 |
Cylinder Stroke(mm) | 600 | 850 | 850 | 950 | 950 |
Rotor Diameter(mm) | φ220 | φ400 | φ400 | φ400 | φ400 |
Main shaft Speed(r/min) | 83 | 83 | 83 | 83 | 83 |
Screen Mesh(mm) | φ40 | φ50 | φ60 | φ60 | φ60 |
Rotor-knives(PCS) | 28 | 40 | 48 | 61 | 78 |
Stator-knives(PCS) | 2 | 2 | 2 | 3 | 4 |
Main motor Power(KW) | 22 | 37-45 | 45-55 | 75 | 75-90 |
Hydraulic Motor Power(KW) | 2.2 | 3 | 3 | 5.5 | 7.5 |
Weight (kg) | 1580 | 3500 | 4000 | 5000 | 6200 |
Model | WT48100 | WT48120 | WT48150 |
Dimension L*W*H(mm) | 2800*2050 *2400 | 2950*2275 *2400 | 2950*2650 *2400 |
Cutting Chamber A*B(mm) | 1300*1000 | 1400*1200 | 1400*1500 |
Heifht of discharge port C(mm) | 850 | 850 | 850 |
Cylinder Stroke(mm) | 850 | 950 | 950 |
Rotor Diameter(mm) | φ480 | φ480 | φ480 |
Main shaft Speed(r/min) | 74 | 74 | 74 |
Screen Mesh(mm) | φ60 | φ60 | φ60 |
Rotor-knives(PCS) | 48 | 61 | 78 |
Stator-knives(PCS) | 2 | 3 | 4 |
Main motor Power(KW) | 45-55 | 75 | 75-90 |
Hydraulic Motor Power(KW) | 3 | 5.5 | 7.5 |
Weight (kg) | 5000 | 6000 | 7200 |
Pipe-single shaft shredder :
It is suitable for shredding plastic pipes of various diameters, paper tube. The machine can be customized according to user requirements.
Model | WTP2260 | WTP4080 | WTP40100 | WTP40120 | WTP40150 |
Dimension L*W*H (mm) | 2275*1350 *2100 | 3200*1750 *2500 | 3500*1900 *2500 | 4150*2250 *2500 | 4850*2650 *2500 |
Cutting Chamber A*B (mm) | 600*600 | 800*800 | 1000*1000 | 1200*1200 | 1500*1500 |
Heifht of discharge port C (mm) | 650 | 850 | 850 | 850 | 850 |
Cylinder Stroke (mm) | 600 | 900 | 900 | 1100 | 1300 |
Rotor Diameter (mm) | φ220 | φ400 | φ400 | φ400 | φ400 |
Main shaft Speed (r/min) | 83 | 83 | 83 | 83 | 83 |
Screen Mesh (mm) | φ40 | φ50 | φ60 | φ60 | φ60 |
Rotor-knives (PCS) | 28 | 42 | 51 | 63 | 78 |
Stator-knives (PCS) | 2 | 2 | 2 | 3 | 4 |
Main motor Power (KW) | 22 | 37 | 45 | 55 | 75 |
Hydraulic Motor Power (KW) | 2.2 | 3 | 3 | 5.5 | 7.5 |
Weight (kg) | 2280 | 4500 | 5100 | 5800 | 6900 |
Horizontal single shaft shredder:
It is used to tear large-diameter, thick-walled Plastic pipes. The machine can be customized according to user requirements.
Model | WTPW8080 | WTPW120120 | WTPW150150 |
Dimension L*W*H(mm) | 11200*2500 *2600 | 11800*2900 *2950 | 12400*3100 *3250 |
Cutting Chamber A*B(mm) | 6000*800 | 6000*1200 | 6000*1500 |
Heifht of discharge port C (mm) | 650 | 650 | 650 |
Cylinder Stroke(mm) | 6000 | 6000 | 6000 |
Rotor Diameter(mm) | φ800 | φ1200 | φ1500 |
Main shaft Speed(r/min) | 36 | 27 | 23 |
Rotor-knives(PCS) | 56 | 105 | 130 |
Stator-knives(PCS) | 2 | 3 | 4 |
Main motor Power(KW) | 37*2 | 45*2 | 55*2 |
Hydraulic Motor Power(KW) | 11 | 15 | 18.5 |
Company Profile
REGULUS MACHINERY GROUP
Zhangjiagang Regulus Machinery CO.,LTD boasts teams of professional and high-efficient colleagues in technology, management, sales, and service. With our continuous efforts in technology development and product quality control, we have been adhere to the principle of putting customer's benefit at the first place by providing the most competitive technique in plastic industry within the shortest period of time to create a higher value for customer.
Zhangjiagang Regulus Machinery CO.,LTD boasts teams of professional and high-efficient colleagues in technology, management, sales, and service. With our continuous efforts in technology development and product quality control, we have been adhere to the principle of putting customer's benefit at the first place by providing the most competitive technique in plastic industry within the shortest period of time to create a higher value for customer.
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME!
REGULUS is professional manufacturer. Weclome you visit our factory. Regulus Machinery with own manufacture and developed & research team. In order to offer high efficiency after-sales service, our engineers are available to your factory for installation, commissioning, technical guidance and personnel training.
REGULUS is professional manufacturer. Weclome you visit our factory. Regulus Machinery with own manufacture and developed & research team. In order to offer high efficiency after-sales service, our engineers are available to your factory for installation, commissioning, technical guidance and personnel training.
SIMILAR PRODUCTS
PET Washing Recycling Line https://www.recyclingplas.com/plastic-washing-recycling-machine/
PP, PE Shredder, Crushing, Washing, Drying Line
https://www.recyclingplas.com/plastic-washing-recycling-machine/pe-pp-washing-recycling-machine/
More related products welcome to:https://www.recyclingplas.com/ (website)
Packing and Delivery
Certifications
1.Pre-sale support
REGULUS Machinery consists of experienced specialists, we will offer a suitable solution according client's requirement in time. On-site inspection.
2. After-sale service
REGULUS company’s skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by our technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
REGULUS company holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.
3. Technical support
REGULUS company provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
Regular return visit.
Похожие товары
Измельчитель Отходов Пластиковые измельчитель шлифовальные станки дробилка машина для продажи

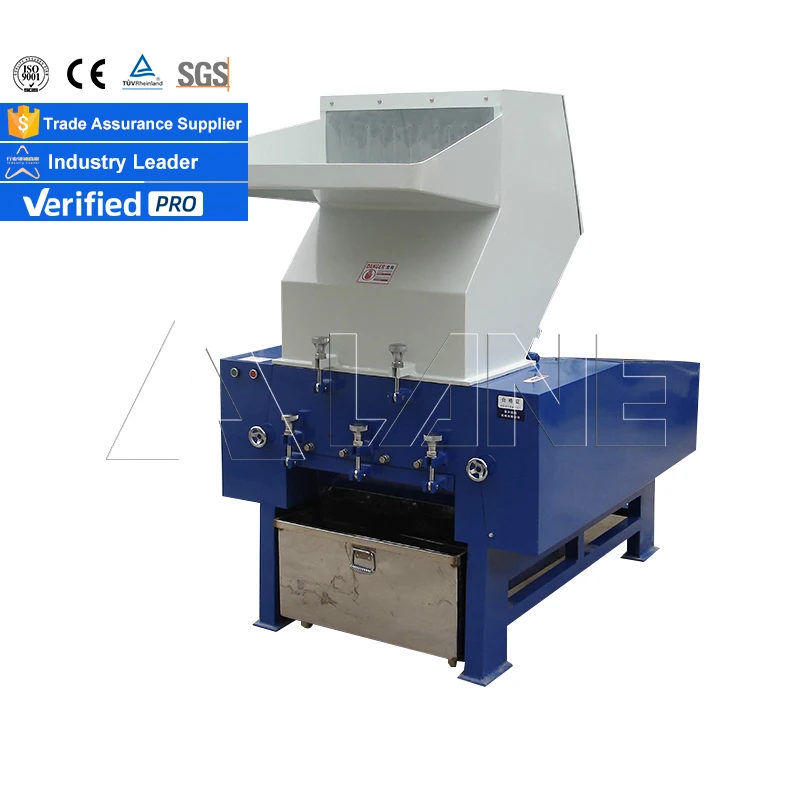

LANE новое состояние сильный гранулятор Пластиковая дробилка машина для продажи
