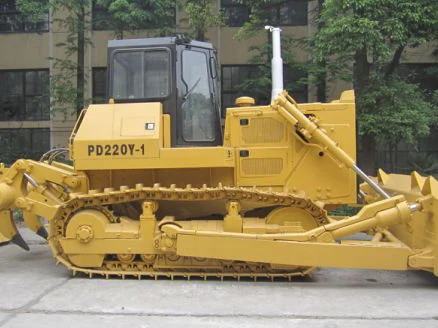

Гусеничный бульдозер PD220Y 25T 220 л.с.

Гусеничный бульдозер PD220Y 25T 220 л.с.

Категория: >>>
Поставщик: Evangel Industrial (Shanghai) Co. Ltd.Evangel Ltd.

Цена:20 999,00-22 999,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Contact Way

Ines Jie

MOB: +86-17379408985

Email: ines@evangelchina.com

Hot Sale PD220Y PENGPU Crawler Bulldozer

♦The whole machine features advanced performance, effective matching of the power transmission system, and high working efficiency.
♦With the fuel tank positioned on the left side of the machine body, the ultra-large rear space makes the care and maintenance of steering and brake systems easy.
♦The front arrangement of the working cylinder improves the load- carrying performance, delivering more uniform and safe load-carrying from the frame and front hood. This prevents damage of the transmission system due to the frame being deformed by torsion force, while promoting the performance and reliability of the whole machine.

Specification

Machine model	PD220Y
Length×Width×Height (without Ripper)	5750×3725×3575
Operating Weight (t)	25.5
Flywheel HP (km/rpm)	162/1800
Track Gauge	2000
Ground Contact Length(mm) /Pressure(Mpa)	2730/0.082
Forward Speeds(km/h)	3.6/6.5/11.2
Reverse Speeds(km/h)	4.3/7.7/13.2
(Blade) Max. Drop below Ground (mm)	Straight540/Angle535/U540
(Ripper) Max. Dig below Ground (mm)	Single666/3-shank555
(Blade) Max. Lift above Ground (mm)	1210
(Ripper) Max Lift above Ground (mm)	Single 598.3/3-shank 666
Gradeability (º)	30°
Blade Capacity (m3)	7.24/5.15/8.63/3.89
Engine	NT855-C280
No. of Track Rollers (each side)	6
No. of Track Shoes (each side)	38
Track Width(mm)	560
Track Pitch(mm)	216
Blade Type	U/Straight, Landfill/Angle
Blade Size Width×Height (mm)	U 3800×1343/Straight 3725×1315/Landfill 3725×1702/Angle 4365×1055
Ripper	Single or 3-shank

Details Images

Recommend Products

Company Profile

EVANGEL Automobile Sales (Shanghai) Co., Ltd. is a top package equipment solution provider in Shangha China,
especially for construction machinery, heavy industrial equipment and vehicle. We represent high quality China machinery brands, and also export famous international brands.We are always committed to offer our customers high quality products with reliable performance, competitive price and comprehensive services, to ensure every engineering project to be run smoothly on schedule. With over eleven years' experience in the field of engineering industry and accompanying to fulfill strictly ISO 9001:2008 standard, EVANGEL had established and have been consistently keeping good business relationship with many general contractors, civil engineering firms and construction companies throughout the world. We participated as package equipment provider previously include airport projects in Africa, power plant projects in Middle East, dredging projects in South America, highway projects in Oceania, rural and municipal road projects in Southeast Asia, and we are still achieving more and more projects at present. To provide reliable products with quick delivery time, to make prompt reaction for spare parts and after-sales services, to visit the users field regularly for local training and maintenance, EVANGEL has been often praised by our customers and has taken great reputation as a trustworthy project partner.
EVANGEL believe in combining our own achievement together with our customer benefits. Open communication, effective planning and elaborative preparation always commit us to execute and deliver our promises for our customers all over the world.

1. who are we?
We are based in Shanghai, China, start from 2014,sell to South America(30.00%),Africa(30.00%), Southeast Asia (15.00%),
Oceania(10.00%),Mid East(10.00%), SouthAsia (1.00%), WesternEurope 1.00%), SouthernEurope (1.00%), Northern Europe(1.00%), Eastern Europe(1.00%). There are total about 200-250 people in our office.

2. why should you buy from us not from other suppliers?
(i) Professional Experience in Construction Machinery;
(ii) International Sales Team;
(iii) Long Term Dealership from Top China Manufacturers;
(iv) Excellent Logistics Services;
(v) Comprehensive After-sales Service;
(vi) Quality Control.

3. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
