Хорошая цена строительный дизельный двигатель HBT40 бетонный трейлер насос 40 м3/ч бетононасос
- Категория: >>>
- Поставщик: Zhengzhou Xinyu Machine Manufacture Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 1601354509199:
Описание и отзывы
Характеристики

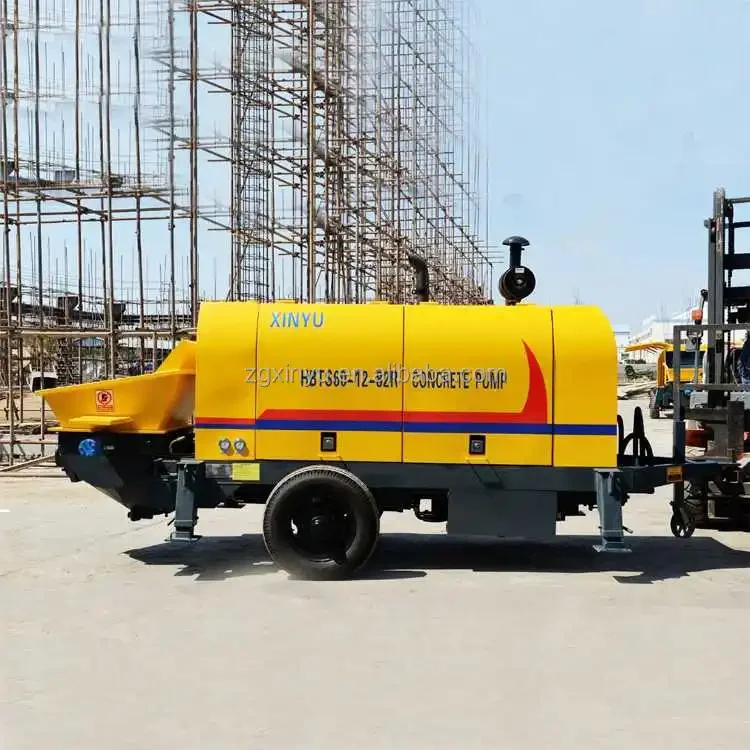

Good Price Building Construction Diesel Engine HBT40 concrete Trailer pump 40m3/h concrete pump
Product Overview
Concrete Trailer pump capacity 20-80 m3 per hour. Electrical and Diesel pump for choice.
Features of concrete pump:
1) XINYU concrete pump design is light , easy to move , suitable for small construction projects ;
2) Full hydraulic system can extend component life, improve equipment reliability, reduce the failure rate and reduce maintenance costs ;
3) S tube valve are cast into shape with austenitic manganese steel and has the dual advantages of anti - high pressure and anti - wearing ;
4) Main electric elements are from Schneider and LG company , the reliability of the electric control system is highly approved ;
5) Glasses plates and cut loops are made of anti - wearing alloy , they have long service life ;
6) The lubrication system adopts progressive distributor which supplies every lubrication point with oil in turn , and the oiling time can be set to save oil .
Features of concrete pump:
1) XINYU concrete pump design is light , easy to move , suitable for small construction projects ;
2) Full hydraulic system can extend component life, improve equipment reliability, reduce the failure rate and reduce maintenance costs ;
3) S tube valve are cast into shape with austenitic manganese steel and has the dual advantages of anti - high pressure and anti - wearing ;
4) Main electric elements are from Schneider and LG company , the reliability of the electric control system is highly approved ;
5) Glasses plates and cut loops are made of anti - wearing alloy , they have long service life ;
6) The lubrication system adopts progressive distributor which supplies every lubrication point with oil in turn , and the oiling time can be set to save oil .
Item | Parameters | |||
HBTS40-10-37 | ||||
Whole performance of Machine | Max. theo concrete capacity | m3/h | 40 | |
Max. concrete pumping pressure | MPa | 10 | ||
distribution valve type | S Valve | |||
Concrete cylinder diameter x stroke | mm | 140x845 | ||
Hopper capacity x feeding heigh | L x mm | 400x1100 | ||
Outlet diameter | mm | 100 | ||
Electrical engineering power | kW | 37 | ||
rated speed | r/min | 1480 | ||
Hydraulic System | Circuit type | Open Circuit | ||
Pumping system pressure | MPa | 18 | ||
Mixing system pressure | MPa | 6-8 | ||
Capacity of oil tank | L | 260 | ||
Other parameters | Max pumping distance ( Vertical / horizontal ) | m | 100/300 | |
Max. aggregate diameter | mm | 20 | ||
pumping pipe diameter | mm | 80-100 | ||
Dimensions: length x width x height | mm | 3400x1420x1600 | ||
Total weight | kg | 2300 | ||
Details & Advantages
Company Information
Zhengzhou Xinyu Machine Manufacture Co., Ltd is the specialized corporation which produces large and medium construction equipment products. We specialize in the production of concrete mixing plant, asphalt mixing station, JS series twin shaft concrete mixer, concrete block making machine and tower crane, self loading concrete Mixer car, Concrete Trailer Pump etc;
With nearly 20 years of development, successfully completed the original accumulation of capital. Our company covers an area of 126,000 square meters, with 78 million yuan in fixed assets and the employees are more than 1000. We have abundant economic strength, strong technical force, huge sales network and perfect after-sales service.
Use the technical strength, advanced technology, continuous product upgrades to make the quality of the products more perfect, more applicable. We not only have good sales in the domestic market, but also exported to Russia, Kazakhstan, Mongolia, and Viet Nam and other countries.
With nearly 20 years of development, successfully completed the original accumulation of capital. Our company covers an area of 126,000 square meters, with 78 million yuan in fixed assets and the employees are more than 1000. We have abundant economic strength, strong technical force, huge sales network and perfect after-sales service.
Use the technical strength, advanced technology, continuous product upgrades to make the quality of the products more perfect, more applicable. We not only have good sales in the domestic market, but also exported to Russia, Kazakhstan, Mongolia, and Viet Nam and other countries.
Related Products
Successful Project
Package & Delivery
FAQ
Q:Do you have set up an independent factory?
A:We have our own factory. Welcome visit our factory. We will pick up you at airport or railway station.
Q:What can you do for us?
A:1. Before sales can be targeted to give some constructive Suggestions.
2.Make a specific plan for your needs.
3. After sales reference specific products, different products have different services. Refer to the specific product description.
Q:Do you have CE certificate for your concrete batching plant / cement silo?
A: Yes, we have. Both are our patent products, certificated by CE.
Q:Can your engineers train our workers in our factories?
A:Yes, we have a very large engineering installation team that can train and instruct your workers to operate the installation equipment.
Q: What’s the capacity of concrete trailer do you have?
We have Stationary type 20-80 m3, per hour etc.
Q:How long is your lead time ?
A:We keep fresh inventory. Most orders are delivered in less than 7 days.
If it is OEM, the order will be delivered in 15-20 days..
A:We have our own factory. Welcome visit our factory. We will pick up you at airport or railway station.
Q:What can you do for us?
A:1. Before sales can be targeted to give some constructive Suggestions.
2.Make a specific plan for your needs.
3. After sales reference specific products, different products have different services. Refer to the specific product description.
Q:Do you have CE certificate for your concrete batching plant / cement silo?
A: Yes, we have. Both are our patent products, certificated by CE.
Q:Can your engineers train our workers in our factories?
A:Yes, we have a very large engineering installation team that can train and instruct your workers to operate the installation equipment.
Q: What’s the capacity of concrete trailer do you have?
We have Stationary type 20-80 m3, per hour etc.
Q:How long is your lead time ?
A:We keep fresh inventory. Most orders are delivered in less than 7 days.
If it is OEM, the order will be delivered in 15-20 days..
Q: What is your terms of payment ?
A: 30% paid by T/T as deposit in advance, the balance should be paid before shippment.
A: 30% paid by T/T as deposit in advance, the balance should be paid before shippment.
Q: Is your quality good?
A: We use advanced Italian technology and make improvement based on customer feedback. Till now our professional R&D team has launched 13th generation mixers and registered 24 national patents.
Besides, we successfully passed the quality certification of SGS and CE.
A: We use advanced Italian technology and make improvement based on customer feedback. Till now our professional R&D team has launched 13th generation mixers and registered 24 national patents.
Besides, we successfully passed the quality certification of SGS and CE.
