HamGeek USDX 3W 5W QRP SSB/CW HF Transceiver 8 Band SDR Upgraded Version of USDX w/ 3000mAh Battery
- Категория: >>>
- Поставщик: Shenzhen Tianzhongtian Trading Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601354579970:
Описание и отзывы
Характеристики
Product Paramenters

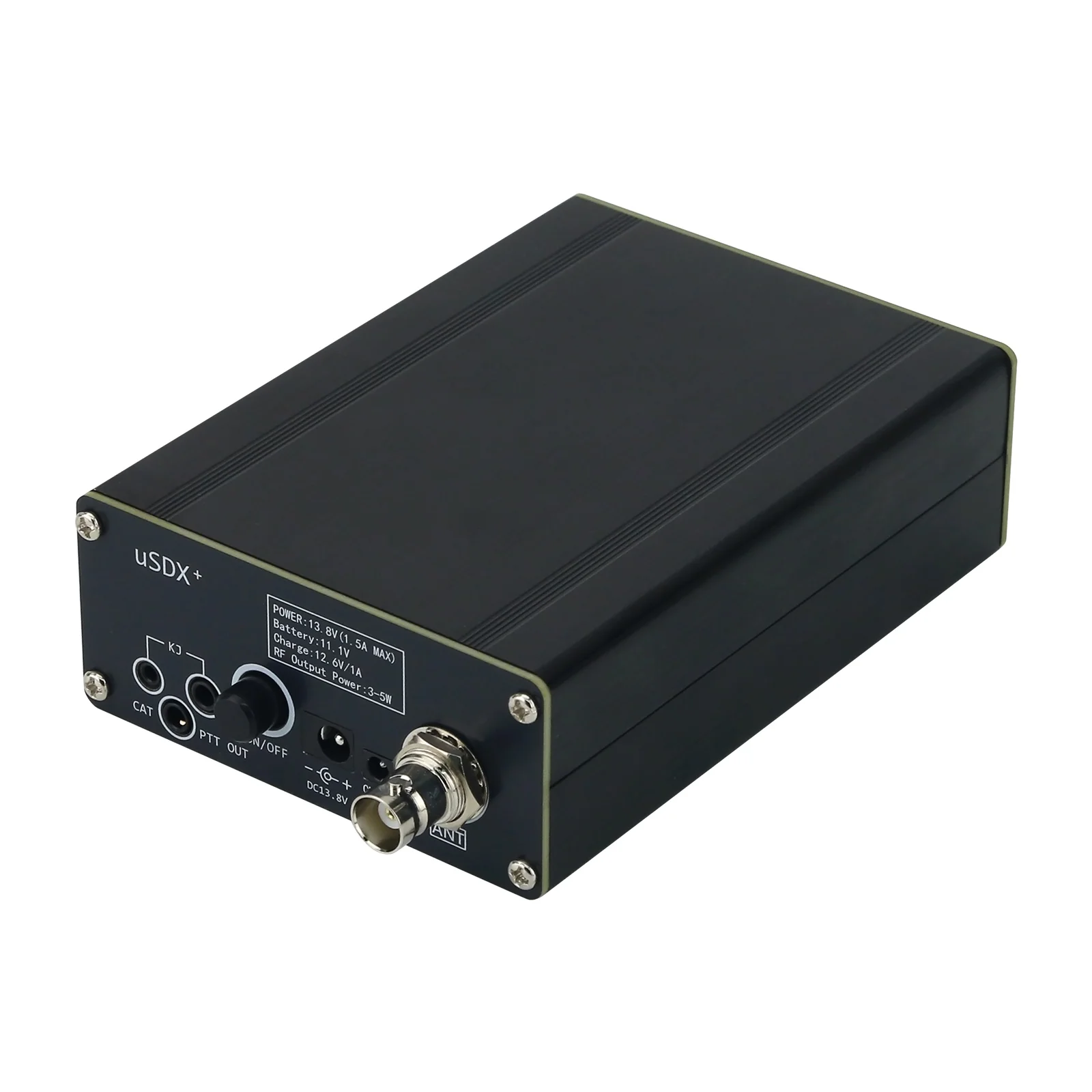

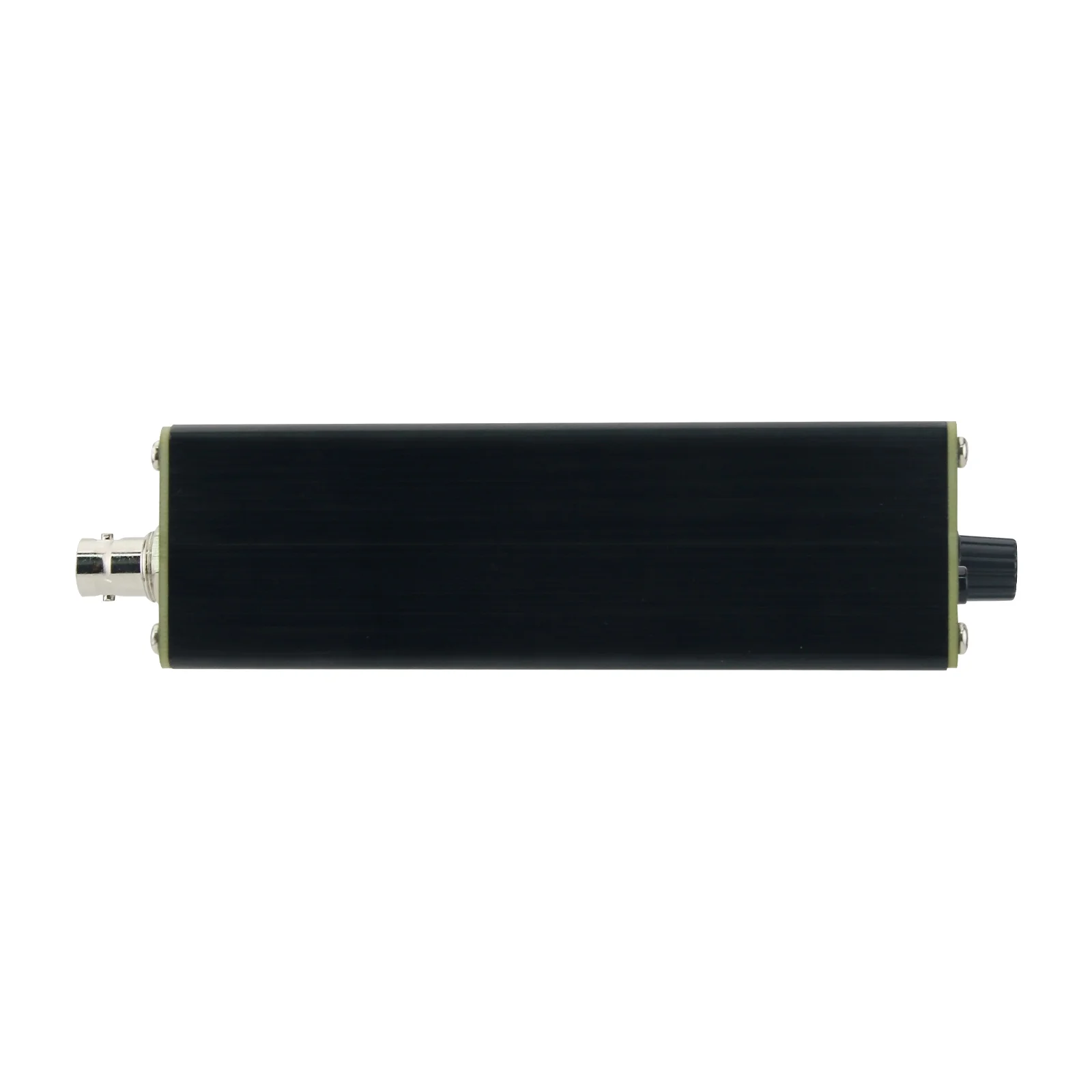

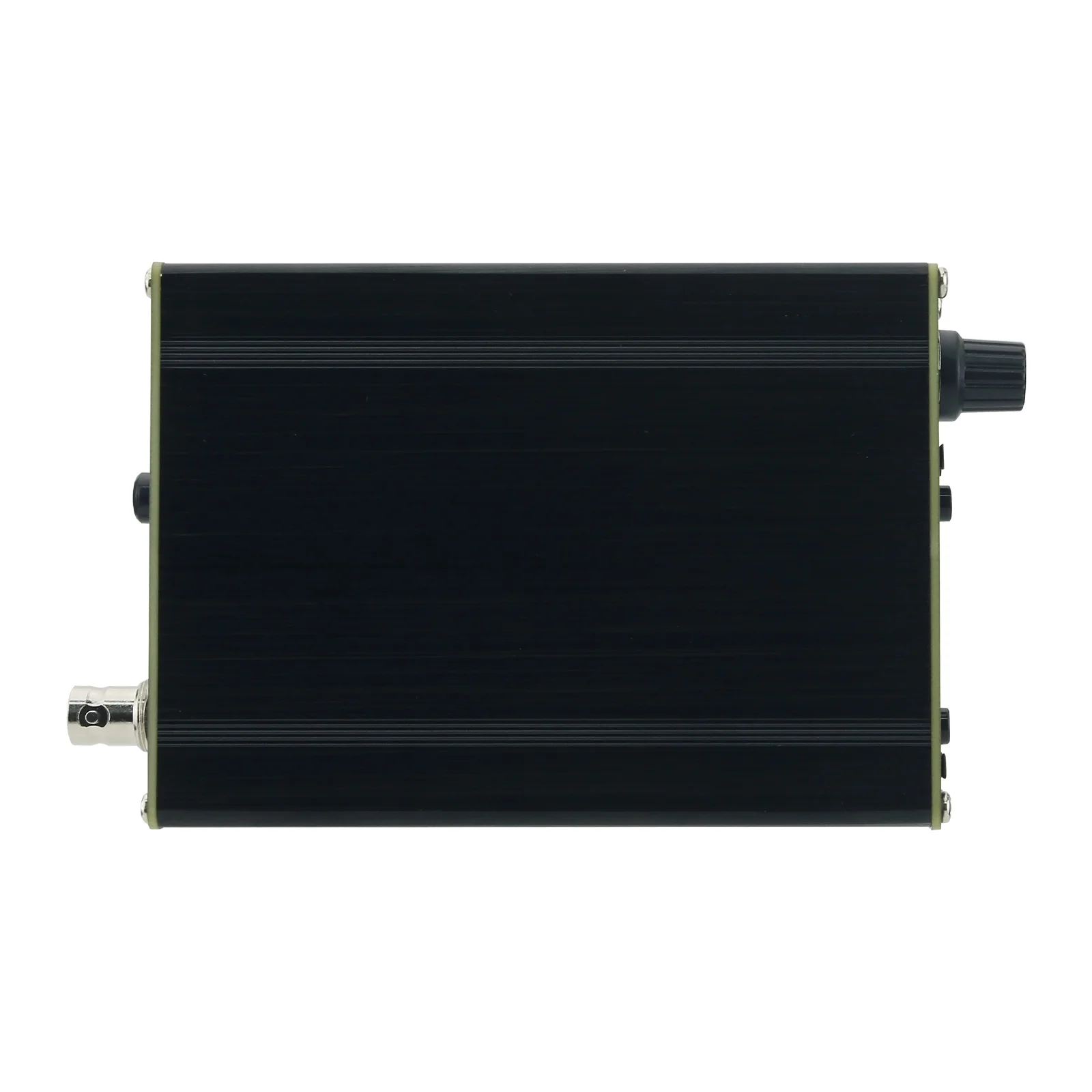

HamGeek USDX+ 3W-5W QRP SSB/CW HF Transceiver 8-Band SDR Transceiver Upgraded Version of USDX w/ 3000mAh Battery
Description:
This is a full mode shortwave QRP SSB/CW transceiver. Ultra small size makes it easy to carry and use. It has a 1602N LCD screen
and a built-in speaker to ensure superior performance. It supports connection to a PC and uses FT8, JS8, FT4 and other digital
mode software control, and supports CW automatic decoding. Supported communication modes include SSB, CW, AM, and FM. It also
supports DSP filtering and functions such as AGC, NR and VOX, providing a professional communication experience.
Features:
- HamGeek all mode HF transceiver covers eight bands of 80m/60m/40m/30m/20m/17m/15m/10m with high transmitting efficiency. With
significantly improved sound quality and increased volumes, its built-in speaker provides a more pleasing audio experience.
- HamGeek USDX+ transceiver supports communication modes, including SSB, CW, AM and FM. It supports DSP filtering and functions
such as AGC, NR, ATT, TX and VOX, providing a professional communication experience.
- Open-source firmware based on IDE allows users to customize functions and to promote community development through sharing and
contribution.
- It combines an all-digital SSB emitter with a software-based SDR receiver stage for precise frequency control and signal
processing. It provides independently switchable analogue attenuators to improve reception performance in different scenarios.
HamGeek USDX+ supports computer-aided transmission protocols, enhancing interoperability with other devices.

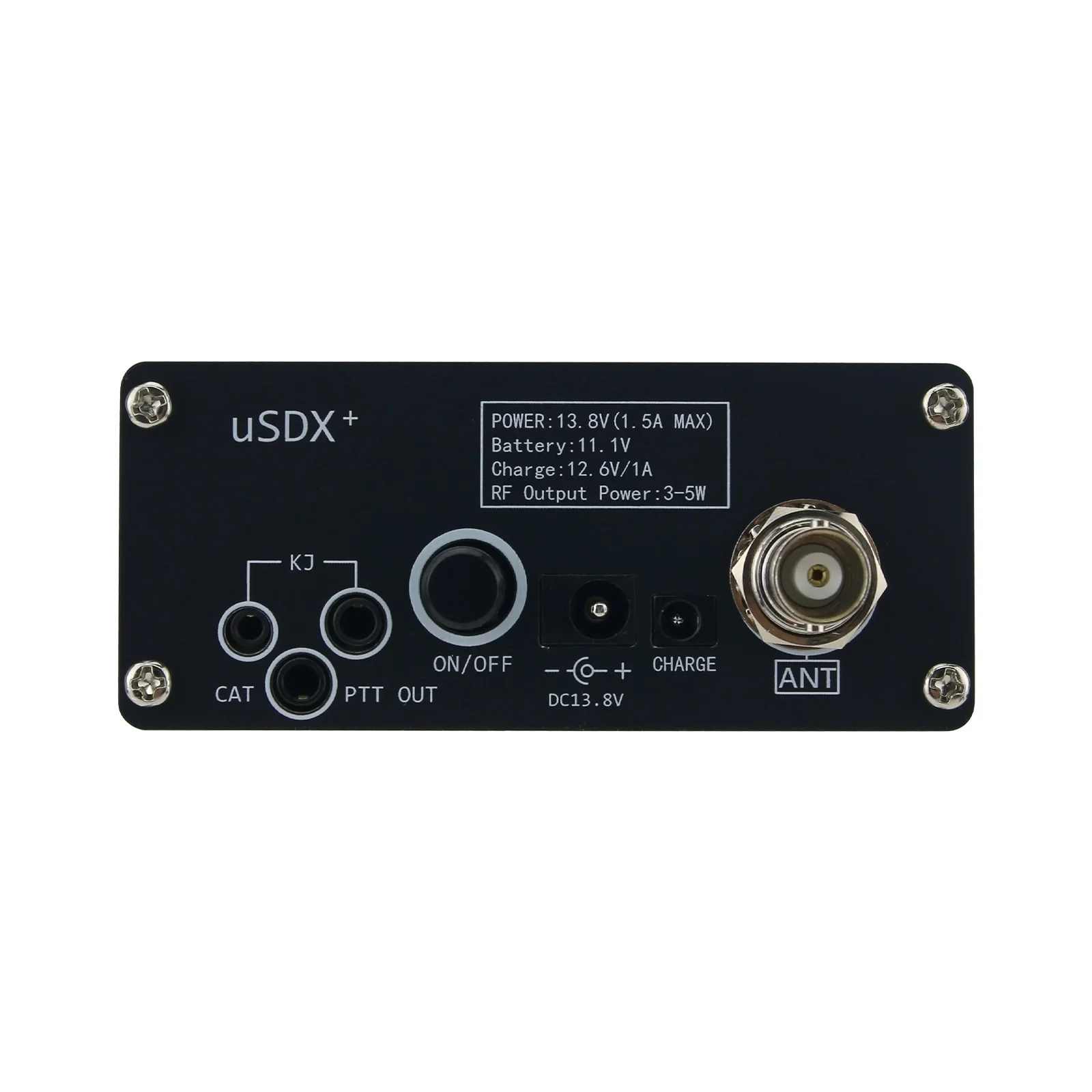

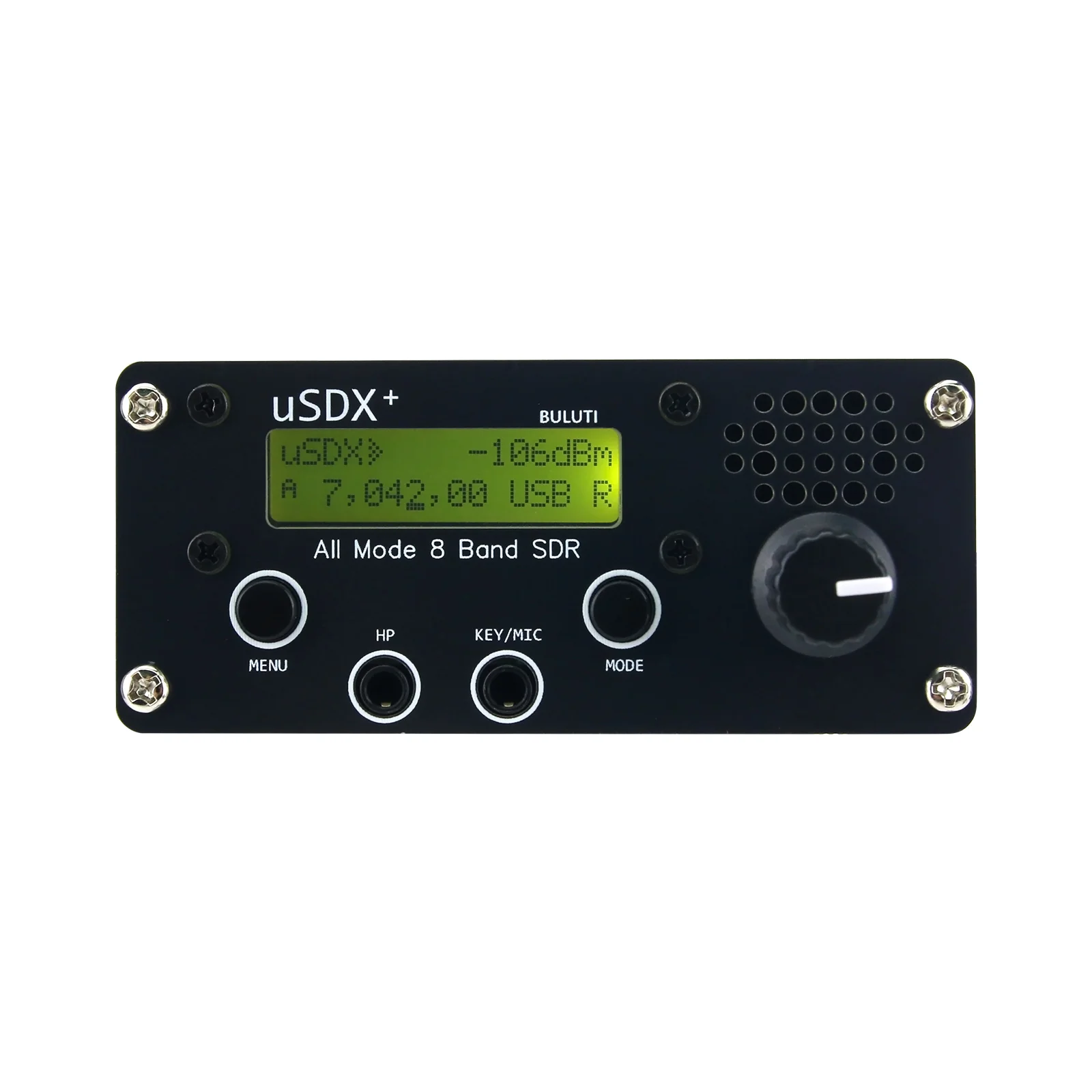

- Headphone jack, microphone jack, and power button are moved to the front panel, making it more intuitive and convenient to
connect headphones and to operate. The button layout has been adjusted to the underside of the LCD screen to provide a more
spacious touch area, improving the comfort and touching experience of the buttons.
- Powered by the included external 12.6V power supply, it can achieve 8 gears of 3-5W power. It also reserves the necessary
to-220-packpad for potential upgrades.
Specifications:
- Brand & model: HamGeek USDX+
- Name: SDR Transceiver
- Material: Metal
- Radio frequency output: 10W maximum, powered by external 13.8V
- Frequency range: 3.5-30MHz
- Antenna/connector: 50ohms/SO-239
- Full-mode support: USB, LSB, CW, AM and FM
- Bands: 80m/60m/40m/30m/20m/17m/15m/10m
- Rich interfaces: Computer-aided transmission, PTT OUT, microphone, and BNC antenna interfaces
- Premium parts: 100V C0G/NP0 capacitors, magnetic latching relays, operational amplifier chip, and built-in speaker with cavity
- DSP filters: 4000, 2500, 1700, 500, 200, 100, 50 Hz passband
- DSP features: Automatic gain control (AGC), Noise-reduction (NR), Voice-triggered Xmit (VOX), RX attenuators (ATT), TX noise
gate, TX drive control, volume control, dBm/S-meter
- SSB opposite side-band/CXR suppression: transmit: better than -45dBc, IMD3 (two-tone) -33dBc; receive: better than -50dBc
- Noise floor MDS: -135 dBm at 28MHz (in 200Hz BW)
- Front-end selectivity: steep -45dB/decade roll-off +/-2kHz from tuned-frequency
- Blocking dynamic ranges: 20kHz offset 123dB, 2kHz offset 78dB
- CW decoder, straight/Iambic-A/B keyer
- Size: About 88mm x 38mm x 120mm/3.5" x 1.5" x 4.7"
- Built-in battery: 3000mAh lithium battery
Package Included:
- 1 x HamGeek USDX+ SDR transceiver
- 1 x Cleaning cloth
- 1 x Data cable
- 1 x Power adapter
- 1 x Handheld microphone
Packaging Details:
- Weight: 0.75kg
This is a full mode shortwave QRP SSB/CW transceiver. Ultra small size makes it easy to carry and use. It has a 1602N LCD screen
and a built-in speaker to ensure superior performance. It supports connection to a PC and uses FT8, JS8, FT4 and other digital
mode software control, and supports CW automatic decoding. Supported communication modes include SSB, CW, AM, and FM. It also
supports DSP filtering and functions such as AGC, NR and VOX, providing a professional communication experience.
Features:
- HamGeek all mode HF transceiver covers eight bands of 80m/60m/40m/30m/20m/17m/15m/10m with high transmitting efficiency. With
significantly improved sound quality and increased volumes, its built-in speaker provides a more pleasing audio experience.
- HamGeek USDX+ transceiver supports communication modes, including SSB, CW, AM and FM. It supports DSP filtering and functions
such as AGC, NR, ATT, TX and VOX, providing a professional communication experience.
- Open-source firmware based on IDE allows users to customize functions and to promote community development through sharing and
contribution.
- It combines an all-digital SSB emitter with a software-based SDR receiver stage for precise frequency control and signal
processing. It provides independently switchable analogue attenuators to improve reception performance in different scenarios.
HamGeek USDX+ supports computer-aided transmission protocols, enhancing interoperability with other devices.
- Headphone jack, microphone jack, and power button are moved to the front panel, making it more intuitive and convenient to
connect headphones and to operate. The button layout has been adjusted to the underside of the LCD screen to provide a more
spacious touch area, improving the comfort and touching experience of the buttons.
- Powered by the included external 12.6V power supply, it can achieve 8 gears of 3-5W power. It also reserves the necessary
to-220-packpad for potential upgrades.
Specifications:
- Brand & model: HamGeek USDX+
- Name: SDR Transceiver
- Material: Metal
- Radio frequency output: 10W maximum, powered by external 13.8V
- Frequency range: 3.5-30MHz
- Antenna/connector: 50ohms/SO-239
- Full-mode support: USB, LSB, CW, AM and FM
- Bands: 80m/60m/40m/30m/20m/17m/15m/10m
- Rich interfaces: Computer-aided transmission, PTT OUT, microphone, and BNC antenna interfaces
- Premium parts: 100V C0G/NP0 capacitors, magnetic latching relays, operational amplifier chip, and built-in speaker with cavity
- DSP filters: 4000, 2500, 1700, 500, 200, 100, 50 Hz passband
- DSP features: Automatic gain control (AGC), Noise-reduction (NR), Voice-triggered Xmit (VOX), RX attenuators (ATT), TX noise
gate, TX drive control, volume control, dBm/S-meter
- SSB opposite side-band/CXR suppression: transmit: better than -45dBc, IMD3 (two-tone) -33dBc; receive: better than -50dBc
- Noise floor MDS: -135 dBm at 28MHz (in 200Hz BW)
- Front-end selectivity: steep -45dB/decade roll-off +/-2kHz from tuned-frequency
- Blocking dynamic ranges: 20kHz offset 123dB, 2kHz offset 78dB
- CW decoder, straight/Iambic-A/B keyer
- Size: About 88mm x 38mm x 120mm/3.5" x 1.5" x 4.7"
- Built-in battery: 3000mAh lithium battery
Package Included:
- 1 x HamGeek USDX+ SDR transceiver
- 1 x Cleaning cloth
- 1 x Data cable
- 1 x Power adapter
- 1 x Handheld microphone
Packaging Details:
- Weight: 0.75kg
