10000RPM 40x40x10mm 5v 12v Dc 4010 Brushless Blower Cooling Fan Dc Mini Centrifugal Fan Air Blower
www.cnmegatech.com
We can custom all kinds of famous brand fan, some data replacement fan, please feel free to contact
lisa@cnmegatech.com
whatsapp: 86-13570567086
Product Description
Product Overview

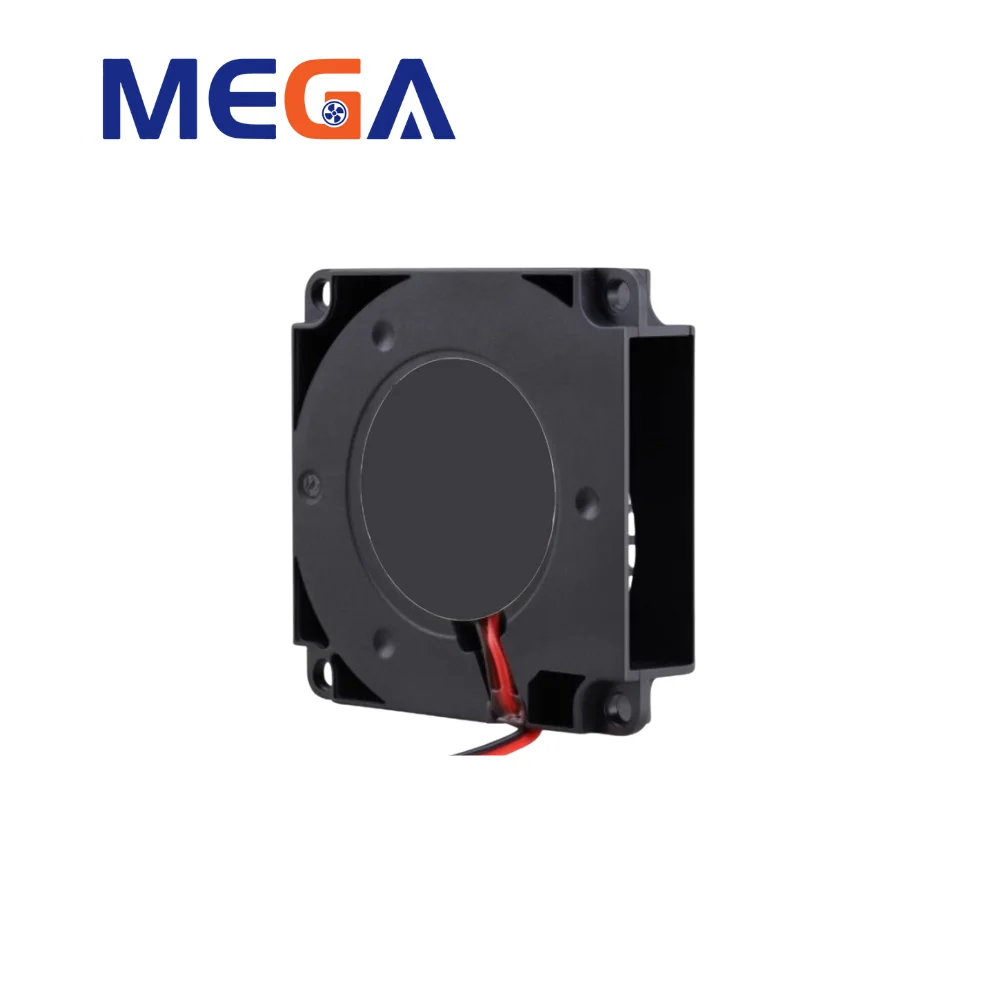

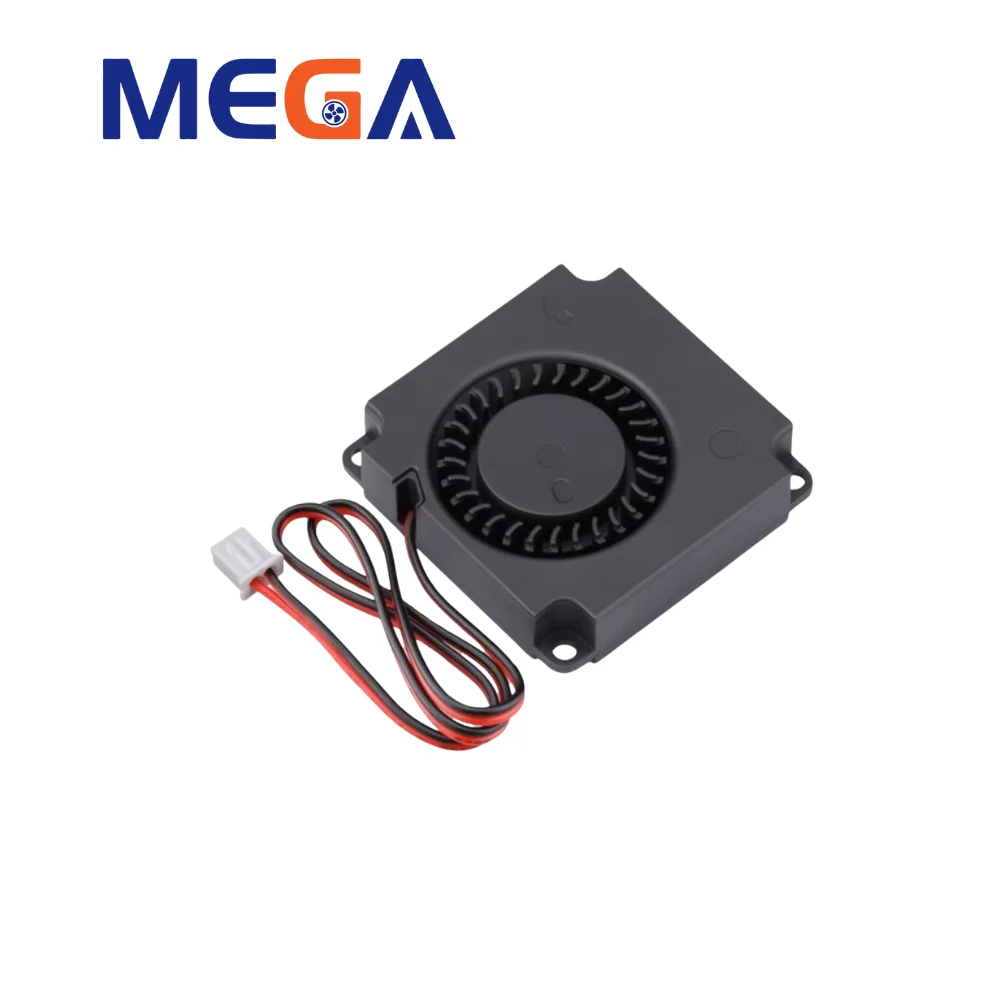

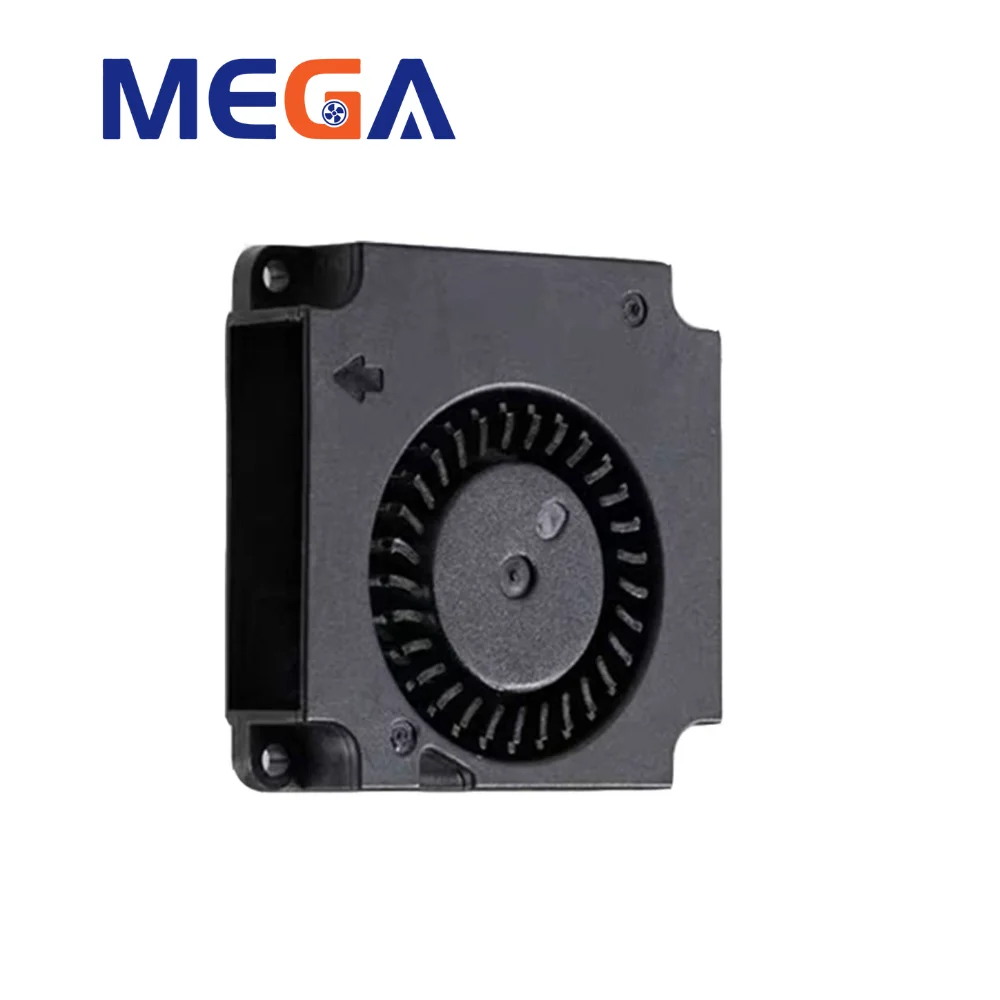

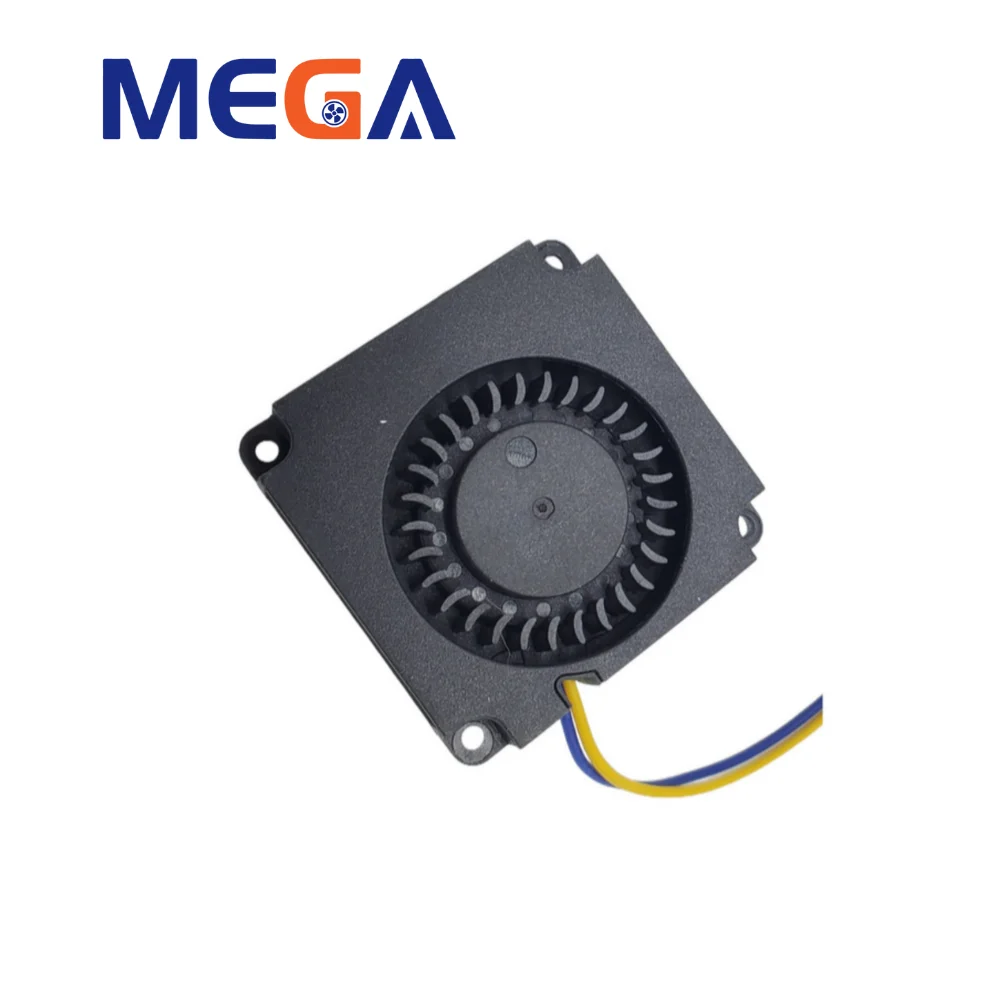

This is a 40x40x10mm-A type DC brushless blower manufactured by Guangzhou Mega Technology Co., Ltd. This product has passed CNUS,CE, and RoHS certifications. The blower's frame and impeller are both made of UL94V-0 grade flame-retardant plastic, weighing 10g.The bearing options include ball, sleeve (oil-impregnated), or hydraulic types. This blower is commonly used in applications such as electronic device cooling, small ventilation systems, and medical equipment. When selecting a blower, factors such as airflow, air pressure, noise, power consumption, and lifespan should be comprehensively considered.
Parameter Value
Product Type: DC blower fan

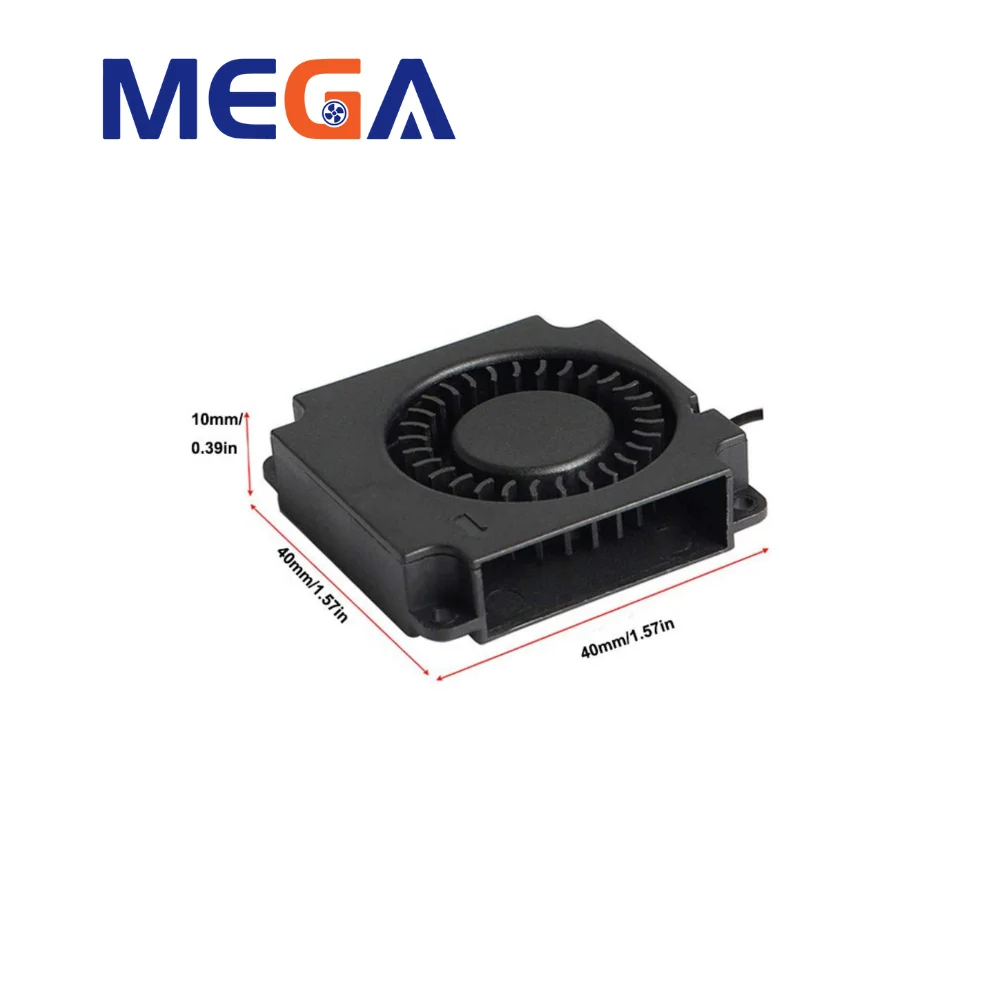

1. Size: 40x40x10mm
2. Bearing Type: Bearing、sleeve、HY
3. Frame Material: Plastic (UL94V-0)
4. Blade Material: Plastic (UL94V-0)
5. Weight:10g
6. Rated Voltage: 5V,12V
7. Voltage Range: 1.8-3.6-6.8V(5V);7-13.5V(12V)
8. Rated Current:0.025-0.44A
9. Rated Input Power: 0.3-2.2W
10. Speed:4000-13500RPM
11. Air Flow: 1.09-3.7CFM
12. Maximum Air Pressure:2.15-23.61mH2O
13. Noise Level:18.9-47.9dB-A
This is a 40x40x10mm-A type DC brushless blower manufactured by Guangzhou Mega Technology Co., Ltd. This product has passed CNUS,CE, and RoHS certifications. The blower's frame and impeller are both made of UL94V-0 grade flame-retardant plastic, weighing 10g.The bearing options include ball, sleeve (oil-impregnated), or hydraulic types. This blower is commonly used in applications such as electronic device cooling, small ventilation systems, and medical equipment. When selecting a blower, factors such as airflow, air pressure, noise, power consumption, and lifespan should be comprehensively considered.
Parameter Value
Product Type: DC blower fan
1. Size: 40x40x10mm
2. Bearing Type: Bearing、sleeve、HY
3. Frame Material: Plastic (UL94V-0)
4. Blade Material: Plastic (UL94V-0)
5. Weight:10g
6. Rated Voltage: 5V,12V
7. Voltage Range: 1.8-3.6-6.8V(5V);7-13.5V(12V)
8. Rated Current:0.025-0.44A
9. Rated Input Power: 0.3-2.2W
10. Speed:4000-13500RPM
11. Air Flow: 1.09-3.7CFM
12. Maximum Air Pressure:2.15-23.61mH2O
13. Noise Level:18.9-47.9dB-A
Product Parameters
Model | Rated Voltage | Operationg Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
PART.NO. | VDC | VDC | Amp | Watt | R.P.M | CFM | mmH2O | dB-A |
MG4010LL05X | 5 | 1.8~3.6~6.8 | 0.06 | 0.3 | 4000 | 1.09 | 2.15 | 18.9 |
MG4010L05X | 5 | 1.8~3.6~6.8 | 0.11 | 0.55 | 5000 | 1.34 | 3.03 | 23.3 |
MG4010M05X | 5 | 1.8~3.6~6.8 | 0.15 | 0.75 | 6000 | 1.64 | 4.89 | 26 |
MG4010H05X | 5 | 1.8~3.6~6.8 | 0.21 | 1.05 | 7000 | 2.03 | 7.17 | 29.3 |
MG4010HH05X | 5 | 1.8~3.6~6.8 | 0.25 | 1.25 | 8000 | 2.42 | 9.5 | 32.1 |
MG4010VH05X | 5 | 1.8~3.6~6.8 | 0.29 | 1.45 | 9000 | 2.76 | 12.86 | 35 |
MG4010HV05X | 5 | 1.8~3.6~6.8 | 0.35 | 1.75 | 10000 | 3.2 | 13.93 | 37 |
MG4010HHV05X | 5 | 1.8~3.6~6.8 | 0.44 | 2.2 | 13500 | 3.7 | 23.61 | 47.9 |
MG4010LL12X | 12 | 7~13.5 | 0.025 | 0.3 | 4000 | 1.09 | 2.15 | 18.9 |
MG4010L12X | 12 | 7~13.5 | 0.046 | 0.55 | 5000 | 1.34 | 3.03 | 23.3 |
MG4010M12X | 12 | 7~13.5 | 0.062 | 0.75 | 6000 | 1.64 | 4.89 | 26 |
MG4010H12X | 12 | 7~13.5 | 0.09 | 1.05 | 7000 | 2.03 | 7.17 | 29.3 |
MG4010HH12X | 12 | 7~13.5 | 0.1 | 1.25 | 8000 | 2.42 | 9.5 | 32.1 |
MG4010VH12X | 12 | 7~13.5 | 0.12 | 1.45 | 9000 | 2.76 | 12.86 | 35 |
MG4010HV12X | 12 | 7~13.5 | 0.146 | 1.75 | 10000 | 3.2 | 13.93 | 37 |
MG4010HHV12X | 12 | 7~13.5 | 0.183 | 2.2 | 13500 | 3.7 | 23.61 | 47.9 |
Product Advantages
Main Features:
1. Miniaturized Design: The 40x40x10mm dimensions make it ideal for space-constrained applications, such as small electronic devices and portable equipment.
2. Brushless Motor: Adopting a DC brushless motor, compared to traditional brushed motors, it boasts higher efficiency, longer lifespan, lower noise, and better reliability.
3. Flame-Retardant Materials: Both the frame and impeller are made of UL94V-0 grade flame-retardant plastic, enhancing product safety and reducing fire risks.
4. Multiple Bearing Options: Offering three bearing types: ball, sleeve (oil-impregnated), and hydraulic. Users can choose the most suitable bearing based on their specific application needs to balance lifespan, noise, and cost.
5. Parametric Models: Providing various models covering different voltage, current, speed, airflow, and air pressure parameters, making it convenient for users to choose based on their actual needs.
6. Comprehensive Certifications: Certified by CNUS, CE, and RoHS, complying with multiple international standards, ensuring product quality and environmental performance.
7. Detailed Parameters and Drawings: Providing detailed performance parameter tables, P@Q curve diagrams, and dimension drawings for easy selection and design.
Main Advantages:
1. High Efficiency and Energy Saving: The high efficiency of the brushless motor means lower power consumption and less heat generation, contributing to improving the overall energy efficiency of the equipment.
2. Long Lifespan and High Reliability: The use of brushless motors and high-quality bearings extends the product's service life and reduces maintenance costs.
3. Low-Noise Operation: Optimized design and manufacturing processes ensure the fan generates low noise during operation, suitable for applications with noise requirements.
4. Good Performance Range: Different models offer different airflow and air pressure ranges to meet various application needs.
Main Features:
1. Miniaturized Design: The 40x40x10mm dimensions make it ideal for space-constrained applications, such as small electronic devices and portable equipment.
2. Brushless Motor: Adopting a DC brushless motor, compared to traditional brushed motors, it boasts higher efficiency, longer lifespan, lower noise, and better reliability.
3. Flame-Retardant Materials: Both the frame and impeller are made of UL94V-0 grade flame-retardant plastic, enhancing product safety and reducing fire risks.
4. Multiple Bearing Options: Offering three bearing types: ball, sleeve (oil-impregnated), and hydraulic. Users can choose the most suitable bearing based on their specific application needs to balance lifespan, noise, and cost.
5. Parametric Models: Providing various models covering different voltage, current, speed, airflow, and air pressure parameters, making it convenient for users to choose based on their actual needs.
6. Comprehensive Certifications: Certified by CNUS, CE, and RoHS, complying with multiple international standards, ensuring product quality and environmental performance.
7. Detailed Parameters and Drawings: Providing detailed performance parameter tables, P@Q curve diagrams, and dimension drawings for easy selection and design.
Main Advantages:
1. High Efficiency and Energy Saving: The high efficiency of the brushless motor means lower power consumption and less heat generation, contributing to improving the overall energy efficiency of the equipment.
2. Long Lifespan and High Reliability: The use of brushless motors and high-quality bearings extends the product's service life and reduces maintenance costs.
3. Low-Noise Operation: Optimized design and manufacturing processes ensure the fan generates low noise during operation, suitable for applications with noise requirements.
4. Good Performance Range: Different models offer different airflow and air pressure ranges to meet various application needs.
5. High Safety: The use of flame-retardant materials reduces fire risks and improves product safety.
6. Easy Selection and Installation: Detailed parameters and drawings facilitate user selection and installation.
6. Easy Selection and Installation: Detailed parameters and drawings facilitate user selection and installation.
Product Applications
1. Electronic Device Cooling:
1. Small Servers and Network Equipment: Used for heat dissipation of chips, processors, heat sinks, etc., in devices such as routers, switches, and small servers, ensuring stable operation of the equipment.
2. Laptops and Tablets: Used for internal heat dissipation, maintaining the device's operating temperature within normal limits and extending its lifespan.
3. Smartphones and Other Mobile Devices: Although many phones now use heat pipes and other heat dissipation technologies, small fans are still used in some phones with higher heat dissipation requirements or mobile devices for special purposes.
4. Set-Top Boxes and TV Boxes: Used for heat dissipation of internal circuit boards and chips.
5. LED Lighting Equipment: High-power LED lights generate a lot of heat, requiring cooling fans to reduce the temperature and improve luminous efficiency and lifespan.
6. Projectors: Used for heat dissipation of bulbs and optical components to prevent overheating damage.
2. Small Ventilation Systems:
1. Air Purifiers and Fresh Air Machines: Used for air circulation and filtration to improve air quality.
2. Humidifiers and Dehumidifiers: Used for air flow to accelerate humidity regulation.
3. Small Heaters and Coolers: Used for air circulation and temperature regulation.
4. 3D Printers: Used for heat dissipation of the print head and print platform to improve printing quality.
5. Industrial Control Cabinets and Distribution Boxes: Used for heat dissipation of internal components to ensure the safe
operation of electrical equipment.
3. Medical Equipment:
1. Ventilators and Oxygen Concentrators: Used for gas delivery and circulation.
2. Medical Monitoring Equipment: Used for heat dissipation of internal circuits.
3. Small Medical Analyzers: Used for heat dissipation and gas circulation of internal components.
4. Other Applications:
1. Automotive Electronic Equipment: Used for heat dissipation of in-vehicle navigation, in-vehicle entertainment systems, and other equipment.
2. Drones and Model Aircraft: Used for heat dissipation of motors and electronic speed controllers (ESCs).
3. Smart Home Devices: Such as heat dissipation of smart speakers and smart cameras.
4. Wearable Devices: Such as heat dissipation of smartwatches and smart bracelets (although less common, with the increasing functionality of wearable devices, the demand for heat dissipation is also increasing).
1. Electronic Device Cooling:
1. Small Servers and Network Equipment: Used for heat dissipation of chips, processors, heat sinks, etc., in devices such as routers, switches, and small servers, ensuring stable operation of the equipment.
2. Laptops and Tablets: Used for internal heat dissipation, maintaining the device's operating temperature within normal limits and extending its lifespan.
3. Smartphones and Other Mobile Devices: Although many phones now use heat pipes and other heat dissipation technologies, small fans are still used in some phones with higher heat dissipation requirements or mobile devices for special purposes.
4. Set-Top Boxes and TV Boxes: Used for heat dissipation of internal circuit boards and chips.
5. LED Lighting Equipment: High-power LED lights generate a lot of heat, requiring cooling fans to reduce the temperature and improve luminous efficiency and lifespan.
6. Projectors: Used for heat dissipation of bulbs and optical components to prevent overheating damage.
2. Small Ventilation Systems:
1. Air Purifiers and Fresh Air Machines: Used for air circulation and filtration to improve air quality.
2. Humidifiers and Dehumidifiers: Used for air flow to accelerate humidity regulation.
3. Small Heaters and Coolers: Used for air circulation and temperature regulation.
4. 3D Printers: Used for heat dissipation of the print head and print platform to improve printing quality.
5. Industrial Control Cabinets and Distribution Boxes: Used for heat dissipation of internal components to ensure the safe
operation of electrical equipment.
3. Medical Equipment:
1. Ventilators and Oxygen Concentrators: Used for gas delivery and circulation.
2. Medical Monitoring Equipment: Used for heat dissipation of internal circuits.
3. Small Medical Analyzers: Used for heat dissipation and gas circulation of internal components.
4. Other Applications:
1. Automotive Electronic Equipment: Used for heat dissipation of in-vehicle navigation, in-vehicle entertainment systems, and other equipment.
2. Drones and Model Aircraft: Used for heat dissipation of motors and electronic speed controllers (ESCs).
3. Smart Home Devices: Such as heat dissipation of smart speakers and smart cameras.
4. Wearable Devices: Such as heat dissipation of smartwatches and smart bracelets (although less common, with the increasing functionality of wearable devices, the demand for heat dissipation is also increasing).
Our advantage
Guangzhou Mega Technology Co., Ltd. is located in Guangzhou, Guangdong Province. We benchmark against leading cooling fan manufacturers like Delta Electronics, Nidec Corporation, Sunon, Sanyo Denki, and Orion Fans. Offering AC, DC, and EC fans, we provide customized cooling solutions for various industrial and commercial applications. Our strong R&D and technical expertise ensure our products match top manufacturers' performance at significantly lower prices.
We pride ourselves on delivering tailored solutions to meet unique client needs. Our team collaborates closely with customers to design products that optimize cooling performance, energy efficiency, and reliability. Whether for electronic devices, industrial machinery, or commercial systems, Guangzhou Mega Technology Co., Ltd. is dedicated to providing high-quality, cost-effective solutions that exceed expectations. Our commitment to innovation and customer satisfaction keeps us at the forefront of the cooling fan industry.
Guangzhou Mega Technology Co., Ltd. is located in Guangzhou, Guangdong Province. We benchmark against leading cooling fan manufacturers like Delta Electronics, Nidec Corporation, Sunon, Sanyo Denki, and Orion Fans. Offering AC, DC, and EC fans, we provide customized cooling solutions for various industrial and commercial applications. Our strong R&D and technical expertise ensure our products match top manufacturers' performance at significantly lower prices.
We pride ourselves on delivering tailored solutions to meet unique client needs. Our team collaborates closely with customers to design products that optimize cooling performance, energy efficiency, and reliability. Whether for electronic devices, industrial machinery, or commercial systems, Guangzhou Mega Technology Co., Ltd. is dedicated to providing high-quality, cost-effective solutions that exceed expectations. Our commitment to innovation and customer satisfaction keeps us at the forefront of the cooling fan industry.
Application
Automotive | Computers and laptops | Drones | HVAC equipment |
Telecommunications | Consumer appliances | Medical devices | Industrial machinery |
Medical diagnostic | 3d Printers | Refrigerator | Solar Photovoltaic |
Company Profile
Guangzhou Mega technology Co.,LTD
*Established in 2008, specializes in the R&D and production of DC/AC cooling fans, blowers.
*Products are customized according to Clients' application.
*Sample Available, Small Quanity 0rder Available, Quick Delivery
*Our products are mainly used for equipment ventilation heat dissipation in the fields such as computers, home appliances, cars, medical equipment, industrial controls, electrical power, printing, electric welding machines and instrument panels.
*Our monthly capacity is 0.8 million to 1.0 million pieces, we not only guarantee on time delivery on big quantity order, but alsohave special production line to support clients with small quantity order.
* Your Satisfaction Is Our Aim. Feel free to contact us !
* Your Satisfaction Is Our Aim. Feel free to contact us !
Product packaging
Packing And Deliver are all according to Client's requirement
Why Choose Us
Always Give Customer Best
* Experienced Staff * Guarantee/Warranty
* International Approvals * Packaging
* Competitive Price * Good Product Features
* Excellent Product Performance * Prompt Delivery
* 100% Quality Approvals * Good Reputation
* Customized Sample * Small Orders Accepted
* International Approvals * Packaging
* Competitive Price * Good Product Features
* Excellent Product Performance * Prompt Delivery
* 100% Quality Approvals * Good Reputation
* Customized Sample * Small Orders Accepted
Customer Satisfaction
FAQ
1. What is a bearing?
A:Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.
A:Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.
2. What kind of function can we choose for fan?
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof (IP68 optional), PWM function ,Temperature control etc.
3. How do we carry out quality control?
A:Usually, there are two ways to monitor reliability during the manufacturing process.
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof (IP68 optional), PWM function ,Temperature control etc.
3. How do we carry out quality control?
A:Usually, there are two ways to monitor reliability during the manufacturing process.
One is testing during production
Another is 100% testing before packing.
4. Are you a manufacturer?
A: Sure, We are manufacturer specialized in large various of Cooling fan for over 10 years, Our products include DC cooling fan, AC cooling fan, EC cooling fan and frameless fan.
4. Are you a manufacturer?
A: Sure, We are manufacturer specialized in large various of Cooling fan for over 10 years, Our products include DC cooling fan, AC cooling fan, EC cooling fan and frameless fan.
5. What's your MOQ and delivery date ?
We don't have MOQ requirement, We can accept sample, small batch and mass production.
Sample lead time: 5-10 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
We don't have MOQ requirement, We can accept sample, small batch and mass production.
Sample lead time: 5-10 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
Home
Похожие товары
50% энергосберегающее 4 дюймов EC mixflow вентилятор
3-скоростной вытяжной вентилятор для птицефабрики
6 543,58-6 773,18 ₽
OEM ODM поддерживаемый малошумный шариковый подшипник охлаждающий Электрический осевой вентилятор переменного тока
5 075,30-5 597,63 ₽
HP DL360 Gen9 G9 750688-001 775415-001 792852-00 инвертор осевой вентилятор охлаждения ЦП
1 148,00-5 739,98 ₽
60 мм ac осевой вентилятор 60*60*30 110 В 220 мини алюминиевая рама бесшумный
769,16-861,00 ₽
Низкий ток 30x30x10 мм бесщеточный турбинный вентилятор для портативных устройств электронные продукты
301,93-574,00 ₽
Цинчжоу город baxi вентилятор с электрическим утюгом fmf выхлопных газов
Новые поступления
Новинки товаров от производителей по оптовым ценам
Светлая Золотая морская солнечная энергия ландшафтное украшение постмодерн минималистский стиль чистая ручная роспись маслом 24x3 1 дюйм/60x80
35-53 $
Европейские антикварные простой Последние двойной металлической кровати
Автоматизированная складская система автоматического хранения в Гуанчжоу Eyda с эффективными стеллажами и
10 000-35 000 $
Декоративный чехол для PS5 Сменный Чехол консоли пластины Playstation5 пылезащитный с защитой от царапин
7,50-7,70 $
Лучшее качество детские подгузники для сухих подгузников новорожденных размер 2 4 и большие доставка или
3 $
Выключатель для формованного корпуса Schneider NSX100N 50KA AC 3P3D 25A TMD новая модель C10N3TM025
Буф2-.. М .. Краны
Оптовая продажа высококачественный сублимированный клубничный порошок Заводская поставка
5,50-6,40 $
