Ширина резиновой конвейерной ленты 600 800 900 1000 1200 боковины

Ширина резиновой конвейерной ленты 600 800 900 1000 1200 боковины

Категория: >>>
Поставщик: Yancheng Goodlark International Trade Corp. Ltd.Yancheng Ltd.

Цена:30,00-50,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

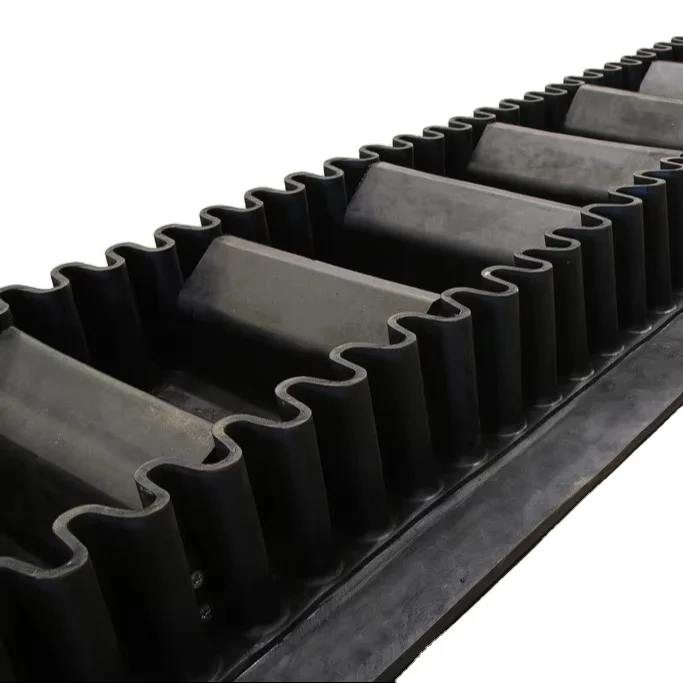

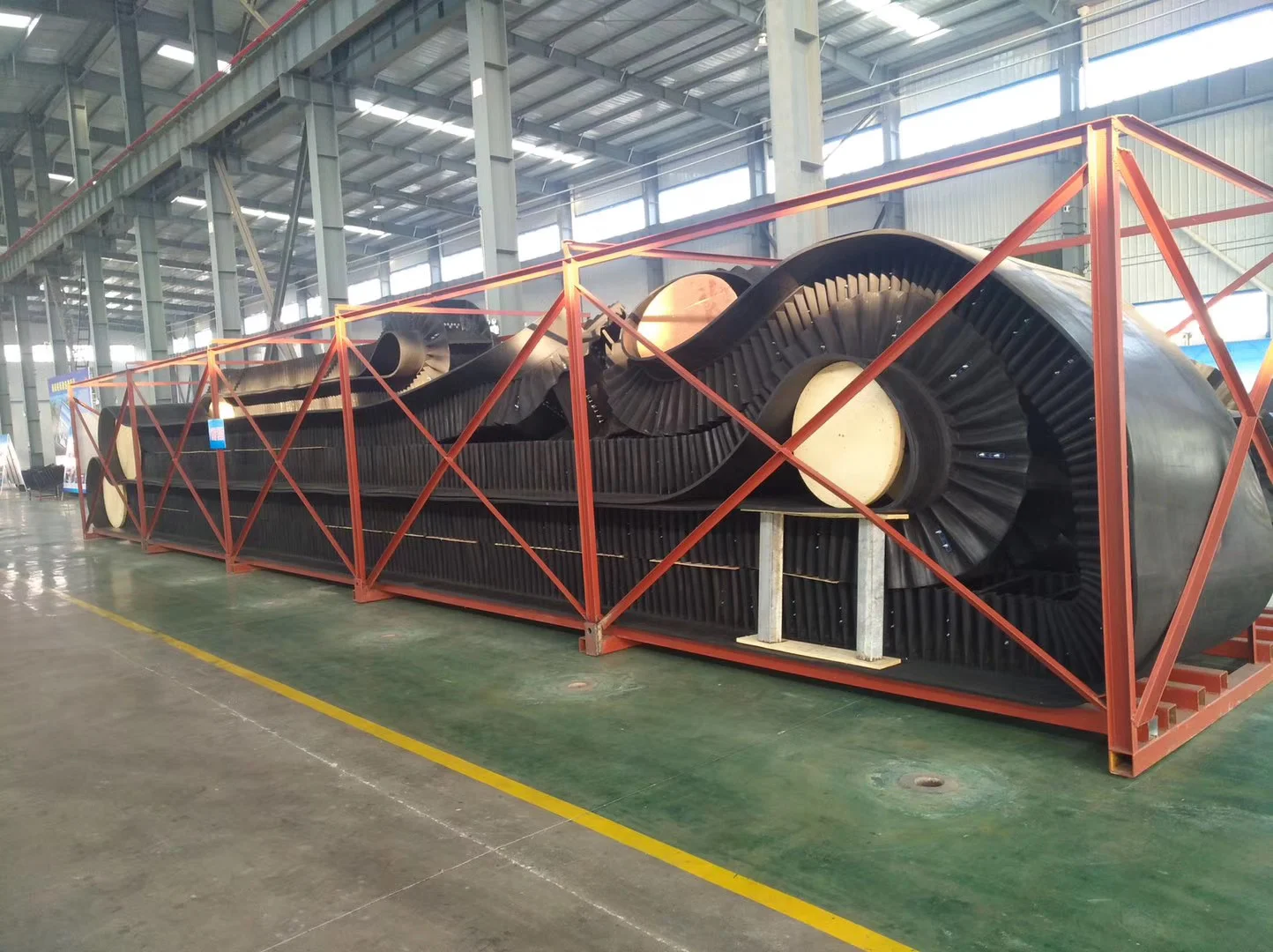

Sidewall Conveyor Belt

--Sidewall conveyor belt is composed of three parts: sidewall,cleats,base belt.

-- Special treated steel mesh inserted into both top cover and bottom cover,creating an excellent combination of longitudinal
flexibility and transverse rigidity.

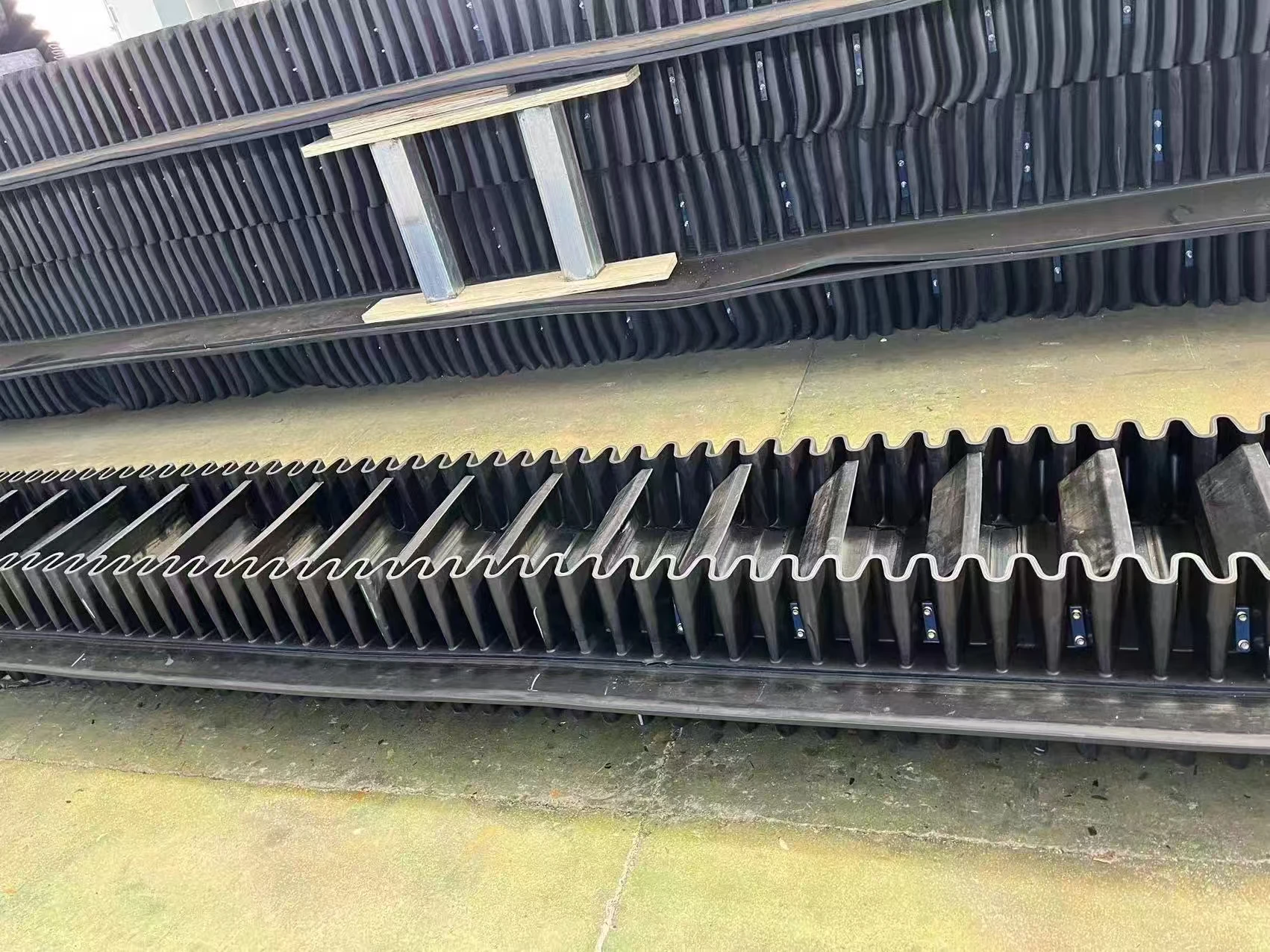

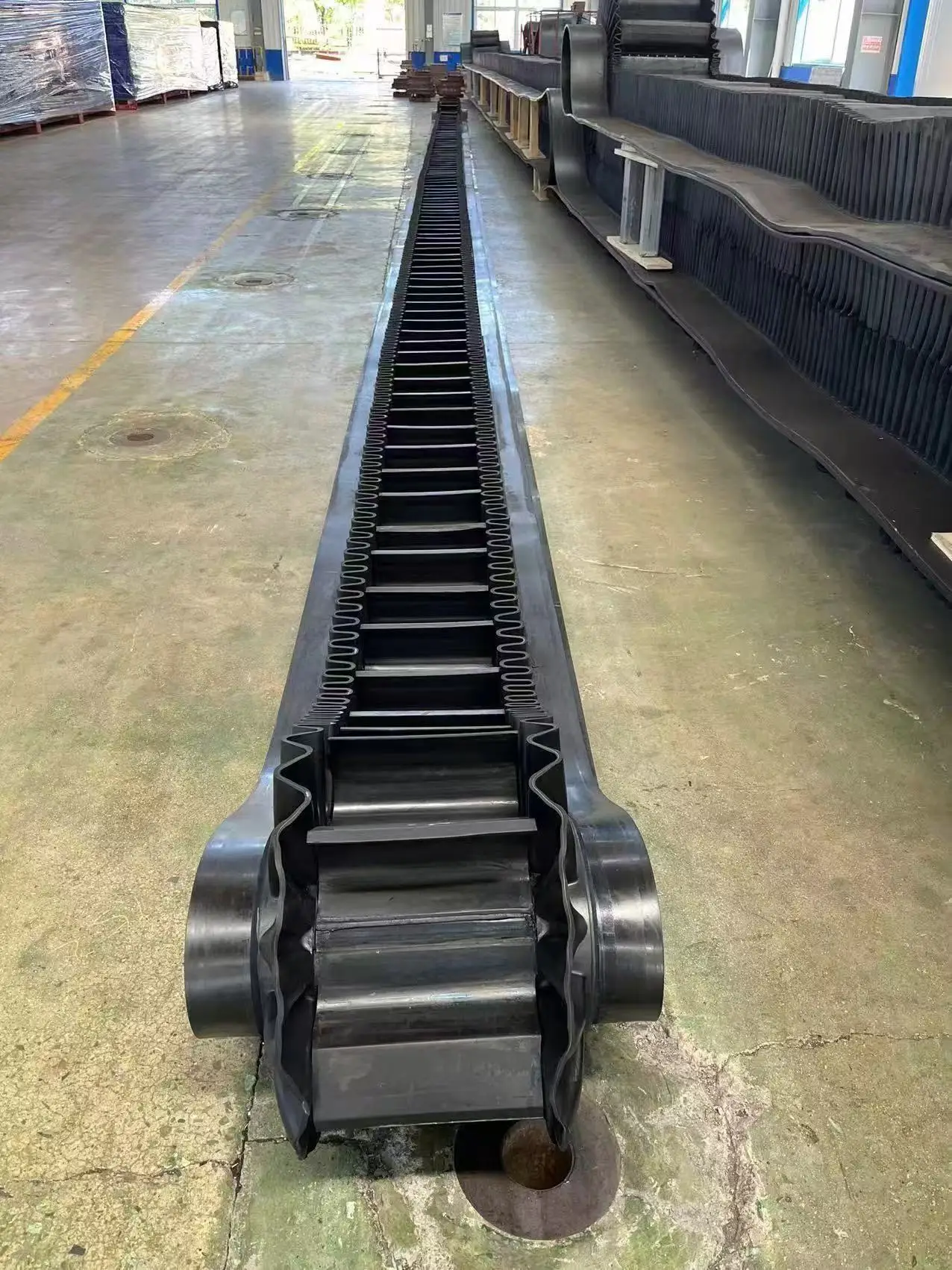

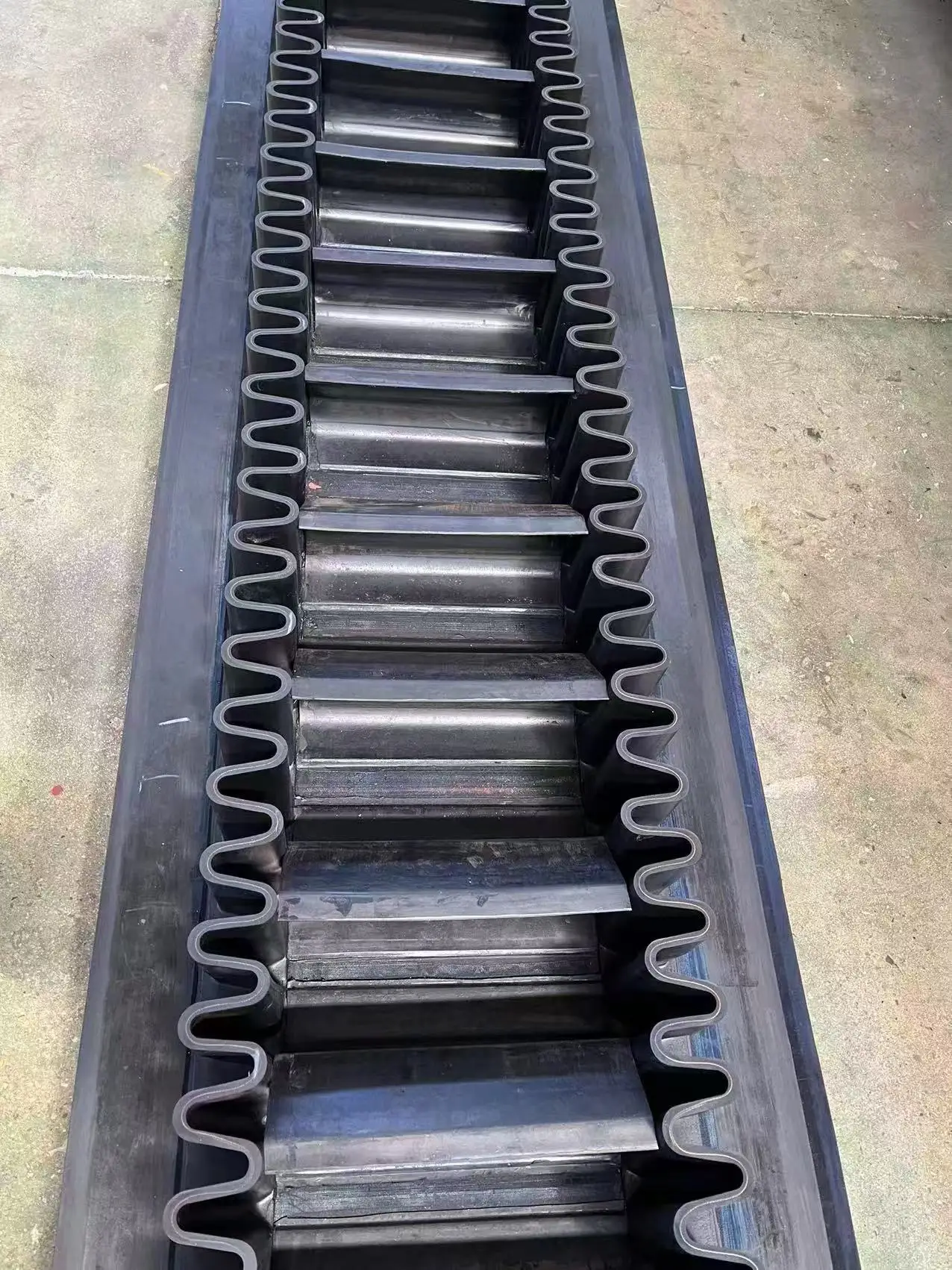

High-angle corrugated sidewall conveyor belt--Base belt type

*High-angle corrugated sidewall conveyor belt--Base belt type

*In order to meet the requirements of angle redirection, the baseband needs to be flexible in the longitudinal direction and rigid
in the transverse direction.

*The use of a specially structured transverse rigid base belt solves the problem of large-sized conveyor belts collapsing during
the return process (the width of the base belt is the same as that of ordinary base belts and complies with international
standards)

Large angle corrugated sidewall conveyor belt--skirt series

Product Advantages:

*Special formula design, excellent flex and fatigue resistance

*The skirt is reinforced with canvas to effectively prevent the skirt from tearing

*Introduced the European skirt dynamic fatigue test method to simulate on-site use

High-angle corrugated sidewall conveyor belt -- Partition series

Main rubber types

*Ordinary wear-resistant
*High/medium oil resistance
*Cold resistant
*Acid and alkali resistance
*Flame retardant
*Heat resistant 100-150°C
*High temperature resistance 150-250°C
*Customizable

Specification

Type	High	Bottom width(SW)	Crest width(TW)	Wave pitch(P)	Weight(kg/m)	Minimum drum diameter(mm)
S	40	30	20	25	0.5	125
		60	50	45	40	1.6	160
		80	50	45	40	1.9	200
		100	50	45	40	2.3	250
		120	50	45	40	2.6	315
When the skirt height is >120mm, it is recommended to clip the skirt, and other small size skirts can also clip the cloth as required
MDSF	120	75	65	63.5	3.4	315
		160	75	65	63.5	4.2	400
		200	75	65	63.5	4.9	500
		240	75	65	63.5	5.9	630
		280	75	65	63.5	6.8	800
		300	75	65	63.5	6.9	800
HHDF	300	100	90	83	11.5	800
		400	100	90	83	14.3	1000
		500	100	90	83	16.7	1250
		500	105	95	89	18.5	1250

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2020,sell to North America(50.00%),Mid East(40.00%),South America(5.00%),Southeast Asia(3.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
conveyor accessories,cotton gin accessorieophysical accessoriess,geophysical equipment,air compressor,Agriculture machine

4. why should you buy from us not from other suppliers?
Goodlrak adheres to the philosophy of integrity, service and innovation to provide customers with high-quality industrial products. The company has always been efficient and fast to solve product solutions for customers, which can create greater
value

5. what services can we provide?
Accepted Delivery Terms: CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,AUD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union;
Language Spoken:English,Chinese
