Высококачественный прочный самоблокирующийся металлический кнопочный переключатель 1NO1NC/2NO/2NC комбинированный настраиваемый шаблон

Сохранить в закладки 1601355868428:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Free sample infrared push button


infrared push button


LA22S Series high strength resistance to destruction with lamp push button product use import stainless steelnlckel is brass for shell material base use PBT material make it ,one-piece metal structure design ,high strength resistance to destruction .built-in special waterproofing system .high brightness pure color LED light emitting chip for light source,long life,Low consumption,small volume,light weight,the head style diversity,high brightness ,good reliability.attractive appearance and make smart,ROHS material can custom it,is widely used to electricity,electronic,telecommunications,locomotive,ship,textile,printing,mining machinery and so on electromechanical instrument industry's various industries cabinet put oneself in another's position,home appliances's man-machine interface control system.
This push button structure design conform to the state and CE safety certification requirements.According to the international standard IEC947 and EN60947 and CCC country GB 14048.5-2001 production testing .





   If you are interested in our products, please feel free to contact us to discuss
































































































Type
Maximum voltage250V
Maximum current5A
Protection ClassIP65(can be custom IP67),IK09

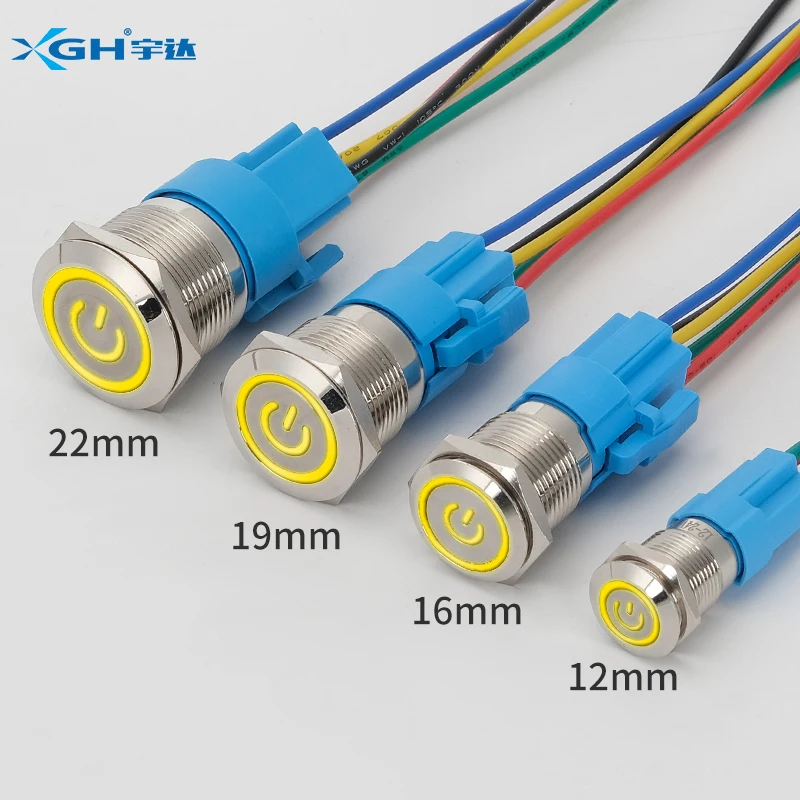

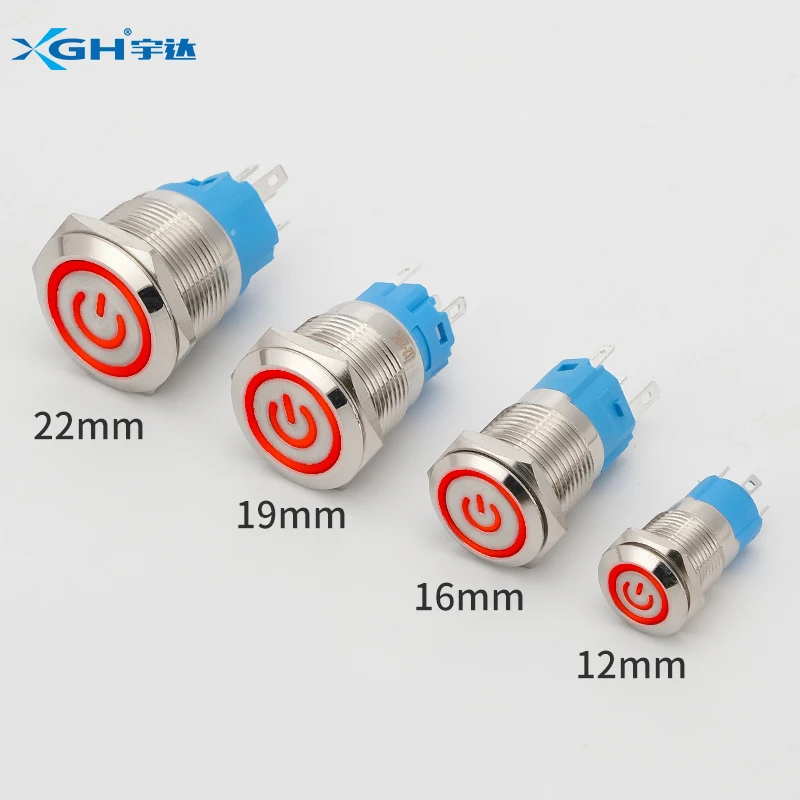

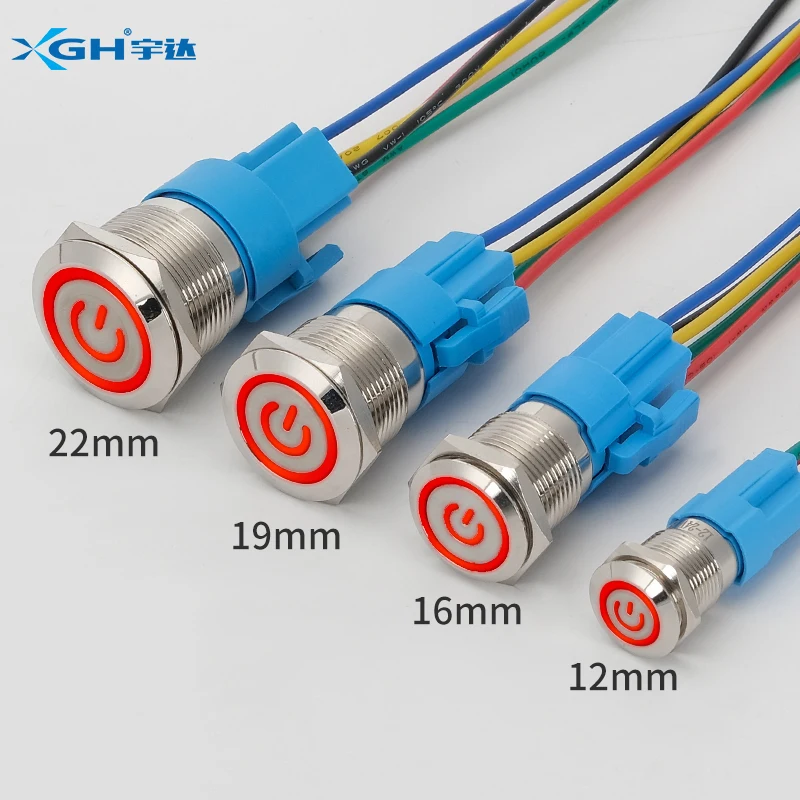

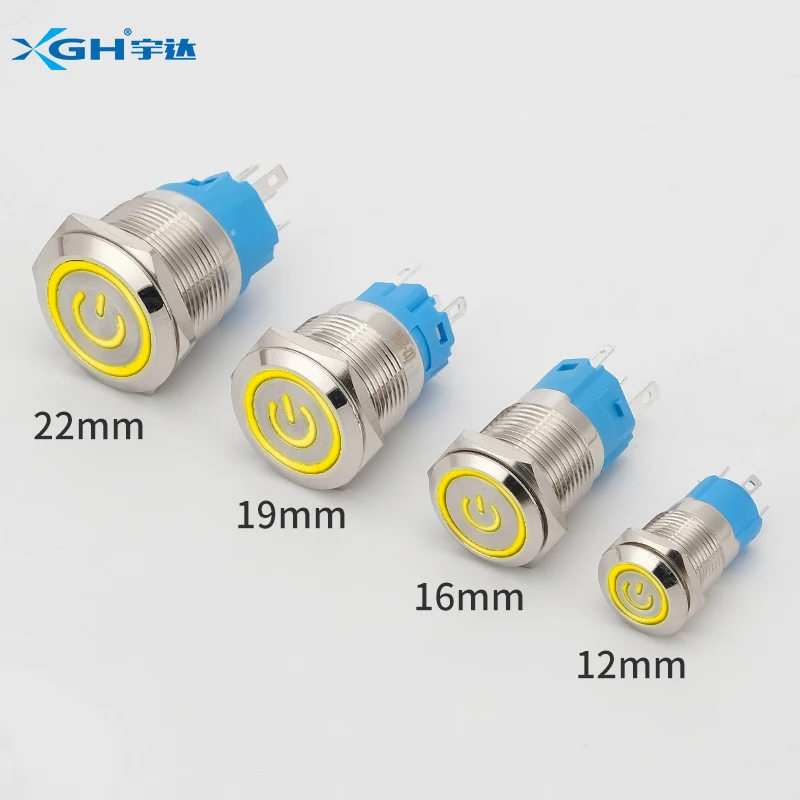

Mounting hole

22mm


(or 8mm,12mm,16mm,19mm,22mm,25mm,30mm)


Electrical  life200000
Mechanical life 1000000
Contact structure

1NO1NC / 2NO2NC


The Front Shape

Flat round


(or High flat round,Concave round,High concav round)


Terminal Type

Pin terminal


(or Screw terminal)


Crust material

Stainless steel


[or Nickel-plated brass,Gold-plated brass,Zn-al alloy(Color button)]


Button materialStainless steel
Lamp type

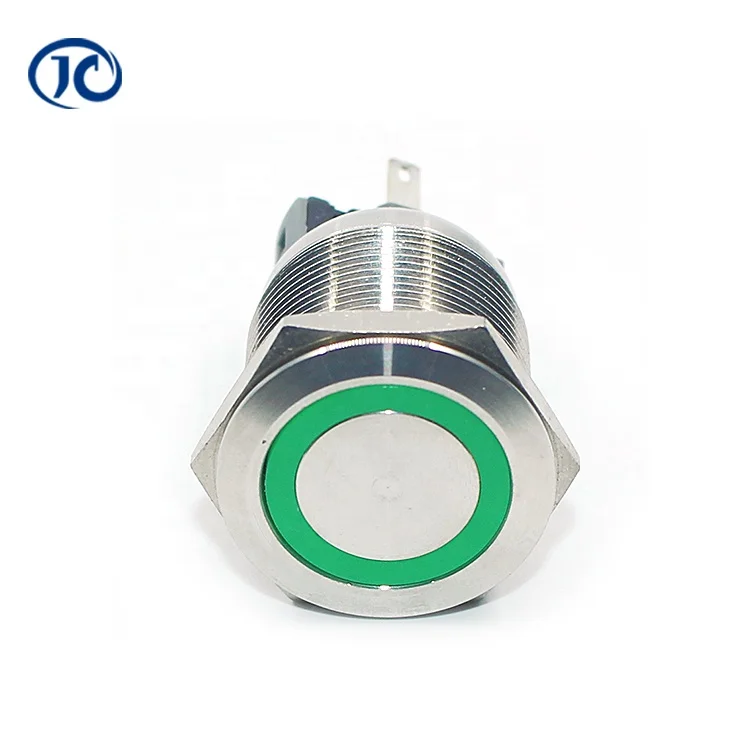

Ring illuminated


(or Dot,Power symbol,Custom text)


Lamp voltage3V,6V,12V,24V,48V.110V,230V,250V
Lamp colorRed,Green,Blue,Orange,Yellow,White
Nut TorqueAbout 0.6Nm
Panel Thickness1~6mm
Operation forceAbout 3~5N
Rated Current5A
Operating Temperature-20°C ~+55°C
Operation TypeMomentary/Latching
Connect TypePin terminal, Screw terminal




infrared push buttoninfrared push buttoninfrared push button





infrared push button


infrared push button


Zhejiang Yuda Intelliqent Technology Co.,Ltd. is located in, Liushi, Yueqing, Zhejiang, China. We are a high-tech enterprises specialized in integrative development, including designing,developing, producing and selling. Our products are exported to the Middle East, Southeast Asia, Europe, America and other more than 30 countries and regions. Moreover, we have gained wide praise and recognition of all clients with excellent quality.


We have a number of product patents, and strictly follow the ISO9001 quality management.Our productions have been passed CE, CCC, ROHS certification and so on based on high quality.We can provide customers with professional design, development of products, and to provide a full range of electrical solutions according to your needs.





infrared push button


infrared push button





FAQ:


Q1. What advantages do you have?


A1. We have professional developing, marketing & production team to offer you the most competitive price and best service.


Q2. Could you print our own logo?


A2. Yes, Our company are available for Retail & Wholesale & OEM & ODM.


Q3. How long is the quality guarantee?


A3. 18 month warranty, our products are 100% inspection.


Q4. How long is the lead time?


A4. Sample lead time:1-3 days. Production lead time: 5 days.


Q5. What is your payment terms?


A5. Our Payment term is T/T,Western Union,L/C at sight.


Q6. Any certification of your company or product?


A6.We have ISO 9001,CE,CCC,ROHS.


infrared push button
