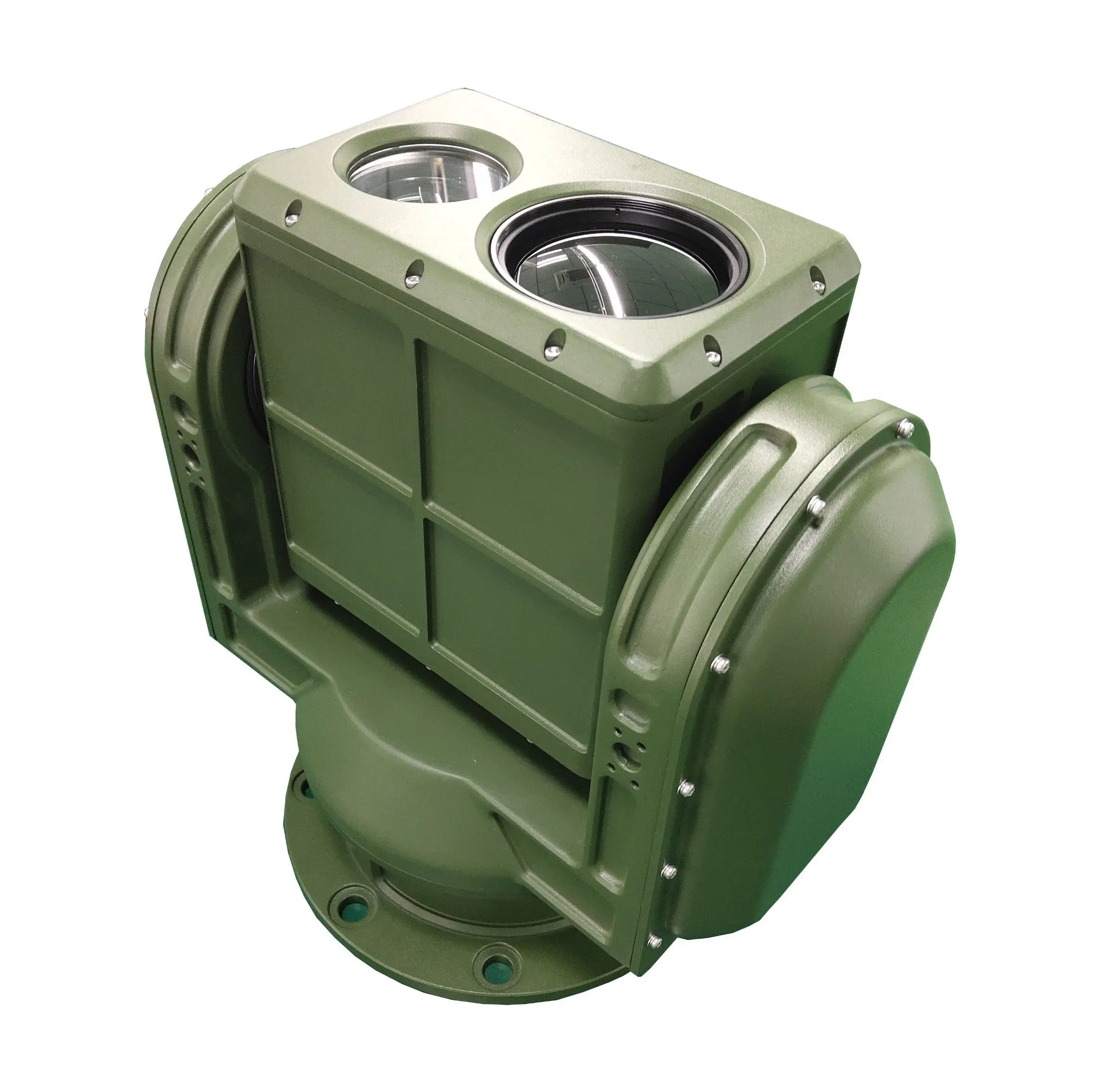

Интеллектуальный наклон SP26

Name: Интеллектуальный наклон SP26
SKU: 1601355896785
Price: 67 875,36 ₽ USD
Availability: InStock

Цена:67 875,36 ₽*

Количество:

Product Feature

1. Max load capacity 30kg

2. Max rotation speed up to 60°/s

3. Multiple lens preset self-adaptation functions

4. High resetting accuracy, the best up to ±0.05º when closed-loop control

5. Horizontal 0~360°continuous rotation

6. Protection Class: Max IP67

7. Adopt high-strength die-cast aluminum alloy material, anti severe environment

8. Full closed-loop control optional

9. Easy to maintain with double shell design

Specification

Model	SP2615	SP2630
Rotating Speed	Horizontal 0.01°~60°/S; Tilt 0.01°~30°/S;	Horizontal 0.01°~30°/S; Tilt 0.01°~10°/S;
Tilt Angle	+60°~-60°	+45°~-45°
Horizontal angle	Horizontal 0~360°continuously
Preset	200
Preset Accuracy	Up to ±0.1° (the best up to ±0.05º when closed-loop control)
Control means	open-loop (closed-loop Optional)
Position, focal length etc return	Support
Lens Preset	Support
Auto cruising	8paths, 10 pcs cruising each path
Auto homing	Set 1~60 minutes time
Auto Scan	1
Protocol	Pelco-D/Pelco-P Optional
Baud rate	2400/4800/9600/19200 bps Optional
Communication Interface	RS485 supporting angle query returns (or RS422 real-time returns)
Power input	DC24V~DC60V
Consumption	≤80W(Without heating), ≤130W(With heating)
Working Temp.	-35℃~+70℃(lowest -45℃ in low temp. preheating condition)
Storage Temp.	-50℃~+75℃
Max Load	15Kg	30Kg
Load Mode	Top-load/side-load optional
Drive mode	worm-gear
Protection Class	IP66(Max IP67)
Whole machine weight	≤17kg
Dimension	301mm×214mm×330mm(L×W×H)±5mm

OEM Part:

Ø Color:a. gray(default); b. army green; c. sea grey; d. white

Ø Control:a. stepper motor(default); b. servo motor; c. Coaxial coding disc

Ø Interface Position: A, bottom lock-nut(default); B, base lock-nut; C, the base connector

Ø Installation method: A. Upward assembly(default); b, Downward assembly
