Specifications
CPU | Intel Core i7-7700 | |
Chipset | Intel® H110/Z170 | |
BIOS | AMI 32Mbit, Support diskless boot, wake on LAN, power-on boot, the watchdog function | |
Memory | Capacity | 16GB SO-DIMM DDR4 2400 MHz memory , Max.16GB |
Storage | SATA connector MINI PCIE | 512G SSD 1xMini PCIE |
Display | Chipset Output
| CPU Integrated video card HD Graphics VGA+HD-M interface Single display,Dual display(display synchronous/asynchronous) 1 × VGA (Maximum supported resolution:1920×1080) 1 ×HD-M interface (Maximum supported resolution:4096x2304) |
Internet | WIFI | 1 × RTL8111E 10/100/1000M(RJ45 LAN) 1 x WIFI Module support 802.11b/g/n (Mini PCIE half card) |

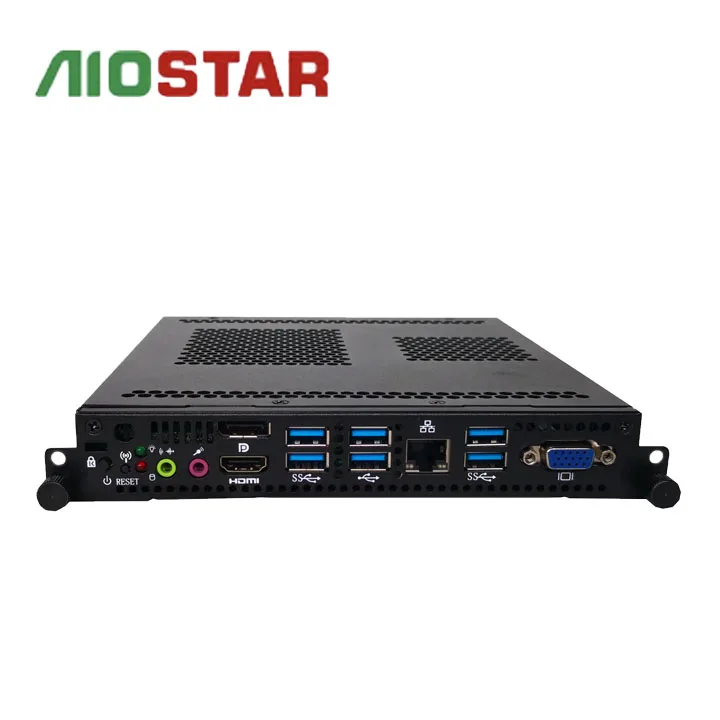

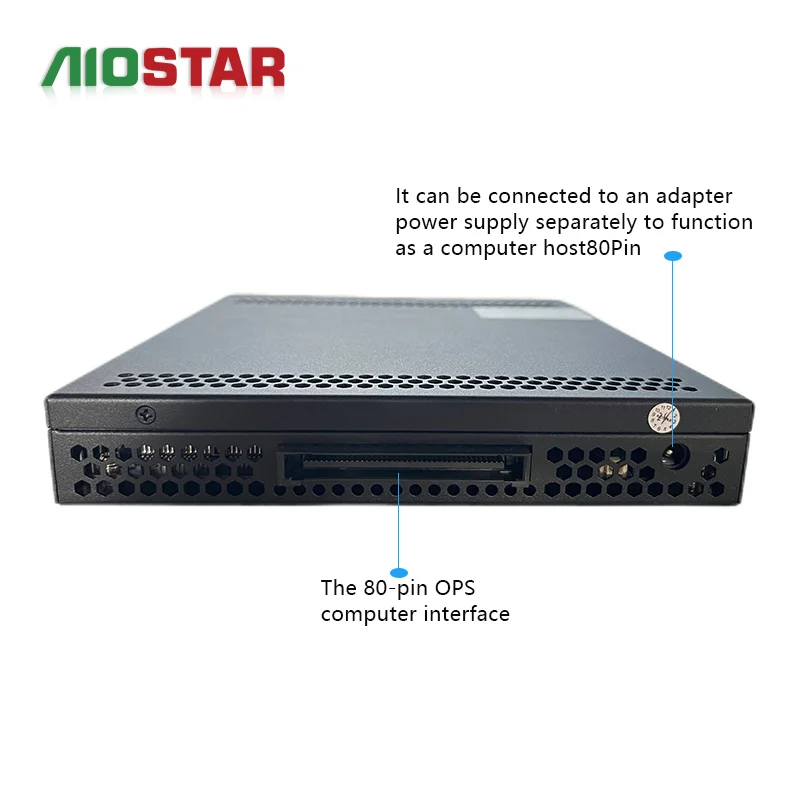

I/O | USB 3.0 USB 2.0 Power button Reset LED light DC JACK Audio | 3x USB3.0 3× USB2.0 1 × power button 1 × Reset button 1 × OPS connector(80pin) 1 x Power indicator light & 1 x Hard drive indicator lights 1 × DC JACK 1 × LINE-OUT & MIC-IN |
Input Rated power consumption | 90W | |
Watchdog | Output Interval | Interrupts, system restart 255 time interval |

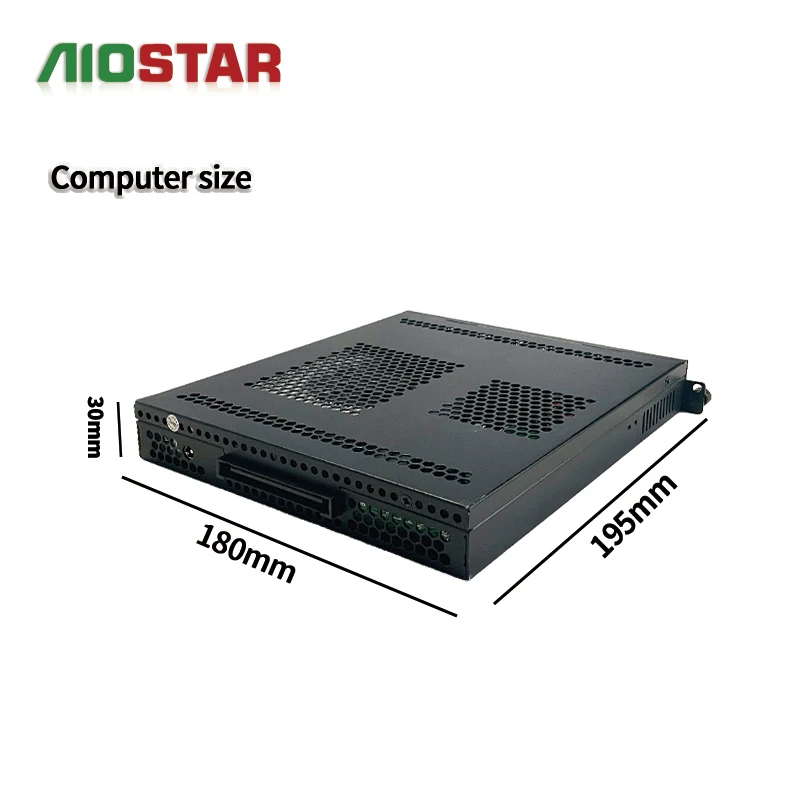

Physical parameters | Dimensions | 180mm (L) x 195mm (W) x 30mm (H) |
Environment | Temperature Humidity | Working temperature:0°C ~50°C Storage temperature:-20~70°C 5%~90% No condensation |
Operating system | Version | Windows 10/Windows 7 / windows8 / Linux |
Ordering information
Sales models | State |
AOS-SOH11J165SE | Intel Core i5-7700 3.6GHz 16G RAM 512G SSD |
Areas of application
Applicable to education, restaurants, hotels, shopping malls, company meetings, government
affairs disclosure and other areas.
