Заводская цена сертифицированный по сертификатам ISO 20 футов из нержавеющей стали 22000 литров использованный контейнер для резервуаров T11 T14 продажи

Заводская цена сертифицированный по сертификатам ISO 20 футов из нержавеющей стали 22000 литров использованный контейнер для резервуаров T11 T14 продажи

Категория: >>>
Поставщик: Hubei Manten Automobile Co. Ltd.Hubei Ltd.

Цена:19 500,00-25 900,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Chemical Liquid Hydrochloride Hydrogen, Dimethyl ether Transportation ISO Tank Container

Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--24hours service!

» I.Product Description:

We are Tank container manufacturer with classification society certification.
An ISO tank container, tank container or tanktainer is made of stainless steel / aluminium alloy / carbon steel and is surrounded by various types protective layers. It has a manhole on the top along with at least one valve and another valve on the bottom. They are shaped like a cylinder.

FEATUREs and Function:

An ISO tank container, tank container or tanktainer is an intermodal container for the transport of liquids, gases and powders as bulk cargo. It is built to the ISO standards, making it suitable for different modes of transportation. Both hazardous and non-hazardous products can be transported in tank containers.
Can be function for different chemical materials storage and transportation:
- Cryogenic tank
- Lorry tanker and ISO tanks
- LNG/ CNG refueling stations
- PSA nitrogen/ oxygen plants

- Dimethyl ether tank container
- Sodium metal tank container
- Methyltrichlorosilane tank container
- Low-temperature tank container

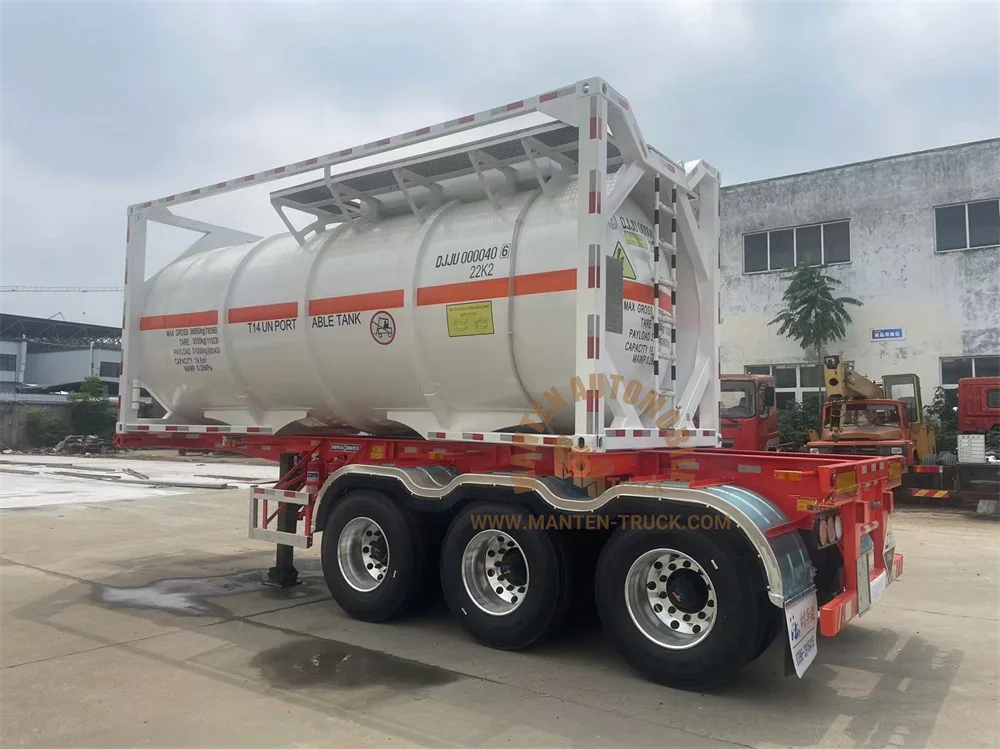

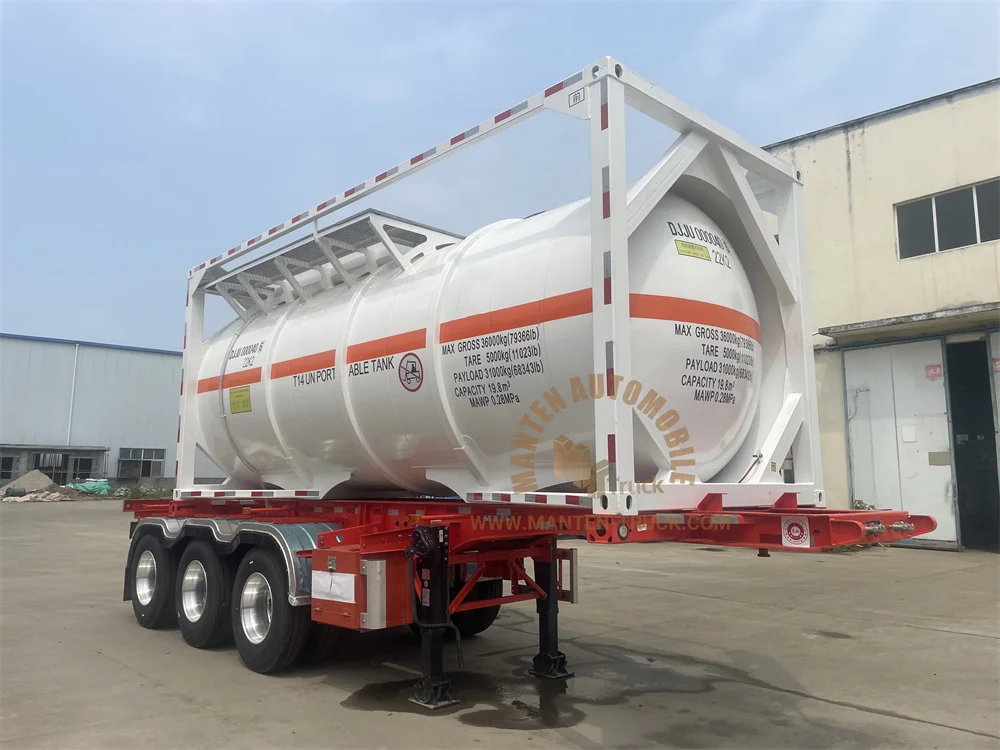

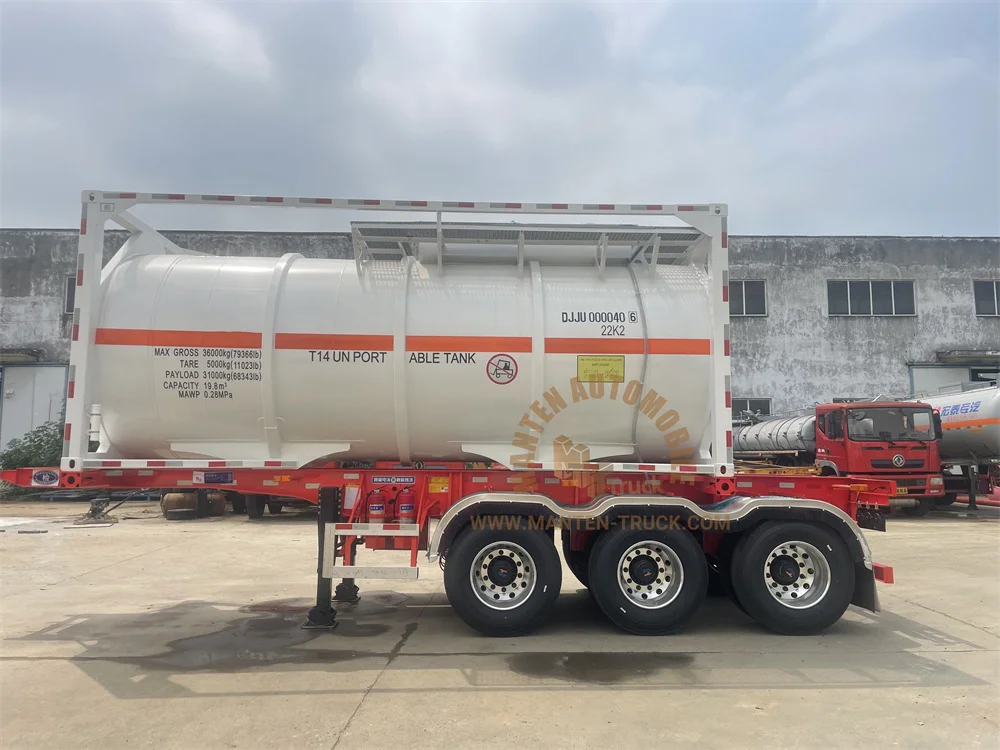

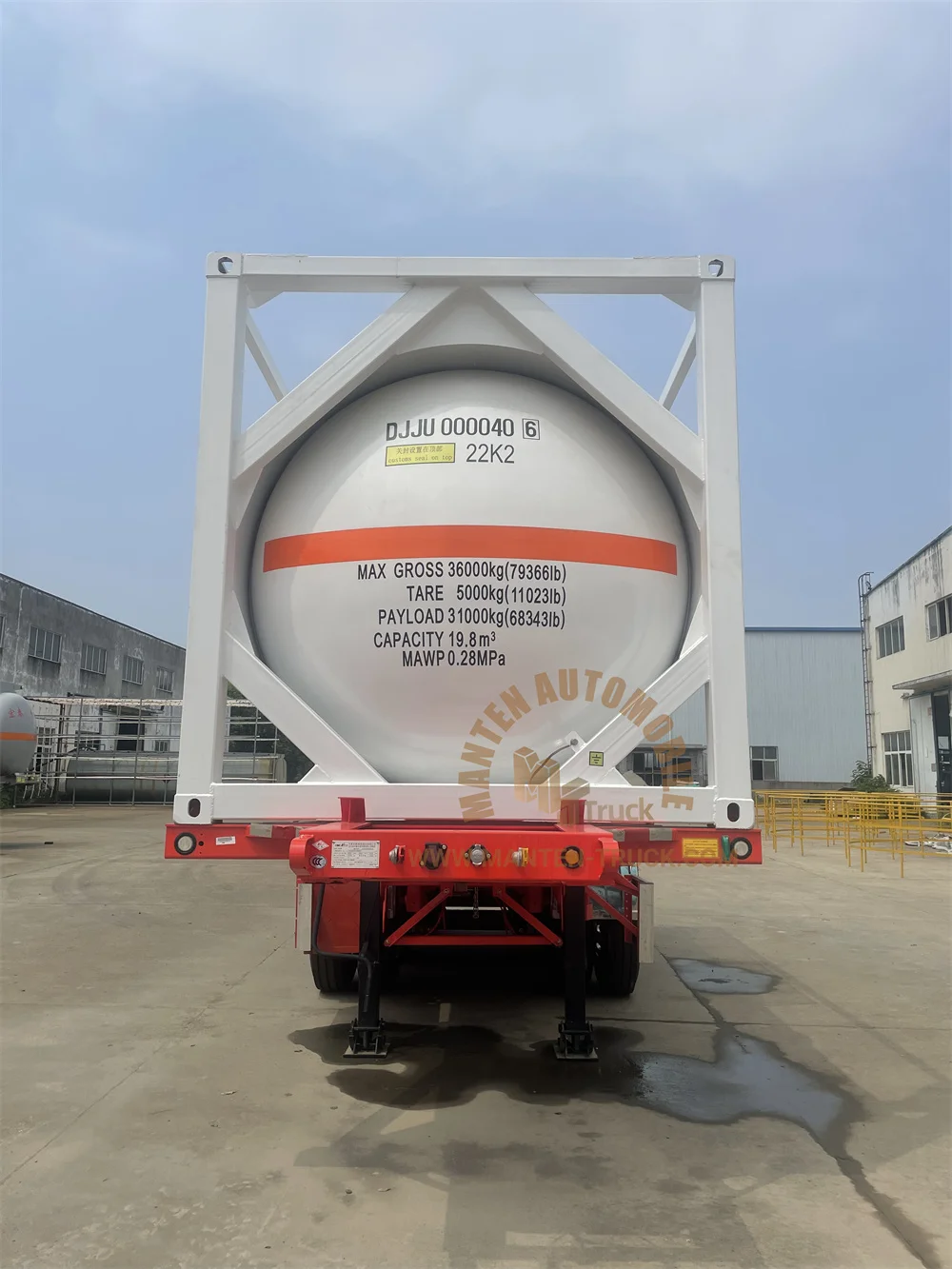

» II.More Photos of Chemical liquid transport ISO Tank Container:

» III.Product Parameter of Chemical liquid transport ISO Tank Container:

Specification of T14 ISO Tank Container(20-ft)
Model	20-foot container tank XY20-20	Design code	/
Nondestructive testing	20% X-ray + magnetic powder	Loading medium	T14
Tank inspection	Yes CCS	Tank Volume	19.8m3 (19,800L)
Tank Cylinder	Q345R/6mm	Tank size	5926xφ2180mm
Tank Head	Q345R/8mm	Frame size	6058x2438x2591mm
Wave-proof board	N/A	Compartment division	1 compartment
Receiving tray	3mm Carbon steel	Receiving tray	square type, 5052/3mm aluminum cover GNK anti-corrosion inside Barrel material
Manhole tank neck	6.0mm/ Q345R	External reinforcement ring	3 Nos
Plastic lining	20mm PE layer	Ladder requirements	Rearside carbon steel ladder
Tank top guardrail	Aluminum alloy movable guardrail	Walkway requirements	Glass fiber reinforced plastic grille walkway
Manhole tank mouth/ cover	one DN550 plastic-lined flat cover, valve box 5052/3mm aluminum cover.
Discharge port and Installation position:	Φ50 PTFE bell-and-spigot pipe 1 piece,
Valve requirements	A 3-inch PTFE lined combination valve at the bottom
Frame requirements	top inlet and top outlet, gas phase DN50 carbon steel PTFE lined ball valve + DN50DN20 reducer, two sets of liquid phase DN50 carbon steel PTFE lined ball valve + DN50DN40 reducer, one DN80 PTFE lined safety valve (0.44MPa), one bursting disc 0.484MPa, DN50 carbon steel PTFE lined ball valve + PTFE pressure gauge 0-0.6Mpa 1 piece
Other requirements	Each Key Step must be witnessed by CCS on site.
Paint requirements	Tank body: sea gray anti-corrosion; Frame: sea gray anti-corrosion;
Reflective markings	orange tape is affixed to both sides of the tank body and the rear head, and the rest is in accordance with the marking drawings
Vehicle accessories	standard, with locks
Documents	1. Nondestructive testing report; 2. CCS classification society report, CSC safety license approval certificate, CCC final design approval certificate; 3. Product quality certificate; 4. Tax invoice; 5. Relevant valve certificate, etc. (see the vehicle information list for details)
Remarks	Designed and manufactured in accordance with NB/T47064-2017, IMDG, GB150-2011 standards, empty Tank container Tare weight 5000kgs.

» IV. Chemical liquid transport ISO Tank Container more configuration and certifications:

Standard: Tank mouth

ISO tank mouth (3).png

Optional: fluorine-lined quick-opening manhole cover

ISO tank mouth (2).png ISO tank mouth (1).png

» V. Professional packing and transportation:

YOU ARE ALWAYS WELCOMED TO VISIT OUR FACTORY! Pls contact Ms Julia He.
