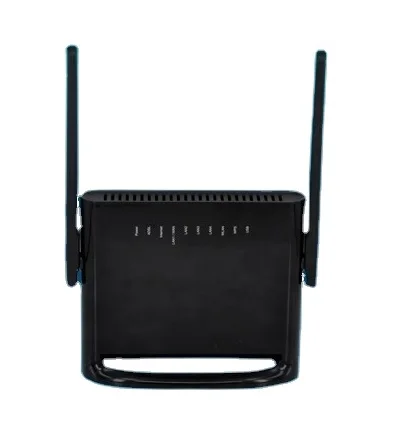

300 Мбит/с Модем ADSL модем маршрутизатор ADSL2/2 беспроводной N300 Wi Fi с 1 * RJ11 WAN 4 RJ45 LAN
- Категория: >>>
- Поставщик: Shenzhen Yingdakang Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601357362478:
Описание и отзывы
Характеристики
DWA-N2241T
The DWA-N2241T is a high-performance wireless ADSL router, uplink rate up to 1 Mbps and downlink rate up to 24 Mbps. It provides one RJ11 telephone interface, four RJ45 Ethernet interfaces, and one USB host 2.0 interface. The telephone interface is used for connecting to the Internet provided by the telecom carrier. The Ethernet interfaces are used for connecting to the computer, through which you can access the Internet. Computers that are connected with the router through the Ethernet interfaces can establish a small local network area (LAN). Those computers can communicate with each other, sharing resources and files，also one of the LAN ports can be Ethernet Uplink WAN port, the WAN port can connect your GPON/EPON modem, the router will change to a broadband router, not only just a ADSL router. The DWA-N2241T is an ideal broadband CPE solution for both home users who wish to share high-speed Internet access and small offices that wish to do business on the Internet.
The DWA-N2241T has Web-based graphic user interface (GUI), in which you can easily modify the settings and connect to your ISP. It also provides flow statistics, connection status, and other detailed information. It supports static IP address, dynamic IP address, and PPPoE connection. The DWA-N2241T is easily upgraded and provides terminal users and ISP with the guarantee of future.
The DWA-N2241T has Web-based graphic user interface (GUI), in which you can easily modify the settings and connect to your ISP. It also provides flow statistics, connection status, and other detailed information. It supports static IP address, dynamic IP address, and PPPoE connection. The DWA-N2241T is easily upgraded and provides terminal users and ISP with the guarantee of future.
Application
* Home gateway
* Small enterprises application
* TV over IP (IPTV)
* Internet access sharing
* High rate broadband sharing
* Files and resources of LAN sharing
* Network online gaming
* USB storage
* VPN connection
* Small enterprises application
* TV over IP (IPTV)
* Internet access sharing
* High rate broadband sharing
* Files and resources of LAN sharing
* Network online gaming
* USB storage
* VPN connection
Parameter | Specifications | |||
System Specifications | ||||
Chipset | RTL8676S | |||
DDR/SDR SDRAM | 32 MB DDRII SDRAM | |||
Serial Flash | 4M/8MB | |||
Features and Technical Specifications | ||||
Protocols | = RFC 2684 Multiprotocol Encapsulation over ATM Adaptation Layer 5 = RFC1483 Multiprotocol Encapsulation over ATM Adaptation Layer 5 = RFC2516 PPP over Ethernet (PPPoE) = RFC1662 PPP in HDLC-like Framing = RFC1332 PPP Internet Protocol Control Protocol = RFC894 A Standard for the transmission of IP Datagrams over Ethernet Networks = RFC1042 A Standard for the transmission of IP Datagrams over IEEE 802 Networks = MER (IP over Ethernet over AAL5) = PPTP, L2TP, IPSec, and SIP application layer gateway (ALG) = Self-learning bridge (IEEE 802.1D Transparent Bridging) = Support at least 64 learning MAC addresses = RFC768 User Datagram Protocol (UDP) = RFC791 Internet Protocol (IP) = RFC792 Internet Control Message Protocol (ICMP) = RFC793 Transmission Control Protocol (TCP) = RFC826 An Ethernet Address Resolution Protocol (ARP) = RFC862 Echo Protocol = G.992.1 (T1.413) = G.992.2 (G.dmt), G.lite = G.992.3 (G.bis/ADS L2) = G.992.5 (ADSL2+) = Annex L (reach extended ADSL2) = ATM forum UNI3.0, 3.1 and 4.0 permanent virtual circuits (PVCs) = CBR, UBR, VBR-rt and VBR-nrt = ITU-T i.610F4/F5 OAM = IP routing | |||
Wireless Features | Standard | IEEE802.11b/g/n | ||
Frequency band | = 802.11b: ISM band 2.400 GHz—2.484 GHz (according to the local regulations) = 802.11g: ISM band 2.400 GHz—2.484 GHz (according to the local regulations) = 802.11n draft: – ISM band – 2422 MHz—2452 MHz (channel BW=40 MHz) – 2400 MHz—2483.5 MHz (channel BW=20 MHz) | |||
Modulation schemes | = 802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS = 802.11b: CCK, DQPSK, DBPSK = HT20 and HT40: 64 QAM, 16QAM, QPSK, BPSK | |||
Wireless data rate | = 802.11b: 11, 5.5, 2, 1 Mbps per channel, auto fallback for extended range = 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps per channel, auto fallback for extended range = HT20: up to 150 Mbps = HT40: up to 300 Mbps | |||
Operating channels | = 802.11b: – 4: France – 11: USA and Canada – 13: Most European countries – 14: Japan = 802.11g: – 11: USA and Canada – 13: Most European countries – 14: Japan = HT20: – 11: USA and Canada – 13: Most European countries – 14: Japan = HT40: – 3—9: USA and Canada – 3—9: Most European countries | |||
Transmission distance | = 100m indoors coverage area = 300m outdoors coverage area (varying depending on the actual environment) | |||
Security | 64-bit, 128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x | |||
Basic Features | = Set IP address and subnet mask at the LAN end and manage domain name = VLAN and port binding at the LAN end = Multi-IP address management at the LAN end = DHCP server, Option 60/15/42/50/250, and management of multiple address pools = DHCP Relay, compatible with RFC2131, RFC951, RFC1542 = 10M/100M, self-adaptation, half duplex and full duplex management of the LAN port = Up to eight WAN connections = Static uplink, configuring of static IP address, subnet mask, DNS, and gateway = PPPoE uplink, configuring of user name, password, MRU, PAP and CHAP authentication, disconnection upon idle overtime = DHCP uplink, obtaining the IP address through DHCP = Bridge uplink = VLAN at the WAN end and 802.1q VLAN = NAT and NAPT | |||
Advanced Features | = ALG: TFTP/FTP/PPTP/RTSP/L2TP/H323 = MAC address filtering in the whitelist mode = Virtual server (NAPT configuration page), meeting the TR098 requirements for port mapping nodes, supporting 16 entries of virtual server configuration = DNS agent = Manual configuration of DNS = QoS: – Interface management, supporting strict-priority (SP) and DWRR scheduling modes – Queue management, supporting eight priority queues – Flow classification management = Anti-DoS, independent switch for each protection item, and anti-port-scanning switch = IP filtering, security level configuration, blacklist and whitelist based on WAN/LAN end (each list supporting up to 20 entries of IP filtering configuration) = Ping/Web/Telnet/SSH/FTP/TFTP local access control = Ping/Web/Telnet/SSH/FTP/TFTP remote access control = UPnP = IGMP Snooping and IGMP data control of the port = IGMP relay = Static routing management, supporting up to 16 entries of static routing configuration = Dynamic routing management, RIPV1, RIPV2, active and passive modes = SNTP = URL filtering, blacklist and whitelist filtering, supporting up to 20 URL entries = DMZ | |||
Status Enquiry | = System information = ADSL information = Host list at the LAN end = WAN connection status and statistics information = LAN statistics information | |||
Configuration Management | = Web, TR069 and SNMP configuration management = Telnet and SSH = Restore to the factory defaults and keep key parameters, reboot the router = Two-level user management, including administrator and user = Ping diagnostics = Software version upgrade, double Image backup, and HTTP upgrade = Upgrade and download of the configuration file of HTTP and TFTP server = Record log, upload log through TFTP, clear log, and download log through HTTP | |||

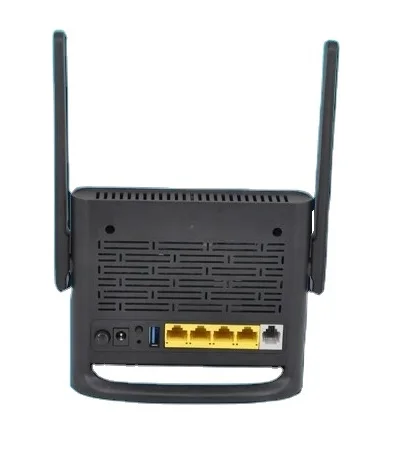

External Connectors | = 1 x RJ11 DSL interface = 1 x WLAN/WPS button = 1 x reset button = 4 x RJ45 Ethernet interfaces(one can be Ethernet WAN port) = 1 x USB host 2.0 interface = 1 x power interface = 1 x power switch | |||
Ethernet Interface Features | = Fully compliant with IEEE802.3/802.3u standards = 10Base-T and 100Base-TX = Half duplex and full duplex = Auto MDI/MDIX = Flow control | |||
Consumption | 10 W | |||
Q: Cannot log in to the web UI of the router, what should I do?
A: Try the following solutions and log in again:
Ensure that your Ethernet cable with internet connectivity is plugged into the WAN port of the router rather than a LAN port.
Ensure that your wireless device is connected to the router's SSID.
Ensure that your wired device is connected to port 1, 2 or 3/IPTV of the router properly by Ethernet cable. And the device is also set to Obtain an IP address automatically and Obtain DNS server address automatically.
Replace the web browser and log in again.
Reset the router and log in again.
Q: Cannot access the internet after the configuration, what should i do?
A: Log in to the web UI of the router, and check your router's connection status on the Status page.
If your router is connected to the internet successfully, try connect your wireless devices to the WiFi network of the router
using the new WiFi name and password.
If Connection failed appears on the page:
— Click WAN Settings on the web UI to check whether the connection type and parameters you entered are correct.
And connect the Ethernet cable with internet connectivity to your computer directly.
If your computer cannot access the internet, consult your ISP. Otherwise, reconnect the Ethernet cable with internet connectivity to your router, reset your router and configure it again.
Q: Why all the indicators are off?
A: Check the following:
The connection between the power adaptor and the power socket.
The status of the power switch.
Q: Why the LAN indicator is off?
A: Check the following:
The connection between the router and your computer, hub, or switch.
The running status of your PC, hub, or switch.
Q: How to load the default settings after incorrect configuration?
A: To restore the factory default settings, turn on the device, and press the reset button for about 1 second, and then release it. The default IP address and the subnet mask of the DSL router are 192.168.1.1 and 255.255.255.0, Please find default user name and password on the sticker of device bottom.
A: Try the following solutions and log in again:
Ensure that your Ethernet cable with internet connectivity is plugged into the WAN port of the router rather than a LAN port.
Ensure that your wireless device is connected to the router's SSID.
Ensure that your wired device is connected to port 1, 2 or 3/IPTV of the router properly by Ethernet cable. And the device is also set to Obtain an IP address automatically and Obtain DNS server address automatically.
Replace the web browser and log in again.
Reset the router and log in again.
Q: Cannot access the internet after the configuration, what should i do?
A: Log in to the web UI of the router, and check your router's connection status on the Status page.
If your router is connected to the internet successfully, try connect your wireless devices to the WiFi network of the router
using the new WiFi name and password.
If Connection failed appears on the page:
— Click WAN Settings on the web UI to check whether the connection type and parameters you entered are correct.
And connect the Ethernet cable with internet connectivity to your computer directly.
If your computer cannot access the internet, consult your ISP. Otherwise, reconnect the Ethernet cable with internet connectivity to your router, reset your router and configure it again.
Q: Why all the indicators are off?
A: Check the following:
The connection between the power adaptor and the power socket.
The status of the power switch.
Q: Why the LAN indicator is off?
A: Check the following:
The connection between the router and your computer, hub, or switch.
The running status of your PC, hub, or switch.
Q: How to load the default settings after incorrect configuration?
A: To restore the factory default settings, turn on the device, and press the reset button for about 1 second, and then release it. The default IP address and the subnet mask of the DSL router are 192.168.1.1 and 255.255.255.0, Please find default user name and password on the sticker of device bottom.
