Новый R8 N автоматический 8 зонный бессвинцовый горячий воздух SMT азотная паяльная машина для производственной линии

Introduction:
No.1 The unique advanced long life heating system

peak wave length of the radiation power is 4UM with curved surface reflector increasing temperature ramp up speed, improve the thermal efficiency. The special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely.

Heating passage.
3. Using imported Taiwan SanYue long shaft high temperature blower motor and W shaped heat duct, no noise & vibration, convenient for maintenance.
4. Heating zones with porous aluminum plate directing the hot air to guarantee the heat evenly distributed to the PCB. Hood can open completely so that convenient for cleanup.

No.2 Smooth and reliable transmission system
1. The conveyor system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth, speed varies in 0-1000mm/min.
2. Independent roller structure support and match stainless steel mesh belt to make the running smoothly and the speed precision is up to ±20 mm/min.

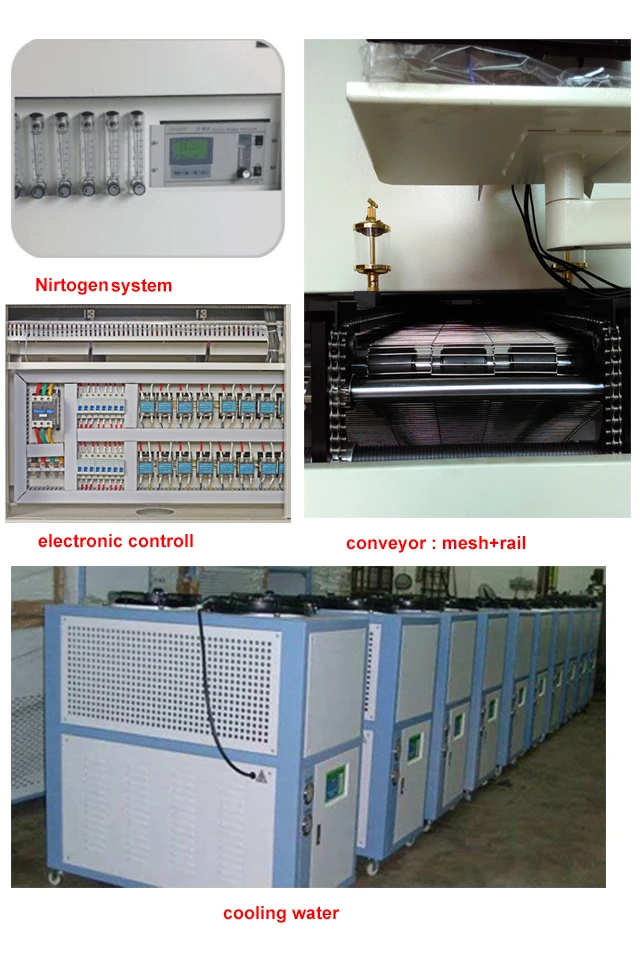

No.3 Stable and reliable electrical control system
1. It adopts imported thermostat control which owns fuzzy logic and PID close loop system. It can fast response to temperature changes and ensure temperature compensation by PID intelligent operation.
2. Using thermocouple imported from Taiwan to each temperature zone, it can fast and sensitive response the changes in each temperature zone, feedback and control timely, compensate the temperature stability in each zone.

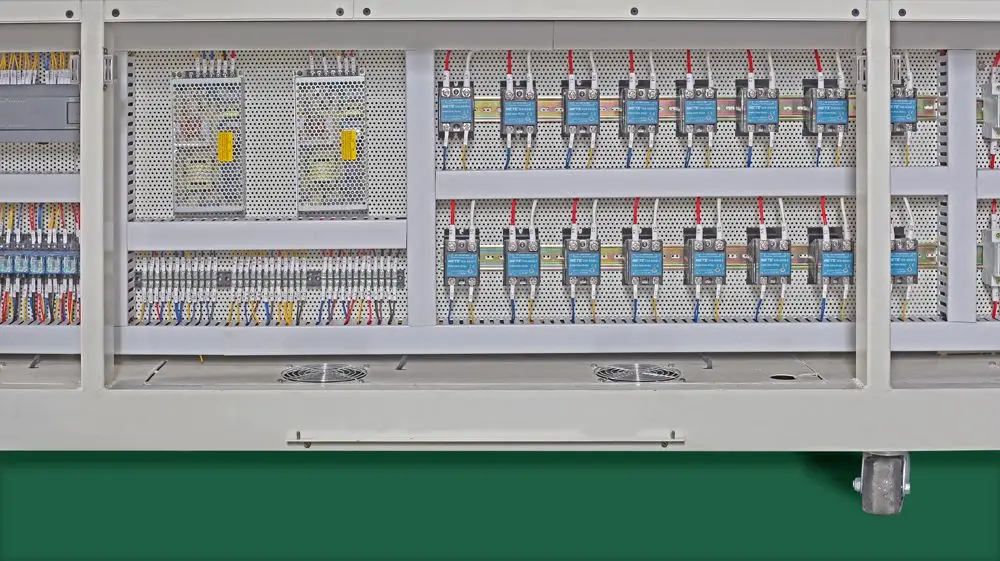

3. Special SSR solid state relay matched with dedicated heat dissipating block improve the heat efficiency greatly and prolong the lifetime effectively. Non-contact output and fuzzy control function by thermostat, can monitor the changes of environmental temperature, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform internal temperature. The length ,direction, temperature distribution, all these meet with IPC standards .
4. Heat energy is abundant, heat up fast, it's only need 20 minutes from room temperature to set-point temperature.
5. Failure diagnosis, visual & audio alarm.
6.  Delay shutdown production function, uniform cooling after the shutdown: prevent hardwares thermal damaged.

Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC

Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

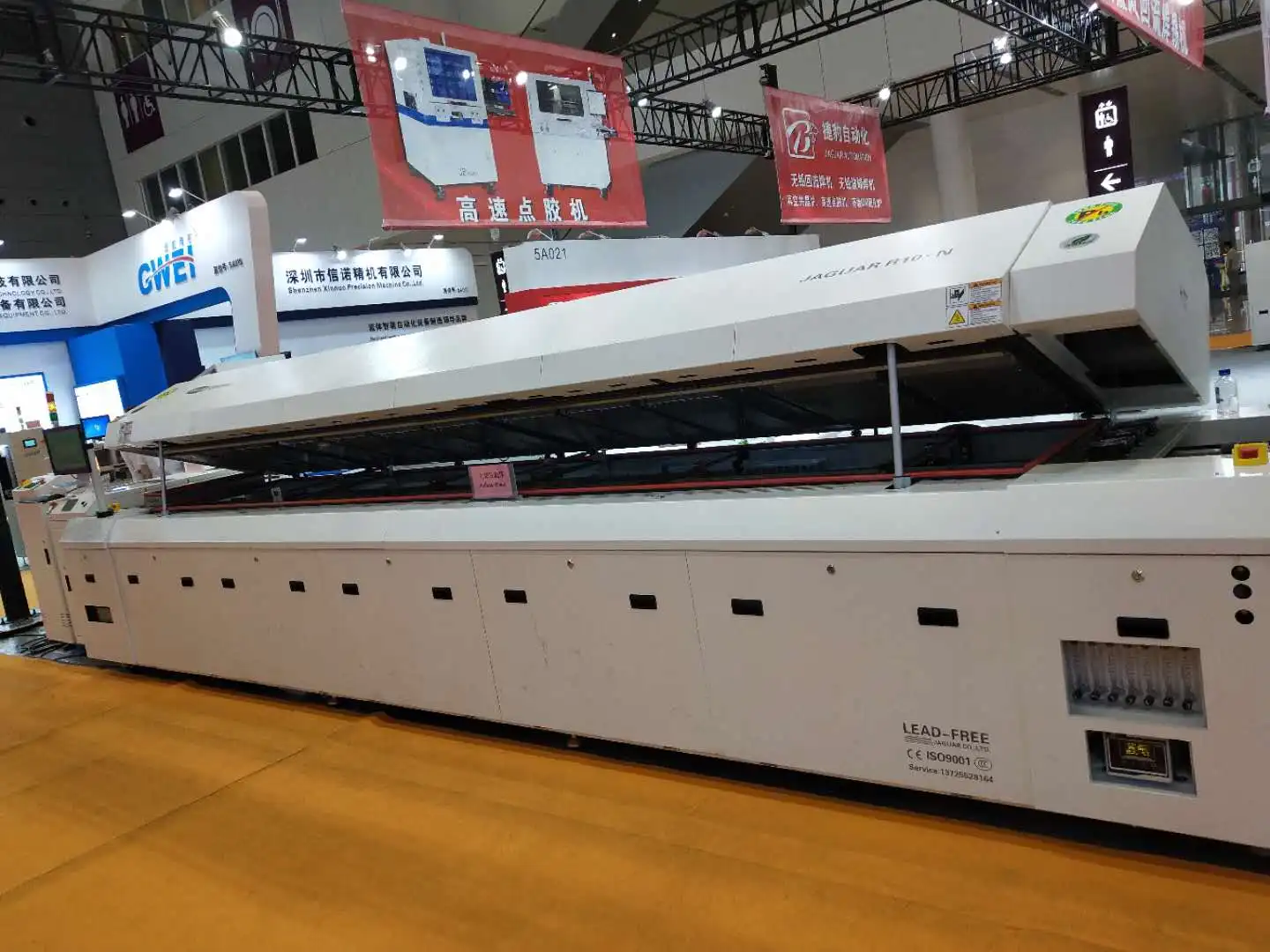

Exhibitions:
