1U настенный брандмауэр для ПК основной i5 3210M i7 3320M 2Lan HD VGA 6 COM промышленный pfSense OPNsense устройство сетевой безопасности VPN
- Категория: >>>
- Поставщик: Dongguan Mini Tree Computer Manufacturing Co. Ltd.Dongguan Ltd.
Сохранить в закладки 1601357675816:
Описание и отзывы
Характеристики
1U Rackmount Firewall PC Intel Core i5 3210M With 2 Lan HD VGA 6 COM Soft Router pfSense OPNsense VPN Network Security Appliance
Features:
-U1-3317U 1L is a low power 1U rack mount industrial computer designed for small and medium sized businesses in industrial control, data processing and multimedia applications.
-DDR3 memory, which can be expanded up to 8GB
- 1*mSATA and 1*SATA hard disk slots, supporting multiple storage configurations to meet different data storage needs.
-1*VGA and1*HD dual display connectors and optional eDP or LVDS pins, suitable for applications such as digital signage and industrial monitoring that require multi-display solutions.
-6 DB9 COM ports, 2 of which are optional RS232/RS485 and the remainder are RS232
-1*mini-PCIe expansion slot that can be used to add modules such as Wi-Fi, BT and LTE, providing flexible device connectivity and wireless communication capabilities.
-DDR3 memory, which can be expanded up to 8GB
- 1*mSATA and 1*SATA hard disk slots, supporting multiple storage configurations to meet different data storage needs.
-1*VGA and1*HD dual display connectors and optional eDP or LVDS pins, suitable for applications such as digital signage and industrial monitoring that require multi-display solutions.
-6 DB9 COM ports, 2 of which are optional RS232/RS485 and the remainder are RS232
-1*mini-PCIe expansion slot that can be used to add modules such as Wi-Fi, BT and LTE, providing flexible device connectivity and wireless communication capabilities.
Model | U1-3317U |
Processor | Onboard Intel Celeron 3317U, 1.70GHz up to 2.60GHz(Turbo boost Technology) 2 Core 4 threads 3MB chache TDP 17W (also can choose 2117U/J1900/I3-3217U/4010/I5-4200U5200U/I7-3517U/4500U/5500U) etc |
Bios | AMI EFI BIOS |
Memory | 1*DDR3L 1600MHz SODIMM Up to 8GB |
Storage | 1 * MSATA SSD,1*SATA |
display chip | Integrated Intel ® HD Graphics(depend on CPU） |
Display Port | 1*VGA port; 1*HDMI port |
Ethernet port | 1*Intel RTL 8111 Gigabit Lan(also can choose 2 LAN) |
Expansion slot | 1*MINI PCIE For WIFI/BT/4G |

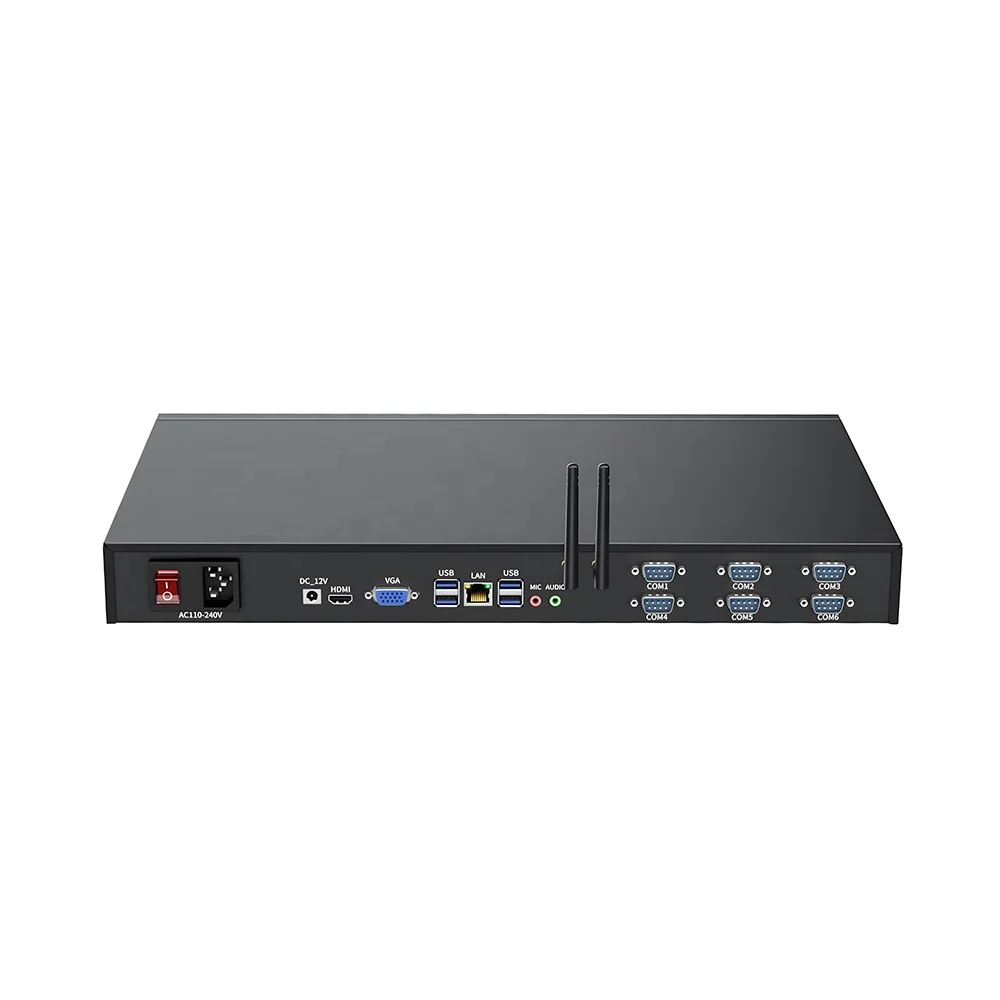

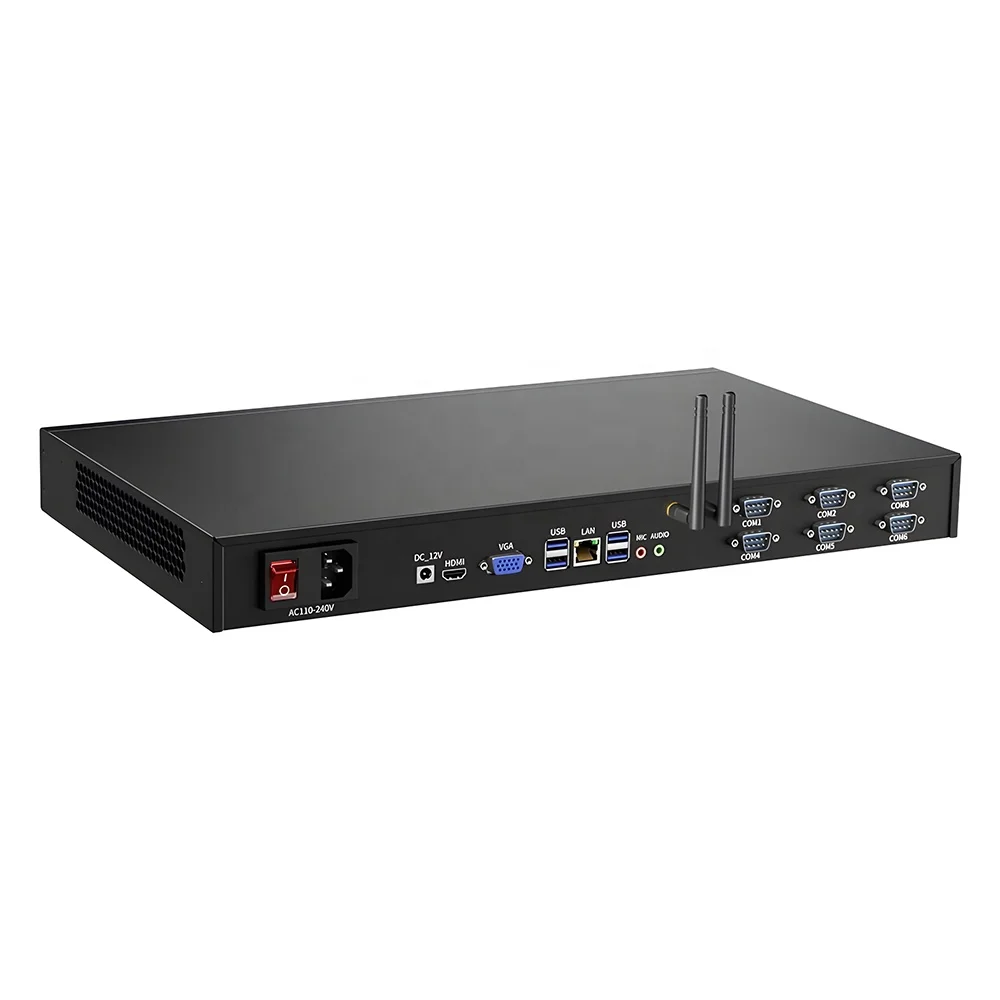

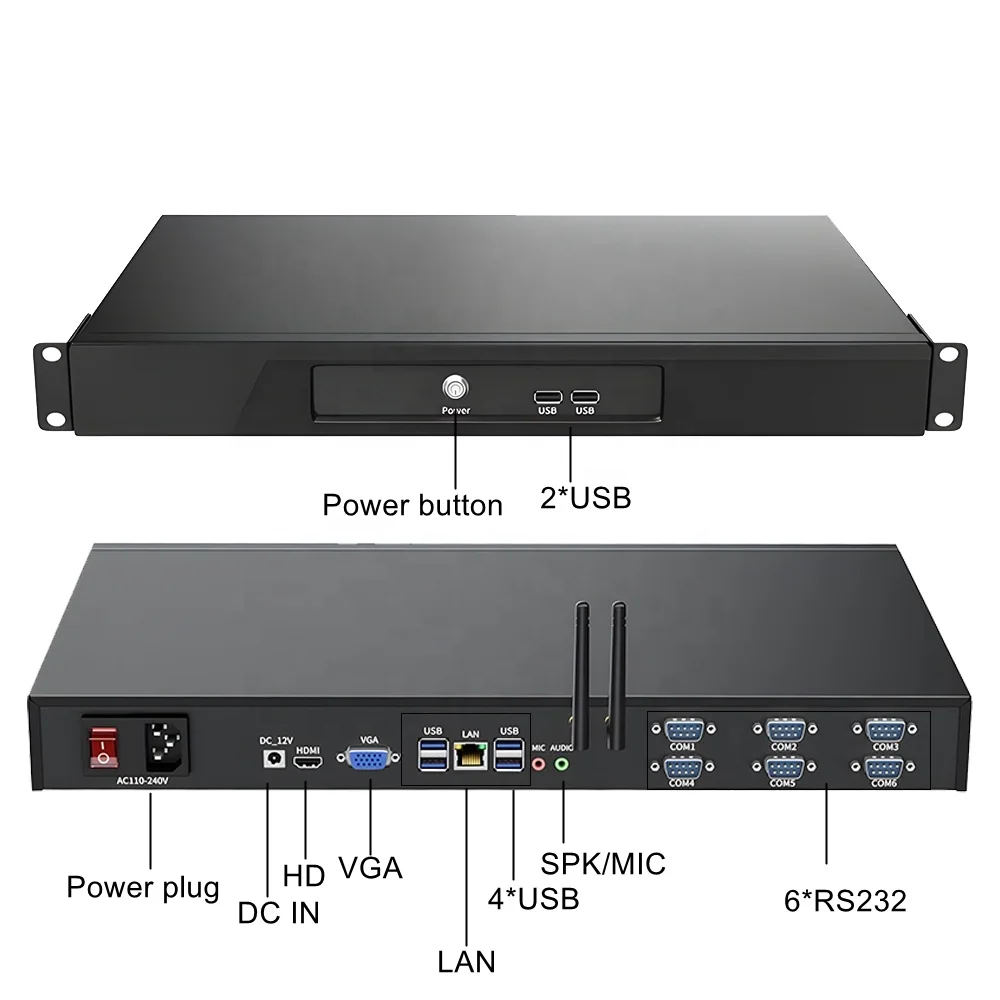

Front I/O Interface | 1*Giga Lan,6*USB Port,1*HDMI,1*VGA,1*SPK,1*MIC,6*DB9(COM1 COM2 of which are optional RS232/RS485) |
OS | Windows 7/10 (2/3th Gen Core support win xp) |
Other functions | Power-on boot; Scheduled boot; Wake-up on LAN; PXE boot; Watchdog |
Power supply | ATX 100~240V 50W |
certification | CE、CCC、FCC、ROHS |
temperature | -0~+50℃ (commercialHDD), -20 ℃~+50 ℃ (industrial SSD), surface air flow |
Weight | Gross weight 5.0kg |

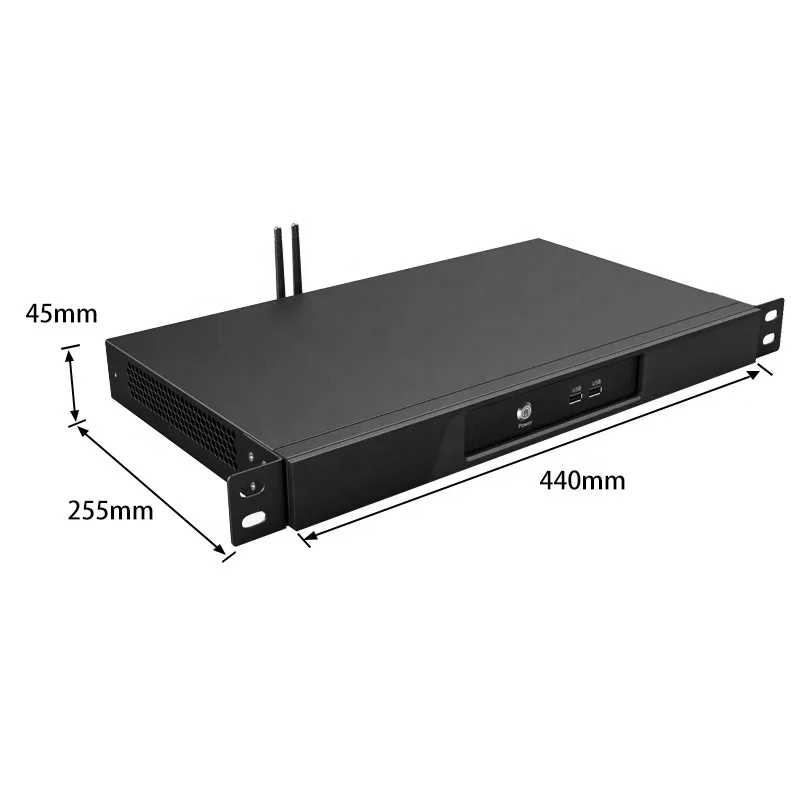

Product size | 440x257x45(mm) |
Package size | 520x340x120(mm) |

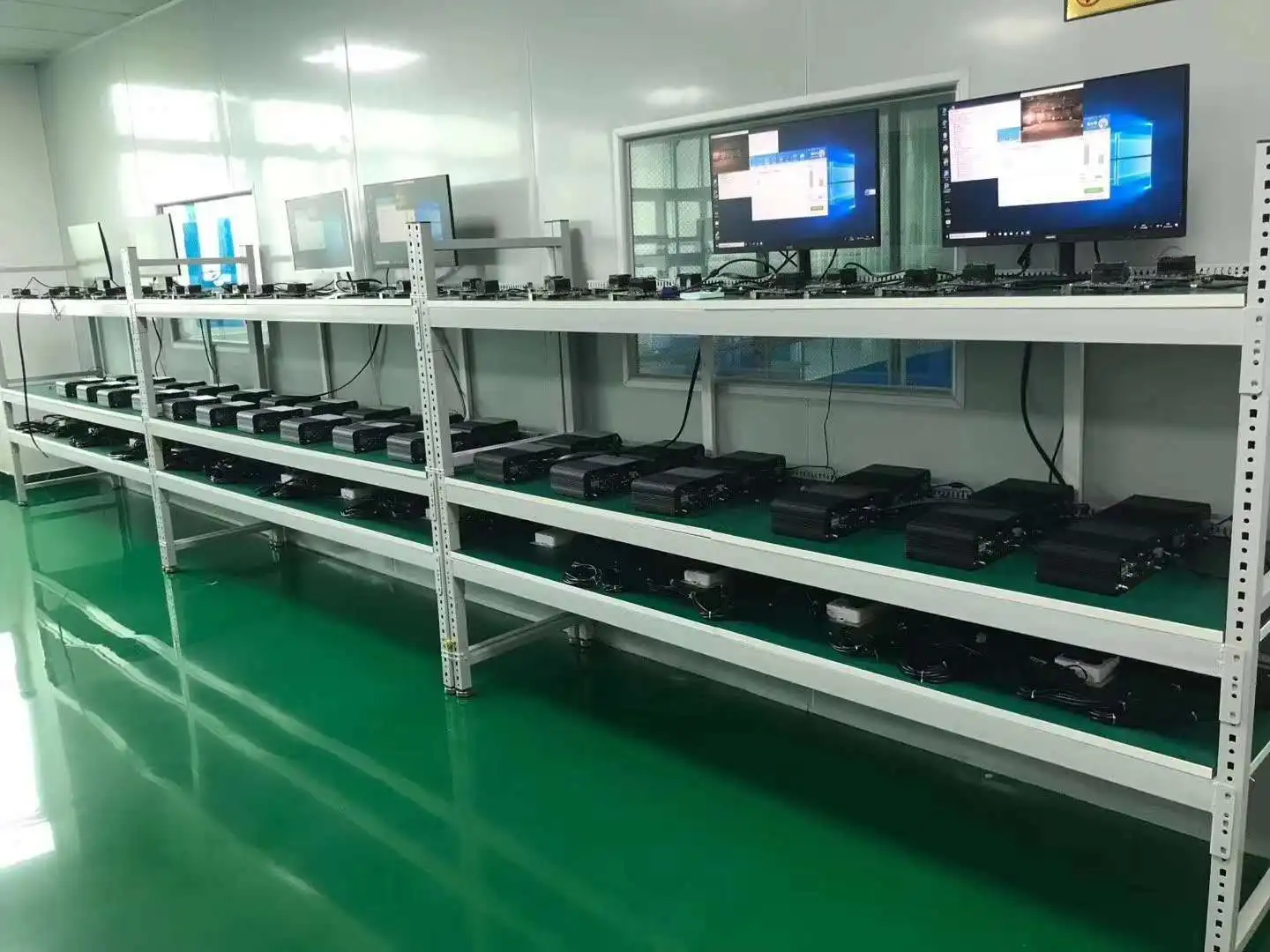

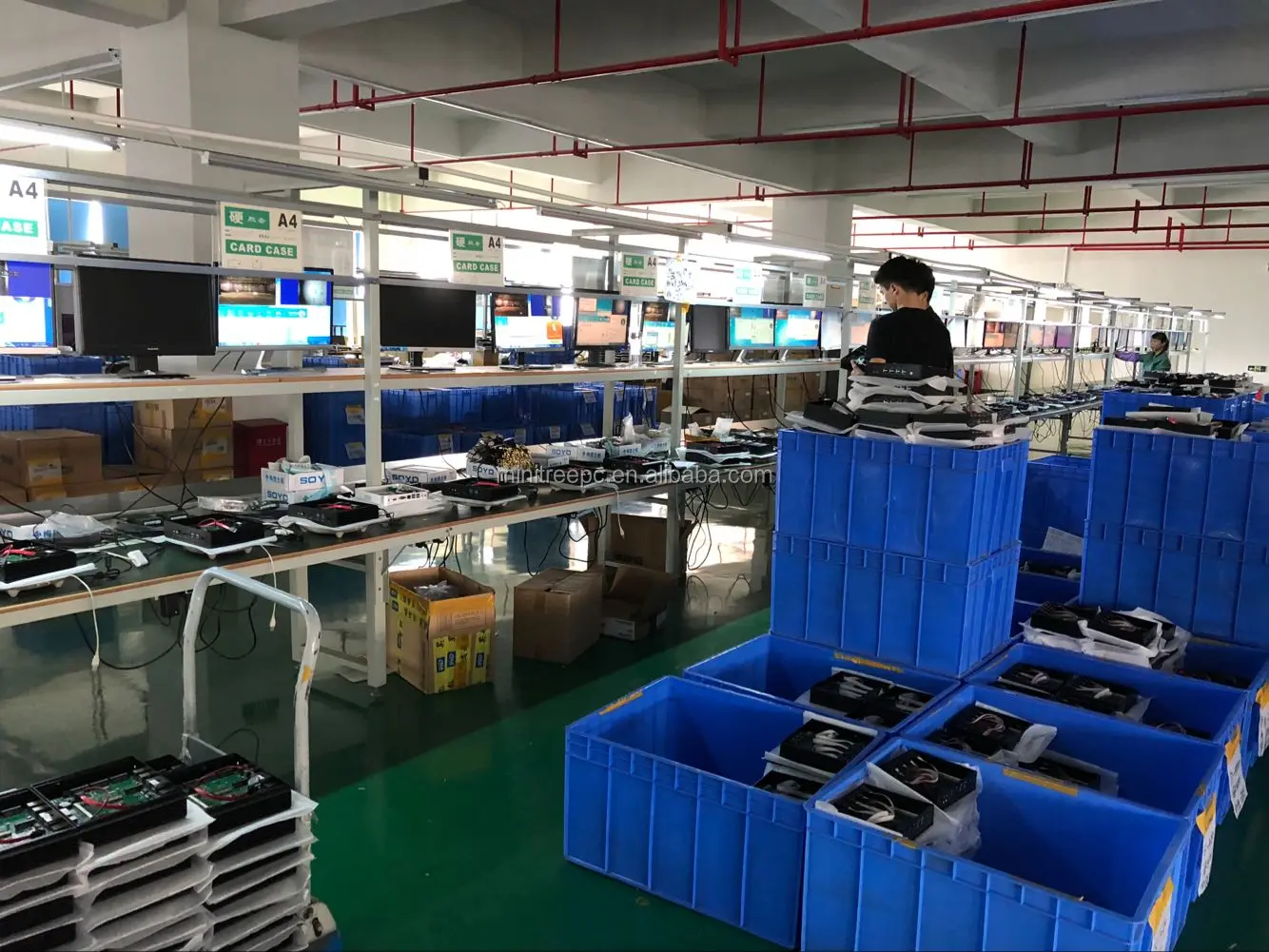

Our company

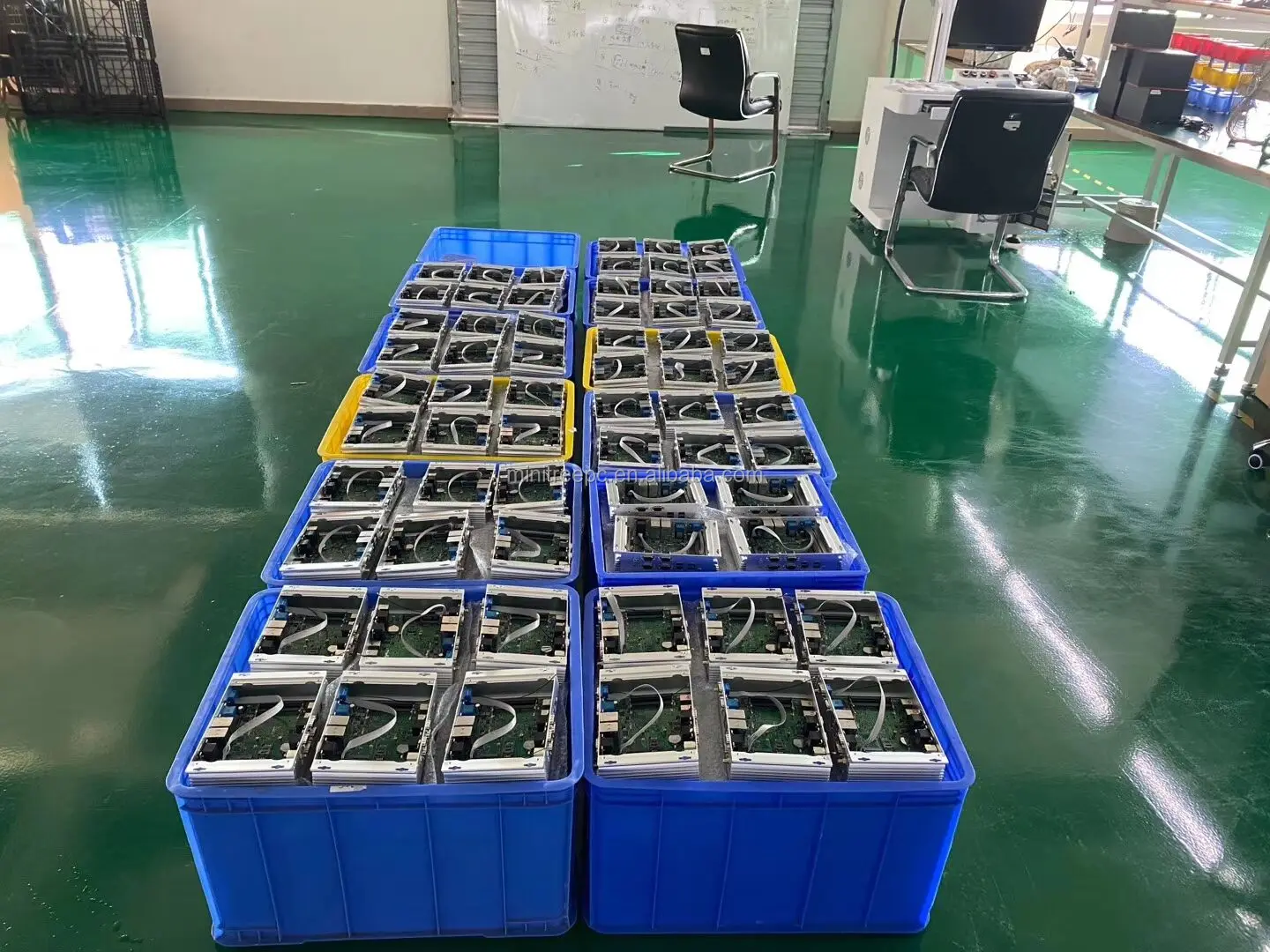

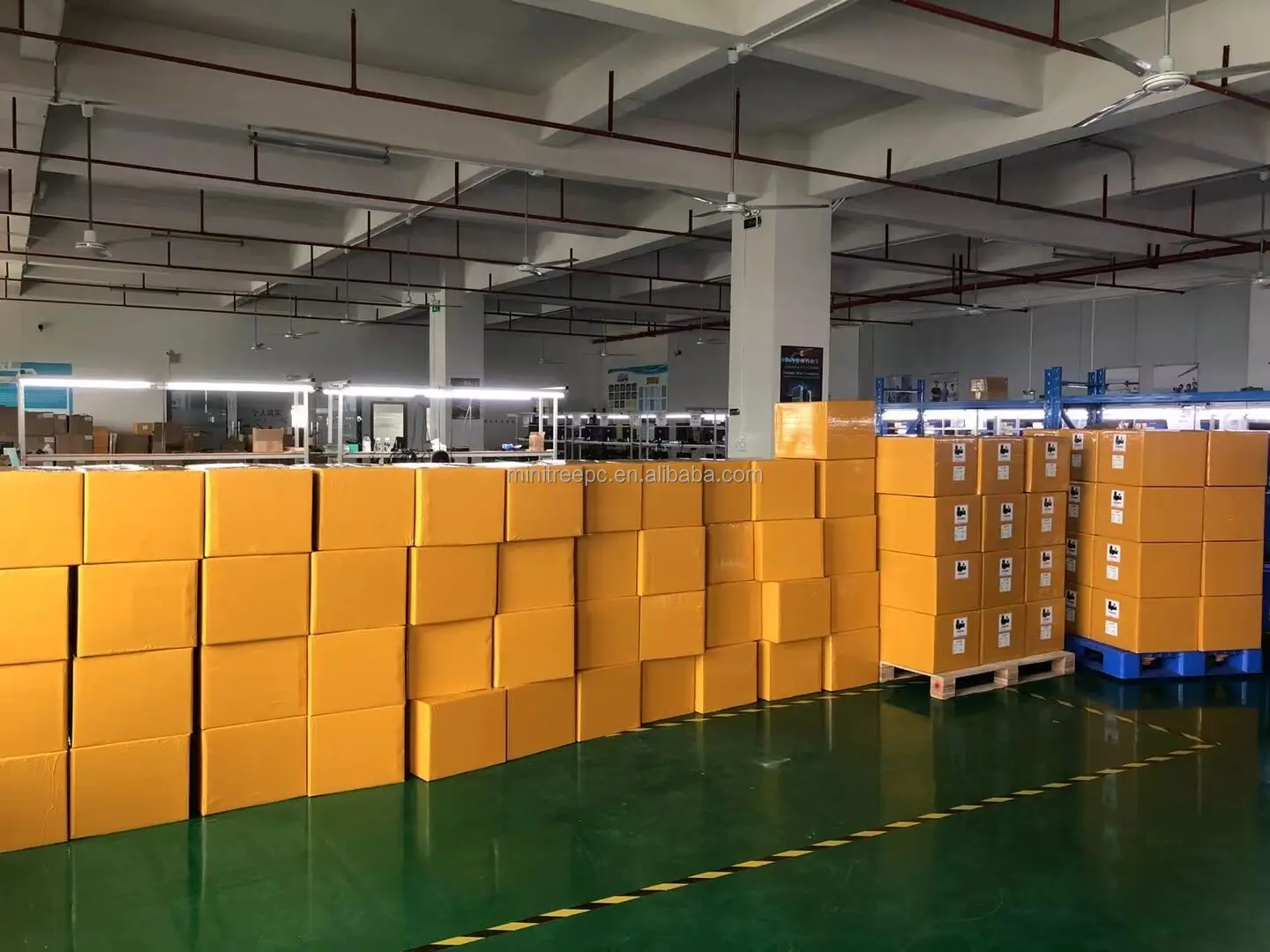

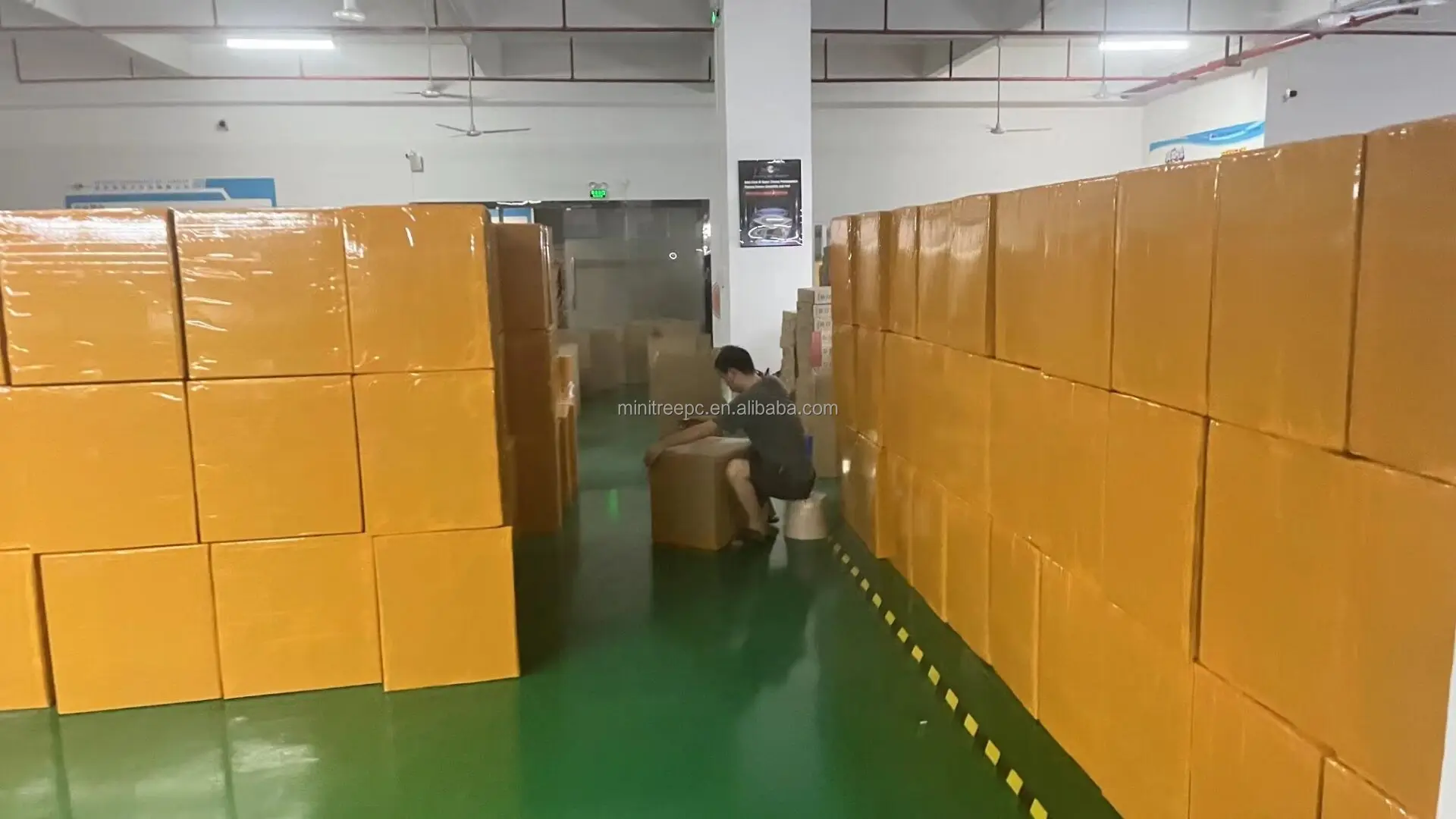

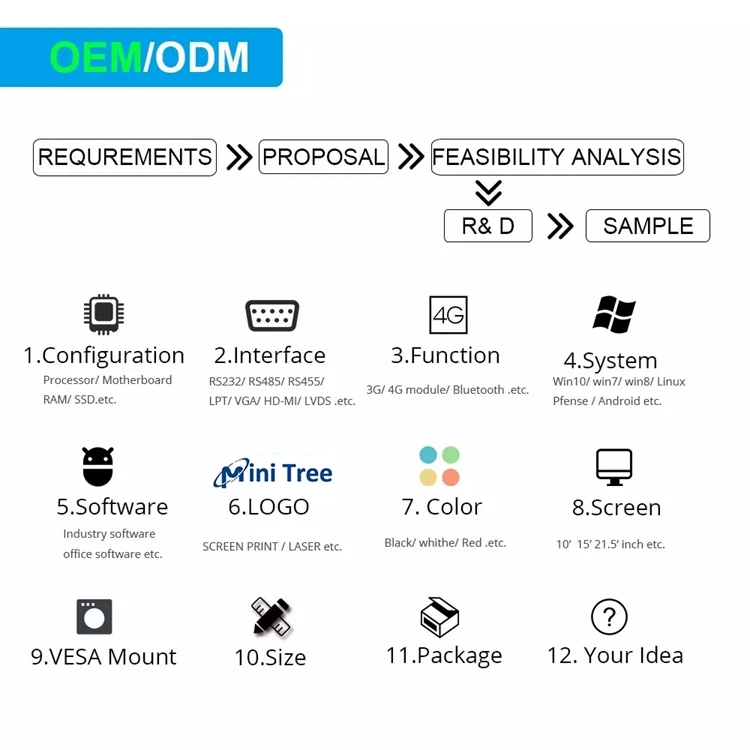

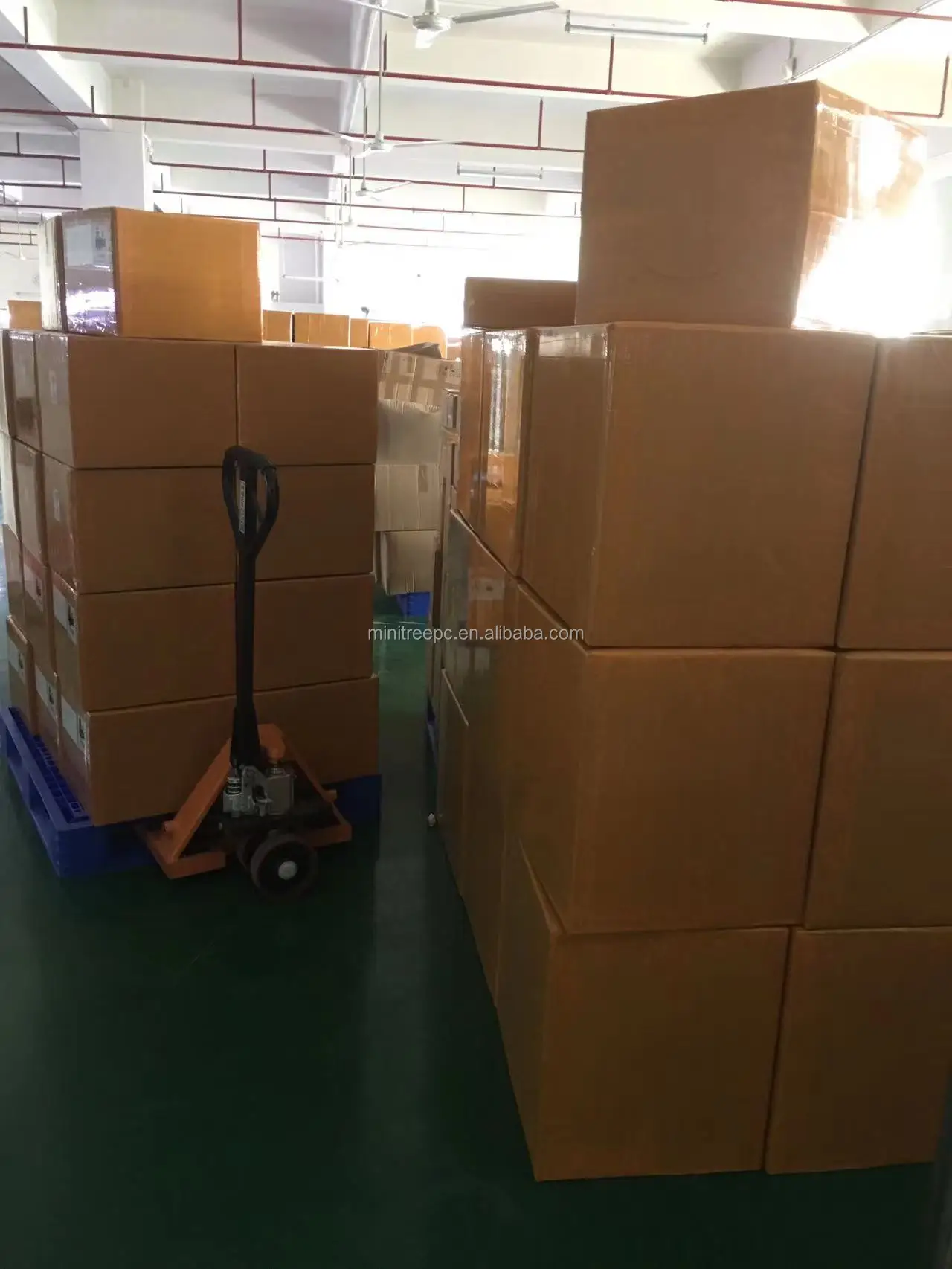

Dongguan Mini Tree Computer Manufacturing Co., Ltd was founded in 2016 as a mini computer developer and wholesaler,Which focus on mini pc ,laptop and industrial computer's producing and selling. There are 20 professional international sales person , most of them has 3 to 10 years international sales experience; 8 technical support team has 10 years computer support experience. The Services we supply: OEM and ODM service: we supply customer brand printing onto the product and package for quantity orders; also supply software or OS design service, to load buyer's OS or design special softwares; supply computer design and I/O change as per buyer's requirement. Drop shipping service: Drop shipping is a business model in which the retailer benefits from selling products to customers then ordering products from drop shipping providers. The only thing you need to do is pass the orders to Mini tree.Customers will receive the ordered products directly from Mini tree. This process minimizes the risk to you.
About warranty
Buy with confidence!3 years warranty!
1. We provide 3 years warranty period for mainboard and 1 year for hardware ,repair or replace for free within 1 year; the second year and the third year, we can repair it, but we will charge for the parts that need to change.
2. If you are not satisfied with the item and want to return it reasonably, please contact us kindly first. We will try our best to deal with the issue for you or you can exchange or return the item in one week.
3. All returned items must be in its original conditions. Anthropogenic causes as defects are not guaranteed. 4. If you want to return the item, pls confirm the return address with us, we only accept EMS or Post for return product.Thanks.
5. If the product break down, please contact us.
1. We provide 3 years warranty period for mainboard and 1 year for hardware ,repair or replace for free within 1 year; the second year and the third year, we can repair it, but we will charge for the parts that need to change.
2. If you are not satisfied with the item and want to return it reasonably, please contact us kindly first. We will try our best to deal with the issue for you or you can exchange or return the item in one week.
3. All returned items must be in its original conditions. Anthropogenic causes as defects are not guaranteed. 4. If you want to return the item, pls confirm the return address with us, we only accept EMS or Post for return product.Thanks.
5. If the product break down, please contact us.
Customized
