Беспроводной пульт дистанционного управления внедорожный мобильный робот Платформа трек шасси гусеничный

Беспроводной пульт дистанционного управления внедорожный мобильный робот Платформа трек шасси гусеничный

Категория: >>>
Поставщик: Shandong Guoxing Intelligent Technology Co. Ltd.Shandong Ltd.

Цена:4 700,00-4 800,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

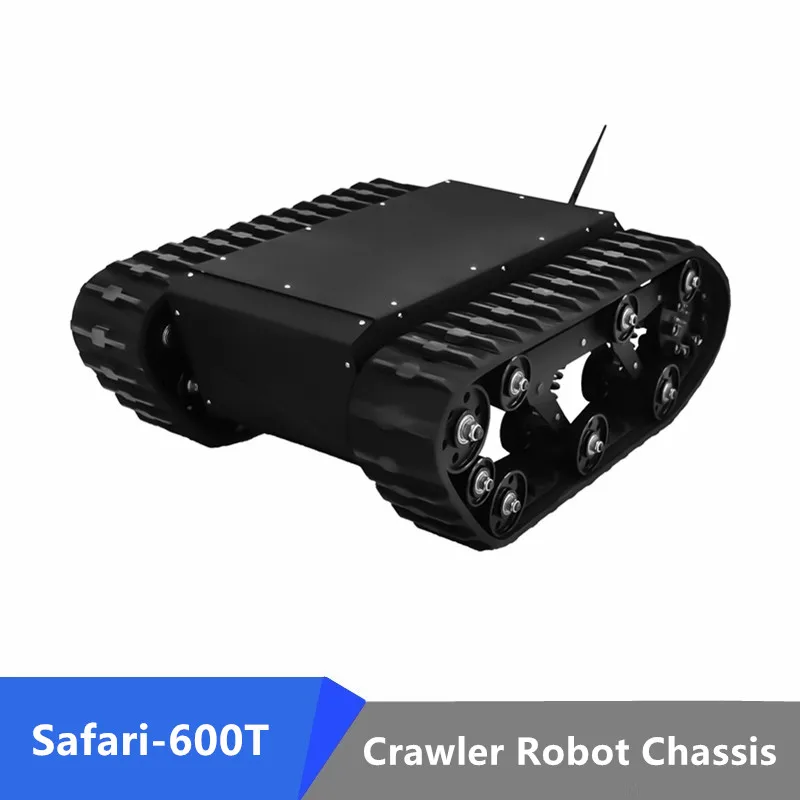

Safari-600T

Best among other chassis of the excellent level and striving to pursue higher passage and cross-country capacity. It can go any place where it is needed while loading equipment can weight up to 80KG.

Equipped with Christie suspension.The product can adapt itself to heavy load and vibration reduction. 6 vibration absorbers installed on the whole body with unique design of reducing vibration allows for terrain impact.

Customize a variety of advanced operation modes, provide motion control CAN BUS protocol, and support secondary development.
* Large space platform is reserved for quick building top load(sensing, industrial control, routing, camera, etc)
* Supports customized design of sensor AI profile bracket.
* Widely used for the development of special robots including but not limited to the following:
1. Patrol inspection
2. Exploration
3. Rescue
4. Special transportation

5. Mobile any possibility as long as you want

Product Features

1. Large support area, small sinking degree.
2. Suitable for soft and muddy ground.
3. Excellent cross-country.
4. Turn in place.
5. Greater traction pull.
6. 40 degree climbing ability.
7. Able to climb slopes, stairs & surmounting obstacles.
8. Stainless steel vehicle , solid & durable.
9. Heavy load duty 80kgs.

Parameters

Model	Safari 600T
Dimensions	1020760360mm
Self Weight	135KGS
Load Weight	80KGS
Rated Torque	60NM
Body Material	Carbon Steel
Max Angle of climbing	35 Degrees
Operating Speed	0~1.4m/s
Track Material	Quality Rubber embed with with Kevlar fiber
Suspension System	Christie suspension
Vibration Reduction	6 Independent vibration absorbers on both sides
Protection Grade	IP54(Optional IP67)
Motor	48V DC Brushless motor
（Parameters are for reference only, please consult for the latest parameters.）
