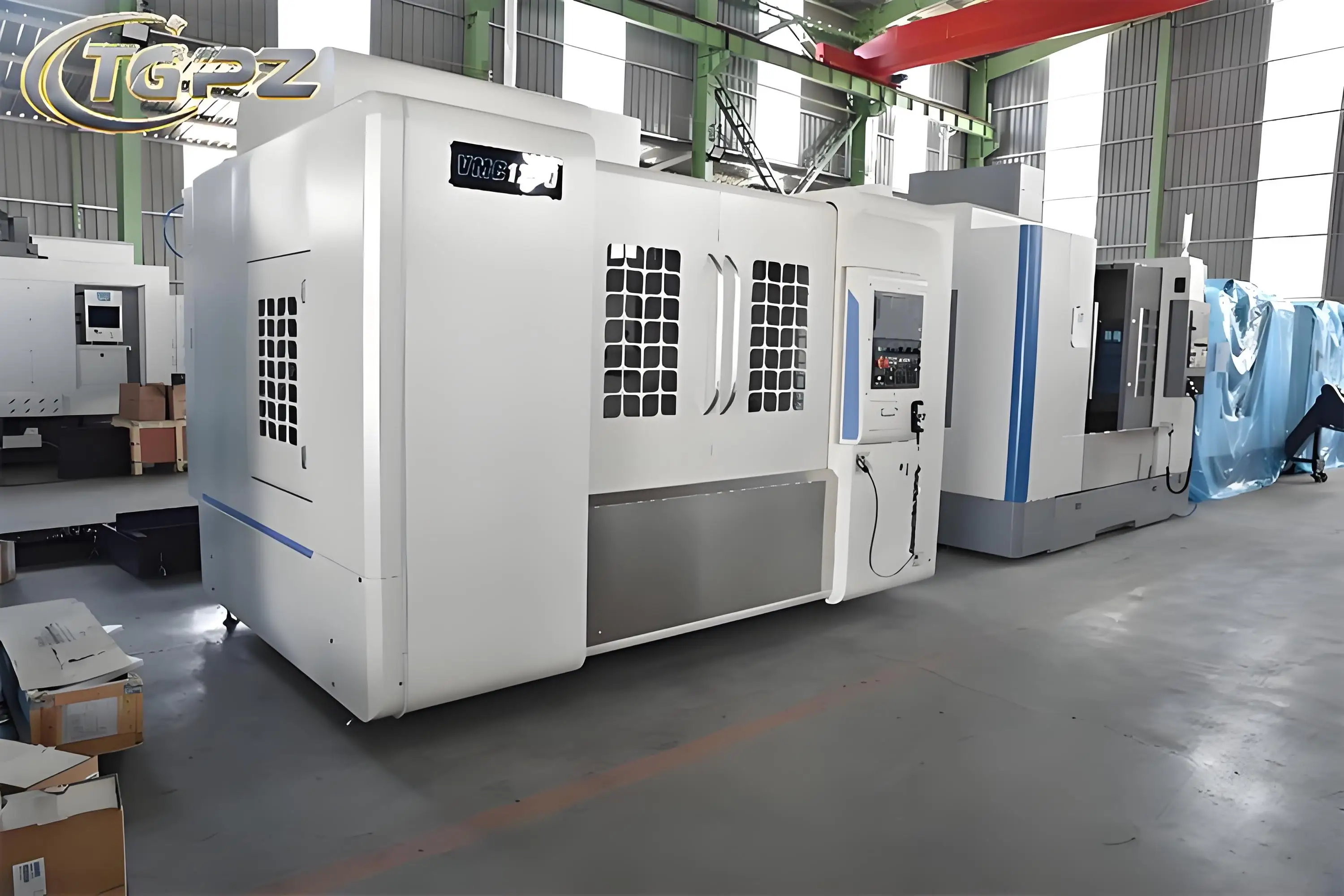

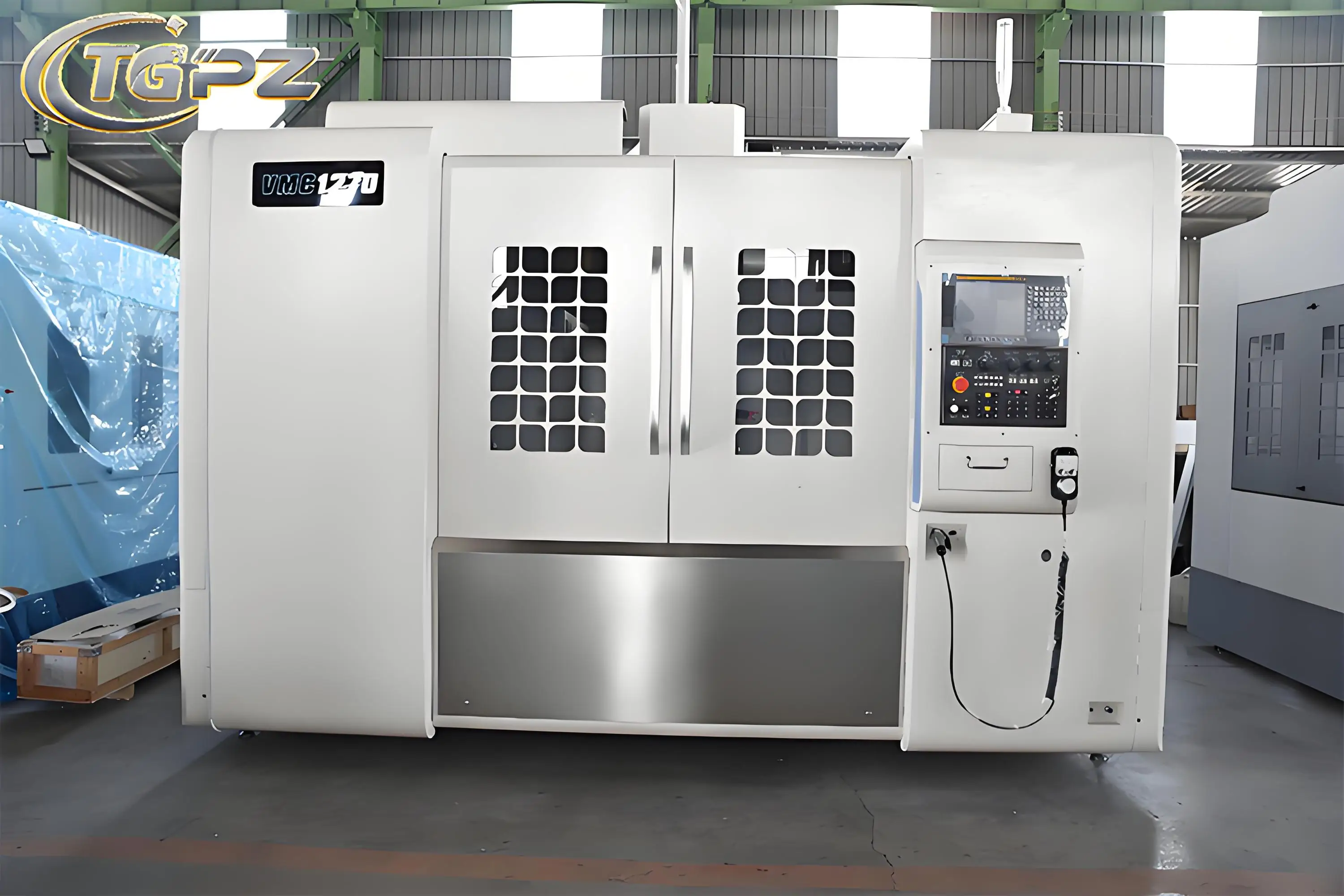

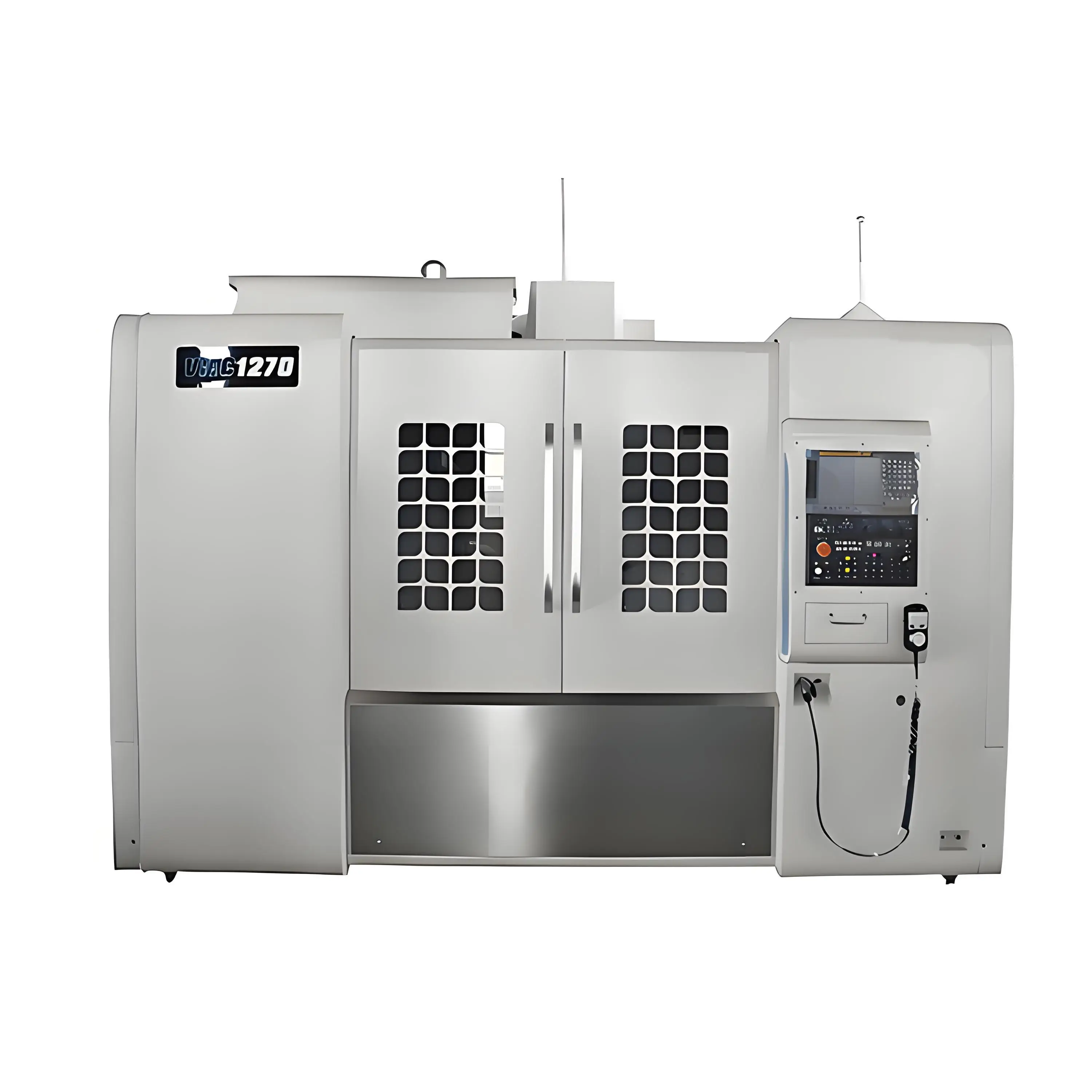

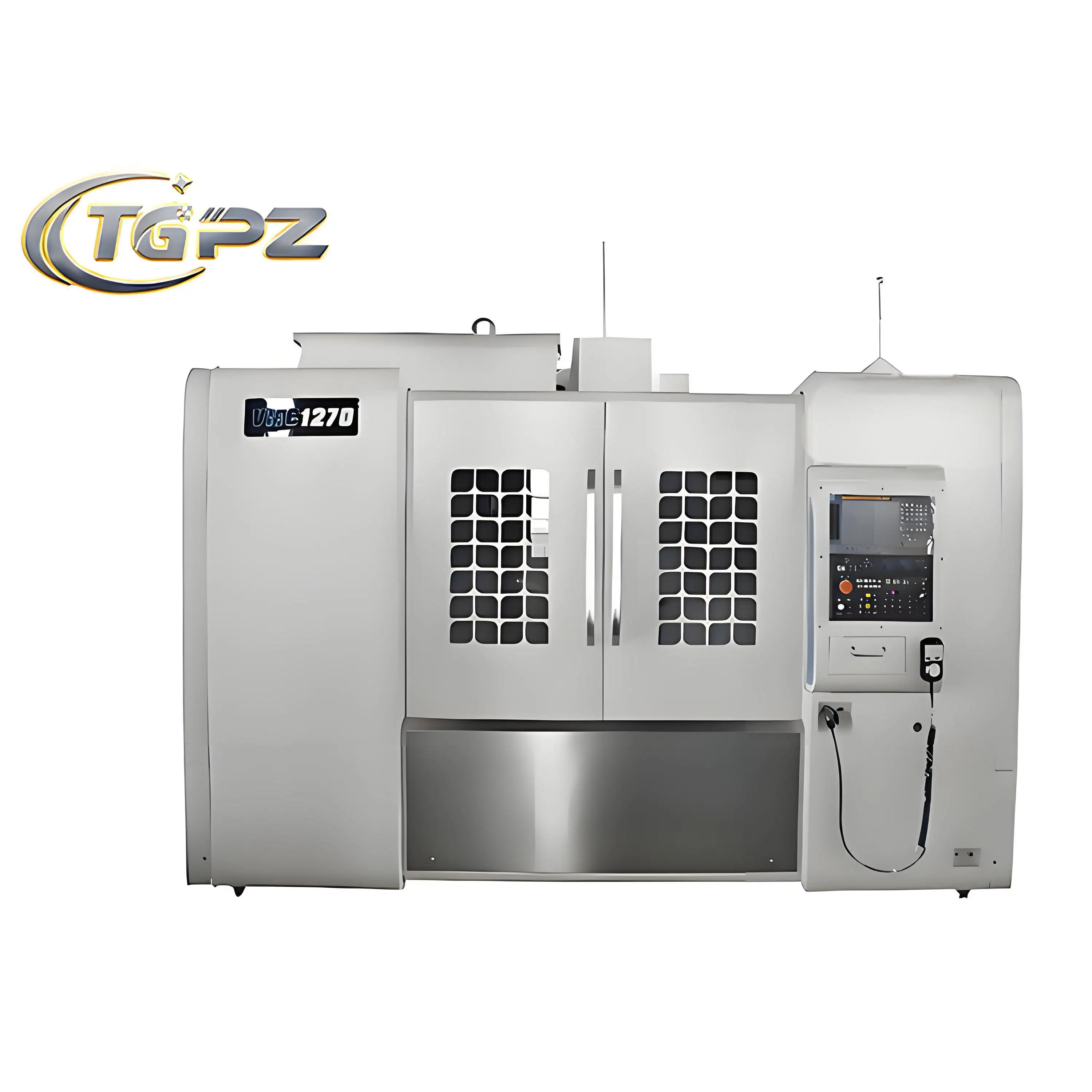

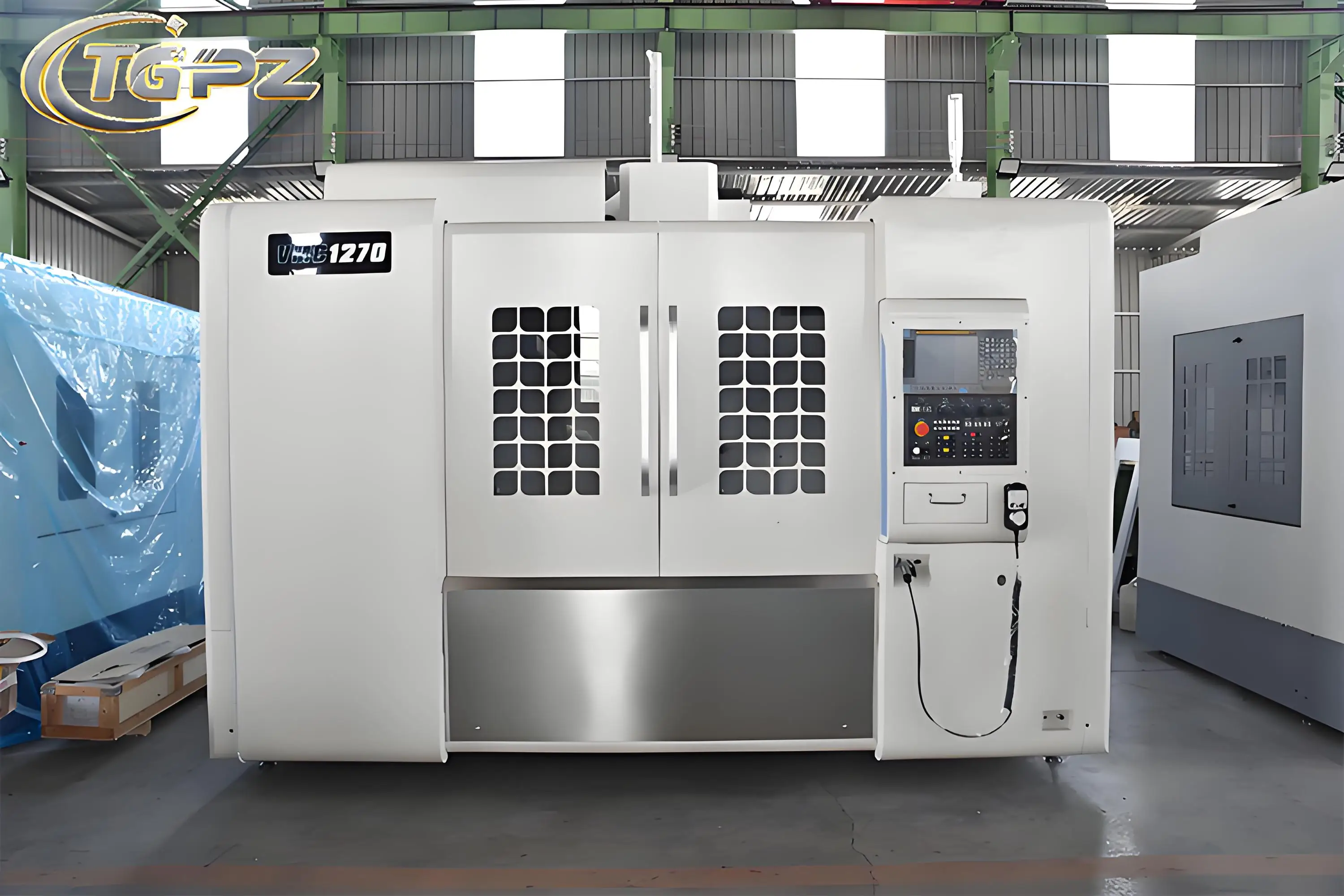

Прецизионный VMC855 вертикальный обрабатывающий центр с ЧПУ 3-осевой 5-осевой связью одним шпинделем BT40
2 205 949,20-2 239 886,88 ₽
Сохранить в закладки 1601358082521:
model | VMC1270 | ||
X axis | 1200mm | ||
Y-axis | 700mm | ||
Z-axis | 600mm | ||
Work surface size | 1300x700mm | ||
Maximum weight | 900kg | ||
Taper specification | BT40 | ||
Belt spindle speed (direct connection) | 8000 (12000) rpm | ||
Spindle motor | 11/15kw | ||
X, Y axis fast moving speed | 20m/min | ||
Z-axis fast moving speed | 18m/min | ||
Cutting feed rate | 1-10000mm/min | ||
Positioning accuracy | ±0.005mm | ||
Repeated positioning accuracy | ±0.003mm | ||
Overall dimensions of the machine (depth × about × height) | 3700x2750x2800mm | ||
The net weight of the machine | 7500Kg |
serial number | names | specifications | the number | remark |
1 | Adjustable pad iron and bolt | Homemade part | 8 sets |
Q1. How to get a quotation? We need some time to calculate and also need specific information from you.Information required for quotation will be different among the different types of items. Such as: a. Which process and product type. b. Material and Size. c. Order quantity. |
Q2 How to get a sample? If you need samples, please communicate with us |
Q3:Are you manufacturer ? we are a professional manufacturer, provide OEM ODM |
Q4. What is the payment method? Our payment term is T/T 30% in advance ,70% after get the copy of B/L .In addition ,L/C at sight,D/P at sight is also negotiable which depends on the quantity and specific requirement. |
